2012 Honda Ridgeline Owners Manual

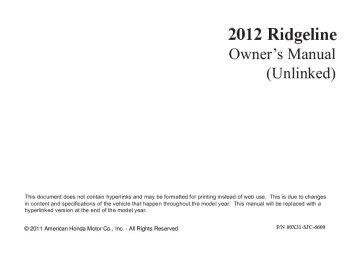

2012 Ridgeline Owner’s Manual (Unlinked)

This document does not contain hyperlinks and may be formatted for printing instead of web use. This is due to changes in content and specifications of the vehicle that happen throughout the model year. This manual will be replaced with a hyperlinked version at the end of the model year.

© 2011 American Honda Motor Co., Inc. - All Rights Reserved

P/N 00X31-SJC-

6600

11/09/14 17:31:44 31SJC660_001

Owner’s Identification

OWNER

ADDRESS

STREET

CITY

STATE/PROVINCE/TERRITORY

V. I. N.

DELIVERY DATE

DEALER NAME

ADDRESS

(Date sold to original retail purchaser)

DEALER NO.

STREET

ZIP CODE/

POSTAL CODE

CITY

STATE/PROVINCE/TERRITORY

OWNER’S SIGNATURE

DEALER’S SIGNATURE

ZIP CODE/

POSTAL CODE

This owner’s manual should be considered a permanent part of the vehicle and should remain with the vehicle when it is sold.

This owner’s manual covers all models of the Ridgeline. You may find descriptions of equipment and features that are not on your particular model.

Images throughout this owner’s manual (including the front cover) represent features and equipment that are available on some, but not all, models. Your particular model may not have some of these features.

The information and specifications included in this publication were in effect at the time of approval for printing. Honda Motor Co., Ltd. reserves the right, however, to discontinue or change specifications or design at any time without notice and without incurring any obligation whatsoever.

POUR CLIENTS CANADIEN AVIS IMPORTANT: Si vous avez besoin d’un Manuel du Conducteur en français, veuillez demander à votre concessionnaire de commander le numéro de pièce 33SJCC60

11/09/14 17:31:49 31SJC660_002

Congratulations! Your selection of a 2012 Honda Ridgeline was a wise investment. It will give you years of driving pleasure.

One of the best ways to enhance the enjoyment of your new vehicle is to read this manual. In it, you will learn how to operate its driving controls and convenience items. Afterwards, keep this owner’s manual in your vehicle so you can refer to it at any time.

Several warranties protect your new vehicle. Read the warranty booklet thoroughly so you understand the coverages and are aware of your rights and responsibilities.

Introduction

As you read this manual, you will find information that is preceded by information is intended to help you avoid damage to your vehicle, other property, or the environment.

symbol. This

Maintaining your vehicle according to the Maintenance Minder the instrument panel helps to keep your driving trouble-free while it preserves your investment. When your vehicle needs maintenance, keep in mind that your dealer’s staff is specially trained in servicing the many systems unique to your vehicle. Your dealer is dedicated to your satisfaction and will be pleased to answer any questions and concerns.

shown in

TM

11/09/14 17:31:57 31SJC660_003

Introduction

Event Data Recorders This vehicle is equipped with an event data recorder (EDR). The main purpose of an EDR is to record, in certain crash or near crash-like situations, such as an air bag deployment or hitting a road obstacle, data that will assist in understanding how a vehicle’s systems performed. The EDR is designed to record data related to vehicle dynamics and safety systems for a short period of time, typically 30 seconds or less. The EDR in this vehicle is designed to record such data as:

How various systems in your vehicle were operating; Whether or not the driver and passenger safety belts were buckled/fastened; How far (if at all) the driver was depressing the accelerator and/or brake pedal; and, How fast the vehicle was traveling.

These data can help provide a better understanding of the circumstances in which crashes and injuries occur. NOTE: EDR data are recorded by your vehicle only if a non-trivial crash situation occurs; no data are recorded by the EDR under normal driving conditions and no personal data (e.g., name, gender, age, and crash location) are recorded. However, other parties, such as law enforcement, could combine the EDR data with the type of personally identifying data routinely acquired during a crash investigation.

To read data recorded by an EDR, special equipment is required, and access to the vehicle or the EDR is needed. In addition to the vehicle manufacturer, other parties, such as law enforcement, that have the special equipment, can read the information if they have access to the vehicle or the EDR.

The data belongs to the vehicle owner and may not be accessed by anyone else except as legally required or with the permission of the vehicle owner.

ii

11/09/14 17:32:01 31SJC660_004

Introduction

California Proposition 65 Warning

WARNING: defects or other reproductive harm.

This product contains or emits chemicals known to the State of California to cause cancer and birth

Service Diagnostic Recorders This vehicle is equipped with service-related devices that record information about powertrain performance. The data can be used to verify emissions law requirements and/or help technicians diagnose and solve service problems. It may also be combined with data from other sources for research purposes, but it remains confidential.

California Perchlorate Contamination Prevention Act The airbags, seat belt tensioners, and CR type batteries in this vehicle may contain perchlorate materials handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate/

−

special

iii

11/09/14 17:32:10 31SJC660_005

A Few Words About Safety

Your safety, and the safety of others, is very important. And operating this vehicle safely is an important responsibility.

To help you make informed decisions about safety, we have provided operating procedures and other information on labels and in this manual. This information alerts you to potential hazards that could hurt you or others.

Of course, it is not practical or possible to warn you about all the hazards associated with operating or maintaining your vehicle. You must use your own good judgement.

iv

You will find this important safety information in a variety of forms, including:

Safety Labels − Safety Messages

on the vehicle. − three signal words: These signal words mean:

preceded by a safety alert symbol DANGER WARNING

, or

CAUTION

and one of

You WILL be KILLED or SERIOUSLY HURT if you don’t follow instructions.

You CAN be KILLED or SERIOUSLY HURT if you don’t follow instructions.

You CAN be HURT if you don’t follow instructions.

Safety Headings

− Safety Precautions.

such as Important Safety Reminders or Important

Safety Section Instructions −

such as Driver and Passenger Safety.

− how to use this vehicle correctly and safely.

This entire book is filled with important safety information carefully.

−

please read it

11/09/14 17:32:15 31SJC660_006

Important Handling Information

Your vehicle has higher ground clearance than a passenger vehicle designed for use only on pavement. Higher ground clearance has many advantages for off-highway driving. It allows you to travel over bumps, obstacles, and rough terrain. It also provides good visibility so you can anticipate problems earlier. Your vehicle also has a relatively short wheelbase, allowing it to respond quicker to the steering wheel than other vehicles with a longer wheelbase.

In addition to these characteristics, your vehicle’s pickup bed area allows you to carry more cargo and has the dual- action tailgate to handle the items easily.

These advantages come at some cost. Because your vehicle is taller and rides higher off the ground, it has a high center of gravity. This means your vehicle can tip or roll over if you make abrupt turns. Utility vehicles have a significantly higher rollover rate than other types of vehicles. In a rollover crash, an unbelted person is significantly more likely to die than a person wearing a seat belt. As a reminder, make sure you and your passengers always wear seat belts.

Overloading or improperly loading cargo could affect your handling and the vehicle’s stability, and could result in a crash. Make sure the cargo is properly loaded and all items are secured in the pickup bed area.

For information on how to reduce the risk of rollover, read ‘‘Driving Guidelines’’ on page Off-HighwayDrivingGuidelines control, a crash, or rollover.

section on page

308

. Failure to operate your vehicle correctly might result in loss of

270

of this manual and the

11/09/14 17:32:17 31SJC660_007

11/09/14 17:32:25 31SJC660_008

Contents

Your Vehicle at a Glance

(main controls)

...............................................................................................

. 3

Driver and Passenger Safety

(seat belts, SRS, and child protection)

............................................................

. 5

Instruments and Controls

(indicators, gauges, multi-information display, dashboard, and steering column)

.......

. 59

Features

climate control, audio, steering wheel, security, cruise control, HomeLink , and other convenience items

..............

. 145

Before Driving

(fuel, vehicle break-in, and cargo loading)

.......................................................................

. 247

Driving

(engine and transmission operation)

.........................................................................................

. 269

Maintenance

(minder, fluid checking, minor services, and vehicle storage)

.................................................

. 313

Taking Care of the Unexpected

(flat tire, jump starting, overheating, and fuses)

........................................

. 361

Technical Information

(vehicle specifications, tires, and emissions controls)

..............................................

. 387

Warranty and Customer Relations (U.S. and Canada only)

(warranty and contact information)

..................

. 405

Authorized Manuals (U.S. only)

(how to order)

..................................................................................

. 409

Index

................................................................................................................................................

. I

Service Information Summary

(fluid capacities and tire pressures)

..................................................

. last page

11/09/14 17:32:41 31SJC660_009

Overview of Contents

Contents A convenient reference to the sections in this manual.

Your Vehicle at a Glance A quick reference to the main controls in your vehicle.

Driver and Passenger Safety Important information about the proper use and care of your vehicle’s seat belts, an overview of the supplemental restraint system, and valuable information on how to protect children with child restraints.

Instruments and Controls Explains the purpose of each instrument panel indicator and gauge, and how to use the controls on the dashboard and steering column.

Features How to operate the heating and air conditioning system, the audio system, and other convenience features.

Before Driving What gasoline to use, how to break- in your new vehicle, and how to load luggage and other cargo.

Driving The proper way to start the engine, shift the transmission, and park; plus what you need to know if you’re planning to tow a trailer.

TM

shows

Maintenance The Maintenance Minder you when you need to take your vehicle to the dealer for maintenance service. There is also a list of things to check and instructions on how to check them.

Taking Care of the Unexpected This section covers several problems motorists sometimes experience, and details how to handle them.

Technical Information ID numbers, dimensions, capacities, and technical information.

Warranty and Customer Relations (U.S. and Canada only) A summary of the warranties covering your new vehicle, and how to contact us for any reason. Refer to your warranty manual for detailed information.

Authorized Manuals (U.S. only) How to order manuals and other technical literature.

Index

Service Information Summary A summary of the information you need when you pull up to the fuel pump.

11/09/19 18:03:18 31SJC660_010

INSTRUMENT PANEL INDICATORS GAUGES

(P.76)

(P.62)

DRIVER’S FRONT AIRBAG(P.9, 25)

REARVIEW MIRROR WITH COMPASS ＊

(P.213)

PASSENGER’S FRONT AIRBAG

(P.9, 25)

Your Vehicle at a Glance

PARKING BRAKE RELEASE HANDLE (P.132)

MIRROR CONTROLS (P.134) POWER DOOR LOCK MASTER SWITCH (P.103)

POWER WINDOW SWITCHES (P.128)

HOOD RELEASE HANDLE (P.254)

FUEL FILL DOOR RELEASE HANDLE (P.250)

AUDIO SYSTEM (P.159)

AUXILIARY INPUT JACK ＊ (P.205)

HEATING/COOLING (P.146) CONTROLS CLIMATE CONTROL SYSTEM

(P.152)

GLOVE BOX (P.138)

PARKING BRAKE PEDAL (P.132)

CENTER CONSOLE (P.136)

ACCESSORY POWER SOCKETS (P.139)

Vehicle with navigation system is shown.

＊

: If equipped

CONTINUED

11/09/19 18:03:28 31SJC660_011

Your Vehicle at a Glance

INSTRUMENT PANEL BRIGHTNESS (P.98) MOONROOF SWITCH ＊ (P.131) MULTI-CONTROL LEVER (WINDSHIELD WIPERS/ WASHERS/TURN SIGNALS/ HEADLIGHT HIGH BEAMS) (P.94)

REMOTE AUDIO CONTROLS ＊ (P.203) HEADLIGHT CONTROL DIAL (P.95)

FOG LIGHTS ＊ (P.97) VEHICLE STABILITY ASSIST (VSA) OFF SWITCH (P.294)

TRIP/RESET BUTTON ＊ (P.76)

SELECT BUTTON ＊

(P.76)

SHIFT LEVER (P.273) VTM-4 LOCK (P.278)

▲

) BUTTON ＊

INFO ( (P.76) SEL/RESET BUTTON ＊ (P.76) INFO ( (P.76)

) BUTTON

▼

＊

PASSENGER AIRBAG OFF INDICATOR

(P.31)

HAZARD WARNING BUTTON (P.99)

CRUISE CONTROLS (P.210) INTERIOR LIGHT CONTROL SWITCH

(P.142)

BED LIGHT SWITCH

(P.144)

VOICE CONTROL BUTTONS ＊

Vehicle with navigation system is shown.

BLUETOOTH HANDSFREELINK SYSTEM VOICE CONTROL BUTTONS ＊ (P.221)

SEAT HEATERS (P.126)

＊

HORN ＊ STEERING WHEEL ADJUSTMENT

(P.99)

To use the horn, press the center pad of the steering wheel. If equipped Only on vehicles equipped with navigation system. Refer to the navigation system manual. On models with navigation system. On models without navigation system.

1 : 2 : 3 : 4 : 5 :

＊ ＊ ＊ ＊ ＊

11/09/14 17:33:03 31SJC660_012

This section gives you important information about how to protect yourself and your passengers. It shows you how to use seat belts. It explains how your airbags work. And it tells you how to properly restrain infants and children in your vehicle.

Seat Belts Airbags

Protecting Adults and Teens

Important Safety Precautions Your Vehicle’s Safety Features

......... ....... ....................................... ........................................... ......... ..... ........... ............ ...

1. Close and Lock the Doors 2. Adjust the Front Seats 3. Adjust the Seat-Backs 4. Adjust the Head Restraints 5. Fasten and Position the

. 6
. 7
. 8
. 9
. 11
. 11
. 13
. 14
. 15

Seat Belts

.............................

. 16

6. Maintain a Proper Sitting

Position

. 17
. 18
Advice for Pregnant Women Additional Safety Precautions . 19

................................ ..... ...

Seat Belts

Additional Information About Your ................................. . 20
.. Seat Belt System Components . 20
Lap/Shoulder Belt ...................... . 21
Automatic Seat Belt

Tensioners

Seat Belt Maintenance

Additional Information About

............................... ...............

. 22
. 22

Your Airbags

........................... ......

. 23
. 23

Airbag System Components How Your Front Airbags

Work

Work

. 25
......................................... How Your Side Airbags Work . 28
... How your Side Curtain Airbags ......................................... . 30
How the SRS Indicator Works . 30
.. How the Side Airbag Off

Indicator Works

...................... How the Passenger Airbag Off ...................... ............................. ...

. 31
Airbag Service . 32
Additional Safety Precautions . 33

Indicator Works

. 31

Protecting Children General

−

Guidelines

................................

. 34

All Children Must Be

Restrained

...............................

. 34

Driver and Passenger Safety

All Children Should Sit in a

Back Seat

................................. The Passenger’s Front Airbag ......... If You Must Drive with Several ...................................

Can Pose Serious Risks

Children

If a Child Requires Close

. 35

. 35

. 37

Attention

. 37
Additional Safety Precautions . 38

.................................. ...

Protecting Infants and Small

Children

Selecting a Child Seat Installing a Child Seat

. 39
. 39
. 40
. 41
. 42
. 43
. 46
. 48
. 51
. 51
. 52

Protecting Infants Protecting Small Children

With LATCH With a Lap/Shoulder Belt With a Tether

................................... ....................... ......... ..................... .................... ............................... ......... .............................. ........... Checking Seat Belt Fit ............... Using a Booster Seat .................. When Can a Larger Child Sit in ......................................... ... ............. ...................................

. 53
Additional Safety Precautions . 54
. 55
. 56

Carbon Monoxide Hazard Safety Labels

Protecting Larger Children

Front

11/09/14 17:33:14 31SJC660_013

Important Safety Precautions

You’ll find many safety recommendations throughout this section, and throughout this manual. The recommendations on this page are the ones we consider to be the most important.

Always Wear Your Seat Belt A seat belt is your best protection in all types of collisions. Airbags are designed to supplement seat belts, not replace them. So even though your vehicle is equipped with airbags, make sure you and your passengers always wear your seat belts, and wear them properly (see page 16

).

Restrain All Children Children age 12 and under should ride properly restrained in a back seat, not the front seat. Infants and small children should be restrained in a child seat. Larger children should use a booster seat and a lap/ shoulder belt until they can use the belt properly without a booster seat

(see pages

34

−

54

).

Be Aware of Airbag Hazards While airbags can save lives, they can cause serious or fatal injuries to occupants who sit too close to them, or are not properly restrained. Infants, young children, and short adults are at the greatest risk. Be sure to follow all instructions and warnings in this manual.

Don’t Drink and Drive Alcohol and driving don’t mix. Even one drink can reduce your ability to respond to changing conditions, and your reaction time gets worse with every additional drink. So don’t drink and drive, and don’t let your friends drink and drive, either.

Pay Appropriate Attention to the Task of Driving Safely Engaging in mobile phone conversation or other activities that keep you from paying close attention

to the road, other vehicles and pedestrians could lead to a crash. Remember, situations can change quickly, and only you can decide when it is safe to divert attention away from driving.

Control Your Speed Excessive speed is a major factor in crash injuries and deaths. Generally, the higher the speed, the greater the risk, but serious injuries can also occur at lower speeds. Never drive faster than is safe for current conditions, regardless of the maximum speed posted.

Keep Your Vehicle in Safe Condition Having a tire blowout or a mechanical failure can be extremely hazardous. To reduce the possibility of such problems, check your tire pressures and condition frequently, and perform all regularly scheduled maintenance (see page

315

).

11/09/14 17:33:21 31SJC660_014

(8)

(6)

(9)

(12)

(3)

(10)

(7)

(9)

(4)

(7)

(8)

(10)

(11)

(5)

(2)

(1)

(2)

(1) Safety Cage (2) Crush Zones (3) Seats and Seat-Backs (4) Head Restraints (5) Collapsible Steering Column (6) Seat Belts (7) Front Airbags (8) Side Airbags (9) Side Curtain Airbags (10) Door Locks (11) Automatic Seat Belt Tensioners (12) Occupant Position Detection

System (OPDS) Sensors

Your Vehicle’s Safety Features

Your vehicle is equipped with many features that work together to protect you and your passengers during a crash.

Some features do not require any action on your part. These include a strong steel framework that forms a safety cage around the passenger compartment, front and rear crush zones, a collapsible steering column, and tensioners that tighten the front seat belts in a crash.

However, you and your passengers can’t take full advantage of these features unless you remain sitting in the correct position and alwayswear . In fact, some safety yourseatbelts features can contribute to injuries if they are not used properly.

The following pages explain how you can take an active role in protecting yourself and your passengers.

11/09/14 17:33:30 31SJC660_015

Your Vehicle’s Safety Features

Seat Belts Your vehicle is equipped with seat belts in all seating positions.

The pickup bed is not equipped with seats or seat belts. Do not let anyone ride in the pickup bed as they can easily be thrown out and be killed or seriously injured.

Your seat belt system also includes an indicator on the instrument panel and a beeper to remind you and your passengers to fasten your seat belts.

WhyWearSeatBelts Seat belts are the single most effective safety device for adults and larger children. (Infants and smaller children must be properly restrained in child seats.)

Not wearing a seat belt properly increases the chance of serious injury or death in a crash, even though your vehicle has airbags.

In addition, most states and all Canadian provinces and territories require you to wear seat belts.

Allowing passengers to ride in the pickup bed or on the tailgate can result in death or serious injury in a crash.

Make sure all passengers ride in a seat and wear a seat belt properly.

Not wearing a seat belt properly increases the chance of serious injury or death in a crash, even though your vehicle has airbags.

Be sure you and your passengers always wear seat belts and wear them properly.

When properly worn, seat belts:

Keep you connected to the vehicle so you can take advantage of the vehicle’s built-in safety features.

Help protect you in almost every type of crash, including: − − − −

frontal impacts side impacts rear impacts rollovers

11/09/14 17:33:38 31SJC660_016

Help keep you from being thrown against the inside of the vehicle and against other occupants.

Keep you from being thrown out of the vehicle.

Help keep you in a good position should the airbags ever deploy. A good position reduces the risk of injury from an inflating airbag and allows you to get the best advantage from the airbag.

Of course, seat belts cannot completely protect you in every crash. But in most cases, seat belts can reduce your risk of serious injury.

Always wear Whatyoushoulddo: your seat belt, and make sure you wear it properly.

Your Vehicle’s Safety Features

Airbags

Your vehicle has a supplemental restraint system (SRS) with front airbags to help protect the heads and chests of the driver and a front seat passenger during a moderate to severe frontal collision (see page for more information on how 25
your front airbags work).

Your vehicle also has side airbags to help protect the upper torso of the driver or a front seat passenger during a moderate to severe side impact (see page information on how your side airbags work).

for more

28

CONTINUED

11/09/14 17:33:46 31SJC660_017

Your Vehicle’s Safety Features

The most important things you need to know about your airbags are:

Airbagsdonotreplaceseatbelts. They are designed to supplement the seat belts.

Airbagsoffernoprotectioninrear collisions,orminorfrontalorside collisions.

Airbagscanposeserioushazards. To do their job, airbags must inflate with tremendous force. So while airbags help save lives, they can cause minor injuries or more serious or even fatal injuries if occupants are not properly restrained or sitting properly.

Always wear

Whatyoushoulddo: your seat belt properly, and sit upright and as far back from the steering wheel as possible while allowing full control of the vehicle. A front passenger should move their seat as far back from the dashboard as possible.

The rest of this section gives more detailed information about how you can maximize your safety.

Remember, however, that no safety system can prevent all injuries or deaths that can occur in a severe crash, even when seat belts are properly worn and the airbags deploy.

In addition, your vehicle has side curtain airbags to help protect the heads of the driver, front passenger, and passengers in the outer rear seating positions during a moderate to severe side impact or rollover (see page for more information on how your side curtain airbags work).

30

10

11/09/14 17:33:56 31SJC660_018

Introduction The following pages provide instructions on how to properly protect the driver, adult passengers, and teenage children who are large enough and mature enough to drive or ride in the front.

−

54

34

for important

See pages guidelines on how to properly protect infants, small children, and larger children who ride in your vehicle.

Close and Lock the Doors 1. After everyone has entered the vehicle, be sure the doors are closed and locked. Before driving, be sure the tailgate is also closed.

Your vehicle has a door and tailgate open indicator on

the instrument panel to indicate when any door or the tailgate is not tightly closed.

Your vehicle also has an In-Bed Trunk open

indicator to show when the In-Bed Trunk lid is not tightly closed (see page

75

).

Onmodelswithoutnavigationsystem

Your vehicle also has a tailgate and door open

indicator on the information display to indicate when the tailgate or a specific door is not tightly closed. You will see the appropriate indicator(s) for each condition.

Protecting Adults and Teens

Onmodelswithnavigationsystem Your vehicle also has a tailgate, In- Bed Trunk, and door open indicator on the multi-information display to indicate when the tailgate, the In- Bed Trunk, or a specific door is not tightly closed. You will see the appropriate indicator(s) and message(s) for each condition.

You will also hear a beep when you turn the ignition switch to the ON (II) position, and each time you open any door, the tailgate, or the In-Bed Trunk with the key in the ON (II) position.

CONTINUED

11

11/09/14 17:34:02 31SJC660_019

Protecting Adults and Teens

When one or more doors are open, the ‘‘DOOR OPEN’’ message will come on.

When the In-Bed Trunk is not tightly closed, the ‘‘TRUNK OPEN’’ message will come on.

When the tailgate is not tightly closed, the ‘‘TAILGATE OPEN’’ message will come on.

12

11/09/14 17:34:08 31SJC660_020

Locking the doors reduces the chance of someone being thrown out of the vehicle during a crash, and it helps prevent passengers from accidentally opening a door and falling out.

Locking the doors also helps prevent an outsider from unexpectedly opening a door when you come to a stop.

This vehicle has auto door locking/ unlocking features. See page for how to set them.

104

When the In-Bed Trunk, tailgate, and one or more doors are not tightly closed, the ‘‘DOOR, TRUNK & TAILGATE OPEN’’ message will come on.

Protecting Adults and Teens

2.

Adjust the Front Seats

Adjust the driver’s seat as far to the rear as possible while allowing you to maintain full control of the vehicle. Have a front passenger adjust their seat as far to the rear as possible.

CONTINUED

13

11/09/19 18:03:35 31SJC660_021

Protecting Adults and Teens

If you sit too close to the steering wheel or dashboard, you can be seriously injured by an inflating front airbag, or by striking the steering wheel or dashboard.

The National Highway Traffic Safety Administration and Transport Canada recommend that drivers allow at least 10 inches (25 cm) between the center of the steering wheel and the chest. In addition to adjusting the seat, you can adjust the steering wheel up and down (see page

99

).

If you cannot get far enough away from the steering wheel and still reach the controls, we recommend that you investigate whether some type of adaptive equipment may help.

14

Sitting too close to a front airbag can result in serious injury or death if the front airbags inflate.

Always sit as far back from the front airbags as possible.

OnRT,DX,VP,andSportmodels Once your seat is adjusted correctly, rock it back and forth to make sure it is locked into position. See page 119

for how to adjust the front seats.

3.

Adjust the Seat-Backs

Adjust the driver’s seat-back to a comfortable, upright position, leaving ample space between your chest and the airbag cover in the center of the steering wheel.

Passengers with adjustable seat- backs should also adjust their seat- back to a comfortable, upright position.

11/09/14 17:34:24 31SJC660_022

Reclining the seat-back too far can result in serious injury or death in a crash.

Adjust the seat-back to an upright position, and sit well back in the seat.

Reclining a seat-back so that the shoulder part of the belt no longer rests against the occupant’s chest reduces the protective capability of the belt. It also increases the chance of sliding under the belt in a crash and being seriously injured. The farther a seat-back is reclined, the greater the risk of injury.

120

See page for how to adjust the manual adjustable seat-back, and page for the power adjustable 121
seat-back.

4.

Adjust the Head Restraints

Adjust the driver’s head restraint so the center of the back of your head rests against the center of the restraint.

Have passengers adjust their head restraints properly as well. Taller persons should adjust their restraint as high as possible.

Protecting Adults and Teens

When a passenger is seated in the rear center seating position, make sure the center head restraint is adjusted to its highest position.

Improperly positioning head restraints reduces their effectiveness and you can be seriously injured in a crash.

Make sure head restraints are in place and positioned properly before driving.

Properly adjusted head restraints will help protect occupants from whiplash and other crash injuries.

123

for how to adjust the

See page head restraints and how the driver’s and front passenger’s active head restraints work.

15

11/09/14 17:34:30 31SJC660_023

Protecting Adults and Teens

5.

Fasten and Position the Seat Belts

Insert the latch plate into the buckle, then tug on the belt to make sure the belt is securely latched. Check that the belt is not twisted, because a twisted belt can cause serious injuries in a crash.

16

If necessary, pull up on the belt again to remove any slack, then check that the belt rests across the center of your chest and over your shoulder.

This spreads the forces of a crash over the strongest bones in your upper body.

Improperly positioning the seat belts can cause serious injury or death in a crash.

Make sure all seat belts are properly positioned before driving.

If the seat belt touches or crosses your neck, or if it crosses your arm instead of your shoulder, you need to adjust the seat belt anchor height.

Position the lap part of the belt as low as possible across your hips, then pull up on the shoulder part of the belt so the lap part fits snugly. This lets your strong pelvic bones take the force of a crash and reduces the chance of internal injuries.

11/09/14 17:34:38 31SJC660_024

Protecting Adults and Teens

RELEASE BUTTONS

Neverplacetheshoulderportionofa lap/shoulderbeltunderyourarmor behindyourback. very serious injuries in a crash.

This could cause

If a seat belt does not seem to work properly, it may not protect the occupant in a crash.

Nooneshouldsitinaseatwithan Using a seat inoperativeseatbelt. belt that is not working properly can result in serious injury or death. Have your dealer check the belt as soon as possible.

20

for additional

See page information about your seat belts and how to take care of them.

The front seats have adjustable seat belt anchors. To adjust the height of an anchor, squeeze the two release buttons, and slide the anchor up or down as needed (it has four positions).

6.

Maintain a Proper Sitting Position

After all occupants have adjusted their seats and head restraints, and put on their seat belts, it is very important that they continue to sit upright, well back in their seats, with their feet on the floor, until the vehicle is safely parked and the engine is off.

Sitting improperly can increase the chance of injury during a crash. For example, if an occupant slouches, lies down, turns sideways, sits forward, leans forward or sideways, or puts one or both feet up, the chance of injury during a crash is greatly increased.

CONTINUED

17

11/09/14 17:34:44 31SJC660_025

Protecting Adults and Teens

In addition, an occupant who is out of position in the front seat can be seriously or fatally injured in a crash by striking interior parts of the vehicle or being struck by an inflating front airbag.

Sitting improperly or out of position can result in serious injury or death in a crash.

Always sit upright, well back in the seat, with your feet on the floor.

18

Advice for Pregnant Women

If you are pregnant, the best way to protect yourself and your unborn child when driving or riding in a vehicle is to always wear a seat belt, and keep the lap part of the belt as low as possible across the hips.

When driving, remember to sit upright and adjust the seat as far back as possible while allowing full control of the vehicle. When riding as a front passenger, adjust the seat as far back as possible.

This will reduce the risk of injuries to both you and your unborn child that can be caused by a crash or an inflating front airbag.

Each time you have a checkup, ask your doctor if it’s okay for you to drive.

11/09/14 17:34:53 31SJC660_026

Additional Safety Precautions

Neverletpassengersrideinthe areainfrontofafolded-uprear seat. seriously injured in a crash.

If they do, they could be very

Neverletpassengersrideinthe If they do, they could pickupbed. be killed or very seriously injured in a crash.

They could be

Neverletpassengersrideinsidea truckcap(shell). killed or injured in a crash, or become ill or even die from carbon monoxide poisoning if engine exhaust enters the cap.

Passengersshouldnotstandupor changeseatswhilethevehicleis A passenger who is not moving. wearing a seat belt during a crash or emergency stop can be thrown against the inside of the vehicle, against other occupants, or out of the vehicle.

Twopeopleshouldneverusethe sameseatbelt. could be very seriously injured in a crash.

If they do, they

Donotputanyaccessoriesonseat Devices intended to improve belts. occupant comfort or reposition the shoulder part of a seat belt can reduce the protective capability of the seat belt and increase the chance of serious injury in a crash.

Donotplacehardorsharpobjects betweenyourselfandafront Carrying hard or sharp airbag. objects on your lap, or driving with a pipe or other sharp object in your mouth, can result in injuries if your front airbag inflates.

Keepyourhandsandarmsaway If your fromtheairbagcovers. hands or arms are close to an airbag cover, they could be injured if the airbag inflates.

Protecting Adults and Teens

Donotattachorplaceobjectson Objects on thefrontairbagcovers. the covers marked ‘‘SRS AIRBAG’’ could interfere with the proper operation of the airbags or be propelled inside the vehicle and hurt someone if the airbags inflate.

Donotattachhardobjectsonor If a side airbag or a nearadoor. side curtain airbag inflates, a cup holder or other hard object attached on or near the door could be propelled inside the vehicle and hurt someone.

Donotcoverorreplacefrontseat- backcoverswithoutconsulting Improperly replacing yourdealer. or covering front seat-back covers can prevent your side airbags from inflating during a side impact.

19

11/09/14 17:35:02 31SJC660_027

Additional Information About Your Seat Belts

Seat Belt System Components Your seat belt system includes lap/ shoulder belts in all seating positions. The front seat belts are also equipped with automatic seat belt tensioners.

The seat belt system includes an indicator on the

instrument panel and a beeper to remind you and your passengers to fasten your seat belts.

This system monitors the front seat belts. If you turn the ignition switch to the ON (II) position before your seat belt is fastened, the beeper will sound and the indicator will flash. If your seat belt is not fastened before the beeper stops, the indicator will stop flashing but remain on.

20

If a front passenger does not fasten their seat belt, the indicator will come on about 6 seconds after the ignition switch is turned to the ON (II) position.

If either the driver or a front passenger does not fasten their seat belt while driving, the beeper will sound and the indicator will flash again at regular intervals.

Onmodelswithnavigationsystem You will also see a ‘‘FASTEN SEAT BELT’’ or ‘‘FASTEN PASSENGER SEAT BELT’’ message on the multi- information display (see page

90

).

When no one is sitting in the front passenger’s seat, or an infant or small child is riding there, the indicator may not come on and the beeper may not sound.

If the indicator comes on or the beeper sounds when the driver’s seat belt is latched and there is no front seat passenger and no items on the front seat, something may be interfering with the monitoring system. Look for and remove:

Any items under the front passenger’s seat.

Any object(s) hanging on the seat or in the seat-back pocket.

Any object on the floor that is touching the rear of the seat-back.

If no obstructions are found, have your vehicle checked by a dealer.

11/09/14 17:35:10 31SJC660_028

Lap/Shoulder Belt The lap/shoulder belt goes over your shoulder, across your chest, and across your hips.

To fasten the belt, insert the latch plate into the buckle, then tug on the belt to make sure the buckle is latched (see page for how to properly position the belt).

16

To unlock the belt, press the red PRESS button on the buckle. Guide the belt across your body so that it retracts completely. After exiting the vehicle, be sure the belt is out of the way and will not get closed in the door.

Additional Information About Your Seat Belts

All seat belts have an emergency locking retractor. In normal driving, the retractor lets you move freely in your seat while it keeps some tension on the belt. During a collision or sudden stop, the retractor automatically locks the belt to help restrain your body.

The seat belts in all positions except the driver’s have a lockable retractor that must be activated to secure a child seat (see page

46

).

If the shoulder part of the belt is pulled all the way out, the lockable retractor will activate. The belt will retract, but it will not allow the passenger to move freely.

To deactivate the lockable retractor, unlatch the buckle and let the seat belt fully retract. To refasten the seat belt, pull it out only as far as needed.

Allowing a child to play with a seat belt or wrap one around their neck can result in serious injury or death.

Instruct children not to play with any seat belt and make sure any unused seat belt a child can reach is buckled, fully retracted, and locked.

21

11/09/14 17:35:18 31SJC660_029

Additional Information About Your Seat Belts

Automatic Seat Belt Tensioners

For added protection, the front seat belts are equipped with automatic seat belt tensioners. When activated, the tensioners immediately tighten the belts to help hold the driver and a front passenger in position.

The tensioners can be activated during a collision in which the front airbags . In this case, the airbags would not be needed, but the additional restraint could be helpful.

donotdeploy

22

If the tensioner is activated, the SRS indicator comes on and the tensioner must be replaced.

Seat Belt Maintenance For safety, you should check the condition of your seat belts regularly.

Pull each belt out fully, and look for frays, cuts, burns, and wear. Check that the latches work smoothly and the belts retract easily. If a belt does not retract easily, cleaning the belt may correct the problem (see page ). Any belt that is not in good 345
condition or working properly will not provide good protection and should be replaced as soon as possible.

Honda provides a limited warranty on seat belts. See your WarrantyInformation details.

booklet for

Honda

If a seat belt is worn during a crash, you should have your dealer inspect the belt, and replace it if necessary. A belt that has been worn during a crash may not provide the same level of protection in a subsequent crash.

The dealer should also inspect the anchors for damage and replace them if needed. If the automatic seat belt tensioners activate during a crash, they must be replaced.

Not checking or maintaining seat belts can result in serious injury or death if the seat belts do not work properly when needed.

Check your seat belts regularly and have any problem corrected as soon as possible.

11/09/14 17:35:25 31SJC660_030

Airbag System Components

Additional Information About Your Airbags

(9)

(8)

(2)

(14)

(7)(12)

(3)

(13)

(1)

(8)

(11)

(14)

(5)

(4)

(4)

(5)

(16)

(16)

(15)

CONTINUED 23

(1) Driver’s Front Airbag (2) Passenger’s Front Airbag (3) Control Unit (4) Front Seat Belt Tensioners (5) Side Airbags (6) Driver’s Seat Position Sensor (7) Front Passenger’s Weight Sensors (8) Front Impact Sensors (9) Passenger Airbag Off Indicator (10) Side Impact Sensors (First) (11) Occupant Position Detection System (OPDS) Sensors (12) Front Passenger’s Weight Sensors Control Unit/

(6)

(10)

OPDS Sensors Control Unit

(13) SRS Indicator (14) Side Curtain Airbags (15) Roll Rate Sensor (16) Side Impact Sensors (Second)

11/09/14 17:35:34 31SJC660_031

Additional Information About Your Airbags

Your airbag system includes:

Two SRS (supplemental restraint system) front airbags. The driver’s airbag is stored in the center of the steering wheel; the front passenger’s airbag is stored in the dashboard. Both are marked ‘‘SRS AIRBAG’’ (see page

25

).

Two side airbags, one for the driver and one for a front passenger. The airbags are stored in the outer edges of the seat- backs. Both are marked ‘‘SIDE AIRBAG’’ (see page

28

).

Two side curtain airbags, one for each side of the vehicle. The airbags are stored in the ceiling, above the side windows. The front and rear pillars are marked ‘‘SIDE CURTAIN AIRBAG’’ (see page 30

).

24

Automatic front seat belt ). tensioners (see page
