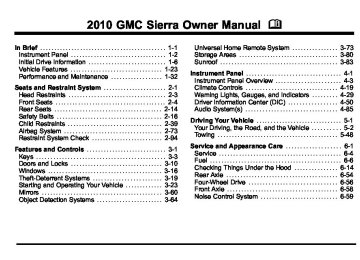

2010 GMC Sierra Owners Manual

2010 GMC Sierra Owner Manual M

In Brief . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Instrument Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Initial Drive Information . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
Vehicle Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-23
Performance and Maintenance . . . . . . . . . . . . . . . . . . 1-32

Seats and Restraint System . . . . . . . . . . . . . . . . . . . . . . 2-1
Head Restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
Front Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
Rear Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-14
Safety Belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-16
Child Restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-39
Airbag System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-73
Restraint System Check . . . . . . . . . . . . . . . . . . . . . . . . . 2-94

Features and Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
Doors and Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-16
Theft-Deterrent Systems . . . . . . . . . . . . . . . . . . . . . . . . 3-19
Starting and Operating Your Vehicle . . . . . . . . . . . . . 3-23
Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-60
Object Detection Systems . . . . . . . . . . . . . . . . . . . . . . . 3-64

Universal Home Remote System . . . . . . . . . . . . . . . . 3-73
Storage Areas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-80
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-83

Instrument Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
Instrument Panel Overview . . . . . . . . . . . . . . . . . . . . . . . 4-3
Climate Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-19
Warning Lights, Gauges, and Indicators . . . . . . . . . 4-29
Driver Information Center (DIC) . . . . . . . . . . . . . . . . . 4-50
Audio System(s) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-85

Driving Your Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
Your Driving, the Road, and the Vehicle . . . . . . . . . . 5-2
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-48

Service and Appearance Care . . . . . . . . . . . . . . . . . . . 6-1
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-4
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-6
Checking Things Under the Hood . . . . . . . . . . . . . . . 6-14
Rear Axle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-54
Four-Wheel Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-56
Front Axle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-58
Noise Control System . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-59

2010 GMC Sierra Owner Manual M

Headlamp Aiming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-60
Bulb Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-63
Windshield Wiper Blade Replacement . . . . . . . . . . . 6-69
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-70
Appearance Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-121
Vehicle Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-128
Electrical System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-129
Capacities and Specifications . . . . . . . . . . . . . . . . . . 6-137

Maintenance Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1
Maintenance Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2

Customer Assistance Information . . . . . . . . . . . . . . . 8-1
Customer Assistance and Information . . . . . . . . . . . . 8-2
Reporting Safety Defects . . . . . . . . . . . . . . . . . . . . . . . . 8-16
Vehicle Data Recording and Privacy . . . . . . . . . . . . . 8-19
i-1

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

GENERAL MOTORS, GM, the GM Emblem, GMC, the GMC Truck Emblem, and the name SIERRA are registered trademarks of General Motors. This manual describes features that may or may not be on your specific vehicle either because they are options that you did not purchase or due to changes subsequent to the printing of this owner manual. Please refer to the purchase documentation relating to your specific vehicle to confirm each of the features found on your vehicle. For vehicles first sold in Canada, substitute the name “General Motors of Canada Limited” for GMC Division wherever it appears in this manual. If the vehicle has the DURAMAX® Diesel engine, refer to the DURAMAX® Diesel supplement for additional and specific information on this engine. Keep this manual in the vehicle for quick reference.

Litho in U.S.A. Part No. 25854759 B Second Printing

Canadian Owners Propriétaires Canadiens A French language copy of this manual can be obtained from your dealer or from: On peut obtenir un exemplaire de ce guide en français auprès du concessionnaire ou à l'adresse suivante:

Helm, Incorporated P.O. Box 07130
Detroit, MI 48207
1-800-551-4123

Numéro de poste 6438 de langue française

www.helminc.com

Index To quickly locate information about the vehicle, use the index in the back of the manual. It is an alphabetical list of what is in the manual and the page number where it can be found.

©2009 General Motors. All Rights Reserved.

iii

Safety Warnings and Symbols Warning messages found on vehicle labels and in this manual describe hazards and what to do to avoid or reduce them. Danger indicates a hazard with a high level of risk which will result in serious injury or death. Warning or Caution indicates a hazard that could result in injury or death.

{ WARNING:

These mean there is something that could hurt you or other people.

Notice: This means there is something that could result in property or vehicle damage. This would not be covered by the vehicle's warranty.

A circle with a slash through it is a safety symbol which means “Do Not,” “Do not do this,” or “Do not let this happen.”

Vehicle Symbols The vehicle has components and labels that use symbols instead of text. Symbols are shown along with the text describing the operation or information relating to a specific component, control, message, gauge, or indicator. M : This symbol is shown when you need to see your owner manual for additional instructions or information. * : This symbol is shown when you need to see a service manual for additional instructions or information.

iv

Vehicle Symbol Chart Here are some additional symbols that may be found on the vehicle and what they mean. For more information on the symbol, refer to the index. 0 : Adjustable Pedals 9 : Airbag Readiness Light # : Air Conditioning ! : Antilock Brake System (ABS) g : Audio Steering Wheel Controls or OnStar® $ : Brake System Warning Light " : Charging System I : Cruise Control B : Engine Coolant Temperature O : Exterior Lamps # : Fog Lamps

. : Fuel Gauge + : Fuses i : Headlamp High/Low-Beam Changer j : LATCH System Child Restraints * : Malfunction Indicator Lamp : : Oil Pressure g : Outside Power Foldaway Mirrors } : Power / : Remote Vehicle Start > : Safety Belt Reminders 7 : Tire Pressure Monitor _ : Tow/Haul Mode F : Traction Control M : Windshield Washer Fluid

2 NOTES

vi

Section 1

In Brief

Instrument Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Instrument Panel (Base/Uplevel Version) . . . . . . . . 1-2
Instrument Panel (Premium Version) . . . . . . . . . . . . 1-4
Initial Drive Information . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
Remote Keyless Entry (RKE) System . . . . . . . . . . . 1-6
Remote Vehicle Start . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
Door Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
Seat Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9
Heated Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12
Head Restraint Adjustment . . . . . . . . . . . . . . . . . . . . 1-12
Safety Belt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-13
Sensing System for Passenger Airbag . . . . . . . . . 1-13
Mirror Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-14
Steering Wheel Adjustment . . . . . . . . . . . . . . . . . . . . 1-16
Throttle and Brake Pedal Adjustment . . . . . . . . . . 1-16
Interior Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-17
Exterior Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-17
Windshield Wiper/Washer . . . . . . . . . . . . . . . . . . . . . . 1-18
Climate Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-19
Transmission . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-20
Four-Wheel Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-21

Vehicle Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-23
Radio(s) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-23
Satellite Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-25
Portable Audio Devices . . . . . . . . . . . . . . . . . . . . . . . . 1-25
Steering Wheel Controls . . . . . . . . . . . . . . . . . . . . . . . 1-25
Bluetooth® . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-26
Navigation System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-26
Driver Information Center (DIC) . . . . . . . . . . . . . . . . 1-27
Cruise Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-28
Rear Vision Camera (RVC) . . . . . . . . . . . . . . . . . . . . 1-29
Ultrasonic Parking Assist . . . . . . . . . . . . . . . . . . . . . . 1-29
Power Outlets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-29
Universal Remote System . . . . . . . . . . . . . . . . . . . . . 1-30
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-30
Performance and Maintenance . . . . . . . . . . . . . . . . . . 1-32
StabiliTrak® . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-32
Tire Pressure Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . 1-32
Engine Oil Life System . . . . . . . . . . . . . . . . . . . . . . . . 1-33
Fuel E85 (85% Ethanol) . . . . . . . . . . . . . . . . . . . . . . . 1-33
Driving for Better Fuel Economy . . . . . . . . . . . . . . . 1-34
Roadside Assistance Program . . . . . . . . . . . . . . . . . 1-34
OnStar® . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-35

1-1

Instrument Panel

Instrument Panel (Base/Uplevel Version)

1-2

A. Outlet Adjustment on page 4‑29. B. Turn Signal/Multifunction Lever on page 4‑4. C. Driver Information Center (DIC) Buttons. See Driver Information Center (DIC) on page 4‑50.

D. Hazard Warning Flashers on page 4‑3. E. Instrument Panel Cluster on page 4‑30. F. Shift Lever. See Automatic Transmission

Operation on page 3‑30 . Tow/Haul Selector Button (If Equipped). See Tow/Haul Mode on page 3‑36 . Range Selection Mode (Allison Transmission and Hydra-Matic® 6‐Speed Button (If Equipped). See Automatic Transmission Operation on page 3‑30.

G. Audio System(s) on page 4‑85. H. I.

Instrument Panel Storage on page 3‑81. Integrated Trailer Brake Controller (If Equipped). See Towing a Trailer on page 5‑55.

J. Exterior Lamps on page 4‑10. K. Hood Release on page 6‑15. L. Parking Brake on page 3‑54. M. Dome Lamp Override on page 4‑15 . Dome

Lamps on page 4‑15 . Fog Lamps on page 4‑14
(If Equipped).

N. Cruise Control on page 4‑7. O. Tilt Wheel on page 4‑3.

P. Horn on page 4‑3. Q. Audio Steering Wheel Controls on page 4‑148

(If Equipped).

R. Automatic Transfer Case Control (If Equipped).

See Four-Wheel Drive on page 3‑39.

S. Ashtray (If Equipped). See Ashtray(s) and

Cigarette Lighter on page 4‑19.

T. StabiliTrak® System on page 5‑6 (If Equipped).

Ultrasonic Rear Parking Assist (URPA) on page 3‑64 (If Equipped). Pedal Adjust Button (If Equipped). See Adjustable Throttle and Brake Pedal on page 3‑28 . Heated Windshield Washer Fluid Button (If Equipped). Windshield Washer on page 4‑7 .

U. Accessory Power Outlet(s) on page 4‑17. V. Climate Control System (With Heater Only) on page 4‑19 or Climate Control System (With Air Conditioning) on page 4‑20 and Dual Automatic Climate Control System on page 4‑23.

W. Power Take Off (PTO) Control (If Equipped).

See Power Take Off (PTO) in the Duramax Diesel Supplement Index.

X. Passenger Airbag Off Control (If Equipped).

See Airbag Off Switch on page 2‑83.

Y. Glove Box on page 3‑80.

1-3

Instrument Panel (Premium Version)

1-4

A. Outlet Adjustment on page 4‑29. B. Turn Signal/Multifunction Lever on page 4‑4. C. D. Hazard Warning Flashers on page 4‑3 . E. Shift Lever. See Automatic Transmission Operation

Instrument Panel Cluster on page 4‑30.

on page 3‑30 .

F. Tow/Haul Mode on page 3‑36 (If Equipped). G. Driver Information Center (DIC) Buttons. See Driver Information Center (DIC) on page 4‑50.

H. Audio System(s) on page 4‑85. I. Exterior Lamps on page 4‑10. J.

Integrated Trailer Brake Controller (If Equipped). See Towing a Trailer on page 5‑55.

K. Dome Lamp Override on page 4‑15 . Dome Lamps

on page 4‑15 .

L. Automatic Transfer Case Control. (If Equipped).

See Four-Wheel Drive on page 3‑39.

M. Hood Release on page 6‑15. N. Parking Brake on page 3‑54. O. Cruise Control on page 4‑7.

P. Tilt Wheel on page 4‑3. Q. Horn on page 4‑3. R. Audio Steering Wheel Controls on page 4‑148. S. Climate Control System (With Heater Only) on page 4‑19 or Climate Control System (With Air Conditioning) on page 4‑20 or Dual Automatic Climate Control System on page 4‑23
(If Equipped).

T. Accessory Power Outlet(s) on page 4‑17 .

Cigarette Lighter (If Equipped). See Ashtray(s) and Cigarette Lighter on page 4‑19 .

U. StabiliTrak® System on page 5‑6 (If Equipped). Pedal Adjust Button (If Equipped). See Adjustable Throttle and Brake Pedal on page 3‑28 . Ultrasonic Rear Parking Assist (URPA) on page 3‑64
(If Equipped). Heated Windshield Washer Fluid Button (If Equipped). See Windshield Washer on page 4‑7 .

V. Passenger Airbag Off Control (If Equipped).

See Airbag Off Switch on page 2‑83.

W. Glove Box on page 3‑80.

1-5

Initial Drive Information This section provides a brief overview about some of the important features that may or may not be on your specific vehicle. For more detailed information, refer to each of the features which can be found later in this owner manual. Remote Keyless Entry (RKE) System The RKE transmitter is used to remotely lock and unlock the doors from up to 60 m (195 feet) away from the vehicle.

Press K to unlock the driver door. Press K again within three seconds to unlock all remaining doors.

Press Q to lock all doors. Lock and unlock feedback can be personalized. Press L and release to locate the vehicle. Press L and hold for more than two seconds to sound the panic alarm. Press L again to cancel the panic alarm. See Keys on page 3‑3 and Remote Keyless Entry (RKE) System Operation on page 3‑5. Remote Vehicle Start With this feature the engine can be started from outside of the vehicle. Starting the Vehicle 1. Aim the RKE transmitter at the vehicle. 2. Press Q. 3.

Immediately after completing Step 2, press and hold / until the turn signal lamps flash.

When the vehicle starts, the parking lamps will turn on and remain on as long as the engine is running. The doors will be locked and the climate control system may come on.

1-6

The engine will continue to run for 10 minutes. Repeat the steps for a 10-minute time extension. Remote start can be extended only once. Canceling a Remote Start To cancel a remote start:

. Aim the RKE transmitter at the vehicle and press

and hold / until the parking lamps turn off. Turn on the hazard warning flashers. Turn the ignition on and then back off.

See Remote Vehicle Start on page 3‑7. Door Locks There are several ways to lock and unlock the vehicle. From outside, use the Remote Keyless Entry (RKE) transmitter or the key in the driver door. From inside, use the power door locks or the manual door locks. To lock or unlock the door with the manual locks, push down or pull up on the manual lock knob.

Power Door Locks If available, these switches are located on the front doors. K : Press to unlock the doors. Q : Remove the key from the ignition and press to lock the doors. For more information, see:

. Programmable Automatic Door Locks on

page 3‑11 .

. Rear Door Security Locks on page 3‑12. Windows Turn the hand crank on each door to manually raise or lower the manual windows.

1-7

Power Windows

Power Sliding Rear Window

If available, the power window switches are located on each of the side doors in the front and rear, if equipped.

On vehicles with a power sliding rear window, the switch is located in the overhead console.

The power sliding rear window cannot be operated manually. Push or pull the switch to open or close the window.

Crew Cab Shown

The driver door has a switch for the passenger window and rear windows as well. Press the switch to lower the window. Pull the switch up to raise it. For more information, see:

. Windows on page 3‑16. . Power Windows on page 3‑17.

1-8

Seat Adjustment Front Seats Manual Seats If the vehicle has a manual seat, it can be moved forward or rearward.

Power Seats

1. Lift the bar to unlock

the seat.

2. Slide the seat to the desired position and release the bar.

Try to move the seat with your body to be sure the seat is locked in place. See Manual Seats on page 2‑4.

If equipped, the power seat controls are located on the outboard side of the front seats. Move the seat forward or rearward by sliding the control forward or rearward. Raise or lower the front or rear part of the cushion by moving the front or rear part of the control up or down. Raise or lower the entire seat by moving the entire control up or down. See Power Seats on page 2‑5.

1-9

Manual Lumbar

Power Lumbar

If equipped, this control is located on the outboard side of the seat.

Increase or decrease lumbar support by turning the knob forward or rearward.

If equipped, this control is located on the outboard side of the seat. On vehicles with two-way lumbar, press and hold the top of the control to increase lumbar support. To decrease, press and hold the bottom of the control. On vehicles with four-way lumbar, press and hold the front of the control to increase lumbar support. To decrease, press and hold the rear of the control. To raise the height of the support, press and hold the top of the control. To lower, press and hold the bottom of the control. See Power Lumbar on page 2‑7.

1-10

Manual Reclining Seatbacks

Power Reclining Seatbacks

If equipped, this control is located on the outboard side of the seat. To recline the seatback:

1. Lift the recline lever. 2. Move the seatback to the desired position, then release the lever to lock the seatback in place.

3. Push and pull on the seatback to make sure it is

locked.

See Reclining Seatbacks on page 2‑10.

If available, this control is located on the outboard side of the seat. To recline the seatback, tilt the top of the control rearward. To bring the seatback forward, tilt the top of the control forward. See Reclining Seatbacks on page 2‑10.

1-11

Memory Features This vehicle may have the memory package.

The controls for this feature are located on the driver door, and are used to program and recall memory settings for the driver seat, outside mirrors, and the adjustable throttle and brake pedal feature.

For more information, see Memory Seat, Mirrors, and Pedals on page 2‑8.

Heated Seats On vehicles with heated front seats, the controls are located on the driver and passenger doors. I : Press to heat the seatback only. J : Press to heat the seat and seatback. The light on the button will come on to indicate that the feature is working. Press the button to cycle through the temperature settings of high, medium, and low and to turn the heat to the seat off. Indicator lights will show the level of heat selected: three for high, two for medium, and one for low. See Heated Seats on page 2‑8. Head Restraint Adjustment Do not drive until the head restraints for all occupants are installed and adjusted properly. For more information see Head Restraints on page 2‑3 .

1-12

Safety Belt

Refer to the following sections for important information on how to use safety belts properly.

. Safety Belts: They Are for Everyone on page 2‑16. . How to Wear Safety Belts Properly on page 2‑21.

Lap-Shoulder Belt on page 2‑30. Lower Anchors and Tethers for Children (LATCH) on page 2‑49 .

Sensing System for Passenger Airbag The passenger sensing system, if equipped, turns off the right front passenger frontal airbag under certain conditions. The driver airbags, seat‐mounted side impact airbags and roof‐rail airbags are not affected by this. If the vehicle has one of the indicators pictured in the following illustrations, then the vehicle has a passenger sensing system for the right front passenger position unless there is an airbag off switch located in the glove box. If there is an airbag off switch, the vehicle does not have a passenger sensing system. See Airbag Off Switch on page 2‑83 for more information.

1-13

The passenger airbag status indicator will be visible on the overhead console when the vehicle is started.

Mirror Adjustment Exterior Mirrors

Vehicles with outside power mirrors and foldaway mirrors have controls located on the driver door.

United States

Canada

See Passenger Sensing System on page 2‑86 for important information.

1. Press (A) or (B) to select the driver or passenger

side mirror.

2. Press one of the four arrows located on the control

pad to adjust the mirror.

3. Press either (A) or (B) again to deselect the mirror.

1-14

Power Foldaway Mirrors To fold the mirrors:

1. Press (C) to fold the mirrors out to the driving

position.

2. Press (D) to fold the mirrors in to the folded

position.

Vehicles with manual outside mirrors can be adjusted for a clearer view. If the vehicle has towing mirrors, they can be adjusted for a clearer view of the objects behind you. Manually pull out the mirror head to extend it for better visibility when towing a trailer. See Outside Towing Mirrors on page 3‑61 .

Manual Foldaway Mirrors Manually fold the mirrors inward to prevent damage when going through an automatic car wash. To fold, push the mirror toward the vehicle. Push the mirror outward, to return to its original position. Interior Mirror Vehicles with a manual rearview mirror can be adjusted to see clearly behind the vehicle. Hold the mirror in the center to move it up or down and side to side. To reduce headlamp glare during nighttime use, push the tab forward for daytime use and pull it for nighttime use. Vehicles with the automatic dimming feature will automatically reduce the glare of lights from behind the vehicle. The dimming feature comes on and the indicator light illuminates each time the vehicle is started. See Automatic Dimming Rearview Mirror on page 3‑60
for more information.

1-15

Steering Wheel Adjustment

Throttle and Brake Pedal Adjustment On vehicles with this feature, you can change the position of the throttle and brake pedals.

The tilt lever is located on the lower left side of the steering column. To adjust the steering wheel:

1. Hold the steering wheel and pull the lever. 2. Move the steering wheel to a comfortable position. 3. Release the lever to lock the wheel in place.

See Tilt Wheel on page 4‑3.

The switch used to adjust the pedals is located on the instrument panel below the climate control system. Press the arrow at the bottom of the switch to move the pedals closer to your body. Press the arrow at the top of the switch to move the pedals away from your body. See Adjustable Throttle and Brake Pedal on page 3‑28.

1-16

Interior Lighting Dome Lamps The dome lamps come on when any door is opened. They turn off after all the doors are closed. The dome lamps can also be turned on by turning the instrument panel brightness knob, located on the instrument panel to the left of the steering column, clockwise to the farthest position. In this position, the dome lamps remain on whether a door is opened or closed. k : The dome lamp override button is located next to the exterior lamps control. Press the button in and the dome lamps remain off when a door is opened. Press the button again to return it to the extended position so that the dome lamps come on when a door is opened.

Reading Lamps For vehicles with reading lamps in the overhead console, press the button located next to the lamp to turn it on or off. The vehicle may also have reading lamps in other locations. The lamps cannot be adjusted. For more information about interior lamps, see:

. Dome Lamps on page 4‑15. . Reading Lamps on page 4‑16.

Instrument Panel Brightness on page 4‑15.

Exterior Lighting

The exterior lamps control is located on the instrument panel to the left of the steering wheel.

1-17

O : Turns off the automatic headlamps and daytime running lamps (DRL). Turn the headlamp control to the off position again to turn the automatic headlamps or DRL back on. For vehicles first sold in Canada, the off position will only work when the vehicle is shifted into P (Park). AUTO: Automatically turns on the headlamps, parking lamps, taillamps, instrument panel lights, and license plate lamps. ;: Turns on the parking lamps, taillamps, instrument panel lights, and license plate lamps. 2: Turns on the headlamps, parking lamps, taillamps, instrument panel lights, and license plate lamps. For more information, see:

. Exterior Lamps on page 4‑10. . Daytime Running Lamps (DRL) on page 4‑12.

Fog Lamps on page 4‑14.

1-18

Windshield Wiper/Washer

8 : Single wipe, turn to 8, then release. Several wipes, hold the band on 8 longer. 9 : Turns the windshield wipers off. 6 : Turn the band up for more frequent wipes or down for less frequent wipes. 6 : Slow wipes. ? : Fast wipes. L (Washer Fluid): Push the paddle at the top of the lever to spray washer fluid on the windshield. See Windshield Wipers on page 4‑6 and Windshield Washer on page 4‑7.

Climate Controls These systems control the heating, cooling, and ventilation. Climate Control System (With Air Conditioning)

Climate Control System (With Heater Only)

A. Fan Control B. Temperature Control C. Air Delivery Mode Control

A. Fan Control B. Temperature Control C. Air Delivery Mode

Control

D. Air Conditioning E. Outside Air F. Air Recirculation G. Rear Window Defogger

1-19

Dual Automatic Climate Control System

Transmission Range Selection Mode

A. Driver and Passenger Temperature Controls

B. Fan Control C. AUTO D. Defrost E. Air Recirculation F. Outside Air

G. Air Delivery Mode

Control H. Display I. Power Button J. Rear Window

Defogger

K. Air Conditioning L. PASS (Passenger)

See Climate Control System (With Heater Only) on page 4‑19 or Climate Control System (With Air Conditioning) on page 4‑20 and Dual Automatic Climate Control System on page 4‑23.

1-20

The Range Selection Mode switch is located on the shift lever. To enable the Range Selection feature, move the column shift lever to the M (Manual) position. The current range will appear next to the M. This is the highest attainable range with all lower gears accessible. As an example, when 4 (Fourth) gear is selected, 1 (First) through 4 (Fourth) gears are available.

Press the plus/minus buttons, located on the steering column shift lever, to select the desired range of gears for current driving conditions. See Automatic Transmission Operation on page 3‑30. While using Range Selection Mode, cruise control and the Tow/Haul mode can be used. Grade Braking is not available when Range Selection Mode is active. See Tow/Haul Mode on page 3‑36. Four-Wheel Drive If the vehicle has Four-Wheel Drive, you can send the engine's driving power to all four wheels for extra traction. Transfer Case Buttons The vehicle will have one of these three styles of transfer case controls. Use these controls to shift into and out of the different Four-Wheel Drive modes.

Manual Transfer Case

This transfer case shift lever is on the floor to the right of the driver.

1-21

Electronic Transfer Case

Automatic Transfer Case

This transfer case knob is located next to the steering column.

This transfer case knob is located next to the steering column. Each transfer case design offers different drive options. The list below described the different drive options that may be available. 2 m (Two-Wheel-Drive High): This setting is used for driving in most street and highway situations.

1-22

Vehicle Features

Radio(s)

AUTO (Automatic Four-Wheel Drive): This setting is ideal for use when road surface traction conditions are variable. 4 m (Four-Wheel High): Use the Four-Wheel-Drive High position when extra traction is needed, such as on snowy or icy roads or in most off-road situations. N (Neutral): Shift the transfer case to Neutral only when towing the vehicle. See Recreational Vehicle Towing on page 5‑49 or Towing a Trailer on page 5‑55. 4 n (Four-Wheel-Drive Low): This setting sends maximum power to all four wheels. You might choose Four-Wheel-Drive Low if you are driving off-road in deep sand, deep mud, deep snow, and while climbing or descending steep hills. See Four-Wheel Drive on page 3‑39.

Radio with CD, DVD, and USB Port

O : Press to turn the system on and off. Turn to increase or decrease the volume. BAND: Press to choose between FM, AM, or XM™, if equipped.

1-23

f : Select radio stations. © ¨ : Seek or scan stations. 4 : Press to display additional text information related to the current FM-RDS or XM station; or CD, MP3 or WMA song. If information is available during XM, CD, MP3 or WMA playback, the song title information displays on the top line of the display and artist information displays on the bottom line. When information is not available, “NO INFO” displays. For more information about these and other radio features, see Radio(s) on page 4‑88. For vehicles with a Rear Seat Entertainment System (RSE) and Rear Seat Audio System (RSA) see, Rear Seat Entertainment (RSE) System on page 4‑136 and Rear Seat Audio (RSA) on page 4‑145 for more information.

Storing a Favorite Station A maximum of 36 stations can be stored as favorites using the six softkeys located below the radio station frequency tabs and by using the radio FAV button. Press FAV to go through up to six pages of favorites, each having six favorite stations available per page. Each page of favorites can contain any combination of AM, FM, or XM stations. For more information, see Radio(s) on page 4‑88. Setting the Clock To set the time and date for the radio with CD, DVD, and USB Port:

1. Turn the ignition key to ACC/ACCESSORY or ON/RUN, then press O, to turn the radio on. 2. Press H to display HR, MIN, MM, DD, YYYY

(hour, minute, month, day, and year).

3. Press the softkey located under any one of the

labels to be changed.

4. To increase or decrease the time or date, turn f

clockwise or counter‐clockwise.

For detailed instructions on setting the clock for the vehicle's specific audio system, see Setting the Clock on page 4‑86 .

1-24

Satellite Radio XM is a satellite radio service that is based in the 48 contiguous United States and 10 Canadian provinces. XM satellite radio has a wide variety of programming and commercial-free music, coast-to-coast, and in digital-quality sound. A fee is required to receive the XM service. For more information, refer to:

. www.xmradio.com or call 1-800-929-2100 (U.S.) . www.xmradio.ca or call 1-877-438-9677 (Canada)

See “XM Satellite Radio Service” under Radio(s) on page 4‑88 . Portable Audio Devices This vehicle may have an auxiliary input located on the radio faceplate and a USB port located in the center console or the dashboard. External devices such as iPod®, laptop computers, MP3 players, CD changers, USB storage device, etc. can be connected to the auxiliary port using a 3.5 mm (1/8 in) input cable or the USB port depending on the audio system. See “Using the Auxiliary Input Jack” and “Using the USB Port” under Radio(s) on page 4‑88.

Steering Wheel Controls

For vehicles with audio steering wheel controls, some audio controls can be adjusted at the steering wheel.

w / x : Press to change favorite radio stations, select tracks on a CD/DVD, or to navigate tracks or folders on an iPod® or USB device. b g : Press to silence the vehicle speakers only. Press again to turn the sound on. Press and hold longer than two seconds to interact with OnStar® or Bluetooth systems, if equipped.

+ e − e : Increases or decreases volume.

1-25

c : Press to reject an incoming call, or to end a call. SRCE: Press to switch between the radio, CD, and for vehicles with, DVD, front auxiliary, and rear auxiliary. ¨ : Press to seek the next radio station, the next track or chapter while sourced to the CD or DVD slot, or to select tracks and folders on an iPod® or USB device. For more information, see Audio Steering Wheel Controls on page 4‑148. Bluetooth® For vehicles with an in-vehicle Bluetooth system, it allows users with a Bluetooth enabled cell phone to make and receive hands-free calls using the vehicle’s audio system and controls.

The Bluetooth enabled cell phone must be paired with the in-vehicle Bluetooth system before it can be used in the vehicle. Not all phones will support all functions. For more information visit www.gm.com/bluetooth. For more information, see Bluetooth® on page 4‑125. Navigation System The vehicle's navigation system provides detailed maps of most major freeways and roads throughout the United States and Canada. After a destination has been set, the system provides turn-by-turn instructions for reaching the destination. In addition, the system can help locate a variety of points of interest (POI), such as banks, airports, restaurants, and more. See the vehicle's Navigation System manual for more information.

1-26

Driver Information Center (DIC) The DIC display is located at the bottom of the instrument panel cluster. It shows the status of many vehicle systems and enables access to the personalization menu.

The DIC buttons are located on the instrument panel, next to the steering wheel. Some vehicles do not have the buttons shown, however some of the menus can be viewed by using the trip odometer reset stem.

3 : Press this button to display the odometer, trip odometer, fuel range, average economy, fuel used, timer, and transmission temperature. The compass and outside air temperature will also be shown in the display. The temperature will be shown in °F or °C depending on the units selected. T : Press this button to display the oil life, units, tire pressure readings for vehicles with the Tire Pressure Monitor System (TPMS), trailer brake gain and output information for vehicles with the Integrated Trailer Brake Control (ITBC) system, engine hours, Remote Keyless Entry (RKE) transmitter programming, compass zone setting, and compass recalibration. U : Press this button to customize the feature settings on your vehicle. See DIC Vehicle Customization (With DIC Buttons) on page 4‑76 for more information. V : Press this button to set or reset certain functions and to turn off or acknowledge messages on the DIC. For more information, see Driver Information Center (DIC) on page 4‑50.

1-27

Vehicle Customization Some vehicle features can be programmed by using the DIC buttons next to the steering wheel. These features include:

Cruise Control

The cruise control buttons are located on left side of the steering wheel.

Language

. Door Lock and Unlock Settings . RKE Lock and Unlock Feedback

Lighting

. Chime Volume . Memory Features . Remote Start . Digital Speedometer Display

See DIC Vehicle Customization (With DIC Buttons) on page 4‑76 .

1-28

I : Turns the system on or off. The indicator light is on when cruise control is on and turns off when cruise control is off. + RES : Press briefly to make the vehicle resume to a previously set speed, or press and hold to accelerate. SET − : Press to set the speed and activate cruise control or make the vehicle decelerate. [ : Press to disengage cruise control without erasing the set speed from memory. See Cruise Control on page 4‑7.

Rear Vision Camera (RVC) The rear vision camera displays a view of the area behind the vehicle when the vehicle is shifted into R (Reverse) on the inside rear view mirror or the navigation screen, if equipped. To clean the camera lens, located in the bezel for the tailgate handle, rinse it with water and wipe it with a soft cloth. For more information, see Rear Vision Camera (RVC) on page 3‑67 . Ultrasonic Parking Assist This feature uses sensors on the rear bumper to detect objects while parking the vehicle. URPA comes on automatically when the shift lever is moved into R (Reverse) and operates at speeds less than 8 km/h (5 mph). URPA uses audio beeps to provide distance and system information. Keep the sensors on the vehicle's rear bumper clean to ensure proper operation. The system can be disabled by pressing the rear park aid disable button located next to the radio. See Ultrasonic Rear Parking Assist (URPA) on page 3‑64 for more information.

Power Outlets Accessory power outlets can be used to connect auxiliary electrical equipment, such as a cellular telephone. The vehicle may have two accessory power outlets located below the climate control system, or may have one accessory power outlet and one cigarette lighter. The cigarette lighter is designed to fit only in the receptacle closest to the driver. There may be another accessory power outlet in the rear cargo area. If the vehicle has a floor console, there is an accessory power outlet inside the storage bin and one on the rear of the floor console. The accessory power outlets are powered, even when the ignition is in LOCK/OFF. Continuing to use power outlets while the ignition is in LOCK/OFF may cause the vehicle's battery to run down. See Accessory Power Outlet(s) on page 4‑17.

1-29

Universal Remote System

Sunroof Extended Cab

The sunroof switch is located on the headliner above the rearview mirror.

The Universal Home Remote System allows for garage door openers, security systems, and home automation devices to be programmed to work with these buttons in the vehicle. See Universal Home Remote System on page 3‑73 .

Vent: From the closed position, press and hold the rear of the switch to vent the sunroof. Open: From the vent position, press and hold the rear of the switch to open the sunroof. Close: Press and hold the front of the switch to close the sunroof. The sunroof also has a roller sunshade that can be used to block the rays of the sun. To open the sunshade, press and unlatch it, and roll it back. To close, pull it forward and latch it into the closed position.

1-30

Crew Cab

There are two sunroof switches located in the overhead console above the rearview mirror.

Express-Open/Express-Close: To express-open the sunroof, fully press and release the rear of the driver side switch until the sunroof reaches the desired position. To express-close the sunroof, fully press and release the front of the driver side switch. Press the switch again to stop it. The sunroof also has a sunshade that you can pull forward to block the rays of the sun. The sunshade must be opened and closed manually. See Sunroof on page 3‑83.

Vent: From the closed position, press the rear of the passenger side switch to vent the sunroof. Manual-Open/Manual-Close: To open the sunroof, press and hold the rear of the driver side switch until the sunroof reaches the desired position. Press and hold the front of the driver side switch to close it.

1-31

Performance and Maintenance

StabiliTrak® The vehicle may have a traction control system that limits wheel spin and the StabiliTrak system that assists with directional control of the vehicle in difficult driving conditions. Both systems turn on automatically every time the vehicle is started.

To turn off traction control, press and release 5 on the instrument panel. F illuminates and the appropriate DIC message displays. See DIC Warnings and Messages on page 4‑66. To turn off both traction control and Electronic Stability Control, press and hold 5 until F illuminates and the appropriate DIC message displays. See DIC Warnings and Messages on page 4‑66 .

. Press and release the button again to turn on both

systems.

For more information, see StabiliTrak® System on page 5‑6 .

Tire Pressure Monitor This vehicle may have a Tire Pressure Monitor System (TPMS).

The Tire Pressure Monitor alerts you when a significant reduction in pressure occurs in one or more of the vehicle’s tires by illuminating the low tire pressure warning light on the instrument cluster.

If the warning light comes on, stop as soon as possible and inflate the tires to the recommended pressure shown on the tire loading information label located on the driver side center pillar (B pillar). See Loading the Vehicle on page 5‑33 . The warning light will remain on until the tire pressure is corrected. You may notice during cooler conditions that the low tire pressure warning light will appear when the vehicle is first started and then turn off as you drive. This may be an early indicator that your tire pressures are getting low and the tires need to be inflated to the proper pressure.

1-32

The Tire Pressure Monitor can alert you about low tire pressure, but it does not replace normal monthly tire maintenance. It is the driver’s responsibility to maintain correct tire pressures. See Tire Pressure Monitor System on page 6‑83 and Tire Pressure Monitor Operation on page 6‑84. Engine Oil Life System The engine oil life system calculates engine oil life based on vehicle use and, on most vehicles, displays a DIC message when it is necessary to change the engine oil and filter. The oil life system should be reset to 100% only following an oil change. Resetting the Oil Life System To reset the Engine Oil Life System on most vehicles:

1. Display the OIL LIFE REMAINING on the DIC.

If the vehicle does not have DIC buttons, the vehicle must be in P (Park) to access this display.

2. Press and hold the SET/RESET button on the DIC,

or the trip odometer reset stem if the vehicle does not have DIC buttons, for more than five seconds. The oil life will change to 100%.

On all vehicles, the Engine Oil Life System can be reset as follows:

1. Turn the ignition to ON/RUN with the engine off 2. Fully press the accelerator pedal slowly three times

within five seconds.

3. Display the OIL LIFE REMAINING on the DIC. If the display shows 100%, the system is reset.

See Engine Oil Life System on page 6‑20. Fuel E85 (85% Ethanol) Vehicles that have the 5.3L V8 engine (VIN Code 0), the 5.3L V8 engine (VIN Code 3), the 6.0L V8 engine (VIN Code J), or the 6.2L V8 engine (VIN Code 2) have a yellow fuel cap and can use either unleaded gasoline or ethanol fuel containing up to 85% ethanol (E85). See Gasoline Octane on page 6‑7 and Fuel E85
(85% Ethanol) on page 6‑10.

1-33

Driving for Better Fuel Economy Driving habits can affect fuel mileage. Here are some driving tips to get the best fuel economy possible.

. Avoid fast starts and accelerate smoothly. . Brake gradually and avoid abrupt stops. . Avoid idling the engine for long periods of time. . When road and weather conditions are

appropriate, use cruise control, if equipped.

. Always follow posted speed limits or drive more

slowly when conditions require.

. Keep vehicle tires properly inflated. . Combine several trips into a single trip. . Replace the vehicle's tires with the same TPC

Spec number molded into the tire's sidewall near the size. Follow recommended scheduled maintenance.

Roadside Assistance Program U.S.: 1-800-GMC-8782 (462-8782) TTY Users: 1-888-889-2438
Canada: 1-800-268-6800
As the owner of a new GMC, you are automatically enrolled in the Roadside Assistance program. This program provides technically trained advisors who are available 24 hours a day, 365 days a year, minor repair information or towing arrangements. For more information see Roadside Assistance Program on page 8‑7 . Roadside Assistance and OnStar If you have a current OnStar subscription, press the OnStar button and the current GPS location will be sent to an OnStar Advisor who will assess your problem, contact Roadside Assistance, and relay exact location to get you the help you need.

1-34

Online Owner Center The Online Owner Center is a complimentary service that includes online service reminders, vehicle maintenance tips, online owner manual, special privileges and more. Sign up today at: www.gmownercenter.com/gmc (U.S.) or www.gm.ca (Canada). OnStar®

OnStar® uses several innovative technologies and live advisors to provide a wide range of safety, security, navigation, diagnostics, and calling services. Automatic Crash Response In a crash, built in sensors can automatically alert an OnStar advisor who is immediately connected to the vehicle to see if you need help.

How OnStar Service Works Q : This blue button connects you to a specially trained OnStar advisor to verify your account information and to answer questions. ] : Push this red emergency button to get priority help from specially trained OnStar emergency advisors. X : Push this button for hands‐free, voice‐activated calling and to give voice commands for turn‐by‐turn navigation. Crisis Assist, Stolen Vehicle Assistance, Vehicle Diagnostics, Remote Door Unlock, Roadside Assistance, Turn‐by‐Turn Navigation and Hands‐Free Calling are available on most vehicles. Not all OnStar services are available on all vehicles. For more information see the OnStar Owner's Guide or visit www.onstar.com (U.S.) or www.onstar.ca (Canada), contact OnStar at 1-888-4-ONSTAR (1‐888‐466‐7827) or TTY 1‐877‐248‐2080, or press Q to speak with an OnStar advisor 24 hours a day, 7 days a week. For a full description of OnStar services and system limitations, see the OnStar Owner's Guide in the glove box. OnStar service is subject to the OnStar terms and conditions included in the OnStar Subscriber Information.

1-35

OnStar service cannot work unless the vehicle is in a place where OnStar has an agreement with a wireless service provider for service in that area. OnStar service also cannot work unless the vehicle is in a place where the wireless service provider OnStar has hired for that area has coverage, network capacity and reception when the service is needed, and technology that is compatible with the OnStar service. Not all services are available everywhere, particularly in remote or enclosed areas, or at all times. The OnStar system can record and transmit vehicle information. This information is automatically sent to an OnStar call center when Q is pressed, ] is pressed, or if the airbags or ACR system deploy. This information usually includes the vehicle's GPS location and, in the event of a crash, additional information regarding the crash that the vehicle was involved in (e.g. the direction from which the vehicle was hit). When the virtual advisor feature of OnStar hands-free calling is used, the vehicle also sends OnStar the vehicle's GPS location so they can provide services where it is located. Location information about the vehicle is only available if the GPS satellite signals are unobstructed and available. The vehicle must have a working electrical system, including adequate battery power, for the OnStar equipment to operate. There are other problems OnStar

1-36

cannot control that may prevent OnStar from providing OnStar service at any particular time or place. Some examples are damage to important parts of the vehicle in a crash, hills, tall buildings, tunnels, weather or wireless phone network congestion. OnStar Steering Wheel Controls This vehicle may have a Talk/Mute button that can be used to interact with OnStar hands-free calling. See Audio Steering Wheel Controls on page 4‑148 for more information. On some vehicles, the mute button can be used to dial numbers into voice mail systems, or to dial phone extensions. See the OnStar Owner's Guide for more information. Your Responsibility Increase the volume of the radio if the OnStar advisor cannot be heard. If the light next to the OnStar buttons is red, the system may not be functioning properly. Press Q and request a vehicle diagnostic. If the light appears clear (no light is appearing), your OnStar subscription has expired and all services have been deactivated. Press Q to confirm that the OnStar equipment is active.

Section 2

Seats and Restraint System

Head Restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
Front Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
Manual Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
Power Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5
Manual Lumbar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6
Power Lumbar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7
Heated Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8
Memory Seat, Mirrors, and Pedals . . . . . . . . . . . . . . 2-8
Reclining Seatbacks . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10
Seatback Latches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13
Center Seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13
Rear Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-14

Rear Seat Operation (Extended Cab Full

Bench) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-14

Rear Seat Operation (All Split Bench and

Hybrid Full Bench) . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-15
Safety Belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-16
Safety Belts: They Are for Everyone . . . . . . . . . . . 2-16
How to Wear Safety Belts Properly . . . . . . . . . . . . 2-21
Lap-Shoulder Belt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-30

Safety Belt Use During Pregnancy . . . . . . . . . . . . . 2-37
Lap Belt (Crew and Extended Cab) . . . . . . . . . . . . 2-37
Safety Belt Extender . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-38
Child Restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-39
Older Children . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-39
Infants and Young Children . . . . . . . . . . . . . . . . . . . . 2-42
Child Restraint Systems . . . . . . . . . . . . . . . . . . . . . . . 2-45
Where to Put the Restraint . . . . . . . . . . . . . . . . . . . . . 2-47
Lower Anchors and Tethers for Children

(LATCH) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-49

Securing a Child Restraint in a Rear Seat

Position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-58

Securing a Child Restraint in the Center Front

Seat Position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-61

Securing a Child Restraint in the Right Front

Seat Position (With Passenger Sensing System) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-62

Securing a Child Restraint in the Right Front

Seat Position (With Airbag Off Switch) . . . . . . . 2-66

Securing a Child Restraint in the Right Front

Seat Position (Heavy Duty Crew Cab Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-70

2-1

Section 2

Seats and Restraint System

Passenger Sensing System . . . . . . . . . . . . . . . . . . . 2-86
Servicing Your Airbag-Equipped Vehicle . . . . . . . 2-92
Adding Equipment to Your Airbag-Equipped

Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-92
Restraint System Check . . . . . . . . . . . . . . . . . . . . . . . . . 2-94
Checking the Restraint Systems . . . . . . . . . . . . . . . 2-94
Replacing Restraint System Parts After a

Crash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-95

Airbag System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-73
Where Are the Airbags? . . . . . . . . . . . . . . . . . . . . . . . 2-75
When Should an Airbag Inflate? . . . . . . . . . . . . . . . 2-78
What Makes an Airbag Inflate? . . . . . . . . . . . . . . . . 2-80
How Does an Airbag Restrain? . . . . . . . . . . . . . . . . 2-80
What Will You See After an Airbag Inflates? . . . 2-81
Airbag Off Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-83

2-2

Head Restraints The front seats have adjustable head restraints in the outboard seating positions.

{ WARNING:

With head restraints that are not installed and adjusted properly, there is a greater chance that occupants will suffer a neck/spinal injury in a crash. Do not drive until the head restraints for all occupants are installed and adjusted properly.

Adjust the head restraint so that the top of the restraint is at the same height as the top of the occupant's head. This position reduces the chance of a neck injury in a crash.

2-3

Front Seats

Manual Seats

{ WARNING:

You can lose control of the vehicle if you try to adjust a manual driver's seat while the vehicle is moving. The sudden movement could startle and confuse you, or make you push a pedal when you do not want to. Adjust the driver's seat only when the vehicle is not moving.

Pull the head restraint up to raise it. To lower the head restraint, press the button, located on the top of the seatback, and push the restraint down. Push down on the head restraint after the button is released to make sure that it is locked in place. The head restraints are not designed to be removed. The rear seat has head rests that can be adjusted up and down.

2-4

If the vehicle has a manual seat, it can be moved forward or rearward.

Power Seats

1. Lift the bar to unlock

the seat.

2. Slide the seat to the desired position and release the bar.

Try to move the seat with your body to be sure the seat is locked in place.

Driver's Seat with Power Seat Control, Power

Recline, and Power Lumbar shown

On a vehicle with power seats, the controls used to operate them are located on the outboard side of the seats. Move the seat forward or rearward by sliding the control forward or rearward.

2-5

Your vehicle may have additional features to adjust your vehicle's power seat:

. Raise or lower the front part of the seat cushion by

moving the front of the control up or down.

. Raise or lower the rear part of the seat cushion by

moving the rear of the control up or down.

. Raise or lower the entire seat by moving the entire

control up or down.

On seats with power reclining seatbacks, the control is located behind the power seat control on the outboard side of the seats. See “Power Reclining Seatbacks” under Reclining Seatbacks on page 2‑10. A vehicle with a memory function allows seat settings to be saved and recalled. See Memory Seat, Mirrors, and Pedals on page 2‑8 for more information.

Manual Lumbar

On vehicles with this feature the control is located on the outboard side of the seat. Increase or decrease lumbar support by turning the knob forward or rearward.

2-6

Power Lumbar

On seats with power lumbar, the controls used to operate this feature are located on the outboard side of the seats. This vehicle may have 2–way lumbar.

To increase lumbar support, press and hold the top of the control. To decrease lumbar support, press and hold the bottom of the control.

The vehicle may have 4–way lumbar.

To increase lumbar support, press and hold the front of the control. To decrease lumbar support, press and hold the rear of the control. To raise the height of the lumbar support, press and hold the top of the control. To lower the height of the lumbar support, press and hold the bottom of the control.

Release the control when the lower seatback reaches the desired level of lumbar support. Your vehicle may have a memory function which allows seat settings to be saved and recalled. See Memory Seat, Mirrors, and Pedals on page 2‑8 for more information. Keep in mind that as your seating position changes, as it may during long trips, so should the position of your lumbar support. Adjust the seat as needed.

2-7

turn the heat to the seat off. Indicator lights will show the level of heat selected: three for high, two for medium, and one for low. The heated seats will be canceled 10 seconds after the ignition is turned off. To use the heated seat feature after restarting the vehicle, press the heated seat or seatback button again. Memory Seat, Mirrors, and Pedals Your vehicle may have the memory package.

The controls for this feature are located on the driver's door panel, and are used to program and recall memory settings for the driver's seat, outside mirrors, and the adjustable throttle and brake pedal.

Heated Seats

{ WARNING:

If you cannot feel temperature change or pain to the skin, the seat heater may cause burns even at low temperatures. To reduce the risk of burns, people with such a condition should use care when using the seat heater, especially for long periods of time. Do not place anything on the seat that insulates against heat, such as a blanket, cushion, cover or similar item. This may cause the seat heater to overheat. An overheated seat heater may cause a burn or may damage the seat.

On vehicles with heated front seats, the controls are located on the driver and passenger doors. I (Heated Seatback): Press to turn on the heated seatback. J (Heated Seat and Seatback): Press to turn on the heated seat and seatback. The light on the button will come on to indicate that the feature is working. Press the button to cycle through the temperature settings of high, medium, and low and to

2-8

To save seating positions in memory:

1. Adjust the driver's seatback recliner, both outside

mirrors, and the throttle and brake pedals to a comfortable position. See Outside Power Mirrors on page 3‑61 and Adjustable Throttle and Brake Pedal on page 3‑28
for more information. Not all mirrors, adjustable throttles and brake pedals will have the ability to save and recall their positions.

2. Press and hold button 1 until two beeps sound to

indicate that the position has been stored.

A second seating, mirror, and throttle and brake pedal position can be programmed by repeating the above steps and pressing button 2. To recall the memory positions, the vehicle must be in P (Park). Press and release either button 1 or button 2
corresponding to the desired driving position. The seat, outside mirrors, and adjustable throttle and brake pedals will move to the position previously stored. You will hear a single beep.

If you use the remote keyless entry transmitter to enter your vehicle and the remote recall memory feature is on, automatic seat, adjustable mirror, and adjustable pedal movements will occur. See “MEMORY SEAT RECALL” under DIC Vehicle Customization (With DIC Buttons) on page 4‑76 for more information. To stop recall movement of the memory function at any time, press one of the power seat controls, memory buttons, power mirror buttons, or adjustable pedal switch. If something has blocked the driver’s seat and/or the adjustable pedals while recalling a memory position, the driver’s seat and/or the adjustable pedals recall may stop working. If this happens, remove the obstruction and press the appropriate control for the area that is not responding for two seconds. Try recalling the memory position again by pressing the appropriate memory button. If the memory position is still not recalling, see your dealer for service.

2-9

Easy Exit Seat The control for this feature is located on the driver’s door panel between buttons 1 and 2. With the vehicle in P (Park), the driver's seat exit position can be recalled by pressing the exit button. You will hear a single beep, and the driver’s seat will move back approxiamately 8 cm (3 in). To move the seat back further, press the exit button again until the seat is all the way back. If the easy exit seat feature is programmed in the Driver Information Center (DIC), automatic seat movement will occur when the key is removed from the ignition. See “EASY EXIT SEAT” under DIC Vehicle Customization (With DIC Buttons) on page 4‑76 for more information. The memory seat and easy exit features can also be programmed using the DIC. For programming information, see DIC Vehicle Customization (With DIC Buttons) on page 4‑76.

Reclining Seatbacks

{ WARNING:

You can lose control of the vehicle if you try to adjust a manual driver's seat while the vehicle is moving. The sudden movement could startle and confuse you, or make you push a pedal when you do not want to. Adjust the driver's seat only when the vehicle is not moving.

{ WARNING:

If either seatback is not locked, it could move forward in a sudden stop or crash. That could cause injury to the person sitting there. Always push and pull on the seatbacks to be sure they are locked.

2-10

{ WARNING:

Sitting in a reclined position when your vehicle is in motion can be dangerous. Even if you buckle up, your safety belts cannot do their job when you are reclined like this. The shoulder belt cannot do its job. In a crash, you could go into it, receiving neck or other injuries. The lap belt cannot do its job either. In a crash the belt could go up over your abdomen. The belt forces would be there, not at your pelvic bones. This could cause serious internal injuries. For proper protection when the vehicle is in motion, have the seatback upright. Then sit well back in the seat and wear your safety belt properly.

2-11

Manual Reclining Seatbacks On seats with manual reclining seatbacks, the lever used to operate them is located on the outboard side of the seat(s).

To return the seatback to an upright position, do the following:

1. Lift the lever fully without applying pressure to the

seatback and the seatback will return to the upright position.

2. Push and pull on the seatback to make sure it is

locked.

To recline the seatback:

1. Lift the recline lever. 2. Move the seatback to the desired position, then release the lever to lock the seatback in place.

3. Push and pull on the seatback to make sure it is

locked.

2-12

Power Reclining Seatbacks

If the seats have power reclining seatbacks, the control used to recline them is located on the outboard side of the seat behind the power seat control.

To recline the seatback, tilt the top of the control rearward. To bring the seatback forward, tilt the top of the control forward.

Do not have a seatback reclined if your vehicle is moving.

Seatback Latches The front seatbacks tilt forward to allow access to the rear of the cab. To tilt the seatback forward, lift the lever located on the outboard side of the seat cushion.

{ WARNING:

If either seatback is not locked, it could move forward in a sudden stop or crash. That could cause injury to the person sitting there. Always push and pull on the seatbacks to be sure they are locked.

To return the seatback to the upright position, push the seatback rearward until it latches. After returning the seatback to its upright position, push and pull on the seatback to make sure it is locked. Center Seat Your vehicle may have a front center seat. The seatback doubles as an armrest and cupholder/storage area for the driver and passenger when the center seat is not used. Do not use it as a seating position when the seatback is folded down.

2-13

Rear Seats

Rear Seat Operation (Extended Cab Full Bench) Folding the Rear Seat To fold the seat up, do the following: Notice: Folding a rear seat with the safety belts still fastened may cause damage to the seat or the safety belts. Always unbuckle the safety belts and return them to their normal stowed position before folding a rear seat.

1. Pull up on the front of the seat cushion while pulling down on the release strap, located under the seat cushion.

2. Pull the seat cushion up until it latches with the

seatback.

3. After latching the seat cushion up, pull forward on

it to make sure it is locked.

To fold the seat down, do the following:

1. Push the seat cushion rearward while pulling the

release strap, located under the seat cushion. Pull the seat cushion down until it latches.

2. After latching the seat cushion, pull up on it to

make sure it is locked.

2-14

Rear Seat Operation (All Split Bench and Hybrid Full Bench) Folding Rear Seat On a vehicle with a second row 60/40 split seat either side of the rear seat may be folded for added cargo space. Notice: Folding a rear seat with the safety belts still fastened may cause damage to the seat or the safety belts. Always unbuckle the safety belts and return them to their normal stowed position before folding a rear seat. Make sure that nothing is on the seat. To fold the seat, slowly pull the seat cushion up.

To return the seat to the normal seating position, slowly pull the seat cushion down.

{ WARNING:

A safety belt that is improperly routed, not properly attached, or twisted will not provide the protection needed in a crash. The person wearing the belt could be seriously injured. After raising the rear seatback, always check to be sure that the safety belts are properly routed and attached, and are not twisted.

2-15

Safety Belts

Safety Belts: They Are for Everyone This part of the manual tells you how to use safety belts properly. It also tells you some things you should not do with safety belts.

{ WARNING:

Do not let anyone ride where a safety belt cannot be worn properly. In a crash, if you or your passenger(s) are not wearing safety belts, the injuries can be much worse. You can hit things inside the vehicle harder or be ejected from the vehicle. You and your passenger(s) can be seriously injured or killed. In the same crash, you might not be, if you are buckled up. Always fasten your safety belt, and check that your passenger(s) are restrained properly too.

{ WARNING:

People riding on the tailgate (if equipped) can easily lose their balance and fall even when the vehicle is operated at low speeds. Falling from a moving vehicle may result in serious injuries or death.

{ WARNING:

It is extremely dangerous to ride in a cargo area, inside or outside of a vehicle. In a collision, people riding in these areas are more likely to be seriously injured or killed. Do not allow people to ride in any area of your vehicle that is not equipped with seats and safety belts. Be sure everyone in your vehicle is in a seat and using a safety belt properly.

Your vehicle has indicators as a reminder to buckle your safety belts. See Safety Belt Reminders on page 4‑32 .

2-16

Why Safety Belts Work When you ride in or on anything, you go as fast as it goes.

In most states and in all Canadian provinces, the law requires wearing safety belts. Here is why: You never know if you will be in a crash. If you do have a crash, you do not know if it will be a serious one. A few crashes are mild, and some crashes can be so serious that even buckled up, a person would not survive. But most crashes are in between. In many of them, people who buckle up can survive and sometimes walk away. Without belts they could have been badly hurt or killed. After more than 40 years of safety belts in vehicles, the facts are clear. In most crashes buckling up does matter ... a lot!

Take the simplest vehicle. Suppose it is just a seat on wheels.

2-17

Put someone on it.

Get it up to speed. Then stop the vehicle. The rider does not stop.

2-18

The person keeps going until stopped by something. In a real vehicle, it could be the windshield...

or the instrument panel...

2-19

Questions and Answers About Safety Belts

Q: Will I be trapped in the vehicle after a crash if I

am wearing a safety belt?

A: You could be — whether you are wearing a safety

belt or not. But your chance of being conscious during and after an accident, so you can unbuckle and get out, is much greater if you are belted. And you can unbuckle a safety belt, even if you are upside down.

Q: If my vehicle has airbags, why should I have to

wear safety belts?

A: Airbags are supplemental systems only; so they

work with safety belts — not instead of them. Whether or not an airbag is provided, all occupants still have to buckle up to get the most protection. That is true not only in frontal collisions, but especially in side and other collisions.

or the safety belts! With safety belts, you slow down as the vehicle does. You get more time to stop. You stop over more distance, and your strongest bones take the forces. That is why safety belts make such good sense.

2-20

Q: If I am a good driver, and I never drive far from

home, why should I wear safety belts?

A: You may be an excellent driver, but if you are in a crash — even one that is not your fault — you and your passenger(s) can be hurt. Being a good driver does not protect you from things beyond your control, such as bad drivers. Most accidents occur within 25 miles (40 km) of home. And the greatest number of serious injuries and deaths occur at speeds of less than 40 mph (65 km/h). Safety belts are for everyone.

How to Wear Safety Belts Properly This section is only for people of adult size. Be aware that there are special things to know about safety belts and children. And there are different rules for smaller children and infants. If a child will be riding in the vehicle, see Older Children on page 2‑39 or Infants and Young Children on page 2‑42 . Follow those rules for everyone's protection. It is very important for all occupants to buckle up. Statistics show that unbelted people are hurt more often in crashes than those who are wearing safety belts. Occupants who are not buckled up can be thrown out of the vehicle in a crash. And they can strike others in the vehicle who are wearing safety belts.

2-21

First, before you or your passenger(s) wear a safety belt, there is important information you should know.

In a crash, this applies force to the strong pelvic bones and you would be less likely to slide under the lap belt. If you slid under it, the belt would apply force on your abdomen. This could cause serious or even fatal injuries. The shoulder belt should go over the shoulder and across the chest. These parts of the body are best able to take belt restraining forces. The shoulder belt locks if there is a sudden stop or crash.

Sit up straight and always keep your feet on the floor in front of you. The lap part of the belt should be worn low and snug on the hips, just touching the thighs.

2-22

Q: What is wrong with this?

{ WARNING:

You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury. The shoulder belt should fit snugly against your body.

A: The shoulder belt is too loose. It will not give as

much protection this way.

2-23

Q: What is wrong with this?

{ WARNING:

You can be seriously hurt if your lap belt is too loose. In a crash, you could slide under the lap belt and apply force on your abdomen. This could cause serious or even fatal injuries. The lap belt should be worn low and snug on the hips, just touching the thighs.

A: The lap belt is too loose. It will not give nearly as

much protection this way.

2-24

Q: What is wrong with this?

{ WARNING:

You can be seriously injured if your belt is buckled in the wrong place like this. In a crash, the belt would go up over your abdomen. The belt forces would be there, not on the pelvic bones. This could cause serious internal injuries. Always buckle your belt into the buckle nearest you.

A: The belt is buckled in the wrong buckle.

2-25

Q: What is wrong with this?

{ WARNING:

You can be seriously injured if your belt goes over an armrest like this. The belt would be much too high. In a crash, you can slide under the belt. The belt force would then be applied on the abdomen, not on the pelvic bones, and that could cause serious or fatal injuries. Be sure the belt goes under the armrests.

A: The belt is over an armrest.

2-26

Q: What is wrong with this?

{ WARNING:

You can be seriously injured if you wear the shoulder belt under your arm. In a crash, your body would move too far forward, which would increase the chance of head and neck injury. Also, the belt would apply too much force to the ribs, which are not as strong as shoulder bones. You could also severely injure internal organs like your liver or spleen. The shoulder belt should go over the shoulder and across the chest.

A: The shoulder belt is worn under the arm. It should

be worn over the shoulder at all times.

2-27

Q: What is wrong with this?

{ WARNING:

You can be seriously injured by not wearing the lap-shoulder belt properly. In a crash, you would not be restrained by the shoulder belt. Your body could move too far forward increasing the chance of head and neck injury. You might also slide under the lap belt. The belt force would then be applied right on the abdomen. That could cause serious or fatal injuries. The shoulder belt should go over the shoulder and across the chest.

A: The belt is behind the body.

2-28

Q: What is wrong with this?

{ WARNING:

You can be seriously injured by a twisted belt. In a crash, you would not have the full width of the belt to spread impact forces. If a belt is twisted, make it straight so it can work properly, or ask your dealer to fix it.

A: The belt is twisted across the body.

2-29

Lap-Shoulder Belt If the vehicle is a regular cab, then all seating positions in the vehicle have a lap-shoulder belt. If the vehicle is a crew or extended cab, then all seating positions in the vehicle have a lap-shoulder belt except for the center front passenger position (if equipped), which has a lap belt. See Lap Belt (Crew and Extended Cab) on page 2‑37 for more information. The following instructions explain how to wear a lap-shoulder belt properly.

1. Adjust the seat, if the seat is adjustable, so you

can sit up straight. To see how, see “Seats” in the Index.

2. Pick up the latch plate and pull the belt across you.

Do not let it get twisted. The lap-shoulder belt may lock if you pull the belt across you very quickly. If this happens, let the belt go back slightly to unlock it. Then pull the belt across you more slowly. If the shoulder portion of a passenger belt is pulled out all the way, the child restraint locking feature may be engaged. If this happens, let the belt go back all the way and start again. Engaging the child restraint locking feature may affect the passenger sensing system, if equipped. See Passenger Sensing System on page 2‑86 for more information.

2-30

If the belt stops before it reaches the buckle, when using the lap-shoulder belt in a rear center seating position of a crew-cab, tilt the latch plate and keep pulling the safety belt until it can be buckled.

3. Push the latch plate into the buckle until it clicks.

Pull up on the latch plate to make sure it is secure. If the belt is not long enough, see Safety Belt Extender on page 2‑38 . If the latch plate will not go fully into the buckle, check if the correct buckle is being used. Position the release button on the buckle so that the safety belt could be quickly unbuckled if necessary.

2-31

4.

If equipped with a shoulder belt height adjuster, move it to the height that is right for you. See “Shoulder Belt Height Adjustment” later in this section.

To unlatch the belt, push the button on the buckle. The belt should return to its stowed position. Before a door is closed, be sure the safety belt is out of the way. If a door is slammed against a safety belt, damage can occur to both the safety belt and the vehicle.

5. To make the lap part tight, pull up on the

shoulder belt. It may be necessary to pull stitching on the safety belt through the latch plate to fully tighten the lap belt on smaller occupants.

2-32

Shoulder Belt Height Adjuster The vehicle has a shoulder belt height adjuster for the driver and right front passenger. Adjust the height so that the shoulder portion of the belt is centered on the shoulder. The belt should be away from the face and neck, but not falling off the shoulder. Improper shoulder belt height adjustment could reduce the effectiveness of the safety belt in a crash.

To move the adjuster down for the regular and crew cabs, squeeze the buttons (A) on the sides of the height adjuster and move the height adjuster to the desired position.

Regular and Crew Cab

On the extended cab, push down on the release button (A) and move the height adjuster to the desired position.

Extended Cab

You can move the adjuster up just by pushing up on the shoulder belt guide. After you move the adjuster to where you want it, try to move it down, without squeezing the buttons for the regular and crew cabs, or without pushing the release button for extended cabs, to make sure it has locked into position.

2-33

Rear Safety Belt Comfort Guides This vehicle may have rear shoulder belt comfort guides. If not, they are available through your dealer. The guides may provide added safety belt comfort for older children who have outgrown booster seats and for some adults. When installed and properly adjusted, the comfort guide positions the belt away from the neck and head.

Safety Belt Pretensioners This vehicle has safety belt pretensioners for front outboard occupants. Although the safety belt pretensioners cannot be seen, they are part of the safety belt assembly. They can help tighten the safety belts during the early stages of a moderate to severe frontal, near frontal, or rear crash if the threshold conditions for pretensioner activation are met. And, if your vehicle has side impact airbags, safety belt pretensioners can help tighten the safety belts in a side crash or a rollover event. Pretensioners work only once. If the pretensioners activate in a crash, they will need to be replaced, and probably other new parts for the vehicle's safety belt system. See Replacing Restraint System Parts After a
