2000 GMC Sierra Owner's Manual
Litho in U.S.A. Part Number X2015 A First Edition
© Copyright General Motors Corporation 1999
All Rights Reserved
Section 1
Seats and Seat Controls Safety Belts
Table of Contents
Seats and Restraint Systems
Air Bag System Child Restraints
Features and Controls
Keys and Door Locks Keyless Entry System (If Equipped) Tailgate Automatic Transmission Manual Transmission Operation Four-Wheel Drive Operation (If Equipped) Parking Brake Windows Tilt Wheel (If Equipped) Turn Signal/Multifunction Lever
Windshield Wipers Cruise Control Interior and Exterior Lamps Mirrors Storage Compartments Accessory Power Outlets OnStar® System (Option) Instrument Panel, Warning Lights and Gages Message Center Oil Life
Section 2
ii
Table of Contents (cont'd)
Comfort Controls and Audio Systems
Section 3
Heating and Air Conditioning Setting the Radio Clock
Radio/Cassette Player/CD Player Radio Theft-Deterrent Feature (If Equipped)
Your Driving and the Road
Section 4
Braking/Anti-lock Brakes Steering Driving Tips for Various Road Conditions Off-Road Driving
Recreational Vehicle Towing Loading Your Vehicle Towing a Trailer
Section 5
Hazard Warning Flashers Jump Starting Towing Your Vehicle
Problems on the Road
Engine Overheating Changing a Flat Tire If You're Stuck
iii
Table of Contents (cont'd)
Service and Appearance Care
Section 6
Fuel Checking Fluids and Lubricants Passenger Compartment Air Filter (If Equipped) Bulb Replacement Windshield Wiper Blade Replacement
Tires and Wheels Appearance Care Electrical System/Fuses and Circuit Breakers Capacities and Specifications Normal Maintenance Replacement Parts
Section 7
Scheduled Maintenance Periodic Maintenance Inspections
Recommended Fluids and Lubricants Maintenance Records
Maintenance Schedule
iv
Table of Contents (cont'd)
Customer Assistance Information
Section 8
Customer Satisfaction Procedures Customer Assistance Offices Roadside Assistance and Courtesy Transportation
Warranty Information (See Warranty Manual)
Reporting Safety Defects on page 8-10
Service Publications
Section 9
In the Index you will find an alphabetical listing of almost every subject in this manual.
You can use it to quickly find something you want to read.
Index
Please refer to the last page of this manual for your Service Station Guide
yellowblue
We support voluntary technician certification.
GENERAL MOTORS, GM, the GM Emblem, GMC, the GMC Emblem and the name SIERRA are registered trademarks of General Motors Corporation. This manual includes the latest information at the time it was printed. We reserve the right to make changes in the product after that time without further notice. For vehicles first sold in Canada, substitute the name “General Motors of Canada Limited” for GMC whenever it appears in this manual. Please keep this manual in your vehicle, so it will be there if you ever need it when you’re on the road. If you sell the vehicle, please leave this manual in it so the new owner can use it.
For Canadian Owners Who Prefer a French Language Manual: Aux propriétaires canadiens: Vous pouvez vous procurer un exemplaire de ce guide en français chez votre concessionaire ou au:
DGN Marketing Services Ltd.
1577 Meyerside Dr.
Mississauga, Ontario L5T 1B9
vi
How to Use this Manual Many people read their owner’s manual from beginning to end when they first receive their new vehicle. If you do this, it will help you learn about the features and controls for your vehicle. In this manual, you’ll find that pictures and words work together to explain things quickly.
yellowblue
Safety Warnings and Symbols You will find a number of safety cautions in this book. We use a box and the word CAUTION to tell you about things that could hurt you if you were to ignore the warning.
CAUTION:
These mean there is something that could hurt you or other people.
In the caution area, we tell you what the hazard is. Then we tell you what to do to help avoid or reduce the hazard. Please read these cautions. If you don’t, you or others could be hurt.
vii
yellowblue
You will also find a circle with a slash through it in this book. This safety symbol means “Don’t,” “Don’t do this” or “Don’t let this happen.”
In the notice area, we tell you about something that can damage your vehicle. Many times, this damage would not be covered by your warranty, and it could be costly. But the notice will tell you what to do to help avoid the damage. When you read other manuals, you might see CAUTION and NOTICE warnings in different colors or in different words. You’ll also see warning labels on your vehicle. They use the same words, CAUTION or NOTICE.
Vehicle Damage Warnings Also, in this book you will find these notices:
NOTICE:
These mean there is something that could damage your vehicle.
viii
Vehicle Symbols These are some of the symbols you may find on your vehicle.
yellowblue
These symbols have to do with your lamps:
These symbols are on some of your controls:
These symbols are used on warning and indicator lights:
Here are some other symbols you may see:
For example, these symbols are used on an original battery:
CAUTION POSSIBLE INJURY
PROTECT EYES BY SHIELDING
CAUSTIC BATTERY ACID COULD CAUSE BURNS
AVOID SPARKS OR FLAMES
SPARK OR FLAME COULD EXPLODE BATTERY
These symbols are important for you and your passengers whenever your vehicle is driven:
DOOR LOCK UNLOCK
FASTEN SEAT BELTS
POWER WINDOW
MASTER LIGHTING SWITCH
TURN SIGNALS
PARKING LAMPS
HAZARD WARNING FLASHER
DAYTIME RUNNING LAMPS
AIR BAG
FOG LAMPS
WINDSHIELD WIPER
WINDSHIELD WASHER
WINDSHIELD DEFROSTER
REAR WINDOW DEFOGGER
VENTILATING FAN
ENGINE COOLANT TEMP
BATTERY CHARGING SYSTEM
BRAKE
FUSE
LIGHTER
HORN
COOLANT
SPEAKER
ENGINE OIL PRESSURE
ANTI-LOCK BRAKES
FUEL
ix
Model Reference This manual covers these models:
Regular Cab Pickup
yellowblue
Chassis Cab
Extended Cab Pickup
Service Station Guide
Cooling System
See Section 5
Tire Pressure
See Section 6
Battery
See Section 6
Spare Tire Pressure
See Section 5
Alternate
Fuel Door Release
See Section 6
For a More
Detailed Look at
What's Under the Hood
See Section 6
Hood Release
See Section 6
Windshield Washer
Fluid
See Section 6
Engine Oil Dipstick
See Section 6
Oil Viscosity
Engine Oil
See Section 6
Remote Fuel
Door Release
See Section 6
Fuel
Use unleaded gas only, 87 Octane or higher.
See Section 6
Section 1 Seats and Restraint Systems
yellowblue
Here you’ll find information about the seats in your vehicle and how to use your safety belts properly. You can also learn about some things you should not do with air bags and safety belts.
1-2
1-11
1-15
1-16
1-16
1-23
1-24
1-24
1-35
Seats and Seat Controls Safety Belts: They’re for Everyone Here Are Questions Many People Ask About Safety Belts -- and the Answers How to Wear Safety Belts Properly Driver Position Safety Belt Use During Pregnancy Right Front Passenger Position Air Bag System Center Passenger Position
1-36
1-40
1-42
1-46
1-62
1-65
1-65
1-65
Rear Seat Passengers Rear Safety Belt Comfort Guides for Children and Small Adults Children Child Restraints Larger Children Safety Belt Extender Checking Your Restraint Systems Replacing Restraint System Parts After a Crash
1-
1-1
yellowblue
If your vehicle has a manual bucket or split bench seat, you can adjust it with this lever located at the front of the seat. Lift the lever at the front of the seat to unlock it. Using your body, slide the seat to where you want it. Then, release the lever and try to move the seat with your body in order to make sure the seat is locked into place.
Seats and Seat Controls This section tells you about the seats -- how to adjust them, and fold them up and down. It also tells you about reclining front seatbacks and head restraints. Manual Front Seat
CAUTION:
You can lose control of the vehicle if you try to adjust a manual driver’s seat while the vehicle is moving. The sudden movement could startle and confuse you, or make you push a pedal when you don’t want to. Adjust the driver’s seat only when the vehicle is not moving.
1-2
Cushion Tilt (If Equipped)
Manual Lumbar Control (If Equipped)
yellowblue
If your vehicle has a lumbar adjustment, you can increase or decrease lumbar support in an area of the lower seatback.
If your vehicle has this feature, you can raise or lower the front of the driver’s or passenger’s seat with this lever located at the inside edge of the seat. To raise or lower the front of the seat, move the lever up or down in a continuous motion until the cushion reaches the desired height.
To increase support, turn the knob towards the front of the vehicle. To decrease support, turn the knob towards the rear of the vehicle.
1-3
yellowblue
Raise the front of the seat cushion by raising the forward edge of the button. Lower the front of the seat cushion by lowering the forward edge of the button. Move the seat forward by moving the whole button toward the front of the vehicle. Raise the rear of the seat cushion by raising the rear edge of the button. Lower the rear of the seat cushion by lowering the rear edge of the button. Move the seat rearward by moving the whole button toward the rear of the vehicle. Moving the whole button up or down raises or lowers the entire seat cushion. Vertical Control: If your vehicle has the power reclining seats, you can use this button to adjust the angle of the seatback. Move the reclining front seatback rearward by moving the button toward the rear of the vehicle. Move the seatback forward by moving the button toward the front of the vehicle. See “Reclining Seatbacks” in the Index for further information.
Power Seat(s) (If Equipped)
Horizontal Control: If your vehicle has a power seat, you can adjust it with this control located at the outside edge of the seat.
1-4
Power Lumbar Control (If Equipped)
Memory Seat (If Equipped)
If you have power lumbar adjustment, you can increase or decrease lumbar support in an area of the lower seatback.
The memory function controls the driver’s seat cushion and recliner positions.
yellowblue
To increase support, press and hold the front of the control. Let go of the control when the lower seatback reaches the desired level of support. To decrease support, press and hold the rear of the control. Let go of the control when the lower seatback reaches the desired level of support. You can also reshape the back wing area of the lower seatback. To increase support, press and hold the top of the control. Let go of the control when the lower seatback reaches the desired level of support. To decrease support, press and hold the bottom of the control. Let go of the control when the lower seatback reaches the desired level of support.
It does not store the lumbar or back support positions. To set your memory seat: 1. Adjust the driver’s seat to your desired position. 2. Press the SET button and then press the 1 or 2 side
of the memory control within five seconds.
When your vehicle is in PARK (P), press the 1 or 2
button of the memory control to recall the seat setting.
To do the same thing for a second driver, follow the
preceding steps, but press the other number of the
memory control.
1-5
Heated Front Seats (If Equipped)
Reclining Seatbacks
If your vehicle has heated front seats, the ignition must be in RUN for them to operate.
yellowblue
The control for the driver’s side heated seat is located on the driver’s side door panel. The control for the passenger’s side heated seat is located on the passenger’s side door panel. To activate the heated seats, press the button once for the HI heat setting. Press the button again for the LO heat setting. To turn off the heated seats, press the button a third time. An indicator light on the button will illuminate for each heat setting anytime the heated seats are operating.
To adjust the front seatback, lift the lever upward. Release the lever to lock the seatback where you want it. Lift the lever again upward and the seatback will go to an upright position. If your vehicle has power seats with a power recliner, see “Power Seats” in the Index for further information on how to operate the reclining seatback feature.
1-6
yellowblue
CAUTION:
Sitting in a reclined position when your vehicle is in motion can be dangerous. Even if you buckle up, your safety belts can’t do their job when you’re reclined like this. The shoulder belt can’t do its job. In a crash, you could go into it, receiving neck or other injuries. The lap belt can’t do its job either. In a crash the belt could go up over your abdomen. The belt forces would be there, not at your pelvic bones. This could cause serious internal injuries. For proper protection when the vehicle is in motion, have the seatback upright. Then sit well back in the seat and wear your safety belt properly.
1-7
But don’t have a seatback reclined if your vehicle is moving.
yellowblue
The seatbacks fold forward to let you access the rear of the cab.
To fold a front seatback forward, pull this lever forward and fold the seatback forward.
To return the seatback to the upright position, just push the seatback rearward until it latches. After returning the seatback to its upright position, pull the seatback forward to make sure it is locked.
Head Restraints Slide the head restraint up or down so that the top of the restraint is closest to the top of your ears. This position reduces the chance of a neck injury in a crash. On some models, the head restraints tilt forward and rearward also. To tilt the head restraints forward, grasp the top of the restraint and move it forward to where you want it to go until you hear a click. It will then be locked into that position until you need to move it again. Pulling it forward past the last position will allow the restraint to return to its upright position. Seatback Latches
CAUTION:
If the seatback isn’t locked, it could move forward in a sudden stop or crash. That could cause injury to the person sitting there. Always press rearward on the seatback to be sure it is locked.
1-8
Easy Entry Seat (Extended Cab Only) (If Equipped)
CAUTION:
If any easy entry seat isn’t locked, it can move. In a sudden stop or crash, the person sitting there could be injured. And, even if there is no crash or sudden stop, a driver sitting in an unlocked easy entry seat could be startled by the sudden movement and hit the wrong control or pedal, causing an accident. After you’ve used it, be sure to push rearward on any easy entry seat to be sure it is locked.
The manual driver side front bucket seat and the manual driver side split bench seat of your vehicle may have an easy entry feature. This makes it easy to get in and out of the rear seat.
yellowblue
To operate the seat, pull forward on the top of this lever and tilt the seatback forward toward the front of the vehicle.
When you do, the seat bottom will release. Just pull or push the seat forward until it stops. To return the seat to its regular position, return the seatback to its upright position, then push the whole seat rearward until it latches. After returning the seat to its regular position, try to move the seat with your body in order to make sure the seat is locked into place.
1-9
Rear Seat (Extended Cab)
Folding the Rear Seat The extended cab’s rear seat can be folded up to provide more cargo space. To fold the seat:
1. Pull forward on the release strap located under the rear seat cushion.
yellowblue
3. Push and pull on the seat
to make sure the seat is secure.
2. Fold the seat cushion upward until it latches with
the seatback.
The extended cab’s rear seat can also be folded open for more seating space. To use the seat: 1. Push rearward on the seat cushion while pulling up on the release strap under the seat cushion. Pull the seat cushion downward until it latches.
2. After pulling the seat cushion down, pull up on it to
make sure it is locked.
1-10
Safety Belts: They’re for Everyone This part of the manual tells you how to use safety belts properly. It also tells you some things you should not do with safety belts. And it explains the air bag system.
CAUTION:
Don’t let anyone ride where he or she can’t wear a safety belt properly. If you are in a crash and you’re not wearing a safety belt, your injuries can be much worse. You can hit things inside the vehicle or be ejected from it. You can be seriously injured or killed. In the same crash, you might not be if you are buckled up. Always fasten your safety belt, and check that your passengers’ belts are fastened properly too.
yellowblue
CAUTION:
It is extremely dangerous to ride in a cargo area, inside or outside of a vehicle. In a collision, people riding in these areas are more likely to be seriously injured or killed. Do not allow people to ride in any area of your vehicle that is not equipped with seats and safety belts. Be sure everyone in your vehicle is in a seat and using a safety belt properly.
Your vehicle has a light that comes on as a reminder to buckle up. (See “Safety Belt Reminder Light” in the Index.)
1-11
yellowblue
Why Safety Belts Work When you ride in or on anything, you go as fast as it goes.
In most states and Canadian provinces, the law says to wear safety belts. Here’s why: They work. You never know if you’ll be in a crash. If you do have a crash, you don’t know if it will be a bad one. A few crashes are mild, and some crashes can be so serious that even buckled up a person wouldn’t survive. But most crashes are in between. In many of them, people who buckle up can survive and sometimes walk away. Without belts they could have been badly hurt or killed. After more than 30 years of safety belts in vehicles, the facts are clear. In most crashes buckling up does matter ... a lot!
Take the simplest vehicle. Suppose it’s just a seat on wheels.
1-12
yellowblue
Put someone on it.
Get it up to speed. Then stop the vehicle. The rider doesn’t stop.
1-13
yellowblue
The person keeps going until stopped by something. In a real vehicle, it could be the windshield ...
or the instrument panel ...
1-14
yellowblue
Here Are Questions Many People Ask About Safety Belts -- and the Answers Q: Won’t I be trapped in the vehicle after an
accident if I’m wearing a safety belt?
A: You could be -- whether you’re wearing a safety belt or not. But you can unbuckle a safety belt, even if you’re upside down. And your chance of being conscious during and after an accident, so you can unbuckle and get out, is much greater if you are belted.
Q: If my vehicle has air bags, why should I have to
wear safety belts?
A: Air bags are in many vehicles today and will be
in most of them in the future. But they are supplemental systems only; so they work with safety belts -- not instead of them. Every air bag system ever offered for sale has required the use of safety belts. Even if you’re in a vehicle that has air bags, you still have to buckle up to get the most protection. That’s true not only in frontal collisions, but especially in side and other collisions.
1-15
or the safety belts! With safety belts, you slow down as the vehicle does. You get more time to stop. You stop over more distance, and your strongest bones take the forces. That’s why safety belts make such good sense.
yellowblue
Q: If I’m a good driver, and I never drive far from
home, why should I wear safety belts?
A: You may be an excellent driver, but if you’re in an accident -- even one that isn’t your fault -- you and your passengers can be hurt. Being a good driver doesn’t protect you from things beyond your control, such as bad drivers.
Most accidents occur within 25 miles (40 km) of home. And the greatest number of serious injuries and deaths occur at speeds of less than 40 mph (65 km/h). Safety belts are for everyone.
How to Wear Safety Belts Properly Adults This part is only for people of adult size. Be aware that there are special things to know about safety belts and children. And there are different rules for smaller children and babies. If a child will be riding in your vehicle, see the part of this manual called “Children.” Follow those rules for everyone’s protection. First, you’ll want to know which restraint systems your vehicle has. We’ll start with the driver position. Driver Position This part describes the driver’s restraint system.
1-16
Lap-Shoulder Belt The driver has a lap-shoulder belt. Here’s how to wear it properly. 1. Close and lock the door. 2. Adjust the seat (to see how, see “Seats” in the Index)
so you can sit up straight.
yellowblue
3. Pick up the latch plate and pull the belt across you.
Don’t let it get twisted. The shoulder belt may lock if you pull the belt across you very quickly. If this happens, let the belt go back slightly to unlock it. Then pull the belt across you more slowly.
4. Push the latch plate into the buckle until it clicks. Pull up on the latch plate to make sure it is secure. If the belt isn’t long enough, see “Safety Belt Extender” at the end of this section. Make sure the release button on the buckle is positioned so you would be able to unbuckle the safety belt quickly if you ever had to.
1-17
yellowblue
5. To make the lap part tight, pull down on the buckle end of the belt as you pull up on the shoulder belt.
The lap part of the belt should be worn low and snug on the hips, just touching the thighs. In a crash, this applies force to the strong pelvic bones. And you’d be less likely to slide under the lap belt. If you slid under it, the belt would apply force at your abdomen. This could cause serious or even fatal injuries. The shoulder belt should go over the shoulder and across the chest. These parts of the body are best able to take belt restraining forces. The safety belt locks if there’s a sudden stop or crash, or if you pull the belt very quickly out of the retractor.
1-18
Q: What’s wrong with this?
yellowblue
CAUTION:
You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury. The shoulder belt should fit against your body.
A: The shoulder belt is too loose. It won’t give nearly
as much protection this way.
1-19
Q: What’s wrong with this?
yellowblue
CAUTION:
You can be seriously injured if your belt is buckled in the wrong place like this. In a crash, the belt would go up over your abdomen. The belt forces would be there, not at the pelvic bones. This could cause serious internal injuries. Always buckle your belt into the buckle nearest you.
A: The belt is buckled in the wrong place.
1-20
Q: What’s wrong with this?
yellowblue
CAUTION:
You can be seriously injured if you wear the shoulder belt under your arm. In a crash, your body would move too far forward, which would increase the chance of head and neck injury. Also, the belt would apply too much force to the ribs, which aren’t as strong as shoulder bones. You could also severely injure internal organs like your liver or spleen.
A: The shoulder belt is worn under the arm. It should
be worn over the shoulder at all times.
1-21
Q: What’s wrong with this?
yellowblue
CAUTION:
You can be seriously injured by a twisted belt. In a crash, you wouldn’t have the full width of the belt to spread impact forces. If a belt is twisted, make it straight so it can work properly, or ask your dealer to fix it.
A: The belt is twisted across the body.
1-22
yellowblue
Safety Belt Use During Pregnancy Safety belts work for everyone, including pregnant women. Like all occupants, they are more likely to be seriously injured if they don’t wear safety belts.
To unlatch the belt, just push the button on the buckle. The belt should go back out of the way. Before you close the door, be sure the belt is out of the way. If you slam the door on it, you can damage both the belt and your vehicle.
A pregnant woman should wear a lap-shoulder belt, and the lap portion should be worn as low as possible, below the rounding, throughout the pregnancy.
1-23
The best way to protect the fetus is to protect the mother. When a safety belt is worn properly, it’s more likely that the fetus won’t be hurt in a crash. For pregnant women, as for anyone, the key to making safety belts effective is wearing them properly. Right Front Passenger Position To learn how to wear the right front passenger’s safety belt properly, see “Driver Position” earlier in this section. The right front passenger’s safety belt works the same way as the driver’s safety belt -- except for one thing. If you ever pull the shoulder portion of the belt out all the way, you will engage the child restraint locking feature. If this happens, just let the belt go back all the way and start again. Air Bag System This part explains the air bag system. Your vehicle has air bags -- one air bag for the driver and another air bag for the right front passenger. Frontal air bags are designed to help reduce the risk of injury from the force of an inflating air bag. But these air bags must inflate very quickly to do their job and comply with federal regulations.
1-24
Here are the most important things to know about the air bag system:
yellowblue
CAUTION:
You can be severely injured or killed in a crash if you aren’t wearing your safety belt -- even if you have air bags. Wearing your safety belt during a crash helps reduce your chance of hitting things inside the vehicle or being ejected from it. Air bags are “supplemental restraints” to the safety belts. All air bags are designed to work with safety belts, but don’t replace them. Air bags are designed to work only in moderate to severe crashes where the front of your vehicle hits something. They aren’t designed to inflate at all in rollover, rear, side or low-speed frontal crashes. And, for unrestrained occupants, air bags may provide less protection in frontal crashes than more forceful air bags have provided in the past. Everyone in your vehicle should wear a safety belt properly -- whether or not there’s an air bag for that person.
yellowblue
CAUTION:
CAUTION:
Air bags inflate with great force, faster than the blink of an eye. If you’re too close to an inflating air bag, as you would be if you were leaning forward, it could seriously injure you. Safety belts help keep you in position before and during a crash. Always wear your safety belt, even with air bags. The driver should sit as far back as possible while still maintaining control of the vehicle.
Anyone who is up against, or very close to, any air bag when it inflates can be seriously injured or killed. Air bags plus lap-shoulder belts offer the best protection for adults, but not for young children and infants. Neither the vehicle’s safety belt system nor its air bag system is designed for them. Young children and infants need the protection that a child restraint system can provide. Always secure children properly in your vehicle. To read how, see the part of this manual called “Children.”
1-25
There is an air bag readiness light on the instrument panel, which shows the air bag symbol.
How the Air Bag System Works
yellowblue
The system checks the air bag electrical system for malfunctions. The light tells you if there is an electrical problem. See “Air Bag Readiness Light” in the Index for more information.
Where are the air bags? The driver’s air bag is in the middle of the steering wheel.
1-26
yellowblue
CAUTION:
If something is between an occupant and an air bag, the bag might not inflate properly or it might force the object into that person. The path of an inflating air bag must be kept clear. Don’t put anything between an occupant and an air bag, and don’t attach or put anything on the steering wheel hub or on or near any other air bag covering.
1-27
The right front passenger’s air bag is in the instrument panel on the passenger’s side.
yellowblue
What makes an air bag inflate? In an impact of sufficient severity, the air bag sensing system detects that the vehicle is in a crash. The sensing system triggers a release of gas from the inflator, which inflates the air bag. The inflator, air bag and related hardware are all part of the air bag modules inside the steering wheel and in the instrument panel in front of the right front passenger.
How does an air bag restrain? In moderate to severe frontal or near-frontal collisions, even belted occupants can contact the steering wheel or the instrument panel. Air bags supplement the protection provided by safety belts. Air bags distribute the force of the impact more evenly over the occupant’s upper body, stopping the occupant more gradually. But air bags would not help you in many types of collisions, including rollovers, rear impacts and side impacts, primarily because an occupant’s motion is not toward those air bags. Air bags should never be regarded as anything more than a supplement to safety belts, and then only in moderate to severe frontal or near-frontal collisions.
When should an air bag inflate? An air bag is designed to inflate in a moderate to severe frontal or near-frontal crash. The air bag will inflate only if the impact speed is above the system’s designed “threshold level.” If your vehicle goes straight into a wall that doesn’t move or deform, the threshold level is about 9 to 16 mph (14 to 26 km/h). The threshold level can vary, however, with specific vehicle design, so that it can be somewhat above or below this range. If your vehicle strikes something that will move or deform, such as a parked car, the threshold level will be higher. The air bag is not designed to inflate in rollovers, side impacts or rear impacts, because inflation would not help the occupant. In any particular crash, no one can say whether an air bag should have inflated simply because of the damage to a vehicle or because of what the repair costs were. Inflation is determined by the angle of the impact and how quickly the vehicle slows down in frontal or near-frontal impacts. The air bag system is designed to work properly under a wide range of conditions, including off-road usage. Observe safe driving speeds, especially on rough terrain. As always, wear your safety belt. See “Off-Road Driving” in the Index for more tips on off-road driving.
1-28
What will you see after an air bag inflates? After an air bag inflates, it quickly deflates, so quickly that some people may not even realize the air bag inflated. Some components of the air bag module -- the steering wheel hub for the driver’s air bag, or the instrument panel for the right front passenger’s bag -- will be hot for a short time. The parts of the bag that come into contact with you may be warm, but not too hot to touch. There will be some smoke and dust coming from vents in the deflated air bags. Air bag inflation doesn’t prevent the driver from seeing or from being able to steer the vehicle, nor does it stop people from leaving the vehicle.
CAUTION:
When an air bag inflates, there is dust in the air. This dust could cause breathing problems for people with a history of asthma or other breathing trouble. To avoid this, everyone in the vehicle should get out as soon as it is safe to do so. If you have breathing problems but can’t get out of the vehicle after an air bag inflates, then get fresh air by opening a window or door.
yellowblue
In many crashes severe enough to inflate an air bag, windshields are broken by vehicle deformation. Additional windshield breakage may also occur from the right front passenger air bag. D Air bags are designed to inflate only once. After they
inflate, you’ll need some new parts for your air bag system. If you don’t get them, the air bag system won’t be there to help protect you in another crash. A new system will include air bag modules and possibly other parts. The service manual for your vehicle covers the need to replace other parts.
D Your vehicle is equipped with a crash sensing and
diagnostic module, which records information about the air bag system. The module records information about the readiness of the system, when the system commands air bag inflation and driver’s safety belt usage at deployment. Some modules also record speed, engine rpm, brake and throttle data.
D Let only qualified technicians work on your air bag system. Improper service can mean that your air bag system won’t work properly. See your dealer for service.
1-29
yellowblue
AIR BAG OFF Switch Your vehicle has a switch on the instrument panel that you can use to turn off the right front passenger’s air bag.
NOTICE:
If you damage the covering for the driver’s or the right front passenger’s air bag, the bag may not work properly. You may have to replace the air bag module in the steering wheel or both the air bag module and the instrument panel for the right front passenger’s air bag. Do not open or break the air bag coverings.
1-30
This switch should only be turned to AIR BAG OFF if the person in the right front passenger’s position is a member of a passenger risk group identified by the national government as follows: Infant. An infant (less than 1 year old) must ride in the front seat because: D my vehicle has no rear seat; D my vehicle has a rear seat too small to accommodate
a rear-facing infant seat; or
D the infant has a medical condition which, according to the infant’s physician, makes it necessary for the infant to ride in the front seat so that the driver can constantly monitor the child’s condition.
Child age 1 to 12. A child age 1 to 12 must ride in the front seat because: D my vehicle has no rear seat; D although children ages 1 to 12 ride in the rear
seat(s) whenever possible, children ages 1 to 12
sometimes must ride in the front because no space is
available in the rear seat(s) of my vehicle; or
D the child has a medical condition which, according to the child’s physician, makes it necessary for the child to ride in the front seat so that the driver can constantly monitor the child’s condition.
yellowblue
Medical Condition. A passenger has a medical condition which, according to his or her physician: D causes the passenger air bag to pose a special risk
for the passenger; and
D makes the potential harm from the passenger air bag
in a crash greater than the potential harm from turning off the air bag and allowing the passenger, even if belted, to hit the dashboard or windshield in a crash.
CAUTION:
If the right front passenger’s air bag is turned off for a person who isn’t in a risk group identified by the national government, that person won’t have the extra protection of an air bag. In a crash, the air bag wouldn’t be able to inflate and help protect the person sitting there. Don’t turn off the passenger’s air bag unless the person sitting there is in a risk group.
1-31
yellowblue
CAUTION:
If the air bag readiness light ever comes on when you have turned off the air bag, it means that something may be wrong with the air bag system. The right front passenger’s air bag could inflate even though the switch is off. If your vehicle is a regular cab pickup and this ever happens, don’t let anyone whom the national government has identified as a member of a passenger air bag risk group sit in the right front passenger’s position (for example, don’t secure a rear-facing child restraint in your vehicle) until you have your vehicle serviced. If your vehicle is an extended cab pickup and this ever happens, don’t let anyone whom the national government has identified as a member of a passenger air bag risk group sit in the right front passenger’s position (for example, don’t secure a rear-facing child restraint in the right front passenger’s seat) until you have your vehicle serviced.
To turn off the right front passenger’s air bag, insert your ignition key into the switch, push in, and move the switch to AIR BAG OFF. The AIR BAG OFF light will come on to let you know that the right front passenger’s air bag is off. The right front passenger’s air bag will remain off until you turn it back on again, and the AIR BAG OFF light will stay on to remind you that the air bag is off.
1-32
yellowblue
Servicing Your Air Bag-Equipped Vehicle Air bags affect how your vehicle should be serviced. There are parts of the air bag system in several places around your vehicle. You don’t want the system to inflate while someone is working on your vehicle. Your dealer and the service manual have information about servicing your vehicle and the air bag system. To purchase a service manual, see “Service and Owner Publications” in the Index.
CAUTION:
For up to two minutes after the ignition key is turned off and the battery is disconnected, an air bag can still inflate during improper service. You can be injured if you are close to an air bag when it inflates. Avoid wires wrapped with yellow tape or yellow connectors. They are probably part of the air bag system. Be sure to follow proper service procedures, and make sure the person performing work for you is qualified to do so.
The air bag system does not need regular maintenance.
1-33
To turn the right front passenger’s air bag on again, insert your ignition key into the switch, push in, and move the switch to the ON position.
yellowblue
Q: What if I add a snow plow? Will it keep the
air bags from working properly?
A: We’ve designed our air bag systems to work properly under a wide range of conditions, including snow plowing with vehicles equipped with the optional Snow Plow Prep Package (RPO VYU). But don’t change or defeat the snow plow’s “tripping mechanism.” If you do, it can damage your snow plow and your vehicle, and it may cause an air bag inflation.
Adding Equipment to Your Air Bag-Equipped Vehicle Q: If I add a push bumper or a bicycle rack to the
front of my vehicle, will it keep the air bags from working properly?
A: As long as the push bumper or bicycle rack is
attached to your vehicle so that the vehicle’s basic structure isn’t changed, it’s not likely to keep the air bags from working properly in a crash.
Q: Is there anything I might add to the front of the
vehicle that could keep the air bags from working properly?
A: Yes. If you add things that change your vehicle’s frame, bumper system, front end sheet metal or height, they may keep the air bag system from working properly. Also, the air bag system may not work properly if you relocate any of the air bag sensors. If you have any questions about this, you should contact Customer Assistance before you modify your vehicle. (The phone numbers and addresses for Customer Assistance are in Step Two of the Customer Satisfaction Procedure in this manual. See “Customer Satisfaction Procedure” in the Index.)
1-34
Center Passenger Position
yellowblue
Lap Belt If your vehicle has front and rear bench seats, someone can sit in the center positions.
When you sit in a center seating position, you have a lap safety belt, which has no retractor. To make the belt longer, tilt the latch plate and pull it along the belt.
1-35
yellowblue
Rear Seat Passengers It’s very important for rear seat passengers to buckle up! Accident statistics show that unbelted people in the rear seat are hurt more often in crashes than those who are wearing safety belts. Rear passengers who aren’t safety belted can be thrown out of the vehicle in a crash. And they can strike others in the vehicle who are wearing safety belts. Rear Seat Outside Passenger Positions (Extended Cab)
To make the belt shorter, pull its free end as shown until the belt is snug. Buckle, position and release it the same way as the lap part of a lap-shoulder belt. If the belt isn’t long enough, see “Safety Belt Extender” at the end of this section. Make sure the release button on the buckle is positioned so you would be able to unbuckle the safety belt quickly if you ever had to.
1-36
Lap-Shoulder Belt (Extended Cab) The positions next to the windows have lap-shoulder belts. Here’s how to wear one properly.
yellowblue
1. Pick up the latch plate and pull the belt across you.
Don’t let it get twisted. The shoulder belt may lock if you pull the belt across you very quickly. If this happens, let the belt go back slightly to unlock it. Then pull the belt across you more slowly.
2. Push the latch plate into the buckle until it clicks. Pull up on the latch plate to make sure it is secure. When the shoulder belt is pulled out all the way, it will lock. If it does, let it go back all the way and start again. If the belt is not long enough, see “Safety Belt Extender” at the end of this section. Make sure the release button on the buckle is positioned so you would be able to unbuckle the safety belt quickly if you ever had to.
1-37
yellowblue
3. To make the lap part tight, pull down on the buckle end of the belt as you pull up on the shoulder part.
The lap part of the belt should be worn low and snug on the hips, just touching the thighs. In a crash, this applies force to the strong pelvic bones. And you’d be less likely to slide under the lap belt. If you slid under it, the belt would apply force at your abdomen. This could cause serious or even fatal injuries. The shoulder belt should go over the shoulder and across the chest. These parts of the body are best able to take belt restraining forces. The safety belt locks if there’s a sudden stop or a crash. The safety belt also locks if you pull the belt very quickly out of the retractor.
1-38
CAUTION:
You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury. The shoulder belt should fit against your body.
yellowblue
To unlatch the belt, just push the button on the buckle.
1-39
yellowblue
1. Remove the guide from its storage clip on the
interior body.
Rear Safety Belt Comfort Guides for Children and Small Adults If your vehicle has a rear seat, your vehicle has shoulder belt comfort guides. This feature will provide added safety belt comfort for children who have outgrown child restraints and for small adults. When installed on a shoulder belt, the comfort guide pulls the belt away from the neck and head. There is one guide for each outside passenger position in the rear seat. To provide added safety belt comfort for children who have outgrown child restraints and for smaller adults, the comfort guides may be installed on the shoulder belts. Here’s how to install a comfort guide and use the safety belt:
1-40
yellowblue
2. Place the guide over the belt and insert the two edges
of the belt into the slots of the guide.
3. Be sure that the belt is not twisted and it lies flat.
The guide must be on top of the belt.
1-41
yellowblue
Children Everyone in a vehicle needs protection! That includes infants and all children smaller than adult size. Neither the distance traveled nor the age and size of the traveler changes the need, for everyone, to use safety restraints. In fact, the law in every state in the United States and in every Canadian province says children up to some age must be restrained while in a vehicle. Smaller Children and Babies
CAUTION:
Children who are up against, or very close to, any air bag when it inflates can be seriously injured or killed. Air bags plus lap-shoulder belts offer the best protection for adults, but not for young children and infants. Neither the vehicle’s safety belt system nor its air bag system is designed for them. Young children and infants need the protection that a child restraint system can provide. Always secure children properly in your vehicle.
4. Buckle, position and release the safety belt as
described in “Rear Seat Passenger Positions (Extended Cab)” earlier in this section. Make sure that the shoulder belt crosses the shoulder.
To remove and store the comfort guides, squeeze the belt edges together so that you can take them out from the guides. Slide the guide onto the storage clip.
1-42
yellowblue
Infants need complete support, including support for the head and neck. This is necessary because an infant’s neck is weak and its head weighs so much compared with the rest of its body. In a frontal crash, an infant in a rear-facing restraint settles into the restraint, so the crash forces can be distributed across the strongest part of the infant’s body, the back and shoulders. A baby should be secured in an appropriate infant restraint. This is so important that many hospitals today won’t release a newborn infant to its parents unless there is an infant restraint available for the baby’s first trip in a motor vehicle.
CAUTION:
Smaller children and babies should always be restrained in a child or infant restraint. The instructions for the restraint will say whether it is the right type and size for your child. A very young child’s hip bones are so small that a regular belt might not stay low on the hips, as it should. Instead, the belt will likely be over the child’s abdomen. In a crash, the belt would apply force right on the child’s abdomen, which could cause serious or fatal injuries. So, be sure that any child small enough for one is always properly restrained in a child or infant restraint.
1-43
yellowblue
CAUTION:
Never hold a baby in your arms while riding in a vehicle. A baby doesn’t weigh much -- until a crash. During a crash a baby will become so heavy you can’t hold it. For example, in a crash at only 25 mph (40 km/h), a 12-lb. (5.5 kg) baby will suddenly become a 240-lb. (110 kg) force on your arms. The baby would be almost impossible to hold.
CAUTION: (Continued)
1-44
CAUTION: (Continued)
Secure the baby in an infant restraint. If you’re using the infant restraint in the right front passenger’s position, be sure to turn off the air bag. See “Air Bag Off Switch” and “Securing a Child Restraint in the Right Front Seat Position” in the Index for more on this, including important safety information.
yellowblue
1-45
Child Restraints Every time infants and young children ride in vehicles, they should have protection provided by appropriate restraints. Q: What are the different types of add-on
child restraints?
A: Add-on child restraints are available in four basic types. When selecting a child restraint, take into consideration not only the child’s weight and size, but also whether or not the restraint will be compatible with the motor vehicle in which it will be used.
1-46
yellowblue
An infant car bed (A) is a special bed made for use in a motor vehicle. It’s an infant restraint system designed to restrain or position a child on a continuous flat surface. With an infant car bed, make sure that the infant’s head rests toward the center of the vehicle.
yellowblue
1-47
A rear-facing infant restraint (B) positions an infant to face the rear of the vehicle. Rear-facing infant restraints are designed for infants of up to about 20 lbs. (9 kg) and about one year of age. This type of restraint faces the rear so that the infant’s head, neck and body can have the support they need in a frontal crash. Some infant seats come in two parts -- the base stays secured in the vehicle and the seat part is removable.
yellowblue
A forward-facing child restraint (C-E) positions a child upright to face forward in the vehicle. These forward-facing restraints are designed to help protect children who are from 20 to 40 lbs. (9 to 18 kg) and about 26 to 40 inches (66 to 102 cm) in height, or up to around four years of age. One type, a convertible restraint, is designed to be used either as a rear-facing infant seat or a forward-facing child seat.
1-48
yellowblue
When choosing a child restraint, be sure the child restraint is designed to be used in a vehicle. If it is, it will have a label saying that it meets federal motor vehicle safety standards. Then follow the instructions for the restraint. You may find these instructions on the restraint itself or in a booklet, or both. These restraints use the belt system in your vehicle, but the child also has to be secured within the restraint to help reduce the chance of personal injury. The instructions that come with the infant or child restraint will show you how to do that. Both the owner’s manual and the child restraint instructions are important, so if either one of these is not available, obtain a replacement copy from the manufacturer.
A booster seat (F) is designed for children who are about 40 to 60 lbs., or even up to 80 lbs. (18 to 27 kg, or even up to 36 kg), and about four to eight years of age. A booster seat is designed to improve the fit of the vehicle’s safety belt system. Booster seats with shields use lap-only belts; however, booster seats without shields use lap-shoulder belts. Booster seats can also help a child to see out the window.
1-49
yellowblue
Where to Put the Restraint (Extended Cab Pickup) Accident statistics show that children are safer if they are restrained in the rear rather than the front seat. We at General Motors therefore recommend that you put your child restraint in the rear seat. There is limited space in the rear seating area of an extended cab model. If you want to secure a child restraint in a rear seating position of an extended cab model, especially in the rear center position, be sure to study the instructions that came with your child restraint to see if there is enough room to secure your seat properly. If you want to secure a rear-facing child restraint in the right front passenger’s seat, turn off the passenger’s air bag. See “AIR BAG OFF Switch” and “Securing a Child Restraint in the Right Front Seat Position” in the Index for more on this, including important safety information.
Where to Put the Restraint (Regular Cab Pickup) The child restraint must be secured properly in the right front passenger seat. If you want to secure a rear-facing child restraint in the right front passenger’s seat, turn off the passenger’s air bag. See “AIR BAG OFF Switch” and “Securing a Child Restraint in the Right Front Seat Position” in the Index for more on this, including important safety information.
CAUTION:
A child in a rear-facing child restraint can be seriously injured or killed if the right front passenger’s air bag inflates. This is because the back of the rear-facing child restraint would be very close to the inflating air bag. Be sure to turn off the air bag before using a rear-facing child restraint in the right front seat position.
Keep in mind that an unsecured child restraint can move around in a collision or sudden stop and injure people in the vehicle -- even when no child is in it.
1-50
CAUTION:
A child in a rear-facing child restraint can be seriously injured or killed if the right front passenger’s air bag inflates. This is because the back of the rear-facing child restraint would be very close to the inflating air bag. Be sure to turn off the air bag before using a rear-facing child restraint in the right front seat position.
Wherever you install it, be sure to secure the child restraint properly. Keep in mind that an unsecured child restraint can move around in a collision or sudden stop and injure people in the vehicle. Be sure to properly secure any child restraint in your vehicle -- even when no child is in it.
Top Strap
yellowblue
In Canada, the law requires that forward-facing child restraints have a top strap, and that the strap be anchored. In the United States, some child restraints also have a top strap. If your child restraint has a top strap, it should be anchored. If your vehicle is a regular cab pickup, an anchor bracket is located behind the right front passenger’s seat.
1-51
yellowblue
In order to get to the bracket, you’ll have to remove the trim plug covering it.
If you need to have an anchor bracket installed for a rear seat position in an extended cab, your dealer can get a special kit with anchor hardware and installation instructions and then install the anchor for you. This work will be done for you free of charge. Or, you may install the anchor yourself using the instructions provided in the kit. Anchor the top strap to this bracket. Once you have the top strap anchored, you’ll be ready to secure the child restraint itself.
1-52
Securing a Child Restraint in a Rear Outside Seat Position (Extended Cab) There is limited space in the rear seating area of an extended cab model. If you want to secure a child restraint in a rear outside seating position, be sure to study the instructions that came with your child restraint to see if there is enough room to secure your seat properly.
yellowblue
2. Pick up the latch plate, and run the lap and shoulder
portions of the vehicle’s safety belt through or around the restraint. The child restraint instructions will show you how. If the shoulder belt goes in front of the child’s face or neck, put it behind the child restraint.
You’ll be using the lap-shoulder belt. See the earlier part about the top strap if the child restraint has one. Be sure to follow the instructions that came with the child restraint. Secure the child in the child restraint when and as the instructions say. 1. Put the restraint on the seat.
3. Buckle the belt. Make sure the release button is positioned so you would be able to unbuckle the safety belt quickly if you ever had to.
1-53
yellowblue
4. Pull the rest of the shoulder belt all the way out of
the retractor to set the lock.
5. To tighten the belt, feed the shoulder belt back into
the retractor while you push down on the child restraint. If you’re using a forward-facing child restraint, you may find it helpful to use your knee to push down on the child restraint as you tighten the belt.
6. Push and pull the child restraint in different
directions to be sure it is secure.
1-54
To remove the child restraint, just unbuckle the vehicle’s safety belt and let it go back all the way. The safety belt will move freely again and be ready to work for an adult or larger child passenger. Securing a Child Restraint in the Center Front Seat Position
yellowblue
Securing a Child Restraint in the Center Rear Seat Position (Extended Cab Pickup)
Don’t use child restraints in this position. The restraints won’t work properly.
If you have an extended cab pickup, you can secure a child restraint in the center rear seat position. There is limited space in the rear seating area of an extended cab model. If you want to secure a child restraint in a rear seating position of an extended cab model, especially in the rear center position, be sure to study the instructions that came with your child restraint to see if there is enough room to secure your seat properly. You’ll be using the lap belt. Be sure to follow the instructions that came with the child restraint. Secure the child in the child restraint when and as the instructions say. See the earlier part about the top strap if the child restraint has one.
1-55
yellowblue
1. Make the belt as long as possible by tilting the latch
plate and pulling it along the belt.
2. Put the restraint on the seat.
3. Run the vehicle’s safety belt through or around the restraint. The child restraint instructions will show you how.
4. Buckle the belt. Make sure the release button is positioned so you would be able to unbuckle the safety belt quickly if you ever had to.
1-56
yellowblue
Securing a Child Restraint in the Right Front Seat Position
5. To tighten the belt, pull its free end while you push
down on the child restraint. If you’re using a forward-facing child restraint, you may find it helpful to use your knee to push down on the child restraint as you tighten the belt.
6. Push and pull the child restraint in different
directions to be sure it is secure.
To remove the child restraint, just unbuckle the vehicle’s safety belt. It will be ready to work for an adult or larger child passenger.
Your vehicle has a right front passenger air bag. There’s a switch on the instrument panel that you can use to turn off the right front passenger’s air bag when you want to secure a rear-facing child restraint at the right front passenger’s position. See “AIR BAG OFF Switch” in the Index for more on this, including important safety information.
1-57
yellowblue
CAUTION:
A child in a rear-facing child restraint can be seriously injured or killed if the right front passenger’s air bag inflates. This is because the back of the rear-facing child restraint would be very close to the inflating air bag. Be sure to turn off the air bag before using a rear-facing child restraint in the right front seat position. If a forward-facing child restraint is suitable for your child, always move the passenger seat as far back as it will go.
Although a rear seat is a safer place, you can secure a forward-facing child restraint in the right front seat.
1-58
CAUTION:
If the air bag readiness light ever comes on when you have turned off the air bag, it means that something may be wrong with the air bag system. The right front passenger’s air bag could inflate even though the switch is off. If your vehicle is a regular cab pickup and this ever happens, don’t let anyone whom the national government has identified as a member of a passenger air bag risk group sit in the right front passenger’s position (for example, don’t secure a rear-facing child restraint in your vehicle) until you have your vehicle serviced. See “AIR BAG OFF Switch” in the Index. If your vehicle is an extended cab pickup and this ever happens, don’t let anyone whom the national government has identified as a member of a passenger air bag risk group sit in the right front passenger’s position (for example, don’t secure a rear-facing child restraint in the right front passenger’s seat) until you have your vehicle serviced. See “AIR BAG OFF Switch” in the Index.
yellowblue
You’ll be using the lap-shoulder belt. See the earlier part about the top strap if the child restraint has one. Be sure to follow the instructions that came with the child restraint. Secure the child in the child restraint when and as the instructions say. 1. Your vehicle has a right front passenger’s air bag. If you are using a rear-facing child restraint in this seat, make sure the air bag is turned off. (See “AIR BAG OFF Switch” in the Index.) If your child restraint is forward-facing, always move the seat as far back as it will go before securing it in this seat. (See “Seats” in the Index.) 2. Put the restraint on the seat. 3. Pick up the latch plate, and run the lap and shoulder
portions of the vehicle’s safety belt through or around the restraint. The child restraint instructions will show you how. If the shoulder belt goes in front of the child’s face or neck, put it behind the child restraint.
1-59
yellowblue
4. Buckle the belt. Make sure the release button is positioned so you would be able to unbuckle the safety belt quickly if you ever had to.
5. Pull the rest of the shoulder belt all the way out of
the retractor to set the lock.
1-60
yellowblue
To remove the child restraint, just unbuckle the vehicle’s safety belt and let it go back all the way. The safety belt will move freely again and be ready to work for an adult or larger child passenger. If you were using a rear-facing child restraint, turn on the right front passenger’s air bag when you remove the rear-facing child restraint from the vehicle unless the person who will be sitting there is a member of a passenger air bag risk group. See “AIR BAG OFF Switch” in the Index.
CAUTION:
If the right front passenger’s air bag is turned off for a person who isn’t in a risk group identified by the national government, that person won’t have the extra protection of an air bag. In a crash, the air bag wouldn’t be able to inflate and help protect the person sitting there. Don’t turn off the passenger’s air bag unless the person sitting there is in a risk group. See “AIR BAG OFF Switch” in the Index for more on this, including important safety information.
1-61
6. To tighten the belt, feed the shoulder belt back into
the retractor while you push down on the child restraint. If you’re using a forward-facing child restraint, you may find it helpful to use your knee to push down on the child restraint as you tighten the belt.
7. Push and pull the child restraint in different
directions to be sure it is secure.
yellowblue
Children who have outgrown child restraints should wear the vehicle’s safety belts. If you have the choice, a child should sit next to a window so the child can wear a lap-shoulder belt and get the additional restraint a shoulder belt can provide. Accident statistics show that children are safer if they are restrained in the rear seat. But they need to use the safety belts properly. D Children who aren’t buckled up can be thrown out in
a crash.
D Children who aren’t buckled up can strike other
people who are.
Larger Children
1-62
yellowblue
CAUTION:
Never do this. Here two children are wearing the same belt. The belt can’t properly spread the impact forces. In a crash, the two children can be crushed together and seriously injured. A belt must be used by only one person at a time.
Q: What if a child is wearing a lap-shoulder belt, but the child is so small that the shoulder belt is very close to the child’s face or neck?
A: Move the child toward the center of the vehicle, but
be sure that the shoulder belt still is on the child’s shoulder, so that in a crash the child’s upper body would have the restraint that belts provide. If the child is sitting in a rear seat outside position, see “Rear Safety Belt Comfort Guides” in the Index. If the child is so small that the shoulder belt is still very close to the child’s face or neck, you might want to place the child in a seat that has a lap belt, if your vehicle has one.
1-63
yellowblue
CAUTION:
Never do this. Here a child is sitting in a seat that has a lap-shoulder belt, but the shoulder part is behind the child. If the child wears the belt in this way, in a crash the child might slide under the belt. The belt’s force would then be applied right on the child’s abdomen. That could cause serious or fatal injuries.
Wherever the child sits, the lap portion of the belt should be worn low and snug on the hips, just touching the child’s thighs. This applies belt force to the child’s pelvic bones in a crash.
1-64
Safety Belt Extender If the vehicle’s safety belt will fasten around you, you should use it. But if a safety belt isn’t long enough to fasten, your dealer will order you an extender. It’s free. When you go in to order it, take the heaviest coat you will wear, so the extender will be long enough for you. The extender will be just for you, and just for the seat in your vehicle that you choose. Don’t let someone else use it, and use it only for the seat it is made to fit. To wear it, just attach it to the regular safety belt. Checking Your Restraint Systems Now and then, make sure the safety belt reminder light and all your belts, buckles, latch plates, retractors and anchorages are working properly. Look for any other loose or damaged safety belt system parts. If you see anything that might keep a safety belt system from doing its job, have it repaired. Torn or frayed safety belts may not protect you in a crash. They can rip apart under impact forces. If a belt is torn or frayed, get a new one right away. Also look for any opened or broken air bag covers, and have them repaired or replaced. (The air bag system does not need regular maintenance.)
yellowblue
Replacing Restraint System Parts After a Crash If you’ve had a crash, do you need new belts? After a very minor collision, nothing may be necessary. But if the belts were stretched, as they would be if worn during a more severe crash, then you need new belts. If belts are cut or damaged, replace them. Collision damage also may mean you will need to have safety belt or seat parts repaired or replaced. New parts and repairs may be necessary even if the belt wasn’t being used at the time of the collision. If an air bag inflates, you’ll need to replace air bag system parts. See the part on the air bag system earlier in this section.
1-65
- NOTES
yellowblue
1-66

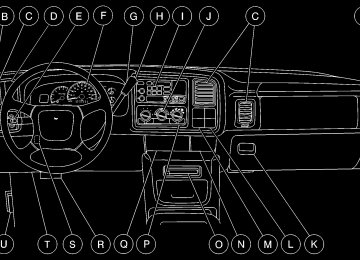

Section 2 Features and Controls
yellowblue
Here you can learn about the many standard and optional features on your vehicle, and information on starting, shifting and braking. Also explained are the instrument panel and the warning systems that tell you if everything is working properly -- and what to do if you have a problem.
2-2
2-3
2-6
2-9
2-10
2-11
2-12
2-14
2-14
2-15
2-17
2-20
2-21
2-24
2-28
2-34
2-35
2-37
Keys Door Locks Keyless Entry System (If Equipped) Rear Access Door (Extended Cab) Tailgate Theft Content Theft-Deterrent (If Equipped) PasslockR New Vehicle “Break-In” Ignition Positions Starting Your Engine Engine Coolant Heater (If Equipped) Automatic Transmission Operation Manual Transmission Operation Four-Wheel Drive (If Equipped) Parking Brake Shifting Into PARK (P) (Automatic Transmission Only) Shifting Out of PARK (P) (Automatic Transmission Only)
2-
2-38
2-38
2-39
2-39
2-40
2-41
2-42
2-44
2-50
2-53
2-54
2-67
2-68
2-70
2-72
2-85
Parking Your Vehicle (Manual Transmission Models Only) Parking Over Things That Burn Engine Exhaust Running Your Engine While You’re Parked (Automatic Transmission) Manual Selectable Ride (If Equipped) Locking Rear Axle Windows Turn Signal/Multifunction Lever Exterior Lamps Interior Lamps Mirrors OnStarR System (Option) The Instrument Panel - Your Information System Instrument Panel Cluster Warning Lights, Gages and Indicators Message Center
2-1
yellowblue
Keys
CAUTION:
Leaving children in a vehicle with the ignition key is dangerous for many reasons. A child or others could be badly injured or even killed. They could operate the power windows or other controls or even make the vehicle move. Don’t leave the keys in a vehicle with children.
2-2
yellowblue
Your vehicle has one double-sided key for the ignition and all door locks.
Door Locks
CAUTION:
Unlocked doors can be dangerous. Passengers -- especially children -- can easily open the doors and fall out. When a door is locked, the inside handle won’t open it. Outsiders can easily enter through an unlocked door when you slow down or stop your vehicle. This may not be so obvious: You increase the chance of being thrown out of the vehicle in a crash if the doors aren’t locked. Wear safety belts properly, lock your doors, and you will be far better off whenever you drive your vehicle.
Your vehicle may also have a key that locks and unlocks the center floor console only (if equipped).
If you ever lose your keys, your dealer will be able to assist you with obtaining replacements.
2-3
There are several ways to lock and unlock your vehicle. You can use the keyless entry system (if equipped). You can also use your key. Use only the key or the keyless entry transmitter if your vehicle is equipped with the content theft-deterrent system and the system is on.
From the inside, to lock the door, slide the lever rearward. To unlock the door, slide the lever forward.
Power Door Locks (If Equipped)
yellowblue
If your vehicle has this power door lock switch, press the raised side of the switch, marked “L” on either front door to lock all the doors at once.
Press the recessed side of the switch marked “U” to unlock all the doors at once.
2-4
If your vehicle has this power door lock switch, press the bottom of the switch on either front door to lock all the doors at once.
Press the top of the switch to unlock all the doors at once. The power door locks will operate at any time without the ignition being on. The power door locks will also automatically lock when the vehicle reaches 15 mph (24 km/h). To unlock the doors, refer to the instructions listed previously. The automatic locking feature can be disabled, if you prefer. See your dealer for assistance. Operating the power locks may interact with the theft-deterrent system (if equipped). See “Content Theft-Deterrent” in the Index.
yellowblue
Programmable Automatic Door Locks (If Equipped) Your vehicle may be equipped with an auto lock/unlock feature which enables you to program your power door locks. The following instructions detail how to program your door locks. To enter the program mode you need to: 1. Pull back on the the turn signal/multifunction lever
all the way toward you and hold it while you perform the next step.
2. Beginning with the ignition in OFF, turn your key to
ON. Return it to OFF and turn to ON again. Then return it to OFF. Once you do this, you will hear the
