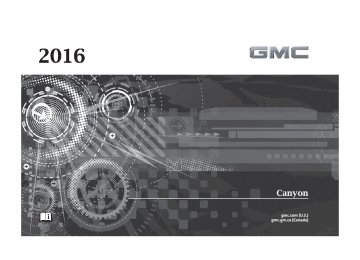

2016 GMC Canyon Owners Manual

average consumption by pressing SET/CLR when it is displayed. Fuel Range : Displays the approximate distance the vehicle can be driven without refueling. The fuel range estimate is based on an average of the vehicle's fuel economy over recent driving history

and the amount of fuel remaining in the fuel tank. Fuel range cannot be reset. Average Vehicle Speed : Displays the average vehicle speed of the vehicle in kilometers per hour (km/h) or miles per hour (mph). This average is based on the various vehicle speeds recorded since the last reset. Reset the average speed by pressing SET/CLR when it is displayed. Timer : To start the timer, press SET/CLR while Timer is displayed. The display will show the amount of time that has passed since the timer was last reset, not including time the ignition is off. Time will continue to be counted as long as the ignition is on, even if another display is being shown on the DIC. The timer will record up to 99 hours, 59 minutes, and 59 seconds (99:59:59) after which the display will return to zero. To stop the timer, press SET/CLR briefly while Timer is displayed. To reset the timer to zero, press and hold SET/CLR.

ii

Navigation : Used for the OnStar Turn-by-Turn guidance. See OnStar Overview 0 371
Blank Display : Displays no information. Vehicle Information Menu (VEHICLE) Items Press MENU on the turn signal lever until the VEHICLE menu is displayed. Use w x to scroll through the menu items. Not all items are available on every vehicle. The following is a list of all possible menu items: Remaining Oil Life : Displays an estimate of the oil's remaining useful life. If REMAINING OIL LIFE 99% is displayed, that means 99% of the current oil life remains. When the remaining oil life is low, the CHANGE ENGINE OIL SOON message will appear on the display. See Engine Oil Messages 0 130
The oil should be changed as soon as possible. See Engine Oil 0 262
In addition to the engine oil life system monitoring the oil life, additional maintenance is

ii

ii

GMC Canyon Owner Manual 2016 - crc - 8/25/15

(GMNA-Localizing-U.S/Canada-9159361)

124

Instruments and Controls

ii

ii

recommended in the Maintenance Schedule in this manual. See Maintenance Schedule 0 341
The Oil Life display must be reset after each oil change. Do not reset the Oil Life display accidentally at any time other than when the oil has just been changed. It cannot be reset accurately until the next oil change. To reset the engine oil life system, see Engine Oil Life System 0 264
Oil Pressure : Oil pressure is displayed in either kilopascal (kPa) or in pounds per square inch (psi). Tire Pressure : Displays a vehicle with the approximate pressures of all four tires. Tire pressure is displayed in either kilopascal (kPa) or in pounds per square inch (psi). See Tire Pressure Monitor System 0 300
Operation 0 301
Battery Voltage : Displays the current battery voltage, if equipped. Battery voltage changes are normal while driving. See Charging System . If there is a problem Light 0 114
with the battery charging system,

and Tire Pressure Monitor

ii

ii

ii

ii

the DIC will display a message. See Battery Voltage and Charging Messages 0 128
Engine Hours : Shows the total number of hours the engine has run. Transmission Fluid Temperature : Shows the temperature of the automatic transmission fluid in either degrees Celsius (°C) or degrees Fahrenheit (°F). Trailer Brake (If Equipped) : TRAILER GAIN shows the trailer gain setting. This setting can be adjusted from 0.0 to 10.0 with either a trailer connected or disconnected. OUTPUT shows the power output to the trailer anytime a trailer with electric brakes is connected. Output is displayed as a bar graph. Dashes may appear in the OUTPUT display if a trailer is not connected. Units : Move w x to change between Metric or US when the Unit display is active. Press SET/CLR to confirm the setting. This will change the displays on the DIC to the type of measurements you select.

ECO Drive Assist Menu (ECO) Items This menu is only available on some vehicles. Press MENU on the turn signal lever until the ECO menu is displayed. Use w x to scroll through the menu items. Not all items are available on every vehicle. The following is a list of all possible menu items: Best Average Fuel Economy : The bottom displays the best average fuel economy (AFE) that is achieved for a selected distance. The top displays a running average of fuel economy for the most recently traveled selected distance. The center bar graph displays the instantaneous fuel economy. Quickly press the SET/CLR button to change the settings for the distance options. When viewing best AFE, a several second press and hold of SET/CLR will reset the best value. The best value will show “- - -“ until the selected distance has been traveled.

GMC Canyon Owner Manual 2016 - crc - 8/25/15

(GMNA-Localizing-U.S/Canada-9159361)

Instruments and Controls

125

The display provides feedback on how current driving behavior in the bar graph affects the running average in the top display and how well recent driving compares to the best that has been achieved.

Driver Information Center (DIC) (Uplevel) The DIC displays are shown in the center of the instrument cluster in the Info app. See Instrument Cluster (Base Level) 0 106
Cluster (Uplevel) 0 108
displays show the status of many vehicle systems. The controls for the DIC are on the right steering wheel control.

or Instrument

. The

ii

ii

DIC Info Page Options The info pages on the DIC can be turned on or off through the Settings menu. 1. Press o to access the cluster

applications.

2. Press w or x to scroll to the

Settings application.

3. Press V to enter the

Settings menu.

4. Scroll to Info Pages and

press p.

5. Press w or x to move

through the list of possible information displays.

6. Press V while an item is

highlighted to select or deselect that item. When an item is selected, a checkmark will appear next to it.

DIC Info Pages The following is the list of all possible DIC info page displays. Some may not be available for your particular vehicle. Some items may

w or x : Press to move up or down in a list. o or p : Press to move between the interactive display zones in the cluster. V (Set/Reset) : Press to open a menu or select a menu item. Press and hold to reset values on certain screens. If the vehicle has a diesel engine, see the Duramax diesel supplement for additional DIC pages.

GMC Canyon Owner Manual 2016 - crc - 8/25/15

(GMNA-Localizing-U.S/Canada-9159361)

126

Instruments and Controls

not be turned on by default but can be turned on through the Settings app. See “DIC Info Page Options” earlier in this section. Speed : Shows the vehicle speed in either kilometers per hour (km/h) or miles per hour (mph). Trip A or Trip B : Shows the current distance traveled, in either kilometers (km) or miles (mi), since the trip odometer was last reset. This also shows the approximate average liters per 100 kilometers (L/ 100 km) or miles per gallon (mpg). This number is calculated based on the number of L/100 km (mpg) recorded since the last time this menu item was reset. This number reflects only the approximate average fuel economy that the vehicle has right now, and will change as driving conditions change.

Press and hold V while this display is active to reset the trip odometer and the average fuel economy. Trip A and Trip B can also be reset by pressing p and choosing reset.

Fuel Range : Shows the approximate distance the vehicle can be driven without refueling. LOW will be displayed when the vehicle is low on fuel. The fuel range estimate is based on an average of the vehicle's fuel economy over recent driving history and the amount of fuel remaining in the fuel tank. Oil Life : Shows an estimate of the oil's remaining useful life. If REMAINING OIL LIFE 99% is displayed, that means 99% of the current oil life remains. When the remaining oil life is low, the CHANGE ENGINE OIL SOON message will appear on the display. See Engine Oil Messages 0 130
The oil should be changed as soon as possible. See Engine Oil 0 262
In addition to the engine oil life system monitoring the oil life, additional maintenance is recommended in the Maintenance Schedule. See Maintenance Schedule 0 341

ii

ii

ii

ii

The Oil Life display must be reset after each oil change. It will not reset itself. Do not to reset the Oil Life display at any time other than when the oil has just been changed. It cannot be reset accurately until the next oil change. To reset the engine oil life system, press and hold V for several seconds while the Oil Life display is active. See Engine Oil Life System 0 264
Tire Pressure : Shows the approximate pressures of all four tires. Tire pressure is displayed in either kilopascal (kPa) or in pounds per square inch (psi). If the pressure is low, the value for that tire is shown in amber. See Tire Pressure Monitor System 0 300
Pressure Monitor Operation 0 301
Instantaneous Fuel Economy : Displays the current fuel economy in liters per 100 kilometers (L/100 km) or miles per gallon (mpg). This number reflects only the approximate fuel economy that the vehicle has right now and changes

and Tire

ii

ii

GMC Canyon Owner Manual 2016 - crc - 8/25/15

(GMNA-Localizing-U.S/Canada-9159361)

Instruments and Controls

127

frequently as driving conditions change. This display cannot be reset. Average Vehicle Speed : Displays the average vehicle speed of the vehicle in kilometers per hour (km/h) or miles per hour (mph). This average is based on the various vehicle speeds recorded since the last reset. Reset the average speed by pressing SET/CLR when it is displayed. Fuel Economy : The center displays the approximate instantaneous fuel economy as a number and bar graph. Displayed above the bar graph is a running average of fuel economy for the most recently traveled selected distance. Displayed below the bar graph is the best average fuel economy that has been achieved for the selected distance. The selected distance is displayed at the top of the page as “last xxx mi/km.” Press p to select the distance or reset best value. Use w and x to choose the distance and press V.

Press w and x to select “Reset Best Score.” Press V to reset the best average fuel economy. After reset, the best value displays “-,-” until the selected distance has been traveled. The display provides information on how current driving behavior affects the running average and how well recent driving compares to the best that has been achieved for the selected distance. Timer : This display can be used as a timer. To start the timer, press V while this display is active. The display will show the amount of time that has passed since the timer was last reset. To stop the timer, press V briefly while this display is active and the timer is running. To reset the timer to zero, press and hold V while this display is active, or press p and select reset. Speed Limit : Shows sign information, which comes from a roadway database in the onboard navigation, if equipped.

ii

ii

Battery Voltage : Displays the current battery voltage, if equipped. Battery voltage changes are normal while driving. See Charging System . If there is a problem Light 0 114
with the battery charging system, the DIC will display a message. See Battery Voltage and Charging Messages 0 128
Oil Pressure : Oil pressure is displayed in either kilopascal (kPa) or in pounds per square inch (psi). Engine Hours : Shows the total number of hours the engine has run. Transmission Fluid Temperature : Shows the temperature of the automatic transmission fluid in either degrees Celsius (°C) or degrees Fahrenheit (°F). Trailer Brake (If Equipped) : TRAILER GAIN shows the trailer gain setting. This setting can be adjusted from 0.0 to 10.0 with either a trailer connected or disconnected. OUTPUT shows the power output to the trailer anytime a trailer with electric brakes is connected. Output

GMC Canyon Owner Manual 2016 - crc - 8/25/15

(GMNA-Localizing-U.S/Canada-9159361)

128

Instruments and Controls

is displayed as a bar graph. Dashes may appear in the OUTPUT display if a trailer is not connected. Blank Page : Shows no information.

Vehicle Messages Messages displayed on the DIC indicate the status of the vehicle or some action that may be needed to correct a condition. Multiple messages may display one after the other. The messages that do not require immediate action can be acknowledged and cleared by pressing SET/CLR or V. The messages that require immediate action cannot be cleared until that action is performed. All messages should be taken seriously and clearing the messages does not correct the problem. The following are some of the vehicle messages that may be displayed depending on your vehicle content. If the vehicle has a diesel engine, see the Duramax diesel supplement for additional messages.

Battery Voltage and Charging Messages

BATTERY LOW START VEHICLE When the vehicle’s battery is severely discharged, this message will display and four chimes will sound. Start the vehicle immediately. If the vehicle is not started and the battery continues to discharge, the climate controls, heated seats, and audio systems will shut off and the vehicle may require a jump start. These systems will function again after the vehicle is started. BATTERY SAVER ACTIVE This message displays when the battery voltage drops below expected levels and features are disabled. Turn off all unnecessary accessory features.

GMC Canyon Owner Manual 2016 - crc - 8/25/15

(GMNA-Localizing-U.S/Canada-9159361)

Instruments and Controls

129

ii

SERVICE BATTERY CHARGING SYSTEM On some vehicles, this message displays if there is a problem with the battery charging system. Under certain conditions, the charging system light may also turn on in the instrument cluster. See Charging . Driving with System Light 0 114
this problem could drain the battery. Turn off all unnecessary accessories. Have the electrical system checked as soon as possible. See your dealer. TRANSPORT MODE ON This message is displayed when the vehicle is in transport mode. Some features can be disabled while in this mode, including Remote Keyless Entry (RKE), remote start, and the vehicle alarm system. Take the vehicle to your dealer for service to turn transport mode off.

Brake System Messages

ii

BRAKE FLUID LOW This message is displayed when the brake fluid level is low; see Brake Fluid 0 275
HILL START ASSIST ACTIVE This message is displayed when the vehicle is stopped on a grade sufficient to activate HSA. HSA holds the braking pressure for a maximum of two seconds to ensure that there is no rolling, which will assist the driver to transition between releasing the brake pedal and accelerating to drive off while on the grade. The brakes will automatically release when the accelerator pedal is applied within the two-second window. See Hill Start Assist (HSA) 0 231
RELEASE PARKING BRAKE This message is displayed as a reminder that the parking brake is on. Release it before you attempt to drive.

ii

SERVICE BRAKE ASSIST This message may be displayed when there is a problem with the brake boost assist system. When this message is displayed, the brake boost assist motor may be heard operating and you might notice pulsation in the brake pedal. This is normal under these conditions. Take the vehicle to your dealer for service.

Compass Messages Dashes may be displayed if the vehicle temporarily loses communication with the Global Positioning System (GPS).

Door Ajar Messages

DOOR OPEN This message displays and a chime may sound if a door is not fully closed. Stop and turn off the vehicle, check the door for obstructions, and close the door again. Check to see if the message still appears on the DIC.

GMC Canyon Owner Manual 2016 - crc - 8/25/15

(GMNA-Localizing-U.S/Canada-9159361)

130

Instruments and Controls

ii

ENGINE OVERHEATING, IDLE ENGINE This message displays when the engine coolant temperature is too hot. Stop and allow the vehicle to idle until it cools down. See Engine Coolant Temperature Gauge 0 111
When towing, use Tow/Haul Mode to prevent damage to the engine or transmission. See Tow/Haul Mode 0 223
ENGINE OVERHEATED STOP ENGINE This message displays and a chime may sound if the engine cooling system reaches unsafe temperatures for operation. Stop and turn off the vehicle as soon as it is safe to do so to avoid severe damage. This message clears when the engine has cooled to a safe operating temperature.

ii

HOOD OPEN This message displays and a chime may sound if the hood is not fully closed. Stop and turn off the vehicle, check the hood for obstructions, and close the hood again. Check to see if the message still appears on the DIC.

Engine Cooling System Messages

ii

AIR CONDITIONING OFF This message displays when the engine coolant becomes hotter than the normal operating temperature. See Engine Coolant Temperature . To avoid added strain Gauge 0 111
on a hot engine, the air conditioning compressor automatically turns off. When the coolant temperature returns to normal, the air conditioning compressor turns back on. You can continue to drive your vehicle. If this message continues to appear, have the system repaired by your dealer as soon as possible to avoid damage to the engine.

Engine Oil Messages

and

ii

ii

ii

for

CHANGE ENGINE OIL SOON This message displays when the engine oil needs to be changed. When you change the engine oil, be sure to reset the CHANGE ENGINE OIL SOON message. See Engine Oil Life System 0 264
information on how to reset the message. See Engine Oil 0 262
Maintenance Schedule 0 341
ENGINE OIL LOW ADD OIL On some vehicles, this message displays when the engine oil level may be too low. Check the oil level before filling to the recommended level. If the oil is not low and this message remains on, take the vehicle to your dealer for service. See Engine Oil 0 262
ENGINE OIL HOT IDLE ENGINE This message displays when the engine oil becomes hotter than the normal operating temperature. Stop

ii

GMC Canyon Owner Manual 2016 - crc - 8/25/15

(GMNA-Localizing-U.S/Canada-9159361)

Instruments and Controls

131

ii

and allow the vehicle to idle until it cools down. See Engine Coolant Temperature Gauge 0 111
OIL PRESSURE LOW STOP ENGINE This message displays if low oil pressure levels occur. Stop the vehicle as soon as safely possible and do not operate it until the cause of the low oil pressure has been corrected. Check the oil as soon as possible and have the vehicle serviced by your dealer. See Engine Oil 0 262

ii

Engine Power Messages

ENGINE POWER IS REDUCED This message displays and a chime may sound when the cooling system temperature gets too hot and the engine further enters the engine coolant protection mode. See Engine Overheating 0 271
information. This message also displays when the vehicle's engine power is reduced. Reduced engine power can affect the vehicle's ability to

for more

ii

accelerate. If this message is on, but there is no reduction in performance, proceed to your destination. The performance may be reduced the next time the vehicle is driven. The vehicle may be driven at a reduced speed while this message is on, but acceleration and speed may be reduced. Anytime this message stays on, the vehicle should be taken to your dealer for service as soon as possible.

Fuel System Messages

ii

and Fuel 0 241

FUEL LEVEL LOW This message displays and a chime may sound if the fuel level is low. Refuel as soon as possible. See Fuel Gauge 0 110
TIGHTEN GAS CAP This message may display along with the malfunction indicator lamp on the instrument cluster if the vehicle's fuel cap is not tightened properly. See Malfunction Indicator Lamp (Check Engine Light) 0 114
Reinstall the fuel cap fully. See Filling the Tank 0 243

. The

ii

ii

ii

diagnostic system can determine if the fuel cap has been left off or improperly installed. A loose or missing fuel cap allows fuel to evaporate into the atmosphere. A few driving trips with the cap properly installed should turn this light and message off.

Key and Lock Messages

REPLACE BATTERY IN REMOTE KEY This message displays if a Remote Keyless Entry (RKE) transmitter battery is low. The battery needs to be replaced in the transmitter. See “Battery Replacement” under Remote Keyless Entry (RKE) System Operation 0 28

ii

Lamp Messages

TURN SIGNAL ON This message displays and a chime sounds if a turn signal is left on for 1.2 km (0.75 mi). Move the turn signal lever to the off position.

GMC Canyon Owner Manual 2016 - crc - 8/25/15

(GMNA-Localizing-U.S/Canada-9159361)

132

Instruments and Controls

Object Detection System Messages

ii

FORWARD COLLISION ALERT OFF If your vehicle has the Forward Collision Alert (FCA) system, this message may display if the FCA system cannot activate due to a temporary condition. See Forward Collision Alert (FCA) System 0 238
FRONT CAMERA BLOCKED, CLEAN WINDSHIELD This message displays when the Lane Departure Warning (LDW) and Forward Collision Alert (FCA) systems are disabled because the camera view is blocked and cannot operate properly. It may also activate during heavy rain or due to road spray. To clean the system, clean the outside of the windshield area in front of the LDW/FCA camera sensor.

LANE DEPARTURE SYSTEM UNAVAILABLE If your vehicle has the Lane Departure Warning (LDW) system, this message may display if the LDW system cannot activate due to a temporary condition. See Lane Departure Warning (LDW) 0 240
more information. SERVICE FRONT CAMERA This message displays when the Lane Departure Warning (LDW) and Forward Collision Alert (FCA) systems are disabled and need service. See your dealer.

for

ii

Ride Control System Messages

SERVICE STABILITRAK If this message displays, it means there may be a problem with the StabiliTrak system. If you see this message, try to reset the system. Stop; turn off the engine for at least 15 seconds; then start the engine again. If this message still comes on, it means there is a problem. You

should see your dealer for service. The vehicle is safe to drive; however, you do not have the benefit of StabiliTrak, so reduce your speed and drive accordingly. SERVICE TRACTION CONTROL This message displays when there is a problem with the Traction Control System (TCS). When this message displays, the system will not limit wheel spin. Adjust your driving accordingly. See your dealer for service. See Traction Control/ Electronic Stability Control 0 231
STABILITRAK INITIALIZING This message may come on if the StabiliTrak system has not fully initialized because of road conditions or the incorrect tire size. When the StabiliTrak system is fully initialized, the message will turn off. See Traction Control/Electronic Stability Control 0 231
message continues to be displayed for multiple ignition cycles and on different road surfaces, see your dealer for service.

. If this

ii

ii

GMC Canyon Owner Manual 2016 - crc - 8/25/15

(GMNA-Localizing-U.S/Canada-9159361)

Instruments and Controls

133

Airbag System Messages

SERVICE AIRBAG This message displays if there is a problem with the airbag system. Take the vehicle to your dealer for service.

Security Messages

SERVICE THEFT DETERRENT SYSTEM This message displays when there is a problem with the theft-deterrent system. The vehicle may or may not restart, so you may want to take the vehicle to your dealer before turning off the engine. See Immobilizer Operation 0 35

ii

Steering System Messages

STEERING ASSIST IS REDUCED DRIVE WITH CARE This message may display if a problem occurs with the electric power steering system. If this message appears, steering effort

may be slightly higher than normal. The vehicle is still safe to drive. Use caution while in reduced assist mode. If this message is persistent or appears repeatedly, take the vehicle to your dealer for service. See Steering 0 194
SERVICE POWER STEERING This message displays when there is a problem with electric power steering. If this message displays and a reduction in steering performance or loss of power steering assistance is noticed, see your dealer. See Steering 0 194

ii

Tire Messages

ii

SERVICE TIRE MONITOR SYSTEM If equipped with the Tire Pressure Monitor System (TPMS), this message displays if a part on the system is not working properly. The tire pressure light also flashes and then remains on during the same ignition cycle. See Tire Pressure Light 0 119
may cause this message to appear.

. Several conditions

ii

ii

. If the warning

See Tire Pressure Monitor Operation 0 301
comes on and stays on, there may be a problem with the TPMS. See your dealer. TIRE LEARNING ACTIVE If equipped with the Tire Pressure Monitor System (TPMS), this message displays when the system is relearning the tire positions on your vehicle. The tire positions must be relearned after rotating the tires or after replacing a tire or sensor. See Tire Inspection 0 304
Rotation 0 305
Monitor System 0 300
Pressure 0 299
TIRE PRESSURE LOW ADD AIR TO TIRE If equipped with the Tire Pressure Monitor System (TPMS), this message displays when the pressure in one or more of the vehicle's tires is low. This message also displays with a vehicle picture to indicate the location of the low tire. The low tire pressure warning light will also come on. See Tire

, Tire Pressure

, and Tire

, Tire

ii

ii

ii

ii

GMC Canyon Owner Manual 2016 - crc - 8/25/15

(GMNA-Localizing-U.S/Canada-9159361)

134

Instruments and Controls

ii

. You can

Pressure Light 0 119
receive more than one tire pressure message at a time. If a tire pressure message appears on the DIC, stop as soon as you can. Have the tire pressures checked and set to those shown on the Tire and Loading Information label. See Tires 0 292
Vehicle Load Limits 0 204
Pressure 0 299
shows the tire pressure values. See Driver Information Center (DIC) (Base Level) 0 122
Information Center (DIC) (Uplevel) 0 125

, and Tire

. The DIC also

or Driver

ii

ii

ii

ii

ii

Transmission Messages

4WD OFF If equipped with four-wheel drive, this message displays when the four-wheel-drive system is temporarily disabled due to an overheated condition. The vehicle will run in two-wheel drive when this message is present. Once the four-wheel-drive system cools down, the message turns off and the four-wheel-drive system returns to normal operation.

4WD SHIFT IN PROGRESS This message will display while the four-wheel-drive system is shifting. FOR 4WD LOW SLOW TO XXX If a four-wheel drive shift into Four-Wheel Drive Low is requested, but the vehicle speed is too high, this message will display until the correct vehicle speed is reached. FOR 4WD LOW SHIFT TO NEUTRAL If a four-wheel drive shift into Four-Wheel Drive Low is requested, and the vehicle speed is correct, but the transmission is not in N (Neutral), this message will display until the transmission is shifted to N (Neutral). SERVICE 4WD If the vehicle has four-wheel drive, this message may display if a problem occurs with the four-wheel-drive system. If this message appears, stop as soon as possible and turn off the vehicle. Make sure the key is in the LOCK/ OFF position for at least

one minute, then restart the vehicle and check for the message on the DIC display. If the message is still displayed or appears again when you begin driving, the four-wheel-drive system needs service. See your dealer. TO EXIT 4WD LOW SLOW TO XXX If a four-wheel drive shift out of Four-Wheel Drive Low is requested, but the vehicle speed is too high, this message will display until the correct vehicle speed is reached. TO EXIT 4WD LOW SHIFT TO NEUTRAL If a four-wheel drive shift out of Four-Wheel Drive Low is requested, and the vehicle speed is correct, but the transmission is not in N (Neutral), this message will display until the transmission is shifted to N (Neutral).

GMC Canyon Owner Manual 2016 - crc - 8/25/15

(GMNA-Localizing-U.S/Canada-9159361)

Instruments and Controls

135

TRANSMISSION HOT IDLE ENGINE This message displays and a chime may sound if the transmission fluid in the vehicle gets hot. Driving with the transmission fluid temperature high can cause damage to the vehicle. Stop the vehicle and let it idle to allow the transmission to cool. This message clears and the chime stops when the fluid temperature reaches a safe level. When towing, use Tow/Haul Mode to prevent damage to the engine or transmission. See Tow/Haul Mode 0 223
VEHICLE IN 4WD LOW This message will display if the vehicle is driven in Four-Wheel Drive Low for about 10 minutes above 72 km/h (45 mph).

ii

Vehicle Reminder Messages

ICE POSSIBLE DRIVE WITH CARE This message is displayed when ice conditions are possible.

Vehicle Speed Messages

REDUCE SPEED FOR HILL DESCENT CONTROL This message displays when attempting to enable Hill Descent Control (HDC) when the vehicle speed is too high. See Hill Descent Control (HDC) 0 233

ii

Vehicle Personalization Use the audio system controls to access the personalization menus for customizing vehicle features. The following are all possible personalization features. Depending on the vehicle, some may not be available.

Base Radio Audio System Controls MENU : Press the center of the knob to enter menus and select menu items. Turn the knob to scroll through the menus. o BACK : Press to return to the previous menu or exit.

Uplevel Radio Audio System Controls 1. Press the desired feature to

display a list of available options.

2. Press to select the desired

feature setting.

GMC Canyon Owner Manual 2016 - crc - 8/25/15

(GMNA-Localizing-U.S/Canada-9159361)

136

Instruments and Controls

3. Press o BACK on the

faceplate or the 0 screen button to return to the previous menu or exit.

Turn the vehicle to ON/RUN to access the Settings menu, then select SETTINGS from the Home page on the infotainment system display.

Personalization Menus The following list of menu items may be available: . Time and Date . Language (Language) . Valet Mode . Radio . Vehicle . Bluetooth . Apple CarPlay . Android Auto . Voice . Display . Rear Camera

ii

. Return to Factory Settings . Software Information Detailed information for each menu follows. Time and Date Manually set the time and date. See Clock 0 103
Language (Language) Select Language, then select from the available language(s). The selected language will display on the system, and voice recognition will reflect the selected language. Valet Mode (If Equipped) This will lock the infotainment system and steering wheel controls. It may also limit access to vehicle storage locations (if equipped). To enable valet mode: 1. Enter a four-digit code on the

keypad.

2. Select Enter to go to the

confirmation screen.

3. Re-enter the four-digit code. Press LOCK or UNLOCK to lock or unlock the system. Press Back to go back to the previous menu. Radio Press to display the Radio menu and the following may display: . Manage Favorites . Number of Favorites Shown . Audible Touch Feedback . Auto Volume . Maximum Startup Volume

Manage Favorites This allows favorites to be edited. See “Manage Favorites” in “Radio Setup” under Home Page 0 152
or “Manage Favorites” in “Settings” under “Radio” in the infotainment manual.

ii

Number of Favorites Shown Press to set the number of favorites to display.

GMC Canyon Owner Manual 2016 - crc - 8/25/15

(GMNA-Localizing-U.S/Canada-9159361)

Instruments and Controls

137

Select the desired number or select Auto and the infotainment system will automatically adjust the number of favorites shown.

Audible Touch Feedback This allows Audible Touch Feedback to be turned on or off. Select Off or On.

Auto Volume This feature adjusts the volume based on vehicle speed and ambient noise. Select Off, Low, Medium-Low, Medium, Medium-High, or High.

Maximum Startup Volume This feature sets the maximum startup volume. If the vehicle is started and the volume is greater than this level, the volume is adjusted to this level. To set the maximum startup volume, press + or − to increase or decrease. Vehicle Select and the following may display:

. Climate and Air Quality . Comfort and Convenience . Lighting . Power Door Locks . Remote Lock, Unlock, Start

Climate and Air Quality Select and the following may display: . Auto Fan Speed . Auto Defog . Auto Rear Defog

Auto Fan Speed This feature will set the maximum auto fan speed. Select Low, Medium, or High.

Auto Defog This allows the feature to be turned on or off. Select Off or On.

Auto Rear Defog This allows the feature to be turned on or off.

Select Off or On.

Comfort and Convenience Select and the following may display: . Chime Volume

Chime Volume This allows the selection of the chime volume level. Select + or − to adjust the volume.

Lighting Select and the following may display: . Vehicle Locator Lights . Exit Lighting

Vehicle Locator Lights This feature will flash the exterior lamps and allows the headlamps, parking lamps, taillamps, and most of the interior lamps to turn on briefly when K on the Remote Keyless Entry (RKE) transmitter is pressed to locate the vehicle. Select Off or On.

GMC Canyon Owner Manual 2016 - crc - 8/25/15

(GMNA-Localizing-U.S/Canada-9159361)

138

Instruments and Controls

Exit Lighting This allows the selection of how long the exterior lamps stay on when leaving the vehicle when it is dark outside. Select Off, 30 Seconds, 60
Seconds, or 120 Seconds.

Power Door Locks Select and the following may display: . Unlocked Door Anti-Lockout . Auto Door Unlock . Delayed Door Lock

Unlocked Door Anti-Lockout When on, this feature will keep the driver door from locking when the door is open. If Off is selected, the Delayed Door Lock menu will be available. Select Off or On.

Auto Door Unlock This allows selection of which of the doors will automatically unlock when the vehicle is shifted into P (Park)

with an automatic transmission or when the vehicle is turned off with a manual transmission. Select Off, All Doors, or Driver Door.

Delayed Door Lock When on, this feature will delay the locking of the doors. To override the delay, press the power door lock switch on the door. Select Off or On.

Remote Lock, Unlock, Start Select and the following may display: . Remote Unlock Light Feedback . Remote Lock Feedback . Remote Door Unlock . Remote Start Auto Heat Seats

Remote Unlock Light Feedback When on, the exterior lamps will flash when unlocking the vehicle with the RKE transmitter. Select Off or Flash Lights.

Remote Lock Feedback This allows selection of what type of feedback is given when locking the vehicle with the RKE transmitter. Select Off, Lights and Horn, Lights Only, or Horn Only.

Remote Door Unlock This allows selection of which doors will unlock when pressing K on the RKE transmitter. Select All Doors or Driver Door.

Remote Start Auto Heat Seats If equipped and turned on, this feature will turn the heated seats on when using remote start on cold days. Select Off or On. Bluetooth Select and the following may display: . Pair New Device . Device Management . Ringtones . Voice Mail Numbers

GMC Canyon Owner Manual 2016 - crc - 8/25/15

(GMNA-Localizing-U.S/Canada-9159361)

. Text Message Alerts

ii

Pair New Device Select to pair a new device. See “Pairing” under Bluetooth or Bluetooth (Overview) 0 170
(Infotainment Controls - Base Radio) 0 171
(Infotainment Controls - Base Connected Radio) 0 175
“Pairing” in “Infotainment Controls” under “Bluetooth” in the infotainment manual.

or Bluetooth

or

ii

ii

Device Management Select to connect to a different phone source, disconnect a phone, or delete a phone.

Ringtones Press to change the ring tone for the specific phone. The phone does not need to be connected to change the ring tones.

Voice Mail Numbers This feature displays the voice mail number for all connected phones. To change the voice mail number, select EDIT or press the EDIT

Instruments and Controls

139

button. Type a new number, then select SAVE or press the SAVE button.

Text Message Alerts This allows the feature to be turned on or off. Select Off or On. Apple CarPlay™ Select and the following may display: . Apple CarPlay . Manage Apple CarPlay Devices

Apple CarPlay This feature allows Apple devices to be connected to the infotainment system through a USB port. See “Apple CarPlay and Android Auto” under “Phone” in the infotainment manual. Select Off or On.

Manage Apple CarPlay Devices Select to manage Apple devices. Apple CarPlay must be on for this feature to be accessed. See “Apple CarPlay and Android Auto” under “Phone” in the infotainment manual. Android Auto™ Select and the following may display: . Android Auto . Manage Android Auto Devices

Android Auto This feature allows Android devices to be connected to the infotainment system through a USB port. See “Apple CarPlay and Android Auto” under “Phone” in the infotainment manual. Select Off or On.

Manage Android Auto Devices Select to manage Android devices. Android Auto must be on for this feature to be accessed. See “Apple CarPlay and Android Auto” under “Phone” in the infotainment manual.

GMC Canyon Owner Manual 2016 - crc - 8/25/15

(GMNA-Localizing-U.S/Canada-9159361)

140

Instruments and Controls

Voice Select and the following may display: . Confidence Threshold . Prompt Length . Audio Feedback Speed . Display “What Can I Say?” Tips

Confidence Threshold This feature allows the adjustment of the sensitivity of the speech recognition system. Select Confirm More or Confirm Less.

Prompt Length This feature adjusts the voice prompt length. Select Short or Long.

Audio Feedback Speed This feature adjusts the audio feedback speed. Select Slow, Medium, or Fast.

Display “What Can I Say?” Tips This feature gives voice command tips. Select Off or On. Display Select and the following may display: . Mode . Calibrate Touchscreen . Turn Display Off

Mode Select to change the display screen mode. Select Auto, Day, or Night.

Calibrate Touchscreen Select to calibrate the touchscreen, then follow the prompts.

Turn Display Off Select to turn the display off. Press anywhere on the display area or any faceplate button to turn the display on.

Rear Camera Select and the following may display: . Guidance Lines

ii

Guidance Lines Select to turn Off or On. See Rear Vision Camera (RVC) 0 236
Return to Factory Settings Select and the following may display: . Restore Vehicle Settings . Clear All Private Data . Restore Radio Settings

Restore Vehicle Settings This allows selection of restoring vehicle settings. Select Restore or Cancel.

Clear All Private Data Select to clear all private information from the vehicle. Select Delete or Cancel.

GMC Canyon Owner Manual 2016 - crc - 8/25/15

(GMNA-Localizing-U.S/Canada-9159361)

Instruments and Controls

141

Restore Radio Settings This allows selection to restore radio settings. Select Restore or Cancel. Software Information Select to view the infotainment system current software information.

GMC Canyon Owner Manual 2016 - crc - 8/25/15

(GMNA-Localizing-U.S/Canada-9159361)

Lighting

142
Lighting

Exterior Lighting

Exterior Lighting

Exterior Lamp Controls

Exterior Lamp Controls . . . . . . . 142
Exterior Lamps Off

Reminder . . . . . . . . . . . . . . . . . . . 143

Headlamp High/Low-Beam

Changer . . . . . . . . . . . . . . . . . . . . 143
Flash-to-Pass . . . . . . . . . . . . . . . . 143
Daytime Running

Lamps (DRL) . . . . . . . . . . . . . . . 143

Automatic Headlamp

System . . . . . . . . . . . . . . . . . . . . . . 144
Hazard Warning Flashers . . . . . 145
Turn and Lane-Change

Signals . . . . . . . . . . . . . . . . . . . . . . 145
Fog Lamps . . . . . . . . . . . . . . . . . . . 145

Interior Lighting

Instrument Panel Illumination

Control . . . . . . . . . . . . . . . . . . . . . . 146
Cargo Lamp . . . . . . . . . . . . . . . . . . 146
Dome Lamps . . . . . . . . . . . . . . . . . 147
Reading Lamps . . . . . . . . . . . . . . 147

Lighting Features

Entry Lighting . . . . . . . . . . . . . . . . 147
Exit Lighting . . . . . . . . . . . . . . . . . . 147
Battery Load Management . . . 148
Battery Power Protection . . . . . 148

The exterior lamp control is on the instrument panel to the left of the steering wheel. O (Off) : Turns off the automatic headlamps and Daytime Running Lamps (DRL). Turn the headlamp control to the off position again to turn the automatic headlamps or DRL back on. For vehicles first sold in Canada, off will only work when the vehicle is in P (Park).

Instrument Panel Lights

AUTO (Automatic) : Automatically turns on the headlamps at normal brightness, together with the following: . Parking Lamps . Taillamps . License Plate Lamps . Front/Rear Sidemarker Lamps When the vehicle is turned off and the headlamps are in AUTO, the headlamps turn off. When the key is removed, they automatically turn on for a set time. The time of the delay can be changed using the DIC. See Driver Information Center (DIC) (Base Level) 0 122
Information Center (DIC) (Uplevel) 0 125
; (Parking Lamps) : Turns on the parking lamps including all lamps, except the headlamps. 2 (Headlamps) : Turns on the headlamps together with the parking lamps and instrument panel lights.

or Driver

ii

ii

GMC Canyon Owner Manual 2016 - crc - 8/25/15

(GMNA-Localizing-U.S/Canada-9159361)

When the headlamps are turned on while the vehicle is on, the headlamps turn off automatically 10 minutes after the ignition is turned off. When the headlamps are turned on while the vehicle is off, the headlamps will stay on for 10 minutes before turning off to prevent the battery from being drained. Turn the headlamp control off and then back to the headlamp on position to make the headlamps stay on for an additional 10 minutes. To keep the lamps on for more than 10 minutes, the ignition must be in the ACC/ACCESSORY or ON/RUN position. # (Fog Lamps) (If Equipped) : Turns on the fog lamps. See Fog Lamps 0 145

ii

Exterior Lamps Off Reminder A reminder chime sounds when the headlamps or parking lamps are manually turned on, the ignition is off, and a door is open. To disable the chime, turn the lamps off.

Headlamp High/ Low-Beam Changer $ (Headlamp High/Low-Beam Changer) : Push the turn signal lever toward the instrument panel to change the headlamps from low to high beam. Pull the turn signal lever toward you and release it to return to low-beam headlamps.

When the high-beam headlamps are on, this indicator light on the instrument cluster will also be on.

Flash-to-Pass This feature lets you use the high-beam headlamps to signal a driver in front of you that you want to pass. It works even if the headlamps are in the automatic position.

Lighting

143

To use it, pull the turn signal lever toward you, then release it. If the headlamps are in the automatic position or on low beam, the high-beam headlamps will turn on. They will stay on as long as you hold the lever toward you. The high-beam indicator on the instrument cluster will come on. Release the lever to return to normal operation.

Daytime Running Lamps (DRL) DRL can make it easier for others to see the front of the vehicle during the day. Fully functional DRL are required on all vehicles first sold in Canada. The DRL system comes on when the following conditions are met: . The ignition is on. . The exterior lamp control is

in AUTO.

. The transmission is not in

P (Park).

GMC Canyon Owner Manual 2016 - crc - 8/25/15

(GMNA-Localizing-U.S/Canada-9159361)

144

Lighting

. The light sensor determines it is

daytime.

When the DRL system is on, only the DRL are on. The taillamps, sidemarker lamps, instrument panel lights, and other lamps will not be on. When it begins to get dark, the automatic headlamp system switches from DRL to the headlamps. To turn off the DRL, turn the exterior lamp control to the off position and then release. For vehicles first sold in Canada, off will only work when the vehicle is in P (Park).

Automatic Headlamp System When the exterior lamp control is set to AUTO and it is dark enough outside, the headlamps come on automatically.

There is a light sensor on top of the instrument panel. Do not cover the sensor, otherwise the headlamps will come on when they are not needed. The system may also turn on the headlamps when driving through a parking garage or tunnel. If the vehicle is started in a dark garage, the automatic headlamp system comes on immediately. If it is light outside when the vehicle leaves the garage, there is a slight delay before the automatic headlamp system changes to the DRL. During that delay, the instrument cluster may not be as bright as usual. Make sure the instrument panel brightness control

ii

is in the full bright position. See Instrument Panel Illumination Control 0 146
When it is bright enough outside, the headlamps will turn off or may change to Daytime Running Lamps (DRL). The automatic headlamp system turns off when the exterior lamp control is turned to O or the ignition is off. Lights On with Wipers If the windshield wipers are activated in daylight with the engine on, and the exterior lamp control is in AUTO, the headlamps, parking lamps, and other exterior lamps come on. The transition time for the lamps coming on varies based on wiper speed. When the wipers are not operating, these lamps turn off. Move the exterior lamp control to O or ; to disable this feature.

GMC Canyon Owner Manual 2016 - crc - 8/25/15

(GMNA-Localizing-U.S/Canada-9159361)

Hazard Warning Flashers

Turn and Lane-Change Signals

| (Hazard Warning Flashers) : Press this button to make the front and rear turn signal lamps flash on and off. Press again to turn the flashers off. When the hazard warning flashers are on, the vehicle's turn signals will not work.

An arrow on the instrument cluster flashes in the direction of the turn or lane change. Move the turn signal lever all the way up or down to signal a turn. Raise or lower the lever for less than one second until the arrow starts to flash to signal a lane change. This causes the turn signals to automatically flash three times. Holding the turn signal lever for more than one second will cause the turn signals to flash until the lever is released. The lever returns to its starting position whenever it is released.

Lighting

145

If after signaling a turn or a lane change the arrows flash rapidly or do not come on, a signal bulb could be burned out. Replace any burned out bulbs. If a bulb is not burned out, check the fuse. See Fuses 0 285

ii

Turn Signal On Chime If the turn signal is left on for more than 1.2 km (0.75 mi), a chime sounds at each flash of the turn signal. The message TURN SIGNAL ON will also appear in the Driver Information Center (DIC). To turn the chime and message off, move the turn signal lever to the off position.

Fog Lamps

GMC Canyon Owner Manual 2016 - crc - 8/25/15

(GMNA-Localizing-U.S/Canada-9159361)

146

Lighting

If equipped, the control is on the center of the exterior lamp control, to the left of the steering column. The ignition must be in the ON/RUN position for the fog lamps to come on. # (Fog Lamps) : Press to turn the fog lamps on or off. A light will come on in the instrument cluster. When the fog lamps are turned on, the parking lamps automatically turn on. When the headlamps are changed to high beam, the fog lamps go off. When the high-beam headlamps are turned off, the fog lamps will come on again. Some localities have laws that require the headlamps to be on with the fog lamps.

Interior Lighting

Cargo Lamp

Instrument Panel Illumination Control

This feature controls the brightness of the steering wheel and instrument panel lights. The instrument panel illumination control is next to the exterior lamp control. D (Instrument Panel Illumination) : Move the thumbwheel up or down to brighten or dim the lights.

The cargo lamp provides more light in the cargo area of the vehicle, if needed. The lights inside of the pickup box also turn on, if equipped. Press the switch down to turn the cargo lamp on or off. The shift lever must be in the P (Park) position to operate the cargo lamp.

GMC Canyon Owner Manual 2016 - crc - 8/25/15

(GMNA-Localizing-U.S/Canada-9159361)

Dome Lamps

Reading Lamps

Lighting Features

Lighting

147

The interior lamps control in the overhead console controls both the front and rear interior lamps. To operate: ( (Off) : Turns the lamps off. H (Door) : Turns the lamps on when any door is opened. ' (On) : Keeps the lamps on all the time. The interior lamps turn on automatically if the airbags are deployed.

The front reading lamps, if equipped, are in the overhead console.

The rear reading lamps, if equipped, are in the headliner. # or $ (Reading Lamps) : Press to turn each lamp on or off.

Entry Lighting Some exterior lamps and the interior lamps turn on briefly at night, or in areas with limited lighting, when K is pressed on the Remote Keyless Entry (RKE) transmitter. When a door is opened, the interior lamps come on if the dome lamp control is in the DOOR position. After about 30 seconds the exterior lamps turn off. Entry lighting can be disabled manually by changing the ignition out of the OFF position, or by pressing the RKE transmitter Q button. This feature can be changed. See “Vehicle Locator Lights” under Vehicle Personalization 0 135

ii

Exit Lighting Some exterior lamps and the interior lamps come on at night, or in areas with limited lighting when the key is removed from the ignition. The exterior and interior lamps remain on for a set amount of time and then

GMC Canyon Owner Manual 2016 - crc - 8/25/15

(GMNA-Localizing-U.S/Canada-9159361)

148

Lighting

automatically turn off. The interior lamps do not come on if the dome lamp control is in the Off position. The exterior lamps turn off immediately by turning the exterior lamps control off. This feature can be changed. See Vehicle Personalization 0 135

ii

Battery Load Management The vehicle has Electric Power Management (EPM), which estimates the battery's temperature and state of charge. It then adjusts the voltage for best performance and extended life of the battery. When the battery's state of charge is low, the voltage is raised slightly to quickly bring the charge back up. When the state of charge is high, the voltage is lowered slightly to prevent overcharging. The voltmeter gauge or the voltage display on the Driver Information Center (DIC), if equipped, may show the voltage

moving up or down. This is normal. If there is a problem, an alert will be displayed. The battery can be discharged at idle if the electrical loads are very high. This is true for all vehicles. This is because the generator (alternator) may not be spinning fast enough at idle to produce all the power that is needed for very high electrical loads. A high electrical load occurs when several of the following are on, such as: headlamps, high beams, fog lamps, rear window defogger, climate control fan at high speed, heated seats, engine cooling fans, trailer loads, and loads plugged into accessory power outlets. EPM works to prevent excessive discharge of the battery. It does this by balancing the generator's output and the vehicle's electrical needs. It can increase engine idle speed to generate more power, whenever needed. It can temporarily reduce the power demands of some accessories.

Normally, these actions occur in steps or levels, without being noticeable. In rare cases at the highest levels of corrective action, this action may be noticeable to the driver. If so, a DIC message might be displayed and it is recommended that the driver reduce the electrical loads as much as possible. See Battery Voltage and Charging Messages 0 128

ii

Battery Power Protection This feature shuts off the dome and reading lamps, if they are left on for more than 10 minutes after the ignition is turned off. The cargo lamp shuts off after 20 minutes. This prevents the battery from running down.

GMC Canyon Owner Manual 2016 - crc - 8/25/15

(GMNA-Localizing-U.S/Canada-9159361)

Bluetooth (Infotainment

Controls - Base Connected Radio) . . . . . . . . . . . . . . . . . . . . . . 175
Text Messaging . . . . . . . . . . . . . . . 179

Trademarks and License Agreements

Trademarks and License

Agreements . . . . . . . . . . . . . . . . . 180

Infotainment System

Introduction

Infotainment . . . . . . . . . . . . . . . . . . 149
Theft-Deterrent Feature . . . . . . 150
Overview . . . . . . . . . . . . . . . . . . . . . 151
Home Page . . . . . . . . . . . . . . . . . . 152
Software Updates . . . . . . . . . . . . 154

Radio

AM-FM Radio . . . . . . . . . . . . . . . . 155
Satellite Radio . . . . . . . . . . . . . . . . 156
Radio Reception . . . . . . . . . . . . . . 156
Multi-Band Antenna . . . . . . . . . . 157
Pandora Internet Radio . . . . . . . 157

Audio Players

USB Port . . . . . . . . . . . . . . . . . . . . . 160
Auxiliary Jack . . . . . . . . . . . . . . . . 163
