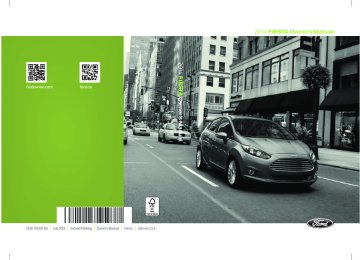

2014 FIESTA Owner’s Manual



fordowner.com


ford.ca


EE8J 19A321 AB | July 2013 | Second Printing | Owner’s Manual | Fiesta | Litho in U.S.A.


The information contained in this publication was correct at the time of going to print. In the interest of continuous development, we reserve the right to change specifications, design or equipment at any time without notice or obligation. No part of this publication may be reproduced, transmitted, stored in a retrieval system or translated into any language in any form by any means without our written permission. Errors and omissions excepted. © Ford Motor Company 2013


All rights reserved. Part Number: 20130628201700


Table of Contents


Introduction About This Manual...........................................7
Symbols Glossary.............................................7
Replacement Parts


Recommendation........................................9


Mobile Communications


Equipment.....................................................10
Data Recording................................................10
California Proposition 65.............................12
Perchlorate.........................................................12
Ford Credit.........................................................12
Special Notices................................................12
Export Unique Options..................................12
Child Safety General Information.......................................14
Installing Child Seats.....................................15
Child Seat Positioning...................................21
Booster Seats..................................................23
Child Safety Locks..........................................25
Safety Belts Principle of Operation..................................26
Fastening the Safety Belts..........................27
Safety Belt Height Adjustment.................29
Safety Belt Warning Lamp and Indicator


Chime.............................................................30
Safety Belt Minder.........................................30
Child Restraint and Safety Belt


Maintenance................................................32
Personal Safety System™ Personal Safety System™..........................33
Supplementary Restraints


System


Principle of Operation..................................34
Driver and Passenger Airbags....................35
Front Passenger Sensing System............36
Side Airbags.....................................................38


Driver Knee Airbag.........................................39
Side Curtain Airbags.....................................39
Crash Sensors and Airbag Indicator.........41
Airbag Disposal...............................................42
Keys and Remote Controls General Information on Radio Frequencies..................................................43
Remote Control..............................................43
Replacing a Lost Key or Remote


Control............................................................47
MyKey™ Principle of Operation..................................48
Creating a MyKey...........................................48
Clearing All MyKeys.......................................49
Checking MyKey System Status..............49
Using MyKey With Remote Start


Systems.........................................................50
MyKey Troubleshooting...............................50
Locks Locking and Unlocking.................................52
Manual Liftgate...............................................55
Keyless Entry...................................................56
Interior Luggage Compartment


Release..........................................................58
Security Passive Anti-Theft System........................60
Anti-Theft Alarm.............................................61
Steering Wheel Adjusting the Steering Wheel...................63
Audio Control...................................................63
Voice Control...................................................64
Cruise Control.................................................64
Wipers and Washers Windshield Wipers........................................65


Fiesta (CCT) Vehicles Built From: 01-04-2013, Vehicles Built Up To: 31-12-2013


Table of Contents


Manual Climate Control..............................98
Automatic Climate Control........................99
Hints on Controlling the Interior


Climate........................................................100
Heated Windows and Mirrors..................103
Cabin Air Filter...............................................103
Seats Sitting in the Correct Position..................105
Head Restraints............................................105
Manual Seats.................................................107
Rear Seats......................................................108
Heated Seats.................................................109
Auxiliary Power Points Auxiliary Power Points..................................111
Cigar Lighter......................................................111
Storage Compartments Cup Holders.....................................................112
Starting and Stopping the


Engine


General Information.....................................113
Ignition Switch................................................113
Keyless Starting..............................................113
Starting a Gasoline Engine.........................115
Switching Off the Engine............................116
Engine Block Heater.....................................116
Fuel and Refueling Safety Precautions.......................................118
Fuel Quality......................................................119
Running Out of Fuel.....................................119
Refueling..........................................................120
Fuel Consumption........................................122
Emission Control System...........................123
Transmission Manual Transmission..................................126


Windshield Washers.....................................65
Rear Window Wiper and Washers..........66
Lighting General Information......................................67
Lighting Control..............................................67
Autolamps........................................................68
Instrument Lighting Dimmer.....................68
Headlamp Exit Delay....................................69
Daytime Running Lamps............................69
Front Fog Lamps............................................69
Direction Indicators.......................................69
Interior Lamps.................................................70
Ambient Lighting.............................................71
Windows and Mirrors Power Windows..............................................72
Global Opening and Closing......................73
Exterior Mirrors................................................74
Interior Mirror....................................................75
Moonroof...........................................................76
Instrument Cluster Gauges................................................................77
Warning Lamps and Indicators.................78
Warning Lamps and Indicators - 1.6L


EcoBoost™...................................................81
Audible Warnings and Indicators.............84
Information Displays General Information.....................................85
Clock...................................................................88
Trip Computer.................................................88
Personalized Settings..................................89
Information Messages.................................89
Climate Control Principle of Operation...................................97
Air Vents.............................................................97


Fiesta (CCT) Vehicles Built From: 01-04-2013, Vehicles Built Up To: 31-12-2013


Table of Contents


Driving Hints Breaking-In......................................................157
Cold Weather Precautions........................157
Driving Through Water................................157
Economical Driving......................................157
Floor Mats.......................................................158
Customer Assistance Getting the Services You Need...............160
In California (U.S. Only)..............................161
The Better Business Bureau (BBB) Auto


Line Program (U.S. Only)......................162


Utilizing the Mediation/Arbitration


Program (Canada Only)........................162


Getting Assistance Outside the U.S. and


Canada.........................................................163


Ordering Additional Owner's


Literature.....................................................164


Reporting Safety Defects (U.S.


Only).............................................................164


Reporting Safety Defects (Canada


Only).............................................................165
Roadside Emergencies Roadside Assistance..................................166
Hazard Warning Flashers...........................167
Fuel Shutoff....................................................167
Jump-Starting the Vehicle........................167
Fuses Fuse Specification Chart...........................169
Changing a Fuse............................................175
Maintenance General Information.....................................177
Opening and Closing the Hood................177
Under Hood Overview - 1.0L


EcoBoost™.................................................179


Under Hood Overview - 1.6L Duratec-16V


Ti-VCT (88kW/120PS) - Sigma........180


Manual Transmission - 1.6L


EcoBoost™.................................................127
Automatic Transmission............................128
Hill Start Assist..............................................132
Brakes General Information....................................134
Hints on Driving With Anti-Lock


Brakes...........................................................134
Parking Brake.................................................134
Stability Control Principle of Operation.................................136
Using Stability Control................................137
Using Stability Control - 1.6L


EcoBoost™.................................................137
Parking Aids Principle of Operation.................................138
Parking Aid......................................................138
Rear View Camera.......................................139
Cruise Control Principle of Operation.................................142
Using Cruise Control....................................142
Driving Aids Steering............................................................144
Load Carrying General Information....................................145
Load Limit.......................................................145
Rear Under Floor Storage..........................152
Cargo Nets.......................................................153
Luggage Covers.............................................153
Towing Towing a Trailer.............................................154
Transporting the Vehicle............................154
Towing the Vehicle on Four Wheels......154


Fiesta (CCT) Vehicles Built From: 01-04-2013, Vehicles Built Up To: 31-12-2013


Table of Contents


Repairing Minor Paint Damage...............207
Cleaning the Instrument Panel and


Instrument Cluster Lens.......................207
Cleaning Leather Seats.............................208
Cleaning the Alloy Wheels.......................208
Vehicle Storage............................................209
Wheels and Tires General Information.....................................211
Tire Care............................................................211
Using Winter Tires.......................................226
Using Snow Chains.....................................226
Tire Pressure Monitoring System...........226
Changing a Road Wheel...........................230
Technical Specifications...........................234
Capacities and Specific-


ations


Engine Specifications.................................235
Motorcraft Parts...........................................236
Vehicle Identification Number................237
Vehicle Certification Label........................237
Transmission Code Designation............238
Accessories Accessories....................................................239
Ford Extended Service Plan


(ESP)


Ford Extended Service Plan (ESP)........241
Audio System General Information...................................244
Audio unit - Vehicles With:


AM/FM/CD.................................................245


Audio unit - Vehicles With:


AM/FM/CD/SYNC..................................249


Audio unit - Vehicles With: Touchscreen


Display.........................................................254


Audio unit - Vehicles With: Sony Audio


System/Touchscreen Display.............255


Under Hood Overview - 1.6L


EcoBoost™..................................................181


Engine Oil Dipstick - 1.0L


EcoBoost™.................................................182


Engine Oil Dipstick - 1.6L Duratec-16V


Ti-VCT (88kW/120PS) - Sigma.........182


Engine Oil Dipstick - 1.6L


EcoBoost™.................................................182
Engine Oil Check...........................................182
Engine Coolant Check................................183
Automatic Transmission Fluid


Check............................................................185
Brake Fluid Check.........................................185
Power Steering Fluid Check.....................185
Fuel Filter.........................................................186
Washer Fluid Check.....................................186
Changing the 12V Battery..........................186
Checking the Wiper Blades......................186
Changing the Wiper Blades.....................186
Changing the Engine Air Filter..................187
Adjusting the Headlamps.........................188
Removing a Headlamp..............................189
Changing a Bulb - Vehicles With:


4-Door..........................................................190


Changing a Bulb - Vehicles With:


5-Door..........................................................195
Bulb Specification Chart...........................199
Technical Specifications - 1.0L


EcoBoost™...............................................200


Technical Specifications - 1.6L


EcoBoost™.................................................201


Technical Specifications - 1.6L


Duratec-16V Ti-VCT (Sigma).............202
Vehicle Care Cleaning Products.......................................204
Cleaning the Exterior..................................204
Waxing.............................................................205
Cleaning the Engine...................................205
Cleaning the Windows and Wiper


Blades.........................................................206
Cleaning the Interior...................................206


Fiesta (CCT) Vehicles Built From: 01-04-2013, Vehicles Built Up To: 31-12-2013


Table of Contents


Auxiliary Input Jack......................................257
Audio Troubleshooting..............................258
SYNC™ General Information...................................259
Using Voice Recognition............................261
Using SYNC™ With Your Phone............263
SYNC™ Applications and Services.......274
Using SYNC™ With Your Media


Player............................................................281
SYNC™ Troubleshooting.........................289
MyFord Touch™ General Information...................................295
Settings...........................................................303
Entertainment................................................313
Phone...............................................................330
Information....................................................336
Navigation......................................................345
Appendices End User License Agreement..................355
Scheduled Maintenance Scheduled Maintenance...........................370


Fiesta (CCT) Vehicles Built From: 01-04-2013, Vehicles Built Up To: 31-12-2013


6


Fiesta (CCT) Vehicles Built From: 01-04-2013, Vehicles Built Up To: 31-12-2013


Introduction


ABOUT THIS MANUAL Thank you for choosing Ford. We recommend that you take some time to get to know your vehicle by reading this manual. The more that you know about it, the greater the safety and pleasure you will get from driving it.


WARNING


Driving while distracted can result in loss of vehicle control, crash and injury. We strongly recommend that you use extreme caution when using any device that may take your focus off the road. Your primary responsibility is the safe operation of your vehicle. We recommend against the use of any handheld device while driving and encourage the use of voice-operated systems when possible. Make sure you are aware of all applicable local laws that may affect the use of electronic devices while driving.


Note: This manual describes product features and options available throughout the range of available models, sometimes even before they are generally available. It may describe options not fitted to your vehicle. Note: Some of the illustrations in this manual may be used for different models, so may appear different to you on your vehicle. However, the essential information in the illustrations is always correct. Note: Always use and operate your vehicle in line with all applicable laws and regulations. Note: Pass on this manual when selling your vehicle. It is an integral part of the vehicle. This manual may qualify the location of a component as left-hand side or right-hand side. The side is determined when facing forward in the seat.


Fiesta (CCT) Vehicles Built From: 01-04-2013, Vehicles Built Up To: 31-12-2013


Right-hand side Left-hand side


Protecting the Environment You must play your part in protecting the environment. Correct vehicle usage and the authorized disposal of waste, cleaning and lubrication materials are significant steps toward this aim. SYMBOLS GLOSSARY These are some of the symbols you may see on your vehicle.


Safety alert


See Owner's Manual


Air conditioning system


Anti-lock braking system


Avoid smoking, flames or sparks


E154903E162384 Introduction


Battery


Battery acid


Brake fluid - non petroleum based


Brake system


Cabin air filter


Check fuel cap


Engine oil


Explosive gas


Fan warning


Fasten safety belt


Front airbag


Front fog lamps


Child safety door lock or unlock


Fuel pump reset


Child seat lower anchor


Fuse compartment


Child seat tether anchor


Hazard warning flashers


Cruise control


Do not open when hot


Engine air filter


Engine coolant


Heated rear window


Heated windshield


Interior luggage compartment release


Jack


Engine coolant temperature


Keep out of reach of children


Lighting control


Fiesta (CCT) Vehicles Built From: 01-04-2013, Vehicles Built Up To: 31-12-2013


E71340E91392E161353 Introduction


Low tire pressure warning


Maintain correct fluid level


Note operating instructions


Panic alarm


Parking aid


Parking brake


Power steering fluid


Power windows front/rear


Power window lockout


Service engine soon


Side airbag


Shield the eyes


Stability control


Windshield wash and wipe


REPLACEMENT PARTS RECOMMENDATION Your vehicle has been built to the highest standards using quality parts. We recommend that you demand the use of genuine Ford and Motorcraft parts whenever your vehicle requires scheduled maintenance or repair. You can clearly identify genuine Ford and Motorcraft parts by looking for the Ford, FoMoCo or Motorcraft branding on the parts or their packaging. Scheduled Maintenance and Mechanical Repairs One of the best ways for you to make sure that your vehicle provides years of service is to have it maintained in line with our recommendations using parts that conform to the specifications detailed in this Owner’s Manual. Genuine Ford and Motorcraft parts meet or exceed these specifications. Collision Repairs We hope that you never experience a collision, but accidents do happen. Genuine Ford replacement collision parts meet our stringent requirements for fit, finish, structural integrity, corrosion protection and dent resistance. During vehicle development we validate these parts deliver the intended level of protection as a whole system. A great way to know for sure you are getting this level of protection is to use genuine Ford replacement collision parts.


Fiesta (CCT) Vehicles Built From: 01-04-2013, Vehicles Built Up To: 31-12-2013


E139213E167012 Introduction


Warranty on Replacement Parts Genuine Ford and Motorcraft replacement parts are the only replacement parts that benefit from a Ford Warranty. Damage caused to your vehicle as a result of the failure of non-Ford parts may not be covered by the Ford Warranty. For additional information, refer to the terms and conditions of the Ford Warranty. MOBILE COMMUNICATIONS EQUIPMENT Using mobile communications equipment is becoming increasingly important in the conduct of business and personal affairs. However, you must not compromise your own or others’ safety when using such equipment. Mobile communications can enhance personal safety and security when appropriately used, particularly in emergency situations. Safety must be paramount when using mobile communications equipment to avoid negating these benefits. Mobile communication equipment includes, but is not limited to, cellular phones, pagers, portable email devices, text messaging devices and portable two-way radios.


WARNING


Driving while distracted can result in loss of vehicle control, crash and injury. We strongly recommend that you use extreme caution when using any device that may take your focus off the road. Your primary responsibility is the safe operation of your vehicle. We recommend against the use of any hand-held device while driving and encourage the use of voice-operated systems when possible. Make sure you are aware of all applicable local laws that may affect the use of electronic devices while driving.


DATA RECORDING Service Data Recording Service data recorders in your vehicle are capable of collecting and storing diagnostic information about your vehicle. This potentially includes information about the performance or status of various systems and modules in the vehicle, such as engine, throttle, steering or brake systems. In order to properly diagnose and service your vehicle, Ford Motor Company, Ford of Canada, and service and repair facilities may access or share among them vehicle diagnostic information received through a direct connection to your vehicle when diagnosing or servicing your vehicle. Additionally, when your vehicle is in for service or repair, Ford Motor Company, Ford of Canada, and service and repair facilities may access or share among them data for vehicle improvement purposes. For U.S. only (if equipped), if you choose to use the SYNC Vehicle Health Report, you consent that certain diagnostic information may also be accessed electronically by Ford Motor Company and Ford authorized service facilities, and that the diagnostic information may be used for any purpose. See SYNC™ (page 259). Event Data Recording This vehicle is equipped with an event data recorder. The main purpose of an event data recorder is to record, in certain crash or near crash-like situations, such as an airbag deployment or hitting a road obstacle; this data will assist in understanding how a vehicle’s systems performed. The event data recorder is designed to record data related to vehicle dynamics and safety systems for a short period of time, typically 30 seconds or less.


10


Fiesta (CCT) Vehicles Built From: 01-04-2013, Vehicles Built Up To: 31-12-2013


Introduction


or where required by law enforcement, other government authorities or other third parties acting with lawful authority. Other parties may seek to access the information independently of Ford Motor Company and Ford of Canada. Note: Including to the extent that any law pertaining to Event Data Recorders applies to SYNC or its features, please note the following: Once 911 Assist (if equipped) is enabled (set ON), 911 Assist may, through any paired and connected cell phone, disclose to emergency services that the vehicle has been in a crash involving the deployment of an airbag or, in certain vehicles, the activation of the fuel pump shut-off. Certain versions or updates to 911 Assist may also be capable of being used to electronically or verbally provide to 911
operators the vehicle location (such as latitude and longitude), and/or other details about the vehicle or crash or personal information about the occupants to assist 911 operators to provide the most appropriate emergency services. If you do not want to disclose this information, do not activate the 911
Assist feature. See SYNC™ (page 259). Additionally, when you connect to Traffic, Directions and Information (if equipped, U.S. only), the service uses GPS technology and advanced vehicle sensors to collect the vehicle’s current location, travel direction, and speed (“vehicle travel information”), only to help provide you with the directions, traffic reports, or business searches that you request. If you do not want Ford or its vendors to receive this information, do not activate the service. Ford Motor Company and the


and


The event data recorder in this vehicle is designed to record such data as: • How various systems in your vehicle


were operating;


• Whether or not the driver and passenger safety belts were buckled/fastened;


• How far (if at all) the driver was


depressing the accelerator and/or the brake pedal; and


• How fast the vehicle was travelling;


• Where the driver was positioning


the steering wheel.


This data can help provide a better understanding of the circumstances in which crashes and injuries occur. Note: Event data recorder data is recorded by your vehicle only if a non-trivial crash situation occurs; no data is recorded by the event data recorder under normal driving conditions and no personal data or information (e.g., name, gender, age, and crash location) is recorded (see limitations regarding 911
Assist and Traffic, directions and Information privacy below). However, parties, such as law enforcement, could combine the event data recorder data with the type of personally identifying data routinely acquired during a crash investigation. To read data recorded by an event data recorder, special equipment is required, and access to the vehicle or the event data recorder is needed. In addition to the vehicle manufacturer, other parties, such as law enforcement, that have such special equipment, can read the information if they have access to the vehicle or the event data recorder. Ford Motor Company and Ford of Canada do not access event data recorder information without obtaining consent, unless pursuant to court order


11


Fiesta (CCT) Vehicles Built From: 01-04-2013, Vehicles Built Up To: 31-12-2013


Introduction


Phone: 1-800-727-7000
For more information regarding Ford Credit, as well as access Account Manager, please go to www.fordcredit.com. SPECIAL NOTICES New Vehicle Limited Warranty For a detailed description of what is covered and what is not covered by your vehicle’s New Vehicle Limited Warranty, refer to the Warranty Manual that is provided to you along with your Owner’s Manual. Special Instructions For your added safety, your vehicle is fitted with sophisticated electronic controls.


WARNINGS


Failure to follow the specific warnings and instructions could result in personal injury. Front seat mounted rear-facing child or infant seats should NEVER be placed in front of an active


passenger airbag. EXPORT UNIQUE OPTIONS For your particular global region, your vehicle may be equipped with features and options that are different from the features and options that are described in this Owner’s Manual. A market unique supplement may be supplied that complements this book. By referring to the market unique supplement, if provided, you can properly identify those features, recommendations and specifications that are unique to your vehicle. This Owner’s


vendors it uses to provide you with this information do not store your vehicle travel information. For more information, see Traffic, Directions and Information, Terms and Conditions. See SYNC™ (page 259). CALIFORNIA PROPOSITION 65


WARNING


Some constituents of engine exhaust, certain vehicle components, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. PERCHLORATE Certain components in your vehicle such as airbag modules, safety belt pretensioners and remote control batteries may contain perchlorate material. Special handling may apply for service or vehicle end of life disposal. For more information visit:


Web Address


www.dtsc.ca.gov/hazardouswaste/


perchlorate


FORD CREDIT (U.S. Only) Ford Credit offers a full range of financing and lease plans to help you acquire your vehicle. If you have financed or leased your vehicle through Ford Credit, thank you for your business. For your convenience we offer a number of ways to contact us, as well as help manage your account.


12


Fiesta (CCT) Vehicles Built From: 01-04-2013, Vehicles Built Up To: 31-12-2013


Introduction


Manual is written primarily for the U.S. and Canadian Markets. Features or equipment listed as standard may be different on units built for Export. Refer to this Owner’s Manual for all other required information and warnings.


13


Fiesta (CCT) Vehicles Built From: 01-04-2013, Vehicles Built Up To: 31-12-2013


Child Safety


WARNINGS


requirements of law. Ford recommends checking with a NHTSA Certified Child Passenger Safety Technician (CPST) and consult your pediatrician to make sure your child seat is appropriate for your child, and is compatible with and properly installed in your vehicle. To locate a child seat fitting station and CPST, contact the NHTSA toll free at 1-888-327-4236 or go to http://www.nhtsa.dot.gov. In Canada, check with your local St. John Ambulance office for referral to a CPST or for further information, contact your provincial ministry of transportation, locate your local St. John Ambulance office by searching for St. John Ambulance on the internet, or Transport Canada at 1-800-333-0371
(http://www.tc.gc.ca). Failure to properly restrain children in safety seats made especially for their height, age, and weight may result in an increased risk of serious injury or death to your child.


GENERAL INFORMATION See the following sections for directions on how to properly use safety restraints for children.


WARNINGS


Always make sure your child is secured properly in a device that is appropriate for their height, age and


weight. Child safety restraints must be bought separately from your vehicle. Failure to follow these instructions and guidelines may result in an increased risk of serious injury or death to your child.


All children are shaped differently. The recommendations for safety restraints are based on probable child height, age and weight thresholds from National Highway Traffic Safety Administration and other safety organizations, or are the minimum


14


Fiesta (CCT) Vehicles Built From: 01-04-2013, Vehicles Built Up To: 31-12-2013


Child Safety


Recommendations for Safety Restraints for Children


Child


Child size, height, weight, or age


Recommended restraint


type


Infants or toddlers


Children weighing 40 lb (18 kg) or less


(generally age four or younger).


Small children


Larger children


Children who have outgrown or no longer properly fit in a child safety seat (gener- ally children who are less than 4 ft. 9 in. (1.45 m) tall, are greater than age four and less than age 12, and between 40 lb (18 kg) and 80 lb (36 kg) and upward to 100 lb (45 kg) if recommended by your


child restraint manufacturer).


Children who have outgrown or no longer properly fit in a belt-positioning booster seat (generally children who are at least 4 ft. 9 in. (1.45 m) tall or greater than 80


lb (36 kg) or 100 lb (45 kg) if recom-


mended by child restraint manufacturer).


Use a child safety seat (sometimes called an infant carrier, convertible


seat, or toddler seat). Use a belt-positioning


booster seat.


Use a vehicle safety belt having the lap belt snug and low across the hips, shoulder belt centered across the shoulder and


chest, and seat back


upright.


INSTALLING CHILD SEATS Child Seats



You are required by law to properly use safety seats for infants and toddlers in the United States and Canada.


• Many states and provinces require that


small children use approved booster seats until they reach age eight, a height of 4 feet 9 inches (1.45 meters) tall, or 80 pounds (36 kilograms). Check your local and state or provincial laws for specific requirements about the safety of children in your vehicle.


• When possible, always properly


restrain children 12 years of age and under in a rear seating position of your vehicle. Accident statistics suggest that children are safer when properly restrained in the rear seating positions than in a front seating position. See Front Passenger Sensing System (page 36).


15


Fiesta (CCT) Vehicles Built From: 01-04-2013, Vehicles Built Up To: 31-12-2013


E68920 Child Safety


Use a child safety seat (sometimes called an infant carrier, convertible seat, or toddler seat) for infants, toddlers, or children weighing 40 pounds (18
kilograms) or less (generally age four or younger). Using Lap and Shoulder Belts


WARNINGS


Airbags can kill or injure a child in a child seat. NEVER place a rear-facing child seat in front of an active airbag. If you must use a forward-facing child seat in the front seat, move the seat all the way back.


Children 12 and under should be properly restrained in the rear seat whenever possible. Depending on where you secure a child restraint, and depending on the child restraint design, you may block


access to certain safety belt buckle assemblies and LATCH lower anchors, rendering those features potentially unusable. To avoid risk of injury, occupants should only use seating positions where they are able to be properly restrained.


When installing a child safety seat with combination lap and shoulder belts: • Use the correct safety belt buckle for


that seating position. Insert the belt tongue into the proper buckle until you hear a snap and feel it latch. Make sure the tongue is securely fastened in the buckle. Keep the buckle release button pointing up and away from the safety seat, with the tongue between the child seat and the release button, to prevent accidental unbuckling.




• Place your vehicle seat back in the


upright position.


• Put the safety belt in the automatic


locking mode. See Step 5. This vehicle does not require the use of a locking clip.


Perform the following steps when installing the child seat with combination lap and shoulder belts: Note: Although the child seat illustrated is a forward facing child seat, the steps are the same for installing a rear facing child seat.


1. Position the child safety seat in a seat with a combination lap and shoulder belt.


2. Pull down on the shoulder belt and then grasp the shoulder belt and lap belt together.


16


Fiesta (CCT) Vehicles Built From: 01-04-2013, Vehicles Built Up To: 31-12-2013


E142528E142529 Child Safety


3. While holding the shoulder and lap belt


portions together, route the tongue through the child seat according to the child seat manufacturer's instructions. Be sure the belt webbing is not twisted.


5. To put the retractor in the automatic


locking mode, grasp the shoulder portion of the belt and pull downward until all of the belt is pulled out. Note: The automatic locking mode is available on the front passenger and rear seats. This vehicle does not require the use of a locking clip. 6. Allow the belt to retract to remove


slack. The belt will click as it retracts to indicate it is in the automatic locking mode.


7. Try to pull the belt out of the retractor


to make sure the retractor is in the automatic locking mode (you should not be able to pull more belt out). If the retractor is not locked, unbuckle the belt and repeat Steps 5 and 6.


4.


Insert the belt tongue into the proper buckle (the buckle closest to the direction the tongue is coming from) for that seating position until you hear a snap and feel the latch engage. Make sure the tongue is latched securely by pulling on it.


17


Fiesta (CCT) Vehicles Built From: 01-04-2013, Vehicles Built Up To: 31-12-2013


E142530E142531E142875E142533 Child Safety


Using Lower Anchors and Tethers for Children (LATCH) WARNINGS


Never attach two child safety seats to the same anchor. In a crash, one anchor may not be strong enough to


hold two child safety seat attachments and may break, causing serious injury or death.


Depending on where you secure a child restraint, and depending on the child restraint design, you may block


access to certain safety belt buckle assemblies or LATCH lower anchors, rendering those features potentially unusable. To avoid risk of injury, occupants should only use seating positions where they are able to be properly restrained.


The LATCH system is composed of three vehicle anchor points: two lower anchors located where your vehicle seat back and seat cushion meet (called the seat bight) and one top tether anchor located behind that seating position. LATCH compatible child safety seats have two rigid or webbing mounted attachments that connect to the two lower anchors at the LATCH equipped seating positions in your vehicle. This type of attachment method eliminates the need to use safety belts to attach the child seat, however the safety belt can still be used to attach the child seat. For forward-facing child seats, the top tether strap must also be attached to the proper top tether anchor, if a top tether strap has been provided with your child seat.


8. Remove remaining slack from the belt. Force the seat down with extra weight, e.g., by pressing down or kneeling on the child restraint while pulling up on the shoulder belt in order to force slack from the belt. This is necessary to remove the remaining slack that will exist once the extra weight of the child is added to the child restraint. It also helps to achieve the proper snugness of the child seat to your vehicle. Sometimes, a slight lean toward the buckle will additionally help to remove remaining slack from the belt.


9. Attach the tether strap (if the child seat


is equipped). See Using Tether Straps later in this section.


10. Before placing the child in the seat, forcibly move the seat forward and back to make sure the seat is securely held in place. To check this, grab the seat at the belt path and attempt to move it side to side and forward and back. There should be no more than 1 inch (2.5 centimeters) of movement for proper installation.


Ford recommends checking with a NHTSA Certified Child Passenger Safety Technician (CPST) to make certain the child restraint is properly installed. In Canada, check with your local St. John Ambulance office for referral to a Certified Passenger Seat Technician.


18


Fiesta (CCT) Vehicles Built From: 01-04-2013, Vehicles Built Up To: 31-12-2013


E142534 Child Safety


Use of Inboard Lower Anchors from the Outboard Seating Positions (Center Seating Use)


WARNING


The standardized spacing for LATCH lower anchors is 11 inches (28
centimeters) center to center. Do not


use LATCH lower anchors for the center seating position unless the child seat manufacturer's instructions permit and specify using anchors spaced at least as far apart as those in this vehicle.


The lower anchors at the center of the second row rear seat are spaced 15 inches (39 centimeters) apart. A child seat with rigid LATCH attachments cannot be installed at the center seating position. LATCH compatible child seats (with attachments on belt webbing) can only be used at this seating position provided that the child seat manufacturer's instructions permit use with the anchor spacing stated. Do not attach a child seat to any lower anchor if an adjacent child seat is attached to that anchor. Each time you use the safety seat, check that the seat is properly attached to the lower anchors and tether anchor, if applicable. Tug the child seat from side to side and forward and back where it is secured to your vehicle. The seat should move less than one inch when you do this for a proper installation. If the safety seat is not anchored properly, the risk of a child being injured in a crash greatly increases.


Your vehicle has LATCH lower anchors for child seat installation at the seating positions marked with the child seat symbol.


The LATCH anchors are located at the rear section of the rear seat between the cushion and seat back below the symbols as shown. Follow the child seat manufacturer's instructions to properly install a child seat with LATCH attachments. Follow the instructions on attaching child safety seats with tether straps. Attach LATCH lower attachments of the child seat only to the anchors shown.


19


Fiesta (CCT) Vehicles Built From: 01-04-2013, Vehicles Built Up To: 31-12-2013


E142535E144054 Child Safety


Combining Safety Belt and LATCH Lower Anchors for Attaching Child Safety Seats When used in combination, either the safety belt or the LATCH lower anchors may be attached first, provided a proper installation is achieved. Attach the tether strap afterward, if included with the child seat. Using Tether Straps


Many forward-facing child safety seats include a tether strap which extends from the back of


the child safety seat and hooks to an anchoring point called the top tether anchor. Tether straps are available as an accessory for many older safety seats. Contact the manufacturer of your child seat for information about ordering a tether strap, or to obtain a longer tether strap if the tether strap on your safety seat does not reach the appropriate top tether anchor in your vehicle. Once the child safety seat has been installed using either the safety belt, the lower anchors of the LATCH system, or both, you can attach the top tether strap. The tether strap anchors in your vehicle are in the following positions (shown from top view):


Perform the following steps to install a child safety seat with tether anchors: Note: If you install a child seat with rigid LATCH attachments, do not tighten the tether strap enough to lift the child seat off your vehicle seat cushion when the child is seated in it. Keep the tether strap just snug without lifting the front of the child seat. Keeping the child seat just touching your vehicle seat gives the best protection in a severe crash. Four Door The tether anchors in your vehicle are located under a cover marked with the tether anchor symbol. 1. Route the child safety seat tether strap over the back of the seat. For outboard seating positions, route the tether strap under the head restraint and between the head restraint posts. For the center seating positions, route the tether strap over the top of the head restraint. If needed, the head restraints can also be removed.


2. Locate the correct anchor for the


selected seating position, then open the tether anchor cover.


20


Fiesta (CCT) Vehicles Built From: 01-04-2013, Vehicles Built Up To: 31-12-2013


E142537E144274E144275 Child Safety


3. Clip the tether strap to the anchor as


shown.


4. Tighten the child safety seat tether


strap according to the manufacturer's instructions. If your child restraint system is equipped with a tether strap, and the child restraint manufacturer recommends its use, Ford also recommends its use.


Five Door The tether anchors in your vehicle are located on the back panel of the rear seat. These are marked with the tether anchor symbol. 1. Route the child safety seat tether strap over the back of the seat. For outboard seating positions, route the tether strap under the head restraint and between the head restraint posts. For the center seating positions, route the tether strap over the top of the head restraint. If needed, the head restraints can also be removed.


2. Locate the correct anchor on the back panel of the rear seat for the selected seating position.


21


Fiesta (CCT) Vehicles Built From: 01-04-2013, Vehicles Built Up To: 31-12-2013


3. Clip the tether strap to the anchor as


shown.


4. Tighten the child safety seat tether


strap according to the manufacturer's instructions. If your child restraint system is equipped with a tether strap, and the child restraint manufacturer recommends its use, Ford also recommends its use.


CHILD SEAT POSITIONING


WARNINGS


Airbags can kill or injure a child in a child seat. Never place a rear-facing child seat in front of an active airbag. If you must use a forward-facing child seat in the front seat, move the vehicle seat upon which the child seat is installed all the way back. When possible, all children age 12 and under should be properly restrained in a rear seating position. If all children cannot be seated and restrained properly in a rear seating position, properly restrain the largest child in the front seat.


Always carefully follow the instructions and warnings provided by the manufacturer of any child


restraint to determine if the restraint device is appropriate for your child's size, height, weight, or age. Follow the child restraint manufacturer's instructions and warnings provided for installation and use in


E164077E142539 Child Safety


WARNINGS


conjunction with the instructions and warnings provided by your vehicle manufacturer. A safety seat that is improperly installed or utilized, is inappropriate for your child's height, age, or weight or does not properly fit the child may increase the risk of serious injury or death.


Never let a passenger hold a child on his or her lap while your vehicle is moving. The passenger cannot


protect the child from injury in a crash, which may result in serious injury or death. Never use pillows, books, or towels to boost a child. They can slide around and increase the likelihood


of injury or death in a crash.


WARNINGS


Always restrain an unoccupied child seat or booster seat. These objects may become projectiles in a crash or sudden stop, which may increase the risk of serious injury.


Never place, or allow a child to place, the shoulder belt under a child's arm or behind the back because it


reduces the protection for the upper part of the body and may increase the risk of injury or death in a crash.


To avoid risk of injury, do not leave children or pets unattended in your vehicle.


Restraint


Type


Combined child and seat weight


Use any attachment method as indicated below by X


LATCH (lower anchors only)


Safety belt


and top tether anchor


LATCH (lower anchors and top tether anchor)


Safety belt


only


Safety belt and LATCH (lower anchors and top tether anchor)


Rear facing child seat Rear facing child seat Forward facing


child seat Forward facing


Up to 65 lb


(29 kg) Over 65 lb (29 kg)


Up to 65 lb


(29 kg)


Over 65 lb (29 kg)


child seat Note: The child seat must rest tightly against the vehicle seat upon which it is installed. It may be necessary to lift or remove the head restraint. See Seats (page 105).


22


Fiesta (CCT) Vehicles Built From: 01-04-2013, Vehicles Built Up To: 31-12-2013


Child Safety


• Does the lap belt rest low across the


hips? Is the shoulder belt centered on the shoulder and chest?


• Can the child stay seated like this for


the whole trip?


Always use booster seats in conjunction with your vehicle lap and shoulder belt. Types of Booster Seats


Backless booster seats


• If your backless booster seat has a removable shield, remove the shield. If a vehicle seating position has a low seat back or no head restraint, a backless booster seat may place your child's head (as measured at the tops of the ears) above the top of the seat. In this case, move the backless booster to another seating position with a higher seat back or head restraint and lap and shoulder belts, or consider using a high back booster seat.


BOOSTER SEATS


WARNING



Never place, or allow a child to place, the shoulder belt under a child's arm or behind the back because it


reduces the protection for the upper part of the body and may increase the risk of injury or death in a crash.


Use a belt-positioning booster seat for children who have outgrown or no longer properly fit in a child safety seat (generally children who are less than 4 feet 9 inches (1.45 meters) tall, are greater than age four (4) and less than age twelve (12), and between 40 pounds (18 kilograms) and 80 pounds (36 kilograms) and upward to 100 pounds (45 kilograms) if recommended by your child restraint manufacturer). Many state and provincial laws require that children use approved booster seats until they reach age eight, a height of 4 feet 9 inches (1.45 meters) tall, or 80 pounds (36 kilograms). Booster seats should be used until you can answer YES to ALL of these questions when seated without a booster seat:


• Can the child sit all the way back


against their vehicle seat back with knees bent comfortably at the edge of the seat cushion?


• Can the child sit without slouching?


23


Fiesta (CCT) Vehicles Built From: 01-04-2013, Vehicles Built Up To: 31-12-2013


E142595E68924 Child Safety


If, with a backless booster seat, you cannot find a seating position that adequately supports your child's head, a high back booster seat would be a better choice. Children and booster seats vary in size and shape. Choose a booster that keeps the lap belt low and snug across the hips, never up across the stomach, and lets you adjust the shoulder belt to cross the chest and rest snugly near the center of the shoulder. The following drawings compare the ideal fit (center) to a shoulder belt uncomfortably close to the neck and a shoulder belt that could slip off the shoulder. The drawings also show how the lap belt should be low and snug across the child's hips.


• High back booster seats


24


Fiesta (CCT) Vehicles Built From: 01-04-2013, Vehicles Built Up To: 31-12-2013


E70710E142596E142597 Child Safety


Right-Hand Side Turn clockwise to lock and counterclockwise to unlock.


If the booster seat slides on the vehicle seat upon which it is being used, placing a rubberized mesh sold as shelf or carpet liner under the booster seat may improve this condition. Do not introduce any item thicker than this under the booster seat. Check with the booster seat manufacturer's instructions. CHILD SAFETY LOCKS


WARNING


You cannot open the rear doors from inside if you have put the child safety locks on.


Left-Hand Side Turn counterclockwise to lock and clockwise to unlock.


25


Fiesta (CCT) Vehicles Built From: 01-04-2013, Vehicles Built Up To: 31-12-2013


E156821 Safety Belts


WARNINGS


When possible, all children 12 years old and under should be properly restrained in a rear seating position.


Failure to follow this could seriously increase the risk of injury or death.


Safety belts and seats can become hot in a vehicle that has been closed up in sunny weather; they could burn


a small child. Check seat covers and buckles before you place a child anywhere near them.


Front and rear seat occupants, including pregnant women, should wear safety belts for optimum


protection in an accident.


All seating positions in your vehicle have lap and shoulder safety belts. All occupants of the vehicle should always properly wear their safety belts, even when an airbag supplemental restraint system is provided. The safety belt system consists of: lap and shoulder safety belts. • shoulder safety belt with automatic • locking mode, (except driver safety belt). height adjuster at the front outboard seating positions. safety belt pretensioner at the front outboard seating positions. belt tension sensor at the front outboard passenger seating position.






Safety belt warning light and chime.


PRINCIPLE OF OPERATION


WARNINGS


Always drive and ride with your seat back upright and the lap belt snug and low across the hips. To reduce the risk of injury, make sure children sit where they can be properly restrained. Never let a passenger hold a child on his or her lap while your vehicle is moving. The passenger cannot


protect the child from injury in a crash.


All occupants of your vehicle, including the driver, should always properly wear their safety belts, even


when an airbag supplemental restraint system is provided. Failure to properly wear your safety belt could seriously increase the risk of injury or death.


It is extremely dangerous to ride in a cargo area, inside or outside of a vehicle. In a crash, people riding in


these areas are more likely to be seriously injured or killed. Do not allow people to ride in any area of your vehicle that is not equipped with seats and safety belts. Be sure everyone in your vehicle is in a seat and using a safety belt properly.


In a rollover crash, an unbelted person is significantly more likely to die than a person wearing a safety


belt.


Each seating position in your vehicle has a specific safety belt assembly which is made up of one buckle and one tongue that are designed to be used as a pair. 1) Use the shoulder belt on the outside shoulder only. Never wear the shoulder belt under the arm. 2) Never swing the safety belt around your neck over the inside shoulder. 3) Never use a single belt for more than one person.


26


Fiesta (CCT) Vehicles Built From: 01-04-2013, Vehicles Built Up To: 31-12-2013


Safety Belts


• Crash sensors and monitoring system


with readiness indicator.


The safety belt pretensioners at the front seating positions are designed to tighten the safety belts when activated. In frontal and near-frontal crashes, the safety belt pretensioners may be activated alone or, if the crash is of sufficient severity, together with the front airbags. The pretensioners may also activate when a side curtain airbag is deployed. FASTENING THE SAFETY BELTS The front outboard and rear safety restraints in the vehicle are combination lap and shoulder belts.


2. To unfasten, press the release button


and remove the tongue from the buckle.


1.


Insert the belt tongue into the proper buckle (the buckle closest to the direction the tongue is coming from) until you hear a snap and feel it latch. Make sure the tongue is securely fastened in the buckle.


When in use, the rear safety belts should be placed in the belt guides on the outboard seat backs. Restraint of Pregnant Women


WARNING


Always ride and drive with your seat back upright and the safety belt properly fastened. The lap portion of


the safety belt should fit snug and be positioned low across the hips. The shoulder portion of the safety belt should be positioned across the chest. Pregnant women should also follow this practice. See the following figure.


27


Fiesta (CCT) Vehicles Built From: 01-04-2013, Vehicles Built Up To: 31-12-2013


E142587E142588E142589 Safety Belts


All safety restraints in the vehicle are combination lap and shoulder belts. The driver safety belt has the first type of locking mode, and the front outboard passenger and rear seat safety belts have both types of locking modes described as follows: Vehicle Sensitive Mode This is the normal retractor mode, which allows free shoulder belt length adjustment to your movements and locking in response to vehicle movement. For example, if the driver brakes suddenly or turns a corner sharply, or the vehicle receives an impact of approximately 5 mph (8 km/h) or more, the combination safety belts will lock to help reduce forward movement of the driver and passengers. In addition, the retractor is designed to lock if the webbing is pulled out too quickly. If this occurs, let the belt retract slightly and pull webbing out again in a slow and controlled manner. Automatic Locking Mode In this mode, the shoulder belt is automatically pre-locked. The belt will still retract to remove any slack in the shoulder belt. The automatic locking mode is not available on the driver safety belt. When to Use the Automatic Locking Mode This mode should be used any time a child safety seat, except a booster, is installed in passenger front or rear seating positions. Children 12 years old and under should be properly restrained in a rear seating position whenever possible. See Child Safety (page 14).


Pregnant women should always wear their safety belt. The lap belt portion of a combination lap and shoulder belt should be positioned low across the hips below the belly and worn as tight as comfort will allow. The shoulder belt should be positioned to cross the middle of the shoulder and the center of the chest. Safety Belt Locking Modes


WARNINGS


After any vehicle crash, the safety belt system at all passenger seating positions must be checked by an


authorized dealer to verify that the automatic locking retractor feature for child seats is still functioning properly. In addition, all safety belts should be checked for proper function.


Belt and retractor assembly must be replaced if the safety belt assembly automatic locking retractor feature


or any other safety belt function is not operating properly when checked by an authorized dealer. Failure to replace the belt and retractor assembly could increase the risk of injury in crashes.


28


Fiesta (CCT) Vehicles Built From: 01-04-2013, Vehicles Built Up To: 31-12-2013


E142590 Safety Belts


Use only extensions manufactured by the same supplier as the safety belt. Manufacturer identification is located at the end of the webbing on the label. Also, use the safety belt extension only if the safety belt is too short for you when fully extended. SAFETY BELT HEIGHT ADJUSTMENT


WARNING


Position the safety belt height adjuster so that the belt rests across the middle of your shoulder. Failure


to adjust the safety belt properly could reduce the effectiveness of the safety belt and increase the risk of injury in a crash.


Adjust the height of the shoulder belt so the belt rests across the middle of your shoulder.


To adjust the shoulder belt height: 1. Pull the button and slide the height


adjuster up or down.


2. Release the button and pull down on the height adjuster to make sure it is locked in place.


How to Use the Automatic Locking Mode


1. Buckle the combination lap and


shoulder belt.


2. Grasp the shoulder portion and pull


downward until the entire belt is pulled out.


Allow the belt to retract. As the belt retracts, you will hear a clicking sound. This indicates the safety belt is now in the automatic locking mode. How to Disengage the Automatic Locking Mode Unbuckle the combination lap and shoulder belt and allow it to retract completely to disengage the automatic locking mode and activate the vehicle sensitive (emergency) locking mode. Safety Belt Extension Assembly


WARNING


Do not use extensions to change the fit of the shoulder belt across the torso.


If the safety belt is too short when fully extended, a safety belt extension assembly can be obtained from an authorized dealer.


29


Fiesta (CCT) Vehicles Built From: 01-04-2013, Vehicles Built Up To: 31-12-2013


E142591E145664 Safety Belts


SAFETY BELT WARNING LAMP AND INDICATOR CHIME (IF EQUIPPED)


This lamp illuminates and an audible warning will sound if the driver's safety belt has not been


fastened when the vehicle's ignition is turned on.


Conditions of operation


If...


Then...


The driver's safety belt is not buckled


before the ignition switch is turned to the


on position...


The driver's safety belt is buckled while the


indicator light is illuminated and the


warning chime is sounding...


The safety belt warning light illuminates 1- 2 minutes and the warning chime sounds


4-8 seconds.


The safety belt warning light and warning


chime turn off.


The driver's safety belt is buckled before the ignition switch is turned to the on posi-


tion...


The safety belt warning light and indicator


chime remain off.


SAFETY BELT MINDER (IF EQUIPPED) Belt-Minder® This feature supplements the safety belt warning function by providing additional reminders by intermittently sounding a chime and illuminating the safety belt warning light when the driver's or front passenger's seat is occupied and the safety belt is unbuckled.


The system uses information from the front passenger sensing system to determine if a front seat passenger is present and therefore potentially in need of a warning. To avoid activating the Belt-Minder feature for objects placed in the front passenger seat, warnings will only be given to front seat occupants as determined by the front passenger sensing system. If the Belt-Minder warnings have expired (warnings for about five minutes) for one occupant (driver or front passenger), the other occupant can still activate the Belt-Minder feature.


30


Fiesta (CCT) Vehicles Built From: 01-04-2013, Vehicles Built Up To: 31-12-2013


Safety Belts


If...


Then...


The Belt-Minder feature will not activate.


The Belt-Minder feature is activated - the safety belt warning light illuminates and the warning chime sounds for six seconds every 25 seconds, repeating for about five


minutes or until the safety belts are


buckled.


The Belt-Minder feature is activated - the safety belt warning light illuminates and the warning chime sounds for six seconds every 25 seconds, repeating for about five


minutes or until the safety belts are


buckled.


The system can be deactivated or activated by performing the following procedure: Before following the procedure, make sure that: • •


the parking brake is set the transmission selector lever is in position P (automatic transmission) or N (manual transmission) the ignition is off the driver and front passenger safety belts are unbuckled.


• •


1. Turn the ignition on. Do not start the


vehicle.


2. Wait until the safety belt warning light


turns off (about one minute). After Step 2, wait an additional five seconds before proceeding with Step 3. Once Step 3 is started, the procedure must be completed within 30 seconds.


The driver's and front passenger's safety belts are buckled before the ignition switch is turned to the on position or less than 1-2
minutes have elapsed since the ignition


switch has been turned to on...


The driver's or front passenger's safety belt is not buckled when the vehicle has reached at least 6 mph (9.7 km/h) and 1-2 minutes have elapsed since the ignition switch has


been turned to on...


The driver's or front passenger's safety belt becomes unbuckled for about one minute while the vehicle is traveling at least 6 mph (9.7 km/h) and more than 1-2 minutes have elapsed since the ignition switch has been


turned to on...


Deactivating and Activating the Belt-Minder Feature


WARNING


While the system allows you to deactivate it, this system is designed to improve your chances of being safely belted and surviving an accident. We recommend you leave the system activated for yourself and others who may use the vehicle. To reduce the risk of injury, do not deactivate or activate the system while driving the vehicle.


Note: The driver and front passenger warning are deactivated and activated independently. When deactivating or activating one seating position, do not buckle the other position as this will terminate the process. Read Steps 1 - 4 thoroughly before proceeding with the programming procedure.


31


Fiesta (CCT) Vehicles Built From: 01-04-2013, Vehicles Built Up To: 31-12-2013


Safety Belts


Ford Motor Company recommends that all safety belt assemblies in use in vehicles involved in a crash be replaced. However, if the crash was minor and an authorized dealer finds that the belts do not show damage and continue to operate properly, they do not need to be replaced. Safety belt assemblies not in use during a crash should also be inspected and replaced if either damage or improper operation is noted. Properly care for safety belts.


3. For the seating position being disabled,


buckle then unbuckle the safety belt three times at a moderate speed, ending in the unbuckled state. After Step 3, the safety belt warning light will turn on.


4. While the safety belt warning light is


on, buckle and then unbuckle the safety belt. After Step 4, the safety belt warning light will flash for confirmation. This will disable the feature for that seating position if it is currently enabled. This will enable the feature for that seating position if it is currently disabled.




CHILD RESTRAINT AND SAFETY BELT MAINTENANCE Inspect the vehicle safety belts and child safety seat systems periodically to make sure they work properly and are not damaged. Inspect the vehicle and child seat safety belts to make sure there are no nicks, tears or cuts. Replace if necessary. All vehicle safety belt assemblies, including retractors, buckles, front safety belt buckle assemblies, buckle support assemblies (slide bar-if equipped), shoulder belt height adjusters (if equipped), shoulder belt guide on seat back (if equipped), child safety seat LATCH and tether anchors, and attaching hardware, should be inspected after a crash. Read the child restraint manufacturer's instructions for additional inspection and maintenance information specific to the child restraint.


32


Fiesta (CCT) Vehicles Built From: 01-04-2013, Vehicles Built Up To: 31-12-2013


Personal Safety System™


module. During a crash, the restraints control module may activate the safety belt pretensioners and may activate either one or both stages of the dual-stage airbag supplemental restraints based on crash severity and occupant conditions.


The Personal Safety System provides an improved overall level of frontal crash protection to front seat occupants and is designed to help further reduce the risk of airbag-related injuries. The system is able to analyze different occupant conditions and crash severity before activating the appropriate safety devices to help better protect a range of occupants in a variety of frontal crash situations. Your vehicle's Personal Safety System consists of: • Driver and passenger dual-stage airbag


supplemental restraints. Front outboard safety belts with pretensioners, energy management retractors (first row only), and safety belt usage sensors.


• Driver’s seat position sensor. • • Passenger airbag off and on indicator


Front passenger sensing system.


lamp. Front crash severity sensors.


• • Restraints control module with impact


and safing sensors.


• Restraint system warning light and


backup tone. The electrical wiring for the airbags, crash sensor(s), safety belt pretensioners, front safety belt usage sensors, driver seat position sensor, front passenger sensing system, and indicator lights.




How Does the Personal Safety System Work? The Personal Safety System can adapt the deployment strategy of your vehicle’s safety devices according to crash severity and occupant conditions. A collection of crash and occupant sensors provides information to the restraints control


33


Fiesta (CCT) Vehicles Built From: 01-04-2013, Vehicles Built Up To: 31-12-2013


Supplementary Restraints System


The airbags are a supplemental restraint system and are designed to work with the safety belts to help protect the driver and right front passenger from certain upper body injuries. Airbags do not inflate slowly; there is a risk of injury from a deploying airbag. Note: You will hear a loud bang and see a cloud of harmless powdery residue if an airbag deploys. This is normal. The airbags inflate and deflate rapidly upon activation. After airbag deployment, it is normal to notice a smoke-like, powdery residue or smell the burnt propellant. This may consist of cornstarch, talcum powder (to lubricate the bag) or sodium compounds (for example, baking soda) that result from the combustion process that inflates the airbag. Small amounts of sodium hydroxide may be present which may irritate the skin and eyes, but none of the residue is toxic. While the system is designed to help reduce serious injuries, contact with a deploying airbag may also cause abrasions or swelling. Temporary hearing loss is also a possibility as a result of the noise associated with a deploying airbag. Because airbags must inflate rapidly and with considerable force, there is the risk of death or serious injuries such as fractures, facial and eye injuries or internal injuries, particularly to occupants who are not properly restrained or are otherwise out of position at the time of airbag deployment. Thus, it is extremely important that occupants be properly restrained as far away from the airbag module as possible while maintaining vehicle control. Routine maintenance of the airbags is not

Loading...
x
