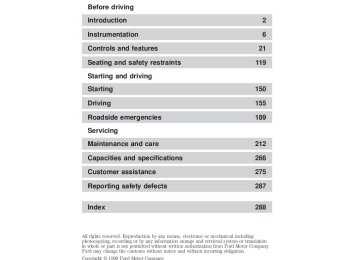

2000 Ford Explorer Owners Manual

Before driving

Introduction

Instrumentation

Controls and features

Seating and safety restraints

Starting and driving

Starting

Driving

Roadside emergencies

Servicing

Maintenance and care

Capacities and specifications

Customer assistance

Reporting safety defects

Index

Contents

21

119

150

155

189

212

266

275

287

288

All rights reserved. Reproduction by any means, electronic or mechanical including photocopying, recording or by any information storage and retrieval system or translation in whole or part is not permitted without written authorization from Ford Motor Company. Ford may change the contents without notice and without incurring obligation. Copyright © 1999 Ford Motor Company

Introduction

The following warning may be required by California law: CALIFORNIA Proposition 65 Warning

WARNING: Engine exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to

the State of California to cause cancer and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

ICONS Indicates a safety alert. Read the following section on Warnings.

Indicates vehicle information related to recycling and other environmental concerns will follow. Correct vehicle usage and the authorized disposal of waste cleaning and lubrication materials are significant steps towards protecting the environment. Indicates a message regarding child safety restraints. Refer to Seating and safety restraints for more information.

Indicates that this Owner Guide contains information on this subject. Please refer to the Index to locate the appropriate section which will provide you more information.

WARNINGS Warnings provide information which may reduce the risk of personal injury and prevent possible damage to others, your vehicle and its equipment.

Introduction

BREAKING-IN YOUR VEHICLE There are no particular breaking-in rules for your vehicle. During the first 1 600 km (1 000 miles) of driving, vary speeds frequently. This is necessary to give the moving parts a chance to break in.

INFORMATION ABOUT THIS GUIDE The information found in this guide was in effect at the time of printing. Ford may change the contents without notice and without incurring obligation.

SPECIAL NOTICES

Notice to owners of pickup trucks and utility type vehicles

Utility vehicles have a significantly higher rollover rate than other types of vehicles.

Before you drive your vehicle, please read this Owner’s Guide carefully. Your vehicle is not a passenger car. As with other vehicles of this type, failure to operate this vehicle correctly may result in loss of control or an accident. Be sure to read Driving off road in the Driving chapter as well as the “Four Wheeling” supplement included with 4WD and utility type vehicles.

Using your vehicle with a snowplow

Do not use this vehicle for snowplowing.

Using your vehicle as an ambulance

Do not use this vehicle as an ambulance.

Your vehicle is not equipped with the Ford Ambulance Preparation Package.

Introduction

These are some of the symbols you may see on your vehicle.

Vehicle Symbol Glossary

Safety Alert

See Owner’s Guide

Fasten Safety Belt

Air Bag-Front

Air Bag-Side

Child Seat

Child Seat Installation Warning

Child Seat Tether Anchorage

Brake System

Anti-Lock Brake System

Brake Fluid - Non-Petroleum Based

Traction Control

Master Lighting Switch

Hazard Warning Flasher

Fog Lamps-Front

Fuse Compartment

Fuel Pump Reset

Windshield Wash/Wipe

Rear Window Defrost/Demist

Power Window Lockout

Windshield Defrost/Demist

Power Windows Front/Rear

Introduction

Vehicle Symbol Glossary

Child Safety Door Lock/Unlock

Interior Luggage Compartment Release Symbol

Panic Alarm

Engine Oil

Engine Coolant

Engine Coolant Temperature

Do Not Open When Hot

Battery

Avoid Smoking, Flames, or Sparks

Battery Acid

Explosive Gas

Fan Warning

Power Steering Fluid

Maintain Correct Fluid Level

MAX MIN

Emission System

Engine Air Filter

Passenger Compartment Air Filter

Jack

Check fuel cap

Instrumentation

Instrument cluster

(pg. 8)

Speed controls*

(pg. 82)

Instrument panel dimmer

switch (pg. 22)

Headlamp control

(pg. 21)

CHECK GAGE

RPMx1000

CHECK ENGINE

FUEL RESET

ABS

OFF

ON

OFF

DOOR AJAR

40

60 70
0 0 0

50

80

100

120

0 0 0 0 0 0

60

30

40

20

20

10 MPH

80

140

90
001

160

180

101

km/h

201

Gearshift lever

(pg. 159)

CHECK SUSP

SPEED CONT

4WD HIGH

4WD LOW

O/D OFF

RSM

SET

ACCEL

COAST

O D

O N / O F F

4x4
HIGH

LOW

AUTO

VOL PUSH

OFF

Tilt steering wheel

lever* (pg. 87)

Driver air bag

(pg. 135)

Parking brake release

(pg. 156)

* if equipped

Turn signal and

wiper/washer control

(pg. 87)

Hood release

(pg. 213)

Reverse sensing

system* (pg. 33)

Electronic sound system

(pg. 35)

4wd control*

(pg. 168)

Rear window/washer

control (pg. 88)

Instrumentation

Rear window defroster

control (pg. 33)

ON

SEEK

TUNE

AM

FM

BASS TREB

FM1

ST

SCAN

EJ

R. WIPE

OFF

HI

PUSH

BAL

FADE

CLK

TAPE AMS

SIDE REW

1 - 2
FF

OFF

A/C

MAX A/C

Fog lamp control*

(pg. 21)

Climate controls

(pg. 22)

Instrumentation

WARNING LIGHTS AND CHIMES

CHECK GAGE

RPMx1000

60 70
0 0 0

50

80

100

120

0 0 0 0 0 0

DOOR AJAR

40

60

30

40

20

20

10 MPH

80

140

90
001

160

180

101

km/h

201

R N D 2 1

THEFT

CHECK ENGINE

CHECK

FUEL CAP

ABS

BRAKE

CHECK SUSP

SPEED CONT

4WD HIGH

4WD LOW

O/D OFF

CHECK ENGINE

Check engine Your vehicle is equipped with a computer that monitors the engine’s emission control system. This system is commonly known as the On Board Diagnostics System (OBD II). This OBD II system protects the environment by ensuring that your vehicle continues to meet government emission standards. The OBD II system also assists the service technician in properly servicing your vehicle. The Check Engine indicator light illuminates when the ignition is first turned to the ON position to check the bulb. If it comes on after the engine is started, one of the engine’s emission control systems may be malfunctioning. The light may illuminate without a driveability concern being noted. The vehicle will usually be drivable and will not require towing. Whatyoushoulddoifthecheckenginelightilluminates Light turns on solid: This means that the OBD II system has detected a malfunction. Temporary malfunctions may cause your Check Engine light to illuminate. Examples are: 1. The vehicle has run out of fuel. (The engine may misfire or run poorly.) 2. Poor fuel quality or water in the fuel.

Instrumentation

3. The fuel cap may not have been properly installed and securely tightened. These temporary malfunctions can be corrected by filling the fuel tank with high quality fuel of the recommended octane and/or properly installing and securely tightening the gas cap. After three driving cycles without these or any other temporary malfunctions present, the Check Engine light should turn off. (A driving cycle consists of a cold engine startup followed by mixed city/highway driving.) No additional vehicle service is required. If the Check Engine light remains on, have your vehicle serviced at the first available opportunity. Light is blinking: Engine misfire is occurring which could damage your catalytic converter. You should drive in a moderate fashion (avoid heavy acceleration and deceleration) and have your vehicle serviced at the first available opportunity.

Under engine misfire conditions, excessive exhaust temperatures could damage the catalytic converter, the fuel system, interior floor coverings or other vehicle components, possibly causing a fire.

CHECK

FUEL CAP

Check fuel cap Momentarily illuminates when the ignition is turned to the ON position to ensure your bulb is working. When this light turns on, check the fuel filler cap. Continuing to operate the vehicle with the check fuel cap light on, can activate the Service Engine Soon/Check Engine warning light. When the fuel filler cap is properly re-installed, the light(s) will turn off after a period of normal driving. It may take a long period of time for the system to detect an improperly install fuel filler cap. For more information, refer to Fuel filler cap in the Maintenance and care chapter.

Instrumentation

Air bag readiness Momentarily illuminates when the ignition is turned ON. If the light fails to illuminate, continues to flash or remains on, have the system serviced immediately.

Safety belt Momentarily illuminates when the ignition is turned to the ON position to remind you to fasten your safety belts. For more information, refer to the Seating and safety restraints chapter.

Brake system warning Momentarily illuminates when the ignition is turned to the ON position to ensure the circuit is functional. Also illuminates if the parking brake is engaged. If the brake warning lamp does not illuminate at these times, seek service immediately. Illumination after releasing the parking brake indicates low brake fluid level and the brake system should be inspected immediately.

BRAKE

Anti-lock brake system (ABS) Momentarily illuminates when the ignition is turned to the ON position to ensure the circuit is functional. If the light remains on, continues to flash or fails to illuminate, have the system serviced immediately. With the ABS light on, the anti-lock brake system is disabled and normal braking is still effective unless the brake warning light also remains illuminated with the parking brake released.

ABS

10

Instrumentation

Turn signal Illuminates when the left or right turn signal or the hazard lights are turned on. If one or both of the indicators stay on continuously or flash faster, check for a burned-out turn signal bulb. Refer to Bulbs in the Maintenance and care chapter.

High beams Illuminates when the high beam headlamps are turned on.

Anti-theft system (if equipped) Refer to SecuriLocky passive anti-theft system in the Controls and features chapter.

Charging system Illuminates when the ignition is turned to the ON position and the engine is off. The light also illuminates when the battery is not charging properly, requiring electrical system service.

THEFT

Check gage Illuminates when the engine coolant temperature is high, the engine oil pressure is low or the fuel gauge is at or near empty. The ignition must be in the ON position for this lamp to illuminate. The lamp will also stay illuminated after the ignition is turned to the ON position. Refer to Engine coolant temperature gauge, Engine oil pressure gauge or Fuel gauge in this chapter for more information.

CHECK GAGE

11

Instrumentation

Four wheel drive low (if equipped) Momentarily illuminates when the ignition is turned to the ON/START position. Illuminates when four-wheel drive low is engaged. If the light continues to flash have the system serviced.

4WD LOW

Four wheel drive high (if equipped) Momentarily illuminates when the ignition is turned to the START position. Illuminates when four-wheel drive high is engaged. If the light continues to flash have the system serviced.

4WD HIGH

Door ajar Illuminates when the ignition is in the ON or START position and any door is open.

DOOR AJAR

O/D off (if equipped) Illuminates when the Transmission Control Switch (TCS), refer to Overdrive control in the Controls and Features chapter, has been pushed turning the transmission overdrive function OFF. When the light is on, the transmission does not operate in the overdrive mode, refer to the Driving chapter for transmission function and operation. The light may also flash steadily if a transmission malfunction is detected. If the light does not come on when the Transmission Control Switch is depressed or if the light flashes steadily, have your vehicle serviced as soon as possible, damage to the transmission could occur.

O/D OFF

Check air suspension (if equipped) Illuminates momentarily when the ignition is turned to the ON position and the engine is OFF. The light also illuminates when the air suspension system requires servicing. For information, refer to Air suspension system in the Driving chapter.

CHECK SUSP

12

Instrumentation

Speed control This light comes on when either the SET/ACCEL or RESUME controls are pressed. It turns off when the speed control OFF control is pressed, the brake or clutch (if equipped) is applied or the ignition is turned to the OFF position.

SPEED CONT

Safety belt warning chime Sounds to remind you to fasten your safety belts. For information on the safety belt warning chime, refer to the Seating and safety restraints chapter.

Supplemental restraint system (SRS) warning chime For information on the SRS warning chime, refer to the Seating and safety restraints chapter.

Key-in-ignition warning chime Sounds when the key is left in the ignition in the OFF/LOCK or ACC position and the driver’s door is opened.

Headlamps on warning chime Sounds when the headlamps or parking lamps are on, the ignition is off (and the key is not in the ignition) and the driver’s door is opened.

13

Instrumentation

GAUGES

CHECK GAGE

CHECK ENGINE

CHECK FUEL

CAP

ABS

BRAKE

RPMx1000

DOOR AJAR

40

60 70
0 0 0

50

80

100

120

0 0 0 0 0 0

60

30

40

20

20

10 MPH

80

140

90
001

160

180

101

km/h

201

R N D 2 1

THEFT

CHECK SUSP

SPEED CONT

4WD HIGH

4WD LOW

O/D OFF

Speedometer Indicates the current vehicle speed.

40

60 70
0 0 0

50

80

100

120

0 0 0 0 0 0

60

30

40

20

20

10 MPH

80

140

90
001

160

180

101

km/h

201

Engine coolant temperature gauge Indicates the temperature of the engine coolant. At normal operating temperature, the needle remains within the normal area (the area between the “H” and “C”). If it enters the red section, the engine is overheating. Stop the vehicle as soon as safely possible, switch off the engine immediately and let the engine cool. Refer to Engine coolant in the Maintenance and care chapter.

14

Instrumentation

Never remove the coolant reservoir cap while the engine is running or hot.

This gauge indicates the temperature of the engine coolant, not the coolant level. If the coolant is not at its proper level the gauge indication will not be accurate.

Odometer Registers the total kilometers (miles) of the vehicle.

40

Trip odometer Registers the kilometers (miles) of individual journeys. To reset, depress the control.

40

Tachometer Indicates the engine speed in revolutions per minute. Driving with your tachometer pointer continuously at the top of the scale may damage the engine.

60

30

40

20

20

10 MPH

60 70
0 0 0

50

80

100

120

0 0 0 0 0 0

80

140

90
001

160

60

30

40

20

20

10 MPH

180

101

km/h

201

80

140

90
001

160

60 70
0 0 0

50

80

100

120

0 0 0 0 0 0

180

101

km/h

201

RPMx1000

15

Instrumentation

Battery voltage gauge This shows the battery voltage when the ignition is in the ON position. If the pointer moves and stays outside the normal operating range (as indicated), have the vehicle’s electrical system checked as soon as possible.

Engine oil pressure gauge This shows the engine oil pressure in the system. Sufficient pressure exists as long as the needle remains in the normal range (the area between the “L” and “H”). If the gauge indicates low pressure, stop the vehicle as soon as safely possible and switch off the engine immediately. Check the oil level. Add oil if needed (refer to Engine oil in the Maintenance and care chapter). If the oil level is correct, have your vehicle checked at your dealership or by a qualified technician.

Fuel gauge Displays approximately how much fuel is in the fuel tank (when the key is in the ON position). The fuel gauge may vary slightly when the vehicle is in motion. The ignition should be in the OFF position while the vehicle is being refueled. When the gauge first indicates empty, there is a small amount of reserve fuel in the tank. When refueling the vehicle from empty indication, the amount of fuel that can be added will be less than the advertised capacity due to the reserve fuel.

16

The FUEL DOOR icon and arrow indicates which side of the vehicle the fuel filler door is located.

Instrumentation

MESSAGE CENTER (IF EQUIPPED) With the ignition in the ON position, the message center displays important vehicle information through a constant monitor of vehicle systems. You may select display features on the message center for a display of status preceded by a brief indicator chime. The system will also notify you of potential vehicle problems with a display of system warnings.

Selectable features English/metricdisplay Press to toggle the message center display between metric or English units.

FUEL

ENGLISH METRIC

RANGE

STATUS

ECON

RESET

SYSTEM CHECK

OIL CHANGE

RESET

FUEL

ENGLISH/ METRIC

RANGE

STATUS

ECON

RESET

SYSTEM CHECK

OIL

CHANGE RESET

Fuelrange Press once to display the approximate kilometers (miles) left to drive before the fuel tank is empty. Press again to display the distance driven since this function was last manually reset.

FUEL

ENGLISH/ METRIC

RANGE

STATUS

ECON

RESET

SYSTEM CHECK

OIL

CHANGE RESET

17

Instrumentation

For maximum accuracy of this display feature, the ignition should be in the OFF position during fueling. The display FUEL LEVEL ERROR indicates a problem with the fuel indication system. See your dealer or qualified service technician for system maintenance. Fuelstatus Press once to display the approximate amount of fuel remaining in the fuel tank. Press again to display the approximate amount of fuel used since the system was last reset.

ENGLISH/ METRIC

CHANGE RESET

SYSTEM CHECK

STATUS

RANGE

RESET

ECON

FUEL

OIL

Fueleconomy Press to display your vehicle’s average fuel economy in liters/ 100 km or (miles/gallons).

FUEL

ENGLISH/ METRIC

RANGE

STATUS

ECON

RESET

SYSTEM CHECK

OIL

CHANGE RESET

Reset Press the reset control to reset the current feature being displayed. Warnings, distance driven, average fuel economy, fuel used and personalized oil reset percentage are the only features that respond to reset.

FUEL

ENGLISH/ METRIC

RANGE

STATUS

ECON

RESET

SYSTEM CHECK

OIL

CHANGE RESET

18

Instrumentation

OIL

FUEL

ECON

RESET

RANGE

STATUS

SYSTEM CHECK

CHANGE RESET

ENGLISH/ METRIC

Systemcheck Press the system check control to display the status of the following systems: † engine oil life left † engine oil level † voltage level † engine coolant temperature † washer fluid level † fuel level The engine oil life left has two phases. The first display will indicate the oil change status (OK, SOON, REQUIRED). The second display will indicate the percentage of oil life remaining. The display OIL TEMP SIGNAL ERROR indicates a problem with the system. Following this display, contact your dealer or qualified service technician for system maintenance. Operatingthemessagecenterduringsystemcheck The message center controls can be operated as follows during the system check sequence: 1. Press the system check controls to advance to the next display. 2. Press the reset control to immediately conclude the system check. 3. Press the range, fuel status or fuel economy control to conclude the system check and display the requested feature. 4. Press the metric/English control to conclude the system check and change the previous display to the new mode. 5. Press the oil change reset control to conclude the system check and begin the oil change reset procedure. An oil change is recommended whenever indicated by the message center. Use only recommended engine oils. The message center will tell you the percent of oil life left during system check. This percentage is based on your driving history and the time since your last oil change. In order to ensure accurate oil life left indications, you should only perform the following procedure after you have the oil changed.

19

Instrumentation

OIL

FUEL

ECON

RESET

RANGE

STATUS

SYSTEM CHECK

CHANGE RESET

ENGLISH/ METRIC

Oilchangereset Press the OIL CHANGE RESET control to reset the oil life feature to 100% (or your personalized oil reset percentage) (at optimal driving conditions, 100% oil life is equivalent to a maximum of 12 000
kilometers [7 500 miles]). After you have the oil changed, you must press and hold the OIL CHANGE RESET control for five seconds. The message center will count down for five seconds. After a successful reset, the message center will display OIL LIFE RESET TO 100%. (If you have established a personalized oil reset percentage, the display will show that percentage instead of 100%.) This reset procedure should be performed only after an oil change to ensure accurate oil life indications. Your personalized oil reset percentage allows you to establish a smaller oil change interval than the manufacturer’s recommended interval. To establish your personalized oil reset percentage: 1. Press and hold the OIL CHANGE RESET control and press the RESET control while the display is still counting down the five seconds to reset. The display will change to START OIL LIFE AT XXX%. 2. Press the OIL CHANGE RESET control until the displayed percentage is the personalized oil reset percentage you desire. Your choices are 100%, 90%, 80%, 70%, 60%, 50%, 40% and 30%. 3. Press the RESET control to complete the procedure. Pressing any control other than RESET or OIL CHANGE RESET will abort this procedure and will not establish your new personalized oil reset percentage. When your personalized oil reset percentage has been established, it will be used beginning with the completion of your next OIL CHANGE RESET procedure.

ENGLISH/ METRIC

CHANGE RESET

SYSTEM CHECK

STATUS

RANGE

RESET

ECON

FUEL

OIL

20

Controls and features

HEADLAMP CONTROL Rotate the headlamp control to the first position to turn on the parking lamps. Rotate to the second position to also turn on the headlamps.

OFF

Foglamp control (if equipped) Turn on the low-beam headlamps or parking lamps and press the foglamp control to activate the foglamps. The foglamp control will illuminate when the foglamps are on. Press the foglamp control a second time to deactivate the foglamps.

Daytime running lamps (DRL) (if equipped) Turns the headlamps on with a reduced output. To activate: † the ignition must be in the ON position and † the headlamp control is in the OFF or Parking lamps position.

Always remember to turn on your headlamps at dusk or during inclement weather. The Daytime Running Light (DRL) System

does not activate your tail lamps and generally may not provide adequate lighting during these conditions. Failure to activate your headlamps under these conditions may result in a collision.

High beams Push forward to activate. Pull toward you to deactivate.

21

Controls and features

Flash to pass Pull toward you to activate and release to deactivate.

PANEL DIMMER CONTROL Use to adjust the brightness of the instrument panel during headlamp and parklamp operation. † Rotate up to brighten. † Rotate down to dim. † Rotate to full up position (past

detent) to turn on interior lamps.

CLIMATE CONTROL SYSTEM

DIM

Manual heating and air conditioning system (if equipped)

OFF

A/C

MAX A/C

Fanspeedcontrol Controls the volume of air circulated in the vehicle.

22

Controls and features

Temperaturecontrolknob Controls the temperature of the airflow inside the vehicle.

Modeselectorcontrol Controls the direction of the airflow to the inside of the vehicle.

OFF

A/C

MAX A/C

. However, the air conditioning will only function if the outside

The air conditioning compressor can operate in all modes except and temperature is about 6°C (43°F) or higher. Since the air conditioner removes considerable moisture from the air during operation, it is normal if clear water drips on the ground under the air conditioner drain while the system is working and even after you have stopped the vehicle. † MAX A/C-Uses recirculated air to cool the vehicle. MAX A/C is noisier than A/C but more economical and will cool the inside of the vehicle faster. Airflow will be from the instrument panel registers. This mode can also be used to prevent undesirable odors from entering the vehicle. When placed in MAX A/C, the air conditioning will operate at a full cool temperature. Therefore, the temperature control becomes non-functional. † A/C-Uses outside air to cool the vehicle. It is quieter than MAX A/C

but not as economical. Airflow will be from the instrument panel registers.

(Panel)-Distributes outside air through the instrument panel

registers. However, the air will not be cooled below the outside temperature because the air conditioning does not operate in this mode. † OFF-Outside air is shut out and the fan will not operate. For short

periods of time only, use this mode to prevent undesirable odors from entering the vehicle.

†

23

Controls and features

†

†

†

†

(Panel and floor)-Distributes outside air through the instrument

panel registers and the floor ducts. Heating and air conditioning capabilities are provided in this mode. For added customer comfort, when the temperature control knob is anywhere in between the full hot and full cold positions, the air distributed through the floor ducts will be slightly warmer than the air sent to the instrument panel registers.

(Floor)-Allows for maximum heating by distributing outside air

through the floor ducts. However, the air will not be cooled below the outside temperature because the air conditioning does not operate in this mode.

(Floor and defrost)-Distributes outside air through the

windshield defroster ducts and the floor ducts. Heating and air conditioning capabilities are provided in this mode. For added customer comfort, when the temperature control knob is anywhere in between the full hot and full cold positions, the air distributed through the floor ducts will be slightly warmer than the air sent to the windshield defrost ducts. If the temperature is about 6°C (43°F) or higher, the air conditioner will automatically dehumidify the air to reduce fogging.

(Defrost)-Distributes outside air through the windshield

defroster ducts. It can be used to clear ice or fog from the windshield. If the temperature is about 6°C (43°F) or higher, the air conditioner will automatically dehumidify the air to reduce fogging.

Operatingtips † In humid weather, select before driving. This will reduce fogging on your windshield. After a few minutes, select any desired position. † To reduce humidity buildup inside the vehicle, do not drive with the † Do not put objects under the front seat that will interfere with the

climate control system in the OFF or MAX A/C position.

airflow to the back seats.

24

Controls and features

† Remove any snow, ice or leaves from the air intake area (at the bottom of the windshield).

† If your vehicle has been parked with the windows closed during hot weather, the air conditioner will do a much faster job of cooling if you drive for two or three minutes with the windows open. This will force most of the hot, stale air out of the vehicle. Then operate your air conditioner as you would normally. † Do not place objects over the defroster outlets. These objects can block airflow and reduce your ability to see through your windshield. Also, avoid placing small objects on top of your instrument panel. These objects can fall down into the defroster outlets and block airflow and possibly damage your climate control system.

Do not place objects on top of the instrument panel, as these objects may become projectiles in a collision or sudden stop.

Electronic Automatic Temperature Control (EATC) system (if equipped) The EATC system will maintain a selected temperature and automatically control airflow. You can override automatic operation with any of the override controls, the fan speed control or the steering wheel controls.

˚F AUTO

REAR FAN OFF

PNL • FLR

FLR • DEF

MAX A/C

FLOOR

VENT

OFF

AUTOMATIC

DEF

HI

LO

25

Controls and features

TurningtheEATCon Press AUTOMATIC, any of the override controls or the fan speed control. The EATC will only operate when the vehicle is running.

TurningtheEATCoff Press OFF.

REAR FAN OFF

˚F AUTO

OFF

AUTOMATIC

MAX A/C

VENT

PNL • FLR

FLOOR

FLR • DEF

DEF

HI

LO

OFF

AUTOMATIC

FLR • DEF

DEF

HI

LO

Automaticoperation Press AUTOMATIC and select the desired temperature. The selected temperature and the word AUTO will appear in the display window. The EATC system will either heat or cool to achieve the selected temperature. The system will automatically determine fan speed, airflow location and if outside air or recirculated air is required. Fan speed remains automatic unless the fan speed thumbwheel is turned or the steering wheel fan speed control is pressed. When in AUTOMATIC and weather conditions require heat, air will be sent to the floor. However, if the engine is not warm enough to provide heat, the fan will be at a low speed and the air will be directed to the windshield. In 31⁄2 minutes or less, the fan speed will start to increase and the airflow location will change to the floor area. If unusual conditions exist (i.e.-window fogging, etc.), the manual override controls allow you to select airflow locations and the fan control allows you to adjust fan speed as necessary.

26

Controls and features

˚F AUTO

Temperatureselection The display window indicates the selected temperature, function (AUTO or one of the override controls) and manual control of fan speed ( To control the temperature, select any temperature between 18°C (65°F) and 29°C (85°F) by pressing the blue (cooler) or red (warmer) buttons.

) if automatic fan speed is not desired.

REAR FAN OFF

MAX A/C

VENT

PNL • FLR

For continuous maximum cooling, push the blue button until 16°C (60°F) is shown in the display window. The EATC will continue maximum cooling (disregarding the displayed temperature) until a warmer temperature is selected by pressing the red button. For continuous maximum heating, push the red button until 32°C (90°F) is shown in the display window. The EATC will continue maximum heating (disregarding the displayed temperature) until a cooler temperature is selected by pressing the blue button. Temperatureconversion at Press MAX A/C and DEF the same time (for one second) to switch between Fahrenheit and Celsius.

REAR FAN OFF

AUTOMATIC

PNL • FLR

FLR • DEF

MAX A/C

AUTO

FLOOR

VENT

DEF

OFF

HI

LO

If your vehicle has an English/Metric (E/M) control, this control will also change the temperature display.

27

Controls and features

Fanspeed( When AUTOMATIC is pressed, fan speed is adjusted automatically for existing conditions. You can override fan speed at any time. To control fan speed manually, use the thumbwheel or steering wheel control to cancel automatic fan speed operation.

OFF

AUTOMATIC

FLR • DEF

DEF

HI

LO

† Rotate the thumbwheel up for higher fan speed or down for lower fan † Press the steering wheel fan speed control up for higher fan speed or

speed.

down for lower fan speed. to

The display will show indicate manual fan operation.

˚F AUTO

OFF

AUTOMATIC

FLR • DEF

DEF

HI

LO

To return to automatic fan operation, press AUTOMATIC. Manualoverridecontrols The override controls are located at the bottom of the EATC and allow you to determine where airflow is directed. To return to full automatic control, press AUTOMATIC.

REAR FAN OFF

PNL • FLR

MAX A/C

FLOOR

VENT

˚F AUTO

The air conditioning compressor will operate in all modes except FLOOR and VENT. It will also operate only when required when AUTOMATIC has been selected. However, the air conditioning will only function if the outside temperature is about 6°C (43°F) or higher. Since the air conditioner removes considerable moisture from the air during operation, it is normal if clear water drips on the ground under the air conditioner drain while the system is working and even after you have stopped the vehicle.

28

Controls and features † MAX A/C-Uses recirculated air to cool the vehicle. The temperature

will display 16°C (60°F). To exit, press AUTOMATIC or any other override controls. MAX A/C is noisier than normal A/C but more economical and will cool the inside of the vehicle faster. Airflow is from the instrument panel registers. This mode can also be used to prevent undesirable odors from entering the vehicle. † VENT-Distributes outside air through the instrument panel registers.

However, the air cannot be cooled below the outside temperature because the air conditioning does not operate in this mode.

† PNL†FLR-Distributes outside air through the instrument panel

registers and the floor ducts. Heating and air conditioning capabilities are provided in this mode. The air will be heated or cooled based on the temperature selection. For added customer comfort, the air distributed through the floor ducts will be slightly warmer than the air sent to the instrument panel registers.

† FLOOR-Allows for maximum heating by distributing outside air

through the floor ducts. However, the air cannot be cooled below the outside temperature because the air conditioning does not operate in this mode.

† FLR†DEF-Distributes outside air through the windshield defroster ducts and the floor ducts. Heating and air conditioning capabilities are provided in this mode. The air will be heated or cooled based on the temperature selection. For added customer comfort, the air distributed through the floor ducts will be slightly warmer than the air sent to the windshield defroster ducts. If the temperature is about 6°C (43°F) or higher, the air conditioner will automatically dehumidify the air to reduce fogging.

-Distributes outside air through the windshield defroster ducts. It can be used to clear ice or fog from the windshield. If the outside air temperature is about 6°C (43°F) or higher, the air conditioner will automatically dehumidify the air to reduce fogging. † OFF-Outside air is shut out and the fan will not operate. For short

periods of time only, use this mode to reduce undesirable odors from entering the vehicle.

† DEF

29

Controls and features

Rearfanoff Press REAR FAN OFF to turn off the rear console fan. This overrides the rear console fan speed control.

REAR FAN OFF

MAX A/C

VENT

PNL • FLR

The EATC display window will indicate REAR FAN OFF. The rear console fan will remain off until REAR FAN OFF is pressed again. To aid in defogging and demisting (removing condensation on the inside of the windshield) in cool weather: 1. Select PANEL & FLOOR 2. Set the temperature control to full heat 3. Select A/C 4. Set the fan speed to HI 5. Direct the outer panel vents towards to side windows To increase airflow to the outer panel vents, close the central panel vents. Operatingtips † In humid weather, select DEF

before driving. This will reduce fogging on your windshield. After a few minutes, select any desired position. † To reduce humidity buildup inside the vehicle, don’t drive with the † Don’t put objects under the front seat that will interfere with the

climate control system in the OFF position.

airflow to the rear seats.

30

Controls and features

† Remove any snow, ice or leaves from the air intake area (at the bottom of the windshield).

† If your vehicle has been parked with the windows closed during hot weather, the air conditioner will do a much faster job of cooling if you drive for two or three minutes with the windows open. This will force most of the hot, stale air out of the vehicle. Then operate the air conditioner as you would normally. † Do not place objects over the defroster outlets. These objects can block airflow and reduce your ability to see through your windshield. Also, avoid placing small objects on top of your instrument panel. These objects can fall down into the defroster outlets and block airflow and possibly damage your climate control system.

Do not place objects on top of the instrument panel, as these objects may become projectiles in a collision or sudden stop.

Rear console climate controls (if equipped) Depending on the equipment package of your vehicle, the rear console may be equipped with rear console audio/climate controls.

- VOLUME +

MODE

SEEK

MEMORY

The instrument panel climate controls must be on in order for the rear console climate controls to work. Turn the air distribution control to the desired airflow position.

31

Controls and features

Turn the fan speed control to the desired position.

- VOLUME +

MODE

SEEK

MEMORY

Select these vents:

for air to flow through

– VOLUME +

BAND

SEEK

MEMORY

– VOLUME +

BAND

SEEK

MEMORY

Select these vents:

for air to flow through

32

Controls and features

REAR WINDOW DEFROSTER The rear defroster control is located on the instrument panel. Press the rear defroster control to clear the rear window of thin ice and fog. † A small LED will illuminate when the rear defroster is activated. The ignition must be in the ON position to operate the rear window defroster. The defroster turns off automatically after 10 minutes or when the ignition is turned to the OFF position. To manually turn off the defroster before 10 minutes have passed, push the control again.

4WD CONTROL (IF EQUIPPED) This control operates the 4WD. Refer to the Driving chapter for more information.

4x4
HIGH

LOW

AUTO

REVERSE SENSING SYSTEM (IF EQUIPPED) The reverse sensing system (RSS) sounds a tone to warn the driver of obstacles near the rear bumper when the reverse gear is selected.

To help avoid personal injury, please read and understand the limitations on the reverse sensing system described below.

Reverse sensing is only an assist for some (generally large and fixed) objects when moving in reverse on a flat surface at “parking speeds” of approximately 6 km/h (4 mph) or less. The weather may also affect the function of RSS. RSS may have reduced performance, or be activated in inclement weather. It is the driver’s responsibility for ensuring that their path is clear when operating the vehicle.

33

Controls and features

To help avoid personal injury, always use caution when in reverse and when using the reverse sensing system.

This system is not designed to prevent contact with small or moving objects. The system is designed to provide a warning to

assist the driver in detecting large stationary objects to avoid damaging the vehicle. The system may not detect smaller objects, particularly those close to the ground.

The RSS will assist the driver in detecting certain objects while the vehicle slowly moves in reverse at speeds less than 6 km/h (4 mph). The RSS is not effective at speeds greater than 6 km/h (4 mph) and may not detect certain angular or moving objects. The reverse sensing system detects obstacles within approximately 1.8 meters (5.9 ft.) of the rear bumper with a decreased coverage area at the outer corners of the bumper, (refer to the figures for approximate zone coverage areas). As you move closer to the obstacle, the rate of the tone increases. When the distance to the obstacle is less than 25.0 cm (10 in.), the tone will sound continuously. If the system detects a stationary or receding object further than 25.0 cm (10 in.) from the side of the vehicle, the tone will sound for only three seconds. Once the system detects an object approaching, the tone will sound again.

34

Controls and features

OFF

The reverse sensing system is automatically enabled when the gear selector is placed in R (Reverse) and the ignition is ON. A reverse sensing control allows the driver to disable the reverse sensing system only when the ignition is ON, and the gear selector is in R (Reverse). The OFF indicator remains illuminated when the system is disabled. The system defaults to ON every time the reverse gear is selected. Press the control to disable or enable the system. The indicator will remain illuminated to indicate a failure of the reverse sensing system. Always keep the sensors (located on the rear bumper/fascia) free from dirt, snow and ice (do not clean the sensors with sharp objects). These elements may cause the system to operate inaccurately. If the vehicle sustains damage to the rear bumper/fascia, leaving it misaligned or bent, the sensing zone may be altered causing inaccurate measurement of obstacles or false alarms.

USING YOUR AUDIO SYSTEM

AM/FM stereo cassette

VOL - PUSH ON

AM

FM

BASS

TREB

FM1

ST

SEEK

TUNE

SCAN

EJ

BAL

FADE

CLK

TAPE AMS

SIDE REW

1 - 2
FF

35

Controls and features

Volume/powercontrol Press the control to turn the audio system on or off.

VOL - PUSH ON

Turn the control to raise or lower volume.

VOL - PUSH ON

If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on. AM/FMselect The AM/FM select control works in radio and tape modes.

AM

FM

AM/FMselectinradiomode This control allows you to select AM or FM frequency bands. Press the AM control to select from AM selections, and press the FM control to select from FM1 or FM2 memory preset stations. AM/FMselectintapemode Press this control to stop tape play and begin radio play.

36

Controls and features

SEEK

TUNE

Tuneadjust The tune control works in radio mode. Tuneadjustinradiomode † Press

to move to the next

frequency down the band (whether or not a listenable station is located there). Hold the control to move through the frequencies quickly.

† Press

to move to the next frequency up the band (whether or not

a listenable station is located there). Hold for quick movement.

Seekfunction The seek function control works in radio mode. Seekfunctioninradiomode † Press

to find the next listenable station down the frequency band.

† Press

to find the next

listenable station up the frequency band.

Scanfunction The scan function works in radio mode.

SEEK

TUNE

SCAN

Scanfunctioninradiomode Press the SCAN control to hear a brief sampling of all listenable stations on the frequency band. Press the SCAN control again to stop the scan mode. Radiostationmemorypreset The radio is equipped with six station memory preset controls. These controls can be used to select up to six preset AM stations and twelve FM stations (six in FM1 and six in FM2).

37

Controls and features

Settingmemorypresetstations 1. Select the frequency band with the AM or the FM select control.
