Introduction
Instrument Cluster
Warning and control lights Gauges
Entertainment Systems
AM/FM stereo with CD/MP3
AM/FM stereo with in-dash six CD Navigation system Climate ControlsManual heating and air conditioning Rear window defroster
Lights
Headlamps Turn signal control Bulb replacement Driver Controls
Windshield wiper/washer control Steering wheel adjustment Power windows Mirrors Speed control Message center
Locks and Security
Keys Locks Anti-theft system

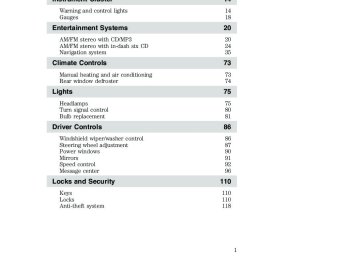

Table of Contents
14
14
18
2020
24
35
7373
74
7575
80
81
8686
87
90
91
92
96
110110
110
118REVIEW COPY —— 2006 Escape Hybrid (ehv), Owners Guide (post-2002-fmt) (own2002), Market: USA (fus)
Table of Contents
Seating and Safety Restraints
Seating Safety restraints Airbags Child restraints
Tires, Wheels and Loading
Tire Information Tire Inflation Tire Pressure Monitoring System (TPMS) Vehicle loading Trailer towing Recreational towing
Driving
Starting Brakes Transmission operation
Roadside Emergencies
Getting roadside assistance Hazard flasher switch Fuel pump/High voltage shut-off switches Fuses and relays Changing tires Lug Nut Torque Jump starting Wrecker towing
Customer Assistance
Reporting safety defects (U.S. only)
Cleaning
122
122
130
144
159
171173
175
188
194
201
205
206206
209
213
225225
226
227
228
236
246
246
254
256262
263REVIEW COPY —— 2006 Escape Hybrid (ehv), Owners Guide (post-2002-fmt) (own2002), Market: USA (fus)
Table of Contents
Maintenance and Specifications
Engine compartment Engine oil Battery Fuel information Air filter(s) Part numbers Refill capacities Lubricant specifications
Accessories
Scheduled Maintenance Guide
Normal Scheduled Maintenance and Log Special Operating Conditions and Log
Index
269
272
274
277
285
298
300
302
304
311313
316
330
335All rights reserved. Reproduction by any means, electronic or mechanical including photocopying, recording or by any information storage and retrieval system or translation in whole or part is not permitted without written authorization from Ford Motor Company. Ford may change the contents without notice and without incurring obligation.
Copyright © 2005 Ford Motor Company
REVIEW COPY —— 2006 Escape Hybrid (ehv), Owners Guide (post-2002-fmt) (own2002), Market: USA (fus)
Introduction
CALIFORNIA Proposition 65 Warning
WARNING: Engine exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to
the State of California to cause cancer and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
CONGRATULATIONS Congratulations on acquiring your new Ford Escape Hybrid. Please take the time to get well acquainted with your vehicle by reading this handbook. The more you know and understand about your vehicle, the greater the safety and pleasure you will derive from driving it. For more information on Ford Motor Company and its products visit the following website: • In the United States: www.ford.com • In Canada: www.ford.ca Additional owner information is given in separate publications. This Owner’s Guide describes every option and model variant available and therefore some of the items covered may not apply to your particular vehicle. Furthermore, due to printing cycles it may describe options before they are generally available. Remember to pass on this Owner’s Guide when reselling the vehicle. It is an integral part of the vehicle.
Fuel pump and high voltage battery shut-off switches: In the event of an accident the fuel pump shut-off switch may
automatically cut off the fuel supply to the engine and the high voltage shut-off switch cuts off power from the high voltage battery. These switches can also be activated through sudden vibration (e.g. collision when parking). For information on resetting the fuel pump shut-off switch and the high voltage battery shutoff switch, refer to the Fuel pump/high voltage shut-off switches in the Roadside Emergencies chapter.
REVIEW COPY —— 2006 Escape Hybrid (ehv), Owners Guide (post-2002-fmt) (own2002), Market: USA (fus)
Introduction
SAFETY AND ENVIRONMENT PROTECTION
Warning symbols in this guide
How can you reduce the risk of personal injury to yourself or others? In this guide, answers to such questions are contained in comments highlighted by the warning triangle symbol. These comments should be read and observed.
Warning symbols on your vehicle
When you see this symbol, it is imperative that you consult the relevant section of this guide before touching or attempting adjustment of any kind.
Protecting the environment We must all play our part in protecting the environment. Correct vehicle usage and the authorized disposal of waste, cleaning and lubrication materials are significant steps towards this aim. Information in this respect is highlighted in this guide with the tree symbol.
BREAKING-IN YOUR VEHICLE Your vehicle does not need an extensive break-in. Try not to drive continuously at the same speed for the first 1,000 miles (1,600 km) of new vehicle operation. Vary your speed frequently in order to give the moving parts a chance to break in. Drive your new vehicle at least 500 miles (800 km) before towing a trailer. For more detailed information about towing a trailer, refer to Trailer towing in the Tires, Wheels and Loading chapter. Do not add friction modifier compounds or special break-in oils during the first few thousand miles (kilometers) of operation, since these additives may prevent piston ring seating. See Engine oil in the Maintenance and Specifications chapter for more information on oil usage.
REVIEW COPY —— 2006 Escape Hybrid (ehv), Owners Guide (post-2002-fmt) (own2002), Market: USA (fus)
Introduction
the start position.
NORMAL VEHICLE OPERATION Your Escape Hybrid has unique qualities which cause it to operate differently than a typical vehicle. Starting the vehicle • The engine will start and run when you first turn the ignition key to • The engine cannot be started in the N (Neutral) position. • Depending upon temperature and the high voltage battery’s state of charge, the engine may shut off shortly after starting the vehicle; this is a normal condition and you do not need to restart the vehicle. The Ready Indicator Light in the instrument cluster will illuminate to indicate the vehicle is running. For more Ready Indicator Light information, refer to Warning lights and chimes in the Instrument Cluster chapter.
DRIVING THE VEHICLE Starting Out: Under normal operation with the vehicle at operating temperature, the engine will start automatically as you accelerate. Sometimes the engine will start immediately as you begin moving, while other times the vehicle will obtain a speed of up to 25 mph (40 km/h) before the engine starts. You may hear and feel the engine starting as you transition from electrical to hybrid (gas engine on) operation. This is a normal condition. These are some of the conditions that may cause engine start-up: • High voltage battery re-charge is required. • Driver acceleration demands exceed electric motor capability. • Outside air temperature is overly hot or cold. • Certain climate system modes of operation. • If you are starting up hill or accelerating quickly, the engine will start
immediately as operating conditions require additional power.
Note: If the high voltage battery is very cold or very hot, the engine may operate more than under normal conditions, and vehicle performance may be temporarily reduced. This is a normal condition.
REVIEW COPY —— 2006 Escape Hybrid (ehv), Owners Guide (post-2002-fmt) (own2002), Market: USA (fus)
Introduction
Transmission operation • Your vehicle does not shift like a conventional vehicle. You may feel
transitions between the various operating modes of the hybrid system, but no actual shifting occurs. For more information about transmission operation, refer to Understanding the gearshift positions of the electronically-controlled Continuously Variable Transaxle (eCVT) in the Driving chapter.
Stopping the vehicle • The vehicle’s engine may shut off as you come to a stop; this is a normal condition and helps to conserve fuel. You do not need to restart the vehicle.
Neutral operation • The vehicle does not charge the high voltage battery in the N
(Neutral) position. Do not idle the vehicle in N (Neutral) for extended periods as this will discharge the high voltage battery.
Low gear operation • In L (Low) gear, you may feel an increased sensation of engine
braking as you remove your foot from the accelerator. L (Low) gear can be helpful when driving down an incline; unlike in a conventional vehicle, L (Low) does not offer an advantage over D (Drive) in uphill or off-road driving conditions.
Reverse operation • Vehicle speed is limited to 22 mph (35 km/h) while operating in R
(Reverse) gear.
ESCAPE HYBRID UNIQUE OPERATING CHARACTERISTICS • You may hear some unique sounds from a hybrid vehicle. The Escape Hybrid is equipped with a high voltage battery air conditioning system in the rear of the vehicle which cools the high voltage battery in order to ensure high voltage battery life and optimize performance. You may hear a slight clunk or tap noise as the vent door operates, as well as a fan noise in the rear of the vehicle; this noise is the high voltage battery cooling fan. The high voltage battery cooling may also continue to operate for short durations after the vehicle has been turned off. These vehicle conditions and noises are normal and do not require service.
• You may hear a pumping sound when you enter the vehicle or a
venting sound a few minutes after parking the vehicle. This is due to charging and discharging of the hydraulic portion of the regenerative braking system.
REVIEW COPY —— 2006 Escape Hybrid (ehv), Owners Guide (post-2002-fmt) (own2002), Market: USA (fus)
Introduction • You may hear a slight whine or whistle when operating your vehicle. This noise could occur at idle, and during cruising and accelerating; it is caused by the normal operation of electrical generator in the hybrid system.
• The Escape Hybrid’s hydraulic brake system used for regenerative braking is different from other vehicles. The noise from the ABS pump motor and the brake pedal pulsation are much less than on vehicles with conventional ABS. Noise and pedal pulsation during ABS may not be noticed. For more information about braking, refer to Braking in the Driving chapter.
• The engine speed in an Escape Hybrid is not directly tied to the
vehicle speed. Under certain conditions, the engine speed may appear much higher than that of a conventional automobile. This is a normal condition and is caused by engine speed optimization to maximize fuel economy.
• During certain events (such as vehicle servicing) your low voltage (underhood) battery may become disconnected or disabled. When this occurs, and after reconnecting the low voltage (underhood) battery and driving the vehicle, the engine may continue to operate for 3-5
seconds after the key is turned to the 1 (LOCK) position. This is a normal condition, as the vehicle’s computers are relearning the operating characteristics of your particular engine in order to operate it at maximum efficiency. • The high voltage battery may go through a self-reconditioning process from time to time; these events optimize high voltage battery performance. You may notice slight changes to driveability during the reconditioning process. This is a normal condition. • If the vehicle is left inoperative for over 31 days, it may be necessary to jumpstart the vehicle. For more information, refer to Jump starting your vehicle (Low voltage [underhood] battery only) in the Roadside Emergencies chapter.REVIEW COPY —— 2006 Escape Hybrid (ehv), Owners Guide (post-2002-fmt) (own2002), Market: USA (fus)
Introduction
DRIVING TO OPTIMIZE FUEL ECONOMY Fuel economy can be significantly impacted by your driving habits and accessory usage. To optimize the fuel economy in your vehicle, please be aware of the following vehicle functions which affect fuel economy: A/C operation • With the climate control system set to MAX A/C, defrost, or
defrost/floor mode (the orange graphics on your climate control), the engine will typically run continuously, reducing fuel economy. Setting the climate control system to A/C mode or A/C reduces fuel economy, but in this case the A/C only operates when the engine is already running due to other demands. Because the engine does not run continuously, A/C and A/C efficient than MAX A/C mode.
mode are more fuel
mode also
Driver habits • In general, better fuel economy is achieved during moderate
acceleration and deceleration as opposed to aggressive acceleration and deceleration. This is true regardless of the mode in which you’re operating your vehicle.
• To maximize fuel economy, try to extend the length of time the
vehicle operates in electric mode by accelerating lightly. The more you keep the vehicle in electric mode, the better fuel economy you will achieve. • For more information on improving the fuel economy of your Escape Hybrid, refer to Essentials of good fuel economy in the Maintenance and Specifications chapter.
SPECIAL NOTICES
New Vehicle Limited Warranty For a detailed description of what is covered and what is not covered by your vehicle’s New Vehicle Limited Warranty, refer to the Warranty Guide that is provided to you along with your Owner’s Guide.
Special instructions For your added safety, your vehicle is fitted with sophisticated electronic controls.
REVIEW COPY —— 2006 Escape Hybrid (ehv), Owners Guide (post-2002-fmt) (own2002), Market: USA (fus)
Introduction
Please read the section Supplemental restraint system (SRS) in the Seating and Safety Restraints chapter. Failure to follow the specific warnings and instructions could result in personal injury.
Front seat mounted rear-facing child or infant seats should NEVER be placed in front of an active passenger airbag.
Service Data Recording Service data recorders in your vehicle are capable of collecting and storing diagnostic information about your vehicle. This potentially includes information about the performance or status of various systems and modules in the vehicle, such as engine, throttle, steering or brake systems. In order to properly diagnose and service your vehicle, Ford Motor Company, Ford of Canada, and service and repair facilities may access vehicle diagnostic information through a direct connection to your vehicle when diagnosing or servicing your vehicle. Event Data Recording Other modules in your vehicle — event data recorders — are capable of collecting and storing data during a crash or near crash event. The recorded information may assist in the investigation of such an event. The modules may record information about both the vehicle and the occupants, potentially including information such as: • how various systems in your vehicle were operating; • whether or not the driver and passenger seatbelts were buckled; • how far (if at all) the driver was depressing the accelerator and/or the • how fast the vehicle was traveling; and • where the driver was positioning the steering wheel. To access this information, special equipment must be directly connected to the recording modules. Ford Motor Company and Ford of Canada do not access event data recorder information without obtaining consent, unless pursuant to court order or where required by law enforcement, other government authorities or other third parties acting with lawful authority. Other parties may seek to access the information independently of Ford Motor Company and Ford of Canada.
brake pedal;
10
REVIEW COPY —— 2006 Escape Hybrid (ehv), Owners Guide (post-2002-fmt) (own2002), Market: USA (fus)
Introduction
Notice to owners of pickup trucks and utility type vehicles
Utility vehicles have a significantly higher rollover rate than other types of vehicles.
Before you drive your vehicle, please read this Owner’s Guide carefully. Your vehicle is not a passenger car. As with other vehicles of this type, failure to operate this vehicle correctly may result in loss of vehicle control, vehicle rollover, personal injury or death. Be sure to read Driving off road in the Driving chapter.
Using your vehicle with a snowplow Do not use this vehicle for snowplowing. Your vehicle is not equipped with a snowplowing package.
Using your vehicle as an ambulance Do not use this vehicle as an ambulance. Your vehicle is not equipped with the Ford Ambulance Preparation Package.
Cell phone use The use of Mobile Communications Equipment has become increasingly important in the conduct of business and personal affairs. However, drivers must not compromise their own or others’ safety when using such equipment. Mobile Communications can enhance personal safety and security when appropriately used, particularly in emergency situations. Safety must be paramount when using mobile communications equipment to avoid negating these benefits. Mobile Communication Equipment includes, but is not limited to cellular phones, pagers, portable email devices, in-vehicle communications systems, telematics devices and portable two-way radios.
A driver’s first responsibility is the safe operation of the vehicle. The most important thing you can do to prevent a crash is to
avoid distractions and pay attention to the road. Wait until it is safe to operate Mobile Communications Equipment.
11
REVIEW COPY —— 2006 Escape Hybrid (ehv), Owners Guide (post-2002-fmt) (own2002), Market: USA (fus)
Introduction
These are some of the symbols you may see on your vehicle.
Vehicle Symbol Glossary
Safety Alert
See Owner’s Guide
Fasten Safety Belt
Airbag - Front
Airbag - Side
Child Seat
Child Seat Installation Warning
Child Seat Tether Anchor
Anti-Lock Brake System
Child Seat Lower Anchor
Brake System
Brake Fluid - Non-Petroleum Based
Powertrain Malfunction
Speed Control
Master Lighting Switch
Hazard Warning Flasher
Fog Lamps-Front
Fuse Compartment
Fuel Pump Reset
Windshield Wash/Wipe
Windshield Defrost/Demist
Rear Window Defrost/Demist
12
REVIEW COPY —— 2006 Escape Hybrid (ehv), Owners Guide (post-2002-fmt) (own2002), Market: USA (fus)
Introduction
Vehicle Symbol Glossary
Power Windows Front/Rear
Child Safety Door Lock/Unlock
Power Window Lockout
Interior Luggage Compartment Release Symbol
Panic Alarm
Engine Oil
Engine Coolant
Engine Coolant Temperature
Do Not Open When Hot
Battery
Avoid Smoking, Flames, or Sparks
Battery Acid
Explosive Gas
Fan Warning
Power Steering Fluid
Maintain Correct Fluid Level
MAX MIN
Emission System
Engine Air Filter
Passenger Compartment Air Filter
Jack
Check Fuel Cap
Low Tire Pressure Warning
13
REVIEW COPY —— 2006 Escape Hybrid (ehv), Owners Guide (post-2002-fmt) (own2002), Market: USA (fus)
Instrument Cluster
WARNING LIGHTS AND CHIMES
Warning lights and gauges can alert you to a vehicle condition that may become serious enough to cause expensive repairs. A warning light may illuminate when a problem exists with one of your vehicle’s functions. Many lights will illuminate when you start your vehicle to test and make sure the bulb works. If any light remains on after starting the vehicle, refer to the respective system warning light for additional information. Note: A message may be displayed in the message center in conjunction with an illuminated warning light, refer to Message Center in the Driver Controls chapter for more information. Service engine soon: The Service engine soon indicator light illuminates when the ignition is first turned to the RUN position to check the bulb. Solid illumination after the engine is started indicates the On Board Diagnostics System (OBD-II) has detected a malfunction. Refer to On board diagnostics (OBD-II) in the Maintenance and Specifications chapter. If the light is blinking, engine misfire is occurring which could damage your catalytic converter. Drive in a moderate fashion (avoid heavy acceleration and deceleration) and have your vehicle serviced immediately by your authorized dealer.
Under engine misfire conditions, excessive exhaust temperatures could damage the catalytic converter, the fuel system, interior floor coverings or other vehicle components, possibly causing a fire.
14
REVIEW COPY —— 2006 Escape Hybrid (ehv), Owners Guide (post-2002-fmt) (own2002), Market: USA (fus)
Instrument Cluster
Service soon: The Service soon indicator illuminates when the vehicle has detected a malfunction. Report the fault to a dealer at the earliest opportunity. Brake system warning light: To confirm the brake system warning light is functional, it will momentarily illuminate when the ignition is turned to the RUN position (when the engine is not running), or in a position between RUN and START, or by applying the parking brake when the ignition is turned to the RUN position. If the brake system warning light does not illuminate at this time, seek service immediately from your authorized dealer. Illumination after releasing the parking brake indicates low brake fluid level and the brake system should be inspected immediately by your authorized dealer.
BRAKE
Driving a vehicle with the brake system warning light on is dangerous. A significant decrease in braking performance may
occur. It will take you longer to stop the vehicle. Have the vehicle checked by your authorized dealer.
ABS
Anti-lock brake system (ABS): If the lamp stays on for more than a few seconds, then an ABS fault is indicated, have the system serviced immediately by your authorized dealer. Normal braking is still functional unless the brake warning light also is illuminated. Airbag readiness: If this light fails to illuminate when ignition is turned to ON, continues to flash or remains on, have the system serviced immediately by your authorized dealer. A chime will also sound when a malfunction in the supplemental restraint system has been detected.
15
REVIEW COPY —— 2006 Escape Hybrid (ehv), Owners Guide (post-2002-fmt) (own2002), Market: USA (fus)
Instrument Cluster
Safety belt: Reminds you to fasten your safety belt. A chime will also sound to remind you to fasten your safety belt. If this light continues to flash the chime will sound again to remind you to fasten your safety belt. Master vehicle electrical hazard warning lamp: Indicates Hybrid component fault/failure that will cause the vehicle to shutdown or fail to start. Note: If the vehicle is still running, the vehicle may soon shutdown without further warning and should be stopped safely. If this lamp is lit, stop the vehicle, shift to P (Park), turn the key to the Off position, and attempt to restart the vehicle. If the fault remains, the vehicle may require refueling, jump starting, resetting of the shut-off switches, or service. For information regarding Low voltage [underhood] battery only) and Fuel pump/High voltage shut-off switches please refer to the Roadside Emergencies chapter. Charging system: Illuminates when the 12V charging system is not working properly. Ready indicator light: Illuminates once the vehicle has successfully started. Indicates the vehicle is ready to drive even when you don’t hear the engine running. Engine oil pressure: Illuminates when the oil pressure falls below the normal range, refer to Engine oil in the Maintenance and Specifications chapter. Engine or motor electronic coolant temperature: Illuminates when the coolant temperature exceeds the threshold. When the light is flashing or remains on, stop the vehicle as soon as possible, switch off the engine and let cool. Refer to Engine or motor electronic coolant in the Maintenance and Specifications chapter.
16
REVIEW COPY —— 2006 Escape Hybrid (ehv), Owners Guide (post-2002-fmt) (own2002), Market: USA (fus)
Instrument Cluster
Never remove the coolant reservoir cap while the engine is running or hot.
Low tire pressure warning: Illuminates when your tire pressure is low. If the light remains ON at start up or while driving, the tire pressure should be checked. Refer to Inflating Your Tires in the Tires, Wheels and Loading chapter. When the ignition is first turned to ON, the light will illuminate for 3
seconds to ensure the bulb is working. If the light does not turn ON, have the system inspected by your authorized dealer. For more information on this system, refer to Understanding Your Tire Pressure Monitoring System in the Tires, Wheels and Loading chapter. ABS active/Traction control娂 active (if equipped): Flashes when the ABS system is active. If the light remains on, have the system serviced immediately, refer to the Driving chapter for more information. Anti-theft system: Flashes when the Securilock娂 Passive Anti-theft System has been activated. Turn signal: Illuminates when the left or right turn signal or the hazard lights are turned on. If the indicators stay on or flash faster, check for a burned out bulb. High beams: Illuminates when the high beam headlamps are turned on.Key-in-ignition warning chime: Sounds when the key is left in the ignition in the OFF/LOCK or ACCESSORY position and the driver’s door is opened. Headlamps on warning chime: Sounds when the headlamps or parking lamps are on, the ignition is off (the key is not in the ignition) and the driver’s door is opened.
17
REVIEW COPY —— 2006 Escape Hybrid (ehv), Owners Guide (post-2002-fmt) (own2002), Market: USA (fus)
Instrument Cluster
Turn signal chime (if equipped): Sounds when the turn signal lever has been activated to signal a turn and not turned off after the vehicle is driven more than 2 miles (3.3 km). Transmission not in park chime: Sounds when the PRNDL is not in P (Park) position, the driver’s door is ajar and the ignition is ON. HEV Engine off Reminder Chime: Sounds for 10 seconds when the PRNDL is in the P (Park) position and the Driver’s door is ajar (open) while ignition is ON. Always turn your ignition key to Off and remove key before leaving your vehicle. (The engine may be off when the vehicle is stopped, yet the key is on, and the engine can turn on at any time) Message center activation chime: Sounds when a warning message appears in the message center display for the first time. Message center switch activation chime: Sounds when the message center INFO or SET control is pressed.
GAUGES
Speedometer: Indicates the current vehicle speed.
18
REVIEW COPY —— 2006 Escape Hybrid (ehv), Owners Guide (post-2002-fmt) (own2002), Market: USA (fus)
Instrument Cluster
Battery gauge: Provides information about the vehicle’s energy usage. • ASSIST — Battery provides extra
power to boost the vehicle’s acceleration.
• CHARGE — Storing extra energy in the battery when coasting or slowing down.
Odometer: Registers the total miles (or kilometers) of the vehicle.
Trip odometer: Registers the miles (or kilometers) of individual journeys. To reset, press and hold the trip reset button for two or more seconds; this returns the trip odometer to zero. Press and release the button to return to the odometer display. Tachometer: Indicates the engine speed in revolutions per minute. Driving with your tachometer pointer continuously at the top of the scale (in the red zone) may damage the engine. The pointer will indicate engine RPMs when the engine is running and point at the EV symbol when the engine is off and the vehicle is running on pure electrical power. Fuel gauge: Indicates approximately how much fuel is left in the fuel tank (when the ignition is in the ON position). The fuel gauge may vary slightly when the vehicle is in motion or on a grade. Refer to Filling the tank in the Maintenance and Specifications chapter for more information.
19
REVIEW COPY —— 2006 Escape Hybrid (ehv), Owners Guide (post-2002-fmt) (own2002), Market: USA (fus)
Entertainment Systems
AUDIO SYSTEMS
Satellite Compatible AM/FM Stereo In-Dash Single CD/MP3 Radio (if equipped)
for previous/next
1. SEEK: Press and release SEEK strong station or track. 2. TEXT: The filename (Fi), song title (So), artist text (Ar) or album text (AL) may be viewed while playing an MP3 selection. When MP3 selection text is shown on the message display, its corresponding text indicator (Fi, So, Ar, or AL) is shown in the elapsed time display. Press TEXT to scroll through the text fields. The display will scroll through all of the text in the current field before changing to the next field. (TEXT must be pressed within 3
seconds of the previous press to proceed to the next/last text display. The last text field shown on the display will become the new display message default. TEXT is also available when equipped with Satellite radio. Your radio comes equipped with Satellite ready capability. The kit to enable Satellite reception is available through your dealer. Detailed Satellite instructions are included with the dealer installed kit. Dealer installed satellite kit only available in the continental United States.20
REVIEW COPY —— 2006 Escape Hybrid (ehv), Owners Guide (post-2002-fmt) (own2002), Market: USA (fus)
Entertainment Systems
3. AUX: This control is not operational.
4. MUTE: Press to MUTE playing media; press again to return to playing media 5. EJ: Press to eject a CD.
to decrease/increase
6. Bass: Press BASS; then press SEL the bass output. Treble: Press TREB; then press SEL the treble output.
to decrease/increase
7. Select: Use with Bass, Treble, Balance, Fade and other menu selections.
8. Balance: Press BAL; then press to shift sound to the SEL left/right speakers. Fade: Press FADE; then press SEL rear/front speakers. 9. Menu: Press MENU and SEL to access AUTOSET, Speed sensitive volume and Setting the clock.
to shift sound to the
Autoset: Press MENU until AUTOSET appears in the display. Press SEL to toggle ON/OFF. Allows you to set the strongest local radio stations without losing your original manually set preset stations for AM/FM1/FM2. When the six strongest stations are filled, the station stored in preset 1 will begin playing. If there are less than six strong stations, the system will store the last one in the remaining presets.
21
REVIEW COPY —— 2006 Escape Hybrid (ehv), Owners Guide (post-2002-fmt) (own2002), Market: USA (fus)
Entertainment Systems
) the
) or decrease (
Speed sensitive volume: Press MENU until SPEED VOL X appears in the display. Then press SEL to increase ( volume setting. The level will appear in the display. Radio volume changes automatically and slightly with vehicle speed to compensate for road and wind noise. Recommended level is 1–3. Level 0
turns the feature off and level 7 is the maximum setting. Setting the clock: Press MENU until SELECT HOUR or SELECT MINUTE is displayed. Use SEL to manually increase ( Folder/Track mode: In MP3 mode, press MENU until MODE appears in the display. Use SEL to toggle between FOLDER (only tracks within selected folder are accessible) or TRACK (all tracks on disc are accessible) MODE. 10. REPEAT: Press to repeat the current CD/MP3 track.) or decrease ) the hours/minutes. Press MENU again to disengage clock mode.
11. SHUFFLE: Press to play the CD/MP3 tracks on the current disc in random order. 12. FOLDER the next MP3 directory.
: Press to access
13. FOLDER the previous MP3 directory.
: Press to access
14. FF(Fast forward): In CD/MP3
mode, press until desired selection is reached. 15. REW(Rewind): In CD/MP3
mode, press until desired selection is reached. 16. SAT (if equipped): Your radio comes equipped with Satellite Ready capability. The kit to enable the Satellite reception is available through your dealer. Detailed satellite instructions are included with the dealer installed kit. Dealer installed satellite kit only available in the continental United States.22
REVIEW COPY —— 2006 Escape Hybrid (ehv), Owners Guide (post-2002-fmt) (own2002), Market: USA (fus)
Entertainment Systems
17. BAND: Press to toggle between AM/FM1/FM2 frequency band.
18. Memory presets: To set a station: Select frequency band; tune to a station, press and hold a preset button until sound returns. 19. Power/volume: Press to turn ON/OFF; turn to increase or decrease volume levels.
20. CD: Press to enter CD mode.
CD units are designed to play commercially pressed 4.75 in (12 cm) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Irregular shaped CDs, CDs with a scratch protection film attached, and CDs with homemade paper (adhesive) labels should not be inserted into the CD player. The label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels. Ballpoint pens may damage CDs. Please contact your authorized dealer for further information. 21. COMP(Compression): Brings soft and loud CD passages together for a more consistent listening level when in CD mode. Press COMP to turn the feature ON/OFF. 22. Scan: Press SCAN to hear a brief sampling of radio stations or CD/MP3 tracks. Press again to stop. 23. CAT/Tune: Press to manually tune down/up the radio frequency band. CAT: CAT is only available when equipped with Satellite Radio. Your radio comes equipped with Satellite ready capability. The kit to enable Satellite reception is available through your dealer. Detailed Satellite
or
23
REVIEW COPY —— 2006 Escape Hybrid (ehv), Owners Guide (post-2002-fmt) (own2002), Market: USA (fus)
Entertainment Systems
instructions are included with the dealer installed kit. Dealer installed satellite kit only available in the continental United States. For information regarding SIRIUS Satellite Radio, please call toll-free 888-539-SIRIUS (888-539-7474) or visit the SIRIUS website at www.siriusradio.com 24. CD slot: Insert a CD with the label side up.
Premium Satellite Compatible AM/FM Stereo In-Dash Six CD/MP3
Radio (if equipped)24
REVIEW COPY —— 2006 Escape Hybrid (ehv), Owners Guide (post-2002-fmt) (own2002), Market: USA (fus)
Entertainment Systems
Audiophile Satellite Compatible AM/FM Stereo In-Dash Six CD/MP3
Radio (if equipped)for previous/next
1. SEEK: Press and release SEEK strong station or track. 2. TEXT: The filename (Fi), song title (So), artist text (Ar) or album text (AL) may be viewed while playing an MP3 selection. When MP3 selection text is shown on the message display its corresponding text indicator (Fi, So, Ar, or AL) is shown in the elapsed time display. Press TEXT to scroll through the text fields. The display will scroll all of the text in the current field before changing to the next field. (TEXT must be pressed within 3 seconds of the previous button press to proceed to the next/last text display.) TEXT is also available when equipped with Satellite radio. Your radio comes equipped with Satellite ready capability. The kit to enable Satellite reception is available through your dealer. Detailed Satellite instructions are included with the dealer installed kit. Dealer installed satellite kit only available in the continental United States.
25
REVIEW COPY —— 2006 Escape Hybrid (ehv), Owners Guide (post-2002-fmt) (own2002), Market: USA (fus)
Entertainment Systems
3. AUX: This function is not operational.
4. MUTE: Press to MUTE playing media; press again to return to playing media 5. EJ: Press to eject a CD. Press EJ and a memory preset to eject a specific disc. Press and hold to eject all loaded discs. 6. Bass: Press BASS; then press SEL the bass output. Treble: Press TREB; then press SEL the treble output.
to decrease/increase
to decrease/increase
7. Select: Use with Bass, Treble, Balance, Fade and other menu functions.
to shift sound to the
8. Balance: Press BAL; then press to shift sound to the SEL left/right speakers. Fade: Press FADE; then press SEL rear/front speakers. 9. Menu: Press to access the following features: RDS (if equipped): Press and hold MENU to access RDS on/off. Use SEL to toggle RDS on/off. Press MENU again to access Traffic mode, Program Type mode or Show Type mode. (MENU must be pressed within 10 seconds to proceed to the next RDS mode). The Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission (CRTC) recommend that FM radio broadcasters use RDS technology to transmit information. FM radio
26
REVIEW COPY —— 2006 Escape Hybrid (ehv), Owners Guide (post-2002-fmt) (own2002), Market: USA (fus)
Entertainment Systems
stations are independently operated and individually elect to use RDS technology to transmit station ID and program type as desired. Traffic: Allows you to hear traffic broadcasts. With the feature ON, press SEEK or SCAN to find a station broadcasting a traffic report (if it is broadcasting RDS data). Traffic information is not available in most U.S. markets. FIND Program type: Allows you to search RDS-equipped stations for a certain category of music format: Classic, Country, Info, Jazz, Oldies, R&B, Religious, Rock, Soft, Top 40. Press and hold MENU until RDS XX is shown in the display. Press MENU until FIND appears in the display. Use SEL to scroll through music types. Press SEEK or SCAN to search for a station playing the requested music category. Show TYPE: Displays the station’s call letters or music format. Press and hold MENU until RDS XX is shown in the display Press MENU until SHOW appears in the display. Use SEL to select NAME or TYPE. Occupancy mode: Press MENU until occupancy mode appears in the display. Press SEL to select ALL SEATS, DRIVER SEAT or REAR SEATS occupancy mode. Compression: Brings soft and loud CD passages together for a more consistent listening level when in CD mode. Press MENU until compression status is displayed. Press the SEL control to enable the compression feature when COMPRESS OFF is displayed. Press the SEL control again to disable the feature when COMPRESS ON is displayed. Autoset: Allows you to set the strongest local radio stations without losing your original manually set preset stations for AM/FM1/FM2 . Press MENU until AUTOSET appears in the display. Press SEL to toggle ON/OFF. When the six strongest stations are filled, the station stored in preset 1 will begin playing. If there are less than six strong stations, the system will store the last one in the remaining presets. Speed sensitive volume: Radio volume changes automatically and slightly with vehicle speed to compensate for road and wind noise. Recommended level is 1–3. Level 0 turns the feature off and level 7 is the maximum setting. Press MENU until SPEED VOL X appears in the display. Then press SEL to increase ( appear in the display. Setting the clock: Press MENU until SELECT HOUR or SELECT MINS ) the is displayed. Use SEL to manually increase ( hours/minutes. Press MENU again to disengage clock mode.
) the volume setting. The level will
) or decrease (
) or decrease (
27
REVIEW COPY —— 2006 Escape Hybrid (ehv), Owners Guide (post-2002-fmt) (own2002), Market: USA (fus)
Entertainment Systems
Folder/Track Mode: In MP3 mode, press MENU until MODE appears in the display. Use SEL to toggle between FOLDER (only tracks within selected folder are accessible) or TRACK (all tracks on disc are accessible) MODE. 10. REPEAT: Repeats current CD/MP3 track when active (ON). Press to show repeat status. Press again to toggle status. 11. SHUFFLE: Plays CD/MP3
tracks in random order when active (ON). Press to show shuffle status. Press again to toggle status. 12. FOLDER the next MP3 directory.: Press to access
13. FOLDER the previous MP3 directory.
: Press to access
14. FF(Fast forward): In CD mode, press until desired selection is reached. 15. REW(Rewind): In CD mode, press until desired selection is reached. 16. SAT (if equipped): Your radio comes equipped with Satellite Ready capability. The kit to enable the Satellite reception is available through your dealer. Detailed satellite instructions are included with the dealer installed kit. Dealer installed satellite kit only available in the continental United States. 17. BAND: Press to toggle between AM/FM1/FM2 frequency band.
18. Memory presets: To set a station: Select frequency band, tune to a station, press and hold a preset button until sound returns.
28
REVIEW COPY —— 2006 Escape Hybrid (ehv), Owners Guide (post-2002-fmt) (own2002), Market: USA (fus)
Entertainment Systems
19. Power/volume: Press to turn ON/OFF; turn to increase or decrease volume levels.
20. Load: Press to load a CD. Press LOAD and a memory preset to load to a specific disc slot. Press and hold to load up to six discs. 21. CD: Press to enter CD mode.
CD units are designed to play commercially pressed 4.75 in (12 cm) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Irregular shaped CDs, CDs with a scratch protection film attached, and CDs with homemade paper (adhesive) labels should not be inserted into the CD player. The label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels. Ballpoint pens may damage CDs. Please contact your authorized dealer for further information. 22. Scan: Press SCAN to hear a brief sampling of radio stations or CD/MP3 tracks. Press again to stop. 23. Disc/Tune: Press to manually tune down/up the radio frequency band, or to listen to the previous/next CD. CAT: CAT is only available when equipped with Satellite Radio. Your radio comes equipped with Satellite ready capability. The kit to enable Satellite reception is available through your dealer. Detailed Satellite instructions are included with the dealer installed kit. Dealer installed satellite kit only available in the continental United States. For information regarding SIRIUS Satellite Radio, please call toll-free 888-539-SIRIUS (888-539-7474) or visit the SIRIUS website at www.siriusradio.com 24. CD slot: Insert a CD, label side up.
or
29
REVIEW COPY —— 2006 Escape Hybrid (ehv), Owners Guide (post-2002-fmt) (own2002), Market: USA (fus)
Entertainment Systems
AM/FM stereo in-dash six CD modular audio (if equipped)
1. CD: To begin CD play, press LOAD. When the system is ready to accept a disc, IN will appear on the radio display. You may then insert a CD. The system will load the CD and begin play after a short pause. The disc number and track number will illuminate in the display. If a CD is already loaded into the system, press CD to enter CD mode and select the desired CD to play. CD units are designed to play commercially pressed 4.75 in (12 cm) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Irregular shaped CDs, CDs with a scratch protection film attached, and CDs with homemade paper (adhesive) labels should not be inserted into the CD player. The label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels. Ballpoint pens may damage CDs. Please contact your dealer for further information.
30
REVIEW COPY —— 2006 Escape Hybrid (ehv), Owners Guide (post-2002-fmt) (own2002), Market: USA (fus)
Entertainment Systems
2. AUTO — SCAN:AUTO: Auto memory tuning allows you to set strong radio stations without loosing your original manually set preset stations. Press the AM or FM1/2 control to select a frequency. Press and momentarily hold the AUTO-S control. The system will beep. When the first six strong stations are filled, the strongest station will start playing. Press AUTO-S to select from the stored stations. One stored station will be selected and played each time the control is pressed. The frequency and the channel number will be displayed. SCAN: Scan works in radio and CD mode. Press SCAN to hear a brief sampling of all listenable stations on the frequency band or the first ten seconds of each track. Press SCAN again to stop. 3. Eject: Press to eject the CD currently playing. Press CD plus the preset number to eject a specific CD. Press and hold to eject all CDs. 4. TUNE — MENU: Press to enter Menu mode. Press repeatedly to scroll through the following options: Bass: Press the control until BASS appears in the display. Turn the control to increase/decrease the level of bass. Mid-range (if equipped): Press the control until MID appears in the display. Turn the control to increase/decrease the level of mid-range. Treble: Press the control until TREB appears in the display. Turn the control to increase/decrease the level of treble. Fade: Press the control until FADE appears in the display. Turn the control to adjust the sound between the rear and front speakers. Balance: Press the control until BAL appears in the display. Turn the control to adjust the sound between the left and right speakers. 5. CLK (Clock): Press to alternate between clock display and audio display. Note: If the audio operation is selected while the clock mode is on, the selected audio mode will be displayed for ten seconds, then the display will revert to the clock mode.
31
REVIEW COPY —— 2006 Escape Hybrid (ehv), Owners Guide (post-2002-fmt) (own2002), Market: USA (fus)
Entertainment Systems
Setting the clock: Press and hold CLK for approximately two seconds until a beep is heard. The clock’s current time will flash. Press SCAN on the minute set control (M) to set the minutes. Press AUTO-S on the hour set control (H) to adjust the hours. Press CLK again to disengage clock mode. 6. FF (Fast forward): In CD mode, press and hold to advance through a track at high speed. 7. REW (Rewind): In CD mode, press and hold to reverse through a track at high speed. 8. SHUF (Shuffle): Press to play all tracks on the current CD in random order. 9. RPT (Repeat): Press to repeat the current CD track. The track will repeat continuously until RPT is pressed again. 10. DISC to the beginning of the next CD.
: Press to skip forward
: Press to skip back to
11. DISC the beginning of the previous CD. 12. Memory presets: To set a station: Select frequency band AM/FM; tune to a station, press and hold a preset button until sound returns. 13. Volume/ON/OFF: Press to turn ON/OFF. Turn to increase/decrease the level of volume.
14. LOAD: The load feature allows you to load up to six single CDs into the audio system. Press LOAD. “In” will appear in the display when the system is ready. Insert the CD. Autoload: To load up to six CDs into the system: Press and hold LOAD until a beep is heard. When “In” is displayed, insert the desired CD. When “In” is displayed again, insert the next CD. Continue until all six are loaded (if desired).
32
REVIEW COPY —— 2006 Escape Hybrid (ehv), Owners Guide (post-2002-fmt) (own2002), Market: USA (fus)
Entertainment Systems
) or previous (
) track.
) listenable station
15. SEEK — TRACK: In radio mode, press to find the next ( or previous ( on the frequency band. In CD mode, press to listen the next ( 16. CD door: Insert CDs label side up.
17. FM 1/2: Press to enter FM mode. Press to toggle between FM1
and FM2. 18. AM: Press to enter AM mode.Accessory delay With accessory delay, the window switches, moon roof (if equipped) and audio system may be used for up to ten minutes after the ignition switch is turned off or until either front door is opened.
GENERAL AUDIO INFORMATION Radio frequencies: AM and FM frequencies are established by the Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission (CRTC). Those frequencies are: AM - 530, 540–1700, 1710 kHz FM- 87.7, 87.9–107.7, 107.9 MHz Radio reception factors: There are three factors that can affect radio reception: • Distance/strength: The further you travel from a station, the weaker • Terrain: Hills, mountains, tall buildings, power lines, electric fences, traffic lights and thunderstorms can interfere with your reception. • Station overload: When you pass a broadcast tower, a stronger signal may overtake a weaker one and play while the weak station frequency is displayed.
the signal and the weaker the reception.
Cassette/player care: Do: • Use only cassettes that are 90 minutes long or less.
33
REVIEW COPY —— 2006 Escape Hybrid (ehv), Owners Guide (post-2002-fmt) (own2002), Market: USA (fus)
and turning the hub.
Entertainment Systems • Tighten very loose tapes by inserting a finger or pencil into the hole • Remove loose labels before inserting tapes. • Allow tapes which have been subjected to extreme heat, humidity or • Clean the cassette player head with a cassette cleaning cartridge after
cold to reach a moderate temperature before playing.
10–12 hours of play to maintain good sound/operation.
Don’t: • Expose tapes to direct sunlight, extreme humidity, heat or cold. • Leave tapes in the cassette player for a long time when not being
played.
CD/CD player care: Do: • Handle discs by their edges only. Never touch the playing surface. • Inspect discs before playing. Clean only with an approved CD cleaner
and wipe from the center out.
of time.
Don’t: • Expose discs to direct sunlight or heat sources for extended periods • Clean using a circular motion. CD units are designed to play commercially pressed 4.75 in (12 cm) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Dirty, warped or damaged CDs, irregular shaped CDs, CDs with a scratch protection film attached, and CDs with homemade paper (adhesive) labels should not be inserted into the CD player. The label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels. Ballpoint pens may damage CDs. Please contact your authorized dealer for further information. Audio system warranty and service: Refer to the Warranty Guide for audio system warranty information. If service is necessary, see your dealer or qualified technician.
34
REVIEW COPY —— 2006 Escape Hybrid (ehv), Owners Guide (post-2002-fmt) (own2002), Market: USA (fus)
Entertainment Systems
VEHICLE NAVIGATION RADIO (VNR IF EQUIPPED) Your vehicle may be equipped with a Vehicle Navigation Radio (VNR) which allows you to listen to the radio, play CDs and also navigate the vehicle using navigation CDs.
Your Vehicle Navigation Radio is equipped with many different features and controls. The labeled controls on the front face of the system are known as hard keys. The five blank controls located under the MENU control are called soft keys. (Refer to System Overview.) These controls are labeled on the screen and can change functionality depending on which screen is activated in the display. The hard keys will be explained further below and the soft keys will be described as needed.
Safety information
Please read and follow all stated safety precautions. Failure to do so may increase your risk of collision and personal injury.
Ford Motor Company shall not be liable for any damages of any type arising from failure to follow these guidelines. Do not attempt to service, repair or modify the system. See your Ford or Lincoln Mercury dealer.
The driver must not attempt to operate any detailed operation of the navigation system while the vehicle is in motion. Give full attention to driving and to the road. Pull off the road and park in a safe place before performing detailed operations.
35
REVIEW COPY —— 2006 Escape Hybrid (ehv), Owners Guide (post-2002-fmt) (own2002), Market: USA (fus)
Entertainment Systems
A safety screen will be displayed each time the navigation system is turned on as a reminder. Ensure that you are familiar with the system’s features and functionality, including the following:
updating.
• Do not turn the ignition key or start the engine while the software is • Do not apply pressure to the display screen. • The navigation system is not a substitute for your personal judgement. • Route suggestions should not supersede local traffic regulations or • Do not follow route suggestions if they direct you to perform an
safe driving practices.
unsafe or illegal maneuver, would place you in an unsafe situation, or would route you into an area that you consider unsafe.
• Drivers should not rely on screen displays while their vehicle is in motion. Let the voice guide you. If viewing is necessary, pull off the road to a safe location.
• Do not use the navigation system to locate emergency services. • For road safety reasons, the driver should program the system only when the vehicle is stationary. Certain functions will therefore not operate while the vehicle is in motion.
• The navigation CD does not reflect road detours, closures or
construction, road characteristics such as rough road surface, slope or grade, weight or height restrictions, traffic congestion, weather or similar conditions.
• To use the system as effectively and safely as possible, obtain up-to-date navigation CD’s whenever they become available. • Set the volume level so that you can hear directions clearly. • Do not disassemble or modify the system as this may lead to damage and void your warranty. If a problem occurs, stop using the system immediately and contact your Ford or Lincoln Mercury dealer.
36
REVIEW COPY —— 2006 Escape Hybrid (ehv), Owners Guide (post-2002-fmt) (own2002), Market: USA (fus)
System overview
Entertainment Systems
1. CD slot: Insert an audio CD, label side up. 2. Eject: Press this control to eject an audio CD or a navigation CD.
3. Navigation (NAV): Press the NAV control to access the navigation system menu. 4. MAP: The MAP control works in all modes. Press to show current location. 5. BACK: This control works only in Navigation mode. Press to return to the previous screen.
37
REVIEW COPY —— 2006 Escape Hybrid (ehv), Owners Guide (post-2002-fmt) (own2002), Market: USA (fus)
Entertainment Systems
6. ENTER: Use this control when viewing a menu in the navigation system. Press the control up or down, left or right to highlight an item in the display. Press the center of the control to make your selection. 7. Memory presets: The memory presets store favorite AM/FM stations and allow you to access various discs when in CD DJ mode. Press and hold a preset control until PRESET SAVED appears in the display. 8. Current location: Press for information on your current location. 9. HOME: When the home location is empty, pressing and holding this key will store the vehicle’s current location as home. Pressing the home key after the home location has been set will calculate a route to that set home location. 10. SEEK: Use these controls to find the previous/next ( listenable radio station or advancing tracks in CD mode. 11. Energy flow function: Press for status of the engine and battery. Refer to Energy Flow Screen later in this chapter for further information. 12. Fuel economy function: Push to advance to the fuel economy screen. The screen will show the average fuel economy. Refer to Fuel economy function later in this chapter for further information. 13. AM/FM: Press to listen to the AM or FM frequency band (AM, FM1, FM2). Pressing AM/FM in Navigation mode will return you to the audio screen.
38
REVIEW COPY —— 2006 Escape Hybrid (ehv), Owners Guide (post-2002-fmt) (own2002), Market: USA (fus)
Entertainment Systems
Turn the control to adjust the audio volume levels. To adjust the voice output levels from the navigation system, adjust the volume levels only during voice output.
14. Phone (if equipped): If the phone button is pressed and a phone is not present, this will mute the playing media. 15. On/volume: Press to turn the system on, turn to adjust the volume. Press again to turn the system off.
16. CD: Press to enter CD mode or to begin play of a CD that is already loaded in the system. Press the CD control again to toggle CD, CD DJ and DVD (if equipped). Note: Navigation CD’s are not operational in the CD DJ. Note: To use the navigation system and listen to an audio CD, the navigation CD must be loaded into the VNR and the audio CD must be loaded into the CD DJ. 17. MENU: The MENU control works in both the audio and navigation mode. Press to access various menus in both modes. 18. Soft keys: Press the correct soft key to make selections with the navigation system.
39
REVIEW COPY —— 2006 Escape Hybrid (ehv), Owners Guide (post-2002-fmt) (own2002), Market: USA (fus)
Entertainment Systems
Quick start – how to get going To play a radio station: 1. Ensure that the ignition and the Vehicle Navigation Radio (VNR) system are ON. 2. Press the AM/FM control to select the desired frequency band.
3. Press the SEEK control to locate a station.
To play a CD in the VNR: 1. Ensure that the ignition and the VNR system are ON. 2. Insert a CD into the single slot of the VNR and the CD will automatically begin play. If a CD is already loaded into the system, press the CD control. To play a CD in the CD DJ: 1. Ensure that the ignition and the VNR system are ON. 2. Insert CD(s) into the CD DJ magazine. Insert magazine into CD DJ. If the CD DJ magazine is already loaded, press the CD control to toggle through CD and CD DJ. 3. Press the memory presets to choose the desired disc in the CD DJ. 4. Press the seek control to advance to different tracks.
Note: Navigation CD’s are not operational in the CD DJ. To use the Navigation system: 1. Ensure that the ignition and the VNR system are ON, and a map data disc is inserted into the VNR CD slot. Note: To use the navigation system and listen to an audio CD, the navigation CD must be loaded into the VNR and the audio CD must be loaded into the CD DJ.
40
REVIEW COPY —— 2006 Escape Hybrid (ehv), Owners Guide (post-2002-fmt) (own2002), Market: USA (fus)
Entertainment Systems
2. Press the NAV control to enter into Navigation mode. 3. To enter a destination, ensure that the vehicle is in the PARK position. 4. To navigate to home from the current location, press HOME. If a home location has not previously been stored, pressing and holding HOME will store the vehicle’s current location as home.
Energy Flow Screen Your Vehicle Navigation System is equipped with an Energy Flow Screen. This screen provides a graphical representation of how power is transferred in the Hybrid system to either accelerate the vehicle, or re-charge the battery. The screen also provides you with titles to describe the mode which is currently active in the Hybrid system. These screens are informational and do not require any input from you. Note that due to the one second screen updates and the simplification of the graphics, the display may not show the actual vehicle status. To view the Energy Flow Screen, press the battery icon. While the display is activated, the audio will continue to play. 1. Engine Power: This line represents how much power is being provided to the wheels by the engine. The arrow will always flow in one direction and point to the wheels. 2. Engine: This icon represents the Internal Combustion Engine (ICE). It will be highlighted in orange only when the ICE is running. 3. Generator Power: This line represents how much power is being generated by the engine for use by the HV electric system, or how much power is being used by the HV electric system to control/start the engine.
41
REVIEW COPY —— 2006 Escape Hybrid (ehv), Owners Guide (post-2002-fmt) (own2002), Market: USA (fus)
Entertainment Systems
4. HV Battery: This icon represents your High Voltage Battery. The fill level (shown in green), represents the state of charge of the HV Battery and will go up and down as the battery charges/discharges during normal operation. 5. Battery Power: This line represents how much power the HV battery is providing to accelerate the vehicle (discharging), or how much power is being delivered back through the motor to the battery (charging). 6. Electric Motor: This icon represents the Hybrid Electric Motor. This symbol will be highlighted in orange after the vehicle has been started and will remain highlighted until key off to indicate that the vehicle is ready to be driven. 7. Motor Power: This line represents how much power the electric motor is delivering to the wheels (acceleration), or how much power is being delivered back through the motor to charge the battery (deceleration/braking.) Note: The power arrows may point in different directions, indicating which way the power is flowing. The arrows may also vary in width to indicate the different levels of power being provided to that component. The energy flow screens contain a title to indicate what mode the Hybrid system is in. The vehicle is being powered by both the electric motor and the engine.
42
REVIEW COPY —— 2006 Escape Hybrid (ehv), Owners Guide (post-2002-fmt) (own2002), Market: USA (fus)
Entertainment Systems
The vehicle is slowing down and power is being stored in the high voltage (HV) battery by the Hybrid system.
The vehicle is in a state similar to idle, except that power is being generated to recharge the high voltage battery.
The vehicle is being powered by the engine, not the electric motors. This occurs at higher speeds.
43
REVIEW COPY —— 2006 Escape Hybrid (ehv), Owners Guide (post-2002-fmt) (own2002), Market: USA (fus)
Entertainment Systems
The vehicle is either at rest, or is sharing very little power between the Hybrid parts. This can occur at higher speeds if the vehicle is not speeding up or slowing down.
The vehicle is driving in electric mode. (Power is coming from the electric motors and not the engine).
Fuel economy screen Your Vehicle Navigation Radio is equipped with a fuel economy screen. To view, press the fuel icon control. This screen displays three pieces of information: • Instantaneous Fuel Economy (IFE): The IFE is displayed on the vertical bar on the left of the screen ranging from 0 mpg up to MAX, which indicates excellent fuel economy. Your vehicle must be moving to calculate instantaneous fuel economy. When the vehicle is not moving, the IFE function will display no bar on the IFE graph indicating 0
mpg. Conversely, if you are driving in electric mode (Engine off), this function will display MAX. IFE cannot be reset.44
REVIEW COPY —— 2006 Escape Hybrid (ehv), Owners Guide (post-2002-fmt) (own2002), Market: USA (fus)
Entertainment Systems • Average Fuel Economy (AFE): The AFE is displayed on the white bar across the graph. The AFE will be retained when the key is turned OFF, and will continue averaging when driving resumes. Pressing RESET will reset the AFE to zero.
• One minute average graph: The graph is updated each minute with the fuel economy that was achieved during the prior minute of driving. Each new one minute average will be added to the left side of the graph, shifting the past data to the right. When the graph area is full, the right most point will be deleted, keeping a running scroll from left to right of the last 15 minutes of driving. The graph is intended to provide a graphical representation of how driving habits/conditions can affect fuel economy. Note that the graph will be cleared anytime the key is turned out of RUN (however, the average fuel economy bar will retain its value). Press RESET to clear the graph.
If the Navigation System has been set to units of Kilometer, the Fuel Economy Screen will display the equivalent Consumption Graph in units of L/100KM. In Consumption (L/100KM) mode, the IFE function will display MAX until the vehicle is moving. For more information on Average Fuel Economy, refer to Message center in the Driver Controls chapter.
Audio features Your Vehicle Navigation Radio has many features including a full range of audio functions. Audio screen display When in audio mode, there are various indicators which will appear on the display. 1. Station name 2. Station frequency 3. Stereo indicator 4. Preset selected 5. Band selected 6. Music type (when instructed by the system).
If the navigation system is activated during radio or CD playback (CD DJ), audio output continues but route guidance screens will appear in the display.
45
REVIEW COPY —— 2006 Escape Hybrid (ehv), Owners Guide (post-2002-fmt) (own2002), Market: USA (fus)
Entertainment Systems
Volume/power control Press the control to turn the audio/navigation system on or off.
Turn the control to raise or lower volume. The levels will be displayed on the screen. To adjust the navigation voice output level, adjust the volume control only when the navigation system is speaking. Otherwise, it will adjust the radio levels. Automatic volume control (AVC) With this feature, radio volume changes automatically with vehicle speed to compensate for road and wind noise. To engage the AVC feature: 1. Press the MENU control.
2. Select AUDIO OPTIONS.
3. Select AVC, TRAFFIC, DSP.
46
REVIEW COPY —— 2006 Escape Hybrid (ehv), Owners Guide (post-2002-fmt) (own2002), Market: USA (fus)
4. Select AVC.
Entertainment Systems
5. Use the cursor control to increase or decrease the levels. The higher the level selected, the greater the compensation. The levels will be shown in the display. Decrease all the way to the left to turn AVC off. AM/FM select The AM/FM control works in radio, CD and navigation modes.
AM/FM select in radio mode This control allows you to select AM or FM frequency bands. Press the control to switch between AM, FM1 or FM2 memory preset stations. AM/FM select in CD mode Press to stop CD play and begin radio play. Radio reception factors: • Distance/strength. The further an FM signal travels, the weaker it is. The listenable range of the average FM station is approximately 40 km (24 miles). This range can be affected by “signal modulation.” Signal modulation is a process radio stations use to increase their strength/volume relative to other stations.
• Terrain. Hills, mountains and tall buildings between your vehicle’s antenna and the radio station signal can cause FM reception problems. Static can be caused on AM stations by power lines, electric fences, traffic lights and thunderstorms. Moving away from an interfering structure (out of its “shadow”) returns your reception to normal.
47
REVIEW COPY —— 2006 Escape Hybrid (ehv), Owners Guide (post-2002-fmt) (own2002), Market: USA (fus)
Entertainment Systems • Station overload. Weak signals are sometimes captured by stronger signals when you pass a broadcast tower. A stronger signal may temporarily overtake a weaker signal and play while the weak station frequency is displayed.
AM/FM select in navigation mode Press once when in navigation mode to return to the audio screen (while the navigation function continues to work in the background). Press again to enter AM/FM mode where you are able to make frequency band adjustments. CD select To begin CD play (if a CD is already loaded), press the CD control. The first track of the disc will begin playing. After that, CD play will begin where it stopped last. Press the CD control again to toggle between CD and CD DJ modes. If a navigation CD is in the head unit and you press CD, the system will automatically search for an audio CD in the CD DJ and begin play if it is present. Adjusting the levels 1. Press the MENU control.
2. Select the AUDIO OPTIONS soft key.
48
REVIEW COPY —— 2006 Escape Hybrid (ehv), Owners Guide (post-2002-fmt) (own2002), Market: USA (fus)
Entertainment Systems
3. Select BASS, TREB (Treble), BAL (Balance) or FADE. The bass adjust allows you to increase or decrease the audio system’s bass output. The treble adjust control allows you to raise or lower the audio system’s treble output. The balance feature allows sound distribution to be adjusted between the right and left speakers. Speaker sound can be adjusted between the front and rear speakers using the fade feature. 4. Use the cursor control to increase or lower the bass and treble levels or to adjust the sound between the front and rear or between the left and right speakers. DSP (Digital Signal Processing) (if equipped) The Digital Signal Processing (DSP) feature allows you to change the signal mode to suit your listening tastes. Press the soft key to turn the feature on or off. This feature can be accessed by selecting the menu option “More. . . AVC, Traffic, DSP. . .” within the “Audio Options” menu. You can then select the following signal modes: • NEWS — “voice-only” type of • JAZZ CLUB — jazz club with • HALL — rectangular concert hall • CHURCH — church with a high vault • STADIUM — outdoor stadium with a capacity of about 30,000
This system has three “occupancy modes” of listening: • DRIVER— Optimizes audio playback for the drivers seat position. • ALL — Optimizes audio playback to be similar for ALL seating positions.sound with a limited audio band
clearly reflected sounds
capacity of about 2,000
49
REVIEW COPY —— 2006 Escape Hybrid (ehv), Owners Guide (post-2002-fmt) (own2002), Market: USA (fus)
Entertainment Systems • REAR — Optimizes the audio playback for rear seat passengers. Rewind/fast forward Press the to fast forward or rewind a CD track.
controls
and
Seek function The SEEK control works in all modes.
Seek in radio mode • Press • Press Seek in CD or CD DJ mode • Press
to find the next listenable station down the frequency band. to find the next listenable station up the frequency band.
to seek to the previous track of the current disc. If a
selection has been playing for three seconds or more and you press , the CD changer will replay that selection from the beginning. • Press
to seek forward to the next track of the current disc. After the last track has been completed, the first track of the current disc will automatically replay. Seek in navigation mode • Press
to access the next audio station if in radio mode, and
or
next track if in CD mode.
Radio station memory preset The radio is equipped with six station memory preset controls. These controls can be used to select up to six preset AM stations and twelve FM stations (six in FM1 and six in FM2). The presets will also allow you to access CDs which are loaded in the CD DJ. When in CD mode, simply press the preset number which corresponds to the desired disc.
50
REVIEW COPY —— 2006 Escape Hybrid (ehv), Owners Guide (post-2002-fmt) (own2002), Market: USA (fus)
Entertainment Systems
Setting memory preset stations 1. Select the frequency band with the AM/FM select control. 2. Select a station. Refer to Tune adjust or Seek function for more information on selecting a station. 3. Press and hold a memory preset control until PRESET SAVED appears on the display. Autoset memory preset Autoset allows you to set strong radio stations without losing your original manually set preset stations. This feature is helpful on trips when you travel between cities with different radio stations. Starting autoset memory preset 1. Select a frequency band using the AM/FM select controls. 2. Press the AUTO control. 3. When the first six strong stations are filled, the station stored in memory preset control 1 will start playing. If there are less than six strong stations available on the frequency band, the remaining memory preset controls will all store the last strong station available. Any preset stored via the presets directly (pressing and holding) in this mode are temporary. A message will indicate whenever a temporary preset is stored or recalled. This mode is active while the AUTO soft key is highlighted. To deactivate autoset and return to your audio system’s manually set memory stations, press the AUTO control again.
51
REVIEW COPY —— 2006 Escape Hybrid (ehv), Owners Guide (post-2002-fmt) (own2002), Market: USA (fus)
Entertainment Systems
Tune adjust The tune feature works in radio mode. • Select the TUNE soft key. • Press SEEK to go up
or
down manually.
the frequency band
Stereo indicator Whenever a stereo signal is received in radio mode, the stereo indicator (ST) will appear in the display. Scan function Press the soft key next to SCAN for a brief sampling of all listenable stations on the selected frequency. Press again to disable scan and remain on the current station.
Program type (PTY) selections Some FM stations transmit program type codes which can be used to locate different stations transmitting programs of a certain type. Press the soft key next to TYPE to access a list of available program types. Use the cursor control to select the desired program type. The system will search for and begin playing that program type if available. During a seek or scan and for 10 seconds after a station is found, pressing the seek up/down or scan will initiate another search. If the desired type cannot be found, “Not Found” appears in the display and the audio system returns to the original station. Traffic information The Traffic information soft key can be accessed under menu option “MORE . . . AVC, Traffic, DSP...” within the “AUDIO OPTIONS” menu.
52
REVIEW COPY —— 2006 Escape Hybrid (ehv), Owners Guide (post-2002-fmt) (own2002), Market: USA (fus)
Entertainment Systems
Select the TRAF soft key to select traffic information broadcast from certain stations which will automatically interrupt radio or CD playback at a preset volume level. The default Traffic volume can be adjusted with the slider bar using the cursor input. Moving the position to the left most position will turn this feature off. The display TRAF will appear in Orange if the feature is enabled, but there is no broadcast traffic program available. Traffic information is not available in most U.S. markets. Compression The compression feature will boost quieter music and lower louder music to minimize the need for volume adjustments. When in CD or CD DJ mode, press COMP to engage or disengage the compression feature.
Shuffle When in CD or CD DJ mode, press SHUF to engage and disengage the shuffle feature. All tracks on the current disc will be played in random order.
CD DJ Your vehicle is equipped with a CD DJ (CD changer). It is located under the passenger seat. Radio power must be turned on to play the CDs in the CD DJ. The magazine may be stored in the glove box when not being used. The CD magazine may be inserted or ejected with the radio power off. ONLY use the magazine supplied with the CD DJ, other types will damage the unit. Keep the CD DJ door closed. Coins and foreign objects will damage the CD player and void your audio system warranty. The CD magazine does not have to be full (all 6 disks) for the CD DJ to function.
53
REVIEW COPY —— 2006 Escape Hybrid (ehv), Owners Guide (post-2002-fmt) (own2002), Market: USA (fus)
Entertainment Systems
CD units are designed to play commercially pressed 4.75 in (12 cm) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Irregular shaped CDs, CDs with a scratch protection film attached, and CDs with homemade paper (adhesive) labels should not be inserted into the CD player. The label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels. Ballpoint pens may damage CDs. Please contact your authorized dealer for further information. To access the CD DJ: Slide the door to access the CD DJ magazine.
Press
to eject the magazine.
1. Pull the lever to remove a CD tray from the magazine.
54
REVIEW COPY —— 2006 Escape Hybrid (ehv), Owners Guide (post-2002-fmt) (own2002), Market: USA (fus)
Entertainment Systems
2. Insert one disc into each CD tray of the magazine (up to 6 discs). Ensure that the label side is facing up. If you pull too hard on the disc holder, the disc holder may come completely out of the magazine. If this happens, reinsert the disc holder back into the magazine.
3. Insert each CD tray, with the disc loaded, all the way into the CD magazine.
4. Insert the CD magazine into the CD DJ.
5. Slide the door to the left to close.
Use only compact discs containing this mark.
The magazine does not need to be full for the CD DJ to operate.
55
REVIEW COPY —— 2006 Escape Hybrid (ehv), Owners Guide (post-2002-fmt) (own2002), Market: USA (fus)
Entertainment Systems
Radio power must be turned on to play the CDs in the CD DJ. The magazine may be stored in the glove compartment when not being used. The CD magazine may be inserted or ejected with the radio power off. Ensure that the disc holder is evenly inserted and at the same level as the magazine (A). The unit will not operate if the disc holder is not inserted at the same level (B).
CD DJ information screen The CD DJ screen will display various information such as: • Track selected • Elapsed time • Selected disc • Volume level • On-screen selections CD DJ playback With a navigation CD inserted into the audio unit, press CD for CD DJ playback. Without a navigation CD inserted into the audio unit, press CD until CD DJ appears in the display. If playback is selected and the CD DJ is empty or the magazine is missing or incorrectly inserted, NO DISC (S) will appear in the display.
