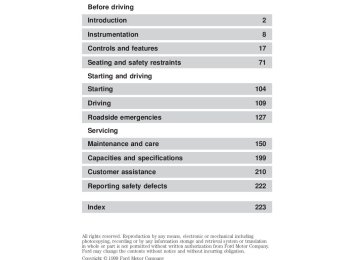

2000 Ford E 150 Owners Manual

Before driving

Introduction

Instrumentation

Controls and features

Seating and safety restraints

Starting and driving

Starting

Driving

Roadside emergencies

Servicing

Maintenance and care

Capacities and specifications

Customer assistance

Reporting safety defects

Index

Contents

17

71

104

109

127

150

199

210

222

223

All rights reserved. Reproduction by any means, electronic or mechanical including photocopying, recording or by any information storage and retrieval system or translation in whole or part is not permitted without written authorization from Ford Motor Company. Ford may change the contents without notice and without incurring obligation. Copyright © 1999 Ford Motor Company

Introduction

The following warning may be required by California law: CALIFORNIA Proposition 65 Warning

Engine exhaust, some if its constituents, and certain vehicle components contain or emit chemicals known to the State of

California to cause cancer, or birth defects or other reproductive harm.

ICONS Indicates a safety alert. Read the following section on Warnings.

Indicates vehicle information related to recycling and other environmental concerns will follow. Correct vehicle usage and the authorized disposal of waste cleaning and lubrication materials are significant steps towards protecting the environment. Indicates a message regarding child safety restraints. Refer to Seating and safety restraints for more information.

Indicates that this Owner Guide contains information on this subject. Please refer to the Index to locate the appropriate section which will provide you more information.

WARNINGS Warnings provide information which may reduce the risk of personal injury and prevent possible damage to others, your vehicle and its equipment.

Introduction

BREAKING-IN YOUR VEHICLE There are no particular breaking-in rules for your vehicle. During the first 1 600 km (1 000 miles) of driving, vary speeds frequently. This is necessary to give the moving parts a chance to break in.

INFORMATION ABOUT THIS GUIDE The information found in this guide was in effect at the time of printing. Ford may change the contents without notice and without incurring obligation.

SPECIAL NOTICES

Notice to owners of pickup trucks and utility type vehicles

Utility vehicles have a significantly higher rollover rate than other types of vehicles.

Before you drive your vehicle, please read this Owner’s Guide carefully. Your vehicle is not a passenger car. As with other vehicles of this type, failure to operate this vehicle correctly may result in loss of control or an accident. Be sure to read Driving off road in the Driving chapter as well as the “Four Wheeling” supplement included with 4WD and utility type vehicles.

Introduction

Using your vehicle as an ambulance If your light truck is equipped with the Ford Ambulance Preparation Package, it may be utilized as an ambulance. Ford urges ambulance manufacturers to follow the recommendations of the Ford Incomplete Vehicle Manual, Ford Truck Body Builder’s Layout Book and the QVM guidelines as well as pertinent supplements. For additional information, please contact the Light Truck Body Builders Advisory Service 1–877–840–4338. Use of your Ford light truck as an ambulance, without the Ford Ambulance Preparation Package voids the Ford New Vehicle Limited Warranty and may void the Emissions Warranties. In addition, ambulance usage without the preparation package could cause high underbody temperatures, overpressurized fuel and a risk of spraying fuel which could lead to fires. If your vehicle is equipped with the Ford Ambulance Preparation Package, it will be indicated on the Certification label. The label is located on the driver’s side door pillar or on the rear edge of the driver’s door. You can determine whether the ambulance manufacturer followed Ford’s recommendations by directly contacting that manufacturer. Ford Ambulance Preparation Package is only available on certain 7.3L Diesel engine equipped vehicles.

Introduction

Notice to owners of diesel-powered vehicles Read the 7.3 Liter Power Stroke Direct Injection Turbo Diesel Owner’s Guide Supplement for information regarding correct operation and maintenance of your diesel-powered light truck.

Notice to owners of natural gas fueled vehicles Before you drive your vehicle, be sure to read the “Natural Gas Vehicle Owner’s Guide Supplement.” This book contains important operation and maintenance information.

Introduction

These are some of the symbols you may see on your vehicle.

Vehicle Symbol Glossary

Safety Alert

See Owner’s Guide

Fasten Safety Belt

Air Bag-Front

Air Bag-Side

Child Seat

Child Seat Installation Warning

Child Seat Tether Anchorage

Brake System

Anti-Lock Brake System

Brake Fluid - Non-Petroleum Based

Traction Control

Master Lighting Switch

Hazard Warning Flasher

Fog Lamps-Front

Fuse Compartment

Fuel Pump Reset

Windshield Wash/Wipe

Rear Window Defrost/Demist

Power Window Lockout

Windshield Defrost/Demist

Power Windows Front/Rear

Introduction

Vehicle Symbol Glossary

Child Safety Door Lock/Unlock

Interior Luggage Compartment Release Symbol

Panic Alarm

Engine Oil

Engine Coolant

Engine Coolant Temperature

Do Not Open When Hot

Battery

Avoid Smoking, Flames, or Sparks

Battery Acid

Explosive Gas

Fan Warning

Power Steering Fluid

Maintain Correct Fluid Level

MAX MIN

Emission System

Engine Air Filter

Passenger Compartment Air Filter

Jack

Instrumentation

Instrument cluster

(pg. 10)

Speed control*

(pg. 59)

80

60

40

0 0 0 0 0 0

20 km/h

MPH

0 0 0 0

BRAKE

ON

OFF

80
90

SERVICE

ENGINE SOON

RES

SET ACCEL

COAST

Headlamp control

(pg. 17)

*if equipped

Turn signal and

wiper/washer control

(pg. 59)

Driver air bag

(pg. 88)

Instrumentation

Auxiliary power point

(pg. 24)

Climate control system

(pg. 18)

O V E R D R I V E

FAN

HI

LO

HI

REAR LO

REAR CTRL OFF

OFF

VENT

NORM

A/C

MAX A/C

FLR

MIX

COOL

WARM

VOL PUSH ON

TONE

CLK

TONE VOL

ST DX FM

12

SEEK

TUNE

AM/FM

Gearshift (includes overdrive button)

(pg. 116)

Electronic sound system

(pg. 25)

Instrumentation

WARNING LIGHTS AND CHIMES

50 60

80

100

70

40

60

30

40

0 0 0 0 0 0

120

20
10

20 km/h

MPH

0 0 0 0

140

80
90
100

160

BRAKE

18

SERVICE

ENGINE SOON

Brake system warning Momentarily illuminates when the ignition is turned to the ON position. Also illuminates if the parking brake is engaged. If the brake warning lamp does not illuminate at these times, seek service immediately. Illumination after releasing the parking brake indicates low brake fluid level and the brake system should be inspected immediately.

BRAKE

Anti-lock brake system (ABS) Momentarily illuminates when the ignition is turned to the ON position. If the light remains on, continues to flash or fails to illuminate, have the system serviced immediately. With the ABS light on, the anti-lock brake system is disabled and normal braking is still effective unless the brake warning light also remains illuminated with the parking brake released.

ABS

Service engine soon Your vehicle is equipped with a computer that monitors the engine’s emission control system. This system is commonly known as the On Board Diagnostics System (OBD II). The OBD II system protects the environment by ensuring that your vehicle continues to meet

SERVICE ENGINE SOON

10

Instrumentation

government emission standards. The OBD II system also assists the service technician in properly servicing your vehicle. The Service Engine Soon indicator light illuminates when the ignition is first turned to the ON position to check the bulb. If it comes on after the engine is started, one of the engine’s emission control systems may be malfunctioning. The light may illuminate without a driveability concern being noted. The vehicle will usually be drivable and will not require towing. WhatyoushoulddoiftheServiceEngineSoonlightilluminates Light turns on solid: This means that the OBD II system has detected a malfunction. Temporary malfunctions may cause your Service Engine Soon light to illuminate. Examples are: 1. The vehicle has run out of fuel. (The engine may misfire or run poorly.) 2. Poor fuel quality or water in the fuel. 3. The fuel cap may not have been properly installed and securely tightened. These temporary malfunctions can be corrected by filling the fuel tank with high quality fuel of the recommended octane and/or properly installing and securely tightening the gas cap. After three driving cycles without these or any other temporary malfunctions present, the Service Engine Soon light should turn off. (A driving cycle consists of a cold engine startup followed by mixed city/highway driving.) No additional vehicle service is required. If the Service Engine Soon light remains on, have your vehicle serviced at the first available opportunity. Light is blinking: Engine misfire is occurring which could damage your catalytic converter. You should drive in a moderate fashion (avoid heavy acceleration and deceleration) and have your vehicle serviced at the first available opportunity.

Under engine misfire conditions, excessive exhaust temperatures could damage the catalytic converter, the fuel system, interior floor coverings or other vehicle components, possibly causing a fire.

11

Instrumentation

Transmission control indicator light (TCIL) Illuminates when the Transmission Control Switch (TCS), refer to Overdrive control in the Controls and Features chapter, has been pushed turning the transmission overdrive function OFF. When the TCIL (the word OFF on the gear shift) light is on, the transmission does not operate in the overdrive mode, refer to the Driving chapter for transmission function and operation. The light may also flash steadily if a transmission malfunction is detected. If the light does not come on when the Transmission Control Switch is depressed or if the light flashes steadily, have your vehicle serviced as soon as possible, damage to the transmission could occur.

OVERDRIVE

Safety belt Momentarily illuminates when the ignition is turned to the ON position to remind you to fasten your safety belts. For more information, refer to the Seating and safety restraints chapter.

Charging system Illuminates when the ignition is turned to the ON position and the engine is off. The light also illuminates when the battery is not charging properly, requiring electrical system service.

Air bag readiness Momentarily illuminates when the ignition is turned ON. If the light fails to illuminate, continues to flash or remains on, have the system serviced immediately.

12

Instrumentation

Turn signal Illuminates when the left or right turn signal or the hazard lights are turned on. If one or both of the indicators stay on continuously, check for a burned-out turn signal bulb. Refer to Exterior bulbs in the Maintenance and care chapter.

High beams Illuminates when the high beam headlamps are turned on.

very high

Oil pressure/Engine coolant This light will come on when the key is in the ON position and the: † engine coolant temperature is † engine oil pressure is low The light serves as a notice that a system needs your attention and to check the engine coolant temperature gauge and the engine oil pressure gauge. Refer to Engine coolant temperature gauge and Engine oil pressure gauge in this chapter for more information.

Safety belt warning chime/buzzer Sounds to remind you to fasten your safety belts. For information on the safety belt warning chime, refer to the Seating and safety restraints chapter.

Supplemental restraint system (SRS) warning chime For information on the SRS warning chime, refer to the Seating and safety restraints chapter.

13

Instrumentation

Key-in-ignition warning chime/buzzer Sounds when the key is left in the ignition in the OFF/LOCK or ACC position and the driver’s door is opened.

Headlamps on warning chime (if equipped) Sounds when the headlamps or parking lamps are on, the ignition is off (and the key is not in the ignition) and the driver’s door is opened.

GAUGES

50 60

80

100

70

40

60

30

40

0 0 0 0 0 0

120

20
10

20 km/h

MPH

0 0 0 0

140

80
90
100

160

Speedometer Indicates the current vehicle speed.

40

18

50 60

80

100

70

20
10

Fuel gauge Displays approximately how much fuel is in the fuel tank (when the key is in the ON position). The fuel gauge may vary slightly when the vehicle is in motion. The ignition should be in the OFF position while the vehicle is being refueled. When

14

140

80
90
100

160

60

30

40

0 0 0 0 0 0

120

20 km/h

MPH

0 0 0 0

Instrumentation

the gauge first indicates empty, there is a small amount of reserve fuel in the tank. When refueling the vehicle from an empty indication, the amount of fuel that can be added will be less than the advertised capacity due to the reserve fuel.

Engine coolant temperature gauge Indicates the temperature of the engine coolant. At normal operating temperature, the needle remains within the normal area (the area between the “H” and “C”). If it enters the red section, the engine is overheating. Stop the vehicle as soon as safely possible, switch off the engine immediately and let the engine cool. Refer to Engine coolant in the Maintenance and care chapter.

Never remove the coolant reservoir cap while the engine is running or hot.

This gauge indicates the temperature of the engine coolant, not the coolant level. If the coolant is not at its proper level the gauge indication will not be accurate. If the gauge enters the red section, the oil pressure/engine coolant and Check Engine/Service Engine Soon indicators illuminate, refer to What you should know about fail-safe cooling in the Maintenance and care chapter.

Engine oil pressure gauge This shows the engine oil pressure in the system. Sufficient pressure exists as long as the needle remains in the normal range (the area between the “L” and “H”). If the gauge indicates low pressure, stop the vehicle as soon as safely possible and switch off the engine immediately. Check the oil level. Add oil if needed (refer to Engine oil in the Maintenance and care chapter). If the oil level is correct, have your vehicle checked at your dealership or by a qualified technician.

15

Instrumentation

Battery voltage gauge This shows the battery voltage when the ignition is in the ON position. If the pointer moves and stays outside the normal operating range (as indicated), have the vehicle’s electrical system checked as soon as possible.

Odometer Registers the total kilometers (miles) of the vehicle.

18

40

60

30

40

50 60

80

100

70

0 0 0 0 0 0

120

20
10

20 km/h

MPH

0 0 0 0

140

80
90
100

160

50 60

80

100

70

60

30

40

0 0 0 0 0 0

120

20 km/h

MPH

0 0 0 0

140

80
90
100

160

Trip odometer Registers the kilometers (miles) of individual journeys. To reset, depress the control.

40

20
10

16

Controls and features

HEADLAMP CONTROL † Pull the headlamp control toward you to the first position to turn on the parking lamps, tail lamps, license plate lamps and marker lamps.

† Pull the headlamp control toward you to the outer position to turn on the headlamps (in addition to the previous lamps).

Daytime running lamps (DRL) (if equipped) Turns the headlamps on with a reduced output. To activate: † the ignition must be in the ON position and † the headlamp control is in the OFF or Parking lamps position.

Always remember to turn on your headlamps at dusk or during inclement weather. The Daytime Running Light (DRL) System

does not activate your tail lamps and generally may not provide adequate lighting during these conditions. Failure to activate your headlamps under these conditions may result in a collision.

High beams Push forward to activate. Pull toward you to deactivate.

17

Controls and features

Flash to pass Pull toward you to activate and release to deactivate.

PANEL DIMMER CONTROL To adjust the brightness of the instrument panel: † Rotate

clockwise/counterclockwise when the headlamp control is in the parking lamp or low-beam position.

To turn on the courtesy lamp and cargo lamps: † Rotate fully counterclockwise. The dome lamp will not illuminate if the panel dimmer/dome lamp control is switched to OFF.

CLIMATE CONTROL SYSTEM

Heater only system (if equipped)

FAN

HI

LO

OFF

MIX

FLR

VENT

COOL

WARM

18

Controls and features

Fanspeedcontrol Controls the volume of air circulated in the vehicle.

FAN

HI

LO

Temperaturecontrolknob Controls the temperature of the airflow inside the vehicle. On heater-only systems, the air cannot be cooled below the outside temperature.

Modeselectorcontrol Controls the direction of the airflow to the inside of the vehicle.

COOL

WARM

OFF

MIX

FLR

VENT

floor ducts.

† VENT-Distributes outside air through the instrument panel registers. † FLR-Allows for maximum heating. Distributes outside air through the † OFF-Outside air is shut out and the fan will not operate. † MIX-Distributes outside air through the floor ducts and the windshield †

-Distributes outside air through the windshield defroster ducts.

defroster ducts.

It can be used to clear ice or fog from the windshield.

Operatingtips † In humid weather, select on your windshield. After a few minutes, select any desired position. † To prevent humidity buildup inside the vehicle, don’t drive with the † Don’t put objects under the front seat that will interfere with the

climate control system in the OFF position.

before driving. This will reduce fogging

airflow to the back seats.

19

Controls and features † Remove any snow, ice or leaves from the air intake area (at the bottom of the windshield under the hood).

† When placing objects on top of your instrument panel, be careful to not place them over the defroster outlets. These objects can block airflow and reduce your ability to see through your windshield. Also, avoid placing small objects on top of your instrument panel. These objects can fall down into the defroster outlets and block airflow and possibly damage your climate control system.

Do not place objects on top of the instrument panel, as these objects may become projectiles in a collision or sudden stop.

Manual heating and air conditioning system (if equipped)

FAN

HI

LO

OFF

VENT

NORM

A/C

MAX A/C

FLR

MIX

COOL

WARM

Fanspeedcontrol Controls the volume of air circulated in the vehicle.

FAN

HI

LO

20

Temperaturecontrolknob Controls the temperature of the airflow inside the vehicle.

Modeselectorcontrol Controls the direction of the airflow to the inside of the vehicle.

Controls and features

COOL

WARM

OFF

VENT

NORM

A/C

MAX A/C

FLR

MIX

The air conditioning compressor will operate in all modes except VENT and FLR. However, the air conditioning will only function if the outside temperature is about 10°C (50°F) or higher. Since the air conditioner removes considerable moisture from the air during operation, it is normal if clear water drips on the ground under the air conditioner drain while the system is working and even after you have stopped the vehicle. † MAX A/C-Uses recirculated air to cool the vehicle. MAX A/C is noisier than NORM A/C but more economical and will cool the inside of the vehicle faster. Airflow will be from the instrument panel registers. This mode can also be used to prevent undesirable odors from entering the vehicle. † NORM A/C-Uses outside air to cool the vehicle. It is quieter than MAX A/C but not as economical. Airflow will be from the instrument panel registers. † VENT-Distributes outside air through the instrument panel registers.

However, the air will not be cooled below the outside temperature because the air conditioning does not operate in this mode.

21

Controls and features † OFF-Outside air is shut out and the fan will not operate. For short

periods of time only, use this mode to prevent undesirable odors from entering the vehicle. † FLR-Allows for maximum heating by distributing outside air through the floor ducts. However, the air will not be cooled below the outside temperature because the air conditioning does not operate in this mode.

† MIX-Distributes outside air through the windshield defroster ducts and the floor ducts. Heating and air conditioning capabilities are provided in this mode. For added customer comfort, when the temperature control knob is anywhere in between the full hot and full cold positions, the air distributed through the floor ducts will be slightly warmer than the air sent to the windshield defroster ducts. If the temperature is about 10°C (50°F) or higher, the air conditioner will automatically dehumidify the air to reduce fogging.

-Distributes outside air through the windshield defroster ducts. It can be used to clear ice or fog from the windshield. If the temperature is about 10°C (50°F) or higher, the air conditioner will automatically dehumidify the air to reduce fogging.

† DEF

climate control system in the OFF or MAX A/C position.

Operatingtips † In humid weather, select before driving. This will reduce fogging on your windshield. After a few minutes, select any desired position. † To prevent humidity buildup inside the vehicle, do not drive with the † Do not put objects under the front seat that will interfere with the † Remove any snow, ice or leaves from the air intake area (at the bottom of the windshield).

airflow to the back seats.

† If your vehicle has been parked with the windows closed during hot weather, the air conditioner will do a much faster job of cooling if you

22

Controls and features

drive for two or three minutes with the windows open. This will force most of the hot, stale air out of the vehicle. Then operate your air conditioner as you would normally. † Do not place objects over the defroster outlets. These objects can block airflow and reduce your ability to see through your windshield. Also, avoid placing small objects on top of your instrument panel. These objects can fall down into the defroster outlets and block airflow and possibly damage your climate control system.

Do not place objects on top of the instrument panel, as these objects may become projectiles in a collision or sudden stop.

Auxiliary heater and air conditioner (if equipped) If your vehicle is equipped with a factory installed auxiliary unit, the main climate control panel will include separate controls for the front fan speed and the rear fan speed. In conjunction with the front fan speed control, an additional fan speed control is located overhead between the second and third row seating.

The fan speed of the auxiliary unit can be controlled either by the front seat using the front auxiliary control or by the rear seat passengers using the rear auxiliary control, but not both. To control the auxiliary unit using the rear control, the front control must be in the REAR position.

HI

REAR

LO

REAR CTRL OFF

OFF

HI

23

Controls and features

of the rear compartment.

overhead vents of the rear compartment.

overhead vents of the rear compartment.

Air temperature and air distribution are dependent upon the mode that is selected on the main climate control panel: † MAX A/C-Distributes recirculated air conditioning through the † NORM A/C-Distributes recirculated air conditioning through the † VENT-Distributes recirculated ambient air through the overhead vents † OFF-No air, cooled, ambient, or heated, is distributed through any † FLR-Distributes heated air through the floor vents of the rear † MIX-Distributes heated air through the floor vents of the rear †

(Defrost)-Distributes heated air through the floor vents of the

compartment.

compartment.

vents

rear compartment.

AUXILIARY POWER POINT The auxiliary power point is located on the instrument panel. Do not plug optional electrical accessories into the cigarette lighter. Use the power point.

24

Controls and features

USING YOUR AUDIO SYSTEM

AM/FM Stereo (with 2 speakers)

VOL PUSH ON

TONE

CLK

TONE VOL

ST DX FM

12

SEEK

TUNE

AM/FM

AM/FMStereo(with4speakersandfadecapability)

VOL PUSH ON

TONE

CLK

TONE VOL

ST DX FM

12

SEEK

TUNE

AM / FM STEREO

AM/FM

25

Controls and features

Volume/powercontrol Press the control to turn the audio system on or off.

Turn the control to raise or lower volume.

VOL PUSH ON

VOL PUSH ON

If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on. AM/FMselect The AM/FM select control works in radio mode.

AM/FM

AM/FMselectinradiomode This control allows you to select AM or FM frequency bands. Press the control to switch between AM, FM1 or FM2 memory preset stations. Tuneadjust The tune control works in radio mode. Tuneadjustinradiomode † Press

to move to the next

frequency down the band (whether or not a listenable

SEEK

TUNE

26

Controls and features

station is located there). Hold the control to move through the frequencies quickly.

to move to the next frequency up the band (whether or not

a listenable station is located there). Hold for quick movement.

† Press

Seekfunction The seek function control works in radio mode. Seekfunctioninradiomode † Press

to find the next listenable station down the frequency band.

† Press

to find the next

listenable station up the frequency band.

SEEK

TUNE

Radiostationmemorypreset The radio is equipped with four station memory preset controls. These controls can be used to select up to four preset AM stations and eight FM stations (four in FM1 and four in FM2). Settingmemorypresetstations 1. Select the frequency band with the AM/FM select control. 2. Select a station. Refer to Tune adjust or Seek function for more information on selecting a station. 3. Press and hold a memory preset control until the sound returns, indicating the station is held in memory on the control you selected.

Bassadjust The bass adjust control allows you to increase or decrease the audio system’s bass output. Press the TONE control once, then use the volume knob to adjust the desired level.

TONE

CLK

VOL PUSH ON

27

Controls and features

Trebleadjust The treble adjust control allows you to increase or decrease the audio system’s treble output. Press the TONE control twice, then use the volume knob to adjust the desired level.

Speakerbalanceadjust Speaker sound distribution can be adjusted between the right and left speakers. Press the TONE control three times, then use the volume knob to adjust the desired level.

Speakerfadeadjust(ifequipped) Speaker sound can be adjusted between the front and rear speakers. Press the TONE control four times, then use the volume knob to adjust the desired level.

Settingtheclock Press CLK to toggle between listening frequencies and clock mode.

TONE

CLK

TONE

CLK

TONE

CLK

VOL PUSH ON

VOL PUSH ON

VOL PUSH ON

TONE

CLK

28

Controls and features

To set the hour, press and hold the CLK control until CLOCK SET appears in the display and press the SEEK control: † †

to decrease hours and to increase hours.

To set the minute, press and hold the CLK control until CLOCK SET appears in the display and press the TUNE control:

SEEK

TUNE

SEEK

TUNE

TONE

CLK

SEEK

SEEK

TUNE

to decrease minutes and to increase minutes.

† † The CLK control will allow you to switch between media display mode (radio station, stereo information, etc.) and clock display mode (time). When in clock mode, the media information will display for ten seconds, when the radio is turned on, and then revert to clock information. Anytime that the media is changed, (new radio station, etc.), the media information will again display for ten seconds before reverting back to the clock. In media mode, the media information will always be displayed.

TUNE

29

Controls and features

AM/FM stereo cassette

VOL - PUSH ON

AM

FM

BASS

TREB

FM1

ST

SEEK

TUNE

SCAN

EJ

BAL

FADE

CLK

TAPE AMS

SIDE REW

1 - 2
FF

Volume/powercontrol Press the control to turn the audio system on or off.

VOL - PUSH ON

Turn the control to raise or lower volume.

VOL - PUSH ON

If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on.

30

AM/FMselect The AM/FM select control works in radio and tape modes.

Controls and features

AM

FM

AM/FMselectinradiomode This control allows you to select AM or FM frequency bands. Press the AM control to select from AM selections, and press the FM control to select from FM1 or FM2 memory preset stations. AM/FMselectintapemode Press this control to stop tape play and begin radio play. Tuneadjust The tune control works in radio mode. Tuneadjustinradiomode † Press

to move to the next

frequency down the band (whether or not a listenable station is located there). Hold the control to move through the frequencies quickly.

SEEK

TUNE

† Press

to move to the next frequency up the band (whether or not

a listenable station is located there). Hold for quick movement.

Seekfunction The seek function control works in radio mode. Seekfunctioninradiomode † Press

to find the next listenable station down the frequency band.

† Press

to find the next

listenable station up the frequency band.

SEEK

TUNE

31

Controls and features

Scanfunction The scan function works in radio mode.

SCAN

Scanfunctioninradiomode Press the SCAN control to hear a brief sampling of all listenable stations on the frequency band. Press the SCAN control again to stop the scan mode. Radiostationmemorypreset The radio is equipped with six station memory preset controls. These controls can be used to select up to six preset AM stations and twelve FM stations (six in FM1 and six in FM2). Settingmemorypresetstations 1. Select the frequency band with the AM or the FM select control. 2. Select a station. Refer to Tune adjust or Seek function for more information on selecting a station. 3. Press and hold a memory preset control until the sound returns, indicating the station is held in memory on the control you selected.

Bassadjust The bass adjust control allows you to increase or decrease the audio system’s bass output.

BASS

32

Trebleadjust The treble adjust control allows you to increase or decrease the audio system’s treble output.

Speakerbalanceadjust Speaker sound distribution can be adjusted between the right and left speakers.

Speakerfadeadjust Speaker sound can be adjusted between the front and rear speakers.

Tapeselect † To enter tape mode while in radio

mode, press the TAPE AMS control.

Controls and features

TREB

BAL

FADE

CLK

TAPE AMS

33

Controls and features

CLK

TAPE AMS

AutomaticMusicSearch The Automatic Music Search feature allows you to quickly locate the beginning of the tape selection being played or to skip to the next selection. To activate the feature, momentarily depress the TAPE AMS button. Then, press either REW (for the beginning of the current selection) or FF (to advance to the next selection). The tape deck stops and returns to play mode when the AMS circuit senses a blank section on the tape. In order to ensure proper operation of the AMS feature, the tape MUST have a blank section of at least four seconds duration between programs. Rewind The rewind control works in tape mode. To rewind in tape mode, press the REW control. Fastforward The fast forward control works in tape mode. † In the tape mode, tape direction will automatically reverse when the end of the tape is reached.

SIDE 1 - 2
REW FF

SIDE REW

1 - 2
FF

Tapedirectionselect Press SIDE and 1–2 at the same time to play the alternate side of a tape.

Ejectfunction Press the control to stop and eject a tape.

34

SIDE REW

1 - 2
FF

EJ

Controls and features

control to activate (and deactivate) Dolbyt noise

DolbyT noisereduction Dolbyt noise reduction operates only in tape mode. Dolbyt noise reduction reduces the amount of hiss and static during tape playback. Press the reduction. Dolbyt noise reduction is manufactured under license from Dolbyt Laboratories Licensing Corporation. “Dolbyt” and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation. Settingtheclock Press CLK to toggle between listening frequencies and clock mode while in radio mode. To set the hour, press and hold the CLK control and press the SEEK control:

CLK

TAPE AMS

† †

to decrease hours and to increase hours.

To set the minute, press and hold the CLK control and press the TUNE control:

SEEK

TUNE

SEEK

TUNE

CLK

TAPE AMS

35

Controls and features

† †

to decrease minutes and to increase minutes.

SEEK

TUNE

SEEK

TUNE

The CLK control will allow you to switch between media display mode (radio station, stereo information, etc.) and clock display mode (time). When in clock mode, the media information will display for 10 seconds, when the radio is turned on, and then revert to clock information. Anytime that the media is changed, (new radio station, etc.), the media information will again display for 10 seconds before reverting back to the clock. In media mode, the media information will always be displayed.

Premium AM/FM Stereo/Cassette (CD Changer Compatible)

VOL PUSH ON

BASS

TREB

SEL

BAL

FADE

CD

TAPE

EJ

RDS

MUTE

SEEK

TUNE

SCAN

AUTO

AM

FM

REW

FF

SIDE 1.2

COMP

SHUFF

Your audio system is equipped with selective lighting, a unique lighting strategy. This lighting feature is operable when the headlamps are illuminated. During the operation of any selected mode, lighting for the individual function controls will either illuminate or turn off. Those controls which have a function for the specific mode of operation

36

Controls and features

selected will be lit, while the controls which have no function for that mode will be turned off. Volume/powercontrol Press the control to turn the audio system on or off.

Turn the control to raise or lower volume.

VOL PUSH ON

VOL PUSH ON

If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on. Speedsensitivevolume(ifequipped) With this feature, radio volume changes automatically and slightly with vehicle speed to compensate for road and wind noise. The recommended level for speed sensitive volume is from level 1
through level 3. Level 0 turns the speed sensitive volume off and level 7
is the maximum setting. With the radio on, press and hold the volume control for five seconds, until the display reads SPEED VOL #, then press:

VOL PUSH ON

37

Controls and features

† †

to increase volume

compensation

to decrease or shut off the

volume compensation

AM/FMselect The AM/FM select control works in radio, tape and CD modes (if equipped).

(cid:83)(cid:69)(cid:76)

AM

FM

AM/FMselectinradiomode This control allows you to select AM or FM frequency bands. Press the control to switch between AM, FM1 or FM2 memory preset stations. AM/FMselectintapemode Press this control to stop tape play and begin radio play. AM/FMselectinCDmode Press this control to stop CD play and begin radio play. Tuneadjust The tune control works in radio or CD mode (if equipped). Tuneadjustinradiomode † Press

to move to the next

frequency down the band (whether or not a listenable station is located there). Hold the control to move through the frequencies quickly.

TUNE

† Press

to move to the next frequency up the band (whether or not

a listenable station is located there). Hold for quick movement.

TuneadjustforCDchanger † Press

to select the previous

disc in the CD changer. (Play will begin on the first track of the

TUNE

38

Controls and features

disc unless the CD changer is in shuffle mode.) Refer to Shuffle feature for more information. Hold the control to continue reversing through the discs.

to select the next disc in the CD changer. Hold the control

to fast-forward through the remaining discs.

† Press

Seekfunction The seek function control works in radio, tape or CD mode (if equipped). Seekfunctioninradiomode † Press

to find the next listenable station up the frequency band.

SEEK

SEEK

to find the next listenable station down the frequency band.

† Press Seekfunctionintapemode † Press

to listen to the previous selection on the tape or return to the beginning of the current selection.

† Press SeekfunctionforCDchanger † Press

to seek to the previous

track of the current disc. If a selection has been playing for three seconds or more and you press that selection from the beginning.

SEEK

, the CD changer will replay

† Press

to seek forward to the next track of the current disc. After the last track has been completed, the first track of the current disc will automatically replay.

Scanfunction The scan function works in radio, tape or CD mode (if equipped).

SCAN

39

to listen to the next selection on the tape.

Controls and features

Scanfunctioninradiomode Press the SCAN control to hear a brief sampling of all listenable stations on the frequency band. Press the SCAN control again to stop the scan mode. Scanfunctionintapemode Press the SCAN control to hear a short sampling of all selections on the tape. (The tape scans in a forward direction. At the end of the tape’s first side, direction automatically reverses to the opposite side of the tape.) To stop on a particular selection, press the control again. ScanfunctioninCDmode Press the SCAN control to hear a short sampling of all selections on the CD. (The CD scans in a forward direction, wrapping back to the first track at the end of the CD.) To stop on a particular selection, press the control again. Radiostationmemorypreset The radio is equipped with six station memory preset controls. These controls can be used to select up to six preset AM stations and twelve FM stations (six in FM1 and six in FM2). Settingmemorypresetstations 1. Select the frequency band with the AM/FM select control. 2. Select a station. Refer to Tune adjust or Seek function for more information on selecting a station. 3. Press and hold a memory preset control until the sound returns, indicating the station is held in memory on the control you selected.

REW

FF

SIDE 1.2

COMP

SHUFF

Autosetmemorypreset Autoset allows you to set strong radio stations without losing your original manually set preset stations. This feature is helpful on trips when you travel between cities with different radio stations.

40

Controls and features

AUTO

Startingautosetmemorypreset 1. Select a frequency using the AM/FM select controls. 2. Press the AUTO control. 3. When the first six strong stations are filled, the station stored in memory preset control 1 will start playing. If there are less than six strong stations available on the frequency band, the remaining memory preset controls will all store the last strong station available. To deactivate autoset and return to your audio system’s manually set memory stations, press the control again. Bassadjust The bass adjust control allows you to increase or decrease the audio system’s bass output. Press the BASS control. Use the SEL control to increase or decrease the amount of bass.

BASS

TREB

SEL

Trebleadjust The treble adjust control allows you to increase or decrease the audio system’s treble output. Press the TREB control. Use the SEL control to increase or decrease the amount of treble.

Speakerbalanceadjust Speaker sound distribution can be adjusted between the right and left speakers. Press the BAL control. Use the SEL control to adjust the sound between the speakers.

BASS

TREB

BAL

FADE

SEL

SEL

41

Controls and features

BAL

Speakerfadeadjust Speaker sound can be adjusted between the front and rear speakers. Press the FADE control. Use the SEL control to adjust the sound between the front and rear speakers. Tape/CDselect † To begin tape play (with a tape loaded into the audio system) while in the radio or CD mode, press the TAPE control. Press the button during rewind or fast forward to stop the rewind or fast forward function.

TAPE

FADE

CD

SEL

† To begin CD play (if equipped with CD changer), ensure that the CDs are loaded. Press the CD control. The first track of the disc will begin playing. After that, CD play will begin where it stopped last.

TAPE

CD

Rewind The rewind control works in tape and CD modes. † In tape mode, radio play will

continue until rewind is stopped (with the TAPE control) or the beginning of the tape is reached.

REW

† In CD mode, pressing the REW control for less than three seconds

results in slow rewind. Pressing the control for more than three seconds results in fast rewind.

Fastforward The fast forward control works in tape and CD modes (if equipped). † In the tape mode, tape direction will automatically reverse when the end of the tape is reached.

42

FF

Controls and features † In CD mode, pressing the control for less than three seconds results in slow forward action. Pressing the control for more than three seconds results in fast forward action.

Tapedirectionselect Press SIDE 1–2 to play the alternate side of a tape.

Ejectfunction Press the control to stop and eject a tape.

SIDE 1-2

EJ

control to activate

DolbyT noisereduction Dolbyt noise reduction operates only in tape mode. Dolbyt noise reduction reduces the amount of hiss and static during tape playback. Press the (and deactivate) Dolbyt noise reduction. The Dolbyt noise reduction system is manufactured under license from Dolby Laboratories Licensing Corporation. Dolbyt and the double-D symbol are trademarks of Dolbyt Labratories Licensing Corporation. Compressionfeature Compression adjust brings soft and loud CD passages together for a more consistent listening level. Press the COMP control to activate and deactivate compression adjust. The effect of the feature varies with the music content. Shufflefeature The shuffle feature operates in CD mode and plays all tracks on the current disc in random order. If equipped with the CD changer, the

SHUFF

COMP

43

Controls and features

shuffle feature continues to the next disc after all tracks are played. Press the SHUFFLE control to start this feature. Random order play will continue until the SHUFFLE control is pressed again. Radiodatasystem(RDS)feature This feature allows your audio system to receive station identification or program type from RDS-equipped FM radio stations. The Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission (CRTC) recommend FM radio broadcasters to use RDS technology to transmit information. FM radio stations are independently operated and individually elect to use RDS technology to transmit station ID and program type as desired. Press and hold the control for five seconds to turn the feature on or off. Press the control to scroll through the following selections: Traffic † Press the RDS control until

RDS

TRAFFIC is displayed.

RDS

† Use the SEL control to select ON or OFF. With the feature on, use the SEEK or SCAN control to find a radio station broadcasting a traffic report (if it is broadcasting RDS data).

(cid:83)(cid:69)(cid:76)

Traffic information is not available in most U.S. markets. Programtype † Press the RDS control until the FIND program type is displayed. † Use the SEL control to select the

RDS
