2010 Chrysler 300 SRT8 Owners Manual

2 0 1 0
O W N E R ’ S M A N U A L

300

S R T

SECTION

TABLE OF CONTENTS

PAGE

INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

UNDERSTANDING THE FEATURES OF YOUR VEHICLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

UNDERSTANDING YOUR INSTRUMENT PANEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183

STARTING AND OPERATING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 271

WHAT TO DO IN EMERGENCIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 343

MAINTAINING YOUR VEHICLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 363

MAINTENANCE SCHEDULES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 415

IF YOU NEED CONSUMER ASSISTANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 433

10

INDEX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 443

10

INTRODUCTION

CONTENTS

䡵 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
䡵 How To Use This Manual . . . . . . . . . . . . . . . . . . 4
䡵 Warnings And Cautions . . . . . . . . . . . . . . . . . . . 6

䡵 Vehicle Identification Number . . . . . . . . . . . . . . 6
䡵 Vehicle Modifications/Alterations . . . . . . . . . . . . 7

4 INTRODUCTION INTRODUCTION Congratulations on selecting your new Chrysler Group LLC vehicle. Be assured that it represents precision workmanship, distinctive styling, and high quality - all essentials that are traditional to our vehicles. This Owner’s Manual has been prepared with the assis- tance of service and engineering specialists to acquaint you with the operation and maintenance of your vehicle. It is supplemented by a Warranty Information Booklet, located on the DVD, and various customer-oriented documents. Please take the time to read these publica- tions carefully. Following the instructions and recom- mendations in this manual will help assure safe and enjoyable operation of your vehicle. NOTE: After you read the manual, it should be stored in the vehicle for convenient referencing and remain with the vehicle when sold, so that the new owner will be aware of all safety warnings.

When it comes to service, remember that your authorized dealer knows your vehicle best, has factory-trained tech- nicians and genuine MOPAR威 parts, and cares about your satisfaction.

HOW TO USE THIS MANUAL Consult the Table of Contents to determine which section contains the information you desire. Since the specification of your vehicle depends on the items of equipment ordered, certain descriptions and illustrations may differ from your vehicle’s equipment The detailed index at the back of this Owner’s Manual contains a complete listing of all subjects. Consult the following table for a description of the symbols that may be used on your vehicle or throughout this Owner’s Manual:

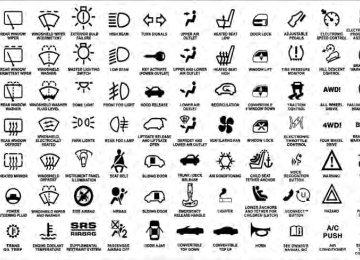

INTRODUCTION 5

6 INTRODUCTION WARNINGS AND CAUTIONS This Owner’s Manual contains WARNINGS against op- erating procedures that could result in an accident or bodily injury. It also contains CAUTIONS against proce- dures that could result in damage to your vehicle. If you do not read this entire manual, you may miss important information. Observe all Warnings and Cautions.

VEHICLE IDENTIFICATION NUMBER The Vehicle Identification Number (VIN) is on the left front corner of the instrument panel. The VIN is visible from outside of the vehicle through the windshield. This number also appears on the Automobile Information Disclosure Label affixed to a window on your vehicle, the vehicle registration, and the title.

NOTE:

It is illegal to remove or alter the VIN.

VIN Location

VEHICLE MODIFICATIONS/ALTERATIONS

WARNING!

Any modifications or alterations to this vehicle could seriously affect its roadworthiness and safety and may lead to an accident resulting in serious injury or death.

INTRODUCTION 7

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

CONTENTS

䡵 A Word About Your Keys . . . . . . . . . . . . . . . . . 12
▫ Wireless Ignition Node (WIN) . . . . . . . . . . . . 12
▫ Key FOB . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
▫ Removing Key FOB From Ignition . . . . . . . . . 14
▫ Key-In-Ignition Reminder . . . . . . . . . . . . . . . 15
䡵 Sentry Key威 . . . . . . . . . . . . . . . . . . . . . . . . . . 15
▫ Replacement Keys . . . . . . . . . . . . . . . . . . . . . 16
▫ Customer Key Programming . . . . . . . . . . . . . 17
▫ General Information . . . . . . . . . . . . . . . . . . . 17

䡵 Vehicle Security Alarm — If Equipped . . . . . . . . 17
▫ Rearming Of The System . . . . . . . . . . . . . . . . 17
▫ To Arm The System . . . . . . . . . . . . . . . . . . . 17
▫ To Disarm The System . . . . . . . . . . . . . . . . . 18
䡵 Illuminated Entry — If Equipped . . . . . . . . . . . 19
䡵 Remote Keyless Entry (RKE) . . . . . . . . . . . . . . 20
▫ To Unlock The Doors . . . . . . . . . . . . . . . . . . 20
▫ To Lock The Doors . . . . . . . . . . . . . . . . . . . . 21
▫ To Unlatch The Trunk . . . . . . . . . . . . . . . . . . 22

10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

▫ How To Use Remote Start

▫ Using The Panic Alarm . . . . . . . . . . . . . . . . . 22
▫ Programming Additional Transmitters . . . . . . 23
▫ Transmitter Battery Replacement . . . . . . . . . . 23
▫ General Information . . . . . . . . . . . . . . . . . . . 24
䡵 Remote Starting System — If Equipped . . . . . . . 24
. . . . . . . . . . . . . . . 25
䡵 Door Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
▫ Manual Door Locks . . . . . . . . . . . . . . . . . . . 27
▫ Power Door Locks . . . . . . . . . . . . . . . . . . . . 28
▫ Passive Entry System — If Equipped . . . . . . . 32
▫ Child Protection Door Lock . . . . . . . . . . . . . . 34
. . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
▫ Power Windows . . . . . . . . . . . . . . . . . . . . . . 37

䡵 Windows

▫ Wind Buffeting . . . . . . . . . . . . . . . . . . . . . . . 40
䡵 Trunk Lock And Release . . . . . . . . . . . . . . . . . 40
䡵 Trunk Safety Warning . . . . . . . . . . . . . . . . . . . 41
▫ Trunk Emergency Release . . . . . . . . . . . . . . . 42
䡵 Occupant Restraints . . . . . . . . . . . . . . . . . . . . . 42
▫ Lap/Shoulder Belts . . . . . . . . . . . . . . . . . . . . 44
▫ Lap/Shoulder Belt Untwisting Procedure . . . . 49
▫ Automatic Locking Retractors (ALR) Mode

— If Equipped . . . . . . . . . . . . . . . . . . . . . . . 50
▫ Seat Belt Pretensioners — If Equipped . . . . . . 50
▫ Enhanced Seat Belt Use Reminder System

(BeltAlert威)

. . . . . . . . . . . . . . . . . . . . . . . . . 51
▫ Seat Belts And Pregnant Women . . . . . . . . . . 53
▫ Seat Belt Extender . . . . . . . . . . . . . . . . . . . . . 53

▫ Supplemental Restraint System (SRS) —

Airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
▫ Airbag Deployment Sensors And Controls . . . 60
▫ Event Data Recorder (EDR) . . . . . . . . . . . . . . 67
▫ Child Restraints . . . . . . . . . . . . . . . . . . . . . . 69
䡵 Engine Break-In Recommendations . . . . . . . . . . 78
䡵 Safety Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11
▫ Transporting Passengers . . . . . . . . . . . . . . . . 79
▫ Exhaust Gas . . . . . . . . . . . . . . . . . . . . . . . . . 80
▫ Safety Checks You Should Make Inside The

Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

▫ Periodic Safety Checks You Should Make

Outside The Vehicle . . . . . . . . . . . . . . . . . . . 83

12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE A WORD ABOUT YOUR KEYS Your vehicle uses a keyless ignition system. This system consists of a Key Fob with Remote Keyless Entry (RKE) transmitter and a Wireless Ignition Node (WIN) with integral ignition switch. You can insert the Key Fob into the ignition switch with either side up. Keyless Go Feature This vehicle may be equipped with the Keyless Go feature, refer to “Starting Procedures” in “Starting And Operating” for further information. Wireless Ignition Node (WIN) The Wireless Ignition Node (WIN) operates similar to an ignition switch. It has four operating positions, three with detents and one that is spring-loaded. The detent posi- tions are OFF, ACC, and RUN. The START position is a spring-loaded momentary contact position. When re- leased from the START position, the switch automatically returns to the RUN position.

NOTE: With Keyless Go, the Electronic Vehicle Infor- mation Center (EVIC) will display the ignition switch position (OFF/ACC/RUN). Refer to “Electronic Vehicle Information Center (EVIC)” in “Understanding Your Instrument Panel” for further information.

Wireless Ignition Node (WIN)

1 — LOCK 3 — RUN

2 — ACC (ACCESSORY) 4 — START

Key Fob The Key Fob operates the ignition switch. It also contains the Remote Keyless Entry (RKE) transmitter and an emergency key, which stores in the rear of the Key Fob. If your vehicle is equipped with Passive Entry/ NOTE: Keyless Go (PEKG), the Key Fob will also contain a special receiver that communicates with the vehicle. Passive Entry/Keyless Go Key Fobs can only be used with Passive Entry/Keyless Go equipped vehicles. Non- Passive Entry/Keyless Go Key Fobs can only be used with Non-Passive Entry/Keyless Go vehicles. The emergency key allows for entry into the vehicle should the battery in the vehicle or the RKE transmitter go dead. The emergency key is also for locking the glove box. You can keep the emergency key with you when valet parking.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13
To remove the emergency key, slide the mechanical latch at the top of the Key Fob sideways with your thumb and then pull the key out with your other hand.

Emergency Key Removal

NOTE: You can insert the double-sided emergency key into the lock cylinders with either side up.

14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Removing Key Fob From Ignition Place the shift lever in PARK. Turn the Key Fob to the OFF position and then remove the Key Fob. With the Passive Entry/Keyless Go system, the EVIC will display the ignition switch position “OFF/ACC/RUN”. Refer to “Electronic Vehicle Information Center (EVIC)” in “Understanding Your Instrument Panel” for further information. NOTE: • For vehicles not equipped with the Electronic Vehicle Information Center the power window switches, radio, power sunroof (if equipped), and power outlets will remain active for 10 minutes after the ignition switch is placed in the OFF position. Opening either front door will cancel this feature. • For vehicles equipped with the EVIC, the power window switches, radio, power sunroof (if equipped),

(EVIC),

and power outlets will remain active for up to 60 min- utes after the ignition switch is placed in the OFF position. Opening either front door will cancel this feature. The time for this feature is programmable. Refer to “Electronic Vehicle Information Center (EVIC)/Personal Settings (Customer-Programmable Features)” in “Understanding Your Instrument Panel” for further information.

WARNING!

Never leave children alone in a vehicle. Leaving unattended children in a vehicle is dangerous for a number of reasons. A child or others could be seri- ously or fatally injured. Do not leave the Key Fob in the ignition or a vehicle equipped with Keyless Go in the ACC or RUN mode. A child could operate power windows, other controls, or move the vehicle.

CAUTION!

An unlocked car is an invitation to thieves. Always remove the Key Fob from the ignition and lock all doors when leaving the vehicle unattended.

Key-In-Ignition Reminder Opening the driver’s door when the Key Fob is in the ignition and the ignition switch position is OFF or ACC, sounds a signal to remind you to remove the Key Fob. The Key-In-Ignition reminder only sounds NOTE: when the ignition Key Fob is placed in the OFF or ACC position. With Keyless Go, opening the driver’s door when the vehicle’s ignition switch is placed in ACC or RUN (engine stopped) will cause the reminder chime to sound. Refer to “Starting Procedures” in “Starting And Operat- ing” for further information.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15

SENTRY KEY姞 The Sentry Key威 Immobilizer System prevents unautho- rized vehicle operation by disabling the engine. The system does not need to be armed or activated. Operation is automatic, regardless of whether the vehicle is locked or unlocked. The system uses Key Fob with factory-mated Remote Keyless Entry (RKE) transmitter and Wireless Ignition Node (WIN) to prevent unauthorized vehicle operation. Therefore, only Key Fobs that are programmed to the vehicle can be used to start and operate the vehicle. The system will not allow the engine to crank if an invalid Key Fob is used to start and operate the vehicle. After placing the ignition switch in the RUN position, the Vehicle Security Light will turn on for three seconds for a bulb check. If the light remains on after the bulb check, it indicates that there is a problem with the electronics. This condition will result in the engine being shut off after two seconds.

16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE If the Vehicle Security Light turns on during normal vehicle operation (vehicle running for longer than 10 sec- onds), it indicates that there is a fault in the electronics. Should this occur, have the vehicle serviced as soon as possible by an authorized dealer. NOTE: The Sentry Key威 Immobilizer System is not compatible with aftermarket remote starting systems. Use of these systems may result in vehicle starting problems and loss of security protection. All of the Key Fobs provided with your new vehicle have been programmed to the vehicle electronics. Replacement Keys

NOTE: Only Key Fobs that are programmed to the vehicle electronics can be used to start and operate the vehicle. Once a Key Fob is programmed to a vehicle, it cannot be programmed to any other vehicle.

CAUTION!

• Always remove the Key Fobs from the vehicle and lock all doors when leaving the vehicle unat- tended. • For vehicles equipped with Keyless Go, always

remember to place the ignition in OFF.

At the time of purchase, the original owner is provided with a four-digit Personal Identification Number (PIN). Keep the PIN in a secure location. This number is required for authorized dealer replacement of Key Fobs. Duplication of Key Fobs may be performed at an autho- rized dealer, this procedure consists of programming a blank Key Fob to the vehicle electronics. A blank Key Fob is one that has never been programmed. NOTE: When having the Sentry Key威 Immobilizer System serviced, bring all vehicle Key Fobs with you to the authorized dealer.

Customer Key Programming Programming Key Fobs or RKE transmitters may be performed at an authorized dealer. General Information The Sentry Key威 system complies with FCC rules Part 15
and with RSS-210 of Industry Canada. Operation is subject to the following conditions: • This device may not cause harmful interference. • This device must accept any interference that may be received, including interference that may cause undes- ired operation.

VEHICLE SECURITY ALARM — IF EQUIPPED The Vehicle Security Alarm monitors the vehicle doors for unauthorized entry and the ignition switch (and Keyless Go Start/Stop button) for unauthorized opera- tion. If something triggers the alarm, the Vehicle Security Alarm will prevent the vehicle from starting and provide

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17
the following audible and visible signals: the horn will pulse, the headlights, park lamps and/or turn signals will flash, and the Vehicle Security Light in the instru- ment cluster will flash. Rearming of the System If something triggers the alarm, and no action is taken to disarm it, the Vehicle Security Alarm will turn the horn off after three minutes, turn all of the visual signals off after 15 minutes, and then the Vehicle Security Alarm will rearm itself. To Arm the System

Vehicles Not Equipped with Keyless Go Remove the key from the ignition switch and either press a power door LOCK switch while the driver or passenger door is open or press the LOCK button on the Remote Keyless Entry (RKE) transmitter. After the last door is closed, or if all doors are closed, the Vehicle Security Alarm will arm itself in about 16 seconds. During that

18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE time, the Vehicle Security Light will flash. If it does not illuminate, the Vehicle Security Alarm is not arming. In addition, if you open a door during the arming period, the Vehicle Security Alarm will cancel the arming pro- cess. If you wish to rearm the Vehicle Security Alarm after closing the door, you must repeat one of the previously- described arming sequences. Vehicles Equipped with Keyless Go Press the Keyless Go Start/Stop button until the Elec- tronic Vehicle Information Center (EVIC) indicates that the vehicle ignition is ⬙OFF⬙ (refer to “Starting Proce- dures” in “Starting And Operating” for further informa- tion). Then either press the power door LOCK switch while the driver or passenger door is open, press the Remote Keyless Entry (RKE) transmitter LOCK button or press the Passive Entry Door Handle LOCK button (refer to “Door Locks” in “Things To Know Before Starting” for further information).

To Disarm the System

Vehicles Not Equipped with Keyless Go Either press the UNLOCK button on the RKE transmitter or insert a valid ignition key into the ignition switch and turn the key to the ON position. NOTE: • The driver’s door key cylinder and the trunk button on the RKE transmitter cannot arm or disarm the Vehicle Security Alarm. • The Vehicle Security Alarm remains armed during trunk entry. Pressing the TRUNK button will not disarm the Vehicle Security Alarm. If someone enters the vehicle through the trunk, and opens any door, the alarm will sound. • When the Vehicle Security Alarm is armed, the interior power door lock switches will not unlock the doors.

The Vehicle Security Alarm is designed to protect your vehicle; however, you can create conditions where the Vehicle Security Alarm will give you a false alarm. If one of the previously-described arming sequences has oc- curred, the Vehicle Security Alarm will arm regardless of whether you are in the vehicle or not. If you remain in the vehicle and open a door, the alarm will sound. If this occurs, disarm the Vehicle Security Alarm. If the Vehicle Security Alarm is armed and the battery becomes disconnected the Vehicle Security Alarm will remain armed when the battery is reconnected. The exterior lights will flash, the horn will sound, and the ignition will not start the vehicle. If this occurs, disarm the Vehicle Security Alarm. Vehicles Equipped with Keyless Go Either press the UNLOCK button on the RKE transmitter or grasp the Passive Entry Unlock Door Handle (refer to “Door Locks” in “Things To Know Before Starting” for

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19
further information), press the Keyless Go Start/Stop button (requires at least one valid Key Fob in the vehicle), or insert a valid Key Fob into the ignition switch (if the Start/Stop button is removed) and rotate it to the RUN position. Tamper Alert If something has triggered the Vehicle Security Alarm in your absence, the horn will sound three times when you disarm the Vehicle Security Alarm. Check the vehicle for tampering.

ILLUMINATED ENTRY — IF EQUIPPED The courtesy lights will turn on when you use the Remote Keyless Entry (RKE) transmitter or unlock any door. The lights will fade to off after approximately 30 seconds or they will immediately fade to off once the ignition switch is turned ON from the LOCK position.

20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE NOTE: None of the courtesy lights will operate if the dimmer control is in the “defeat” position (extreme downward position), unless the overhead map/reading lights are turned on manually.

REMOTE KEYLESS ENTRY (RKE) The RKE system allows you to lock or unlock the doors, open the trunk, or activate the Panic Alarm from dis- tances up to approximately 66 ft (20 m) using a hand-held Key Fob with RKE transmitter. The RKE transmitter does not need to be pointed at the vehicle to activate the system. Inserting the Key Fob with RKE transmitter into NOTE: the ignition switch disables all buttons on that RKE transmitter; however, the buttons on the remaining RKE transmitters will continue to work. Driving at speeds 5 mph (8 km/h) and above disables all RKE transmitter buttons for all RKE transmitters.

Key Fob with RKE Transmitter

To Unlock the Doors Press and release the UNLOCK button on the RKE transmitter once to unlock the driver’s door or twice within five seconds to unlock all doors. The turn signal lights will flash to acknowledge the unlock signal. The illuminated entry system will also turn on.

If your vehicle is equipped with Passive Entry, refer to “Passive Entry System — If Equipped” under “Door Locks” for further information. Remote Key Unlock, Driver Door/All Doors 1st Press This feature lets you program the system to unlock either the driver’s door or all doors on the first press of the UNLOCK button on the RKE transmitter. Refer to “Elec- tronic Vehicle Information Center (EVIC)/Personal Set- tings (Customer-Programmable Features)” in “Under- standing Your Instrument Panel” for further information. Flash Lights with Remote Key Lock This feature will cause the turn signal lights to flash when the doors are locked with the RKE transmitter. When this feature is turned on and the vehicle is equipped with the Passive Entry system, using the Passive Entry system to LOCK the vehicle will cause the parking lights to flash. This feature can be turned on or turned off. Refer to

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 21
“Electronic Vehicle Information Center (EVIC)/Personal Settings (Customer-Programmable Features)” in “Under- standing Your Instrument Panel” for further information. Turn Headlights On with Remote Key Unlock This feature activates the headlights for up to 90 seconds when the doors are unlocked with the RKE transmitter. When this feature is turned on and the vehicle is equipped with the Passive Entry system, using the Pas- sive Entry system to UNLOCK the vehicle will cause the parking lights to flash. The time for this feature is programmable. Refer to “Electronic Vehicle Information Center (Customer- Programmable Features)” in “Understanding Your In- strument Panel” for further information. To Lock the Doors Press and release the LOCK button on the RKE transmit- ter to lock all doors. The turn signal lights will flash and the horn will chirp to acknowledge the signal.

(EVIC)/Personal

Settings

22 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE If the vehicle is equipped with Passive Entry, refer to “Passive Entry System — If Equipped” under “Door Locks” for further information. Sound Horn with Remote Key Lock This feature will cause the horn to chirp when the doors are locked with the RKE transmitter, or locked using the Passive Entry door handle lock button. This feature can be turned on or turned off. Refer to “Electronic Vehicle Information Center (EVIC)/Personal Settings (Customer- Programmable Features)” in “Understanding Your In- strument Panel” for further information. To Unlatch the Trunk Press the TRUNK button on the RKE transmitter two times within five seconds to unlatch the trunk. Refer to “Passive Entry System — If Equipped” under “Door Locks” for further information

Using the Panic Alarm To turn the Panic Alarm feature on or off, press and hold the PANIC button on the RKE transmitter for at least one second and release. When the Panic Alarm is on, the headlights and park lights will flash, the horn will pulse on and off, and the interior lights will turn on. The Panic Alarm will stay on for three minutes unless you turn it off by either pressing the PANIC button a second time or drive the vehicle at a speed of 15 mph (24 km/h) or greater. NOTE: • The interior lights will turn off if you turn the ignition switch to the ACC or ON position while the Panic Alarm is activated. However, the exterior lights and horn will remain on.

• You may need to be less than 35 ft (11 m) from the vehicle when using the transmitter to turn off the Panic Alarm due to the radio frequency noises emitted by the system.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 23
1. Battery access is through a door located on the rear of the Key Fob. Insert a small, flat blade screwdriver into the slot and gently pry open the access door.

Programming Additional Transmitters Programming Key Fobs or RKE transmitters may be performed at an authorized dealer. Transmitter Battery Replacement The recommended replacement battery is one CR2032
battery. NOTE: • Perchlorate Material — special handling may apply. • Do not touch the battery terminals that are on the back

See www.dtsc.ca.gov/hazardouswaste/perchlorate

housing or the printed circuit board.

Battery Replacement

1— Battery Access Door

24 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 2. Remove and replace the battery. Avoid touching the new battery with your fingers. Skin oils may cause battery deterioration. If you touch a battery, clean it with rubbing alcohol. 3. Reposition the access door panel over the battery opening and snap into place. General Information This device complies with Part 15 of the FCC rules and RSS 210 of Industry Canada. Operation is subject to the following conditions: • This device may not cause harmful interference. • This device must accept any interference received, including interference that may cause undesired operation.

NOTE: Changes or modifications not expressly ap- proved by the party responsible for compliance could void the user’s authority to operate the equipment.

If your RKE transmitter fails to operate from a normal distance, check for these two conditions: 1. A weak battery in the transmitter. The expected life of the battery is a minimum of three years. 2. Closeness to a radio transmitter such as a radio station tower, airport transmitter, and some mobile or CB radios.

REMOTE STARTING SYSTEM — IF EQUIPPED

This system uses the Key Fob Remote Keyless Entry (RKE) transmitter to start the engine conveniently from outside the vehicle while still maintaining security. The system has a

range of approximately 300 ft (91 m). NOTE: • The vehicle must be equipped with an automatic • Obstructions between the vehicle and the Key Fob

transmission to be equipped with Remote Start.

may reduce this range.

How to Use Remote Start All of the following conditions must be met before the engine will remote start: • Shift lever in PARK • Doors closed • Hood closed • Trunk closed • Hazard switch off • Brake switch inactive (brake pedal not pressed) • Ignition key removed from ignition switch • Battery at an acceptable charge level • RKE PANIC button not pressed

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 25
NOTE: With Keyless Go, the remote start feature will operate with the Start/Stop button installed in the igni- tion switch.

WARNING!

• Do not start or run an engine in a closed garage or confined area. Exhaust gas contains Carbon Mon- oxide (CO) which is odorless and colorless. Car- bon Monoxide is poisonous and can cause serious injury or death when inhaled. • Keep Remote Keyless Entry (RKE) transmitters away from children. Operation of the Remote Start System, windows, door locks or other controls could cause serious injury or death.

26 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE To Enter Remote Start Mode

Remote Start mode.

Press and release the REMOTE START button on the RKE transmitter twice, within five sec- onds. The parking lights will flash and the horn will chirp twice (if programmed). Then, the engine will start and the vehicle will remain in the Remote Start mode for a 15-minute cycle. NOTE: • The park lamps will turn on and remain on during • For security, power window and power sunroof op- eration (if equipped) are disabled when the vehicle is in the Remote Start mode. • The engine can be started two consecutive times (two 15-minute cycles) with the RKE transmitter. However, the ignition switch must be cycled to the RUN position before you can repeat the start sequence for a third cycle.

To Exit Remote Start Mode without Driving the Vehicle Press and release the REMOTE START button one time, or allow the engine to run for the entire 15-minute cycle. NOTE: To avoid unintentional shut downs, the system will disable the one time press of the REMOTE START button for two seconds after receiving a valid Remote Start request. To Exit Remote Start Mode and Drive the Vehicle Before the end of the 15-minute cycle, press and release the UNLOCK button on the RKE transmitter to unlock the doors and disarm the Vehicle Security Alarm (if equipped). Then, prior to the end of the 15-minute cycle, insert the Key Fob into the ignition switch and turn the switch to the RUN position.

With Passive Entry Use the Passive Entry feature to unlock the vehicle, press the Start/Stop button one time if the Keyless Go Start/ Stop button is installed in the ignition switch, otherwise, insert the Key Fob into the ignition switch and turn to the RUN position. Refer to the “Passive Entry System” under “Door Locks” for more information. NOTE: • For vehicles not equipped with Keyless Go feature, the ignition switch must be in the ON position in order to drive the vehicle. • For vehicles not equipped with Keyless Go feature, the message “Insert Key/Turn To On” will display in the EVIC until you insert the Key Fob. Once inserted, the message “Turn To On” will display in the EVIC until you turn the Key Fob to ON. • For vehicles equipped with Keyless Go feature, the message “Push Button/Insert Key” will display in the EVIC until you push the START button.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 27

DOOR LOCKS

Manual Door Locks To lock each door, push the door lock plunger on each door trim panel downward. To unlock each door, pull the door lock plunger on each door trim panel upward.

Door Lock Plunger

28 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE If the door lock plunger is down when you shut the door, the door will lock. Make sure the key is not inside the vehicle before closing the door.

WARNING!

• For personal security and safety in the event of an accident, lock the vehicle doors before you drive as well as when you park and leave the vehicle. • When leaving the vehicle, always remove the key from the ignition and lock your vehicle. Unsuper- vised use of vehicle equipment may cause severe personal injuries and death.

(Continued)

WARNING! (Continued)

• Never leave children alone in a vehicle. Leaving unattended children in a vehicle is dangerous for a number of reasons. A child or others could be seriously or fatally injured. Don’t leave the key in the ignition or leave a vehicle with Keyless Go in the ACC or RUN position. A child could operate power windows, other controls, or move the vehicle.

Power Door Locks A power door lock switch is on each front door trim panel. Use this switch to lock or unlock the doors.

2

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 29
the locks to operate. If a door is open, the Key Fob is in the ignition OFF or ACC position, a chime will sound as a reminder to remove the Key Fob. If your vehicle is equipped with Keyless Go, opening the driver’s door when the vehicle’s ignition switch is placed in ACC or RUN (engine stopped) will cause the reminder chime to sound. Refer to “Starting Procedures” in “Start- ing And Operating” for further details. Automatic Door Locks The doors will lock automatically on vehicles with power door locks if all of the following conditions are met: 1. The Automatic Door Locks feature is enabled. 2. The transmission is in gear. 3. All doors are closed. 4. The throttle is pressed. 5. The vehicle speed is above 15 mph (24 km/h).

Power Door Lock Switch

If you press the power door lock switch while the Key Fob is in the ignition, ACC or RUN position and any front door is open, the power locks will not operate. This prevents you from accidentally locking the Key Fob in the vehicle. Removing the Key Fob, returning the ignition mode to the OFF position, or closing the door will allow

30 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 6. The doors were not previously locked using the power door lock switch or Remote Keyless Entry (RKE) transmitter. Automatic Door Locks Programming The Automatic Door Locks feature can be enabled or disabled as follows: • For vehicles equipped with the Electronic Vehicle Information Center (EVIC), refer to “Electronic Vehicle Information Settings (Customer-Programmable Features)” in “Understand- ing Your Instrument Panel” for further information. • For vehicles not equipped with the EVIC, perform the

(EVIC)/Personal

Center

following procedure:

1. Close all doors and place the Key Fob in the ignition switch.

2. Cycle the ignition switch between OFF and RUN and then back to OFF four times ending up in the OFF position (do not start engine). 3. Press the power door LOCK switch to lock the doors. 4. A single chime will indicate the completion of the programming. 5. Cycle the ignition after performing steps one to four for the feature to be enabled or disabled. 6. Repeat these steps if you want to return this feature to its previous setting. NOTE: Use the Automatic Door Locks feature in accor- dance with local laws. Automatic Unlock Doors on Exit The doors will unlock automatically on vehicles with power door locks if:

1. The Automatic Unlock Doors On Exit feature is en- abled. 2. The transmission was in gear and the vehicle speed returned to 0 mph (0 km/h). 3. The transmission is in NEUTRAL or PARK. 4. The driver door is opened. 5. The doors were not previously unlocked. 6. The vehicle speed is 0 mph (0 km/h). Automatic Unlock Doors on Exit Programming The Automatic Unlock Doors On Exit feature can be enabled or disabled as follows: • For vehicles equipped with the EVIC, refer to “Elec- tronic Vehicle Information Center (EVIC)/Personal Settings (Customer-Programmable Features)” in “Un- derstanding Your Instrument Panel” for further infor- mation.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 31

• For vehicles not equipped with the EVIC, perform the

following procedure:

1. Close all doors and place the Key Fob in the ignition. 2. Cycle the ignition switch between OFF and RUN and then back to OFF four times ending up in the OFF position (do not start engine). 3. Press the power door UNLOCK switch to unlock the doors. 4. A single chime will indicate the completion of the programming. 5. Repeat these steps if you want to return this feature to its previous setting. NOTE: Use the Automatic Unlock Doors On Exit feature in accordance with local laws.

32 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Passive Entry System — If Equipped The Passive Entry system is an enhancement to the vehicle’s Remote Keyless Entry (RKE) system. This fea- ture allows you to lock and unlock the vehicle’s door(s) without having to press the RKE transmitter lock or unlock buttons. NOTE: • Passive Entry may be programmed ON/OFF, refer to Information Center (EVIC)/ “Electronic Vehicle Personal (Customer-Programmable Fea- tures)” in “Understanding Your Instrument Panel” for further information. • If a passive entry door handle has not been used for 72 hours the passive entry feature for that handle may time out. Also, if it has been raining on a passive entry door handle for 24 hours, that door handle’s passive entry feature may be deactivated. Pulling the deacti- vated front door handle will reactivate that door handle’s passive entry feature.

Settings

• If wearing hand gloves, the Passive Entry door handle unlock sensitivity can be affected, resulting in a slower response time.

To Unlock From The Driver’s Side: With a valid Passive Entry RKE transmitter within 5 ft (1.5 m) of the driver’s side of the vehicle, grab the front driver door handle to unlock the driver’s door automati- cally. If “Unlock All Doors 1st Press” is programmed NOTE: all doors will unlock when you grab hold of the front driver’s door handle. To select between “Unlock Driver Door 1st Press” and “Unlock All Doors 1st Press”, refer to “Electronic Vehicle Information Center (EVIC)/Personal Settings (Customer-Programmable Features)” in “Under- standing Your Instrument Panel” for further information.

To Unlock From The Passenger Side: With a valid Passive Entry RKE transmitter within 5 ft (1.5 m) of the passenger side of the vehicle, grab the front passenger door handle to unlock all four doors automati- cally. NOTE: All doors will unlock when the front passenger door handle is grabbed regardless of the driver’s door unlock preference setting (“Unlock Driver Door 1st Press” or “Unlock All Doors 1st Press”). Preventing Inadvertent Locking Of Passive Entry RKE Transmitter In Vehicle To minimize the possibility of unintentionally locking a Passive Entry RKE transmitter inside your vehicle, the Passive Entry system is equipped with an automatic door unlock feature. If one of the vehicle doors is open and the door panel switch is used to lock the vehicle, once all open doors have been closed, the vehicle checks the passenger compartment for any valid Passive Entry RKE

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 33
transmitters. If one of the vehicle’s Passive Entry RKE transmitters is detected, the Passive Entry System auto- matically unlocks ALL vehicle doors and chirps the horn three times (on the third attempt ALL doors will lock and the Passive Entry RKE transmitter can be locked in the vehicle). To Enter the Trunk With a valid Passive Entry RKE transmitter within 3 ft (1.0 m) of the deck lid, press the button on the left side of CHMSL, (Center High Mounted Stop Light) which is located on the deck lid. If you inadvertently leave your vehicle’s Passive NOTE: Entry RKE transmitter in the trunk and try to close the deck lid, the deck lid will automatically unlatch, unless another one of the vehicle’s Passive Entry RKE transmit- ters is outside the vehicle and within 3 ft (1.0 m) of the deck lid.

34 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE To Lock the Vehicle’s Doors The front door handles have LOCK buttons located on the outside of the handle, with one of the vehicle’s Passive Entry RKE transmitters within 5 ft (1.5 m) of the driver’s side, press the driver’s door handle LOCK button to lock all four doors. With one of the vehicle’s Passive Entry RKE transmitters within 5 ft (1.5 m) of the passenger side, press the passenger’s door handle LOCK button to lock all four doors. NOTE: • After an outside handle lock cycle, the system will not allow a passive entry to unlock the same door for two seconds. However, the RKE unlock function will work during this time period.

• The passive entry system will not operate if the RKE

transmitter battery is dead.

The vehicle doors can also be locked by using the RKE transmitter lock button or the lock button located on the vehicle’s interior door panel. Child Protection Door Lock To provide a safer environment for small children riding in the rear seats, the rear doors are equipped with a Child Protection Door Lock system. To Engage the Child Protection Door Lock System 1. Open the rear door. 2. Insert the tip of the emergency key (or similar object) into the child lock control and pull it upward.

NOTE: For emergency key information, refer to “A Word About Your Keys”.

3. Repeat Steps 1 and 2 for the opposite rear door.

Child Lock Control

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 35
NOTE: When the Child Protection Door Lock system is engaged, the door can be opened only by using the outside door handle even though the inside door lock is in the unlocked position.

WARNING!

Avoid trapping anyone in a vehicle in a collision. Remember that the rear doors can only be opened from the outside when the child protection locks are engaged. Failure to follow this warning may result in serious injury or death.

NOTE: • After engaging the Child Protection Door Lock sys- tem, always test the door from the inside to make certain it is in the desired position.

36 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

• For emergency exit with the system engaged, move the door lock plunger to the UNLOCK position, roll down the window and open the door with the outside door handle.

To Disengage the Child Protection Door Lock System 1. Open the rear door. 2. Insert the tip of the emergency key (or similar object) into the child lock control and pull it downward.

Child Lock Control

3. Repeat Steps 1 and 2 for the opposite rear door. NOTE: After disengaging the Child Protection Door Lock system, always test the door from the inside to make certain it is in the desired position.

WINDOWS

Power Windows The window controls on the driver’s door control all the door windows.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 37
There are single window controls on each passenger door trim panel, which operate the passenger door windows. The window controls will operate only when the ignition switch is in the ON or ACC position.

WARNING!

Never leave children in a vehicle with the key in the ignition switch or leave a vehicle with Keyless Go in the ACC or RUN position. Occupants, particularly unattended children, can become entrapped by the windows while operating the power window switches. Such entrapment may result in serious injury or death.

Power Window Switches

38 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE AUTO-Down Feature The driver door power window switch and some model passenger door power window switches have an AUTO- down feature. Press the window switch to the second detent, release, and the window will go down automati- cally. To open the window part way, press the window switch to the first detent and release it when you want the window to stop. To stop the window from going all the way down during the AUTO-down operation, pull up on the switch briefly. The power window switches will remain active for up to 60 minutes after the ignition switch is turned OFF. Opening either front door will cancel this feature. The time for this feature is programmable. Refer to “Elec- tronic Vehicle Information Center (EVIC)/Personal Set- tings (Customer-Programmable Features)” in “Under- standing Your Instrument Panel” for further information.

AUTO-Up Feature with Anti–Pinch Protection — If Equipped Lift the window switch to the second detent, release, and the window will go up automatically. To stop the window from going all the way up during the AUTO-up operation, push down on the switch briefly. To close the window part way, lift the window switch to the first detent and release it when you want the window to stop. The power window switches will remain active for up to 60 minutes after the ignition switch is turned off. Open- ing either front door will cancel this feature. The time for this feature is programmable. Refer to “Electronic Vehicle Information Center (EVIC)/Personal Settings (Customer- Programmable Features)” in “Understanding Your In- strument Panel” for further information.

NOTE: • If the window runs into any obstacle during auto- closure, it will reverse direction and then go back down. Remove the obstacle and use the window switch again to close the window. • Any impact due to rough road conditions may trigger the auto-reverse function unexpectedly during auto- closure. If this happens, pull the switch lightly to the first detent and hold to close the window manually.

WARNING!

There is no anti-pinch protection when the window is almost closed. Be sure to clear all objects from the window before closing.

Window Lockout Switch The window lockout switch on the driver’s door trim panel allows you to disable the window controls on the

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 39
passenger doors. To disable the window controls, press and release the window lockout button (setting it in the DOWN position). To enable the window controls, press and release the window lockout button again (setting it in the UP position).

Window Lockout Switch

40 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Reset Anytime the vehicle battery is disconnected or goes dead, the AUTO-up function will be disabled. To reactivate the AUTO-up feature, perform the following procedure after vehicle power is restored: 1. Pull the window switch up to close window com- pletely and continue to hold the switch up for an additional two seconds after the window is closed. 2. Push the window switch down firmly to the second detent to open the window completely and continue to hold the switch down for an additional two seconds after the window is fully open. Wind Buffeting Wind buffeting can be described as the perception of pressure on the ears or a helicopter-type sound in the ears. Your vehicle may exhibit wind buffeting with the windows down, or the sunroof (if equipped) in certain

open or partially open positions. This is a normal occur- rence and can be minimized. If the buffeting occurs with the rear windows open, then open the front and rear windows together to minimize the buffeting. If the buffeting occurs with the sunroof open, then adjust the sunroof opening to minimize the buffeting.

TRUNK LOCK AND RELEASE The trunk lid can be released from inside the vehicle by pressing the TRUNK RELEASE button located on the instrument panel to the left of the steering wheel. NOTE: The transmission must be in PARK before the button will operate.

The trunk lid can be released from outside the vehicle by pressing the TRUNK button on the Remote Keyless Entry (RKE) transmitter twice within five seconds.

Trunk Release

Button

With the ignition switch in the RUN position, the Trunk Open symbol will display in the instrument cluster indicating that the trunk is open. The odometer display will reappear once the trunk is closed. With the ignition switch in the OFF position or the key removed from the ignition switch, the Trunk Open sym- bol will display until the trunk is closed.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 41
Refer to “Passive Entry — If Equipped” under “Door Locks” in this section for more information on trunk operation with the Passive Entry feature.

TRUNK SAFETY WARNING

WARNING!

Do not allow children to have access to the trunk, either by climbing into the trunk from outside, or through the inside of the vehicle. Always close the trunk lid when your vehicle is unattended. Once in the trunk, young children may not be able to escape, even if they entered through the rear seat. If trapped in the trunk, children can die from suffocation or heat stroke.

42 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Trunk Emergency Release The trunk of your vehicle is equipped with an emergency release handle. It is located on the inside of the trunk lid, near the latch, and is coated so that it glows in a darkened trunk. Pull on the handle to open the trunk.

Trunk Emergency Release

ger

all passengers

OCCUPANT RESTRAINTS Some of the most important safety features in your vehicle are the restraint systems: • Three-point lap and shoulder belts for the driver and • Advanced Front Airbags for driver and front passen- • Supplemental Side Airbag Inflatable Curtains (SABIC) for the driver and passengers seated next to a window — if equipped • An energy-absorbing steering column and steering • Knee bolsters/blockers for front seat occupants • Front seat belts incorporate pretensioners to enhance occupant protection by managing occupant energy during an impact event — if equipped

wheel

If you will be carrying children too small for adult-sized seat belts, the seat belts or the Lower Anchors and Tether for CHildren (LATCH) feature can be used to hold infant and child restraint systems. For more information on LATCH, see Lower Anchors and Tether for CHildren (LATCH). NOTE: The Advanced Front Airbags have a multistage inflator design. This allows the airbag to have different rates of inflation based on the severity and type of collision. Please pay close attention to the information in this section. It tells you how to use your restraint system properly, to keep you and your passengers as safe as possible.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 43

WARNING!

In a collision, you and your passengers can suffer much greater injuries if you are not properly buckled up. You can strike the interior of your vehicle or other passengers, or you can be thrown out of the vehicle. Always be sure you and others in your vehicle are buckled up properly.

Buckle up even though you are an excellent driver, even on short trips. Someone on the road may be a poor driver and cause a collision that includes you. This can happen far away from home or on your own street. Research has shown that seat belts save lives, and they can reduce the seriousness of injuries in a collision. Some of the worst injuries happen when people are thrown from the vehicle. Seat belts reduce the possibility of

44 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE ejection and the risk of injury caused by striking the inside of the vehicle. Everyone in a motor vehicle should be belted at all times. Lap/Shoulder Belts All seating positions in your vehicle are equipped with lap/shoulder belts. The belt webbing retractor is designed to lock during very sudden stops or impacts. This feature allows the shoulder part of the belt to move freely with you under normal conditions. However, in a collision, the belt will lock and reduce your risk of striking the inside of the vehicle or being thrown out.

WARNING!

• It is dangerous to ride in a cargo area, inside or outside of a vehicle. In a collision, people riding in these areas are more likely to be seriously injured or killed. • Do not allow people to ride in any area of your vehicle that is not equipped with seats and seat belts. • Be sure everyone in your vehicle is in a seat and • Wearing a seat belt incorrectly is dangerous. Seat belts are designed to go around the large bones of your body. These are the strongest parts of your body and can take the forces of a collision best.

using a seat belt properly.

(Continued)

WARNING! (Continued)

• Wearing your belt in the wrong place could make your injuries in a collision much worse. You might suffer internal injuries, or you could even slide out of part of the belt. Follow these instructions to wear your seat belt safely and to keep your pas- sengers safe, too. • Two people should never be belted into a single seat belt. People belted together can crash into one another in a collision, hurting one another badly. Never use a lap/shoulder belt or a lap belt for more than one person, no matter what their size.

Lap/Shoulder Belt Operating Instructions 1. Enter the vehicle and close the door. Sit back and adjust the front seat.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 45

Pulling Out the Lap/Shoulder Belt Latch Plate

2. The seat belt latch plate is above the back of your seat. Grasp the latch plate and pull out the belt. Slide the latch plate up the webbing as far as necessary to make the belt go around your lap.

46 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 3. When the belt is long enough to fit, insert the latch plate into the buckle until you hear a “click.”

Inserting Latch Plate into Buckle

WARNING!

• A belt that is buckled into the wrong buckle will not protect you properly. The lap portion could ride too high on your body, possibly causing internal injuries. Always buckle your belt into the buckle nearest you. • A belt that is too loose will not protect you properly. In a sudden stop, you could move too far forward, increasing the possibility of injury. Wear your seat belt snugly.

(Continued)

WARNING! (Continued)

• A belt that is worn under your arm is dangerous. Your body could strike the inside surfaces of the vehicle in a collision, increasing head and neck injury. A belt worn under the arm can cause internal injuries. Ribs aren’t as strong as shoulder bones. Wear the belt over your shoulder so that your strongest bones will take the force in a collision. • A shoulder belt placed behind you will not protect you from injury during a collision. You are more likely to hit your head in a collision if you do not wear your shoulder belt. The lap and shoulder belt are meant to be used together.

4. Position the lap belt across your thighs, below your abdomen. To remove slack in the lap belt portion, pull up a bit on the shoulder belt. To loosen the lap belt if it is too

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 47
tight, tilt the latch plate and pull on the lap belt. A snug belt reduces the risk of sliding under the belt in a collision.

Removing Slack from Belt

48 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING!

• A lap belt worn too high can increase the risk of internal injury in a collision. The belt forces won’t be at the strong hip and pelvic bones, but across your abdomen. Always wear the lap belt as low as possible and keep it snug. • A twisted belt can’t do its job properly. In a collision, it could even cut into you. Be sure the belt is straight. If you can’t straighten a belt in your vehicle, take it to your authorized dealer immediately and have it fixed.

5. Position the shoulder belt on your chest so that it is comfortable and not resting on your neck. The retractor will withdraw any slack in the belt.

6. To release the belt, push the red button on the buckle. The belt will automatically retract to its stowed position. If necessary, slide the latch plate down the webbing to allow the belt to retract fully.

WARNING!

A frayed or torn belt could rip apart in a collision and leave you with no protection. Inspect the belt system periodically, checking for cuts, frays, or loose parts. Damaged parts must be replaced immediately. Do not disassemble or modify the system. Seat belt assemblies must be replaced after a collision if they have been damaged (bent retractor, torn webbing, etc.).

Adjustable Upper Shoulder Belt Anchorage In the driver and front passenger seats, the shoulder belt can be adjusted upward or downward to position the belt away from your neck. Push and fully depress the button above the webbing to release the anchorage, then move it up or down to the position that fits you best.

Adjusting Upper Shoulder Belt

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 49
As a guide, if you are shorter than average you will prefer a lower position, and if you are taller than average you will prefer a higher position. When you release the anchorage try to move it up and down to make sure that it is locked in position. In the rear seat, move toward the center of the seat to position the belt away from your neck. Lap/Shoulder Belt Untwisting Procedure Use the following procedure to untwist a twisted lap/ shoulder belt. 1. Position the latch plate as close as possible to the anchor point. 2. At about 6 to 12 in (15 to 30 cm) above the latch plate, grasp and twist the belt webbing 180 degrees to create a fold that begins immediately above the latch plate.

50 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 3. Slide the latch plate upward over the folded webbing. The folded webbing must enter the slot at the top of the latch plate. 4. Continue to slide the latch plate up until it clears the folded webbing. Automatic Locking Retractors (ALR) Mode — If Equipped In this mode, the shoulder belt is automatically pre- locked. The belt will still retract to remove any slack in the shoulder belt. The Automatic Locking Mode is avail- able on all passenger-seating positions with a combina- tion lap/shoulder belt. When To Use The Automatic Locking Mode Use the Automatic Locking Mode anytime a child safety seat is installed in a seating position that has a belt with this feature. Children 12 years old and younger should always be properly restrained in the rear seat.

How To Engage The Automatic Locking Mode 1. Buckle the combination lap and shoulder belt. 2. Grasp the shoulder portion and pull downward until the entire belt is extracted. 3. Allow the belt to retract. As the belt retracts, you will hear a clicking sound. This indicates the safety belt is now in the Automatic Locking Mode. How To Disengage The Automatic Locking Mode Unbuckle the combination lap/shoulder belt and allow it to retract completely to disengage the Automatic Locking Mode and activate the vehicle sensitive (emergency) locking mode. Seat Belt Pretensioners — If Equipped The seat belts for both front seating positions may be equipped with pretensioning devices that are designed to remove slack from the seat belt in the event of a collision. These devices improve the performance of the seat belt

by assuring that the belt is tight about the occupant early in a collision. Pretensioners work for all size occupants, including those in child restraints. NOTE: These devices are not a substitute for proper seat belt placement by the occupant. The seat belt still must be worn snugly and positioned properly. The pretensioners are triggered by the Occupant Re- straint Controller (ORC). Like the airbags, the pretension- ers are single use items. A deployed pretensioner or a deployed airbag, must be replaced immediately. Enhanced Seat Belt Use Reminder System (BeltAlert姞) If the driver’s or front passenger’s (if equipped with belt alert) seat belt has not been buckled within 60 seconds of starting the vehicle and if the vehicle speed is greater than 5 mph (8 km/h), the Enhanced Warning System (BeltAlert威) will alert the driver or front passenger to buckle the seat belt. The driver should also instruct all

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 51
other occupants to buckle their seat belts. Once the warning is triggered, BeltAlert威 will continue to chime and flash the Seat Belt Reminder Light for 96 seconds or until the driver’s or front passenger’s seat belt is buckled. BeltAlert威 will be reactivated if the driver’s or passen- ger’s seat belt is unbuckled for more than 10 seconds and the vehicle speed is greater than 5 mph (8 km/h). For front passenger seats equipped with BeltAlert, your vehicle is equipped to detect when it is occupied. The BeltAlert威 warning system is not activated when the front passenger seat is unoccupied. The BeltAlert威 warn- ing system may be triggered when an animal or heavy object is on the front passenger seat or when the seat is folded flat (if equipped). It is recommended that pets be restrained in the rear seat in pet harnesses or pet carriers that are secured by seat belts and cargo is properly stowed.

52 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE BeltAlert威 Programming The BeltAlert威 can be enabled or disabled by your authorized dealer or by performing the following steps: NOTE: Chrysler Group LLC does not recommend de- activating the BeltAlert威. 1. With all doors closed, and the ignition switch in any position except RUN or START, buckle the driver’s seat belt. 2. Turn the ignition switch to the RUN position, but do not start the engine. Wait for the Seat Belt Reminder Light to turn off and then proceed to the next step. NOTE: You must perform the following steps within 60 seconds of turning the ignition switch to the RUN position.

3. Within 60 seconds of turning the ignition switch to the RUN position, unbuckle and then re-buckle the driver’s seat belt at least three times within 10 seconds, ending with the seat belt buckled. NOTE: Watch for the Seat Belt Reminder Light to turn on while unbuckling the seat belt and turn off while re-buckling the seat belt. It may be necessary to retract the seat belt. 4. Turn the ignition switch to the OFF position. A single chime will sound to signify that you have successfully completed the programming. BeltAlert威 can be reactivated by repeating this procedure. NOTE: Although BeltAlert威 has been deactivated, the Seat Belt Reminder Light will continue to illuminate as long as the driver’s seat belt is unbuckled.

Seat Belts and Pregnant Women We recommend that pregnant women use the seat belts throughout their pregnancy. Keeping the mother safe is the best way to keep the baby safe. Pregnant women should wear the lap part of the belt across the thighs and as snug across the hips as possible. Keep the belt low so that it does not come across the abdomen. That way the strong bones of the hips will take the force if there is a collision. Seat Belt Extender If a seat belt is too short even when fully extended and when the adjustable upper shoulder belt anchorage (if so equipped) is in its lowest position, your authorized dealer can provide you with a seat belt extender. This extender should be used only if the existing belt is not long enough. When it is not required, remove the ex- tender and store it.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 53

WARNING!

Using a seat belt extender when not needed can increase the risk of injury in a collision. Only use when the seat belt is not long enough when it is worn low and snug and in the recommended seating posi- tions. Remove and store the extender when not needed.

Supplemental Restraint System (SRS) — Airbags This vehicle has Advanced Front Airbags for both the driver and front passenger as a supplement to the seat belt restraint systems. The driver’s Advanced Front Air- bag is mounted in the center of the steering wheel. The passenger’s Advanced Front Airbag is mounted in the instrument panel, above the glove compartment. The words SRS AIRBAG are embossed on the airbag covers.

54 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Front Airbag Components

1 — Airbags 2 — Knee Bolsters NOTE: These airbags are certified to the new Federal regulations for Advanced Airbags.

The Advanced Front Airbags have a multistage inflator design. This allows the airbag to have different rates of inflation based on the severity and type of collision. This vehicle may be equipped with driver and/or front passenger seat track position sensors that may adjust the inflation rate of the Advanced Front Airbags based upon seat position. This vehicle may be equipped with a driver and/or front passenger seat belt buckle switch that detects whether the driver or front passenger seat belt is fastened. The seat belt buckle switch may adjust the inflation rate of the Advanced Front Airbags. This vehicle may also be equipped with Supplemental Side Airbag Inflatable Curtains (SABIC) to protect the driver, front, and rear passengers sitting next to a win- dow. If the vehicle is equipped with SABIC airbags, they are located above the side windows and their covers are also labeled: SRS AIRBAG.

NOTE: • Airbag covers may not be obvious in the interior trim; • After any collision, the vehicle should be taken to an

but they will open during airbag deployment.

authorized dealer immediately.

Airbag System Components Your vehicle may be equipped with the following airbag system components: • Occupant Restraint Controller (ORC) • Airbag Warning Light • Steering Wheel and Column • Instrument Panel • Knee Impact Bolster • Driver Advanced Front Airbag • Passenger Advanced Front Airbag

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 55

• Supplemental Side Airbag Inflatable Curtains (SABIC) • Front and Side Impact Sensors • Front Seat Belt Pretensioners, Seat Belt Buckle Switch,

and Seat Track Position Sensors Advanced Front Airbag Features The Advanced Front Airbag system has multistage driver and front passenger airbags. This system provides output appropriate to the severity and type of collision as determined by the Occupant Restraint Controller (ORC), which may receive information from the front impact sensors. The first stage inflator is triggered immediately during an impact that requires airbag deployment. The timing of the second stage determines whether the output force is low, medium, or high. If a low output is sufficient to meet the need, the remaining gas in the inflator is expended.

56 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING!

• No objects should be placed over or near the airbag on the instrument panel, because any such objects could cause harm if the vehicle is in a collision severe enough to cause the airbag to inflate. • Do not put anything on or around the airbag covers or attempt to open them manually. You may damage the airbags and you could be injured because the airbags may no longer be functional. The protective covers for the airbag cushions are designed to open only when the airbags are inflat- ing. • Do not drill, cut or tamper with the knee bolster in

any way.

(Continued)

WARNING! (Continued)

• Do not mount any accessories to the knee bolster such as alarm lights, stereos, citizen band radios, etc.

Supplemental Side Airbag Inflatable Curtain (SABIC) — If Equipped SABIC airbags may offer side-impact and vehicle rollover protection to front and rear seat outboard occupants in addition to that provided by the body structure. Each airbag features inflated chambers placed adjacent to the head of each outboard occupant that reduce the potential for side-impact head injuries. The curtains deploy down- ward, covering both windows on the impact side.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 57
The system includes side impact sensors adjacent to both front and rear seat occupants that are calibrated to deploy the SABIC airbags during impacts that require airbag occupant protection.

WARNING!

• If your vehicle is equipped with left and right Supplemental Side Airbag Inflatable Curtain (SABIC), do not stack luggage or other cargo up high enough to block the location of the SABIC. The area where the side curtain airbag is located should remain free from any obstructions. • Do not use accessory seat covers or place objects between you and the side airbags; the performance could be adversely affected and/or objects could be pushed into you, causing serious injury.

Supplemental Side Airbag Inflatable Curtains (SABIC) NOTE: • Should a vehicle rollover occur, the pretensioners and/or SABIC airbags on both sides of the vehicle may deploy. • Airbag covers may not be obvious in the interior trim;

but they will open during airbag deployment.

58 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Knee Impact Bolsters The Knee Impact Bolsters help protect the knees of the driver and the front passenger, and position front occu- pants for the best interaction with the Advanced Front Airbags. Along with seat belts and pretensioners, Advanced Front Airbags work with the knee bolsters to provide improved protection for the driver and front passenger. Side airbags also work with seat belts to improve occupant protection. Here are some simple steps you can take to minimize the risk of harm from a deploying airbag: Children 12 years old and younger should always ride buckled up in a rear seat.

WARNING!

Infants in rear-facing child restraints should NEVER ride in the front seat of a vehicle with a passenger Advanced Front Airbag. An airbag deployment can cause severe injury or death to infants in that posi- tion.

Children that are not big enough to wear the vehicle seat belt properly (see Section on Child Restraints) should be secured in the rear seat in child restraints or belt- positioning booster seats. Older children who do not use child restraints or belt-positioning booster seats should ride properly buckled up in the rear seat. Never allow children to slide the shoulder belt behind them or under their arm.

If a child from 1 to 12 years old (not in a rear facing child seat) must ride in the front passenger seat, move the seat as far back as possible and use the proper child restraint. (Refer to “Child Restraints”) You should read the instructions provided with your child restraint to make sure that you are using it properly. All occupants should ALWAYS wear their lap and shoul- der belts properly. The driver and front passenger seats should be moved back as far as practical to allow the Advanced Front Airbags room to inflate. Do not lean against the door or window. If your vehicle has side airbags, and deployment occurs, the side airbags will inflate forcefully into the space between you and the door.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 59
If the airbag system in this vehicle needs to be modified to accommodate a disabled person, contact the Customer Center. Phone numbers are provided under ⬙If You Need Assistance⬙.

WARNING!

• Relying on the airbags alone could lead to more severe injuries in a collision. The airbags work with your seat belt to restrain you properly. In some collisions, the airbags won’t deploy at all. Always wear your seat belts even though you have airbags.

(Continued)

60 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING! (Continued)

• Being too close to the steering wheel or instrument panel during Advanced Front Airbag deployment could cause serious injury, including death. Air- bags need room to inflate. Sit back, comfortably extending your arms to reach the steering wheel or instrument panel. • Side airbags also need room to inflate. Do not lean against the door or window. Sit upright in the center of the seat.

Airbag Deployment Sensors and Controls

Occupant Restraint Controller (ORC) The ORC is part of a Federally regulated safety system required for this vehicle. The ORC determines if deployment of the front and/or side airbags in a frontal or side collision is required. Based on the impact sensors signals, a central electronic

ORC deploys the Advanced Front Airbags, SABIC air- bags — if equipped, and front seat belt pretensioners — if equipped, as required, depending on the severity and type of impact. Advanced Front Airbags are designed to provide addi- tional protection by supplementing the seat belts in certain frontal collisions depending on the severity and type of collision. Advanced Front Airbags are not ex- pected to reduce the risk of injury in rear, side, or rollover collisions. The Advanced Front Airbags will not deploy in all frontal collisions, including some that may produce substantial vehicle damage — for example, some pole collisions, truck underrides, and angle offset collisions. On the other hand, depending on the type and location of impact, Advanced Front Airbags may deploy in crashes with little vehicle front-end damage but that produce a severe initial deceleration.

The side airbags will not deploy in all side collisions. Side airbag deployment will depend on the severity and type of collision. Because airbag sensors measure vehicle deceleration over time, vehicle speed and damage by themselves are not good indicators of whether or not an airbag should have deployed. Seat belts are necessary for your protection in all colli- sions, and also are needed to help keep you in position, away from an inflating airbag. The ORC monitors the readiness of the electronic parts of the airbag system whenever the ignition switch is in the START or RUN position. If the key is in the OFF position, in the ACC position, or not in the ignition, the airbag system is not on and the airbags will not inflate.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 61
The ORC contains a backup power supply system that may deploy the airbags even if the battery loses power or it becomes disconnected prior to deployment.

Also, the ORC turns on the Airbag Warning Light in the instrument panel for approxi- mately six to eight seconds for a self-check when the ignition is first turned on. After the self-check, the Airbag Warning Light will turn off. If the ORC detects a malfunction in any part of the system, it turns on the Airbag Warning Light, either momentarily or continuously. A single chime will sound if the light comes on again after initial startup. It also includes diagnostics that will illuminate the instru- ment cluster Airbag Warning Light if a malfunction is noted that could affect the airbag system. The diagnostics also record the nature of the malfunction.

62 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING!

Ignoring the Airbag Warning Light in your instru- ment panel could mean you won’t have the airbags to protect you in a collision. If the light does not come on, stays on after you start the vehicle, or if it comes on as you drive, have the airbag system checked right away by an authorized dealer.

Driver and Passenger Airbag Inflator Units The Driver and Passenger Airbag Inflator Units are located in the center of the steering wheel and the right side of the instrument panel. When the ORC detects a collision requiring the Advanced Front Airbags, it signals the inflator units. A large quantity of non-toxic gas is generated to inflate the Advanced Front Airbags. Differ- ent airbag inflation rates are possible, based on the collision type and severity. The steering wheel hub trim cover and the upper right side of the instrument panel

separate and fold out of the way as the airbags inflate to their full size. The airbags fully inflate in about 50 to 70
milliseconds. This is about half of the time it takes to blink your eyes. The airbags then quickly deflate while helping to restrain the driver and front passenger. The Advanced Front Airbag gas is vented through the vent holes in the sides of the airbag. In this way, the airbags do not interfere with your control of the vehicle. Supplemental Side Airbag Inflatable Curtain (SABIC) Inflator Units — If Equipped During collisions where the impact is confined to a particular area of the side of the vehicle, the ORC may deploy the SABIC airbags, depending on the severity and type of collision. In these events, the ORC will deploy the SABIC only on the impact side of the vehicle. A quantity of non-toxic gas is generated to inflate the side curtain airbag. The inflating side curtain airbag pushes the outside edge of the headliner out of the way and

covers the window. The airbag inflates in about 30 ms (about one-quarter of the time that it takes to blink your eyes) with enough force to injure you if you are not belted and seated properly, or if items are positioned in the area where the side curtain airbag inflates. This especially applies to children. The side curtain airbag is only about 3-1/2 in (9 cm) thick when it is inflated. Because airbag sensors estimate deceleration over time, vehicle speed and damage are not good indicators of whether or not an airbag should have deployed. NOTE: airbags may deploy on both sides of the vehicle. Front and Side Impact Sensors In front and side impacts, impact sensors can aid the ORC in determining appropriate response to impact events. Additional sensors in the ORC determine the level of airbag deployment and provide verification.

In a rollover the pretensioners and/or SABIC

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 63

Enhanced Accident Response System In the event of an impact causing airbag deployment, if the communication network remains intact, and the power remains intact, depending on the nature of the event the ORC will determine whether to have the Enhanced Accident Response System perform the follow- ing functions: • Cut off fuel to the engine. • Flash hazard lights as long as the battery has power or • Turn on the interior lights, which remain on as long as the battery has power, until the ignition key is re- moved or the ignition switch is changed to OFF using the Keyless Go Start/Stop button. • Unlock the doors automatically.

until the ignition key is turned off.

64 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE If a Deployment Occurs The front airbags are designed to deflate immediately after deployment. NOTE: Front and/or side airbags will not deploy in all collisions. This does not mean something is wrong with the airbag system. If you do have a collision which deploys the airbags, any or all of the following may occur: • The nylon airbag material may sometimes cause abra- sions and/or skin reddening to the driver and front passenger as the airbags deploy and unfold. The abrasions are similar to friction rope burns or those you might get sliding along a carpet or gymnasium floor. They are not caused by contact with chemicals. They are not permanent and normally heal quickly. However, if you haven’t healed significantly within a few days, or if you have any blistering, see your doctor immediately.

• As the airbags deflate, you may see some smoke-like particles. The particles are a normal by-product of the process that generates the non-toxic gas used for airbag inflation. These airborne particles may irritate the skin, eyes, nose, or throat. If you have skin or eye irritation, rinse the area with cool water. For nose or throat irritation, move to fresh air. If the irritation continues, see your doctor. If these particles settle on your clothing, follow the garment manufacturer’s in- structions for cleaning.

Do not drive your vehicle after the airbags have de- ployed. If you are involved in another collision, the airbags will not be in place to protect you.

WARNING!

Deployed airbags and seat belt pretensioners cannot protect you in another collision. Have the airbags, seat belt pretensioners, and the front passenger seat belt retractor assembly replaced by an authorized dealer immediately. Also, have the Occupant Re- straint Controller (ORC) system serviced as well.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 65

Maintaining Your Airbag System

WARNING!

• Modifications to any part of the airbag system could cause it to fail when you need it. You could be injured if the airbag system is not there to protect you. Do not modify the components or wiring, including adding any kind of badges or stickers to the steering wheel hub trim cover or the upper right side of the instrument panel. Do not modify the front bumper, vehicle body structure, or add aftermarket side steps or running boards. • It is dangerous to try to repair any part of the airbag system yourself. Be sure to tell anyone who works on your vehicle that it has an airbag system. (Continued)

66 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING! (Continued)

• Do not attempt to modify any part of your ad- vanced airbag system. The airbag may inflate accidentally or may not function properly if modi- fications are made. Take your vehicle to an autho- rized dealer for any advanced airbag system ser- vice. If your seat, including your trim cover and cushion, needs to be serviced in any way (includ- ing removal or loosening/tightening of seat attach- ment bolts), take the vehicle to your authorized dealer. Only manufacturer approved seat accesso- ries may be used. If it is necessary to modify the airbag system for persons with disabilities, contact your authorized dealer.

Airbag Warning Light

You will want to have the airbags ready to inflate for your protection in a collision. While the airbag system is designed to be mainte- nance free, if any of the following occurs, have an authorized dealer service the system immediately. • The Airbag Warning Light does not come on for approximately six to eight seconds when the ignition switch is first placed into the RUN position. • The Airbag Warning Light remains on after the ap- • The Airbag Warning Light comes on intermittently or

proximate six to eight-second interval.

remains on while driving.

If the speedometer, tachometer, or any engine NOTE: related gauges are not working, the Occupant Restraint Controller (ORC) may also be disabled. The airbags may not be ready to inflate for your protection. Promptly check the fuse block for blown fuses. Refer to the label located on the inside of the fuse block cover for the proper airbag fuses. See your authorized dealer if the fuse is good. Event Data Recorder (EDR) In the event of a collision, your vehicle is designed to record up to five seconds of specific vehicle data param- eters (see list below) in an event data recorder prior to the moment of airbag deployment, or near deployment (if applicable), and up to a quarter second of either high- speed deceleration data or change in velocity during and/or after airbag deployment or near-deployment. EDR data is ONLY recorded if an airbag deploys, or nearly deploys, and is otherwise unavailable.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 67

NOTE: 1. A near-deployment event occurs when the airbag sensor detects severe vehicle deceleration usually indica- tive of a crash, but not severe enough to warrant airbag deployment. 2. Under certain circumstances, EDR data may not be recorded (e.g., loss of battery power). In conjunction with other data gathered during a com- plete accident investigation, the electronic data may be used by Chrysler Group LLC and others to learn more about the possible causes of crashes and associated injuries in order to assess and improve vehicle perfor- mance. In addition to crash investigations initiated by Chrysler Group LLC, such investigations may be re- quested by customers, insurance carriers, government officials, and professional crash researchers, such as those associated with universities, and with hospital and insur- ance organizations.

68 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE In the event that an investigation is undertaken by Chrysler Group LLC (regardless of initiative), the com- pany or its designated representative will first obtain permission of the appropriate custodial entity for the vehicle (usually the vehicle owner or lessee) before accessing the electronic data stored, unless ordered to image the data by a court with legal jurisdiction (i.e., pursuant to a warrant). A copy of the data will be provided to the custodial entity upon request. General data that does not identify particular vehicles or crashes may be released for incorporation in aggregate crash databases, such as those maintained by the U.S. govern- ment and various states. Data of a potentially sensitive nature, such as would identify a particular driver, ve- hicle, or crash, will be treated confidentially. Confidential data will not be disclosed by Chrysler Group LLC to any third party except when:

1. Used for research purposes, such as to match data with a particular crash record in an aggregate database, provided confidentiality of personal data is thereafter preserved. 2. Used in defense of litigation involving a Chrysler Group LLC product. 3. Requested by police under a legal warrant. 4. Otherwise required by law. Data parameters that are recorded: • Diagnostic trouble code(s) and warning light status for electronically-controlled safety systems, including the airbag system • Vehicle speed

• Engine RPM • Brake switch status • Pedal position • And other parameters depending

configuration

on vehicle

Child Restraints Everyone in your vehicle needs to be buckled up all the time, including babies and children. Every state in the United States and all Canadian provinces require that small children ride in proper restraint systems. This is the law, and you can be prosecuted for ignoring it. Children 12 years and younger should ride properly buckled up in a rear seat, if available. According to crash statistics, children are safer when properly restrained in the rear seats rather than in the front.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 69

WARNING!

In a collision, an unrestrained child, even a tiny baby, can become a projectile inside the vehicle. The force required to hold even an infant on your lap could become so great that you could not hold the child, no matter how strong you are. The child and others could be badly injured. Any child riding in your vehicle should be in a proper restraint for the child’s size.

There are different sizes and types of restraints for children from newborn size to the child almost large enough for an adult safety belt. Always check the child seat Owner’s Manual to ensure you have the correct seat for your child. Use the restraint that is correct for your child.

experts

recommend that

70 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Infants and Child Restraints • Safety

children ride rearward-facing in the vehicle until they are at least one year old and weigh at least 20 lbs (9 kg). Two types of child restraints can be used rearward-facing, infant carriers and convertible child seats. • The infant carrier is only used rearward-facing in the vehicle. It is recommended for children who weigh up to about 20 lbs (9 kg). Convertible child seats can be used either rearward-facing or forward-facing in the vehicle. Convertible child seats often have a higher weight limit in the rearward-facing direction than infant carriers do, so they can be used rearward-facing by children who weigh more than 20 lbs (9 kg) but are less than one year old. Both types of child restraints are held in the vehicle by the lap/shoulder belt or the LATCH child restraint anchorage system. Refer to “LATCH — Child Seat Anchorage System (Lower Anchors and Tether for CHildren)”.

WARNING!

Rearward-facing child seats must NEVER be used in the front seat of a vehicle with the front passenger airbag unless the airbag is turned off. An airbag deployment could cause severe injury or death to infants in this position.

Older Children and Child Restraints Children who weigh more than 20 lbs (9 kg) and who are older than one year can ride forward-facing in the vehicle. Forward-facing child seats and convertible child seats used in the forward-facing direction are for children who weigh 20 to 40 lbs (9 to 18 kg) and who are older than one year. These child seats are also held in the vehicle by the lap/shoulder belt or the LATCH child restraint anchorage system. Refer to “LATCH — Child Seat Anchorage System (Lower Anchors and Tether for CHildren)”.

The belt-positioning booster seat is for children weighing more than 40 lbs (18 kg), but who are still too small to fit the vehicle’s seat belts properly. If the child cannot sit with knees bent over the vehicle’s seat cushion while the child’s back is against the seatback, they should use a belt-positioning booster seat. The child and belt- positioning booster seat are held in the vehicle by the lap/shoulder belt. Children Too Large for Booster Seats Children who are large enough to wear the shoulder belt comfortably and whose legs are long enough to bend over the front of the seat when their back is against the seatback should use the lap/shoulder belt in a rear seat. • Make sure that the child is upright in the seat. • The lap portion should be low on the hips and as snug

as possible.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 71

slouching can move the belt out of position.

• Check belt fit periodically. A child’s squirming or • If the shoulder belt contacts the face or neck, move the child closer to the center of the vehicle. Never allow a child to put the shoulder belt under an arm or behind their back.

For

additional

information,

NOTE: to www.seatcheck.org or call 1–866–SEATCHECK. Cana- dian residents, should refer to Transport Canada’s web- site for additional information. http://www.tc.gc.ca/ roadsafety/safedrivers/childsafety/index.htm

refer

72 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING!

• Improper installation can lead to failure of an infant or child restraint. It could come loose in a collision. The child could be badly injured or killed. Follow the manufacturer’s directions ex- actly when installing an infant or child restraint. • A rearward-facing child restraint should only be used in a rear seat. A rearward-facing child re- straint in the front seat may be struck by a deploy- ing passenger airbag, which may cause severe or fatal injury to the infant.

Here are some tips on getting the most out of your child restraint: • Before buying any restraint system, make sure that it has a label certifying that it meets all applicable Safety

Standards. We also recommend that you make sure that you can install the child restraint in the vehicle where you will use it before you buy it. • The restraint must be appropriate for your child’s weight and height. Check the label on the restraint for weight and height limits. • Carefully follow the instructions that come with the restraint. If you install the restraint improperly, it may not work when you need it. • Buckle the child into the seat according to the child • When your child restraint is not in use, secure it in the vehicle with the seat belt or remove it from the vehicle. Do not leave it loose in the vehicle. In a sudden stop or collision, it could strike the occupants or seatbacks and cause serious personal injury.

restraint manufacturer’s directions.

LATCH — Child Seat Anchorage System (Lower Anchors and Tether for CHildren) Your vehicle’s rear seat is equipped with the child restraint anchorage system called LATCH. The LATCH system provides for the installation of the child restraint without using the vehicle’s seat belts, instead securing the child restraint using lower anchorages and upper tether straps from the child restraint to the vehicle structure. LATCH-compatible child restraint systems are now avail- able. However, because the lower anchorages are to be introduced over a period of years, child restraint systems having attachments for those anchorages will continue to have features for installation using the vehicle’s seat belts. Child restraints having tether straps and hooks for

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 73
connection to the top tether anchorages, have been available for some time. For some older child restraints, many child restraint manufacturers offer add-on tether strap kits or retrofit kits. You are urged to take advantage of all the available attachments provided with your child restraint in any vehicle. All three rear-seating positions have lower anchorages that are capable of accommodating LATCH-compatible child seats. You should NEVER install LATCH- compatible child seats so that two seats share a common lower anchorage. If installing child seats in adjacent rear-seating positions, or if your child restraints are not LATCH-compatible, install the restraints using the vehi- cle’s seat belts.

74 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

LATCH Anchorages

Installing the LATCH-Compatible Child Restraint System We urge you to follow the manufacturer’s directions carefully when installing your child restraint. Not all child restraint systems will be installed as described here.

Again, carefully follow the installation instructions that are provided with the child restraint system.

The rear seat lower anchorages are round bars located at the rear of the seat cushion where it meets the seatback and are just visible when you lean into the rear seat to install the child restraint. You will easily feel them if you run your finger along the intersection of the seatback and seat cushion surfaces.

In addition, there are tether strap anchorages behind each rear seating position located in the panel between the rear seatback and the rear window. These tether strap anchorages are

under a plastic cover with this symbol on it. Many, but not all restraint systems will be equipped with separate straps on each side, with each having a hook or connector for attachment to the lower anchorage and a

means of adjusting the tension in the strap. Forward- facing toddler restraints and some rear-facing infant restraints will also be equipped with a tether strap, a hook for attachment to the tether strap anchorage and a
