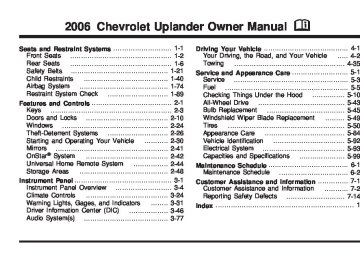

2006 Chevrolet Uplander Owner Manual M


Seats and Restraint Systems ........................... 1-1
Front Seats ............................................... 1-2
Rear Seats ............................................... 1-6
Safety Belts ............................................. 1-21
Child Restraints ....................................... 1-40
Airbag System ......................................... 1-74
Restraint System Check ............................ 1-89
Features and Controls ..................................... 2-1
Keys ........................................................ 2-3
Doors and Locks ...................................... 2-10
Windows ................................................. 2-24
Theft-Deterrent Systems ............................ 2-26
Starting and Operating Your Vehicle ........... 2-30
Mirrors .................................................... 2-41
OnStar® System ...................................... 2-42
Universal Home Remote System ................ 2-44
Storage Areas ......................................... 2-48
Instrument Panel ............................................. 3-1
.......................... 3-4
...................................... 3-24
........ 3-31
.................. 3-46
....................................... 3-77


Instrument Panel Overview Climate Controls Warning Lights, Gages, and Indicators Driver Information Center (DIC) Audio System(s)


Your Driving, the Road, and Your Vehicle Towing


Driving Your Vehicle ....................................... 4-1
..... 4-2
................................................... 4-35
Service and Appearance Care .......................... 5-1
Service ..................................................... 5-3
Fuel ......................................................... 5-5
Checking Things Under the Hood ............... 5-10
All-Wheel Drive ........................................ 5-43
Bulb Replacement .................................... 5-45
Windshield Wiper Blade Replacement ......... 5-49
Tires ...................................................... 5-50
Appearance Care ..................................... 5-84
Vehicle Identification ................................. 5-92
Electrical System ...................................... 5-93
Capacities and Specifications ..................... 5-99
Maintenance Schedule ..................................... 6-1
................................ 6-2
Customer Assistance and Information .............. 7-1
........... 7-2
........................... 7-14
Index ................................................................ 1


Customer Assistance and Information Reporting Safety Defects


Maintenance Schedule


Canadian Owners A French language copy of this manual can be obtained from your dealer or from:


Helm, Incorporated P.O. Box 07130
Detroit, MI 48207


GENERAL MOTORS, GM, the GM Emblem, CHEVROLET, and the CHEVROLET Emblem are registered trademarks; and the name UPLANDER is a trademark of General Motors Corporation. This manual includes the latest information at the time it was printed. We reserve the right to make changes after that time without further notice. For vehicles first sold in Canada, substitute the name “General Motors of Canada Limited” for Chevrolet Motor Division whenever it appears in this manual. Keep this manual in the vehicle, so it will be there if it is ever needed when you are on the road. If the vehicle is sold, leave this manual in the vehicle.


How to Use This Manual Many people read the owner manual from beginning to end when they first receive their new vehicle. If this is done, it can help you learn about the features and controls for the vehicle. Pictures and words work together in the owner manual to explain things.


Index A good place to quickly locate information about the vehicle is the Index in the back of the manual. It is an alphabetical list of what is in the manual and the page number where it can be found.


Litho in U.S.A. Part No. 06UPLANDER A First Printing


©2005 General Motors Corporation. All Rights Reserved.


ii


Safety Warnings and Symbols There are a number of safety cautions in this book. We use a box and the word CAUTION to tell about things that could hurt you if you were to ignore the warning.


{CAUTION:


These mean there is something that could hurt you or other people.


In the caution area, we tell you what the hazard is. Then we tell you what to do to help avoid or reduce the hazard. Please read these cautions. If you do not, you or others could be hurt.


You will also find a circle with a slash through it in this book. This safety symbol means “Do Not,” “Do Not do this” or “Do Not let this happen.”


iii


Vehicle Damage Warnings Also, in this manual you will find these notices: Notice: These mean there is something that could damage your vehicle. A notice tells about something that can damage the vehicle. Many times, this damage would not be covered by your vehicle’s warranty, and it could be costly. But the notice will tell what to do to help avoid the damage. When you read other manuals, you might see CAUTION and NOTICE warnings in different colors or in different words. There are also warning labels on the vehicle. They use the same words, CAUTION or NOTICE.


Vehicle Symbols The vehicle has components and labels that use symbols instead of text. Symbols are shown along with the text describing the operation or information relating to a specific component, control, message, gage, or indicator. If you need help figuring out a specific name of a component, gage, or indicator, reference the following topics: (cid:127) Seats and Restraint Systems in Section 1


Features and Controls in Section 2
Instrument Panel Overview in Section 3


(cid:127) Climate Controls in Section 3
(cid:127) Warning Lights, Gages, and Indicators in Section 3
(cid:127) Audio System(s) in Section 3

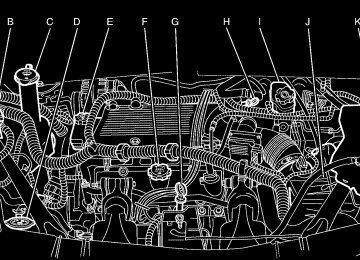

(cid:127) Engine Compartment Overview in Section 5


iv


(cid:127) (cid:127) These are some examples of symbols that may be found on the vehicle:


✍ NOTES


vi


Section 1


Seats and Restraint Systems


Front Seats ......................................................1-2
Manual Seats ................................................1-2
Six-Way Power Seats .....................................1-3
Heated Seats .................................................1-3
Reclining Seatbacks ........................................1-4
Head Restraints .............................................1-6
Rear Seats .......................................................1-6
Rear Seat Operation .......................................1-6
Bucket Seats .................................................1-7
Captain Chairs .............................................1-14
Third Row Seat ............................................1-18
Safety Belts ...................................................1-21
Safety Belts: They Are for Everyone ................1-21
Questions and Answers About Safety Belts ......1-25
How to Wear Safety Belts Properly .................1-26
Driver Position ..............................................1-26
Shoulder Belt Height Adjustment .....................1-33
Safety Belt Use During Pregnancy ..................1-34
Right Front Passenger Position .......................1-34
Rear Seat Passengers ..................................1-34
Rear Safety Belt Comfort Guides ....................1-37
Safety Belt Pretensioners ...............................1-39
Safety Belt Extender .....................................1-39


Child Restraints .............................................1-40
Older Children ..............................................1-40
Infants and Young Children ............................1-43
Child Restraint Systems .................................1-46
Where to Put the Restraint .............................1-50
Lower Anchors and Tethers for Children


(LATCH) ..................................................1-52


Securing a Child Restraint in a


Rear Seat Position ....................................1-58


Securing a Child Restraint in the Right


Front Seat Position ....................................1-60
Built-In Child Restraint ...................................1-64
Airbag System ...............................................1-74
Where Are the Airbags? ................................1-76
When Should an Airbag Inflate? .....................1-79
What Makes an Airbag Inflate? .......................1-80
How Does an Airbag Restrain? .......................1-80
What Will You See After an Airbag Inflates? .....1-81
Passenger Sensing System ............................1-82
Servicing Your Airbag-Equipped Vehicle ...........1-88
Adding Equipment to Your Airbag-Equipped


Vehicle ....................................................1-88
Restraint System Check ..................................1-89
Checking the Restraint Systems ......................1-89
Replacing Restraint System Parts After a Crash ...1-90


1-1


Front Seats


Manual Seats


Use the lever located on the front of the seat to adjust the seat forward or rearward. Pull up on the lever to unlock the seat. Slide the seat to where you want it and release the lever.


{CAUTION:


You can lose control of the vehicle if you try to adjust a manual driver’s seat while the vehicle is moving. The sudden movement could startle and confuse you, or make you push a pedal when you do not want to. Adjust the driver’s seat only when the vehicle is not moving.


To make sure the seat is locked into place, try to move the seat back and forth with your body.


1-2


Six-Way Power Seats


Your vehicle may have this feature. If it does, the six-way power seat control is located on the outboard side of the driver’s seat. Your vehicle may also have a passenger’s six-way power seat.


(cid:127) Move the front of the control up or down to adjust


the front portion of the seat up or down.


(cid:127) Move the rear of the control up or down to adjust


the rear portion of the seat up or down.


(cid:127) Slide the control forward or rearward to move the


seat forward or rearward.


Heated Seats Your vehicle may have this feature. If it does, the heated seat buttons are located on the climate control panel. This feature will heat the lower cushions of the driver’s and front passenger’s seats.


Press this button once to turn the heated seat on to the high setting.


Driver’s Side Button shown, Passenger’s


Side similar


Both indicator lights next to the heated seat symbol will be lit to indicate that it is on the high setting. Press the button a second time to go to the low setting. One indicator will be lit. Press the button a third time to turn the heated seat off. This feature will turn off automatically when the ignition is turned off.


1-3


Reclining Seatbacks


{CAUTION:


If the seatback is not locked, it could move forward in a sudden stop or crash. That could cause injury to the person sitting there. Always push and pull on the seatback to be sure it is locked.


Pull up on the lever, and the seat will go to its original upright position.


To adjust a seatback, pull up on the lever located on the outboard side of the driver’s or front passenger’s seats. Release the lever to lock the seatback where you want it. Push and pull on the seat to make sure it is locked into position.


1-4


Do not have a seatback reclined if your vehicle is moving.


{CAUTION:


Sitting in a reclined position when your vehicle is in motion can be dangerous. Even if you buckle up, your safety belts cannot do their job when you are reclined like this. The shoulder belt cannot do its job because it will not be against your body. Instead, it will be in front of you. In a crash, you could go into it, receiving neck or other injuries. The lap belt cannot do its job either. In a crash, the belt could go up over your abdomen. The belt forces would be there, not at your pelvic bones. This could cause serious internal injuries. For proper protection when the vehicle is in motion, have the seatback upright. Then sit well back in the seat and wear your safety belt properly.


1-5


Head Restraints


Rear Seats


Rear Seat Operation The rear seats in your vehicle have levers and straps used to adjust, remove, and reinstall the seats. By using the levers and straps in the correct order, you can easily remove the seats from the vehicle. If your vehicle has second row captain chairs with airbags, the seats cannot be removed. When reinstalling the seats, make sure the seats are in the proper positions. If your vehicle has a second row center console, it can be removed. See Second Row Center Console on page 2-51. Do not put a seat in the center position because the safety belt cannot be worn properly in this position. See Safety Belts: They Are for Everyone on page 1-21.


Adjust your head restraint so that the top of the restraint is closest to the top of your head. This position reduces the chance of a neck injury in a crash. The head restraints are adjustable on the first and second row seats. They are not adjustable on the third row seat, if equipped. To adjust a head restraint, slide it up or down.


1-6


Bucket Seats Your vehicle may have bucket seats in the second row. These seats can be adjusted several different ways. Fold and Tumble Feature The second row bucket seats can be folded and tumbled forward. Use this feature for exiting and entering third row seats, if the vehicle has them. 1. Make sure the adjustable head restraints are


in the fully lowered position.


4. Release the rear set of


seat hooks from the floor pins by pulling either the nylon strap, located at the base of the seat, or the release handle located on the side of the seat. Use the strap to guide the seat forward.


2. Fold the seatback flat on the seat, by either pulling on the nylon strap, located on the rear right hand side of the seat, or by lifting the recline lever, located on the front right hand side of the seatback.


3. Slide the seat all the


way back in this position.


To return the seat to the original position, do the following: 1. Align the seat so that the rear hooks on the seat are over the rear floor pins. Push down firmly on the rear of the seat so that the rear hooks attach to the rear floor pins.


2. Try to raise the seat to check that it is locked


to the floor.


1-7


Adjusting the Bucket Seats Forward and Rearward There are two adjustment levers on the second row bucket seats that enable them to move forward or rearward.


One is located below the front of the seat.


3. Pull the nylon strap, located on the rear right hand side of the seat, or lift the recline lever, located on the front right hand side of the seatback, to raise the seatback to the upright position.


{CAUTION:


If the seatback is not locked, it could move forward in a sudden stop or crash. That could cause injury to the person sitting there. Always push and pull on the seatback to be sure it is locked.


4. Push and pull on the seatback to check that it is


locked.


One of the bucket seats may be equipped with a built-in child restraint. See Built-In Child Restraint on page 1-64.


1-8


The other lever is located on the rear of the seat.


Folding or Reclining the Seatbacks The seatback on a bucket seat can either be folded forward or reclined using the nylon strap or the recline lever.


To adjust the second row bucket seats forward or rearward, do the following:


1. Lift up either lever and slide the seat forward or


rearward.


2. Release the lever when the seat is in the desired


position.


3. Push and pull on the seat to make sure it is locked.


Nylon Strap


Recline Lever


To fold the seatback forward, do the following:


1. Pull the nylon strap, located on the rear right hand side of the seat, or lift the recline lever, located on the front right hand side of the seatback to release the seatback.


2. Fold the seatback forward.


1-9


Removing the Bucket Seats To remove the bucket seats, do the following: 1. Make sure the head restraint is in the fully lowered


position.


2. Fold the seatback flat on the seat, by either pulling


on the nylon strap, located on the rear right hand side of the seat, or by lifting the recline lever, located on the front right hand side of the seatback.


3. Lift either one of the adjuster levers and slide the seat to the most rearward position. See “Adjusting the Bucket Seats Forward and Rearward” earlier in this section.


{CAUTION:


If the seatback is not locked, it could move forward in a sudden stop or crash. That could cause injury to the person sitting there. Always push and pull on the seatback to be sure it is locked.


To raise the seatback to the upright position from a reclined position, do the following: 1. Pull the nylon strap or lift the recline lever while raising the seatback until it locks to the upright position.


2. Push and pull on the seatback to check that it is


locked.


To recline the seatback, do the following: 1. Pull the nylon strap or lift the recline lever. 2. Press back on the seatback until it is in the desired


position


3. Let go of the strap or lever.


1-10


4. Release the rear set of hooks from the floor pins by pulling either the nylon strap, located at the base of the seat, or the release handle located on the side of the seat. Use the strap to guide the seat forward.


5. To release the front seat hooks from the floor pins, squeeze the angled bar, located beneath the seat toward the straight crossbar.


6. Remove the seat by rocking it slightly forward, then


toward the rear of the vehicle while pulling it out. This should be done in one motion.


1-11


Reinstalling the Bucket Seats


{CAUTION:


A safety belt that is improperly routed, not properly attached, or twisted will not provide the protection needed in a crash. The person wearing the belt could be seriously injured. After installing the seat, always check to be sure that the safety belts are properly routed and attached, and are not twisted.


Do not install the seat facing the rear of the vehicle, as it will not lock into place. If more storage room is needed behind the seat, slide the seat forward. Make sure the seat is in the full rear position before beginning this procedure.


To reinstall the bucket seats, do the following: 1. With the seat folded, squeeze the angled bar


beneath the seat toward the straight crossbar, while placing the front hooks of the seat into the front two floor pins.


2. Make sure the seat is


angled so that the front seat hooks clear the floor pins. If the front hooks are not attached correctly, the seat’s rear hooks will not attach to the rear set of floor pins.


If the front hooks are not attaching correctly, check that the seat is in the full rear position.


1-12


4. Check that the seat is locked by trying to raise


the seat.


5. Pull the nylon strap, located on the rear right hand side of the seat, or lift the recline lever, located on the front right hand side of the seatback, to raise the seatback to the upright position.


{CAUTION:


If the seatback is not locked, it could move forward in a sudden stop or crash. That could cause injury to the person sitting there. Always push and pull on the seatback to be sure it is locked.


6. Push and pull on the seatback to make sure that it


is locked.


1-13


3. Firmly push the rear seat hooks into the rear floor


pins by pushing down the rear of the seat.


{CAUTION:


A seat that is not locked into place properly can move around in a collision or sudden stop. People in the vehicle could be injured. Be sure to lock the seat into place properly when installing it.


Captain Chairs Your vehicle may have second row captain chairs. If so, they can be adjusted forward or rearward and the seatbacks can be adjusted. Adjusting the Captain Chairs Forward and Rearward There are two manual adjustment bars on each seat. One is located under the front of the seat cushion. The other one is located under the rear of the seat cushion. Lift up either bar to slide the seat forward or rearward. Release the lever. Push and pull on the seat to make sure it is locked into place. Folding or Reclining the Seatbacks


{CAUTION:


If the seatback is not locked, it could move forward in a sudden stop or crash. That could cause injury to the person sitting there. Always push and pull on the seatback to be sure it is locked.


1-14


To recline the seatback, lift up on the recliner lever located on the outboard side of the seat, then move the seatback to the desired position. To raise the seatback, lift up on the recliner lever without applying pressure to the seatback. Push and pull on the seatback to make sure it is locked in place. To fold the seatback forward, lift up fully on the recliner lever. Push the seatback forward until it is flat. The armrests can be lowered or raised for easier entry or exit of the vehicle. If your vehicle has captain chairs with side impact airbags, they will have one armrest on the inboard side.


Removing a Captain Chair (without a Side Impact Airbag) If your vehicle has captain chairs with side impact airbags, the seats cannot be removed. See Where Are the Airbags? on page 1-76 for more information. To remove a captain chair, do the following:


1. Pull the nylon strap behind the seat to release the


rear hooks from the floor pins.


2. The seat can then be lifted off the front floor pins


and removed from the vehicle.


1-15


Installing a Captain Chair (without a Side Impact Airbag)


{CAUTION:


{CAUTION:


If the seatback is not locked, it could move forward in a sudden stop or crash. That could cause injury to the person sitting there. Always push and pull on the seatback to be sure it is locked.


{CAUTION:


A seat that is not locked into place properly can move around in a collision or sudden stop. People in the vehicle could be injured. Be sure to lock the seat into place properly when installing it.


A safety belt that is improperly routed, not properly attached, or twisted will not provide the protection needed in a crash. The person wearing the belt could be seriously injured. After installing the seat, always check to be sure that the safety belts are properly routed and attached, and are not twisted.


Do not put the seats in so they face rearward because they will not latch that way. For the second row, if you want more storage room behind the seat, adjust the seat by sliding it forward. Make sure the seatbacks are in the upright position, the seat belts are on the correct side of the seats and the seats are in the full rear position before beginning this procedure.


1-16


To install a captain chair, do the following:


1. Hook the front latches over the front floor pins.


2. Push the rear of the seat down to lock the rear


latches onto the rear set of floor pins.


3. Push and pull on the seat to be sure it is properly


attached.


1-17


Third Row Seat Your vehicle may have a third row seat. It is a full bench seat and may come with the convenience center. See Convenience Center on page 2-53 for more information. The third row seat can be removed and replaced, or with the seatback folded, it will lie flat with the convenience center. Folding the Seatback(s)


To fold down either side of the 50/50 split bench seat, pull up on the lever located on the back of the seat you want to fold, and push the seatback down until it is locked into place.


Push and pull on the seatback to make sure that it is locked into place.


1-18


Returning the Seatback to an Upright Position


{CAUTION:


If the seatback is not locked, it could move forward in a sudden stop or crash. That could cause injury to the person sitting there. Always push and pull on the seatback to be sure it is locked.


To raise the seatback, do the following: 1. Move the second row seat completely forward by using the manual adjustment bar under either the front or rear of the seat cushion.


2. From the passenger’s or driver’s side sliding door, pull up on the lever to release the seatback, then push up on the seatback to raise the seat.


3. Push and pull on the seatback to make sure that it


is locked into the upright position.


Removing the Third Row Seat 1. Remove the convenience center, if equipped. See


Convenience Center on page 2-53 for more information.


2. Make sure all items are off the seat. 3. Put the seatback in its folded position before


removing the seat. See “Folding the Seatback(s)” earlier in this section.


4. From behind the seat, squeeze the release handle until the pin indicators are fully out. This indicates that the rear latches are released from the floor. For ease of removing the seat, squeeze the handle with the palm of your hand up.


5. Lift the seat slightly from the floor to ensure the


latches are clear of the floor pins.


6. Pull the seat rearward and out of the vehicle. The


release handle can be used to carry the seat.


1-19


Do not put the third row seat in so it faces rearward because it will not latch that way. The seat has to go in before the convenience center. See Convenience Center on page 2-53 for more information. For ease of installing the seat, put the seat in the folded position before beginning this procedure. 1. From the rear of the vehicle, place the front hooks of the seat onto the front floor pins in the third row. To do this, the seat will need to be angled approximately 8-10 inches (20-25 cm) from the floor so the front hooks clear the rear floor pins and rear floor cups. Use the release handle to guide the seat into place. If the front hooks are not attached correctly, the rear latches will not attach to the rear set of floor pins.


2. Firmly push the rear latches into the rear floor pins


by pushing down on the rear of the seat.


Installing the Third Row Seat


{CAUTION:


A seat that is not locked into place properly can move around in a collision or sudden stop. People in the vehicle could be injured. Be sure to lock the seat into place properly when installing it.


{CAUTION:


A safety belt that is improperly routed, not properly attached, or twisted will not provide the protection needed in a crash. The person wearing the belt could be seriously injured. After installing the seat, always check to be sure that the safety belts are properly routed and attached, and are not twisted.


1-20


3. Try to raise the seat to make sure that it is locked


down. The indicator pins will no longer stick out when the seat is properly latched into place.


{CAUTION:


If the seatback is not locked, it could move forward in a sudden stop or crash. That could cause injury to the person sitting there. Always push and pull on the seatback to be sure it is locked.


4. Return the seatback to its upright position. See “Returning the Seatback to an Upright Position” earlier in this section.


Safety Belts


Safety Belts: They Are for Everyone This part of the manual tells you how to use safety belts properly. It also tells you some things you should not do with safety belts.


{CAUTION:


Do not let anyone ride where he or she cannot wear a safety belt properly. If you are in a crash and you are not wearing a safety belt, your injuries can be much worse. You can hit things inside the vehicle or be ejected from it. You can be seriously injured or killed. In the same crash, you might not be, if you are buckled up. Always fasten your safety belt, and check that your passengers’ belts are fastened properly too.


1-21


{CAUTION:


It is extremely dangerous to ride in a cargo area, inside or outside of a vehicle. In a collision, people riding in these areas are more likely to be seriously injured or killed. Do not allow people to ride in any area of your vehicle that is not equipped with seats and safety belts. Be sure everyone in your vehicle is in a seat and using a safety belt properly.


Your vehicle has indicators to remind you and your passengers to buckle your safety belts. See Safety Belt Reminder Light on page 3-33 and Passenger Safety Belt Reminder Light on page 3-34. In most states and in all Canadian provinces, the law says to wear safety belts. Here is why: They work. You never know if you will be in a crash. If you do have a crash, you do not know if it will be a bad one. A few crashes are mild, and some crashes can be so serious that even buckled up, a person would not survive. But most crashes are in between. In many of them, people who buckle up can survive and sometimes walk away. Without belts they could have been badly hurt or killed.


1-22


After more than 30 years of safety belts in vehicles, the facts are clear. In most crashes buckling up does matter...a lot! Why Safety Belts Work When you ride in or on anything, you go as fast as it goes.


Take the simplest vehicle. Suppose it is just a seat on wheels.


Put someone on it.


Get it up to speed. Then stop the vehicle. The rider does not stop.


1-23


The person keeps going until stopped by something. In a real vehicle, it could be the windshield...


or the instrument panel...


1-24


Questions and Answers About Safety Belts


Q: Will I be trapped in the vehicle after an accident


if I am wearing a safety belt?


A: You could be — whether you are wearing a safety


belt or not. But you can unbuckle a safety belt, even if you are upside down. And your chance of being conscious during and after an accident, so you can unbuckle and get out, is much greater if you are belted.


Q: If my vehicle has airbags, why should I have to


wear safety belts?


A: Airbags are in many vehicles today and will be in


most of them in the future. But they are supplemental systems only; so they work with safety belts — not instead of them. Every airbag system ever offered for sale has required the use of safety belts. Even if you are in a vehicle that has airbags, you still have to buckle up to get the most protection. That is true not only in frontal collisions, but especially in side and other collisions.


1-25


or the safety belts! With safety belts, you slow down as the vehicle does. You get more time to stop. You stop over more distance, and your strongest bones take the forces. That is why safety belts make such good sense.


Q: If I am a good driver, and I never drive far from


home, why should I wear safety belts?


A: You may be an excellent driver, but if you are in an


accident — even one that is not your fault — you and your passengers can be hurt. Being a good driver does not protect you from things beyond your control, such as bad drivers. Most accidents occur within 25 miles (40 km) of home. And the greatest number of serious injuries and deaths occur at speeds of less than 40 mph (65 km/h). Safety belts are for everyone.


How to Wear Safety Belts Properly This part is only for people of adult size. Be aware that there are special things to know about safety belts and children. And there are different rules for smaller children and babies. If a child will be riding in your vehicle, see Older Children on page 1-40
or Infants and Young Children on page 1-43. Follow those rules for everyone’s protection. First, you will want to know which restraint systems your vehicle has. We will start with the driver position.


1-26


Driver Position Lap-Shoulder Belt The driver has a lap-shoulder belt. Here is how to wear it properly. 1. Close and lock the door. 2. Adjust the seat so you can sit up straight. To see


how, see “Seats” in the Index.


3. Pick up the latch plate and pull the belt across you.


Do not let it get twisted. The shoulder belt may lock if you pull the belt across you very quickly. If this happens, let the belt go back slightly to unlock it. Then pull the belt across you more slowly.


4. Push the latch plate into the buckle until it clicks.


Pull up on the latch plate to make sure it is secure. If the belt is not long enough, see Safety Belt Extender on page 1-39. Make sure the release button on the buckle is positioned so you would be able to unbuckle the safety belt quickly if you ever had to.


5. Move the shoulder belt height adjuster to the height


that is right for you. See Shoulder Belt Height Adjustment on page 1-33.


6. To make the lap part tight, pull up on the


shoulder belt.


The lap part of the belt should be worn low and snug on the hips, just touching the thighs. In a crash, this applies force to the strong pelvic bones. And you would be less likely to slide under the lap belt. If you slid under it, the belt would apply force at your abdomen. This could cause serious or even fatal injuries. The shoulder belt should go over the shoulder and across the chest. These parts of the body are best able to take belt restraining forces. The safety belt locks if there is a sudden stop or crash, or if you pull the belt very quickly out of the retractor.


1-27


Q: What is wrong with this?


{CAUTION:


You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury. The shoulder belt should fit against your body.


A: The shoulder belt is too loose. It will not give nearly


as much protection this way.


1-28


Q: What is wrong with this?


{CAUTION:


You can be seriously injured if your belt is buckled in the wrong place like this. In a crash, the belt would go up over your abdomen. The belt forces would be there, not at the pelvic bones. This could cause serious internal injuries. Always buckle your belt into the buckle nearest you.


A: The belt is buckled in the wrong place.


1-29


{CAUTION:


You can be seriously injured if your belt goes over an armrest like this. The belt would be much too high. In a crash, you can slide under the belt. The belt force would then be applied at the abdomen, not at the pelvic bones, and that could cause serious or fatal injuries. Be sure the belt goes under the armrests.


Q: What is wrong with this?


A: The belt is over an armrest.


1-30


Q: What is wrong with this?


{CAUTION:


You can be seriously injured if you wear the shoulder belt under your arm. In a crash, your body would move too far forward, which would increase the chance of head and neck injury. Also, the belt would apply too much force to the ribs, which are not as strong as shoulder bones. You could also severely injure internal organs like your liver or spleen.


A: The shoulder belt is worn under the arm. It should


be worn over the shoulder at all times.


1-31


Q: What is wrong with this?


{CAUTION:


You can be seriously injured by a twisted belt. In a crash, you would not have the full width of the belt to spread impact forces. If a belt is twisted, make it straight so it can work properly, or ask your dealer to fix it.


A: The belt is twisted across the body.


1-32


To unlatch the belt, just push the button on the buckle. The belt should go back out of the way. Before you close the door, be sure the belt is out of the way. If you slam the door on it, you can damage both the belt and your vehicle.


Shoulder Belt Height Adjustment Before you begin to drive, move the shoulder belt height adjuster to the height that is right for you. Adjust the height so that the shoulder portion of the belt is centered on your shoulder. The belt should be away from your face and neck, but not falling off your shoulder.


To move it down, push down on the button (A) and move the height adjuster to the desired position. You can move the height adjuster up by pushing up on the shoulder belt guide.


After you move the height adjuster to where you want it, try to move it down without pushing the button down to make sure it has locked into position.


1-33


Right Front Passenger Position To learn how to wear the right front passenger’s safety belt properly, see Driver Position on page 1-26. The right front passenger’s safety belt works the same way as the driver’s safety belt — except for one thing. If you ever pull the shoulder portion of the belt out all the way, you will engage the child restraint locking feature. If this happens, just let the belt go back all the way and start again.


Rear Seat Passengers It is very important for rear seat passengers to buckle up! Accident statistics show that unbelted people in the rear seat are hurt more often in crashes than those who are wearing safety belts. Rear passengers who are not safety belted can be thrown out of the vehicle in a crash. And they can strike others in the vehicle who are wearing safety belts.


Safety Belt Use During Pregnancy Safety belts work for everyone, including pregnant women. Like all occupants, they are more likely to be seriously injured if they do not wear safety belts.


A pregnant woman should wear a lap-shoulder belt, and the lap portion should be worn as low as possible, below the rounding, throughout the pregnancy. The best way to protect the fetus is to protect the mother. When a safety belt is worn properly, it is more likely that the fetus will not be hurt in a crash. For pregnant women, as for anyone, the key to making safety belts effective is wearing them properly.


1-34


Lap-Shoulder Belt All rear seat positions have lap-shoulder belts. Here is how to wear one properly.


2. Push the latch plate into the buckle until it clicks.


Pull up on the latch plate to make sure it is secure. When the shoulder belt is pulled out all the way, it will lock. If it does, let it go back all the way and start again. If the belt is not long enough, see Safety Belt Extender on page 1-39. Make sure the release button on the buckle is positioned so you would be able to unbuckle the safety belt quickly if you ever had to.


1. Pick up the latch plate and pull the belt across you.


Do not let it get twisted. The shoulder belt may lock if you pull the belt across you very quickly. If this happens, let the belt go back slightly to unlock it. Then pull the belt across you more slowly.


3. To make the lap part tight, pull up on the


shoulder part.


1-35


The safety belt locks if there is a sudden stop or a crash, or if you pull the belt very quickly out of the retractor.


{CAUTION:


You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury. The shoulder belt should fit against your body.


The lap part of the belt should be worn low and snug on the hips, just touching the thighs. In a crash, this applies force to the strong pelvic bones. And you would be less likely to slide under the lap belt. If you slid under it, the belt would apply force at your abdomen. This could cause serious or even fatal injuries. The shoulder belt should go over the shoulder and across the chest. These parts of the body are best able to take belt restraining forces.


1-36


To unlatch the belt, push the button on the buckle.


Rear Safety Belt Comfort Guides Rear safety belt comfort guides may provide added safety belt comfort for older children who have outgrown booster seats and for some adults. When installed on a shoulder belt, the comfort guide positions the belt away from the neck and head. There is one guide for each second row position. If your vehicle has a third row, there is one guide for each outboard position. Here is how to install a comfort guide and use the safety belt:


2. Place the guide over the belt and insert the


two edges of the belt into the slots of the guide.


1. Remove the guide from its storage pocket on the


side of the seatback.


1-37


3. Be sure that the belt is not twisted and it lies flat.


The guide must be on top of the belt.


{CAUTION:


A safety belt that is not properly worn may not provide the protection needed in a crash. The person wearing the belt could be seriously injured. The shoulder belt should go over the shoulder and across the chest. These parts of the body are best able to take belt restraining forces.


1-38


4. Buckle, position and release the safety belt as


described in Rear Seat Passengers on page 1-34. Make sure that the shoulder belt crosses the shoulder.


To remove and store the comfort guides, squeeze the belt edges together so that you can take them out of the guides. Slide the guide into the storage pocket.


Safety Belt Pretensioners Your vehicle has safety belt pretensioners for the driver and right front passenger. Although you cannot see them, they are located on the retractor part of the safety belts. They help the safety belts reduce a person’s forward movement in a moderate to severe frontal or near frontal crash. Pretensioners work only once. If they activate in a crash, you will need to get new ones, and probably other new parts for your safety belt system. See Replacing Restraint System Parts After a Crash on page 1-90.


Safety Belt Extender If the vehicle’s safety belt will fasten around you, you should use it. But if a safety belt is not long enough, your dealer will order you an extender. It is free. When you go in to order it, take the heaviest coat you will wear, so the extender will be long enough for you. To help avoid personal injury, do not let someone else use it, and use it only for the seat it is made to fit. The extender has been designed for adults. Never use it for securing child seats. To wear it, just attach it to the regular safety belt. For more information, see the instruction sheet that comes with the extender.


1-39


Child Restraints


Older Children


Q: What is the proper way to wear safety belts? A: If possible, an older child should wear a


lap-shoulder belt and get the additional restraint a shoulder belt can provide. The shoulder belt should not cross the face or neck. The lap belt should fit snugly below the hips, just touching the top of the thighs. It should never be worn over the abdomen, which could cause severe or even fatal internal injuries in a crash.


Accident statistics show that children are safer if they are restrained in the rear seat. In a crash, children who are not buckled up can strike other people who are buckled up, or can be thrown out of the vehicle. Older children need to use safety belts properly.


Older children who have outgrown booster seats should wear the vehicle’s safety belts.


1-40


{CAUTION:


Never do this. Here two children are wearing the same belt. The belt can not properly spread the impact forces. In a crash, the two children can be crushed together and seriously injured. A belt must be used by only one person at a time.


1-41


Q: What if a child is wearing a lap-shoulder belt, but the child is so small that the shoulder belt is very close to the child’s face or neck?


A: If the child is sitting in a seat next to a window, move the child toward the center of the vehicle. If the child is sitting in a center rear seat position, move the child toward the safety belt buckle. In either case, be sure that the shoulder belt still is on the child’s shoulder, so that in a crash the child’s upper body would have the restraint that belts provide. If the child is sitting in a rear outboard position, see Rear Safety Belt Comfort Guides on page 1-37.


1-42


{CAUTION:


Never do this. Here a child is sitting in a seat that has a lap-shoulder belt, but the shoulder part is behind the child. If the child wears the belt in this way, in a crash the child might slide under the belt. The belt’s force would then be applied right on the child’s abdomen. That could cause serious or fatal injuries.


Wherever the child sits, the lap portion of the belt should be worn low and snug on the hips, just touching the child’s thighs. This applies belt force to the child’s pelvic bones in a crash.


Infants and Young Children Everyone in a vehicle needs protection! This includes infants and all other children. Neither the distance traveled nor the age and size of the traveler changes the need, for everyone, to use safety restraints. In fact, the law in every state in the United States and in every Canadian province says children up to some age must be restrained while in a vehicle. Every time infants and young children ride in vehicles, they should have the protection provided by appropriate restraints. Young children should not use the vehicle’s adult safety belts alone, unless there is no other choice. Instead, they need to use a child restraint.


{CAUTION:


People should never hold a baby in their arms while riding in a vehicle. A baby does not weigh much — until a crash. During a crash a baby will become so heavy it is not possible to hold it. For example, in a crash at only 25 mph (40 km/h), a 12 lb (5.5 kg) baby will suddenly become a 240 lb (110 kg) force on a person’s arms. A baby should be secured in an appropriate restraint.


1-43


Q: What are the different types of add-on child


restraints?


A: Add-on child restraints, which are purchased by the


vehicle’s owner, are available in four basic types. Selection of a particular restraint should take into consideration not only the child’s weight, height and age but also whether or not the restraint will be compatible with the motor vehicle in which it will be used. For most basic types of child restraints, there are many different models available. When purchasing a child restraint, be sure it is designed to be used in a motor vehicle. If it is, the restraint will have a label saying that it meets federal motor vehicle safety standards. The restraint manufacturer’s instructions that come with the restraint, state the weight and height limitations for a particular child restraint. In addition, there are many kinds of restraints available for children with special needs.


{CAUTION:


Children who are up against, or very close to, any airbag when it inflates can be seriously injured or killed. Airbags plus lap-shoulder belts offer protection for adults and older children, but not for young children and infants. Neither the vehicle’s safety belt system nor its airbag system is designed for them. Young children and infants need the protection that a child restraint system can provide.


1-44


{CAUTION:


{CAUTION:


Newborn infants need complete support, including support for the head and neck. This is necessary because a newborn infant’s neck is weak and its head weighs so much compared with the rest of its body. In a crash, an infant in a rear-facing seat settles into the restraint, so the crash forces can be distributed across the strongest part of an infant’s body, the back and shoulders. Infants always should be secured in appropriate infant restraints.


The body structure of a young child is quite unlike that of an adult or older child, for whom the safety belts are designed. A young child’s hip bones are still so small that the vehicle’s regular safety belt may not remain low on the hip bones, as it should. Instead, it may settle up around the child’s abdomen. In a crash, the belt would apply force on a body area that is unprotected by any bony structure. This alone could cause serious or fatal injuries. Young children always should be secured in appropriate child restraints.


1-45


Child Restraint Systems


An infant car bed (A), a special bed made for use in a motor vehicle, is an infant restraint system designed to restrain or position a child on a continuous flat surface. Make sure that the infant’s head rests toward the center of the vehicle.


A rear-facing infant seat (B) provides restraint with the seating surface against the back of the infant. The harness system holds the infant in place and, in a crash, acts to keep the infant positioned in the restraint.


1-46


A forward-facing child seat (C-E) provides restraint for the child’s body with the harness and also sometimes with surfaces such as T-shaped or shelf-like shields.


A booster seat (F-G) is a child restraint designed to improve the fit of the vehicle’s safety belt system. Some booster seats have a shoulder belt positioner, and some high-back booster seats have a five-point harness. A booster seat can also help a child to see out the window.


1-47


Q: How Should I Use a Child Restraint? A: A child restraint system is any device designed for use in a motor vehicle to restrain, seat, or position children. A built-in child restraint system is a permanent part of the motor vehicle. An add-on child restraint system is a portable one, which is purchased by the vehicle’s owner. To help reduce injuries, an add-on child restraint must be secured in the vehicle. With built-in or add-on child restraints, the child has to be secured within the child restraint. When choosing an add-on child restraint, be sure the child restraint is designed to be used in a vehicle. If it is, it will have a label saying that it meets federal motor vehicle safety standards. Then follow the instructions for the restraint. You may find these instructions on the restraint itself or in a booklet, or both.


Securing an Add-on Child Restraint in the Vehicle


{CAUTION:


A child can be seriously injured or killed in a crash if the child restraint is not properly secured in the vehicle. Make sure the child restraint is properly installed in the vehicle using the vehicle’s safety belt or LATCH system, following the instructions that came with that restraint, and also the instructions in this manual.


To help reduce the chance of injury, the child restraint must be secured in the vehicle. Child restraint systems must be secured in vehicle seats by lap belts or the lap belt portion of a lap-shoulder belt, or by the LATCH system. See Lower Anchors and Tethers for Children (LATCH) on page 1-52 for more information. A child can be endangered in a crash if the child restraint is not properly secured in the vehicle.


1-48


{CAUTION:


A child can be seriously injured or killed in a crash if the child is not properly secured in the child restraint. Make sure the child is properly secured, following the instructions that came with that restraint.


Because there are different systems, it is important to refer to the instructions that come with the restraint. A child can be endangered in a crash if the child is not properly secured in the child restraint.


When securing an add-on child restraint, refer to the instructions that come with the restraint which may be on the restraint itself or in a booklet, or both, and to this manual. The child restraint instructions are important, so if they are not available, obtain a replacement copy from the manufacturer. Keep in mind that an unsecured child restraint can move around in a collision or sudden stop and injure people in the vehicle. Be sure to properly secure any child restraint in your vehicle — even when no child is in it. Securing the Child Within the Child Restraint There are several systems for securing the child within the child restraint. One system, the three-point harness, has straps that come down over each of the infant’s shoulders and buckle together at the crotch. The five-point harness system has two shoulder straps, two hip straps, and a crotch strap. A shield may take the place of hip straps. A T-shaped shield has shoulder straps that are attached to a flat pad which rests low against the child’s body. A shelf- or armrest-type shield has straps that are attached to a wide, shelf-like shield that swings up or to the side.


1-49


CAUTION:


(Continued)


Even though the passenger sensing system is designed to turn off the passenger’s frontal airbag and seat-mounted side impact airbag (if equipped) under certain conditions, no system is fail-safe, and no one can guarantee that an airbag will not deploy under some unusual circumstance, even though it is turned off. General Motors recommends that rear-facing child restraints be secured in the rear seat, even if the airbag is off. If you need to secure a forward-facing child restraint in the right front seat, always move the front passenger seat as far back as it will go. It is better to secure the child restraint in a rear seat.


Where to Put the Restraint Accident statistics show that children are safer if they are restrained in the rear rather than the front seat. General Motors recommends that child restraints be secured in a rear seat, including an infant riding in a rear-facing infant seat, a child riding in a forward-facing child seat and an older child riding in a booster seat. If your vehicle has a rear seat that will accommodate a rear-facing child restraint, a label on your sun visor says, “Never put a rear-facing child seat in the front.” This is because the risk to the rear-facing child is so great, if the airbag deploys.


{CAUTION:


A child in a rear-facing child restraint can be seriously injured or killed if the right front passenger’s airbag inflates. This is because the back of the rear-facing child restraint would be very close to the inflating airbag.


CAUTION:


(Continued)


1-50


If your vehicle does not have a rear seat that will accommodate a rear-facing child restraint, never put a child in a rear-facing child restraint in the right front passenger seat the unless passenger airbag status indicator shows off. Never put a rear facing child restraint in the right front passenger seat unless the airbag is off. Here is why:


{CAUTION:


A child in a rear-facing child restraint can be seriously injured or killed if the right front passenger’s airbag inflates. This is because the back of the rear-facing child restraint would be very close to the inflating airbag. Be sure the airbag is off before using a rear-facing child restraint in the right front seat position. Even though the passenger sensing system is designed to turn off the passenger’s frontal airbag and side impact airbag (if equipped) if the system detects a rear-facing child restraint, no system is fail-safe, and no one can guarantee that an airbag will not deploy under some


CAUTION:


(Continued)


CAUTION:


(Continued)


unusual circumstance, even though it is turned off. We recommend that rear-facing child restraints be transported in vehicles with a rear seat that will accommodate a rear-facing child restraint, whenever possible. If you need to secure a forward-facing child restraint in the right front seat, always move the front passenger seat as far back as it will go. It is better to secure the child restraint in a rear seat.


Wherever you install a child restraint, be sure to secure the child restraint properly. Keep in mind that an unsecured child restraint can move around in a collision or sudden stop and injure people in the vehicle. Be sure to properly secure any child restraint in your vehicle – even when no child is in it.


1-51


Lower Anchors and Tethers for Children (LATCH) Your vehicle has the LATCH system. The LATCH system holds a child restraint during driving or in a crash. This system is designed to make installation of a child restraint easier. The LATCH system uses anchors in the vehicle and attachments on the child restraint that are made for use with the LATCH system Make sure that a LATCH-compatible child restraint is properly installed using the anchors, or use the vehicle’s safety belts to secure the restraint, following the instructions that came with that restraint, and also the instructions in this manual. When installing a child restraint with a top tether, you must also use either the lower anchors or the safety belts to properly secure the child restraint. A child restraint must never be installed using only the top tether and anchor. In order to use the LATCH system in your vehicle, you need a child restraint equipped with LATCH attachments. The child restraint manufacturer will provide you with instructions on how to use the child restraint and its attachments. The following explains how to attach a child restraint with these attachments in your vehicle.


1-52


Your vehicle has lower anchors and top tether anchors. Your child restraint may have lower attachments and a top tether. Not all vehicle seating positions or child restraints have lower anchors and attachments or top tether anchors and attachments. Lower Anchors


Lower anchors (A) are metal bars built into the vehicle. There are two lower anchors for each LATCH seating position that will accommodate a child restraint with lower attachments (B).


Top Tether Anchor


A top tether (A, C) anchors the top of the child restraint to the vehicle. A top tether anchor is built into the vehicle. The top tether attachment (B) on the child restraint connects to the top tether anchor in the vehicle in order to reduce the forward movement and rotation of the child restraint during driving or in a crash.


Your child restraint may have a single tether (A) or a dual tether (C). Either will have a single attachment (B) to secure the top tether to the anchor. Some top tether-equipped child restraints are designed for use with or without the top tether being attached. Others require the top tether always to be attached. In Canada, the law requires that forward-facing child restraints have a top tether, and that the tether be attached. In the United States, some child restraints also have a top tether. Be sure to read and follow the instructions for your child restraint. If the child restraint does not have a top tether, one can be obtained, in kit form, for many child restraints. Ask the child restraint manufacturer whether or not a kit is available.


1-53


To assist you in locating the lower anchors, each seating position with lower anchors has two labels, near the crease between the seatback and the seat cushion, showing where the anchors are located.


For the second row seating positions, the top tether anchors are located on the seatback, near the base of each seat. Be sure to use an anchor located on the same side of the vehicle as the seating position where the child restraint will be placed.


Lower Anchor and Top Tether Anchor Locations


i (Top Tether Anchor): Seating positions with top tether anchors.


j (Lower Anchor): Seating positions with two lower anchors.


i (Top Tether Anchor): Seating positions with top tether anchors.


Second Row


Third Row


1-54


Second Row


For the center third row position, if equipped, the top tether anchor is located on the seatback, near the center of the third row seating position. This anchor can accommodate only one top tether.


Third Row


Do not secure a child restraint in the right front passenger’s position or in the third row outboard positions, if equipped, if a national or local law requires that the top tether be attached, or if the instructions that come with the child restraint say that the top tether must be attached. There is no place to attach the top tether in this position. Accident statistics show that children are safer if they are restrained in the rear rather than the front seat. See Where to Put the Restraint on page 1-50 for additional information.


1-55


Securing a Child Restraint Designed for the LATCH System


{CAUTION:


{CAUTION:


If a LATCH-type child restraint is not attached to anchors, the restraint will not be able to protect the child correctly. In a crash, the child could be seriously injured or killed. Make sure that a LATCH-type child restraint is properly installed using the anchors, or use the vehicle’s safety belts to secure the restraint, following the instructions that came with that restraint, and also the instructions in this manual.


1-56


Each top tether anchor and lower anchor in the vehicle is designed to hold only one child restraint. Attaching more than one child restraint to a single anchor could cause the anchor or attachment to come loose or even break during a crash. A child or others could be injured if this happens. To help prevent injury to people and damage to your vehicle, attach only one child restraint per anchor.


1. Attach and tighten the lower attachments to the


lower anchors. If the child restraint does not have lower attachments or the desired seating position does not have lower anchors, secure the child restraint with the top tether and the safety belts. Refer to your child restraint manufacturer instructions and the instructions in this manual.


1.1. Find the lower anchors for the desired


seating position.


1.2. Put the child restraint on the seat. 1.3. Attach and tighten the lower attachments on


the child restraint to the lower anchors.


2. If the child restraint manufacturer recommends that


the top tether be attached, attach and tighten the top tether to the top tether anchor, if equipped. Refer to the child restraint instructions and the following steps:


2.1. Find the top tether anchor. 2.2. Route, attach, and tighten the top tether


according to your child restraint instructions and the following instructions:


If the position you are using does not have a head restraint and you are using a single tether, route the tether over the seatback.


If the position you are using does not have a head restraint and you are using a dual tether, route the tether over the seatback.


If the position you are using has an adjustable head restraint and you are using a dual tether, route the tether around the head restraint.


If the position you are using has an adjustable head restraint and you are using a single tether, route the tether under the head restraint and in between the head restraint posts.


3. Push and pull the child restraint in different


directions to be sure it is secure.


1-57


Securing a Child Restraint in a Rear Seat Position If your child restraint is equipped with the LATCH system, see Lower Anchors and Tethers for Children (LATCH) on page 1-52. For vehicles with a third row, there are no top tether anchors in the outboard seating positions. Do not secure a child seat in these positions if a national or local law requires that the top tether be anchored, or if the instructions that come with the child restraint say that the top strap must be anchored. If your child restraint does not have the LATCH system, you will be using the lap-shoulder belt to secure the child restraint. Be sure to follow the instructions that came with the child restraint. Secure the child in the child restraint when and as the instructions say. 1. Put the child restraint on the seat. 2. Pick up the latch plate, and run the lap and shoulder


portions of the vehicle’s safety belt through or around the restraint. The child restraint instructions will show you how.


1-58


3. Buckle the belt. Make sure the release button is positioned so you would be able to unbuckle the safety belt quickly if you ever had to.


4. Pull the rest of the shoulder belt all the way out of


the retractor to set the lock.


5. To tighten the belt, push down on the child restraint, pull the shoulder portion of the belt to tighten the lap portion of the belt and feed the shoulder belt back into the retractor. If you are using a forward-facing child restraint, you may find it helpful to use your knee to push down on the child restraint as you tighten the belt.


1-59


6. If your child restraint has a top tether, and the


position that you are using has a top tether anchor, attach and tighten the top tether to the top tether anchor. Refer to the instructions that came with the child restraint and to Lower Anchors and Tethers for Children (LATCH) on page 1-52.


7. Push and pull the child restraint in different


directions to be sure it is secure.


To remove the child restraint, if the top tether is attached to the top tether anchor, disconnect it. Unbuckle the vehicle’s safety belt and let it go back all the way. The safety belt will move freely again and be ready to work for an adult or larger child passenger.


Securing a Child Restraint in the Right Front Seat Position Your vehicle has airbags. A rear seat is a safer place to secure a forward-facing child restraint. See Where to Put the Restraint on page 1-50. In addition, your vehicle has a passenger sensing system. The passenger sensing system is designed to turn off the right front passenger’s airbag or airbags when an infant in a rear-facing infant seat or a small child in a forward-facing child restraint or booster seat is detected. See Passenger Sensing System on page 1-82
and Passenger Airbag Status Indicator on page 3-35
for more information on this including important safety information.


1-60


If your vehicle has a rear seat, a label on your sun visor says, “Never put a rear-facing child seat in the front.” This is because the risk to the rear-facing child is so great, if the airbag deploys.


{CAUTION:


A child in a rear-facing child restraint can be seriously injured or killed if the right front passenger’s airbag inflates. This is because the back of the rear-facing child restraint would be very close to the inflating airbag. Even though the passenger sensing system is designed to turn off the passenger’s frontal airbag and seat-mounted side impact airbag (if equipped) under certain conditions, no system is fail-safe, and no one can guarantee that an airbag will not deploy under some unusual circumstance, even though it is turned off. General Motors recommends that rear-facing child restraints be secured in the rear seat, even if the airbag is off.


If your vehicle does not have a rear seat that will accommodate a rear-facing child restraint, never put a child in a rear-facing child restraint in the right front


If you need to secure a forward-facing child restraint in the right front seat position, move the seat as far back as it will go before securing the forward-facing child restraint. See Manual Seats on page 1-2 or Six-Way Power Seats on page 1-3. If your child restraint is equipped with the LATCH system, see Lower Anchors and Tethers for Children (LATCH) on page 1-52. There is no top tether anchor at the right front seating position. Do not secure a child seat in this position if a national or local law requires that the top tether be anchored or if the instructions that come with the child restraint say that the top tether must be anchored. See Lower Anchors and Tethers for Children (LATCH) on page 1-52 if your child restraint has a top tether.


passenger seat the unless passenger airbag status indicator shows off. Never put a rear facing child restraint in the right front passenger seat unless the airbag is off. Here is why:


{CAUTION:


A child in a rear-facing child restraint can be seriously injured or killed if the right front passenger’s airbag inflates. This is because the back of the rear facing child restraint would be very close to the inflating airbag. Be sure the airbag is off before using a rear-facing child restraint in the right front seat position. Even though the passenger sensing system is designed to turn off the passenger’s frontal airbag and side impact airbag (if equipped) if the system detects a rear-facing child restraint, no system is fail-safe, and no one can guarantee that an airbag will not deploy under some unusual circumstance, even though it is turned off. We recommend that rear-facing child restraints be transported in vehicles with a rear seat that will accommodate a rear-facing child restraint, whenever possible.


1-61


You will be using the lap-shoulder belt to secure the child restraint in this position. Be sure to follow the instructions that came with the child restraint. Secure the child in the child restraint when and as the instructions say. 1. Your vehicle has a right front passenger’s airbags.


See Passenger Sensing System on page 1-82. General Motors recommends that rear-facing child restraints be secured in a rear seat, even if the airbag or airbags are off. If your child restraint is forward-facing, move the seat as far back as it will go before securing the child restraint in this seat. See Manual Seats on page 1-2 or Six-Way Power Seats on page 1-3. When the passenger sensing system has turned off the right front passenger’s airbag or airbags, the off indicator in the passenger airbag status indicator should light and stay lit when you turn the ignition to RUN or START. See Passenger Airbag Status Indicator on page 3-35.


2. Put the child restraint on the seat. 3. Pick up the latch plate, and run the lap and shoulder


portions of the vehicle’s safety belt through or around the restraint. The child restraint instructions will show you how.


1-62


4. Buckle the belt. Make sure the release button is positioned so you would be able to unbuckle the safety belt quickly if you ever had to.


5. Pull the rest of the shoulder belt all the way out of


the retractor to set the lock.


6. To tighten the belt, push down on the child restraint,


pull the shoulder portion of the belt to tighten the lap portion of the belt and feed the shoulder belt back into the retractor. If you are using a forward-facing child restraint, you may find it helpful to use your knee to push down on the child restraint as you tighten the belt. You should not be able to pull more of the belt from the retractor once the lock has been set.


1-63


7. Push and pull the child restraint in different


directions to be sure it is secure.


8. If the airbag or airbags are off, the off indicator on


the instrument panel will be lit and stay lit when the key is turned to RUN or START.


If a child restraint has been installed and the on indicator is lit, turn the vehicle off. Remove the child restraint from the vehicle and reinstall the child restraint. If after reinstalling the child restraint and restarting the vehicle, the on indicator is still lit, check to make sure that the vehicle’s seatback is not pressing the child restraint into the seat cushion. If this happens, slightly recline the vehicle’s seatback and adjust the seat cushion if possible. Also make sure the child restraint is not trapped under the vehicle head restraint. If this happens, adjust the head restraint. If the on indicator is still lit, secure the child in the child restraint in a rear seat position in the vehicle if one is available and check with your dealer. To remove the child restraint, if the top tether is attached to the top tether anchor, disconnect it. Unbuckle the vehicle’s safety belt and let it go back all the way. The safety belt will move freely again and be ready to work for an adult or larger child passenger.


1-64


Built-In Child Restraint WARNING! DEATH or SERIOUS INJURY can occur:


Follow all instruction on the child restraint and in the vehicle’s owner’s manual.


If your vehicle has this feature, the built-in child restraint is located in the passenger-side position in the second row. This child restraint system conforms to all applicable Federal Motor Vehicle Safety Standards.


(cid:127) Use only with children who weigh between 22 and 40 pounds (10 and 18 kg) and whose height is between 33.5 and 40 inches (850 and 1 016 mm). Use only with children whose shoulders are below the shoulder belt slots for the harness system and who are capable of sitting upright alone. The child should also be at least one year old. It is important to use a rear-facing infant restraint until the child is at least one year old. A rear-facing restraint gives the infant’s head, neck and body the support they would need in a crash. See Older Children on page 1-40
or Infants and Young Children on page 1-43. A child whose weight is over 40 pounds, whose height is over 40 inches or whose shoulders are above the shoulder belt slots for the harness system, should be restrained in an add-on booster seat appropriate for the child’s size. See Child Restraint Systems on page 1-46. Once the booster seat is outgrown, the child should sit on the vehicle’s regular seat and use the vehicle’s safety belts.


{CAUTION:


Using the vehicle’s built-in child restraint as a booster seat for a larger child could cause injury to the child in a sudden stop or crash. A child whose weight is over 40 pounds, whose height is over 40 inches or whose shoulders are above the shoulder belt slots for the harness system should use a restraint system that is appropriate for their size, either an add-on booster seat or the vehicle’s safety belt. See “Child Restraints” or “Older Children” in the Index.


1-65


Securing a Child in the Built-In Child Restraint


1. Raise the head restraint until the lower edge of the head restraint is even with the top of the seatback.


2. Rotate the head restraint rearward until it touches the top of the seatback. Make sure there is no gap between the lower edge of the head restraint and the top of the seatback.


1-66


3. Lower the child restraint cushion.


You will be using the child restraint’s harness (A) to secure your child. Do not use the vehicle’s safety belts.


{CAUTION:


Using the vehicle’s regular safety belts on a child seated on the built-in child restraint cushion can cause serious injury to the child in a sudden stop or crash. Secure the child using the built-in child restraint’s harness.


1-67


WARNING: FAILURE TO FOLLOW THE MANUFACTURER’S INSTRUCTIONS ON THE USE OF THIS CHILD RESTRAINT SYSTEM CAN RESULT IN YOUR CHILD STRIKING THE VEHICLE’S INTERIOR DURING A SUDDEN STOP OR CRASH. SNUGLY ADJUST THE BELTS PROVIDED WITH THIS CHILD RESTRAINT AROUND YOUR CHILD.


6. Select only one side of the harness. Place the


harness over the child’s shoulder.


7. Push the latch plate (A) into the buckle until


it clicks. Be sure the buckle is free of any foreign objects that may prevent you from securing the latch plates. If you can not secure a latch plate, see your dealer for service before using the child restraint.


8. Place the other side of the harness over the


child’s shoulder.


9. Push the latch plate into the buckle until it clicks.


4. Before placing the child in the child restraint, add


slack to the shoulder harness. Pull the black shoulder harness release strap firmly. At the same time pull both shoulder harness straps through the slots in the seatback as shown.


5. Place the child on the child restraint cushion.


1-68


10. Pull up on the latch plates to make sure they


are secure.


11. Now fasten the left and right halves of the shoulder harness clip together. The clip can be easily pulled apart and is designed to pull apart during a collision.


1-69


{CAUTION:


A built-in child restraint harness that is not properly adjusted can cause injury to the child in a sudden stop or collision. A harness that is loose, twisted, worn improperly or improperly fastened will not be able to restrain the child’s upper body. Make sure the harness is adjusted correctly. Fastening the clip is not a substitute for adjusting the harness so that it is snug.


1-70


12. Pull the shoulder harness adjustment strap (A)


firmly until the harness is snugly adjusted around the child. You should not be able to put more than two fingers between the harness and the child’s chest. Make sure the harness and buckle strap are not twisted.


Removing the Child from the Built-In Child Restraint


13. Adjust the position of the harness on the child’s


shoulder by moving the clip along the harness until it is level with the child’s armpits. On each side of the harness, the shoulder part should be centered on the child’s shoulder. The harness should be away from the child’s face and neck, but not falling from the child’s shoulders. If you expect that the child will sleep while riding, you can recline the seatback. See Bucket Seats on page 1-7.


1. Unfasten the shoulder harness clip.


1-71


Storing the Built-In Child Restraint Always properly store the built-in child restraint before using the vehicle’s lap-shoulder belt.


2. Unlatch the harness by pushing the button on the


buckle.


3. Move one side of the harness off the child’s


shoulder.


4. Move the other side of the harness off the child’s


shoulder.


5. Remove the child from the child restraint cushion.


1. Move both latch plates and both sides of the


shoulder harness clip to the bottom of the harness straps.


1-72


2. Fold the child restraint cushion and leg rest up into


the seatback.


3. Press the child restraint cushion firmly into the


seatback.


4. Then press the leg rest firmly into the seatback,


and secure it by pressing the upper corners against the fastener strips on the seatback.


1-73


Airbag System Your vehicle has a frontal airbag for the driver and a frontal airbag for the right front passenger. Your vehicle may also have side impact airbags. Side impact airbags are available for the driver, the right front passenger and the second row captain’s chairs (if equipped). If your vehicle has a side impact airbag, the words AIRBAG will appear on the airbag covering on the side of the seatback closest to the door. Frontal airbags are designed to help reduce the risk of injury from the force of an inflating frontal airbag. But these airbags must inflate very quickly to do their job and comply with federal regulations. Here are the most important things to know about the airbag system:


{CAUTION:


You can be severely injured or killed in a crash if you are not wearing your safety belt — even if you have airbags. Wearing your safety belt during a crash helps reduce your chance of hitting things inside the vehicle or being ejected (Continued)


CAUTION:


5. Rotate the head restraint forward and push it all the


way down.


Just like the other restraint systems in your vehicle, your built-in child restraint needs to be periodically checked and may need to have parts replaced after a crash. See Checking the Restraint Systems on page 1-89 and Replacing Restraint System Parts After a Crash on page 1-90.


1-74


CAUTION:


(Continued)


{CAUTION:


Both frontal and side impact airbags inflate with great force, faster than the blink of an eye. If you are too close to an inflating airbag, as you would be if you were leaning forward, it could seriously injure you. Safety belts help keep you in position for airbag inflation before and during a crash. Always wear your safety belt even with frontal airbags. The driver should sit as far back as possible while still maintaining control of the vehicle. Occupants should not lean on or sleep against the door.


from it. Airbags are “supplemental restraints” to the safety belts. Airbags are designed to work with safety belts but do not replace them. Frontal airbags for the driver and right front passenger are designed to deploy in moderate to severe frontal and near frontal crashes. They are not designed to inflate in rollover, rear crashes, or in many side crashes. And, for some unrestrained occupants, frontal airbags may provide less protection in frontal crashes than more forceful airbags have provided in the past. Side impact airbags are designed to inflate in moderate to severe crashes where something hits the side of your vehicle. They are not designed to inflate in frontal, in rollover or in rear crashes. Everyone in your vehicle should wear a safety belt properly — whether or not there is an airbag for that person.


1-75


{CAUTION:


Anyone who is up against, or very close to, any airbag when it inflates can be seriously injured or killed. Airbags plus lap-shoulder belts offer the best protection for adults, but not for young children and infants. Neither the vehicle’s safety belt system nor its airbag

Loading...
x
