Chevrolet Tahoe/Suburban Owner Manual - 2012 - 2nd - 11/9/11


Black plate (1,1)

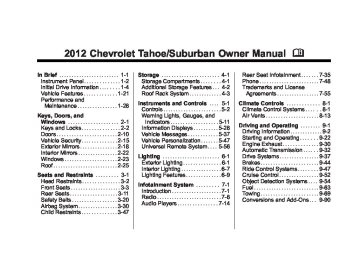

2012 Chevrolet Tahoe/Suburban Owner Manual M


In Brief . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Instrument Panel . . . . . . . . . . . . . . 1-2
Initial Drive Information . . . . . . . . 1-4
Vehicle Features . . . . . . . . . . . . . 1-21
Performance and


Maintenance . . . . . . . . . . . . . . . . 1-28


Keys, Doors, and


Windows . . . . . . . . . . . . . . . . . . . . 2-1
Keys and Locks . . . . . . . . . . . . . . . 2-2
Doors . . . . . . . . . . . . . . . . . . . . . . . . 2-10
Vehicle Security. . . . . . . . . . . . . . 2-15
Exterior Mirrors . . . . . . . . . . . . . . . 2-18
Interior Mirrors . . . . . . . . . . . . . . . . 2-22
Windows . . . . . . . . . . . . . . . . . . . . . 2-23
Roof . . . . . . . . . . . . . . . . . . . . . . . . . . 2-25


Seats and Restraints . . . . . . . . . 3-1
Head Restraints . . . . . . . . . . . . . . . 3-2
Front Seats . . . . . . . . . . . . . . . . . . . . 3-3
Rear Seats . . . . . . . . . . . . . . . . . . . 3-11
Safety Belts . . . . . . . . . . . . . . . . . . 3-20
Airbag System . . . . . . . . . . . . . . . . 3-30
Child Restraints . . . . . . . . . . . . . . 3-47


Storage . . . . . . . . . . . . . . . . . . . . . . . 4-1
Storage Compartments . . . . . . . . 4-1
Additional Storage Features . . . 4-2
Roof Rack System . . . . . . . . . . . . . 4-3


Rear Seat Infotainment . . . . . . . 7-35
Phone . . . . . . . . . . . . . . . . . . . . . . . . 7-48
Trademarks and License


Agreements . . . . . . . . . . . . . . . . . 7-55


Instruments and Controls . . . . 5-1
Controls . . . . . . . . . . . . . . . . . . . . . . . 5-2
Warning Lights, Gauges, and


Indicators . . . . . . . . . . . . . . . . . . . 5-11
Information Displays . . . . . . . . . . 5-28
Vehicle Messages . . . . . . . . . . . . 5-37
Vehicle Personalization . . . . . . . 5-47
Universal Remote System . . . . 5-56


Lighting . . . . . . . . . . . . . . . . . . . . . . . 6-1
Exterior Lighting . . . . . . . . . . . . . . . 6-1
Interior Lighting . . . . . . . . . . . . . . . . 6-7
Lighting Features . . . . . . . . . . . . . . 6-9


Infotainment System . . . . . . . . . 7-1
Introduction . . . . . . . . . . . . . . . . . . . . 7-1
Radio . . . . . . . . . . . . . . . . . . . . . . . . . . 7-8
Audio Players . . . . . . . . . . . . . . . . 7-14


Climate Controls . . . . . . . . . . . . . 8-1
Climate Control Systems . . . . . . 8-1
Air Vents . . . . . . . . . . . . . . . . . . . . . 8-13


Driving and Operating . . . . . . . . 9-1
Driving Information . . . . . . . . . . . . . 9-2
Starting and Operating . . . . . . . 9-22
Engine Exhaust . . . . . . . . . . . . . . 9-30
Automatic Transmission . . . . . . 9-32
Drive Systems . . . . . . . . . . . . . . . . 9-37
Brakes . . . . . . . . . . . . . . . . . . . . . . . 9-44
Ride Control Systems . . . . . . . . 9-47
Cruise Control . . . . . . . . . . . . . . . . 9-52
Object Detection Systems . . . . 9-54
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . 9-63
Towing . . . . . . . . . . . . . . . . . . . . . . . 9-69
Conversions and Add-Ons . . . 9-90


Chevrolet Tahoe/Suburban Owner Manual - 2012 - 2nd - 11/9/11


Black plate (2,1)


2012 Chevrolet Tahoe/Suburban Owner Manual M


Customer Information . . . . . . . 13-1
Customer Information . . . . . . . . 13-1
Reporting Safety Defects . . . . 13-19
Vehicle Data Recording and


Privacy. . . . . . . . . . . . . . . . . . . . 13-20


OnStar . . . . . . . . . . . . . . . . . . . . . . . 14-1
OnStar Overview . . . . . . . . . . . . . 14-1
OnStar Services . . . . . . . . . . . . . . 14-2
OnStar Additional


Information . . . . . . . . . . . . . . . . . . 14-5
Index . . . . . . . . . . . . . . . . . . . . . i-1


Vehicle Care . . . . . . . . . . . . . . . . . 10-1
General Information . . . . . . . . . . 10-2
Vehicle Checks . . . . . . . . . . . . . . . 10-4
Headlamp Aiming . . . . . . . . . . . 10-35
Bulb Replacement . . . . . . . . . . 10-37
Electrical System . . . . . . . . . . . . 10-40
Wheels and Tires . . . . . . . . . . . 10-49
Jump Starting . . . . . . . . . . . . . . . 10-89
Towing . . . . . . . . . . . . . . . . . . . . . . 10-93
Appearance Care . . . . . . . . . . . 10-99


Service and Maintenance . . . 11-1
General Information . . . . . . . . . . 11-1
Maintenance Schedule . . . . . . . 11-3
Special Application


Services . . . . . . . . . . . . . . . . . . . . 11-8


Additional Maintenance


and Care . . . . . . . . . . . . . . . . . . . . 11-9


Recommended Fluids,


Lubricants, and Parts . . . . . . 11-12
Maintenance Records . . . . . . . 11-15


Technical Data . . . . . . . . . . . . . . . 12-1
Vehicle Identification . . . . . . . . . 12-1
Vehicle Data . . . . . . . . . . . . . . . . . . 12-2


Chevrolet Tahoe/Suburban Owner Manual - 2012 - 2nd - 11/9/11


Black plate (3,1)


Introduction


iii


Canadian Vehicle Owners


Propriétaires Canadiens A French language copy of this manual can be obtained from your dealer or from: On peut obtenir un exemplaire de ce guide en français auprès du concessionnaire ou à l'adresse suivante: Helm, Incorporated Attention: Customer Service 47911 Halyard Drive Plymouth, MI 48170


This manual describes features that may or may not be on your specific vehicle either because they are options that you did not purchase or due to changes subsequent to the printing of this owner manual. Please refer to the purchase documentation relating to your specific vehicle to confirm each of the features found on your vehicle. For vehicles first sold in Canada, substitute the name “General Motors of Canada Limited” for Chevrolet Motor Division wherever it appears in this manual. If the vehicle is a hybrid, see the hybrid supplement for more information. Keep this manual in the vehicle for quick reference.


The names, logos, emblems, slogans, vehicle model names, and vehicle body designs appearing in this manual including, but not limited to, GM, the GM logo, CHEVROLET, the CHEVROLET Emblem, TAHOE, SUBURBAN, and Z71
are trademarks and/or service marks of General Motors LLC, its subsidiaries, affiliates, or licensors.


Litho in U.S.A. Part No. 20902914 B Second Printing


©2011 General Motors LLC. All Rights Reserved.


Chevrolet Tahoe/Suburban Owner Manual - 2012 - 2nd - 11/9/11


Black plate (4,1)


iv


Introduction


Using this Manual To quickly locate information about the vehicle, use the Index in the back of the manual. It is an alphabetical list of what is in the manual and the page number where it can be found.


Danger, Warnings, and Cautions Warning messages found on vehicle labels and in this manual describe hazards and what to do to avoid or reduce them. Danger indicates a hazard with a high level of risk which will result in serious injury or death. Warning or Caution indicates a hazard that could result in injury or death.


{ WARNING


These mean there is something that could hurt you or other people.


Notice: This means there is something that could result in property or vehicle damage. This would not be covered by the vehicle's warranty.


A circle with a slash through it is a safety symbol which means “Do Not,” “Do not do this,” or “Do not let this happen.”


Symbols The vehicle has components and labels that use symbols instead of text. Symbols are shown along with the text describing the operation or information relating to a specific component, control, message, gauge, or indicator. M : This symbol is shown when you need to see your owner manual for additional instructions or information. * : This symbol is shown when you need to see a service manual for additional instructions or information.


Chevrolet Tahoe/Suburban Owner Manual - 2012 - 2nd - 11/9/11


Black plate (5,1)


Introduction


Vehicle Symbol Chart Here are some additional symbols that may be found on the vehicle and what they mean. For more information on the symbol, refer to the Index. 0 : Adjustable Pedals 9 : Airbag Readiness Light # : Air Conditioning ! : Antilock Brake System (ABS) % : Audio Steering Wheel Controls or OnStar® $ : Brake System Warning Light " : Charging System I : Cruise Control B : Engine Coolant Temperature O : Exterior Lamps # : Fog Lamps . : Fuel Gauge


+ : Fuses 3 : Headlamp High/Low-Beam Changer ( : Heated Steering Wheel j : LATCH System Child Restraints * : Malfunction Indicator Lamp : : Oil Pressure g : Outside Power Foldaway Mirrors O : Power / : Remote Vehicle Start > : Safety Belt Reminders 7 : Tire Pressure Monitor _ : Tow/Haul Mode d : Traction Control/StabiliTrak® M : Windshield Washer Fluid


Chevrolet Tahoe/Suburban Owner Manual - 2012 - 2nd - 11/9/11


Black plate (6,1)


vi


Introduction


2 NOTES


Chevrolet Tahoe/Suburban Owner Manual - 2012 - 2nd - 11/9/11


Black plate (1,1)


In Brief


1-1


In Brief


Instrument Panel


Instrument Panel Overview . . . . 1-2


Initial Drive Information


Initial Drive Information . . . . . . . . 1-4
Remote Keyless Entry (RKE)


System . . . . . . . . . . . . . . . . . . . . . . 1-4
Remote Vehicle Start . . . . . . . . . 1-4
Door Locks . . . . . . . . . . . . . . . . . . . 1-5
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . 1-6
Windows . . . . . . . . . . . . . . . . . . . . . . 1-7
Seat Adjustment . . . . . . . . . . . . . . 1-7
Memory Features . . . . . . . . . . . . 1-10
Second Row Seats . . . . . . . . . . 1-11
Third Row Seats . . . . . . . . . . . . . 1-11
Heated and Ventilated


Seats . . . . . . . . . . . . . . . . . . . . . . . 1-11


Head Restraint


Adjustment . . . . . . . . . . . . . . . . . 1-12


Safety Belts . . . . . . . . . . . . . . . . . . 1-12
Passenger Sensing


System . . . . . . . . . . . . . . . . . . . . . 1-12
Mirror Adjustment . . . . . . . . . . . . 1-13
Steering Wheel


Adjustment . . . . . . . . . . . . . . . . . 1-15


Throttle and Brake Pedal


Adjustment . . . . . . . . . . . . . . . . . 1-15
Interior Lighting . . . . . . . . . . . . . . 1-16
Exterior Lighting . . . . . . . . . . . . . 1-17
Windshield Wiper/Washer . . . . 1-17
Climate Controls . . . . . . . . . . . . . 1-18
Transmission . . . . . . . . . . . . . . . . 1-19
Four-Wheel Drive . . . . . . . . . . . . 1-20


Vehicle Features


Radio(s) . . . . . . . . . . . . . . . . . . . . . 1-21
Satellite Radio . . . . . . . . . . . . . . . 1-23
Portable Audio Devices . . . . . . 1-23
Bluetooth® . . . . . . . . . . . . . . . . . . . 1-23
Steering Wheel Controls . . . . . 1-24


Cruise Control . . . . . . . . . . . . . . . 1-24
Navigation System . . . . . . . . . . . 1-25
Side Blind Zone


Alert (SBZA) . . . . . . . . . . . . . . . 1-25


Rear Vision


Camera (RVC) . . . . . . . . . . . . . 1-25
Ultrasonic Parking Assist . . . . 1-26
Power Outlets . . . . . . . . . . . . . . . 1-26
Universal Remote System . . . 1-26
Sunroof . . . . . . . . . . . . . . . . . . . . . . 1-27
Performance and Maintenance StabiliTrak® System . . . . . . . . . 1-28
Tire Pressure Monitor . . . . . . . . 1-28
Engine Oil Life System . . . . . . 1-29
Fuel E85 (85% Ethanol) . . . . . 1-29
Driving for Better Fuel


Economy . . . . . . . . . . . . . . . . . . . 1-29


Roadside Assistance


Program . . . . . . . . . . . . . . . . . . . . 1-30
OnStar® . . . . . . . . . . . . . . . . . . . . . 1-30


Chevrolet Tahoe/Suburban Owner Manual - 2012 - 2nd - 11/9/11


Black plate (2,1)


1-2


In Brief


Instrument Panel


Instrument Panel Overview


English Version Shown; Metric Similar


Chevrolet Tahoe/Suburban Owner Manual - 2012 - 2nd - 11/9/11


Black plate (3,1)


In Brief


1-3


A. Air Vents on page 8‑13. B. Turn and Lane‐Change Lever.


I.


Exterior Lamp Controls on page 6‑1.


O. Cruise Control on page 9‑52. P. Steering Wheel Adjustment on


See Turn and Lane-Change Signals on page 6‑5. Windshield Wiper/Washer on page 5‑5. Rear Window Wiper/Washer on page 5‑6. Instrument Cluster on page 5‑12.


C.


D. Hazard Warning Flashers on


page 6‑5 (Out of View).


E. Shift Lever. See Automatic Transmission on page 9‑32. F. Manual Mode on page 9‑35


(If Equipped). Tow/Haul Mode on page 9‑36
(If Equipped).


G. Driver Information Center (DIC) Buttons. See Driver Information Center (DIC) on page 5‑28. Infotainment on page 7‑1.


H.


J. Dome Lamps on page 6‑8.


page 5‑2.


Instrument Panel Illumination Control on page 6‑7. Fog Lamps on page 6‑6
(If Equipped).


K. Hood Release. See Hood on


L.


page 10‑5. Integrated Trailer Brake Controller (If Equipped). See Towing Equipment on page 9‑79.


M. Data Link Connector (DLC)


(Out of View). See Malfunction Indicator Lamp on page 5‑20.


N. Automatic Transfer Case


Control (If Equipped). See Four-Wheel Drive (Single Speed Automatic Transfer Case) on page 9‑42 or Four-Wheel Drive (Two Speed Automatic Transfer Case) on page 9‑37.


Q. Horn on page 5‑5. R. Steering Wheel Controls on


page 5‑3.


S. Climate Control Systems on


page 8‑1 (If Equipped). Dual Automatic Climate Control System on page 8‑4
(If Equipped).


T. Power Outlets on page 5‑9. U. StabiliTrak® System on


page 9‑47 (If Equipped). Pedal Adjust Button (If Equipped). See Adjustable Throttle and Brake Pedal on page 9‑22. Ultrasonic Parking Assist on page 9‑54 (If Equipped). Power Assist Steps on page 2‑14 (If Equipped).


Chevrolet Tahoe/Suburban Owner Manual - 2012 - 2nd - 11/9/11


Black plate (4,1)


1-4


In Brief


Initial Drive Information This section provides a brief overview about some of the important features that may or may not be on your specific vehicle. For more detailed information, refer to each of the features which can be found later in this owner manual.


Remote Keyless Entry (RKE) System The RKE transmitter is used to remotely lock and unlock the doors from up to 60 m (195 ft) away from the vehicle.


L : Press and release to locate the vehicle. Press L and hold for more than two seconds to sound the panic alarm. Press L again to cancel the panic alarm. See Keys on page 2‑2 and Remote Keyless Entry (RKE) System on page 2‑3.


Remote Vehicle Start With this feature the engine can be started from outside of the vehicle. Starting the Vehicle 1. Aim the RKE transmitter at the


vehicle.


2. Press and release Q. 3.


Immediately after completing Step 2, press and hold / until the turn signal lamps flash.


RKE Transmitter with Remote


Start and Power Liftgate/Liftglass K : Press to unlock the driver door. Press K again within three seconds to unlock all remaining doors. Q : Press to lock all doors. Lock and unlock feedback can be personalized. See Vehicle Personalization (With DIC Buttons) on page 5‑47. m : Press and hold to unlock the liftglass. 8 : Press and hold to open or close the power liftgate.


Chevrolet Tahoe/Suburban Owner Manual - 2012 - 2nd - 11/9/11


Black plate (5,1)


In Brief


1-5


When the vehicle starts, the parking lamps will turn on and remain on as long as the engine is running. The doors will be locked and the climate control system may come on. The engine will continue to run for 10 minutes. Repeat the steps for a 10-minute time extension. Remote start can be extended only once. Canceling a Remote Start To cancel a remote start: . Aim the RKE transmitter at the vehicle and press and hold / until the parking lamps turn off. Turn on the hazard warning flashers. Turn the ignition on and then back off.


See Remote Vehicle Start on page 2‑6.


Door Locks There are several ways to lock and unlock the vehicle. From outside, use the Remote Keyless Entry (RKE) transmitter or the key in the driver door. From inside, use the power door locks or the manual door locks. To lock or unlock the door with the manual locks, push down or pull up on the manual lock knob. Power Door Locks Press Q or K on the RKE transmitter. See Remote Keyless Entry (RKE) System Operation on page 2‑3.


Power Folding Mirrors Shown,


Other Models Similar Q : Press to lock the doors. K : Press to unlock the doors. See Door Locks on page 2‑8.


Chevrolet Tahoe/Suburban Owner Manual - 2012 - 2nd - 11/9/11


Black plate (6,1)


1-6


In Brief


Liftgate


The liftglass or liftgate cannot be opened if the rear wiper is in motion. Attempting to open the liftglass or liftgate while the rear wiper is in motion will cause the release of the liftglass or liftgate to delay until the wipers are parked off the liftglass.


Manual Liftgate Operation To unlock the liftgate, press " on the power door lock switch or press " on the Remote Keyless Entry (RKE) transmittertwice, see Remote Keyless Entry (RKE) System Operation on page 2‑3. Press the touch pad on the underside of the liftgate handle (B) and lift up. Use the pull cup to lower and close the liftgate. Do not press the touch pad while closing the liftgate. This will cause the liftgate to be unlatched. Power Liftgate Operation On vehicles with a power liftgate, the switch is on the overhead console. The vehicle must be in P (Park) to use the power feature. The taillamps will flash and a chime will sound when the power liftgate moves.


There are several ways to open and close the power liftgate: . Press and hold 8 on the


RKEtransmitter until the liftgate starts moving.


. Press 8 on the overhead


console.


. Press l on the bottom of the liftgate next to the latch to close.


Pressing a second time while the liftgate is moving reverses the direction. To disable the power liftgate function, press OFFon the liftgate switch, see Liftgate on page 2‑10.


Liftglass If equipped, there are two ways to open the liftglass: . Press the button on the


underside of the license plate applique (A).


. Press m on the


RKEtransmitter.


Chevrolet Tahoe/Suburban Owner Manual - 2012 - 2nd - 11/9/11


Black plate (7,1)


Windows


For more information, see: . Windows on page 2‑23. . Power Windows on page 2‑24.


Seat Adjustment


Manual Seats


In Brief


1-7


3. Try to move the seat back and


forth to be sure the seat is locked in place.


See Seat Adjustment on page 3‑3. Power Seats


Power Folding Mirrors Shown,


Other Models Similar


The driver door has switches that control all windows, the passengers door switch only control that window. The power windows work when the ignition is in ON/RUN or ACC/ACCESSORY, or in Retained Accessory Power (RAP). See Retained Accessory Power (RAP) on page 9‑27 for more information. Press the switch to lower the window. Pull the switch up to raise it.


To adjust the seat: 1. Lift the bar to unlock the seat. 2. Slide the seat to the desired position and release the bar.


To adjust a power seat, if equipped: . Move the seat forward or


rearward by sliding the control forward or rearward.


Chevrolet Tahoe/Suburban Owner Manual - 2012 - 2nd - 11/9/11


Black plate (8,1)


1-8


In Brief


If available, raise or lower the front or rear part of the seat cushion by moving the front or rear of the control up or down. If available, raise or lower the entire seat by moving the entire control up or down.


See Power Seat Adjustment on page 3‑4.


Lumbar Adjustment


Power Lumbar


Manual Lumbar


If equipped, increase or decrease manual lumbar support by turning the knob forward or rearward. See Lumbar Adjustment on page 3‑5.


To adjust the power lumbar support, if equipped: . On vehicles with two-way


lumbar, press and hold the top or bottom of the control to increase or decrease lumbar support.


Chevrolet Tahoe/Suburban Owner Manual - 2012 - 2nd - 11/9/11


Black plate (9,1)


Reclining Seatbacks


Manual Reclining Seatbacks


. On vehicles with four-way


lumbar, press and hold the front or rear of the control to increase or decrease lumbar support. To raise or lower the height of the support, press and hold the top or bottom of the control. See Lumbar Adjustment on page 3‑5.


In Brief


1-9


To return the seatback to the upright position: 1. Lift the lever fully without applying pressure to the seatback, and the seatback will return to the upright position.


2. Push and pull on the seatback to


make sure it is locked.


See Reclining Seatbacks on page 3‑6.


To recline a manual seatback: 1. Lift the lever. 2. Move the seatback to the desired position, and then release the lever to lock the seatback in place.


3. Push and pull on the seatback to


make sure it is locked.


Chevrolet Tahoe/Suburban Owner Manual - 2012 - 2nd - 11/9/11


Black plate (10,1)


1-10


In Brief


Power Reclining Seatbacks


Memory Features


To adjust a power seatback, if equipped:


Tilt the top of the control rearward to recline. Tilt the top of the control forward to raise.


See Reclining Seatbacks on page 3‑6.


On vehicles with the memory feature, the controls on the driver door are used to program and recall memory settings for the driver seat, outside mirrors, and the adjustable throttle and brake pedals, if equipped.


Storing Memory Positions To save into memory: 1. Adjust the driver seat and


seatback recliner, both outside mirrors, and the throttle and brake pedals, if equipped. See Power Mirrors on page 2‑19
and Adjustable Throttle and Brake Pedal on page 9‑22. Not all mirrors and adjustable throttle and brake pedals will have the ability to save and recall their positions.


2. Press and hold “1” until


two beeps sound.


3. Repeat for a second driver


position using “2.”


Chevrolet Tahoe/Suburban Owner Manual - 2012 - 2nd - 11/9/11


Black plate (11,1)


To recall, press and release “1” or “2.” The vehicle must be in P (Park). A single beep will sound. The seat, outside mirrors, and adjustable throttle and brake pedals, if equipped, will move to the position previously stored for the identified driver. See Memory Seats on page 3‑8 and Vehicle Personalization (With DIC Buttons) on page 5‑47.


Easy Exit Driver Seat This feature can move the seat rearward to allow extra room to exit the vehicle. B : Press to recall the easy exit seat position. The vehicle must be in P (Park). See Memory Seats on page 3‑8 and Vehicle Personalization (With DIC Buttons) on page 5‑47.


Second Row Seats On vehicles with a 60/40 split bench or buckets seats, the seatbacks can be folded for additional cargo space, or the seats can be folded and tumbled for easy entry/exit to the third row seats, if equipped. On vehicles with bucket seats, the seatbacks also recline. See Second Row Seats on page 3‑12.


Third Row Seats On vehicles with third row seats, the seatbacks can be folded, and the entire seat can be tumbled or removed from the vehicle. For detailed instructions, see Third Row Seats on page 3‑16.


In Brief


1-11


Heated and Ventilated Seats


Heated and Cooled Seat Buttons


Shown, Heated Seat Buttons


Similar


If available, the buttons are on the front doors. To operate, the ignition must be in ON/RUN. H : the seat. I : Press to heat the seatback only.


If available, press to cool


Chevrolet Tahoe/Suburban Owner Manual - 2012 - 2nd - 11/9/11


Black plate (12,1)


1-12


In Brief


J : Press to heat the seat and seatback. Press the button once for the highest setting. With each press of the button, the seat will change to the next lower setting, and then to the off setting. The lights indicate three for the highest setting and one for the lowest. See Heated and Ventilated Front Seats on page 3‑10.


Head Restraint Adjustment Do not drive until the head restraints for all occupants are installed and adjusted properly. To achieve a comfortable seating position, change the seatback recline angle as little as necessary while keeping the seat and the head restraint height in the proper position. See Head Restraints on page 3‑2
and Seat Adjustment on page 3‑3.


Safety Belts


Refer to the following sections for important information on how to use safety belts properly. . Safety Belts on page 3‑20. . How to Wear Safety Belts


Properly on page 3‑21. Lap-Shoulder Belt on page 3‑22. Lower Anchors and Tethers for Children (LATCH System) on page 3‑55.


Passenger Sensing System The passenger sensing system, if equipped, turns off the front outboard passenger frontal airbag under certain conditions. No other airbag is affected by the passenger sensing system. If the vehicle has one of the indicators pictured in the following illustrations, then the vehicle has a passenger sensing system for the right front passenger position.


Chevrolet Tahoe/Suburban Owner Manual - 2012 - 2nd - 11/9/11


Black plate (13,1)


In Brief


1-13


3. Adjust the outside mirror so that


the side of the vehicle and the area behind are seen.


4. Press either (A) or (B) again to


deselect the mirror.


See Power Mirrors on page 2‑19 for more information . To power fold the mirrors: 1. Press (C) to fold the mirrors out


to the driving position.


2. Press (D) to fold the mirrors in to


the folded position.


The passenger airbag status indicator, if equipped, will be visible on the overhead console when the vehicle is started.


Mirror Adjustment


Exterior Mirrors


United States


Canada and Mexico


See Passenger Sensing System on page 3‑39 for important information.


With Power Folding Mirrors


To adjust the mirrors: 1. Press (A) or (B) to select the


driver or passenger side mirror.


2. Press one of the four arrows located on the control pad to adjust the mirror.


Chevrolet Tahoe/Suburban Owner Manual - 2012 - 2nd - 11/9/11


Black plate (14,1)


1-14


In Brief


See Power Mirrors on page 2‑19 for more information. Keep the selector switch in the center position when not adjusting either outside mirror. To manual fold the mirrors: Fold the mirrors inward to prevent damage when going through an automatic car wash. To fold, pull the mirror toward the vehicle. Push the mirror outward, to return to its original position.


Heated Mirrors Press 1 to heat the mirrors. See “Rear Window Defogger” under Dual Automatic Climate Control System on page 8‑4 or Climate Control Systems on page 8‑1 for more information.


Park Tilt Mirrors If the vehicle has the memory package, the exterior mirrors tilt to a preselected position when the vehicle is in R (Reverse). This feature lets the driver view the curb when parallel parking. The mirrors return to the original position when the vehicle is shifted out of R (Reverse), or the ignition is turned off or to OFF/LOCK. This feature can be programed through the Driver Information Center (DIC). See Vehicle Personalization (With DIC Buttons) on page 5‑47 for more information.


Trailer-Tow Mirrors For vehicle with towing mirrors, they can be extended for a clearer view of the objects behind the vehicle. Manually pull out the mirror head to extend it for better visibility when towing a trailer. See Trailer-Tow Mirrors on page 2‑19 for more information.


With Manual Folding Mirrors


To adjust the mirrors: 1. Move the selector switch located


above the four-way control pad to the left or right to choose either the driver side or passenger side mirror.


2. Press one of the four arrows located on the control pad to move the mirror in the desired direction.


3. Adjust the outside mirror so that


the side of the vehicle and the area behind are seen.


Chevrolet Tahoe/Suburban Owner Manual - 2012 - 2nd - 11/9/11


Black plate (15,1)


Interior Mirror


Adjustment Hold the rearview mirror in the center and move it to view the area behind the vehicle.


Manual Rearview Mirror For vehicles with a manual rearview mirror, push the tab forward for daytime use and pull it for nighttime use to avoid glare from the headlamps from behind. See Manual Rearview Mirror on page 2‑22 for more information.


Automatic Dimming Rearview Mirror For vehicles with an automatic dimming rearview mirror. The mirror will automatically reduce the glare from the headlamps from behind. The dimming feature comes on and the indicator light illuminates each time the ignition is turned to start. See Automatic Dimming Rearview Mirror on page 2‑22 for more information.


Steering Wheel Adjustment


In Brief


1-15


Do not adjust the steering wheel while driving.


Throttle and Brake Pedal Adjustment On vehicles with this feature, you can change the position of the throttle and brake pedals.


The tilt lever is located on the lower left side of the steering column. To adjust the steering wheel: 1. Hold the steering wheel and pull


the lever.


2. Move the steering wheel up


or down.


3. Release the lever to lock the


wheel in place.


The control used to adjust the pedals is located on the instrument panel below the climate control system. Press the bottom of the control to move the pedals closer to your body. Press the top of the control to move the pedals away. See Adjustable Throttle and Brake Pedal on page 9‑22.


Chevrolet Tahoe/Suburban Owner Manual - 2012 - 2nd - 11/9/11


Black plate (16,1)


1-16


In Brief


Interior Lighting


Dome Lamps The dome lamps are located in the overhead console. They come on when any door is opened and turn off after all the doors are closed. Turn the instrument panel brightness knob located below the dome lamp override button, clockwise to the farthest position to manually turn on the dome lamps. The dome lamps remain on until the knob is turned counterclockwise.


Dome Lamp Override The dome lamp override button is located next to the exterior lamps control.


k : Press the button in and the dome lamps remain off when a door is opened. Press the button again to return it to the extended position so that the dome lamps come on when a door is opened.


Reading Lamps For vehicles with reading lamps in the overhead console, press the button located next to the lamp to turn it on or off. The vehicle may also have reading lamps in other locations. The lamps cannot be adjusted. For more information about interior lamps, see: . Dome Lamps on page 6‑8. . Reading Lamps on page 6‑8. Instrument Panel Illumination Control on page 6‑7.


Chevrolet Tahoe/Suburban Owner Manual - 2012 - 2nd - 11/9/11


Black plate (17,1)


Exterior Lighting


The exterior lamps control is located on the instrument panel to the left of the steering wheel. O : Turns off the automatic headlamps and Daytime Running Lamps (DRL). Turn the headlamp control to the off position again to turn the automatic headlamps or DRL back on. For vehicles first sold in Canada, the off position will only work when the vehicle is shifted into P (Park).


AUTO: Automatically turns on the headlamps, parking lamps, taillamps, instrument panel lights, and license plate lamps. ; : Turns on the parking lamps, taillamps, instrument panel lights, and license plate lamps. 5 : Turns on the headlamps, parking lamps, taillamps, instrument panel lights, and license plate lamps. For more information, see: . Exterior Lamp Controls on


page 6‑1.


. Daytime Running Lamps (DRL)


on page 6‑3. Fog Lamps on page 6‑6.


In Brief


1-17


Windshield Wiper/Washer


The front wiper control is located on the turn and lane‐change lever. Turn the band with the wiper symbol to control the windshield wipers. 8 : For a single wipe, turn to 8 , then release. For several wipes, hold the band on 8 longer. 9 : Turns the windshield wipers off. 6 : Turn the band up for more frequent wipes or down for less frequent wipes. 6 : Slow wipes. ? : Fast wipes. L : Push this paddle to spray washer fluid on the windshield.


Chevrolet Tahoe/Suburban Owner Manual - 2012 - 2nd - 11/9/11


Black plate (18,1)


Climate Controls


The heating, cooling, and ventilation in the vehicle can be controlled with these systems.


If this vehicle is a hybrid, see the hybrid supplement for more information.


1-18


In Brief


Rear Wiper Window Wiper/Washer To turn the rear wiper on, slide the lever to a wiper position. 9 : Turns the wiper off. 5 : Turns on the rear wiper delay. Z : Turns on the rear wiper. = : Press the button on the end of the lever to spray washer fluid on the rear window. See Windshield Wiper/Washer on page 5‑5 and Rear Window Wiper/ Washer on page 5‑6.


Climate Control System


A. Fan Control B. REAR (Rear Climate Control) C. Recirculation D. Air Delivery Mode Control E. Air Conditioning


F. Driver and Passenger Temperature Controls


G. Rear Window Defogger See Climate Control Systems on page 8‑1.


Chevrolet Tahoe/Suburban Owner Manual - 2012 - 2nd - 11/9/11


Black plate (19,1)


In Brief


1-19


Transmission


Range Selection Mode


Base Trim Shown (Uplevel Similar) The Range Selection Mode switch is located on the shift lever. 1. To enable the Range Selection feature, move the column shift lever to the M (Manual) position. The current range will appear next to the M. This is the highest attainable range with all lower gears accessible. As an example, when 5 (Fifth) gear is selected, 1 (First) through 5 (Fifth) gears are available.


Dual Automatic Climate Control System


A. Fan Control B. AUTO (Automatic Operation) C. Defrost D. Recirculation E. REAR (Rear Climate Control) F. Air Delivery Mode Control G. Driver Temperature Control H. Display I. J. Rear Window Defogger


Power Button


K. Air Conditioning L. PASS M. Passenger Temperature Control See Dual Automatic Climate Control System on page 8‑4 (If Equipped) . For vehicles with rear heating and air conditioning controls, see Rear Climate Control System (Rear Climate with Rear Seat Audio) on page 8‑11 or Rear Climate Control System (Rear Climate Control Only) on page 8‑10.


Chevrolet Tahoe/Suburban Owner Manual - 2012 - 2nd - 11/9/11


Black plate (20,1)


1-20


In Brief


2. Press the plus/minus buttons, located on the steering column shift lever, to select the desired range of gears for current driving conditions. See Manual Mode on page 9‑35.


While using Range Selection Mode, cruise control and the Tow/Haul mode can be used. Grade Braking is not available when Range Selection Mode is active. See Tow/Haul Mode on page 9‑36.


Four-Wheel Drive If the vehicle has Four-Wheel Drive, you can send the engine's driving power to all four wheels for extra traction. Automatic Transfer Case


Two Speed Transfer Case


Single Speed Transfer Case


The transfer case knob is located to the left of the instrument panel cluster. Use this knob to shift into and out of the different Four-Wheel Drive modes. 2 m : This setting is used for driving in most street and highway situations. AUTO: This setting is ideal for use when road surface traction conditions are variable.


Chevrolet Tahoe/Suburban Owner Manual - 2012 - 2nd - 11/9/11


Black plate (21,1)


4 m : Use the Four-Wheel-Drive High position when extra traction is needed, such as on snowy or icy roads or in most off-road situations. 4 n : Vehicles with a two speed transfer case have a Four-Wheel-Drive Low position. This setting sends maximum power to all four wheels. You might choose Four-Wheel-Drive Low if you are driving off-road in deep sand, deep mud, deep snow, and while climbing or descending steep hills. N (Neutral): Vehicles with a two speed transfer case have a N (Neutral) position. Shift the transfer case to N (Neutral) only when towing the vehicle. See Recreational Vehicle Towing on page 10‑93 or Towing the Vehicle on page 10‑93. See Four-Wheel Drive (Single Speed Automatic Transfer Case) on page 9‑42 or Four-Wheel Drive (Two Speed Automatic Transfer Case) on page 9‑37.


In Brief


1-21


Vehicle Features Radio(s)


Radio with USB, CD, and DVD (MP3)


O : Press to turn the system on and off. Turn to increase or decrease the volume.


BAND: Press to choose between FM, AM, or XM™, if equipped. f : Select radio stations.


Chevrolet Tahoe/Suburban Owner Manual - 2012 - 2nd - 11/9/11


Black plate (22,1)


1-22


In Brief


© SEEK or ¨ SEEK: Seek or scan stations. 4 : Press to switch the display between the radio station frequency and the time. While the ignition is off, press this button to display the time. Press to display additional text information related to the current FM-RDS or XM station; or CD, MP3, or WMA song. If information is available during XM, CD, MP3, or WMA playback, the song title information displays on the top line of the display and artist information displays on the bottom line. When information is not available, “NO INFO” displays. For more information about these and other radio features, see Operation on page 7‑3. For vehicles with a Rear Seat Entertainment System (RSE) and Rear Seat Audio System (RSA), see Rear Seat Entertainment (RSE) System on page 7‑35 and Rear Seat Audio (RSA) System on page 7‑46 for more information.


Storing Radio Stations A maximum of 36 stations can be stored as favorites using the six softkeys located below the radio station frequency tabs and by using the radio FAV button. Press FAV to go through up to six pages of favorites, each having six favorite stations available per page. Each page of favorites can contain any combination of AM, FM, or XM stations. For more information, see “Storing Radio Stations” in AM-FM Radio on page 7‑8.


Setting the Clock To set the time and date: 1. Turn the ignition key to ACC/


ACCESSORY or ON/RUN, then press O , to turn the radio on. 2. Press H to display HR, MIN,


MM, DD, and YYYY (hour, minute, month, day, and year).


3. Press the softkey located under


any one of the labels to be changed.


4. To increase or decrease the time


or date, turn f clockwise or counter‐clockwise.


For detailed instructions on setting the clock for the vehicle's specific audio system, see Clock on page 5‑8.


Chevrolet Tahoe/Suburban Owner Manual - 2012 - 2nd - 11/9/11


Black plate (23,1)


Satellite Radio XM is a satellite radio service based in the 48 contiguous United States and 10 Canadian provinces. XM satellite radio has a wide variety of programming and commercial-free music, coast to coast, and in digital-quality sound. A fee is required to receive the XM service. For more information, refer to: . www.xmradio.com or call


1-800-929-2100 (U.S.) . www.xmradio.ca or call


1-877-438-9677 (Canada)


See Satellite Radio on page 7‑9.


In Brief


1-23


Portable Audio Devices This vehicle has an auxiliary input, located on the audio faceplate, and a USB port located on the instrument panel or in the center console. External devices such as iPod®, laptop computers, MP3 players, CD changers, USB storage device, etc. can be connected to the auxiliary port using a 3.5 mm (1/8 in) input jack or the USB port depending on the audio system. See Auxiliary Devices on page 7‑31
for further information.


Bluetooth® For vehicles with a Bluetooth system, it allows users with a Bluetooth‐enabled cell phone to make and receive hands-free calls using the vehicle’s audio system and controls. The Bluetooth‐enabled cell phone must be paired with the Bluetooth system before it can be used in the vehicle. Not all phones will support all functions. For more information, visit www.gm.com/bluetooth. For more information, see Bluetooth on page 7‑48.


Chevrolet Tahoe/Suburban Owner Manual - 2012 - 2nd - 11/9/11


Black plate (24,1)


1-24


In Brief


Steering Wheel Controls


If equipped, some audio controls can be adjusted at the steering wheel. w : Press to go to the next favorite radio station, track on a CD, or folder on an iPod® or USB device. c / x : Press to go to the previous favorite radio station, track on a CD, or folder on an iPod® or USB device. Press to reject an incoming call, or to end a call.


b / g : Press to silence the vehicle speakers only. Press again to turn the sound on. Press and hold longer than two seconds to interact with OnStar® or Bluetooth systems, if equipped.


+ e : Press to increase volume.


− e : Press to decrease volume.


SRCE: Press to switch between the radio and CD, and for equipped vehicles, the DVD, front auxiliary, and rear auxiliary. ¨ : Press to seek the next radio station, the next track or chapter while sourced to the CD or DVD slot, or to select tracks and folders on an iPod or USB device. For more information, see Steering Wheel Controls on page 5‑3.


Cruise Control


T : Press to turn the system on or off. The indicator light is on when cruise control is on and turns off when cruise control is off. + RES: Press briefly to make the vehicle resume to a previously set speed, or press and hold to accelerate. SET −: Press to set the speed and activate cruise control or make the vehicle decelerate.


Chevrolet Tahoe/Suburban Owner Manual - 2012 - 2nd - 11/9/11


Black plate (25,1)


In Brief


1-25


See Side Blind Zone Alert (SBZA) on page 9‑56 for more information.


Rear Vision Camera (RVC) If available, the RVC displays a view of the area behind the vehicle when the vehicle is shifted into R (Reverse). The display will appear on either the inside rearview mirror or navigation screen, if equipped. To clean the camera lens, located above the license plate, rinse it with water and wipe it with a soft cloth. See Rear Vision Camera (RVC) on page 9‑59.


[ : Press to disengage cruise control without erasing the set speed from memory. See Cruise Control on page 9‑52.


Navigation System If the vehicle has a navigation system, there is a separate navigation system manual that includes information on the radio, audio players, and navigation system. The navigation system provides detailed maps of most major freeways and roads. After a destination has been set, the system provides turn-by-turn instructions for reaching the destination. In addition, the system can help locate a variety of points of interest (POIs), such as banks, airports, restaurants, and more. See the navigation system manual for more information.


Side Blind Zone Alert (SBZA) If available, this feature will alert you to vehicles located in the vehicle's side blind zone. When the system detects a vehicle in the side blind zone, the SBZA display will light up in the corresponding outside side mirror. The system is enabled at every vehicle startup. It can be disabled through the Driver Information Center (DIC). If the message SIDE BLIND ZONE SYSTEM UNAVAILABLE appears on the DIC, the system has been disabled because the sensor is blocked and cannot detect vehicles in the blind zone. The sensor may be blocked by mud, dirt, snow, ice, slush, or even heavy rainstorms. This message may also activate during heavy rain or due to road spray. The vehicle does not need service.


Chevrolet Tahoe/Suburban Owner Manual - 2012 - 2nd - 11/9/11


Black plate (26,1)


1-26


In Brief


Ultrasonic Parking Assist If available, the Ultrasonic Rear Parking Assist (URPA) system uses sensors on the rear bumper to assist with parking and avoiding objects while in R (Reverse). It operates at speeds less than 8 km/h (5 mph). URPA uses audible beeps to provide distance and system information. Keep the sensors on the vehicle's rear bumper clean to ensure proper operation. See Ultrasonic Parking Assist on page 9‑54.


Power Outlets The accessory power outlets can be used to plug in electrical equipment, such as a cell phone or MP3 player. There are two under the climate controls, one inside the center floor console, one on the rear of the center floor console and one accessory power outlet in the rear cargo area on the passenger side. The accessory power outlets are powered, even with the ignition off. Continuing to use accessory power outlets while the ignition is in LOCK/ OFF may cause the vehicle's battery to run down. See Power Outlets on page 5‑9.


Universal Remote System


Vehicles with the Universal Remote System will have these buttons located in the headliner. This system provides a way to replace up to three remote control transmitters used to activate devices such as garage door openers, security systems, and home automation devices. Read the instructions completely before attempting to program the transmitter. Because of the steps involved, it may be helpful to have another person assist with programming the transmitter. See Universal Remote System on page 5‑56.


Chevrolet Tahoe/Suburban Owner Manual - 2012 - 2nd - 11/9/11


Black plate (27,1)


In Brief


1-27


When the sunroof is opened, an air deflector will automatically raise. The air deflector will retract when the sunroof is closed. The sunroof also has a sunshade which can be pulled forward to block sun rays. The sunshade must be opened and closed manually. If an object is in the path of the sunroof while it is closing, the anti-pinch feature will detect the object and stop the sunroof. See Sunroof on page 2‑25 for more information.


Vent: From the closed position, press the rear of switch (B) to vent the sunroof. Open/Close: To open the sunroof, press and hold switch (A) until the sunroof reaches the desired position. Press and hold the front of switch (A) to close it. Express-Open/Express-Close: To express-open the sunroof, fully press and release the rear of switch (A) until the sunroof reaches the desired position. To express-close the sunroof, fully press and release the front of switch (A). Press the switch again to stop it.


Sunroof


A. Open or Close B. Vent On vehicles with a sunroof, the sunroof only operates when the ignition is in the ACC/ACCESSORY or ON/RUN, or when Retained Accessory Power (RAP) is active. See Retained Accessory Power (RAP) on page 9‑27 for more information.


Chevrolet Tahoe/Suburban Owner Manual - 2012 - 2nd - 11/9/11


Black plate (28,1)


1-28


In Brief


Performance and Maintenance


StabiliTrak® System If equipped, the vehicle has a traction control system that limits wheel spin and the StabiliTrak system that assists with directional control of the vehicle in difficult driving conditions. Both systems turn on automatically every time the vehicle is started.


To turn off traction control, press and release g on the instrument panel. The appropriate DIC message displays. See Ride Control System Messages on page 5‑43.


To turn off both traction control and StabiliTrak, press and hold g until g illuminates and the appropriate DIC message displays. See Ride Control System Messages on page 5‑43.


. Press and release g again to


turn on both systems. For more information, see StabiliTrak® System on page 9‑47.


Tire Pressure Monitor This vehicle may have a Tire Pressure Monitor System (TPMS).


shown on the Tire and Loading Information label. See Vehicle Load Limits on page 9‑16. The warning light will remain on until the tire pressure is corrected. During cooler conditions, the low tire pressure warning light may appear when the vehicle is first started and then turn off. This may be an early indicator that the tire pressures are getting low and the tires need to be inflated to the proper pressure. The TPMS does not replace normal monthly tire maintenance. It is the driver’s responsibility to maintain correct tire pressures. See Tire Pressure Monitor System on page 10‑59.


The TPMS warning light alerts you to a significant loss in pressure of one of the vehicle's tires. If the warning light comes on, stop as soon as possible and inflate the tires to the recommended pressure


Chevrolet Tahoe/Suburban Owner Manual - 2012 - 2nd - 11/9/11


Black plate (29,1)


Engine Oil Life System The engine oil life system calculates engine oil life based on vehicle use and, on most vehicles, displays a DIC message when it is necessary to change the engine oil and filter. The oil life system should be reset to 100% only following an oil change.


Resetting the Oil Life System To reset the Engine Oil Life System on most vehicles: 1. Display OIL LIFE REMAINING on the DIC. If the vehicle does not have DIC buttons, the vehicle must be in P (Park) to access this display.


2. Press and hold the SET/RESET


button on the DIC, or the trip odometer reset stem if the vehicle does not have DIC buttons, for more than five seconds. The oil life will change to 100%.


On all vehicles, the Engine Oil Life System can be reset as follows: 1. Turn the ignition to ON/RUN with


the engine off.


2. Fully press the accelerator pedal


slowly three times within five seconds.


3. Display OIL LIFE REMAINING


on the DIC. If the display shows 100%, the system is reset. See Engine Oil Life System on page 10‑10.


Fuel E85 (85% Ethanol) Vehicles that have a FlexFuel badge and a yellow fuel cap can use either unleaded gasoline or ethanol fuel containing up to 85% ethanol (E85). See Fuel E85 (85% Ethanol) on page 9‑66. For all other vehicles, use only the unleaded gasoline described under Recommended Fuel on page 9‑63.


In Brief


1-29


Driving for Better Fuel Economy Driving habits can affect fuel mileage. Here are some driving tips to get the best fuel economy possible. . Avoid fast starts and accelerate


smoothly.


. Brake gradually and avoid


abrupt stops.


. Avoid idling the engine for long


periods of time.


. When road and weather


conditions are appropriate, use cruise control.


. Always follow posted speed


limits or drive more slowly when conditions require.


. Keep vehicle tires properly


inflated.


. Combine several trips into a


single trip.


Chevrolet Tahoe/Suburban Owner Manual - 2012 - 2nd - 11/9/11


Black plate (30,1)


OnStar® If equipped, this vehicle has a comprehensive, in-vehicle system that can connect to a live Advisor for Emergency, Security, Navigation, Connection, and Diagnostic Services. See OnStar Overview on page 14‑1.


1-30


In Brief


. Replace the vehicle's tires with


the same TPC Spec number molded into the tire's sidewall near the size. Follow recommended scheduled maintenance.


Roadside Assistance Program U.S.: 1-800-243-8872
TTY Users (U.S.): 1-888-889-2438
Canada: 1-800-268-6800
Mexico: 01-800-466-0800
As the owner of a new Chevrolet, you are automatically enrolled in the Roadside Assistance program. See Roadside Assistance Program (U.S. and Canada) on page 13‑8 or Roadside Assistance Program (Mexico) on page 13‑10.


Roadside Assistance and OnStar (U.S. and Canada) If you have an active OnStar subscription, press the Q button and the current GPS location will be sent to an OnStar advisor who will assess your problem, contact Roadside Assistance, and relay your exact location to get the help you need.


Online Owner Center (U.S. and Canada) The Online Owner Center is a complimentary service that includes online service reminders, vehicle maintenance tips, online owner manual, special privileges, and more. Sign up today at: U.S.: chevrolet.com (click on “Owners,” then “Manage My Chevrolet/Owners Login”) Canada: chevroletowner.ca


Chevrolet Tahoe/Suburban Owner Manual - 2012 - 2nd - 11/9/11


Black plate (1,1)


Keys, Doors, and Windows


Keys and Locks


Keys . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Remote Keyless Entry (RKE)


System . . . . . . . . . . . . . . . . . . . . . . 2-3


Remote Keyless Entry (RKE)


System Operation . . . . . . . . . . . 2-3
Remote Vehicle Start . . . . . . . . . 2-6
Door Locks . . . . . . . . . . . . . . . . . . . 2-8
Power Door Locks . . . . . . . . . . . . 2-9
Delayed Locking . . . . . . . . . . . . . . 2-9
Automatic Door Locks . . . . . . . . . 2-9
Lockout Protection . . . . . . . . . . . . 2-9
Safety Locks . . . . . . . . . . . . . . . . . 2-10


Keys, Doors, and Windows


2-1


Doors


Liftgate . . . . . . . . . . . . . . . . . . . . . . 2-10
Power Assist Steps . . . . . . . . . . 2-14


Vehicle Security


Vehicle Security . . . . . . . . . . . . . . 2-15
Anti-theft Alarm System . . . . . . 2-15
Immobilizer . . . . . . . . . . . . . . . . . . 2-17
Immobilizer Operation . . . . . . . 2-17


Interior Mirrors


Manual Rearview Mirror . . . . . . 2-22
Automatic Dimming Rearview


Mirror . . . . . . . . . . . . . . . . . . . . . . . 2-22


Windows


Windows . . . . . . . . . . . . . . . . . . . . . 2-23
Power Windows . . . . . . . . . . . . . 2-24
Sun Visors . . . . . . . . . . . . . . . . . . . 2-25


Exterior Mirrors


Roof


Sunroof . . . . . . . . . . . . . . . . . . . . . . 2-25


Convex Mirrors . . . . . . . . . . . . . . 2-18
Manual Mirrors . . . . . . . . . . . . . . . 2-19
Trailer-Tow Mirrors . . . . . . . . . . . 2-19
Power Mirrors . . . . . . . . . . . . . . . . 2-19
Folding Mirrors . . . . . . . . . . . . . . . 2-21
Heated Mirrors . . . . . . . . . . . . . . . 2-21
Automatic Dimming Mirror . . . 2-21
Park Tilt Mirrors . . . . . . . . . . . . . . 2-22


Chevrolet Tahoe/Suburban Owner Manual - 2012 - 2nd - 11/9/11


Black plate (2,1)


2-2


Keys, Doors, and Windows


Keys and Locks


Keys


{ WARNING


Leaving children in a vehicle with the ignition key is dangerous for many reasons. Children or others could be badly injured or even killed. They could operate the power windows or other controls or even make the vehicle move. The windows will function with the keys in the ignition and children could be seriously injured or killed if caught in the path of a closing window. Do not leave the keys in a vehicle with children.


The key is used for the ignition and all door locks. The key has a bar-coded key tag that the dealer or qualified locksmith can use to make new keys. Store this information in a safe place, not in the vehicle.


See your dealer if a replacement key or additional key is needed. Notice: If the keys get locked in the vehicle, it may have to be damaged to get them out. Always carry a spare key. If you are locked out of the vehicle, call the Roadside Assistance Center. See Roadside Assistance Program (U.S. and Canada) on page 13‑8 or Roadside Assistance Program (Mexico) on page 13‑10. With an active OnStar subscription, an OnStar Advisor may remotely unlock the vehicle. See OnStar Overview on page 14‑1.


Chevrolet Tahoe/Suburban Owner Manual - 2012 - 2nd - 11/9/11


Black plate (3,1)


Keys, Doors, and Windows


2-3


Remote Keyless Entry (RKE) System See Radio Frequency Statement on page 13‑22 for information regarding Part 15 of the Federal Communications Commission (FCC) rules and Industry Canada Standards RSS-GEN/210/220/310. If there is a decrease in the RKE operating range: . Check the distance. The


transmitter may be too far from the vehicle.


. Check the location. Other vehicles or objects may be blocking the signal.


. Check the transmitter's battery.


See “Battery Replacement” later in this section. If the transmitter is still not working correctly, see your dealer or a qualified technician for service.


Remote Keyless Entry (RKE) System Operation The Remote Keyless Entry (RKE) transmitter functions work up to 60 m (195 ft) away from the vehicle. There are other conditions which can affect the performance of the transmitter. See Remote Keyless Entry (RKE) System on page 2‑3.


With Remote Start and Liftglass


With Remote Start and Power


Liftgate and Liftglass


The following functions may be available if your vehicle has the RKE system: / (Remote Vehicle Start): For vehicles with this feature, press to start the engine from outside the vehicle using the RKE transmitter. See Remote Vehicle Start on page 2‑6 for additional information. Q (Lock): Press to lock all the doors.


Chevrolet Tahoe/Suburban Owner Manual - 2012 - 2nd - 11/9/11


Black plate (4,1)


2-4


Keys, Doors, and Windows


If enabled through the Driver Information Center (DIC), the turn signal lamps flash once to indicate locking has occurred. If enabled through the DIC, the horn chirps when the lock button is pressed again within three seconds. See Vehicle Personalization (With DIC Buttons) on page 5‑47 for additional information. Pressing Q arms the content theft‐deterrent system. See Anti-theft Alarm System on page 2‑15. K (Unlock): Press once to unlock only the driver door. If K is pressed again within three seconds, all remaining doors unlock. The interior lamps may come on and stay on for 20 seconds or until the ignition is turned on.


If enabled through the DIC, the turn signal lamps flash twice to indicate unlocking has occurred. See Vehicle Personalization (With DIC Buttons) on page 5‑47. If enabled through the DIC, the exterior lights turn on briefly if it is dark enough outside. See “Approach Lighting” under Vehicle Personalization (With DIC Buttons) on page 5‑47. Pressing K on the RKE transmitter disarms the content theft‐deterrent system. See Anti-theft Alarm System on page 2‑15. m (Liftglass): Press and hold to unlock the liftglass. 8 (Power Liftgate): Press and hold to open and close the liftgate. The taillamps flash and a chime sounds to indicate when the liftgate is opening and closing.


L (Vehicle Locator/Panic Alarm): Press and release to locate the vehicle. The turn signal lamps flash and the horn sounds three times. Press and hold L for more than two seconds to activate the panic alarm. The turn signal lamps flash and the horn sounds repeatedly for 30 seconds. The alarm turns off when the ignition is moved to ON/ RUN or L is pressed again. The ignition must be in LOCK/OFF for the panic alarm to work.


Chevrolet Tahoe/Suburban Owner Manual - 2012 - 2nd - 11/9/11


Black plate (5,1)


Keys, Doors, and Windows


2-5


Programming Transmitters to the Vehicle Only RKE transmitters programmed to this vehicle will work. If a transmitter is lost or stolen, a replacement can be purchased and programmed through your dealer. When the replacement transmitter is programmed to this vehicle, all remaining transmitters must also be reprogrammed. Any lost or stolen transmitters will no longer work once the new transmitter is programmed. The vehicle can have a maximum of eight transmitters programmed to it. See your dealer to program transmitters to the vehicle.


Battery Replacement Replace the battery if the REPLACE BATTERY IN REMOTE KEY message displays in the DIC. See “REPLACE BATTERY IN REMOTE KEY” under Key and Lock Messages on page 5‑41 for

Loading...
x
