2014 Cadillac CTS Owners Manual

Download PDF Manual

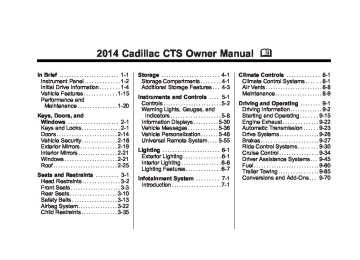

Cadillac CTS Owner Manual 6081492) - 2014 - CRC 2nd Edition - 11/18/13 (GMNA-Localizing-U.S./Canada/Mexico- Black plate (1,1) 2014 Cadillac CTS Owner Manual M In Brief . . . . . . . . . . . . . . . . . . . . . . . . 1-1 Instrument Panel . . . . . . . . . . . . . . 1-2 Initial Drive Information . . . . . . . . 1-4 Vehicle Features . . . . . . . . . . . . . 1-15 Performance and Maintenance . . . . . . . . . . . . . . . . 1-20 Keys, Doors, and Windows . . . . . . . . . . . . . . . . . . . . 2-1 Keys and Locks . . . . . . . . . . . . . . . 2-1 Doors . . . . . . . . . . . . . . . . . . . . . . . . 2-14 Vehicle Security. . . . . . . . . . . . . . 2-16 Exterior Mirrors . . . . . . . . . . . . . . . 2-19 Interior Mirrors . . . . . . . . . . . . . . . . 2-21 Windows . . . . . . . . . . . . . . . . . . . . . 2-21 Roof . . . . . . . . . . . . . . . . . . . . . . . . . . 2-25 Seats and Restraints . . . . . . . . . 3-1 Head Restraints . . . . . . . . . . . . . . . 3-2 Front Seats . . . . . . . . . . . . . . . . . . . . 3-3 Rear Seats . . . . . . . . . . . . . . . . . . . 3-10 Safety Belts . . . . . . . . . . . . . . . . . . 3-13 Airbag System . . . . . . . . . . . . . . . . 3-22 Child Restraints . . . . . . . . . . . . . . 3-35 Storage . . . . . . . . . . . . . . . . . . . . . . . 4-1 Storage Compartments . . . . . . . . 4-1 Additional Storage Features . . . 4-3 Instruments and Controls . . . . 5-1 Controls . . . . . . . . . . . . . . . . . . . . . . . 5-2 Warning Lights, Gauges, and Indicators . . . . . . . . . . . . . . . . . . . . 5-8 Information Displays . . . . . . . . . . 5-30 Vehicle Messages . . . . . . . . . . . . 5-36 Vehicle Personalization . . . . . . . 5-48 Universal Remote System . . . . 5-55 Lighting . . . . . . . . . . . . . . . . . . . . . . . 6-1 Exterior Lighting . . . . . . . . . . . . . . . 6-1 Interior Lighting . . . . . . . . . . . . . . . . 6-6 Lighting Features . . . . . . . . . . . . . . 6-7 Infotainment System . . . . . . . . . 7-1 Introduction . . . . . . . . . . . . . . . . . . . . 7-1 Climate Controls . . . . . . . . . . . . . 8-1 Climate Control Systems . . . . . . 8-1 Air Vents . . . . . . . . . . . . . . . . . . . . . . . 8-8 Maintenance . . . . . . . . . . . . . . . . . . . 8-9 Driving and Operating . . . . . . . . 9-1 Driving Information . . . . . . . . . . . . . 9-2 Starting and Operating . . . . . . . 9-15 Engine Exhaust . . . . . . . . . . . . . . 9-22 Automatic Transmission . . . . . . 9-23 Drive Systems . . . . . . . . . . . . . . . . 9-26 Brakes . . . . . . . . . . . . . . . . . . . . . . . 9-27 Ride Control Systems . . . . . . . . 9-30 Cruise Control . . . . . . . . . . . . . . . . 9-34 Driver Assistance Systems . . . 9-45 Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . 9-60 Trailer Towing . . . . . . . . . . . . . . . . 9-65 Conversions and Add-Ons . . . 9-70 Cadillac CTS Owner Manual 6081492) - 2014 - CRC 2nd Edition - 11/18/13 (GMNA-Localizing-U.S./Canada/Mexico- Black plate (2,1) 2014 Cadillac CTS Owner Manual M Technical Data . . . . . . . . . . . . . . . 12-1 Vehicle Identification . . . . . . . . . 12-1 Vehicle Data . . . . . . . . . . . . . . . . . . 12-2 Customer Information . . . . . . . 13-1 Customer Information . . . . . . . . 13-1 Reporting Safety Defects . . . . 13-12 Vehicle Data Recording and Privacy. . . . . . . . . . . . . . . . . . . . 13-13 OnStar . . . . . . . . . . . . . . . . . . . . . . . 14-1 OnStar Overview . . . . . . . . . . . . . 14-1 OnStar Services . . . . . . . . . . . . . . 14-2 OnStar Additional Information . . . . . . . . . . . . . . . . . . 14-5 Index . . . . . . . . . . . . . . . . . . . . . i-1 Vehicle Care . . . . . . . . . . . . . . . . . 10-1 General Information . . . . . . . . . . 10-2 Vehicle Checks . . . . . . . . . . . . . . . 10-3 Headlamp Aiming . . . . . . . . . . . 10-29 Bulb Replacement . . . . . . . . . . 10-29 Electrical System . . . . . . . . . . . . 10-31 Wheels and Tires . . . . . . . . . . . 10-40 Jump Starting . . . . . . . . . . . . . . . 10-64 Towing the Vehicle . . . . . . . . . . 10-66 Appearance Care . . . . . . . . . . . 10-69 Service and Maintenance . . . 11-1 General Information . . . . . . . . . . 11-1 Cadillac Premium Care Maintenance . . . . . . . . . . . . . . . . 11-3 Maintenance Schedule . . . . . . . 11-3 Special Application Services . . . . . . . . . . . . . . . . . . . . 11-9 Additional Maintenance and Care . . . . . . . . . . . . . . . . . . . 11-10 Recommended Fluids, Lubricants, and Parts . . . . . . 11-13 Maintenance Records . . . . . . . 11-16 Cadillac CTS Owner Manual 6081492) - 2014 - CRC 2nd Edition - 2/11/14 (GMNA-Localizing-U.S./Canada/Mexico- Black plate (3,1) Please refer to the purchase documentation relating to your specific vehicle to confirm each of the features found on your vehicle. For vehicles first sold in Canada, substitute the name “General Motors of Canada Limited” for Cadillac Motor Car Division wherever it appears in this manual. Keep this manual in the vehicle for quick reference. Introduction iii Canadian Vehicle Owners Propriétaires Canadiens A French language manual can be obtained from your dealer, at www.helminc.com, or from: On peut obtenir un exemplaire de ce guide en français auprès du concessionnaire ou à l'adresse savant: Helm, Incorporated Attention: Customer Service 47911 Halyard Drive Plymouth, MI 48170 Using this Manual To quickly locate information about the vehicle, use the Index in the back of the manual. It is an alphabetical list of what is in the manual and the page number where it can be found. The names, logos, emblems, slogans, vehicle model names, and vehicle body designs appearing in this manual including, but not limited to, GM, the GM logo, CADILLAC, the CADILLAC Crest and Wreath, and CTS are trademarks and/or service marks of General Motors LLC, its subsidiaries, affiliates, or licensors. This manual describes features that may or may not be on your specific vehicle either because they are options that you did not purchase or due to changes subsequent to the printing of this owner manual. Litho in U.S.A. Part No. 22800483 C Third Printing ©2014 General Motors LLC. All Rights Reserved. Cadillac CTS Owner Manual 6081492) - 2014 - CRC 2nd Edition - 11/18/13 (GMNA-Localizing-U.S./Canada/Mexico- Black plate (4,1) iv Introduction Danger, Warnings, and Cautions { Danger Text marked { Danger provides information on risk of fatal injury. Disregarding this information may endanger life. { Warning Text marked { Warning provides information on risk of accident or injury. Disregarding this information may lead to injury. { Caution Text marked { Caution provides information that may indicate a hazard that could result in injury or death. It could also result in possible damage to the vehicle. A circle with a slash through it is a safety symbol which means “Do Not,” “Do not do this,” or “Do not let this happen.” Symbols The vehicle has components and labels that use symbols instead of text. Symbols are shown along with the text describing the operation or information relating to a specific component, control, message, gauge, or indicator. M : This symbol is shown when you need to see your owner manual for additional instructions or information. * : This symbol is shown when you need to see a service manual for additional instructions or information. Cadillac CTS Owner Manual 6081492) - 2014 - CRC 2nd Edition - 11/18/13 (GMNA-Localizing-U.S./Canada/Mexico- Black plate (5,1) Vehicle Symbol Chart Here are some additional symbols that may be found on the vehicle and what they mean. For more information on the symbol, refer to the Index. 9 : Airbag Readiness Light # : Air Conditioning ! : Antilock Brake System (ABS) g : Audio Steering Wheel Controls or OnStar® (if equipped) $ : Brake System Warning Light " : Charging System I : Cruise Control B : Engine Coolant Temperature O : Exterior Lamps . : Fuel Gauge + : Fuses 3 : Headlamp High/Low-Beam Changer ( : Heated Steering Wheel j : LATCH System Child Restraints * : Malfunction Indicator Lamp Introduction : : Oil Pressure O : Power / : Remote Vehicle Start > : Safety Belt Reminders 7 : Tire Pressure Monitor d : Traction Control/StabiliTrak® M : Windshield Washer Fluid Cadillac CTS Owner Manual 6081492) - 2014 - CRC 2nd Edition - 11/18/13 (GMNA-Localizing-U.S./Canada/Mexico- Black plate (6,1) vi Introduction 2 NOTES Cadillac CTS Owner Manual 6081492) - 2014 - CRC 2nd Edition - 11/18/13 (GMNA-Localizing-U.S./Canada/Mexico- Black plate (1,1) In Brief 1-1 In Brief Instrument Panel Instrument Panel . . . . . . . . . . . . . . 1-2 Initial Drive Information Initial Drive Information . . . . . . . . 1-4 Starting the Engine . . . . . . . . . . . 1-4 Remote Keyless Entry (RKE) System . . . . . . . . . . . . . . . . . . . . . . 1-4 Remote Vehicle Start . . . . . . . . . 1-5 Door Locks . . . . . . . . . . . . . . . . . . . 1-5 Trunk . . . . . . . . . . . . . . . . . . . . . . . . . 1-6 Windows . . . . . . . . . . . . . . . . . . . . . . 1-6 Seat Adjustment . . . . . . . . . . . . . . 1-7 Memory Features . . . . . . . . . . . . . 1-8 Heated and Ventilated Seats . . . . . . . . . . . . . . . . . . . . . . . . 1-8 Head Restraint Adjustment . . . . 1-9 Safety Belts . . . . . . . . . . . . . . . . . . . 1-9 Passenger Sensing System . . . . . . . . . . . . . . . . . . . . . 1-10 Mirror Adjustment . . . . . . . . . . . . 1-10 Steering Wheel Adjustment . . . . . . . . . . . . . . . . . 1-11 Interior Lighting . . . . . . . . . . . . . . 1-11 Exterior Lighting . . . . . . . . . . . . . 1-12 Windshield Wiper/Washer . . . . 1-13 Climate Controls . . . . . . . . . . . . . 1-14 Transmission . . . . . . . . . . . . . . . . 1-15 Vehicle Features Steering Wheel Controls . . . . . 1-15 Cruise Control . . . . . . . . . . . . . . . 1-15 Infotainment System . . . . . . . . . 1-16 Driver Information Center (DIC) . . . . . . . . . . . . . . . 1-16 Forward Collision Alert (FCA) System . . . . . . . . . . . . . . . . . . . . . 1-16 Lane Departure Warning (LDW) . . . . . . . . . . . . . 1-17 Side Blind Zone Rear Vision Alert (SBZA) . . . . . . . . . . . . . . . 1-17 Camera (RVC) . . . . . . . . . . . . . 1-17 Ultrasonic Parking Assist . . . . 1-17 Automatic Parking Assist (APA) . . . . . . . . . . . . . . . . 1-17 Active Emergency Braking System . . . . . . . . . . . . . . . . . . . . . 1-18 Power Outlets . . . . . . . . . . . . . . . 1-18 Universal Remote System . . . 1-18 Sunroof . . . . . . . . . . . . . . . . . . . . . . 1-19 Performance and Maintenance Traction Control/Electronic Stability Control . . . . . . . . . . . . 1-20 Tire Pressure Monitor . . . . . . . . 1-20 Engine Oil Life System . . . . . . 1-21 Driving for Better Fuel Economy . . . . . . . . . . . . . . . . . . . 1-21 Roadside Service . . . . . . . . . . . . 1-22 OnStar® . . . . . . . . . . . . . . . . . . . . . 1-22 Cadillac CTS Owner Manual 6081492) - 2014 - CRC 2nd Edition - 11/18/13 (GMNA-Localizing-U.S./Canada/Mexico- Black plate (2,1) 1-2 In Brief Instrument Panel Cadillac CTS Owner Manual 6081492) - 2014 - CRC 2nd Edition - 11/18/13 (GMNA-Localizing-U.S./Canada/Mexico- Black plate (3,1) 1. Air Vents on page 8-8. 2. Turn Signal Lever. See Turn and Lane-Change Signals on page 6-5. 3. Manual Mode on page 9-25 (If Equipped). Instrument Cluster on page 5-10. 4. 5. Windshield Wiper/Washer on page 5-3. 6. Hazard Warning Flashers on page 6-5. Lane Departure Warning (LDW) on page 9-58 (If Equipped). 7. Light Sensor (If Equipped). See Automatic Headlamp System on page 6-4. Solar Sensor. See Dual Automatic Climate Control System on page 8-1. Infotainment on page 7-1. 8. 9. Glove Box Button. See Glove 15. Cruise Control on page 9-34 (If In Brief 1-3 Box on page 4-2. Automatic Parking Assist (If Equipped). See Assistance Systems for Parking or Backing on page 9-46. Parking Assist Button. See Assistance Systems for Parking or Backing on page 9-46. 10. Parking Brake Release Switch. See Electric Parking Brake on page 9-28. 11. Hood Release. See Hood on page 10-4. 12. Data Link Connector (DLC) (Out of View). See Malfunction Indicator Lamp on page 5-19. 13. Head-Up Display (HUD) on 14. page 5-33 (If Equipped). Instrument Panel Illumination Control on page 6-6. Equipped). Adaptive Cruise Control on page 9-37 (If Equipped). Forward Collision Alert (FCA) System on page 9-52 (If Equipped). Heated Steering Wheel on page 5-3 (If Equipped). 16. Steering Wheel Adjustment on page 5-2. 17. Horn on page 5-3. 18. Steering Wheel Controls on page 5-3. Driver Information Center (DIC) Controls. See Driver Information Center (DIC) on page 5-30. 19. ENGINE START/STOP Button. See Ignition Positions on page 9-16. 20. Heated and Ventilated Front Seats on page 3-8 (If Equipped). Cadillac CTS Owner Manual 6081492) - 2014 - CRC 2nd Edition - 11/18/13 (GMNA-Localizing-U.S./Canada/Mexico- Black plate (4,1) 1-4 In Brief 21. Shift Lever. See Automatic Transmission on page 9-23. Manual Mode Button. See Automatic Transmission on page 9-23. 22. MODE Switch. See Driver Mode Control on page 9-31. 23. Traction Control/Electronic 24. Stability Control on page 9-30. Instrument Panel Storage on page 4-1. 25. Dual Automatic Climate Control System on page 8-1. Initial Drive Information This section provides a brief overview about some of the important features that may or may not be on your specific vehicle. For more detailed information, refer to each of the features which can be found later in this owner manual. Starting the Engine When first starting the vehicle, the engine idle speed will be elevated to allow the catalytic converter, an emissions control device, to quickly reach operating temperature. After approximately 20 seconds, the engine will begin to transition to its normal, quieter idle speed, which can vary depending on the temperature. This is normal operation. Remote Keyless Entry (RKE) System The RKE transmitter may work up to 60 m (197 ft) away. With Remote Start and Remote Trunk Release Shown, Without Similar Press the button to remove the key. The key can be used for all locks. Press K to unlock the driver door or all doors. Press Q to lock all doors. Cadillac CTS Owner Manual 6081492) - 2014 - CRC 2nd Edition - 11/18/13 (GMNA-Localizing-U.S./Canada/Mexico- Black plate (5,1) Lock and unlock feedback can be personalized. See Vehicle Personalization on page 5-48. Press X twice quickly, to release the trunk. Press 7 and release to initiate vehicle locator. Press and hold 7 for more than three seconds to sound the panic alarm. Press 7 again to cancel the panic alarm. See Keys on page 2-1 and Remote Keyless Entry (RKE) System Operation on page 2-3. Remote Vehicle Start If equipped with this feature, the engine can be started from outside of the vehicle. Starting the Vehicle 1. Press and release Q on the transmitter. 2. Immediately after completing Step 1, press and hold / for at least four seconds or until the turn signal lamps flash. 3. Press the brake pedal and select ON/RUN/START ignition mode to drive the vehicle. When the vehicle starts, the parking lamps will turn on and remain on as long as the engine is running. The doors will be locked and the climate control system may come on. The engine will continue to run for 10 minutes. Repeat the steps for a 10-minute time extension. Remote start can be extended only once. Canceling a Remote Start To cancel a remote start do any of the following: . Press and hold / until the parking lamps turn off. Turn on the hazard warning flashers. Turn the vehicle on and then off. In Brief 1-5 See Remote Vehicle Start on page 2-9. Door Locks Keyless Access Press the button on the door handle and pull the handle when the Remote Keyless Entry (RKE) transmitter is within range. See Remote Keyless Entry (RKE) System Operation on page 2-3. Manual Operation From outside, use the key in the front doors. The key cylinder is covered by a cap. See Door Locks on page 2-11. From the inside rear doors, push down on the door lock knob on top of the door. To unlock a door, pull once on the door handle to unlock it, and again to open it. Cadillac CTS Owner Manual 6081492) - 2014 - CRC 2nd Edition - 11/18/13 (GMNA-Localizing-U.S./Canada/Mexico- Black plate (6,1) 1-6 In Brief Power Door Locks From outside, press Q or K on the RKE transmitter. See Remote Keyless Entry (RKE) System Operation on page 2-3. Trunk Windows From inside, press Q or K. The indicator light in the switch will illuminate when activated. See Power Door Locks on page 2-12. The driver power window switches control all the windows. The passenger switch only controls that window. Press the switch down to lower the window. Pull the switch up to raise it. See Power Windows on page 2-21. To open the trunk, press | on the driver door, press X twice quickly on the Remote Keyless Entry (RKE) transmitter, or press the touch pad on the rear of the vehicle after unlocking all doors. If equipped with Keyless Access, press the touch pad on the rear of the trunk above the license plate when the RKE transmitter is in range. See Remote Keyless Entry (RKE) System Operation on page 2-3 and Trunk on page 2-14. Cadillac CTS Owner Manual 6081492) - 2014 - CRC 2nd Edition - 11/18/13 (GMNA-Localizing-U.S./Canada/Mexico- Black plate (7,1) Seat Adjustment Power Seats See Power Seat Adjustment on page 3-3. Lumbar Adjustment Bolster Adjustment In Brief 1-7 If equipped, to adjust the lumbar support, press and hold the control forward or rearward or up and down. See Lumbar Adjustment on page 3-4. If equipped, to adjust the bolster support, press and hold the recliner control up and down. See Lumbar Adjustment on page 3-4. To adjust the seat: . Move the seat forward or rearward by sliding the control forward or rearward. . Raise or lower the seat by moving the rear of the control up or down. If equipped, raise or lower the front part of the seat cushion by moving the front of the control up or down. Cadillac CTS Owner Manual 6081492) - 2014 - CRC 2nd Edition - 11/18/13 (GMNA-Localizing-U.S./Canada/Mexico- Black plate (8,1) 1-8 In Brief Reclining Seatbacks Memory Features Heated and Ventilated Seats To adjust the seatback: Tilt the top of the control rearward to recline. Tilt the top of the control forward to raise. See Reclining Seatbacks on page 3-5. The SET, "1," "2," and B (Exit) buttons on the driver door are used to manually save and recall memory settings for the driver seat, outside mirrors, and power tilt and telescoping steering column (if equipped). See Memory Seats on page 3-6 and Vehicle Personalization on page 5-48. If equipped, the buttons are near the climate controls on the center stack. To operate, the ignition must be in ON/RUN/START. Press J or z to heat the driver or passenger seat cushion and seatback. Cadillac CTS Owner Manual 6081492) - 2014 - CRC 2nd Edition - 11/18/13 (GMNA-Localizing-U.S./Canada/Mexico- Black plate (9,1) Press C or { to ventilate the driver or passenger seat. A ventilated seat has a fan that pulls or pushes air through the seat. The air is not cooled. Press the button once for the highest setting. With each press of the button, the seat will change to the next lower setting, and then to the off setting. The indicator lights next to the buttons indicate three for the highest setting and one for the lowest. If the front heated seats are on high, the level may automatically be lowered after approximately 30 minutes. See Heated and Ventilated Front Seats on page 3-8. Head Restraint Adjustment Do not drive until the head restraints for all occupants are installed and adjusted properly. To achieve a comfortable seating position, change the seatback recline angle as little as necessary while keeping the seat and the head restraint height in the proper position. See Head Restraints on page 3-2 and Power Seat Adjustment on page 3-3. In Brief 1-9 Safety Belts Refer to the following sections for important information on how to use safety belts properly: . Safety Belts on page 3-13. . How to Wear Safety Belts Properly on page 3-14. Lap-Shoulder Belt on page 3-15. Lower Anchors and Tethers for Children (LATCH System) on page 3-42. Cadillac CTS Owner Manual 6081492) - 2014 - CRC 2nd Edition - 11/18/13 (GMNA-Localizing-U.S./Canada/Mexico- Black plate (10,1) 1-10 In Brief Passenger Sensing System United States The passenger airbag status indicator lights on the overhead console are visible when the vehicle is started. See Passenger Airbag Status Indicator on page 5-18. Mirror Adjustment Exterior Canada and Mexico The passenger sensing system will turn off the front outboard passenger frontal airbag and knee airbag under certain conditions. No other airbag is affected by the passenger sensing system. See Passenger Sensing System on page 3-28. Controls for the outside power mirrors are on the driver door. To adjust each mirror: 1. Press (L) or (R) to select the driver or passenger side mirror. 2. Press the arrows on the control pad to move the mirror up, down, right, or left. 3. Adjust each mirror so that a little of the vehicle and the area behind it can be seen. 4. Press O to deselect the mirror. See Power Mirrors on page 2-20. Interior The vehicle has an automatic dimming inside rearview mirror. Automatic dimming reduces the glare of headlamps from behind. The dimming feature comes on when the vehicle is started. See Automatic Dimming Rearview Mirror on page 2-21. Cadillac CTS Owner Manual 6081492) - 2014 - CRC 2nd Edition - 11/18/13 (GMNA-Localizing-U.S./Canada/Mexico- Black plate (11,1) Steering Wheel Adjustment Power Tilt and Telescoping Wheel In Brief 1-11 To set the power tilt wheel memory position, see Memory Seats on page 3-6. Interior Lighting Dome Lamps The dome lamp is in the overhead console. To adjust the steering wheel: 1. Pull the lever down. 2. Move the steering wheel up or down. 3. Pull or push the steering wheel closer or away from you. 4. Pull the lever up to lock the steering wheel in place. If equipped, the control is on the left side of the steering column. . Push the control up or down to tilt the steering wheel up or down. . Push the control forward or rearward to move the steering wheel toward the front or rear of the vehicle. Do not adjust the steering wheel while driving. To change the dome lamp settings, press the following: OFF: Turns the lamp off, even when a door is open. Cadillac CTS Owner Manual 6081492) - 2014 - CRC 2nd Edition - 11/18/13 (GMNA-Localizing-U.S./Canada/Mexico- Black plate (12,1) 1-12 In Brief DOOR: The lamp comes on when a door is opened. ON: Turns the lamp on. Reading Lamps There are front and rear reading lamps on the overhead console and over the rear passenger doors. These lamps come on when any door is opened. To manually turn the reading lamps on or off: Press m or n next to each overhead console reading lamp. Exterior Lighting Press the button next to each rear passenger reading lamp. For more information on interior lighting, see Instrument Panel Illumination Control on page 6-6. The exterior lamp control is on the end of the turn signal lever. There are four positions: O : Turns off the exterior lamps. The knob returns to the AUTO position after it is released. Turn to O again to reactivate the AUTO mode. In Canada, the headlamps will automatically reactivate when the vehicle is shifted out of P (Park). AUTO: Automatically turns the exterior lamps on and off, depending on outside lighting. Cadillac CTS Owner Manual 6081492) - 2014 - CRC 2nd Edition - 11/18/13 (GMNA-Localizing-U.S./Canada/Mexico- Black plate (13,1) ; : Turns on the parking lamps including all lamps, except the headlamps. 5 : Turns on the headlamps together with the parking lamps and instrument panel lights. See Exterior Lamp Controls on page 6-1 and Daytime Running Lamps (DRL) on page 6-4. Windshield Wiper/Washer In Brief 1-13 With the ignition in ACC/ ACCESSORY or ON/RUN/START, move the lever to select the wiper speed. HI: Use for fast wipes. LO: Use for slow wipes. INT: Move the windshield wiper lever to INT. Turn the x INT band on the wiper lever to adjust the sensitivity. To turn the Rainsense feature on or off, see “Rain Sense Wipers” under Vehicle Personalization on page 5-48. OFF: Use to turn the wipers off. 1X : For a single wipe, briefly move the lever down. For several wipes, hold the lever down. n L : Pull the lever toward you to spray windshield washer fluid and activate the wipers. See Windshield Wiper/Washer on page 5-3. Cadillac CTS Owner Manual 6081492) - 2014 - CRC 2nd Edition - 11/18/13 (GMNA-Localizing-U.S./Canada/Mexico- Black plate (14,1) 1-14 In Brief Climate Controls The climate control buttons and the touch screen are used to adjust the heating, cooling, and ventilation. Climate Control Buttons 1. Driver and Passenger Temperature Controls 2. Fan Control 3. OFF (Fan) 4. Driver and Passenger Heated and Ventilated Seats (If Equipped) 5. AUTO (Automatic Operation) 6. Defrost 7. Rear Window Defogger 8. Recirculation Climate Touch Screen Controls 1. Outside Temperature Display 2. Driver and Passenger Temperature Controls 3. Fan Control 4. SYNC (Synchronized Temperature) 5. A/C Mode (Air Conditioning) 6. Climate Control Selection (Application Tray Button) 7. Rear (Rear Climate Control Touch Screen) 8. Air Delivery Mode Control Cadillac CTS Owner Manual 6081492) - 2014 - CRC 2nd Edition - 11/18/13 (GMNA-Localizing-U.S./Canada/Mexico- Black plate (15,1) See Dual Automatic Climate Control System on page 8-1 and Rear Climate Control System on page 8-6 (If Equipped). Transmission Tap Shift Permanent Tap Shift Mode may be entered with the shift lever in D (Drive), by pressing the M (Manual Mode) button on the top of the shift lever. Temporary Tap Shift Mode may be entered while in D (Drive) using the tap shift controls on the back of the steering wheel. See Manual Mode on page 9-25. Vehicle Features Cruise Control In Brief 1-15 Steering Wheel Controls The infotainment system can be operated by using the steering wheel controls. See "Steering Wheel Controls" in the infotainment manual. J : Press to turn the system on and off. A white cruise control indicator appears in the instrument cluster when cruise is turned on. +RES: Press the control up briefly to resume to make the vehicle resume to a previously set speed or press and hold to accelerate. If cruise control is already active, use to increase vehicle speed. To increase speed by 1 km/h (1 mph), press +RES up to the first detent. To Cadillac CTS Owner Manual 6081492) - 2014 - CRC 2nd Edition - 11/18/13 (GMNA-Localizing-U.S./Canada/Mexico- Black plate (16,1) 1-16 In Brief increase speed to the next 5 km/h (5 mph) mark on the speedometer, press +RES up to the second detent. SET−: Press the control down briefly to set the speed and activate cruise control. If cruise control is already active, use to decrease vehicle speed. To decrease speed by 1 km/h (1 mph), press SET− down to the first detent. To decrease speed to the next 5 km/h (5 mph) mark on the speedometer, press SET− down to the second detent. * : Press to disengage cruise control without erasing the set speed from memory. See Cruise Control on page 9-34 or Adaptive Cruise Control on page 9-37 (if equipped). Infotainment System See the infotainment manual for information on the radio, audio players, phone, navigation system, and voice or speech recognition. It also includes information on settings. Driver Information Center (DIC) The DIC display is in the instrument cluster. It shows the status of many vehicle systems. y or z : Press to move up or down in a list. S or T : Press to move between the interactive display zones in the cluster. Press S to go back to the previous menu. SEL: Press to open a menu or select a menu item. Press and hold to reset values on certain screens. See Driver Information Center (DIC) on page 5-30. Forward Collision Alert (FCA) System If equipped, FCA may help avoid or reduce the harm caused by front-end crashes. FCA provides a green indicator, V, when a vehicle is detected ahead. This indicator displays amber if you follow a vehicle much too closely. When approaching a vehicle ahead too quickly, FCA provides a flashing red alert on the windshield and rapidly beeps or pulses the driver seat. See Forward Collision Alert (FCA) System on page 9-52. Cadillac CTS Owner Manual 6081492) - 2014 - CRC 2nd Edition - 11/18/13 (GMNA-Localizing-U.S./Canada/Mexico- Black plate (17,1) Lane Departure Warning (LDW) If equipped, LDW is intended to help avoid unintentional lane departures at speeds of 56 km/h (35 mph) or greater. LDW uses a camera sensor to detect the lane markings. The LDW indicator, @, appears green if a lane marking is detected. If the vehicle departs the lane, the indicator will change to amber and flash. In addition, beeps will sound, or the driver seat will pulse. See Lane Departure Warning (LDW) on page 9-58. Side Blind Zone Alert (SBZA) If equipped, SBZA will detect vehicles in the next lane over in the vehicle's side blind zone area. When this happens, the SBZA display will light up in the corresponding outside side mirror and will flash if the turn signal is on. See Side Blind Zone Alert (SBZA) on page 9-56. Rear Vision Camera (RVC) If equipped, RVC displays a view of the area behind the vehicle on the center stack display when the vehicle is shifted into R (Reverse). See Assistance Systems for Parking or Backing on page 9-46. Ultrasonic Parking Assist If equipped, Ultrasonic Rear Parking Assist (URPA) uses sensors on the rear bumper to assist with parking and avoiding objects while in R (Reverse). It operates at speeds less than 8 km/h (5 mph). URPA may display a warning triangle on the Rear Vision Camera screen and a graphic on the instrument cluster to provide the object distance. In addition, multiple beeps or seat pulses may occur if very close to an object. In Brief 1-17 The vehicle may also have the Front Parking Assist system, a higher speed Backing Warning System, and the Rear Automatic Braking system. See Driver Assistance Systems on page 9-45. Automatic Parking Assist (APA) If equipped, the APA system helps to search for and maneuver the vehicle into parallel parking spots using automatic steering, DIC displays, and beeps. When the vehicle speed is below 30 km/h (18 mph), press the APA button, O, to enable the system. See “Automatic Parking Assist (APA)” under Assistance Systems for Parking or Backing on page 9-46. Cadillac CTS Owner Manual 6081492) - 2014 - CRC 2nd Edition - 11/18/13 (GMNA-Localizing-U.S./Canada/Mexico- Black plate (18,1) 1-18 In Brief Active Emergency Braking System If the vehicle has Adaptive Cruise Control (ACC) it also has the Active Emergency Braking System, which includes Intelligent Brake Assist (IBA) and the Automatic Collision Preparation (ACP) System. These systems can provide a boost to braking or automatically brake the vehicle to help avoid or lessen the severity of crashes while moving forward. See Active Emergency Braking System on page 9-54. Power Outlets Accessory power outlets can be used to plug in electrical equipment, such as a cell phone or MP3 player. The vehicle has three 12-volt accessory power outlets: Inside the center console storage in front of the armrest cover. Inside the armrest bin behind the cupholders. Universal Remote System . On the rear of the center console, if equipped. These outlets are powered while the vehicle is in ON/RUN/START or ACC/ACCESSORY mode, or until the driver door is opened within 10 minutes of turning off the vehicle. Lift the cover to access the accessory power outlet. See Power Outlets on page 5-6. If equipped, this system provides a way to replace up to three remote control transmitters used to activate devices such as garage door openers, security systems, and home automation devices. Read the instructions completely before attempting to program the Universal Remote system. Because of the steps involved, it may be helpful to have another person Cadillac CTS Owner Manual 6081492) - 2014 - CRC 2nd Edition - 11/18/13 (GMNA-Localizing-U.S./Canada/Mexico- Black plate (19,1) available to assist you with programming the Universal Remote system. See Universal Remote System on page 5-55. Sunroof If equipped, the sunroof will only operate when the ignition is in ON/ RUN or ACC/ACCESSORY, or when Retained Accessory Power (RAP) is active. See Ignition Positions on page 9-16 and Retained Accessory Power (RAP) on page 9-19. The driver side switch (1) operates the sunroof. Vent: Press and release the front of the switch (1) to vent the sunroof. The sunshade will automatically open approximately 38 cm (15 in). Press and hold the rear of the switch (1) to close the sunroof vent. In Brief 1-19 Express Open/Express Close: Press the front of the switch (1) a second time to express open the sunroof. Press the rear of the switch (1) to express close. To stop the sunroof partway, press the switch (1) again. The passenger side switch (2) operates the sunshade. Press and release the front or rear of the switch (2) to express open or express close the sunshade. To stop the sunshade partway, press the switch (2) again. See Sunroof on page 2-25. Cadillac CTS Owner Manual 6081492) - 2014 - CRC 2nd Edition - 11/18/13 (GMNA-Localizing-U.S./Canada/Mexico- Black plate (20,1) 1-20 In Brief Performance and Maintenance Traction Control/ Electronic Stability Control The Traction Control System (TCS) limits wheel spin. The system turns on automatically every time the vehicle is started. StabiliTrak assists with directional control of the vehicle in difficult driving conditions. The system turns on automatically every time the vehicle is started. To turn off TCS, press and release the TCS/StabiliTrak button Y on the center console. i illuminates in the instrument cluster. The appropriate DIC message is displayed. See Ride Control System Messages on page 5-44. . Press the TCS/StabiliTrak button Y again to turn traction control back on. To turn off both TCS and StabiliTrak, press and hold the TCS/StabiliTrak button Y on the center console until g and i illuminate in the instrument cluster. The appropriate DIC message displays. See Ride Control System Messages on page 5-44. . Press the TCS/StabiliTrak button Y again to turn on both systems. See Traction Control/Electronic Stability Control on page 9-30. Tire Pressure Monitor This vehicle may have a Tire Pressure Monitor System (TPMS). The low tire pressure warning light alerts to a significant loss in pressure of one of the vehicle's tires. If the warning light comes on, stop as soon as possible and inflate the tires to the recommended pressure shown on the Tire and Loading Information label. See Vehicle Load Limits on page 9-11. The warning light will remain on until the tire pressure is corrected. The low tire pressure warning light may come on in cool weather when the vehicle is first started, and then turn off as the vehicle is driven. This may be an early indicator that the tire pressures are getting low and the tires need to be inflated to the proper pressure. Cadillac CTS Owner Manual 6081492) - 2014 - CRC 2nd Edition - 11/18/13 (GMNA-Localizing-U.S./Canada/Mexico- Black plate (21,1) The TPMS does not replace normal monthly tire maintenance. Maintain the correct tire pressures. See Tire Pressure Monitor System on page 10-50. Engine Oil Life System The engine oil life system calculates engine oil life based on vehicle use and displays the CHANGE ENGINE OIL SOON message when it is time to change the engine oil and filter. The oil life system should be reset to 100% only following an oil change. Resetting the Oil Life System 1. Using the DIC buttons, display REMAINING OIL LIFE on the DIC. See Driver Information Center (DIC) on page 5-30 and Engine Oil Messages on page 5-39. 2. Press the SEL button and hold to clear the CHANGE ENGINE OIL SOON message and reset the oil life at 100%. Be careful not to reset the oil life display accidentally at any time other than after the oil is changed. It cannot be reset accurately until the next oil change. The oil life system can also be reset as follows: 1. Turn the ignition on with the engine off. 2. Fully press and release the accelerator pedal three times within five seconds. If the CHANGE ENGINE OIL SOON message is not on, the system is reset. See Engine Oil Life System on page 10-12. In Brief 1-21 Driving for Better Fuel Economy Driving habits can affect fuel mileage. Here are some driving tips to get the best fuel economy possible. . Avoid fast starts and accelerate smoothly. . Brake gradually and avoid abrupt stops. . Avoid idling the engine for long periods of time. . When road and weather conditions are appropriate, use cruise control. . Always follow posted speed limits or drive more slowly when conditions require. . Keep vehicle tires properly inflated. . Combine several trips into a single trip. Cadillac CTS Owner Manual 6081492) - 2014 - CRC 2nd Edition - 11/18/13 (GMNA-Localizing-U.S./Canada/Mexico- Black plate (22,1) 1-22 In Brief . Replace the vehicle's tires with the same TPC Spec number molded into the tire's sidewall near the size. Follow recommended scheduled maintenance. Roadside Service U.S.: 1-800-224-1400 Canada: 1-800-882-1112 TTY Users (U.S. Only): 1-888-889-2438 New Cadillac owners are automatically enrolled in the Roadside Service Program. See Roadside Service on page 13-5. OnStar® If equipped, this vehicle has a comprehensive, in-vehicle system that can connect to a live Advisor for Emergency, Security, Navigation, Connection, and Diagnostic Services. See OnStar Overview on page 14-1. Cadillac CTS Owner Manual 6081492) - 2014 - CRC 2nd Edition - 11/18/13 (GMNA-Localizing-U.S./Canada/Mexico- Black plate (1,1) Keys, Doors, and Windows 2-1 Exterior Mirrors Convex Mirrors . . . . . . . . . . . . . . 2-19 Power Mirrors . . . . . . . . . . . . . . . . 2-20 Folding Mirrors . . . . . . . . . . . . . . . 2-20 Heated Mirrors . . . . . . . . . . . . . . . 2-20 Reverse Tilt Mirrors . . . . . . . . . . 2-20 Interior Mirrors Interior Rearview Mirrors . . . . . 2-21 Automatic Dimming Rearview Mirror . . . . . . . . . . . . . . . . . . . . . . . 2-21 Windows Windows . . . . . . . . . . . . . . . . . . . . . 2-21 Power Windows . . . . . . . . . . . . . 2-21 Sun Visors . . . . . . . . . . . . . . . . . . . 2-24 Rear Window Sunshade . . . . . 2-24 Roof Sunroof . . . . . . . . . . . . . . . . . . . . . . 2-25 Keys and Locks Keys { Warning Leaving children in a vehicle with a Remote Keyless Entry (RKE) transmitter is dangerous and children or others could be seriously injured or killed. They could operate the power windows or other controls or make the vehicle move. The windows will function with the RKE transmitter in the vehicle, and children or others could be caught in the path of a closing window. Do not leave children in a vehicle with an RKE transmitter. Keys, Doors, and Windows Keys and Locks Keys . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1 Remote Keyless Entry (RKE) System . . . . . . . . . . . . . . . . . . . . . . 2-2 Remote Keyless Entry (RKE) System Operation . . . . . . . . . . . 2-3 Remote Vehicle Start . . . . . . . . . 2-9 Door Locks . . . . . . . . . . . . . . . . . . 2-11 Power Door Locks . . . . . . . . . . . 2-12 Delayed Locking . . . . . . . . . . . . . 2-13 Automatic Door Locks . . . . . . . 2-13 Lockout Protection . . . . . . . . . . . 2-13 Safety Locks . . . . . . . . . . . . . . . . . 2-14 Doors Trunk . . . . . . . . . . . . . . . . . . . . . . . . 2-14 Vehicle Security Vehicle Security . . . . . . . . . . . . . . 2-16 Vehicle Alarm System . . . . . . . 2-16 Immobilizer . . . . . . . . . . . . . . . . . . 2-18 Immobilizer Operation . . . . . . . 2-18 Cadillac CTS Owner Manual 6081492) - 2014 - CRC 2nd Edition - 11/18/13 (GMNA-Localizing-U.S./Canada/Mexico- Black plate (2,1) 2-2 Keys, Doors, and Windows With an active OnStar subscription, an OnStar Advisor may remotely unlock the vehicle. See OnStar Overview on page 14-1. Remote Keyless Entry (RKE) System See Radio Frequency Statement on page 13-15. If there is a decrease in the RKE operating range: . Check the distance. The transmitter may be too far from the vehicle. . Check the location. Other vehicles or objects may be blocking the signal. . Check the transmitter's battery. See “Battery Replacement” later in this section. If the transmitter is still not working correctly, see your dealer or a qualified technician for service. This key, inside the Remote Keyless Entry (RKE) transmitter, is used for the driver door, front passenger door, and rear folding seats. To remove the key, press the button on the side of the transmitter near the bottom, and pull the key out. Never pull the key out without pressing the button. See your dealer if a new key is needed. Contact Roadside Service if locked out of the vehicle. See Roadside Service on page 13-5. Cadillac CTS Owner Manual 6081492) - 2014 - CRC 2nd Edition - 11/18/13 (GMNA-Localizing-U.S./Canada/Mexico- Black plate (3,1) Keys, Doors, and Windows 2-3 Remote Keyless Entry (RKE) System Operation The Keyless Access system allows for vehicle entry when the transmitter is within 1 m (3 ft). See “Keyless Access Operation” later in this section. The RKE transmitter may work up to 60 m (197 ft) away from the vehicle. Keep in mind that other conditions, such as those previously stated, can impact the performance of the transmitter. immediately unlock. See “Unlocked Door Anti Lock Out” under Vehicle Personalization on page 5-48. If the passenger door is open when Q is pressed, all doors lock. Pressing Q may also arm the theft-deterrent system. See Vehicle Alarm System on page 2-16. K (Unlock): Press to unlock the driver door or all doors. When remotely unlocking the vehicle at night, the headlamps and back-up lamps will come on for about 30 seconds to light your approach to the vehicle. The turn signal indicators may flash to indicate unlocking. Memory seat positions may be recalled when unlocking the vehicle. See “Remote Lock, Unlock, Start” under Vehicle Personalization on page 5-48. Pressing K will disarm the theft-deterrent system. See Vehicle Alarm System on page 2-16. With Remote Start and Remote Trunk Release Shown, Without Similar Q (Lock): Press to lock all doors. The turn signal indicators may flash and/or the horn may sound to indicate locking. See “Remote Lock, Unlock, Start” under Vehicle Personalization on page 5-48. If the driver door is open when Q is pressed and Unlocked Door Anti-Lockout is enabled through the vehicle personalization, all doors will lock and then the driver door will Cadillac CTS Owner Manual 6081492) - 2014 - CRC 2nd Edition - 11/18/13 (GMNA-Localizing-U.S./Canada/Mexico- Black plate (4,1) 2-4 Keys, Doors, and Windows If equipped, Press and hold K until the windows fully open. / (Remote Start): press and release Q and then immediately press and hold / for at least four seconds to start the engine from outside the vehicle using the RKE transmitter. See Remote Vehicle Start on page 2-9. 7 (Vehicle Locator/Panic Alarm): Press and release one time to initiate vehicle locator. The exterior lamps flash and the horn chirps three times. Press and hold 7 for more than three seconds to sound the panic alarm. The horn sounds and the turn signal lamps flash for 30 seconds, or until 7 is pressed again or the vehicle is started. X (Remote Trunk Release): Press twice quickly to release the trunk. Keyless Access Operation The Keyless Access system lets you lock and unlock the doors and access the trunk without removing the RKE transmitter from your pocket, purse, briefcase, etc. The RKE transmitter must be within 1 m (3 ft) of the door being opened. If equipped, there will be a button on the outside door handles. The Keyless Access system can be programmed to unlock all doors on the first lock/unlock press from the driver door. See Vehicle Personalization on page 5-48. Keyless Unlocking/Locking from the Driver Door When the doors are locked and the RKE transmitter is within 1 m (3 ft) of the door handle, pressing the lock/unlock button on the driver door handle will unlock the driver door. If the lock/unlock button is pressed again within five seconds, all passenger doors will unlock. Driver Door Shown, Passenger Similar Pressing the lock/unlock button will cause all doors to lock if any of the following occur: It has been more than five seconds since the first lock/ unlock button press. Two lock/unlock button presses were used to unlock all doors. . Any vehicle door has opened and all doors are now closed. Cadillac CTS Owner Manual 6081492) - 2014 - CRC 2nd Edition - 11/18/13 (GMNA-Localizing-U.S./Canada/Mexico- Black plate (5,1) Keys, Doors, and Windows 2-5 Keyless Unlocking/Locking from the Passenger Doors When the doors are locked and the RKE transmitter is within 1 m (3 ft) of the door handle, pressing the lock/unlock button on a passenger door handle will unlock all doors. Pressing the lock/unlock button will cause all doors to lock if any of the following occur: The lock/unlock button was used to unlock all doors. . Any vehicle door has opened and all doors are now closed. Passive Locking The Keyless Access system allows for selecting whether the doors automatically lock during normal vehicle exit. When the vehicle is turned off and all doors are closed, the vehicle will determine how many RKE transmitters remain inside the vehicle. If at least one RKE transmitter has been removed from the vehicle, or none remain in the vehicle interior, the doors will lock after several seconds. Temporary Disable Passive Locking Feature Temporarily disable the passive locking by pressing and holding K on the interior door switch with a door open for at least four seconds, or until three chimes are heard. Passive locking will then remain disabled until Q on the interior door is pressed, or until the vehicle is turned on. To customize the doors to automatically lock when exiting the vehicle, see “Remote Lock, Unlock, Start” under Vehicle Personalization on page 5-48. Keyless Trunk Opening Press the touch pad on the trunk handle to open the trunk if the RKE transmitter is within 1 m (3 ft). Programming Transmitters to the Vehicle Only RKE transmitters programmed to the vehicle will work. If a transmitter is lost or stolen, a replacement can be purchased and programmed through your dealer. The vehicle can be reprogrammed so that lost or stolen transmitters no longer work. Each vehicle can have up to eight transmitters matched to it. Programming with a Recognized Transmitter A new transmitter can be programmed to the vehicle when there is one recognized transmitter. To program, the vehicle must be off and all transmitters, both currently recognized and new, must be with you. 1. Remove the vehicle key from the recognized transmitter. 2. Place the recognized transmitter(s) in the cupholder. Cadillac CTS Owner Manual 6081492) - 2014 - CRC 2nd Edition - 11/18/13 (GMNA-Localizing-U.S./Canada/Mexico- Black plate (6,1) 2-6 Keys, Doors, and Windows 3. Remove the key lock cylinder cap on the driver door handle. See Door Locks on page 2-11. Insert the vehicle key into the key lock cylinder on the driver door handle, then turn the key counterclockwise to the unlock position five times within 10 seconds. The Driver Information Center (DIC) displays READY FOR REMOTE #2, 3, 4, ETC. 4. Place the new transmitter into the transmitter pocket. The center console storage area will need to be opened and the rubber mat needs to be removed to access the transmitter pocket. 5. Press the ENGINE START/ STOP button. When the transmitter is learned, the DIC display will show that it is ready to program the next transmitter. 6. Remove the transmitter from the transmitter pocket and press K or Q on the transmitter. To program additional transmitters, repeat Steps 4–6. When all additional transmitters are programmed, press and hold the ENGINE START/STOP button for approximately 12 seconds to exit programming mode. 7. Return the vehicle key back into the transmitter. Programming without a Recognized Transmitter If there are no currently recognized transmitters available, follow this procedure to program up to eight transmitters. This feature is not available in Canada. This procedure will take approximately 30 minutes to complete. The vehicle must be off and all transmitters to be programmed must be with you. 1. Remove the vehicle key from the transmitter. 2. Remove the key lock cylinder cap on the driver door handle. See Door Locks on page 2-11. Insert the vehicle key into the key lock cylinder on the driver door handle, then turn the key counterclockwise to the unlock position five times within 10 seconds. The Driver Information Center (DIC) displays REMOTE LEARN PENDING, PLEASE WAIT. Cadillac CTS Owner Manual 6081492) - 2014 - CRC 2nd Edition - 11/18/13 (GMNA-Localizing-U.S./Canada/Mexico- Black plate (7,1) Keys, Doors, and Windows 2-7 3. Wait for 10 minutes until the DIC displays PRESS ENGINE START BUTTON TO LEARN and then press the ENGINE START/STOP button. The DIC display will again show REMOTE LEARN PENDING, PLEASE WAIT. 4. Repeat Step 3 two additional times. After the third time all previously known transmitters will no longer work with the vehicle. Remaining transmitters can be relearned during the next steps. The DIC display should now show READY FOR REMOTE # 1. 7. Remove the transmitter from the transmitter pocket and press K or Q on the transmitter. To program additional transmitters, repeat Steps 5–7. When all additional transmitters are programmed, press and hold the ENGINE START/STOP button for approximately 12 seconds to exit programming mode. 8. Return the vehicle key back into the transmitter. Starting the Vehicle with a Low Transmitter Battery If the transmitter battery is weak or if there is interference with the signal, the DIC may display NO REMOTE DETECTED or NO REMOTE KEY WAS DETECTED PLACE KEY IN TRANSMITTER POCKET THEN START YOUR VEHICLE when starting the vehicle. See Key and Lock Messages on page 5-40. 5. Place the new transmitter in the transmitter pocket. The center console storage area will need to be opened and the rubber mat needs to be removed to access the transmitter pocket. 6. Press the ENGINE START/ STOP button. When the transmitter is learned, the DIC display will show that it is ready to program the next transmitter. Cadillac CTS Owner Manual 6081492) - 2014 - CRC 2nd Edition - 11/18/13 (GMNA-Localizing-U.S./Canada/Mexico- Black plate (8,1) 2-8 Keys, Doors, and Windows To start the vehicle: 1. Open the center console storage area and remove the rubber mat. Battery Replacement { Caution When replacing the battery, do not touch any of the circuitry on the transmitter. Static from your body could damage the transmitter. Replace the battery if the REPLACE BATTERY IN REMOTE KEY message displays in the DIC. 1. Press the button on the side of the transmitter near the bottom and pull the key out. 2. Place the transmitter in the transmitter pocket. 3. With the vehicle in P (Park) or N (Neutral) press the brake pedal and the ENGINE START/ STOP button. Replace the transmitter battery as soon as possible. Cadillac CTS Owner Manual 6081492) - 2014 - CRC 2nd Edition - 11/18/13 (GMNA-Localizing-U.S./Canada/Mexico- Black plate (9,1) Keys, Doors, and Windows 2-9 / (Remote Vehicle Start): This button will be on the RKE transmitter if the vehicle has remote start. The climate control system will use the previous settings during a remote start. The rear window defogger may come on during remote start based on cold ambient conditions. The rear defog indicator light does not come on during remote start. Laws in some local communities may restrict the use of remote starters. For example, some laws may require a person using remote start to have the vehicle in view. Check local regulations for any requirements. If your vehicle is low on fuel, do not use the remote start feature. The vehicle may run out of fuel. The RKE transmitter range may be shorter while the vehicle is running. 2. Separate the two halves of the 3. Remove the old battery. Do not transmitter using a flat tool inserted into the bottom center of the transmitter, do not use the key slot. 4. use a metal object. Insert the new battery on the back housing, positive side facing down. Replace with a CR2032 or equivalent battery. 5. Align the front and back housing then snap the transmitter together. Remote Vehicle Start This feature allows the engine to be started from outside the vehicle. Cadillac CTS Owner Manual 6081492) - 2014 - CRC 2nd Edition - 11/18/13 (GMNA-Localizing-U.S./Canada/Mexico- Black plate (10,1) 2-10 Keys, Doors, and Windows Other conditions can affect the performance of the transmitter. See Remote Keyless Entry (RKE) System on page 2-2. Starting the Engine Using Remote Start 1. Press and release Q on the 2. RKE transmitter. Immediately press and hold / for at least four seconds or until the turn signal lamps flash. This confirms the request to remote start the vehicle has been received. During the remote start, the doors will be locked and the parking lamps will remain on as long as the engine is running. The engine will shut off after 10 minutes unless a time extension is done or the ignition is put in ON/RUN/START. 3. Press the brake pedal and select the ON/RUN/START ignition mode to drive the vehicle. Extending Engine Run Time The engine run time can also be extended by another 10 minutes, if during the first 10 minutes Steps 1–2 are repeated while the engine is still running. This provides a total of 20 minutes. The remote start can only be extended once. When the remote start is extended, the second 10 minute period is added on to the first 10 minutes for a total of 20 minutes. A maximum of two remote starts, or a remote start with an extension, are allowed between ignition cycles. The vehicle's ignition must be changed to ON/RUN/START and then back to OFF before the remote start procedure can be used again. Canceling a Remote Start To cancel a remote start, do any of the following: . Press and hold / until the parking lamps turn off. Turn on the hazard warning flashers. Turn the vehicle on and then back off.
