2012 Cadillac CTS Owners Manual

dealer.

If this parking brake light comes on, there is a problem with a system on the vehicle that is causing the parking brake system to work at a reduced level. The vehicle can still be driven, but should be taken to a dealer See Brake Assist (Except CTS-V) on page 9‑39 for more information.

Antilock Brake System (ABS) Warning Light

For vehicles with the Electric Parking Brake (EPB), this parking brake warning light should come on briefly when ignition is placed in ON/RUN. If it does not come on then, have it fixed so it will be ready to warn if there is a problem.

The Antilock Brake System (ABS), this light comes on briefly when the engine is started. If the light does not come on, have it fixed so it will be ready to warn if there is a problem.

If the ABS light stays on, turn the ignition off. If the light comes on while driving, stop as soon as it is safely possible and turn the ignition off. A chime may also sound when the light comes on steady. If this happens, start the engine again to reset the system. If the ABS light stays on, or comes on again while driving, the vehicle needs service. If the regular brake system warning light is not on, the vehicle still has brakes, but not antilock brakes. If the regular brake system warning light is also on, the vehicle does not have antilock brakes and there is a problem with the regular brakes. See Brake System Warning Light on page 5‑23. For vehicles with a Driver Information Center (DIC), see Driver Information Center (DIC) on page 5‑28 for all brake-related DIC messages.

Cadillac CTS/CTS-V Owner Manual (Include Mex) - 2012

Black plate (25,1)

Up-Shift Light

StabiliTrak® OFF Light

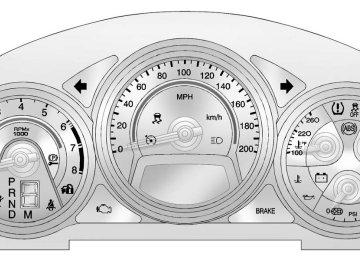

Instruments and Controls

5-25

Traction Control System (TCS)/StabiliTrak® Light

The vehicle may have an up-shift light. It indicates when to shift to the next higher gear for best fuel economy. See Manual Transmission on page 9‑32 for more information. For the CTS-V, the tracer lights function as a performance up-shift light. The tracers flash to indicate when to shift to the next higher gear to avoid the engine speed limit. See Automatic Transmission on page 9‑28 or Manual Transmission on page 9‑32 for more information.

This light comes on briefly while starting the engine. If it does not, have the vehicle serviced by your dealer. This light comes on when the StabiliTrak system is turned off. If StabiliTrak is off, the Traction Control System (TCS) is also off. If the TCS is off, the system does not assist in controlling the vehicle. Turn on the TCS and the StabiliTrak systems and the warning light turns off. See Traction Control System (TCS) on page 9‑40 and StabiliTrak® System on page 9‑41.

The StabiliTrak or Traction Control System (TCS) indicator/warning light comes on briefly when the engine is started. If the light does not come on, have the vehicle serviced by your dealer. If the system is working normally, the indicator light turns off. If the light is on and not flashing, the TCS, and potentially the StabiliTrak system have been disabled. A DIC message may display. Check the DIC messages to determine which feature(s) is no longer functioning and whether the vehicle requires service.

Cadillac CTS/CTS-V Owner Manual (Include Mex) - 2012

Black plate (26,1)

5-26

Instruments and Controls

If the indicator/warning light is on and flashing, the TCS and/or the StabiliTrak system is actively working. See StabiliTrak® System on page 9‑41 and Traction Control System (TCS) on page 9‑40.

Engine Coolant Temperature Warning Light

If the light comes on and stays on while driving, the vehicle may have a problem with the cooling system. Stop and turn off the vehicle to avoid damage to the engine. A warning chime sounds when this light is on. See Engine Overheating on page 10‑24 for more information.

Tire Pressure Light

The engine coolant temperature warning light comes on briefly when the vehicle is started. If it does not, have the vehicle serviced by your dealer. If the system is working normally, the indicator light then goes off.

For vehicles with the Tire Pressure Monitor System (TPMS), this light comes on briefly when the engine is started. It provides information about tire pressures and the TPMS.

When the Light Is On Steady This indicates that one or more of the tires are significantly underinflated. A Driver Information Center (DIC) tire pressure message may also display. See Tire Messages on page 5‑45. Stop as soon as possible, and inflate the tires to the pressure value shown on the Tire and Loading Information label. See Tire Pressure on page 10‑74.

When the Light Flashes First and Then Is On Steady If the light flashes for about a minute and then stays on, there may be a problem with the TPMS. If the problem is not corrected, the light will come on at every ignition cycle. See Tire Pressure Monitor Operation on page 10‑77.

Cadillac CTS/CTS-V Owner Manual (Include Mex) - 2012

Black plate (27,1)

Instruments and Controls

5-27

Engine Oil Pressure Light Notice: Lack of proper engine oil maintenance can damage the engine. Driving with the engine oil low can also damage the engine. The repairs would not be covered by the vehicle warranty. Check the oil level as soon as possible. Add oil if required, but if the oil level is within the operating range and the oil pressure is still low, have the vehicle serviced. Always follow the maintenance schedule for changing engine oil.

The oil pressure light should come on briefly as the engine is started. If it does not come on, have the vehicle serviced by your dealer. If the light comes on and stays on, it means that oil is not flowing through the engine properly.

The vehicle could be low on oil and might have some other system problem. See your dealer.

Security Light

The security light should come on briefly as the engine is started. If the system is working normally, the indicator light turns off. If it does not come on, have the vehicle serviced by your dealer. If the light stays on and the engine does not start, there could be a problem with the theft-deterrent system. This light is also used to indicate the status of the anti-theft alarm system when the ignition is turned off.

The light will flash rapidly if the alarm system is arming and one or more of the monitored entry points is not closed. The light will stay on if the alarm is arming and all entry points are closed. For information regarding this light and the vehicle's security system, see Anti-theft Alarm System on page 2‑26.

High-Beam On Light

The high‐beam on light comes on when the high-beam headlamps are in use. See Headlamp High/Low-Beam Changer on page 6‑2 for more information.

Cadillac CTS/CTS-V Owner Manual (Include Mex) - 2012

Black plate (28,1)

5-28

Instruments and Controls

Front Fog Lamp Light

Cruise Control Light

Information Displays

The fog lamp light comes on when the fog lamps are in use. The light goes out when the fog lamps are turned off. See Fog Lamps on page 6‑6.

Lamps On Reminder

This light comes on whenever the cruise control is active. The light goes out when the cruise control is turned off. See Cruise Control on page 9‑43 for more information.

This light comes on whenever the parking lamps are on. See Exterior Lamps Off Reminder on page 6‑2 for more information.

Driver Information Center (DIC) The Driver Information Center (DIC) provides status of many vehicle systems. The DIC displays warning/ status messages. The DIC display is at the bottom of the instrument panel cluster. The DIC buttons are on the instrument panel next to the steering wheel. The DIC comes on when the ignition is on. After a short delay, the DIC displays the information that was last displayed before the engine was turned off. The top line of the DIC display shows the DIC information. The bottom line shows the compass. The compass displays in the trip/fuel menus and in some vehicle information menus.

Cadillac CTS/CTS-V Owner Manual (Include Mex) - 2012

Black plate (29,1)

If a problem is detected, a warning message appears on the display. All messages should be taken seriously; clearing the message does not correct the problem. DIC Operation and Displays

Press the DIC buttons to access the different displays.

Instruments and Controls

5-29

3 (Trip/Fuel): Press to scroll through the trip and fuel displays. See “Trip/Fuel Display Menu Items” following for more information. T (Vehicle Information): Press to scroll through the vehicle information displays. See “Vehicle Information Display Menu Items” following for more information. U (Customization): Press to scroll through each of the customization features. See Vehicle Personalization on page 5‑48 for more information. V (Set/Reset): Press to reset certain DIC features and to acknowledge and clear DIC warning messages. y or z (Menu Up/Down): Press to scroll up and down the menu items.

Trip/Fuel Display Menu Items 3 (Trip/Fuel): Press to display the following menu items:

Odometer Displays the distance the vehicle has been driven in either kilometers (km) or miles (mi).

Trip A or Trip B Displays the current distance traveled since the last reset for each trip odometer in either kilometers (km) or miles (mi). Both odometers can be used at the same time. Reset each trip odometer to zero by pressing and holding the set/reset button when Trip A or Trip B is displayed.

Cadillac CTS/CTS-V Owner Manual (Include Mex) - 2012

Black plate (30,1)

5-30

Instruments and Controls

Fuel Range Displays the approximate remaining kilometers (km) or miles (mi) you can drive without refilling the fuel tank. This estimate is based on the current driving conditions and changes if the driving conditions change. For example, freeway driving may produce better fuel economy than city driving with frequent stops, so the range would adjust for that. Once the range drops below about 48 km (30 mi) remaining, the display shows Low Range. If the fuel is low, the FUEL LEVEL LOW message displays. See “Fuel Level Low” under Fuel System Messages on page 5‑38 for more information.

AVG (Average) Economy Displays the approximate average liters per 100 kilometers (L/100 km) or miles per gallon (mpg). The calculation is based on the number of L/100 km (mpg) recorded since the last time this display was reset. Press the set/reset button to reset to zero.

Timer Can be used to measure time. For example, timing how long it takes to travel from one point to another. To access the timer, press the trip/fuel button until Timer 00:00:00 displays. To turn on the timer, press the set/reset button. To turn off the timer, press the set/reset button again. The timer displays the end timing value. To reset the timer to zero, press and hold the set/reset button.

Inst (Instantaneous) Economy Displays the current fuel economy in either liters per 100 kilometers (L/100 km) or miles per gallon (mpg). This number changes frequently as driving conditions change. It cannot be reset.

AVG (Average) Speed Displays the average speed of the vehicle in either kilometers per hour (km/h) or miles per hour (mph). This calculation is based on the various vehicle speeds recorded since the last reset of this display. Press the set/reset button to reset to zero.

Speedometer Displays a digital speedometer in the DIC. The speed displays in either kilometers per hour (km/h) or miles per hour (mph). To change the units from English to metric, see “Units” later in this section.

Blank Display This display shows no information.

Cadillac CTS/CTS-V Owner Manual (Include Mex) - 2012

Black plate (31,1)

Instruments and Controls

5-31

Vehicle Information Display Menu Items T (Vehicle Information): Press to display the following menu items:

Oil Life Remaining If the vehicle has this display, it shows the estimated oil life remaining. If you see 99% Oil Life Remaining on the display, that means that 99% of the current oil life remains. When the oil life is depleted, the Change Engine Oil Soon message displays. Change the oil as soon as possible. Additional maintenance is also recommended in the Maintenance Schedule in this manual. See Maintenance Schedule on page 11‑4 and Engine Oil on page 10‑10. The Oil Life must be reset after each oil change. Avoid accidental resetting of the Oil Life system.

It cannot be reset accurately until the next oil change. To reset the engine oil life system, See Engine Oil Life System on page 10‑13. The system is reset when 100% displays.

Units Select to display English or metric units of measure. Press the set/reset button to select when units is displayed.

Parking Assist If the vehicle has the Ultrasonic Rear Parking Assist (URPA) system, this display allows the system to be turned on or off. Once in this display, press the set/reset button to select between On or Off. The URPA system automatically turns back on after each vehicle start. When the URPA system is turned off and the vehicle is shifted out of P (Park), the DIC displays the PARKING ASSIST OFF message

as a reminder that the system has been turned off. See Object Detection System Messages on page 5‑41 and Ultrasonic Parking Assist on page 9‑46 for more information.

Tire Pressure Tire pressure is displayed in the DIC for each tire in either kilopascals (kPa) or pounds per square inch (psi). Press the vehicle information button until the DIC displays Front Tire kPa (PSI) Left ## Right ##. Press the vehicle information button again until the DIC displays Rear Tire kPa (PSI) Left ## Right ##. If a low tire pressure condition is detected by the system while driving, a message to add air to a specific tire displays. See Tire Pressure on page 10‑74 and Tire Messages on page 5‑45 for more information.

Cadillac CTS/CTS-V Owner Manual (Include Mex) - 2012

Black plate (32,1)

5-32

Instruments and Controls

Battery Voltage This display shows the current battery voltage. The vehicle's charging system regulates voltage based on the state of the battery. The battery voltage may fluctuate when viewing this information on the DIC. This is normal. If there is a problem with the battery charging system, the charging system light illuminates and/or the DIC displays a message. See Charging System Light on page 5‑20, Battery Voltage and Charging Messages on page 5‑33
and Battery Load Management on page 6‑8 for more information.

Side Blind Zone Alert If your vehicle has the Side Blind Zone Alert (SBZA) system, this display allows the system to be turned on or off. Once in this display, press the set/reset button to select between ON or OFF. If you choose ON, the system will be turned on. If you choose OFF, the system will be turned off.

When the SBZA system is turned off, the DIC will display the SIDE BLIND ZONE ALERT SYSTEM OFF message as a reminder that the system has been turned off. See Object Detection System Messages on page 5‑41 and Side Blind Zone Alert (SBZA) on page 9‑47 for more information.

Calibrate Compass The vehicle may have this feature. The compass can be manually calibrated. To calibrate the compass through the DIC, see Compass on page 5‑8.

Change Compass Zone The vehicle may have this feature. To change the compass zone through the DIC, see Compass on page 5‑8.

Trans (Transmission) Temp (Temperature) (CTS-V Only) This display shows the transmission fluid temperature in either degrees Celsius (°C) or degrees Fahrenheit (°F).

Oil Pressure (CTS-V Only) This display shows the oil pressure in either kilopascals (kPa) or pounds per square inch (psi).

Lateral Acceleration (CTS-V Only) Lateral Acceleration measures the force of a turn or corner. For example, when turning right, it forces to the left. This gauge displays the “g” force from 0.0 g to 2.0 g.

Blank Display This display shows no information. DIC Compass The vehicle may have a compass in the Driver Information Center (DIC). See Compass on page 5‑8 for information.

Cadillac CTS/CTS-V Owner Manual (Include Mex) - 2012

Black plate (33,1)

Vehicle Messages Messages displayed on the DIC indicate the status of the vehicle or some action that may be needed to correct a condition. Multiple messages may appear one after another. The messages that do not require immediate action can be acknowledged and cleared by pressing V (Set/Reset).

The messages that require immediate action cannot be cleared until that action is performed. All messages should be taken seriously; clearing the message does not correct the problem. The following are the possible messages and some information about them.

Instruments and Controls

5-33

Battery Voltage and Charging Messages

BATTERY SAVER ACTIVE This message displays when the system detects that the battery voltage is dropping below expected levels. The battery saver system starts reducing certain features of the vehicle that may be noticeable. At the point that the features are disabled, this message is displayed. It means that the vehicle is trying to save the charge in the battery. Turn off all unnecessary accessories to allow the battery to recharge. The normal battery voltage range is 11.5 to 15.5 volts. You can monitor battery voltage on the DIC by pressing the vehicle information button until Battery Voltage is displayed.

BATTERY VOLTS LOW This message displays when the electrical system is charging less than 10 volts or the battery has been drained. If this message appears immediately after starting the engine, it is possible that the generator can still recharge the battery. The battery should recharge while driving, but may take a few hours to do so. Consider using an auxiliary charger to boost the battery after returning home or arriving at a final destination. Make sure you follow the manufacturer's instructions. If this message appears while driving or after starting the vehicle and stays on, have it checked immediately to determine the cause of this problem.

Cadillac CTS/CTS-V Owner Manual (Include Mex) - 2012

Black plate (34,1)

5-34

Instruments and Controls

To help the generator recharge the battery quickly, reduce the load on the electrical system by turning off the accessories. The normal battery voltage range is 11.5 to 15.5 volts. Monitor battery voltage on the DIC by pressing the vehicle information button until Battery Voltage is displayed. SERVICE BATTERY CHARGING SYSTEM This message displays when there is a problem with the generator and battery charging systems. Driving with this problem could drain the battery. Turn off all unnecessary accessories. Stop and turn off the vehicle as soon as it is safe to do so. Have the electrical system checked by your dealer. Under certain conditions, the charging system light may also turn on in the instrument panel cluster. See Charging System Light on page 5‑20 for more information.

Brake System Messages

PARK BRAKE RELEASED For vehicles with the electric parking brake, this message displays when the parking brake has been released from the set position. See the electric parking brake information under Parking Brake (Electric) on page 9‑37 or Parking Brake (Manual) on page 9‑36 for more information. PARK BRAKE SET For vehicles with the electric parking brake, this message displays when the parking brake has been applied to the set position. See the electric parking brake information under Parking Brake (Electric) on page 9‑37 or Parking Brake (Manual) on page 9‑36 for more information.

PRESS BRAKE TO START ENGINE (AUTOMATIC TRANSMISSION ONLY) If the vehicle has the keyless access system, this message displays if you try to start the engine without having the brake pressed. The brake needs to be pressed when starting the engine. See Ignition Positions (Key Access) on page 9‑17 or Ignition Positions (Keyless Access) on page 9‑19 for more information. RELEASE PARK BRAKE SWITCH For vehicles with the electric parking brake, this message displays if the switch is pulled while the vehicle is moving. See the electric parking brake information under Parking Brake (Electric) on page 9‑37 or Parking Brake (Manual) on page 9‑36 for more information.

Cadillac CTS/CTS-V Owner Manual (Include Mex) - 2012

Black plate (35,1)

SERVICE BRAKE ASSIST This message displays if there is a problem with the brake system. The brake system warning light and the antilock brake system (ABS) warning light may also display on the instrument panel cluster. See Brake System Warning Light on page 5‑23 and Antilock Brake System (ABS) Warning Light on page 5‑24 for more information. Stop as soon as possible and turn off the vehicle. Restart the vehicle and check for the message on the DIC display. If the message displays immediately or again after you begin driving, the brake system needs service. See your dealer as soon as possible. See Antilock Brake System (ABS) on page 9‑35 for more information. SERVICE BRAKE SYSTEM This message displays, while the ignition is on, when the brake fluid level is low. The brake system warning light on the instrument panel cluster also comes on.

Instruments and Controls

5-35

See Brake System Warning Light on page 5‑23 for more information. This message may also be displayed for other brake system problems. Have the brake system serviced by your dealer as soon as possible. SERVICE PARK BRAKE For vehicles with the electric parking brake, this message displays if a problem is detected with the electric parking brake system. See your dealer for service. STEP ON BRAKE TO RELEASE PARK BRAKE For vehicles with the electric parking brake, this message displays if you try to release the park brake system without first pressing the brake pedal. See the electric parking brake information under Parking Brake (Electric) on page 9‑37 or Parking Brake (Manual) on page 9‑36 for more information.

Compass Messages

CALIBRATING DRIVE IN CIRCLES This message displays when calibrating the compass. Drive the vehicle in circles at less than 8 km/h (5 mph) to complete the calibration. See Compass on page 5‑8 for more information. CALIBRATION COMPLETE This message displays when the compass calibration is complete. See Compass on page 5‑8 for more information.

Cruise Control Messages

CRUISE SET TO XXX MPH (KM/H) This message displays whenever the cruise control is set. See Cruise Control on page 9‑43 for more information.

Cadillac CTS/CTS-V Owner Manual (Include Mex) - 2012

Black plate (36,1)

5-36

Instruments and Controls

Door Ajar Messages

DRIVER DOOR OPEN This message displays when the driver door is not closed completely. Close the door completely. HOOD OPEN This message displays when the hood is not closed completely. Make sure that the hood is closed completely. LEFT REAR DOOR OPEN This message displays when the driver side rear door is not closed completely. Make sure that the door is closed completely. PASSENGER DOOR OPEN This message displays when the passenger side front door is not closed completely. Make sure that the door is closed completely.

REAR ACCESS OPEN (Wagon) This message displays when the liftgate is not closed completely. Make sure that the liftgate is closed completely. RIGHT REAR DOOR OPEN This message displays when the passenger side rear door is not closed completely. Make sure that the door is closed completely. TRUNK OPEN (Sedan and Coupe) This message displays when the trunk is not closed completely. Make sure that the trunk is closed completely.

Engine Cooling System Messages

ENGINE HOT A/C (AIR CONDITIONING) OFF This message displays when the engine coolant becomes hotter than the normal operating temperature. See Engine Coolant Temperature Gauge on page 5‑17. To avoid added strain on a hot engine, the air conditioning compressor automatically turns off. When the coolant temperature returns to normal, the air conditioning compressor turns back on. You can continue to drive the vehicle. If this message continues to appear, have the system repaired by your dealer as soon as possible to avoid damage to the engine.

Cadillac CTS/CTS-V Owner Manual (Include Mex) - 2012

Black plate (37,1)

ENGINE OVERHEATED IDLE ENGINE Notice: If you drive the vehicle while the engine is overheating, severe engine damage may occur. If an overheat warning appears on the instrument panel cluster and/or DIC, stop the vehicle as soon as possible. Do not increase the engine speed above normal idling speed. See Engine Overheating on page 10‑24 for more information. This message displays when the engine coolant temperature is too hot. Stop and allow the vehicle to idle until it cools down. If the message does not clear in a few minutes or if the overheat light stays on, shut the vehicle off and have it serviced before driving again. See Engine Coolant Temperature Warning Light on page 5‑26. See Overheated Engine Protection Operating Mode on page 10‑25 for information on driving to a safe place in an emergency.

Instruments and Controls

5-37

Engine Oil Messages

CHANGE ENGINE OIL SOON When this message displays, it means that service is required for the vehicle. See your dealer. See Maintenance Schedule on page 11‑4 and Engine Oil on page 10‑10 for more information. When you reset the CHANGE ENGINE OIL SOON message by clearing it from the display, you still must reset the engine oil life system separately. For more information on resetting the engine oil life system, see Engine Oil Life System on page 10‑13. ENGINE OIL LOW ADD OIL If the vehicle has an oil level sensor, this message displays if the oil level in the vehicle is low. Check the oil level and correct it as necessary. You may need to let the vehicle cool or warm up and cycle the ignition to be sure this message clears.

This message clears itself after 10 seconds, until the next ignition cycle. See Engine Oil on page 10‑10 for additional information. OIL PRESSURE LOW STOP ENGINE Notice: If you drive the vehicle while the engine oil pressure is low, severe engine damage may occur. If a low oil pressure warning appears on the instrument panel cluster and/or DIC, stop the vehicle as soon as possible. Do not drive the vehicle until the cause of the low oil pressure is corrected. See Engine Oil on page 10‑10 for more information. This message displays when the vehicle's engine oil pressure is low. The oil pressure light may also appear on the instrument panel cluster. See Engine Oil Pressure Light on page 5‑27. See Engine Oil on page 10‑10 for more information.

Cadillac CTS/CTS-V Owner Manual (Include Mex) - 2012

Black plate (38,1)

5-38

Instruments and Controls

Stop the vehicle immediately, as engine damage can result from driving a vehicle with low oil pressure. Have the vehicle serviced by your dealer as soon as possible when this message is displayed. Engine Power Messages ENGINE POWER IS REDUCED This message displays when the engine power is being reduced to protect the engine from damage. There could be several malfunctions that might cause this message. Reduced engine power can affect the vehicle's ability to accelerate. If this message is on, but there is no reduction in performance, proceed to your destination. The performance may be reduced the next time the vehicle is driven. The vehicle may be driven at a reduced speed while this message is on, but acceleration and speed may be reduced. Anytime this message stays on, take the vehicle to your dealer for service as soon as possible.

Fuel System Messages

FUEL LEVEL LOW This message displays when the vehicle is low on fuel. Refill the fuel tank as soon as possible. A chime may sound when this message displays. See Filling the Tank on page 9‑55. TIGHTEN GAS CAP This message displays when the fuel cap has not been fully tightened. Recheck the fuel cap to ensure that it is on and tightened properly.

Key and Lock Messages

ACCESSORY MODE ACTIVE If the vehicle has the keyless access system, this message displays when the accessory mode is active. See Ignition Positions (Key Access) on page 9‑17 or Ignition Positions (Keyless Access) on page 9‑19 for more information.

ELECTRONIC KEY ALREADY KNOWN If the vehicle has the keyless access system, this message displays if you try to match a transmitter that has already been learned. See the keyless access information for Remote Keyless Entry (RKE) System Operation (Keyless Access) on page 2‑7 or Remote Keyless Entry (RKE) System Operation (Key Access) on page 2‑5 for more information. ELECTRONIC KEY NOT DETECTED If the vehicle has the keyless access system, this message displays if the vehicle does not detect the presence of a transmitter when you have attempted to start the vehicle or a vehicle door has just closed.

Cadillac CTS/CTS-V Owner Manual (Include Mex) - 2012

Black plate (39,1)

Instruments and Controls

5-39

The following conditions may cause this message to appear: . Driver-added equipment plugged

into the accessory power outlet on the center console is causing interference. Examples of these devices are cell phones and cell phone chargers, two-way radios, power inverters, or similar items. Try moving the keyless access transmitter away from these devices when starting the vehicle. In addition, PDA devices and remote garage and gate openers may also generate Electromagnetic Interference (EMI) that may interfere with the keyless access transmitter. Do not carry the keyless access transmitter in the same pocket or bag as these devices. The vehicle is experiencing Electromagnetic Interference (EMI). Some locations, such as airports, automatic toll booths, and some gas stations have EMI fields which may interfere with the keyless access transmitter.

If moving the transmitter to different locations within the vehicle does not help, place the transmitter in the center console transmitter pocket with the buttons facing the front of the vehicle and then start the vehicle. The vehicle's battery voltage is low. The battery voltage must be above 10 volts for the keyless access transmitter to be detected properly.

ELECTRONIC KEY NOT DETECTED RESTART ALLOWED If the vehicle has the keyless access system, this message displays when the keyless access transmitter is not detected inside the vehicle while you are trying to turn the ignition off. The vehicle may be near a strong radio antenna signal causing the keyless access system to be jammed. If you have the keyless access transmitter with you, get out of the vehicle and lock the doors. If you do not have the keyless access transmitter with you, you will be able to start the vehicle again within five minutes, or after the vehicle's content theft-deterrent system is armed. See Starting the Engine on page 9‑21 for more information.

Cadillac CTS/CTS-V Owner Manual (Include Mex) - 2012

Black plate (40,1)

5-40

Instruments and Controls

LEARN DELAY ACTIVE WAIT XX MIN (MINUTES) If the vehicle has the keyless access system, this message displays when matching new transmitters to the vehicle. See the Keyless Access information for Remote Keyless Entry (RKE) System Operation (Keyless Access) on page 2‑7 or Remote Keyless Entry (RKE) System Operation (Key Access) on page 2‑5 for more information. MAXIMUM # ELECTRONIC KEYS LEARNED If the vehicle has the keyless access system, this message displays when the maximum number of transmitters have been learned. See the Keyless Access information for Remote Keyless Entry (RKE) System Operation (Keyless Access) on page 2‑7 or Remote Keyless Entry (RKE) System Operation (Key Access) on page 2‑5 for more information.

PRESS START CONTROL TO LEARN KEYS If the vehicle has the keyless access system, this message displays when matching new transmitters to the vehicle. See the keyless access information for Remote Keyless Entry (RKE) System Operation (Keyless Access) on page 2‑7 or Remote Keyless Entry (RKE) System Operation (Key Access) on page 2‑5 for more information. READY TO LEARN ELECTRONIC KEY # X If the vehicle has the keyless access system, this message displays while matching new transmitters to the vehicle. See the keyless access information for Remote Keyless Entry (RKE) System Operation (Keyless Access) on page 2‑7 or Remote Keyless Entry (RKE) System Operation (Key Access) on page 2‑5 for more information.

REPLACE BATTERY IN REMOTE KEY This message displays when the battery in the Remote Keyless Entry (RKE) or keyless access transmitter needs to be replaced. To replace the battery, see “Battery Replacement” under Remote Keyless Entry (RKE) System Operation (Keyless Access) on page 2‑7 or Remote Keyless Entry (RKE) System Operation (Key Access) on page 2‑5. ROTATE CONTROL TO OFF POSITION If the vehicle has the keyless access system, this message displays when the ignition is in ACC/ACCESSORY and the shift lever has just been moved to P (Park). The message displays as a reminder to turn the ignition off. To avoid draining the battery, make sure the ignition is turned off before leaving the vehicle.

Cadillac CTS/CTS-V Owner Manual (Include Mex) - 2012

Black plate (41,1)

Instruments and Controls

5-41

SERVICE KEYLESS START SYSTEM If the vehicle has the keyless access system, this message displays when there is a problem with this feature. See your dealer.

Lamp Messages

AFL (ADAPTIVE FORWARD LIGHTING) LAMPS NEED SERVICE This message displays when the Adaptive Forward Lighting (AFL) system is disabled and needs service. See your dealer. See Adaptive Forward Lighting (AFL) on page 6‑4 for more information. AUTOMATIC LIGHT CONTROL OFF This message displays when the automatic headlamps are turned off.

AUTOMATIC LIGHT CONTROL ON This message displays when the automatic headlamps are turned on. TURN SIGNAL ON This message displays as a reminder to turn off the turn signal if you drive the vehicle for more than about 1.6 km (1 mi) with a turn signal on. A multiple chime sounds when this message displays.

Object Detection System Messages

PARKING ASSIST BLOCKED SEE OWNER'S MANUAL If the vehicle has the Ultrasonic Rear Park Assist (URPA) system, this message displays if there is something interfering with the park assist system. See Ultrasonic Parking Assist on page 9‑46 for more information.

PARKING ASSIST OFF After the vehicle has been started, this message displays to remind the driver that the URPA system has been turned off. This message also displays when there is a temporary condition causing the system to be disabled. See Ultrasonic Parking Assist on page 9‑46. Press the set/reset button to acknowledge this message and clear it from the DIC display. SERVICE PARKING ASSIST This message displays if there is a problem with the Ultrasonic Rear Parking Assist (URPA) system. Do not use this system to help you park. See Ultrasonic Parking Assist on page 9‑46 for more information. See your dealer for service.

Cadillac CTS/CTS-V Owner Manual (Include Mex) - 2012

Black plate (42,1)

5-42

Instruments and Controls

SERVICE SIDE BLIND ZONE ALERT SYSTEM If this message appears, both SBZA displays will remain on indicating there is a problem with the SBZA system. If these displays remain on after continued driving, the system needs service. Take the vehicle to your dealer. SIDE BLIND ZONE ALERT SYSTEM OFF This message indicates that the driver has turned the system off. SIDE BLIND ZONE ALERT SYSTEM TEMPORARILY UNAVAILABLE This message indicates that the SBZA system is disabled because the sensor is blocked and cannot detect vehicles in the blind zone. The sensor may be blocked by mud, dirt, snow, ice, or slush.

This message may also activate during heavy rain or due to road spray. The vehicle does not need service. For cleaning, see Exterior Care on page 10‑118.

Ride Control System Messages

ALL WHEEL DRIVE OFF If the vehicle has the All-Wheel Drive (AWD) system, this message displays when there is a temporary condition making the AWD system unavailable. The vehicle will run in 2WD. This could be caused by:

Loss of wheel or vehicle speed

. AWD system overheat . Certain vehicle electrical

conditions

This message turns off when the above conditions are no longer present and the warning message is reset.

To reset the warning message, turn the ignition off and then back on again after 30 seconds. If the message stays on, see your dealer right away. See All-Wheel Drive on page 9‑35 for more information. SERVICE ALL WHEEL DRIVE This message displays if a problem occurs with the All-Wheel Drive (AWD) system. The vehicle will run in 2WD. This could be caused by: . An electronics problem . An AWD system oil overheat . Worn out or overheated clutch

plates

. Various electrical issues If this message appears, stop as soon as possible and turn off the ignition for 30 seconds. Restart the vehicle and check for the message on the DIC display. If the message still displays or appears again when you begin driving, the system needs service. See your dealer right away.

Cadillac CTS/CTS-V Owner Manual (Include Mex) - 2012

Black plate (43,1)

Instruments and Controls

5-43

SERVICE POWER STEERING This message displays if a problem is detected with the speed variable assist steering system. When this message is displayed, you may notice that the effort required to steer the vehicle increases or feels heavier, but you will still be able to steer the vehicle. See Steering on page 9‑4. SERVICE STABILITRAK This message displays if there has been a problem detected with the StabiliTrak® system. The TCS/StabiliTrak warning light on the instrument panel cluster also comes on. If this message comes on while you are driving, pull off the road as soon as possible and stop carefully. Try resetting the system by turning the ignition off then back on. If this message still stays on or comes back on again while you are driving, the vehicle needs service. Have the StabiliTrak system inspected by

your dealer as soon as possible. See StabiliTrak® System on page 9‑41 for more information. SERVICE SUSPENSION SYSTEM This message displays when there is a problem with the Magnetic Ride Control system. See Magnetic Ride Control on page 9‑42 for more information. Have the vehicle serviced by your dealer. SERVICE TRACTION CONTROL This message displays when there is a problem with the Traction Control System (TCS). The TCS/StabiliTrak warning light on the instrument panel cluster also comes on. When this message displays, the system will not limit wheel spin. Adjust your driving accordingly. See your dealer for service. See Traction Control System (TCS) on page 9‑40 for more information.

STABILITRAK COMPETITIVE MODE This message displays when the Competitive Driving Mode is selected. When in this mode, the Traction Control System (TCS) will not be operating and the TCS/StabiliTrak warning light will turn on. Adjust your driving accordingly. See Competitive Driving Mode on page 9‑42 for more information. STABILITRAK NOT READY This message may display after first driving the vehicle and exceeding 30 km/h (19 mph) for 30 seconds. The TCS/StabiliTrak warning light on the instrument panel cluster also comes on. The StabiliTrak system is not functional until the message has turned off. See StabiliTrak® System on page 9‑41 for more information.

Cadillac CTS/CTS-V Owner Manual (Include Mex) - 2012

Black plate (44,1)

5-44

Instruments and Controls

STABILITRAK OFF This message displays when you turn off StabiliTrak, or when the stability control system has been automatically disabled. The TCS/StabiliTrak warning light on the instrument panel cluster also comes on. To realize the full benefits of the stability enhancement system, you should normally leave StabiliTrak on. To turn StabiliTrak on or off, see StabiliTrak® System on page 9‑41. There are several conditions that can cause this message to appear:

If there is overheating, which could occur if StabiliTrak activates continuously for an extended period of time. If the brake system warning light is on. See Brake System Warning Light on page 5‑23.

If the stability system takes longer than usual to complete its diagnostic checks due to driving conditions. If an engine or vehicle-related problem has been detected and the vehicle needs service. See your dealer.

The message turns off as soon as the conditions that caused the message to be displayed are no longer present. SUSPENSION MODE SPORT (CTS-V ONLY) This message will be displayed when sport mode is selected using the Magnetic Ride Control button in the center of the instrument panel. See Magnetic Ride Control on page 9‑42 for more information.

SUSPENSION MODE TOUR (CTS-V ONLY) This message will be displayed when touring mode is selected using the Magnetic Ride Control button in the center of the instrument panel. See Magnetic Ride Control on page 9‑42 for more information. TRACTION CONTROL OFF This message displays when the traction control system has been turned off.

Airbag System Messages

SERVICE AIR BAG This message displays when there is a problem with the airbag system. Have the vehicle serviced by your dealer immediately. See Airbag Readiness Light on page 5‑18 for more information.

Cadillac CTS/CTS-V Owner Manual (Include Mex) - 2012

Black plate (45,1)

Instruments and Controls

5-45

THEFT ATTEMPTED This message displays if the theft-deterrent system has detected a break-in attempt while you were away from the vehicle. See Anti-theft Alarm System on page 2‑26 for more information.

Service Vehicle Messages

SERVICE A/C SYSTEM This message displays when the electronic sensors that control the air conditioning and heating systems are no longer working. Have the climate control system serviced by your dealer if you notice a drop in heating and air conditioning efficiency. SERVICE VEHICLE SOON This message displays when a non-emissions related malfunction occurs. Have the vehicle serviced by your dealer as soon as possible.

Tire Messages

SERVICE TIRE MONITOR SYSTEM This message displays if a part on the Tire Pressure Monitor System (TPMS) is not working properly. The tire pressure light also flashes and then remains on during the same ignition cycle. See Tire Pressure Light on page 5‑26. Several conditions may cause this message to appear. See Tire Pressure Monitor Operation on page 10‑77 for more information. If the warning comes on and stays on, there may be a problem with the TPMS. See your dealer. TIRE LEARNING ACTIVE This message displays when the Tire Pressure Monitor System (TPMS) is re-learning the tire positions on the vehicle.

Anti-theft Alarm System Messages SERVICE THEFT DETERRENT SYSTEM This message displays when there is a problem with the theft-deterrent system programmed in the key. A fault has been detected in the system which means that the system is disabled and it is not protecting the vehicle. The vehicle usually restarts; however, you may want to take the vehicle to your dealer before turning off the engine. See Immobilizer Operation (Keyless Access) on page 2‑28 or Immobilizer Operation (Key Access) on page 2‑27 for more information. START ABORTED BY THEFT DETERRENT This message displays if there is a communication problem between the keyless access system and the vehicle. The vehicle cannot be started when this message displays. See your dealer for service.

Cadillac CTS/CTS-V Owner Manual (Include Mex) - 2012

Black plate (46,1)

5-46

Instruments and Controls

The tire positions must be re-learned after rotating the tires or after replacing a tire or sensor. See Tire Rotation on page 10‑81, Tire Pressure Monitor System on page 10‑76, and Tire Pressure on page 10‑74 for more information. TIRE LOW ADD AIR TO TIRE On vehicles with the Tire Pressure Monitor System (TPMS), this message displays when the pressure in one or more of the vehicle’s tires is low. This message also displays LEFT FRONT, RIGHT FRONT, LEFT REAR, or RIGHT REAR to indicate the location of the low tire. The low tire pressure warning light will also come on. See Tire Pressure Light on page 5‑26. If a tire pressure message appears on the DIC, stop as soon as you can. Inflate the tires by adding air

until the tire pressure is equal to the values shown on the Tire and Loading Information label. See Tires on page 10‑66, Vehicle Load Limits on page 9‑12, and Tire Pressure on page 10‑74. If the vehicle does not have a spare tire, the message will display USE INFLATOR KIT IN TRUNK. Use the inflator kit to inflate the tires to the correct pressure. See Tire Sealant and Compressor Kit on page 10‑91
for more information. More than one tire pressure message can be received at a time. To read the other messages, press the set/reset button. The DIC display also shows the tire pressure values. See Driver Information Center (DIC) on page 5‑28.

Transmission Messages

DIFFERENTIAL HOT, REDUCE SPEED (CTS-V ONLY) This message displays and a chime sounds if the differential fluid temperature exceeds 150°C (300°F). Driving aggressively or at high speeds can cause the differential fluid temperature to be higher than normal. If this message appears, you may continue to drive at a slower speed. If you have been operating the vehicle under normal driving conditions, the vehicle may need service. See your dealer for an inspection. To acknowledge the message, press V. The message reappears and a chime sounds every two minutes until this condition changes. If you do not clear the message, it will remain on until the condition changes.

Cadillac CTS/CTS-V Owner Manual (Include Mex) - 2012

Black plate (47,1)

Instruments and Controls

5-47

SERVICE TRANSMISSION This message displays when there is a problem with the vehicle's transmission. Have the vehicle serviced by your dealer. SHIFT TO PARK (AUTOMATIC TRANSMISSION ONLY) If the vehicle has the keyless access system, this message displays if the vehicle is not in P (Park) while the engine is being turned off. The vehicle will be in ACC/ACCESSORY. Once the shift lever is moved to P (Park), the ignition needs to be turned off. If the ignition is not turned off, the vehicle will remain in ACC/ACCESSORY. To avoid draining the battery, turn the ignition off before leaving the vehicle.

SPORT MODE This message displays when the vehicle is in sport mode. The transmission gear position will also be displayed when DSC is in use. See Manual Mode on page 9‑30 for more information. TRANSMISSION HOT IDLE ENGINE This message displays when the transmission fluid in the vehicle is too hot. Stop the vehicle and allow it to idle until the transmission cools down or until this message is removed.

Vehicle Speed Messages

ICE POSSIBLE DRIVE WITH CARE This message displays when the outside temperature is cold enough to create icy road conditions. Adjust your driving accordingly.

SPEED LIMITED TO XXX KM/H (MPH) This message displays when the vehicle speed is limited to 128 km/h (80 mph) because the vehicle detects a problem in the speed variable assist steering or magnetic ride control systems. Have the vehicle serviced by your dealer.

Washer Fluid Messages

WASHER FLUID LOW ADD FLUID This message displays when the vehicle is low on windshield washer fluid. Refill the windshield washer fluid reservoir as soon as possible. See Washer Fluid on page 10‑26
for more information.

Cadillac CTS/CTS-V Owner Manual (Include Mex) - 2012

Black plate (48,1)

5-48

Instruments and Controls

Vehicle Personalization Vehicle customization allows certain features to be programmed for one preferred setting. Only the customization options available will be displayed on the DIC. The default settings were preset when the vehicle left the factory, but may have been changed. The customization preferences are automatically recalled. To change customization preferences, use the following procedure.

Entering the Feature Settings Menu 1. Turn the ignition on.

To avoid excessive drain on the battery, it is recommended that the headlamps are turned off.

2. Press the customization

button to enter the feature settings menu.

Feature Settings Menu Items The following are customization features that allow you to program settings to the vehicle.

Display In English This feature will only display if a language other than English has been set. This feature allows for changing the language of the DIC messages back to English. Press the customization button until the Press V To Display In English screen appears on the DIC display.

Press the set/reset button once to select English as the language in which all DIC messages will appear.

Display Language This feature allows you to select the language in which the DIC messages will appear. Press the customization button until the Display Language screen appears on the DIC display. Press the set/reset button once to access the settings for this feature. Then press the menu up/down button to scroll through the following settings. English (default): All messages will appear in English. Deutsch: All messages will appear in German. Italiano: All messages will appear in Italian. Francais: All messages will appear in French.

Cadillac CTS/CTS-V Owner Manual (Include Mex) - 2012

Black plate (49,1)

Instruments and Controls

5-49

Espanol: All messages will appear in Spanish. Portuguese: All messages will appear in Portuguese. Arabic: All messages will appear in Arabic. Chinese: All messages will appear in Chinese. Japanese: All messages will appear in Japanese. No Change: No change will be made to this feature. The current setting will remain. To select a setting, press the set/reset button while the desired setting is displayed on the DIC.

Auto Door Lock This feature allows you to select when the vehicle's doors will automatically lock. See Automatic Door Locks on page 2‑18 for more information.

Press the customization button until Auto Door Lock appears on the DIC display. Press the set/reset button once to access the settings for this feature. Then press the menu up/down button to scroll through the following settings. Shift Out Of Park (default on Automatic Transmission) (Automatic Transmission Only): The vehicle's doors automatically lock when the doors are closed and the vehicle is shifted out of P (Park). At Vehicle Speed (default on Manual Transmission): The vehicle's doors automatically lock when the vehicle speed is above 8 km/h (5 mph) for three seconds. No Change: No change will be made to this feature. The current setting will remain. To select a setting, press the set/reset button while the desired setting is displayed on the DIC.

Auto Door Unlock This feature allows you to select whether or not the door(s) will automatically unlock. It also allows you to select which doors and when they will automatically unlock. See Automatic Door Locks on page 2‑18 for more information. Press the customization button until Auto Door Unlock appears on the DIC display. Press the set/reset button once to access the settings for this feature. Then press the menu up/down button to scroll through the following settings. Off: None of the doors will automatically unlock. Driver Only At Off: Only the driver door will unlock when the ignition is turned off. All At Off (default on Manual Transmission): All of the doors will unlock when the ignition is turned off.

Cadillac CTS/CTS-V Owner Manual (Include Mex) - 2012

Black plate (50,1)

5-50

Instruments and Controls

All In Park (default on Automatic Transmission) (Automatic Transmission Only): All of the doors will unlock when the vehicle is shifted into P (Park). No Change: No change will be made to this feature. The current setting will remain. To select a setting, press the set/reset button while the desired setting is displayed on the DIC.

Remote Door Lock Feedback This feature allows you to select the type of feedback you will receive when locking the vehicle with the Remote Keyless Entry (RKE) or keyless access transmitter, or when the vehicle is automatically locked using the Keyless Locking feature. You will not receive feedback when locking the vehicle with the transmitter if the doors are open. See Remote Keyless Entry (RKE) System Operation (Keyless Access) on page 2‑7 or Remote Keyless Entry (RKE) System Operation

(Key Access) on page 2‑5, or “Keyless Locking” later in this section for more information. Press the customization button until Remote Door Lock appears on the DIC display. Press the set/reset button once to access the settings for this feature. Then press the menu up/down button to scroll through the following settings. Off: There will be no feedback when you press the lock button on the transmitter. Lights Only: The exterior lamps will flash when you press the lock button on the transmitter. Horn Only: The horn will sound on the second press of the lock button on the transmitter. Horn & Lights (default): The exterior lamps will flash when you press the lock button on the transmitter, and the horn will sound when the lock button is pressed again within five seconds of the previous command.

No Change: No change will be made to this feature. The current setting will remain. To select a setting, press the set/reset button while the desired setting is displayed on the DIC.

Remote Door Unlock Feedback This feature allows you to select the type of feedback you will receive when unlocking the vehicle with the Remote Keyless Entry (RKE) or keyless access transmitter, or when the vehicle is automatically unlocked using the Keyless Unlock feature. You will not receive feedback when unlocking the vehicle with the transmitter if the doors are open. See Remote Keyless Entry (RKE) System Operation (Keyless Access) on page 2‑7 or Remote Keyless Entry (RKE) System Operation (Key Access) on page 2‑5 or “Keyless Unlock” later in this section for more information.

Cadillac CTS/CTS-V Owner Manual (Include Mex) - 2012

Black plate (51,1)

Instruments and Controls

5-51

Press the customization button until Remote Door Unlock appears on the DIC display. Press the set/reset button once to access the settings for this feature. Then press the menu up/down button to scroll through the following settings. Lights Off: The exterior lamps will not flash when you press the unlock button on the transmitter. Lights On (default): The exterior lamps will flash when you press the unlock button on the transmitter. No Change: No change will be made to this feature. The current setting will remain. To select a setting, press the set/reset button while the desired setting is displayed on the DIC.

Exit Lighting This feature allows you to select the amount of time you want the exterior lamps to remain on when it is dark enough outside.

This happens after the key is turned from ON/RUN to LOCK/OFF. Press the customization button until Exit Lighting appears on the DIC display. Press the set/reset button once to access the settings for this feature. Then press the menu up/down button to scroll through the following settings. Off: The exterior lamps will not turn on. 10 Seconds (default): The exterior lamps will stay on for 10 seconds. 30 Seconds: The exterior lamps will stay on for 30 seconds. 2 Minutes: The exterior lamps will stay on for two minutes. No Change: No change will be made to this feature. The current setting will remain. To select a setting, press the set/reset button while the desired setting is displayed on the DIC.

Approach Lighting This feature allows you to select whether or not to have the exterior lights turn on briefly during low light periods after unlocking the vehicle using the Remote Keyless Entry (RKE) or keyless access transmitter. Press the customization button until Approach Lighting appears on the DIC display. Press the set/reset button once to access the settings for this feature. Then press the menu up/down button to scroll through the following settings. Off: The exterior lights will not turn on when you unlock the vehicle with the transmitter. On (default): If it is dark enough outside, the exterior lights will turn on briefly when you unlock the vehicle with the transmitter. The lights will remain on for 20 seconds or until the lock button on the transmitter is pressed, or the vehicle is no longer off.

Cadillac CTS/CTS-V Owner Manual (Include Mex) - 2012

Black plate (52,1)

5-52

Instruments and Controls

See Remote Keyless Entry (RKE) System Operation (Keyless Access) on page 2‑7 or Remote Keyless Entry (RKE) System Operation (Key Access) on page 2‑5 for more information. No Change: No change will be made to this feature. The current setting will remain. To select a setting, press the set/reset button while the desired setting is displayed on the DIC.

Factory Settings This feature allows you to set all of the customization features back to their factory default settings. Press the customization button until Factory Settings appears on the DIC display. Press the set/reset button once to access the settings for this feature. Then press the menu up/down button to scroll through the following settings.

Restore All (default): The customization features will be set to their factory default settings. No Change: The customization features will not be set to their factory default settings. To select a setting, press the set/reset button while the desired setting is displayed on the DIC.

Keyless Locking If the vehicle has the keyless access system, this feature allows you to select whether the doors automatically lock during normal vehicle exit. When the ignition is turned off and all doors become closed, the vehicle will determine how many keyless access transmitters remain in the vehicle interior. If at least one keyless access transmitter has been removed from the interior of the vehicle, the doors will lock after several seconds.

For example, if there are two keyless access transmitters in the vehicle and one is removed, the other will be locked in. The keyless access transmitter locked in the vehicle can still be used to start the vehicle or unlock the doors, if needed. A person approaching the outside of the locked vehicle without an authorized keyless access transmitter, however, will not be able to open the door, even with a transmitter in the vehicle. See the keyless access information for Remote Keyless Entry (RKE) System Operation (Keyless Access) on page 2‑7 or Remote Keyless Entry (RKE) System Operation (Key Access) on page 2‑5 for more information. You may temporarily disable the keyless locking feature by pressing the door unlock switch for three seconds on an open door. To enable keyless locking, transition the power mode from off.

Cadillac CTS/CTS-V Owner Manual (Include Mex) - 2012

Black plate (53,1)

To select whether the horn sounds or the lights flash when the vehicle is locked, see “Remote Door Lock” earlier in this section. Press the customization button until Keyless Locking appears on the DIC display. Press the set/reset button once to access the settings for this feature. Then press the menu up/down button to scroll through the following settings. Off (default): The keyless locking feature will be disabled. On: The keyless locking feature will be enabled. The doors will automatically lock several seconds after you turn the ignition off, remove a keyless access transmitter from the interior of the vehicle, and close all of the doors. No Change: No change will be made to this feature. The current setting will remain.

Instruments and Controls

5-53

To select a setting, press the set/reset button while the desired setting is displayed on the DIC.

Keyless Unlock If the vehicle has the keyless access system, this feature allows you to select which doors will automatically unlock when you approach the vehicle with the keyless access transmitter and open the driver door. See the keyless access information for Remote Keyless Entry (RKE) System Operation (Keyless Access) on page 2‑7 or Remote Keyless Entry (RKE) System Operation (Key Access) on page 2‑5 for more information. To select whether the lights flash when the vehicle is unlocked, see “Remote Door Unlock” earlier in this section.

Press the customization button until Keyless Unlock appears on the DIC display. Press the set/reset button once to access the settings for this feature. Then press the menu up/down button to scroll through the following settings. Entry Door Only: Only the driver door will automatically unlock when you approach the vehicle with the keyless access transmitter and open the driver door. All Doors (default): All doors will automatically unlock when you approach the vehicle with the keyless access transmitter and open the driver door. No Change: No change will be made to this feature. The current setting will remain. To select a setting, press the set/reset button while the desired setting is displayed on the DIC.

Cadillac CTS/CTS-V Owner Manual (Include Mex) - 2012

Black plate (54,1)

5-54

Instruments and Controls

Chime Volume This feature allows you to select the volume level of the chime. Press the customization button until Chime Volume appears on the DIC display. Press the set/reset button once to access the settings for this feature. Then press the menu up/down button to scroll through the following settings. Normal: The chime volume will be set to a normal level. Loud: The chime volume will be set to a loud level. No Change: No change will be made to this feature. The current setting will remain. There is no default for chime volume. The volume will stay at the last known setting. To select a setting, press the set/reset button while the desired setting is displayed on the DIC.

Entry/Exit Recall If the vehicle has this feature, it allows you to select your preferred automatic recall of stored memory and exit positions. See Memory Seats on page 3‑8 for more information. Press the customization button until Entry/Exit Recall appears on the DIC display. Press the set/reset button once to access the settings for this feature. Then press the menu up/down button to scroll through the following settings. To select a setting, press the set/reset button while the desired setting is displayed on the DIC. Entry/Exit Recall Off (default): No automatic Entry/Exit Recall will occur when entering or leaving the vehicle. The Exit Recall will only occur after pressing the door mounted exit button. This button

will cause the driver seat to move rearward a certain distance, and the steering column to move full up and full forward, if equipped. Entry Recall will only occur by pressing the door mounted “1” or “2” button. Entry/Exit Recall On (Vehicles without Power Tilt Steering Wheel): If this setting is selected the following option will be available: Easy Exit will automatically move the driver seat rearward a certain distance when the key is removed from the ignition on key access vehicles, or when the ignition is turned off and the driver door is opened on keyless access vehicles. This movement will also occur when the door mounted exit button is pressed. Easy Entry will automatically recall the driver seat and outside mirror memory positions of the current driver (1 or 2) when the ignition is turned on.

Cadillac CTS/CTS-V Owner Manual (Include Mex) - 2012

Black plate (55,1)

Instruments and Controls

5-55

. Entry/Exit Steering Only: Easy Exit will automatically move the steering column to a full up and full forward position when the key is removed from the ignition on key access vehicles, or when the ignition is turned off and the driver door is opened on keyless access vehicles. This movement will also occur when the door mounted exit button is pressed. Easy Entry will automatically recall the driver seat, outside mirrors, and steering column memory positions of the current driver (1 or 2) when the ignition is turned on.

No Change: No change will be made to this feature. The current setting will remain.

Entry/Exit Recall On (Vehicles with Power Tilt Steering Wheel): If this setting is selected the following two options will be available: . Entry/Exit Steering and Seat:

Easy Exit will automatically move the steering column to a full up and full forward position and move the driver seat rearward a certain distance when the key is removed from the ignition on key access vehicles, or when the ignition is turned off and the driver door is opened on keyless access vehicles. These movements will also occur when the door mounted exit button is pressed. Easy Entry will automatically recall the driver seat, outside mirrors, and steering column memory positions of the current
