1.6.2. Medium (default)* 1.6.3. High* 1.7. RESET ALL

CD menu 1. RANDOM* 2. AUDIO SETTINGS 2.1. SURROUND FM (Premium sound system only) 2.1.1. Dolby Pro Logic II* 2.1.2. 3 Channel* 2.1.3. Off (default)* 2.2. SURROUND CD (Premium sound system only) 2.2.1. Dolby Pro Logic II (default)* 2.2.2. 3 Channel* 2.2.3. Off*

pg. 174 Audio menu settings and selections

2.3. SUBWOOFER ON (default)/OFF* (accessory) 2.4. EQUALIZER Front (certain audio systems) 2.5. EQUALIZER Rear (certain audio systems) 2.6. Auto. volume control (speed compensated volume) 2.6.1. Low* 2.6.2. Medium (default)* 2.6.3. High* 2.7. RESET ALL

CD changer menu 1. RANDOM 1.1. Off (default)* 1.2. Single Disc* 1.3. All Discs* 2. DISC TEXT ON/OFF (default)* 3. AUDIO SETTINGS 3.1. SURROUND FM (Premium sound system only) 3.1.1. Dolby Pro Logic II* 3.1.2.3 Channel* 3.1.3. Off (default)* 3.2. SURROUND CD (Premium sound system only) 3.2.1. Dolby Pro Logic II (default)* 3.2.2. 3 Channel* 3.2.3. Off* 3.3. SUBWOOFER ON (default)/OFF* (accessory) 3.4. EQUALIZER Front (certain audio systems) 3.5. EQUALIZER Rear (certain audio systems) 3.6. Auto. volume control (speed compensated sound) 3.6.1. Low* 3.6.2. Medium (default)* 3.6.3. High* 3.7. RESET ALL

Contents | Top of Page

2 0 0 6
VOLVO

S40

Chapter 12 - Specifications

pg. 175 Specifications

Label information 176
Dimensions and weights 177
Fuel, oils, and fluids 178
Engine oil 179
Engine specifications 180
Electrical system 181
Three-way catalytic converter 182
Volvo programs 183

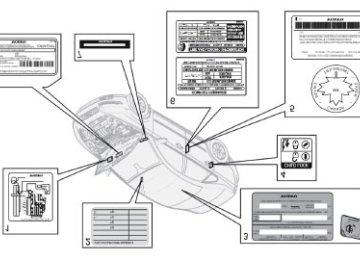

pg. 176 Label information

1. Vacuum hose routing (underside of hood)

2. Model plate Vehicle Identification Number (VIN).

Codes for color and upholstery, etc. The label is located on the passenger's side center door pillar.

3. Loads and Tire Pressures (on inside of fuel filler door): Canadian models only.

4. Child safety lock This information is stamped on the rear inside edges of the doors.

5. Federal Motor Vehicle Safety Standards (FMVSS) specifications (USA) and Ministry of Transport (CMVSS) standards (Canada) Your Volvo is designed to meet all applicable safety standards, as evidenced by the certification label on the facing side of the driver's door. For further information regarding these regulations, please consult your Volvo retailer.

6. Loads and Tire Pressures U.S. models only Certain models will only have one decal, depending on the specifications of the vehicle.

7. Vehicle Identification Number (VIN)1
The VIN plate is located on the top left surface of the dashboard. The VIN is also stamped on the right hand door pillar.

8. Vehicle Emission Control Information Your Volvo is designed to meet all applicable emission standards, as evidenced by the certification label on the underside of the hood. For further information regarding these regulations, please consult your Volvo retailer.

1. The Vehicle Identification Number (VIN) should always be quoted in correspondence concerning your vehicle with the retailer and when ordering parts.

pg. 177 Dimensions and weights

Dimensions and weights Dimensions Length Width Height Wheelbase Front track Rear track Turning circle 34.9 ft. (10.6 m) Cargo capacity 31.2 cu. ft. (883 liters)1

175.9 in. (447 cm) 69.7 in. (177 cm) 57.2 in. (145 cm) 103.9 in. (264 cm) 60.4/60.9 in. (154/155 cm) 60.3/60.8 in. (153/154 cm)

1. 38.4 cu. ft. (1088 liters) with the front passenger's seat backrest folded down (certain models only).

Category Gross vehicle weight

Capacity weight

Permissible axle weight, front

USA FWD1: 4320 lbs FWD Turbo: 4320 lbs AWD2 Turbo: 4450 lbs FWD: 800 lbs AWD: 800 lbs FWD: 2380 lbs FWD Turbo: 2380 lbs AWD Turbo: 2420 lbs

Canada 1960 kg 1960 kg 2020 kg 365 kg 365 kg 1080 kg 1080 kg 1100 kg

Curb weight

Permissible axle weight, rear

970 kg 970 kg 1000 kg 1440 - 1500 kg 1550 - 1575
Max. roof load All models: 75 kg Max. trailer weight (w/o brakes) All models: 1540 lbs All models: 700 kg Max. trailer weight (with brakes) All models: 2000 lbs All models: 900 kg Max. tongue weight All models: 75 kg

FWD: 2130 lbs FWD Turbo: 2130 lbs AWD Turbo: 2200 lbs FWD: 3170 - 3285 lbs AWD: 3405 - 3455 lbs All models: 165 lbs

All models: 165 lbs

1. FWD = Front Wheel Drive 2. AWD = All Wheel Drive

CAUTION! The maximum permissible axle loads and/or the gross vehicle weight must not be exceeded.

WARNING! When adding accessories, equipment, luggage and other cargo to your vehicle, the total capacity weight must not be exceeded.

pg. 178 Fuel, oils, and fluids

Specifications and capacities

Category Fuel tank

Specification Octane rating: Unleaded premium gasoline with an octane rating AKI of 91, or above. The minimum octane requirement is AKI 87 (RON 91).

Capacity 15.9 US gallons (60 liters) Models with All Wheel Drive have a tank volume of 15 US gallons (57 liters). Models with engine code 39 have a fuel tank capacity of 14 US gallons (53 liters). This code is the 6th and 7th digits from the left in your vehicle's VIN number. See page 176 for the location of the VIN plate.

See page 179 for information on engine oil specifications.

6.1 US quarts (5.8 liters)

Engine oil (with filter replacement) Automatic transmission oil Manual transmission oil Coolant

JWS

MTF 97309-10

Volvo original coolant/antifreeze (50/50 mixture of water and anti-freeze)

Brake fluid DOT 4+ boiling point >536°F (280°C), P/N

9437433

Power steering

WSS M2C204-A or equivalent

8.19 US quarts (7.75 liters)

2.2 US quarts (2.1 liters) - non-turbo models 2.1 US quarts (2.0 liters) - turbo models 9 US quarts (8.5 liters) - models with automatic transmission 8.5 US quarts (8.0 liters) - models with manual transmission 0.63 US quarts (0.6 liters)

1.3 US quarts (1.2 liters) - system and reservoir combined

fluid Washer fluid reservoir Air conditioning system pg. 179 Engine oil

Use washer fluid solvent in cold weather conditions.

Refrigerant - R134a

6.8 US quarts (6.5 liters)

1.2 lbs. (530 grams)

Oil specifications Engine oil must meet the minimum ILSAC specification GF-3, API SL, or ACEA A1/B1. Lower quality oils may not offer the same fuel economy, engine performance, or engine protection.

Volume: 6.1 US qts (5.8 liters).

Volume between the MIN and Max marks on the dipstick: approximately 1.7 US qts (1.6 liters).

Volvo recommends Depending on your driving habits, premium or synthetic oils may provide superior fuel economy and engine protection. Consult your Volvo retailer for recommendations on premium or synthetic oils.

Oil additives must not be used. NOTE: Synthetic oil is not used when the oil is changed at the normal service intervals. This oil is only used at customer request, at additional charge. Please consult your Volvo retailer.

Oil viscosity (stable ambient temperatures) Operation in hot climates When temperatures exceed 86° F (30° C) in your area, Volvo recommends, for the protection of your engine, that you use a heavier weight oil, such as SAE 10W-30. See the viscosity chart.

Operation in temperate climates Incorrect viscosity oil can shorten engine life. Under normal use when temperatures do not exceed 86° F (30° C), SAE 5W-30 will provide good fuel economy and engine protection. See the viscosity chart.

American Petroleum Institute (API) symbol

Extreme engine operation Synthetic oils meeting SAE 10W-30 and complying with oil quality requirements are recommended for driving in areas of sustained temperature extremes (hot or cold), when towing a trailer over long distances, and for prolonged driving in mountainous areas.

American Petroleum Institute (API) symbol The API Service Symbol "donut" is divided into three parts:

The upper section describes the oil's performance level. The center identifies the oil's viscosity. The lower section indicates whether the oil has demonstrated energy-conserving properties in a standard test in

comparison to a reference oil.

pg. 180 Engine specifications

Engine designation Output kW/rps hp/rpm Torque Nm/rps ft. lbs./rpm No. of cylinders Displacement (liters/cubic inches) Bore (mm/in.) Stroke (mm/in.) Compression ratio Spark plugs type

B5244S4

125/100
168/6000

230/73
170/4400
2.44/148.6
83/3.27
90/3.54
10.3:1

B5244S7

125/100
168/6000

230/73
170/4400
2.44/148.6
83/3.27
90/3.54
10.3:1

B5254T3

162/83
218/5000

320/25-80
236/1500-4800
2.52/153.8
83/3.27
93.2/3.67
9.0:1

gap inches/mm tightening torque ft. lbs./Nm 22.5 ft. lbs./30 Nm

Volvo kit no. 30650843
(3x) 0.024 ± 0.004 in./0.6 ± 0.1mm

Volvo kit no. 30650843
(3x) 0.024 ± 0.004 in./0.6 ± 0.1mm 22.5 ft. lbs./30 Nm

Volvo kit no. 30650379
0.027in./0.7mm 22.5 ft. lbs./30 Nm

Charge air cooler (Intercooler) Turbocharged engines employ a turbocompressor to force air into the engine inlet manifold and a charge air cooler to cool the compressed inlet air. The resulting increase in air flow raises pressure in the intake manifold and increases engine power over that developed by the normally-aspirated engine. The charge air cooler (which resembles a radiator) is located between the turbo-compressor and inlet manifold.

Fuel system The engine is equipped with a multiport fuel injection system.

pg. 181 Electrical system

General information 12-volt system with voltage controlled generator. Single wire system in which the chassis and engine block are used as

conductors, grounded on the chassis.

Bulbs Please refer to page 152 for a list of the bulbs used in your car.

12 V

Battery Voltage Cold start capacity (CCA) 520 A 600 A* 700 A** Reserve capacity (RC) 100 min 120 min 150 min If the battery must be replaced, replace it with one with the same cold start capacity and reserve capacity as the original (see the decal on the battery).

12 V

12 V

* Cars equipped with the High Performance audio system ** Cars equipped with the Premium Sound audio system and/or the Volvo Navigation system Generator 1 maximum current 120/150 A 1.4/1.9 kW Starter motor output

1. Dependent on engine type

pg. 182 Three-way catalytic converter

Three-way catalytic converter - general information

Keep your engine properly tuned. Certain engine malfunctions, particularly involving the electrical, fuel or

distributor ignition systems, may cause unusually high three-way catalytic converter temperatures. Do not continue to operate your vehicle if you detect engine misfire, noticeable loss of power or other unusual operating conditions, such as engine overheating or backfiring. A properly tuned engine will help avoid malfunctions that could damage the three- way catalytic converter.

Do not park your vehicle over combustible materials, such as grass or leaves, which can come into contact with the

hot exhaust system and cause such materials to ignite under certain wind and weather conditions.

Excessive starter cranking (in excess of one minute), or an intermittently firing or flooded engine can cause three-

way catalytic converter or exhaust system overheating.

Remember that tampering or unauthorized modifications to the engine, the Engine Control Module, or the vehicle

may be illegal and can cause three-way catalytic converter or exhaust system overheating. This includes: - Altering fuel injection settings or components. - Altering emission system components or location or removing components. - Repeated use of leaded fuel.

NOTE: Unleaded fuel is required for vehicles with three-way catalytic converters.

pg. 183 Volvo programs

Volvo On Call Roadside Assistance Your new Volvo comes with a four year ON CALL roadside assistance. Additional information, features, and benefits are described in a separate information package in your glove compartment. If you have misplaced your package, dial: In the U.S.A. 1-800-638-6586 (1-800-63-VOLVO) In Canada: 1-800-263-0475

Technician certification In addition to Volvo factory training, Volvo supports certification by the National Institute for Automotive Service Excellence (A.S.E.). Certified technicians have demonstrated a high degree of competence in specific areas. Besides passing exams, each technician must also have worked in the field for two or more years before a certificate is issued.

These professional technicians are best able to analyze vehicle problems and perform the necessary maintenance procedures to keep your Volvo at peak operating condition.

pg. 184

Contents | Top of Page

2 0 0 6
VOLVO

S40

80
49
40

109
14
89, 90
106
147
2, 36
56, 83
165
164
173, 174
56
103, 104
40
106

78
93
150
151
86
93
181
153
142
28
148

Index

pg. 185-188 Index
