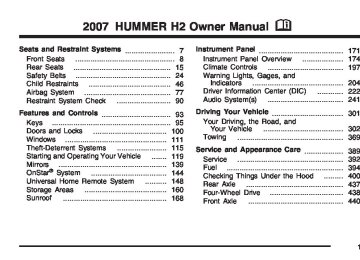

2007 Hummer H2 Owners Manual

Download PDF Manual
clear. Never cross a solid line on your side of the lane or a double solid line, even if the road seems empty of approaching traffic. (cid:127) Do not get too close to the vehicle you want to pass while you are awaiting an opportunity. For one thing, following too closely reduces your area of vision, especially if you are following a larger vehicle. Also, you will not have adequate space if the vehicle ahead suddenly slows or stops. Keep back a reasonable distance. (cid:127) When it looks like a chance to pass is coming up, start to accelerate but stay in the right lane and do not get too close. Time your move so you will be increasing speed as the time comes to move into the other lane. If the way is clear to pass, you will have a running start that more than makes up for the distance you would lose by dropping back. And if something happens to cause you to cancel your pass, you need only slow down and drop back again and wait for another opportunity. (cid:127) If other vehicles are lined up to pass a slow vehicle, wait your turn. But take care that someone is not trying to pass you as you pull out to pass the slow vehicle. Remember to glance over your shoulder and check the blind spot. (cid:127) Check your vehicle’s mirrors, glance over your shoulder, and start your left lane change signal before moving out of the right lane to pass. When you are far enough ahead of the passed vehicle to see its front in your vehicle’s inside mirror, activate the right lane change signal and move back into the right lane. Remember that, if your vehicle’s passenger side outside mirror is convex, the vehicle you just passed may seem to be farther away from you than it really is. (cid:127) Try not to pass more than one vehicle at a time on two-lane roads. Reconsider before passing the next vehicle. (cid:127) Do not overtake a slowly moving vehicle too rapidly. Even though the brake lamps are not ﬂashing, it may be slowing down or starting to turn. If you are being passed, make it easy for the following driver to get ahead of you. Perhaps you can ease a little to the right. (cid:127) 315 Loss of Control Let us review what driving experts say about what happens when the three control systems — brakes, steering, and acceleration — do not have enough friction where the tires meet the road to do what the driver has asked. In any emergency, do not give up. Keep trying to steer and constantly seek an escape route or area of less danger. Skidding In a skid, a driver can lose control of the vehicle. Defensive drivers avoid most skids by taking reasonable care suited to existing conditions, and by not overdriving those conditions. But skids are always possible. The three types of skids correspond to your vehicle’s three control systems. In the braking skid, your wheels are not rolling. In the steering or cornering skid, too much speed or steering in a curve causes tires to slip and lose cornering force. And in the acceleration skid, too much throttle causes the driving wheels to spin. A cornering skid is best handled by easing your foot off the accelerator pedal. If your vehicle starts to slide, ease your foot off the accelerator pedal and quickly steer the way you want the vehicle to go. If you start steering quickly enough, your vehicle may straighten out. Always be ready for a second skid if it occurs. 316 Of course, traction is reduced when water, snow, ice, gravel, or other material is on the road. For safety, you will want to slow down and adjust your driving to these conditions. It is important to slow down on slippery surfaces because stopping distance will be longer and vehicle control more limited. While driving on a surface with reduced traction, try your best to avoid sudden steering, acceleration, or braking, including reducing vehicle speed by shifting to a lower gear. Any sudden changes could cause the tires to slide. You may not realize the surface is slippery until your vehicle is skidding. Learn to recognize warning clues — such as enough water, ice, or packed snow on the road to make a mirrored surface — and slow down when you have any doubt. Remember: Any Anti-Lock Brake System (ABS) helps avoid only the braking skid. Off-Road Driving This off-road guide is meant to provide advice for when you drive your vehicle off paved roads. Also, see Braking on page 306. Off-road driving can be great fun. But it does have some deﬁnite hazards. The greatest of these is the terrain itself. “Off-roading” means you have left the great North American road system behind. Traffic lanes are not marked. Curves are not banked. There are no road signs. Surfaces can be slippery, rough, uphill or downhill. In short, you have gone right back to nature. Off-road driving involves some new skills. And that is why it is very important that you read this guide. You will ﬁnd many driving tips and suggestions. These will help make your off-road driving safer and more enjoyable. 317 Before You Go Off-Roading There are some things to do before you go out. For example, be sure to have all necessary maintenance and service work done. Check to make sure all underbody shields are properly attached. Remove any removable side steps. See Assist Steps on page 338. Make sure any equipment you may need — ﬁrst aid kit, cell phone, ﬂashlight, etc. — is securely stored in the vehicle. Be sure you read all the information about your four-wheel-drive vehicle in this manual. Is there enough fuel? Is the spare tire fully inﬂated? Are the ﬂuid levels up where they should be? What are the local laws that apply to off-roading where you will be driving? If you do not know, you should check with law enforcement people in the area. Will you be on someone’s private land? If so, be sure to get the necessary permission. 318 Loading Your Vehicle for Off-Road Driving {CAUTION: (cid:127) Cargo on the load ﬂoor piled higher than the seatbacks can be thrown forward during a sudden stop. You or your passengers could be injured. Keep cargo below the top of the seatbacks. (cid:127) Unsecured cargo on the load ﬂoor can be tossed about when driving over rough terrain. You or your passengers can be struck by ﬂying objects. Secure the cargo properly. (cid:127) Heavy loads on the roof raise the vehicle’s center of gravity, making it more likely to roll over. You can be seriously or fatally injured if the vehicle rolls over. Put heavy loads inside the cargo area, not on the roof. Keep cargo in the cargo area as far forward and low as possible. There are some important things to remember about how to load your vehicle. (cid:127) The heaviest things should be on the load ﬂoor and forward of your rear axle. Put heavier items in the rear area, as far forward as you can. (cid:127) Be sure the load is secured properly, so driving on the off-road terrain does not toss things around. You will ﬁnd other important information in this manual. See Loading Your Vehicle on page 362 and Tires on page 448. Environmental Concerns Off-road driving can provide wholesome and satisfying recreation. However, it also raises environmental concerns. We recognize these concerns and urge every off-roader to follow these basic rules for protecting the environment: (cid:127) Always use established trails, roads, and areas that have been specially set aside for public off-road recreational driving; obey all posted regulations. (cid:127) Avoid any driving practice that could damage the environment — shrubs, ﬂowers, trees, grasses — or disturb wildlife. This includes wheel-spinning, breaking down trees, or unnecessary driving through streams or over soft ground. (cid:127) Always carry a litter bag — make sure all refuse is removed from any campsite before leaving. (cid:127) Take extreme care with open ﬁres where permitted, camp stoves, and lanterns. (cid:127) Never park your vehicle over dry grass or other combustible materials that could catch ﬁre from the heat of the vehicle’s exhaust system. 319 High Mobility Characteristics The HUMMER H2 has a 10 inch (25.4 cm) running ground clearance (A) and a 9 inch (22.8 cm) axle to ground clearance (B) while maintaining a low silhouette and a low center of gravity. Traveling to Remote Areas It makes sense to plan your trip, especially when going to a remote area. Know the terrain and plan your route. You are much less likely to get bad surprises. Get accurate maps of trails and terrain. Try to learn of any blocked or closed roads. It is also a good idea to travel with at least one other vehicle. If something happens to one of them, the other can help quickly. Does your vehicle have a winch? If so, be sure to read the winch instructions. In a remote area, a winch can be handy if you get stuck. But you will want to know how to use it properly. 320 The HUMMER H2 has an approximate approach angle (A) of 42° and a departure angle (B) of 37°, depending on suspension packages. Design speciﬁcations required a minimum gradeability of 60% (31°) slope, with the vehicle fully loaded, on high friction surfaces at 6 mph (9.7 km/h). The vehicle is expected to traverse this grade only for short durations. Never stop and idle the vehicle or park it on this grade. 321 Also, your vehicle should be able to traverse a 40% (22°) side slope at 6 mph (9.7 km/h) while fully loaded on high friction surfaces. Your vehicle can climb a 16 inch (40.6 cm) vertical step. Step climbing is best done by approaching the step at an angle rather than straight on. 322 Brake and Accelerator Operation Techniques for Off-Road Driving For logs, walls, rocks, severe ditches, hills, sand, etc. 1. Bring the vehicle to a complete stop. Do not rev the engine. 2. Select the proper transmission and transfer case gear range; usually FIRST (1) gear, 4LO LOCK for such obstacles. 3. If wheel spin is experienced, maintain steady throttle, with your foot off the brake pedal, to allow the Traction Control System (TCS) to control the wheel spin. TCS will not operate if the brakes are applied, even slightly. 4. If wheel spin cannot be controlled by the system, fully press the brake pedal with your left foot so all wheel spin is halted. 5. Back away from the obstacle so that a new approach can be tried. 6. As the ﬁrst wheel crosses the obstacle, be prepared to alternate the brake and accelerator pedal to maintain control and avoid tire drop-off from obstacles. Repeat this process for the other wheels. For mounds, washouts, loose up-hill slopes, ditches, etc. When wheel spin occurs as the vehicle is moving, the driver may notice a slight shaking or shuddering of the vehicle. This should be stopped as soon as possible to prevent damage to vehicle components. This is the indication that a loss of traction is occurring on this terrain. The operator should: 1. Reduce speed and apply the brakes. 2. Assess the terrain properly and adjust vehicle speed and gear ranges accordingly: 4HI position for higher speeds and 4LO LOCK for more torque and lower speeds. Transmission FIRST (1) gear is generally recommended. 3. Apply slight pressure to the brake when the shaking or shuddering sensation is felt, keeping the vehicle moving in a controlled manner. 4. Be prepared to alternate between braking and accelerating through the adverse terrain. 323 Getting Familiar with Off-Road Driving It is a good idea to practice in an area that is safe and close to home before you go into the wilderness. Off-road driving does require some new and different skills. Here is what we mean. Tune your senses to different kinds of signals. Your eyes, for example, need to constantly sweep the terrain for unexpected obstacles. Your ears need to listen for unusual tire or engine sounds. With your arms, hands, feet and body, you will need to respond to vibrations and vehicle bounce. Controlling your vehicle is the key to successful off-road driving. One of the best ways to control your vehicle is to control your speed. Here are some things to keep in mind. At higher speeds: (cid:127) You approach things faster and you have less time to scan the terrain for obstacles. (cid:127) You have less time to react. (cid:127) You have more vehicle bounce when you drive over obstacles. (cid:127) You will need more distance for braking, especially since you are on an unpaved surface. 324 {CAUTION: When you are driving off-road, bouncing and quick changes in direction can easily throw you out of position. This could cause you to lose control and crash. So, whether you are driving on or off the road, you and your passengers should wear safety belts. Scanning the Terrain Off-road driving can take you over many different kinds of terrain. You need to be familiar with the terrain and its many different features. Here are some things to consider. Surface Conditions: Off-roading can take you over hard-packed dirt, gravel, rocks, grass, sand, mud, snow, or ice. Each of these surfaces affects the steering, acceleration, and braking of your vehicle in different ways. Depending upon the kind of surface you are on, you may experience slipping, sliding, wheel spinning, delayed acceleration, poor traction, and longer braking distances. Surface Obstacles: Unseen or hidden obstacles can be hazardous. A rock, log, hole, rut, or bump can startle you if you are not prepared for them. Often these obstacles are hidden by grass, bushes, snow, or even the rise and fall of the terrain itself. Here are some things to consider: (cid:127) (cid:127) Will the surface texture change abruptly Is the path ahead clear? up ahead? (cid:127) Does the travel take you uphill or downhill? There is more discussion of these subjects later. (cid:127) Will you have to stop suddenly or change direction quickly? When you drive over obstacles or rough terrain, keep a ﬁrm grip on the steering wheel. Ruts, troughs, or other surface features can jerk the wheel out of your hands if you are not prepared. When possible, it is a good practice to survey the landscape ahead on foot prior to driving to observe hidden obstacles. When you drive over bumps, rocks, or other obstacles, your wheels can leave the ground. If this happens, even with one or two wheels, you cannot control the vehicle as well or at all. Because you will be on an unpaved surface, it is especially important to avoid sudden acceleration, sudden turns, or sudden braking. In a way, off-road driving requires a different kind of alertness from driving on paved roads and highways. There are no road signs, posted speed limits, or signal lights. You have to use your own good judgment about what is safe and what is not. Drinking and driving can be very dangerous on any road. And this is certainly true for off-road driving. At the very time you need special alertness and driving skills, your reﬂexes, perceptions, and judgment can be affected by even a small amount of alcohol. You could have a serious — or even fatal — accident if you drink and drive or ride with a driver who has been drinking. See Drunken Driving on page 303. 325 Crossing Obstacles Approach Angle — a Key to Mobility If you encounter a large dip in the terrain, do not enter straight on; enter at an angle — 15° minimum approach (A), 75° maximum approach angle (B). For very large dips, ditches or small washes, coast in, using the engine as a brake (transmission and transfer case lowest gears). Then, use the low ranges in the transmission and transfer case to power out. Roll Your Tires Over Large Rocks Do not straddle large rocks; drive over them, letting the tire cover the rock. The tread of the tire is thicker and tougher than the sidewall of the tire and is more resilient to impact than underbody components. 326 Log Crossing Using the proper technique, your vehicle will cross logs up to 10 inches (25.4 cm) in diameter. Approach the log at approximately a 15° angle (A) with the transmission in FIRST (1) and the transfer case in 4LO LOCK and “walk” your vehicle over, one tire at a time. It may be necessary to modulate your brake pedal and accelerator to avoid spin-out. Ease the vehicle down from the log with your brake. Driving on Off-Road Hills Off-road driving often takes you up, down, or across a hill. Driving safely on hills requires good judgment and an understanding of what your vehicle can and cannot do. There are some hills that simply cannot be driven, no matter how well built the vehicle. {CAUTION: Many hills are simply too steep for any vehicle. If you drive up them, you will stall. If you drive down them, you cannot control your speed. If you drive across them, you will roll over. You could be seriously injured or killed. If you have any doubt about the steepness, do not drive the hill. 327 Approaching a Hill When you approach a hill, you need to decide if it is one of those hills that is just too steep to climb, descend, or cross. Steepness can be hard to judge. On a very small hill, for example, there may be a smooth, constant incline with only a small change in elevation where you can easily see all the way to the top. On a large hill, the incline may get steeper as you near the top, but you may not see this because the crest of the hill is hidden by bushes, grass, or shrubs. Here are some other things to consider as you approach a hill: (cid:127) Is there a constant incline, or does the hill get sharply steeper in places? Is there good traction on the hillside, or will the surface cause tire slipping? Is there a straight path up or down the hill so you will not have to make turning maneuvers? (cid:127) (cid:127) (cid:127) Are there obstructions on the hill that can block your path, such as boulders, trees, logs, or ruts? 328 (cid:127) What is beyond the hill? Is there a cliff, an (cid:127) embankment, a drop-off, a fence? Get out and walk the hill if you do not know. It is the smart way to ﬁnd out. Is the hill simply too rough? Steep hills often have ruts, gullies, troughs, and exposed rocks because they are more susceptible to the effects of erosion. Driving Uphill Once you decide you can safely drive up the hill, you need to take some special steps: (cid:127) Use transmission and transfer case low gear and get a ﬁrm grip on the steering wheel. (cid:127) Get a smooth start up the hill and try to maintain your speed. Do not use more power than you need, because you do not want your wheels to start spinning or sliding. (cid:127) Let the traction system work to control any wheel slippage. The traction control system allows for moderate wheel spin with some capability to dig in and power up the hill. (cid:127) Sound the horn as you approach the top of the hill to let opposing traffic know you are there. (cid:127) Use your headlamps even during the day. They make you more visible to oncoming traffic. {CAUTION: Driving to the top (crest) of a hill at full speed can cause an accident. There could be a drop-off, embankment, cliff, or even another vehicle. You could be seriously injured or killed. As you near the top of a hill, slow down and stay alert. (cid:127) Do not continue if the vehicle shudders or exhibits suspension hopping. This can cause damage to the driveline or suspension components. Improper driving technique is not covered by your vehicle warranty. (cid:127) Try to drive straight up the hill if at all possible. If the path twists and turns, you might want to ﬁnd another route. {CAUTION: Turning or driving across steep hills can be dangerous. You could lose traction, slide sideways, and possibly roll over. You could be seriously injured or killed. When driving up hills, always try to go straight up. (cid:127) Ease up on your speed as you approach the top of the hill. (cid:127) Attach a ﬂag to the vehicle to make you more visible to approaching traffic on trails or hills. 329 Q: What should I do if my vehicle stalls, or is about to stall, and I cannot make it up the hill? A: If this happens, there are some things you should do, and there are some things you must not do. First, here is what you should do: (cid:127) Push the brake pedal to stop the vehicle and keep it from rolling backwards. Also, apply the parking brake. If your engine is still running, shift the transmission to REVERSE (R), release the parking brake, and slowly back down the hill in REVERSE (R). If your engine has stopped running, you will need to restart it. With the brake pedal pressed and the parking brake still applied, shift the transmission to PARK (P) and restart the engine. Then, shift to REVERSE (R), release the parking brake, and slowly back down the hill as straight as possible in REVERSE (R). (cid:127) (cid:127) 330 (cid:127) As you are backing down the hill, put your left hand on the steering wheel at the 12 o’clock position. This way, you will be able to tell if your wheels are straight and maneuver as you back down. It is best that you back down the hill with your wheels straight rather than in the left or right direction. Turning the wheel too far to the left or right will increase the possibility of a rollover. Here are some things you must not do if you stall, or are about to stall, when going up a hill: (cid:127) Never attempt to prevent a stall by shifting into NEUTRAL (N) to rev-up the engine and regain forward momentum. This will not work. Your vehicle will roll backwards very quickly and you could go out of control. Instead, apply the regular brake to stop the vehicle. Then apply the parking brake. Shift to REVERSE (R), release the parking brake, and slowly back straight down. (cid:127) Never attempt to turn around if you are about to stall when going up a hill. If the hill is steep enough to stall your vehicle, it is steep enough to cause you to roll over if you turn around. If you cannot make it up the hill, you must back straight down the hill. Q: Suppose, after stalling, I try to back down the hill and decide I just cannot do it. What should I do? A: Set the parking brake, put your transmission in PARK (P) and turn off the engine. Leave the vehicle and go get some help. Exit on the uphill side and stay clear of the path the vehicle would take if it rolled downhill. Do not shift the transfer case to NEUTRAL when you leave the vehicle. Leave it in some gear. {CAUTION: Shifting the transfer case to NEUTRAL can cause your vehicle to roll even if the transmission is in PARK (P). This is because the NEUTRAL position on the transfer case overrides the transmission. You or someone else could be injured. If you are going to leave your vehicle, set the parking brake and shift the transmission to PARK (P). But do not shift the transfer case to NEUTRAL. Leave the transfer case in the 4 HI, 4 HI Lock, or 4 LO Lock position. 331 {CAUTION: Heavy braking when going down a hill can cause your brakes to overheat and fade. This could cause loss of control and a serious accident. Apply the brakes lightly when descending a hill and use a low gear to keep vehicle speed under control. Driving Downhill When off-roading takes you downhill, you will want to consider a number of things: (cid:127) How steep is the downhill? Will I be able to maintain vehicle control? (cid:127) What is the surface like? Smooth? Rough? Slippery? Hard-packed dirt? Gravel? (cid:127) Are there hidden surface obstacles? Ruts? Logs? Boulders? (cid:127) What is at the bottom of the hill? Is there a hidden creek bank or even a river bottom with large rocks? If you decide you can go down a hill safely, then try to keep your vehicle headed straight down, and use a low gear. This way, engine drag can help your brakes and they will not have to do all the work. Descend slowly, keeping your vehicle under control at all times. 332 Q: Are there some things I should not do when driving down a hill? A: Yes! These are important because if you ignore them you could lose control and have a serious accident: (cid:127) When driving downhill, avoid turns that take you across the incline of the hill. A hill that is not too steep to drive down may be too steep to drive across. You could roll over if you do not drive straight down. (cid:127) Never go downhill with the transmission in NEUTRAL (N). This is called “free-wheeling.” Your brakes will have to do all the work and could overheat and fade. Q: Am I likely to stall when going downhill? A: It is much more likely to happen going uphill. But if it happens going downhill, here is what to do: 1. Stop your vehicle by applying the regular brakes. Apply the parking brake. 2. Shift to PARK (P) and, while still braking, restart the engine. 3. Shift back to a low gear, release the parking brake, and drive straight down. 4. If the engine will not start, get out and get help. 333 (cid:127) Hidden obstacles can make the steepness of the incline even worse. If you drive across a rock with the uphill wheels, or if the downhill wheels drop into a rut or depression, your vehicle can tilt even more. For reasons like these, you need to decide carefully whether to try to drive across an incline. Just because the trail goes across the incline does not mean you have to drive it. The last vehicle to try it might have rolled over. {CAUTION: Driving across an incline that is too steep will make your vehicle roll over. You could be seriously injured or killed. If you have any doubt about the steepness of the incline, do not drive across it. Find another route instead. Driving Across an Incline Sooner or later, an off-road trail will probably go across the incline of a hill. If this happens, you have to decide whether to try to drive across the incline. Here are some things to consider: (cid:127) A hill that can be driven straight up or down may be too steep to drive across. When you go straight up or down a hill, the length of the wheel base — the distance from the front wheels to the rear wheels — reduces the likelihood the vehicle will tumble end over end. But when you drive across an incline, the much more narrow track width — the distance between the left and right wheels — may not prevent the vehicle from tilting and rolling over. Also, driving across an incline puts more weight on the downhill wheels. This could cause a downhill slide or a rollover. (cid:127) Surface conditions can be a problem when you drive across a hill. Loose gravel, muddy spots, or even wet grass can cause your tires to slip sideways, downhill. If the vehicle slips sideways, it can hit something that will trip it — a rock, a rut, etc. — and roll over. 334 Q: What if I am driving across an incline that is not too steep, but I hit some loose gravel and start to slide downhill. What should I do? A: If you feel your vehicle starting to slide sideways, turn downhill. This should help straighten out the vehicle and prevent the side slipping. However, a much better way to prevent this is to get out and “walk the course” so you know what the surface is like before you drive it. Stalling on an Incline If your vehicle stalls when you are crossing an incline, be sure you, and any passengers, get out on the uphill side, even if the door there is harder to open. If you get out on the downhill side and the vehicle starts to roll over, you will be right in its path. If you have to walk down the slope, stay out of the path the vehicle will take if it does roll over. {CAUTION: Getting out on the downhill (low) side of a vehicle stopped across an incline is dangerous. If the vehicle rolls over, you could be crushed or killed. Always get out on the uphill (high) side of the vehicle and stay well clear of the rollover path. 335 Driving in Mud, Sand, Snow, or Ice When you drive in mud, snow, or sand, your wheels will not get good traction. You cannot accelerate as quickly, turning is more difficult, and you will need longer braking distances. It is best to use a low gear when you are in mud —the deeper the mud, the lower the gear. In really deep mud, the idea is to keep your vehicle moving so you do not get stuck. Be careful to keep mud from building up and washing onto the engine cooling system. When you drive on sand, you will sense a change in wheel traction. But it will depend upon how loosely packed the sand is. On loosely packed sand, such as on beaches or sand dunes, your tires will tend to sink into the sand. This has an effect on steering, accelerating, and braking. Drive at a reduced speed and avoid sharp turns or abrupt maneuvers. Hard packed snow and ice offer the worst tire traction. On these surfaces, it is very easy to lose control. On wet ice, for example, the traction is so poor that you will have difficulty accelerating. And if you do get moving, poor steering and difficult braking can cause you to slide out of control. {CAUTION: Driving on frozen lakes, ponds, or rivers can be dangerous. Underwater springs, currents under the ice, or sudden thaws can weaken the ice. Your vehicle could fall through the ice and you and your passengers could drown. Drive your vehicle on safe surfaces only. 336 Driving in Water Heavy rain can mean ﬂash ﬂooding, and ﬂood waters demand extreme caution. Find out how deep the water is before you drive through it. If it is deep enough to cover your wheel hubs, axles, or exhaust pipe, do not try it — you probably will not get through. Also, water that deep can damage your axle and other vehicle parts. Your vehicle is capable of depths up to 20 inches. Know how to judge whether the water is deeper than this before proceeding into it. If the water is not too deep, drive slowly through it. At faster speeds, water splashes on your ignition system and your vehicle can stall. Stalling can also occur if you get your tailpipe under water. And, as long as your tailpipe is under water, you will never be able to start your engine. When you go through water, remember that when your brakes get wet, it may take you longer to stop. {CAUTION: Driving through rushing water can be dangerous. Deep water can sweep your vehicle downstream and you and your passengers could drown. If it is only shallow water, it can still wash away the ground from under your tires, and you could lose traction and roll the vehicle over. Do not drive through rushing water. See Driving in Rain and on Wet Roads on page 344 for more information on driving through water. 337 After Off-Road Driving Remove any brush or debris that has collected on the underbody, chassis, or under the hood. These accumulations can be a ﬁre hazard. After operation in mud or sand, have the brake linings cleaned and checked. These substances can cause glazing and uneven braking. Check the engine and oil coolers for mud accumulation. Thoroughly and carefully clean these devices to allow proper cooling. Check the body structure, steering, suspension, wheels, tires, and exhaust system for damage. Also, check the fuel lines and cooling system for any leakage. Your vehicle will require more frequent service due to off-road use. See the Maintenance Schedule for additional information. Assist Steps Your vehicle may be equipped with removable side steps. Remove the steps prior to off-roading to give your vehicle more ground clearance and to prevent damage to the vehicle from the side steps dragging and/or catching on obstacles. Notice: Do not drive off-road with the side steps attached to your vehicle. You can damage the side steps and/or your vehicle’s frame if they get caught or drag against an obstacle. This damage would not be covered by your vehicle’s warranty. Always remove the side steps prior to any off-road driving. 338 U-Type Side Steps The following instructions show how to install the optional U-type steps. If you want to remove them, just reverse the instructions: 1. Start with the side step brackets pointing up and away from you, or just make sure the HUMMER logo faces up. 2. For the front step, use the ﬁrst and third brackets on the vehicle from the front tire. For the rear step, use the ﬁrst and third brackets on the vehicle from the rear tire. You will notice that the side steps have pins on both sides of the step brackets. This is because the steps are interchangeable between front/back and the driver/passenger sides of the vehicle. Use the pins as follows: (cid:127) Driver Side: Look at the side step with the HUMMER logo facing you. You will use the pins which are on the right side of each side step bracket. This works for the front or rear of the vehicle. (cid:127) Passenger Side: Look at the side step with the HUMMER logo facing you. You will use the pins which are on the left side of each side step bracket. This works for the front or rear of the vehicle. 3. Guide the pins on the side step brackets into the holes in the vehicle’s rocker panel protector brackets. If you have difficulty doing this, it may help to have someone hold up the step while you guide the pins into the holes. You will be guiding three pins into the holes with the fourth hole in the vehicle’s rocker panel protector brackets empty until the next step. 339 4. Thread the knob through the remaining hole — ﬁrst into the rocker panel protector and then into the threaded hole in the side step bracket. Notice: Threading the knob into the side step and then into the rocker panel will not secure the step. The step could fall off the vehicle and be damaged. Always thread the knob through the rocker panel ﬁrst. After the knob is installed, try moving the step left and right to be sure the step is secure. 340 5. Hand-tighten the knob by turning it clockwise until it is seated against the rocker panel protector bracket and then tighten it to 10 lb ft (13.5 Y) with the tool as shown. Tubular Side Steps 6. Once the knob is torqued, install the cotter pin through the hole in the end of the knob’s threaded shaft. This will help prevent the knob from coming completely loose and falling out. The driver’s side of the vehicle is shown with the body removed for clarity. To remove a step: 1. Remove the nuts and bolts attaching the step to the vehicle. 2. Remove the step from the vehicle. 341 To install a step: 1. Before installing the bolts: (cid:127) Remove all traces of the original adhesive patch. (cid:127) Clean the threads of the bolts with denatured alcohol or equivalent and allow threads to dry. (cid:127) Apply Threadlocker (GM Part No. 12345382, in Canada 10953489) or equivalent. 2. Install the side step to the vehicle. You may need someone to assist you in the installation. 3. Install the nuts and bolts for the two inner brackets ﬁrst, but do not tighten them. 4. Using a level, make sure the step is level in relationship to the vehicle. Then, tighten the inner bracket nuts and bolts. 5. Install the other nuts and bolts. Tighten all nuts and bolts to 39 lb ft (50 Y). Driving at Night Night driving is more dangerous than day driving. One reason is that some drivers are likely to be impaired — by alcohol or drugs, with night vision problems, or by fatigue. Here are some tips on night driving. (cid:127) Drive defensively. (cid:127) Do not drink and drive. (cid:127) Adjust the inside rearview mirror to reduce the glare from headlamps behind you. (cid:127) Since you cannot see as well, you may need to slow down and keep more space between you and other vehicles. (cid:127) Slow down, especially on higher speed roads. Your vehicle’s headlamps can light up only so much road ahead. In remote areas, watch for animals. If you are tired, pull off the road in a safe place and rest. (cid:127) (cid:127) 342 No one can see as well at night as in the daytime. But as we get older these differences increase. A 50-year-old driver may require at least twice as much light to see the same thing at night as a 20-year-old. What you do in the daytime can also affect your night vision. For example, if you spend the day in bright sunshine you are wise to wear sunglasses. Your eyes will have less trouble adjusting to night. But if you are driving, do not wear sunglasses at night. They may cut down on glare from headlamps, but they also make a lot of things invisible. You can be temporarily blinded by approaching headlamps. It can take a second or two, or even several seconds, for your eyes to re-adjust to the dark. When you are faced with severe glare, as from a driver who does not lower the high beams, or a vehicle with misaimed headlamps, slow down a little. Avoid staring directly into the approaching headlamps. Keep the windshield and all the glass on your vehicle clean — inside and out. Glare at night is made much worse by dirt on the glass. Even the inside of the glass can build up a ﬁlm caused by dust. Dirty glass makes lights dazzle and ﬂash more than clean glass would, making the pupils of your eyes contract repeatedly. Remember that the headlamps light up far less of a roadway when you are in a turn or curve. Keep your eyes moving; that way, it is easier to pick out dimly lighted objects. Just as the headlamps should be checked regularly for proper aim, so should your eyes be examined regularly. Some drivers suffer from night blindness — the inability to see in dim light — and are not even aware of it. 343 It is always wise to go slower and be cautious if rain starts to fall while you are driving. The surface may get wet suddenly when your reﬂexes are tuned for driving on dry pavement. The heavier the rain, the harder it is to see. Even if your windshield wiper blades are in good shape, a heavy rain can make it harder to see road signs and traffic signals, pavement markings, the edge of the road, and even people walking. It is wise to keep your wiping equipment in good shape and keep your windshield washer ﬂuid reservoir ﬁlled with washer ﬂuid. Replace your windshield wiper inserts when they show signs of streaking or missing areas on the windshield, or when strips of rubber start to separate from the inserts. Driving in Rain and on Wet Roads Rain and wet roads can mean driving trouble. On a wet road, you cannot stop, accelerate, or turn as well because your tire-to-road traction is not as good as on dry roads. And, if your tires do not have much tread left, you will get even less traction. 344 {CAUTION: Wet brakes can cause accidents. They may not work as well in a quick stop and may cause pulling to one side. You could lose control of the vehicle. After driving through a large puddle of water or a car wash, apply your brake pedal lightly until your brakes work normally. Driving too fast through large water puddles or even going through some car washes can cause problems, too. The water may affect your brakes. Try to avoid puddles. But if you cannot, try to slow down before you hit them. Hydroplaning Hydroplaning is dangerous. So much water can build up under your tires that they can actually ride on the water. This can happen if the road is wet enough and you are going fast enough. When your vehicle is hydroplaning, it has little or no contact with the road. Hydroplaning does not happen often. But it can if your tires do not have much tread or if the pressure in one or more is low. It can happen if a lot of water is standing on the road. If you can see reﬂections from trees, telephone poles, or other vehicles, and raindrops dimple the water’s surface, there could be hydroplaning. Hydroplaning usually happens at higher speeds. There just is not a hard and fast rule about hydroplaning. The best advice is to slow down when it is raining. 345 Driving Through Deep Standing Water Notice: If you drive too quickly through deep puddles or standing water, water can come in through your engine’s air intake and badly damage your engine. Never drive through water that is slightly lower than the underbody of your vehicle. If you cannot avoid deep puddles or standing water, drive through them very slowly. Driving Through Flowing Water {CAUTION: Flowing or rushing water creates strong forces. If you try to drive through ﬂowing water, as you might at a low water crossing, your vehicle can be carried away. As little as six inches of ﬂowing water can carry away a smaller vehicle. CAUTION: (Continued) CAUTION: (Continued) If this happens, you and other vehicle occupants could drown. Do not ignore police warning signs, and otherwise be very cautious about trying to drive through ﬂowing water. Some Other Rainy Weather Tips (cid:127) Besides slowing down, allow some extra following distance. And be especially careful when you pass another vehicle. Allow yourself more clear room ahead, and be prepared to have your view restricted by road spray. (cid:127) Have good tires with proper tread depth. See Tires on page 448. 346 City Driving One of the biggest problems with city streets is the amount of traffic on them. You will want to watch out for what the other drivers are doing and pay attention to traffic signals. Here are ways to increase your safety in city driving: (cid:127) Know the best way to get to where you are going. Get a city map and plan your trip into an unknown part of the city just as you would for a cross-country trip. (cid:127) Try to use the freeways that rim and crisscross most large cities. You will save time and energy. See Freeway Driving on page 348. (cid:127) Treat a green light as a warning signal. A traffic light is there because the corner is busy enough to need it. When a light turns green, and just before you start to move, check both ways for vehicles that have not cleared the intersection or may be running the red light. 347 Freeway Driving Mile for mile, freeways — also called thruways, parkways, expressways, turnpikes, or superhighways — are the safest of all roads. But they have their own special rules. 348 The most important advice on freeway driving is: Keep up with traffic and keep to the right. Drive at the same speed most of the other drivers are driving. Too-fast or too-slow driving breaks a smooth traffic ﬂow. Treat the left lane on a freeway as a passing lane. At the entrance, there is usually a ramp that leads to the freeway. If you have a clear view of the freeway as you drive along the entrance ramp, you should begin to check traffic. Try to determine where you expect to blend with the ﬂow. Try to merge into the gap at close to the prevailing speed. Switch on your turn signal, check your mirrors, and glance over your shoulder as often as necessary. Try to blend smoothly with the traffic ﬂow. Once you are on the freeway, adjust your speed to the posted limit or to the prevailing rate if it is slower. Stay in the right lane unless you want to pass. Before changing lanes, check your mirrors. Then use your turn signal. Just before you leave the lane, glance quickly over your shoulder to make sure there is not another vehicle in your blind spot. Once you are moving on the freeway, make certain you allow a reasonable following distance. Expect to move slightly slower at night. When you want to leave the freeway, move to the proper lane well in advance. If you miss your exit, do not, under any circumstances, stop and back up. Drive on to the next exit. The exit ramp can be curved, sometimes quite sharply. The exit speed is usually posted. Reduce your speed according to your speedometer, not to your sense of motion. After driving for any distance at higher speeds, you may tend to think you are going slower than you actually are. Before Leaving on a Long Trip Make sure you are ready. Try to be well rested. If you must start when you are not fresh — such as after a day’s work — do not plan to make too many miles that ﬁrst part of the journey. Wear comfortable clothing and shoes you can easily drive in. Is your vehicle ready for a long trip? If you keep it serviced and maintained, it is ready to go. If it needs service, have it done before starting out. Of course, you will ﬁnd experienced and able service experts in GM dealerships all across North America. They will be ready and willing to help if you need it. Here are some things you can check before a trip: (cid:127) Windshield Washer Fluid: Is the reservoir full? Are all windows clean inside and outside? (cid:127) Wiper Blades: Are they in good shape? (cid:127) Fuel, Engine Oil, Other Fluids: Have you checked all levels? (cid:127) Lamps: Are they all working? Are the lenses clean? (cid:127) Tires: They are vitally important to a safe, trouble-free trip. Is the tread good enough for long-distance driving? Are the tires all inﬂated to the recommended pressure? (cid:127) Weather Forecasts: What is the weather outlook along your route? Should you delay your trip a short time to avoid a major storm system? (cid:127) Maps: Do you have up-to-date maps? 349 Highway Hypnosis Is there actually such a condition as highway hypnosis? Or is it just plain falling asleep at the wheel? Call it highway hypnosis, lack of awareness, or whatever. There is something about an easy stretch of road with the same scenery, along with the hum of the tires on the road, the drone of the engine, and the rush of the wind against the vehicle that can make you sleepy. Do not let it happen to you! If it does, your vehicle can leave the road in less than a second, and you could crash and be injured. What can you do about highway hypnosis? First, be aware that it can happen. Then here are some tips: (cid:127) Make sure your vehicle is well ventilated, with a comfortably cool interior. (cid:127) Keep your eyes moving. Scan the road ahead and to the sides. Check your mirrors and your instruments frequently. If you get sleepy, pull off the road into a rest, service, or parking area and take a nap, get some exercise, or both. For safety, treat drowsiness on the highway as an emergency. (cid:127) 350 Hill and Mountain Roads Driving on steep hills or mountains is different from driving in ﬂat or rolling terrain. If you drive regularly in steep country, or if you are planning to visit there, here are some tips that can make your trips safer and more enjoyable. See Off-Road Driving on page 317 for information about driving off-road. (cid:127) Keep your vehicle in good shape. Check all ﬂuid levels and also the brakes, tires, cooling system, and transmission. These parts can work hard on mountain roads. {CAUTION: If you do not shift down, your brakes could get so hot that they would not work well. You would then have poor braking or even none going down a hill. You could crash. Shift down to let your engine assist your brakes on a steep downhill slope. 351 (cid:127) Stay in your own lane when driving on two-lane roads in hills or mountains. Do not swing wide or cut across the center of the road. Drive at speeds that let you stay in your own lane. (cid:127) As you go over the top of a hill, be alert. There could be something in your lane, like a stalled car or an accident. (cid:127) You may see highway signs on mountains that warn of special problems. Examples are long grades, passing or no-passing zones, a falling rocks area, or winding roads. Be alert to these and take appropriate action. {CAUTION: Coasting downhill in NEUTRAL (N) or with the ignition off is dangerous. Your brakes will have to do all the work of slowing down. They could get so hot that they would not work well. You would then have poor braking or even none going down a hill. You could crash. Always have your engine running and your vehicle in gear when you go downhill. (cid:127) Know how to go down hills. The most important thing to know is this: let your engine do some of the slowing down. Shift to a lower gear when you go down a steep or long hill. (cid:127) Know how to go uphill. You may want to shift down to a lower gear. The lower gears help cool your engine and transmission, and you can climb the hill better. 352 Winter Driving Include an ice scraper, a small brush or broom, a supply of windshield washer ﬂuid, a rag, some winter outer clothing, a small shovel, a ﬂashlight, a red cloth, and a couple of reﬂective warning triangles. And, if you will be driving under severe conditions, include a small bag of sand, a piece of old carpet, or a couple of burlap bags to help provide traction. Be sure you properly secure these items in your vehicle. Here are some tips for winter driving: (cid:127) Have your vehicle in good shape for winter. (cid:127) You may want to put winter emergency supplies in your vehicle. Also see Tires on page 448. 353 Driving on Snow or Ice Most of the time, those places where the tires meet the road probably have good traction. However, if there is snow or ice between the tires and the road, you can have a very slippery situation. You will have a lot less traction, or grip, and will need to be very careful. What is the worst time for this? Wet ice. Very cold snow or ice can be slick and hard to drive on. But wet ice can be even more trouble because it may offer the least traction of all. You can get wet ice when it is about freezing, 32°F (0°C), and freezing rain begins to fall. Try to avoid driving on wet ice until salt and sand crews can get there. Whatever the condition — smooth ice, packed, blowing, or loose snow — drive with caution. The Traction Control System (TCS) improves your ability to accelerate when driving on a slippery road. If you are driving in deep snow, turn your TCS to the TC2 mode. It will improve your ability to accelerate. See If Your Vehicle is Stuck in Sand, Mud, Ice, or Snow on page 357. Even though your vehicle has TCS, you will want to slow down and adjust your driving to the road conditions. Under certain conditions, you may want to turn the TCS off, such as when driving through deep snow and loose gravel, to help maintain vehicle motion at lower speeds. See Traction Control System (TCS) on page 309. 354 The Anti-Lock Brake System (ABS) improve your vehicle’s stability when you make a hard stop on a slippery road. Even though you have ABS, you will want to begin stopping sooner than you would on dry pavement. See Anti-Lock Brake System (ABS) on page 307. (cid:127) Allow greater following distance on any slippery road. (cid:127) Watch for slippery spots. The road might be ﬁne until you hit a spot that is covered with ice. On an otherwise clear road, ice patches may appear in shaded areas where the sun cannot reach, such as around clumps of trees, behind buildings, or under bridges. Sometimes the surface of a curve or an overpass may remain icy when the surrounding roads are clear. If you see a patch of ice ahead of you, brake before you are on it. Try not to brake while you are actually on the ice, and avoid sudden steering maneuvers. If You Are Caught in a Blizzard If you are stopped by heavy snow, you could be in a serious situation. You should probably stay with your vehicle unless you know for sure that you are near help and you can hike through the snow. Here are some things to do to summon help and keep yourself and your passengers safe: (cid:127) Turn on your hazard ﬂashers. (cid:127) Tie a red cloth to your vehicle to alert police that you have been stopped by the snow. (cid:127) Put on extra clothing or wrap a blanket around you. If you do not have blankets or extra clothing, make body insulators from newspapers, burlap bags, rags, ﬂoor mats — anything you can wrap around yourself or tuck under your clothing to keep warm. 355 {CAUTION: Snow can trap exhaust gases under your vehicle. This can cause deadly CO (carbon monoxide) gas to get inside. CO could overcome you and kill you. You cannot see it or smell it, so you might not know it is in your vehicle. Clear away snow from around the base of your vehicle, especially any that is blocking your exhaust pipe. And check around again from time to time to be sure snow does not collect there. Open a window just a little on the side of the vehicle that is away from the wind. This will help keep CO out. Run your engine only as long as you must. This saves fuel. When you run the engine, make it go a little faster than just idle. That is, push the accelerator slightly. This uses less fuel for the heat that you get and it keeps the battery charged. You can run the engine to keep warm, but be careful. 356 You will need a well-charged battery to restart the vehicle, and possibly for signaling later on with your headlamps. Let the heater run for a while. Then, shut the engine off and close the window almost all the way to preserve the heat. Start the engine again and repeat this only when you feel really uncomfortable from the cold. But do it as little as possible. Preserve the fuel as long as you can. To help keep warm, you can get out of the vehicle and do some fairly vigorous exercises every half hour or so until help comes. If Your Vehicle is Stuck in Sand, Mud, Ice, or Snow In order to free your vehicle when it is stuck, you will need to spin the wheels, but you do not want to spin your wheels too fast. The method known as rocking can help you get out when you are stuck, but you must use caution. {CAUTION: If you let your vehicle’s tires spin at high speed, they can explode, and you or others could be injured. And, the transmission or other parts of the vehicle can overheat. That could cause an engine compartment ﬁre or other damage. When you are stuck, spin the wheels as little as possible. Do not spin the wheels above 35 mph (55 km/h) as shown on the speedometer. Notice: Spinning the wheels can destroy parts of your vehicle as well as the tires. If you spin the wheels too fast while shifting the transmission back and forth, you can destroy the transmission. For information about using tire chains on your vehicle, see Tire Chains on page 465. 357 Rocking Your Vehicle to Get It Out First, turn the steering wheel left and right. That will clear the area around the front wheels. Your vehicle has a traction control system that will activate when the system senses that the wheels are spinning. See Traction Control System (TCS) on page 309 for more information. Then, with the wheels straight ahead, shift back and forth between REVERSE (R) and a forward gear, spinning the wheels as little as possible. Release the accelerator pedal while you shift, and press lightly on the accelerator pedal when the transmission is in gear. By slowly spinning the wheels in the forward and reverse directions, you will cause a rocking motion that may free your vehicle. If that does not get your vehicle out after a few tries, it may need to be towed out. Or, you can use the recovery loops. If your vehicle does need to be towed out, see Towing Your Vehicle on page 369. Recovery Loops {CAUTION: These loops, when used, are under a lot of force. Keep people away from the vicinity of the loops and any chains or cables during use. Always pull the vehicle straight out. Never pull on the loops at a sideways angle. The loops could break off and you or others could be injured from the chain or cable snapping back. Notice: Never use the recovery loops to tow the vehicle. Your vehicle could be damaged and it would not be covered by warranty. 358 Front of Vehicle Your vehicle may have recovery loops at the front and rear of the vehicle. You may need to use them if you are stuck off-road and need to be pulled to some place where you can continue driving. Rear of Vehicle 359 First Aid Kit and Tool Kit The ﬁrst aid and tool kit is located in the storage bin on top of the spare tire on SUV models. It is held in place with a hook and loop fastener strap. On SUT models, the kit is in the rear cargo compartment on the passenger side of the vehicle. Front Mounted Receiver Your vehicle is equipped with a front mounted receiver. You can use the receiver with a power winch platform (described later in this section) or with other accessories. The kit includes a ﬁrst aid kit (A), a ﬂashlight (C), a tire pressure gage (B), and a multi-purpose tool set (D). The tire pressure gage has a reset button in the gage stem. After taking a pressure reading, press the button to reset the gage to zero. 360 Never use the front mounted receiver to tow a trailer. You can use the front mounted receiver to tow your vehicle behind another. See Recreational Vehicle Towing on page 369. Power Winch Platform You can use the power winch platform (if equipped) with an aftermarket winch. Connect the winch to the platform and wiring to the vehicle following the winch manufacturer’s guidelines. Notice: Do not use the winch platform to winch at a tension of more than 9,000 lbs. (4 082 kg). This would damage your vehicle’s frame. This damage would not be covered by your vehicle’s warranty. If you are using a winch to pull out another vehicle, follow the winch manufacturer’s guidelines and observe the following to prevent damage to your vehicle: (cid:127) If possible, have your vehicle anchored from the opposite side of the winch to a solid, immovable object. If winching from the front, use both of the rear recovery loops. If winching from the rear, use both of the front recovery loops. (cid:127) Put your transmission in NEUTRAL (N). (cid:127) Use your regular brakes to hold your vehicle in place and block the wheels to keep the vehicle from moving. Notice: Using a power winch with the transmission in gear to pull out another vehicle may damage the transmission. When operating a power winch, always leave the transmission in NEUTRAL (N). 361 Notice: Driving your vehicle through an automatic car wash with the winch installed, can cause damage to your vehicle and the car wash. Always remove the winch from your vehicle before using an automatic car wash. See Washing Your Vehicle on page 495 for more information. If you are using a winch to pull out your own vehicle, follow the winch manufacturer’s guidelines for self recovery and observe the following to prevent damage to your vehicle: (cid:127) Do not self recover your vehicle by wrapping the winch cable around an object (such as a pulley block or tree) and attaching it back to your vehicle’s recovery loops. (cid:127) Always attach the winch cable directly to a solid anchor directly in front of your vehicle to achieve a straight line pull. Loading Your Vehicle It is very important to know how much weight your vehicle can carry. This weight is called the vehicle capacity weight and includes the weight of all occupants, cargo, and all nonfactory-installed options. Two labels on your vehicle show how much weight it may properly carry, the Tire and Loading Information label and the Certiﬁcation/Tire label. {CAUTION: Do not load your vehicle any heavier than the Gross Vehicle Weight Rating (GVWR), or either the maximum front or rear Gross Axle Weight Rating (GAWR). If you do, parts on your vehicle can break, and it can change the way your vehicle handles. These could cause you to lose control and crash. Also, overloading can shorten the life of your vehicle. 362 Tire and Loading Information Label The Tire and Loading Information label also shows the size of the original equipment tires (C) and the recommended cold tire inﬂation pressures (D). For more information on tires and inﬂation see Tires on page 448 and Inﬂation - Tire Pressure on page 456. There is also important loading information on the vehicle Certiﬁcation/Tire label. It tells you the Gross Vehicle Weight Rating (GVWR) and the Gross Axle Weight Rating (GAWR) for the front and rear axle. See “Certiﬁcation/Tire Label” later in this section. Label Example A vehicle speciﬁc Tire and Loading Information label is attached to the center pillar (B-pillar). With the driver’s door open, you will ﬁnd the label attached below the door lock post (striker). The tire and loading information label shows the number of occupant seating positions (A), and the maximum vehicle capacity weight (B) in kilograms and pounds. 363 Steps for Determining Correct Load Limit 1. Locate the statement “The combined weight of occupants and cargo should never exceed XXX kg or XXX lbs” on your vehicle’s placard. 2. Determine the combined weight of the driver and passengers that will be riding in your vehicle. 3. Subtract the combined weight of the driver and passengers from XXX kg or XXX lbs. 4. The resulting ﬁgure equals the available amount of cargo and luggage load capacity. For example, if the “XXX” amount equals 1400 lbs and there will be ﬁve 150 lb passengers in your vehicle, the amount of available cargo and luggage load capacity is 650 lbs (1400 − 750 (5 x 150) = 650 lbs). 5. Determine the combined weight of luggage and cargo being loaded on the vehicle. That weight may not safely exceed the available cargo and luggage load capacity calculated in Step 4. 6. If your vehicle will be towing a trailer, the load from your trailer will be transferred to your vehicle. Consult this manual to determine how this reduces the available cargo and luggage load capacity of your vehicle. See Towing a Trailer on page 374 for important information on towing a trailer, towing safety rules and trailering tips. 364 Example 1 Example 2 Item Description Total Item Description Total Vehicle Capacity Weight for Example 1 = Subtract Occupant Weight 150 lbs (68 kg) × 2 = Available Occupant and Cargo Weight = 1,000 lbs (453 kg) 300 lbs (136 kg) 700 lbs (317 kg) Vehicle Capacity Weight for Example 2 = Subtract Occupant Weight 150 lbs (68 kg) × 5 = Available Cargo Weight = 1,000 lbs (453 kg) 750 lbs (340 kg) 250 lbs (113 kg) 365 Certiﬁcation/Tire Label Example 3 Item Description Total Vehicle Capacity Weight for Example 3 = Subtract Occupant Weight 200 lbs (91 kg) × 5 = Available Cargo Weight = 1,000 lbs (453 kg) 1,000 lbs (453 kg) 0 lbs (0 kg) Refer to your vehicle’s tire and loading information label for speciﬁc information about your vehicle’s capacity weight and seating positions. The combined weight of the driver, passengers and cargo should never exceed your vehicle’s capacity weight. 366 A vehicle speciﬁc Certiﬁcation/Tire label is attached to the rear edge of the driver’s door. The label shows the gross weight capacity of your vehicle. This is called the GVWR (Gross Vehicle Weight Rating). The GVWR includes the weight of the vehicle, all occupants, fuel, and cargo. The Certiﬁcation/Tire label also tells you the maximum weights for the front and rear axles, called Gross Axle Weight Rating (GAWR). To ﬁnd out the actual loads on your front and rear axles, you need to go to a weigh station and weigh your vehicle. Your dealer can help you with this. Be sure to spread out your load equally on both sides of the centerline. Never exceed the GVWR for your vehicle, or the GAWR for either the front or rear axle. And, if you do have a heavy load, you should spread it out. {CAUTION: Do not load your vehicle any heavier than the Gross Vehicle Weight Rating (GVWR), or either the maximum front or rear Gross Axle Weight Rating (GAWR). If you do, parts on your vehicle can break, and it can change the way your vehicle handles. These could cause you to lose control and crash. Also, overloading can shorten the life of your vehicle. Your warranty does not cover parts or components that fail because of overloading. The label will help you decide how much cargo and installed equipment your truck can carry. Using heavier suspension components to get added durability might not change your weight ratings. Ask your dealer to help you load your vehicle the right way. 367 If you put things inside your vehicle — like suitcases, tools, packages, or anything else — they go as fast as the vehicle goes. If you have to stop or turn quickly, or if there is a crash, they will keep going. {CAUTION: Things you put inside your vehicle can strike and injure people in a sudden stop or turn, or in a crash. (cid:127) Put things in the cargo area of your vehicle. Try to spread the weight evenly. (cid:127) Never stack heavier things, like suitcases, inside the vehicle so that some of them are above the tops of the seats. (cid:127) Do not leave an unsecured child restraint in your vehicle. (cid:127) When you carry something inside the vehicle, secure it whenever you can. (cid:127) Do not leave a seat folded down unless you need to. 368 There is also important loading information for off-road driving in this manual. See “Loading Your Vehicle for Off-Road Driving” under Off-Road Driving on page 317. Add-On Equipment When you carry removable items, you may need to put a limit on how many people you can carry inside your vehicle. Be sure to weigh your vehicle before you buy and install the new equipment. Notice: Overloading your vehicle may cause damage. Repairs would not be covered by your warranty. Do not overload your vehicle. Remember not to exceed the Gross Axle Weight Rating (GAWR) of the front or rear axle. The Cargo Weight Rating (CWR) is the maximum weight of the load your vehicle can carry. It does not include the weight of the people inside. But you can ﬁgure about 150 lbs (68 kg) for each seat. The total cargo load must not be more than your vehicle’s CWR. Towing Towing Your Vehicle Consult your dealer or a professional towing service if you need to have your disabled vehicle towed. See Roadside Assistance Program on page 542. If you want to tow your vehicle behind another vehicle for recreational purposes (such as behind a motorhome), see “Recreational Vehicle Towing” following. Recreational Vehicle Towing Recreational vehicle towing means towing your vehicle behind another vehicle – such as behind a motorhome. The two most common types of recreational vehicle towing are known as “dinghy towing” (towing your vehicle with all four wheels on the ground) and “dolly towing” (towing your vehicle with two wheels on the ground and two wheels up on a device known as a “dolly”). With the proper preparation and equipment, many vehicles can be towed in these ways. See “Dinghy Towing” and “Dolly Towing,” following. Here are some important things to consider before you do recreational vehicle towing: (cid:127) What’s the towing capacity of the towing vehicle? Be sure you read the tow vehicle manufacturer’s recommendations. (cid:127) How far will you tow? Some vehicles have restrictions on how far and how long they can tow. (cid:127) Do you have the proper towing equipment? (cid:127) See your dealer or trailering professional for additional advice and equipment recommendations. Is your vehicle ready to be towed? Just as you would prepare your vehicle for a long trip, you’ll want to make sure your vehicle is prepared to be towed. See Before Leaving on a Long Trip on page 349. 369 Dinghy Towing Use the following procedure to tow your vehicle: 1. Shift the transmission to PARK (P). 2. Turn the engine off, but leave the ignition in ACCESSORY. 3. Firmly set the parking brake. 4. Securely attach the vehicle being towed to the tow vehicle. {CAUTION: Shifting a full-time four-wheel-drive vehicle’s transfer case into NEUTRAL can cause your vehicle to roll even if the transmission is in PARK (P). You or others could be injured. Make sure the parking brake is ﬁrmly set before you shift the transfer case to NEUTRAL. 5. Shift the transfer case to NEUTRAL (N). See Full-Time Four-Wheel Drive on page 128 for the proper procedure to select the NEUTRAL position for your vehicle. 370 6. Release the parking brake only after the vehicle being towed is ﬁrmly attached to the towing vehicle. You can use your vehicle’s front mounted receiver with the proper accessories to tow it. See “Front Mounted Receiver” under If Your Vehicle is Stuck in Sand, Mud, Ice, or Snow on page 357. 7. Turn the ignition to ACCESSORY. 8. Disconnect the battery if you are going to tow for long distances or long periods of time. When towing your vehicle for extended periods of time, start your vehicle as often as possible to prevent battery drain. This should only be done when the tow vehicle is parked. Dolly Towing Your vehicle cannot be dolly towed. If you must tow your vehicle behind another, use the dinghy towing procedure listed previously. Notice: Dolly towing your vehicle will damage drivetrain components. Do not dolly tow your vehicle. Selectable Extended Rear Ride Height If your vehicle has this feature it comes as part of the electronically controlled air suspension system. The selectable rear ride height allows you to raise the rear of the vehicle about 2 inches (5 cm) over the normal ride height. This can be helpful when driving off-road where you may need more ground clearance to clear an obstacle. The button that controls this feature is located on the instrument panel to the right of the steering wheel. To use this feature, ensure that the following conditions are met: (cid:127) The engine must be running. (cid:127) All doors must be fully closed. The suspension will not raise or lower if a door is open. (cid:127) The vehicle speed must be less than 40 mph (64 km/h). The system will not activate otherwise. Press the height control button to raise the rear of the vehicle. A light in the button will begin to ﬂash as the rear of the vehicle rises. Once the extended height has been reached (this may take up to a minute), the warning light will stop ﬂashing and will stay lit while the vehicle is at the extended height. 371 To lower the vehicle to the normal ride height, press the button again. The light in the button will ﬂash as the suspension lowers. When the light in the button stops ﬂashing and goes out, the suspension has reached the normal ride height. This feature will lower the vehicle to the normal height if vehicle speed exceeds 40 mph (64 km/h). You may also want to use this feature when ascending, descending or cresting a steep hill as this can help prevent the rear bumper from dragging on the base of the hill or prevent the vehicle from grounding out (high centering) on the crest of the hill. Do not use this feature when towing a trailer. Electronically Controlled Air Suspension System The electronically controlled air suspension, if equipped, keeps the rear of your vehicle level as you load and unload it. The system includes a compressor, two height sensor and two air springs supporting the vehicle. The engine must be running for the system to level the vehicle after loading or unloading. The system will suspend transitioning between the designed ride height and the extended ride height if any of the doors are open. However, the system will not suspend operation during normal leveling and once the doors are closed, system leveling will continue. You may hear the compressor running when you load your vehicle, and periodically as the system adjusts the vehicle to the standard ride height. 372 You may also hear the release of air similar to a hissing sound during suspension operation. This is normal. Load leveling will not function normally with the inﬂator hose attached to the inﬂator outlet. Remove the inﬂater hose from the outlet when it is not in use. See Accessory Inﬂator on page 466. Overload and Overheat Protection Overload protection is designed to protect the air suspension system and is an indication to the driver that the vehicle is overloaded. If the rear suspension remains at a low height, the rear axle load has exceeded GAWR (Gross Axle Weight Rating). When the overload protection mode is activated, the compressor operates for about 30 seconds to one minute without raising the vehicle depending on the amount of overload. This will continue each time the ignition is turned on until the rear axle load is reduced below GAWR. If the total rear GAWR (Gross Axle Weight Rating) is reached, the suspension may be slightly less than level. This is normal and does not mean there is a problem with the air suspension. If the system overheats due to normal operation, the SERVICE AIR SUSPENSION message will not be displayed on the DIC, but the system will shut down and stop all leveling functions until it cools down. If the system overheats and sets the SERVICE AIR SUSPENSION message in the DIC, then there is a fault. See DIC Warnings and Messages on page 226 for more information. 373 Towing a Trailer {CAUTION: If you do not use the correct equipment and drive properly, you can lose control when you pull a trailer. For example, if the trailer is too heavy, the brakes may not work well — or even at all. You and your passengers could be seriously injured. Pull a trailer only if you have followed all the steps in this section. Ask your dealer for advice and information about towing a trailer with your vehicle. Notice: Pulling a trailer improperly can damage your vehicle and result in costly repairs not covered by your warranty. To pull a trailer correctly, follow the advice in this part, and see your dealer for important information about towing a trailer with your vehicle. To identify the trailering capacity of your vehicle, you should read the information in “Weight of the Trailer” that appears later in this section. Trailering is different than just driving your vehicle by itself. Trailering means changes in handling, acceleration, braking, durability and fuel economy. Successful, safe trailering takes correct equipment, and it has to be used properly. That’s the reason for this part. In it are many time-tested, important trailering tips and safety rules. Many of these are important for your safety and that of your passengers. So please read this section carefully before you pull a trailer. 374 If You Do Decide To Pull A Trailer If you do, here are some important points: (cid:127) There are many different laws, including speed limit restrictions, having to do with trailering. Make sure your rig will be legal, not only where you live but also where you’ll be driving. A good source for this information can be state or provincial police. (cid:127) Consider using a sway control. See “Hitches” later in this section. (cid:127) Don’t tow a trailer at all during the ﬁrst 500 miles (800 km) your new vehicle is driven. Your engine, axle or other parts could be damaged. (cid:127) Then, during the ﬁrst 500 miles (800 km) that you tow a trailer, don’t drive over 50 mph (80 km/h) and don’t make starts at full throttle. This helps your engine and other parts of your vehicle wear in at the heavier loads. (cid:127) You can tow in DRIVE (D). You may want to shift the transmission to THIRD (3) or, if necessary, a lower gear selection if the transmission shifts too often (e.g., under heavy loads and/or hilly conditions). See “Tow/Haul Mode” following. Three important considerations have to do with weight: (cid:127) (cid:127) (cid:127) and the weight on your vehicle’s tires the weight of the trailer the weight of the trailer tongue 375 Tow/Haul Mode Tow/haul mode is used when using your vehicle to pull a large or heavy load or trailer. Tow/haul is also useful while pulling a load in rolling terrain, in stop-and-go traffic, or when you need improved low-speed control, such as when parking. The purpose of the tow/haul mode is to do the following: (cid:127) Reduce the frequency and improve the predictability of transmission shifts when pulling a heavy trailer or a large or heavy load. (cid:127) Provide the same solid shift feel when pulling a heavy trailer or a large or heavy load as when the vehicle is unloaded. Improve control of vehicle speed while requiring less accelerator pedal activity when pulling a heavy trailer or a large or heavy load. (cid:127) Tow/haul mode is most effective when the vehicle and trailer combined weight is at least 75 percent of the vehicle’s Gross Combination Weight Rating (GCWR). See “Weight of the Trailer” later in this section. 376 Press the button on the instrument panel to the right of the steering wheel to enable the tow/haul mode. A light on the instrument panel will illuminate to indicate that tow/haul mode has been selected. Press the button again to turn off tow/haul mode. The indicator light on the instrument panel will turn off. The vehicle will automatically turn off tow/haul mode every time it is started. Driving with tow/haul mode activated without a heavy load or with no trailer will cause reduced fuel economy and unpleasant engine and transmission driving characteristics, but will not cause damage. Weight of the Trailer How heavy can a trailer safely be? It depends on how you plan to use your rig. For example, speed, altitude, road grades, outside temperature and how much your vehicle is used to pull a trailer are all important. It can also depend on any special equipment that you have on your vehicle, and the amount of tongue weight the vehicle can carry. See “Weight of the Trailer Tongue” later in this section for more information. Maximum trailer weight is calculated assuming only the driver is in the tow vehicle and it has all the required trailering equipment. The weight of additional optional equipment, passengers and cargo in the tow vehicle must be subtracted from the maximum trailer weight. Use the following chart to determine how much your vehicle can weigh, based upon your vehicle model and options. Engine
