1995 Honda Civic LX Owners Manual

1995 Civic Sedan Online Reference Owner's Manual Use these links (and links throughout this manual) to navigate through this reference. For a printed owner's manual, click on authorized manuals or go to www.helminc.com.

Contents

Owner's Identification Introduction ......................................................................................................................................... i A Few Words About Safety.................................................................................................................ii Driver and Passenger Safety ..............................................................................................................3
Proper use and care of your vehicle's seat belts, and Supplemental Restraint System. Instruments and Controls.................................................................................................................31
Instrument panel indicator and gauge, and how to use dashboard and steering column controls. Comfort and Convenience Features .............................................................................................. 67

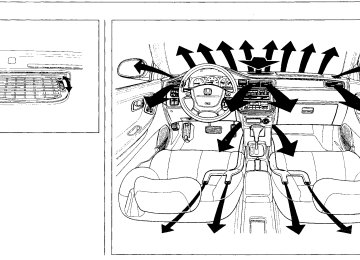

How to operate the climate control system, the audio system, and other convenience features. Before Driving.................................................................................................................................. 89
What gasoline to use, how to break-in your new vehicle, and how to load luggage and other cargo. Driving .............................................................................................................................................. 99
The proper way to start the engine, shift the transmission, and park, plus towing a trailer. Maintenance.....................................................................................................................................115
The Maintenance Schedule shows you when you need to take your vehicle to the dealer. Appearance Care..............................................................................................................................163
Tips on cleaning and protecting your vehicle. Things to look for if your vehicle ever needs body repairs. Taking Care of the Unexpected......................................................................................................171
This section covers several problems motorists sometimes experience, and how to handle them. Technical Information.....................................................................................................................193
ID numbers, dimensions, capacities, and technical information. Warranty and Customer Relations (U.S. and Canada)................................................................205
A summary of the warranties covering your new Acura, and how to contact us. Authorized Manuals (U.S. only)......................................................................................................211
How to order manuals and other technical literature. Index..................................................................................................................................................... I Gas Station Information Information you need when you pull up to the fuel pump.

Introduction

Congratulations ! Your selection of a 1995 Honda Civic was a wise investment. It will give you years of driving pleasure.

To enhance the enjoyment of your new car, take time to study this manual. In it, you will learn about your car's many conveniences and useful features. Following the service interval and maintenance recommendations will help keep your driving trouble-free while preserving your investment.

Keep this owner's manual in your car so you can refer to it at any time. Please make sure the manual stays with the car if you sell it. The next owner will find it just as helpful.

Several warranties protect your Honda. We suggest you read the warranty booklets carefully to fully understand the coverages and the responsibilities of ownership.

When your car needs scheduled maintenance, keep in mind that your Honda dealer's service staff is specially-trained in the service and maintenance of the many systems unique to your Honda. Your Honda dealer is dedicated to your satisfaction and will be pleased to answer any questions and concerns.

Main MenustSafety Messages

Your safety and the safety of others is very important. We have provided many important safety messages in this manual and on the vehicle. Please read these messages carefully.

A safety message alerts you to potential hazards that could hurt you or others. Each safety message is preceded by a safety alert symbol one of three words, DANGER, WARNING or CAUTION. These mean:

and

You will also see another important symbol:

NOTICE

Your Honda or other property can be damaged if you don't follow instruc- tions.

You WILL be KILLED or SERIOUSLY HURT if you don't follow instructions.

The purpose of these messages is to help prevent damage to your car, other property, or the environment.

You CAN be KILLED or SERIOUSLY HURT if you don't follow instructions.

You CAN be HURT if you don't follow instructions.

Each safety message tells you what the hazard is, what can happen and what you can do to avoid or reduce injury.

Main MenustThis section gives you important information about occupant protection. It shows how to use seat belts properly. It explains the Supplemental Restraint System that is standard in most Civics. And it gives useful information about how to protect infants and children in your car.

Your Occupant Protection System.. 4
The Seat Belt System

and How It Works...................... 5

Why Wear Seat Belts.................... 5
Important Safety Reminders........ 5
Seat Belt System Components..... 6
Lap/Shoulder Belt......................... 6
Lap Belt........................................... 6
Wearing Seat Belts Properly........ 7
Wearing a Lap/Shoulder Belt...... 7
Wearing the Lap Belt.................... 9
Advice for Pregnant Women...... 10
Seat Belt Maintenance................ 10
Supplemental Restraint System..... 11
What Happens In a Crash........... 12
Important Facts About

Airbags...................................... 13

How the Driver's Airbag

Works........................................ 14

How the Passenger's Airbag

Works........................................ 15

How the SRS Indicator Light

Works........................................ 16
System Service............................. 16
System Service Precautions....... 17
Additional Safety Information........ 18
Seat-back Position........................ 18
Door Locks................................... 18
Storing Cargo Safely................... 19

Driver and Passenger Safety

Driving with Pets......................... 19
Child Safety...................................... 20
Where Should Children Sit?....... 20
Important Safety Reminders...... 21
General Guidelines for Restraining Children Under 18 kg (40 Ibs)............... 22

Restraining an Infant Who Weighs Less Than 9 kg (20 Ibs).......... 22

Restraining a Child Who Weighs Between 9 and 18 kg (20 and 40 Ibs)..... 23

Restraining a Child Who Weighs

Over 18 kg (40 Ibs).................. 24

Using a Seat Belt

Locking Clip............................. 24

Using Child Restraints

with Tethers............................. 25
Storing a Child Seat..................... 26
Alcohol and Drugs........................... 27
Carbon Monoxide Hazard .............. 28
Safety Labels.................................... 29

Driver and Passenger Safety

Main MenustYour Occupant Protection System

Your Honda is equipped with seat belts and other features that work together to protect you and your passengers during a crash.

Seat belts are the most important part of your occupant protection system. When worn properly, seat belts can reduce the chance of serious injury or death in a crash.

For added protection during a severe frontal collision, your Honda has a Supplemental Restraint System (SRS) with airbags for the driver and a front seat passenger. The Supplemental Restraint System is optional on the Canadian LX model.

Two indicator lights are also part of your safety system. One reminds you to make sure you and your passen- gers wear seat belts. The other alerts you to a possible problem with your supplemental restraint system (see page 16).

The seats, head restraints, and door locks also play a role in occupant safety. For example, reclining the seat-back can decrease the effec- tiveness of your seat belt. Head restraints can help protect your neck and head, especially during rear-end impacts. Door locks help keep your doors from being accidentally opened during a crash.

Driver and Passenger Safety

To get the maximum protection from your occupant protection system, check the following before you drive away:

Everyone in the car is wearing a seat belt properly (see page 7). Infants and small children are properly secured in child safety seats (see page 20). All doors are closed and locked (see page 18). Seat-backs are upright (see page 18). There are no loose items that could be thrown around and hurt someone during a crash or sudden stop (see page 19).

By following these guidelines, you can reduce injuries to yourself and your passengers in many crash situations. Remember, however, that no safety system can prevent all injuries or deaths that can occur in severe crashes.

Main MenuTable of ContentsstThe Seat Belt System and How It Works

Why Wear Seat Belts Wearing seat belts, and wearing them properly, is fundamental to your safety and the safety of your passengers.

During a crash or emergency stop, seat belts can help keep you from being thrown against the inside of the car, against other occupants, or out of the car.

Of course, seat belts cannot com- pletely protect you in every crash. But, in most cases, seat belts reduce your chance of serious injury. They can even save your life. That is why many states and all Canadian pro- vinces require you to wear seat belts.

Not wearing a seat belt increases the chance of being killed or seriously hurt in a crash.

Be sure you and your passengers always wear seat belts and wear them properly.

Important Safety Reminders Seat belts are designed for adults and larger children. All infants and small children must be properly restrained in child safety seats (see page 20).

A pregnant woman needs to wear a seat belt to protect herself and her unborn child (see page 10).

Two people should never use the same seat belt. If they do, they could be very seriously injured in a crash.

Do not place the shoulder portion of a lap/shoulder belt under your arm or behind your back. This could increase the chance of serious injuries in a crash.

Do not put shoulder belt pads or other accessories on seat belts. They can reduce the effectiveness of the belts and increase the chance of injury.

Driver and Passenger Safety

Main MenuTable of ContentsstThe Seat Belt System and How It Works

Seat Belt System Components Your Honda has seat belts in all five seating positions. The front seats and the outside positions of the rear seat have lap/shoulder belts. The center position of the rear seat has a lap belt.

Your seat belt system also includes a light on the instrument panel to remind you to fasten your seat belt, and to make sure your passengers fasten theirs. This light comes on when you turn on the ignition if you have not fastened your seat belt. A beeper also sounds for several seconds (see page 34).

The following pages cover more about the seat belt components and how they work.

Driver and Passenger Safety

Lap/Shoulder Belt

Lap Belt

SHOULDER PORTION

LATCH PLATE

BUCKLE

UPPER SEAT BELT ANCHOR

To retractor

BUCKLE

LAP PORTION

LATCH PLATE

The lap belt has one manually- adjusted belt that fits across the hips. It is similar to safety belts used in airplanes.

This style of seat belt has a single belt that goes over your shoulder, across your chest, and across your hips. Each lap/shoulder belt has an emergency locking retractor. In normal driving, the retractor lets you move freely in your seat while it keeps some tension on the belt. During a collision or sudden stop, the retractor automatically locks the belt to help restrain your body.

Main MenuTable of ContentsstWearing Seat Belts Properly You can increase the effectiveness of your seat belts if you take a little time to read the following pages and make sure you know how to wear seat belts properly.

Not wearing a seat belt properly increases the chance of serious injury or death in a crash.

Be sure you and your passengers always wear seat belts and wear them properly.

The Seat Belt System and How It Works

Wearing a Lap/Shoulder Belt

Before putting on the seat belt, move the driver's seat as far back as is practical while still allowing you to maintain full control of the vehicle. Make sure the seat-back is upright (see page 54). The front seat passenger should move the seat as far back as possible.

1. Pull the latch plate across your

body and insert it into the buckle. Tug on the belt to make sure the

latch is securely locked.

2. Check that the belt is not twisted.

3. Position the lap portion of the belt

as low as possible across your hips, not across your stomach. This lets your strong pelvic bones take the force of a crash.

CONTINUED

Driver and Passenger Safety

Main MenuTable of ContentsstThe Seat Belt System and How It Works

RELEASE BUTTON

RELEASE BUTTON

5. If the belt crosses your neck, you

need to adjust the belt anchor height or your seating position. Front seats: Adjust the belt anchor by squeez- ing the two buttons and sliding the anchor downward (it has four posi- tions). Rear seat: Move toward the center of the seat until the belt fits over your collarbone.

4. Pull up on the shoulder part of the

belt to remove any slack. Make sure the belt goes over your collarbone and across your chest.

Driver and Passenger Safety

To unlatch the seat belt, push the red PRESS button on the buckle. Guide the belt across your body to the door pillar. If the belt doesn't retract easily, pull it out and check for twists or kinks.

Main MenuTable of ContentsstWearing the Lap Belt

The Seat Belt System and How It Works

1. Pull the latch plate across your

hips and insert it into the buckle marked CENTER.

If the belt is too short, hold the latch plate at a right angle and pull to extend the belt. Insert the latch plate into the buckle.

2. Position the belt as low as possible across your hips and pelvic bones, not across your stomach. Pull the loose end of the belt to adjust for a snug but comfortable fit.

To unlatch the belt, push the red PRESS button on the buckle.

Driver and Passenger Safety

Main MenuTable of ContentsstThe Seat Belt System and How It Works

Advice for Pregnant Women

If possible, use the lap/shoulder seat belt, remembering to keep the lap portion as low as possible (see page 7).

Each time you have a check-up, ask your doctor if it's okay for you to drive and how you should position a lap/shoulder seat belt.

Protecting the mother is the best way to protect her unborn child. Therefore, a pregnant woman should wear a properly-positioned seat belt whenever she drives or rides in a car.

Driver and Passenger Safety

Seat Belt Maintenance For safety, you should check the condition of your seat belts regularly.

Pull out each belt fully and look for frays, cuts, burns, and wear. Check that the latches work smoothly and the lap/shoulder belts retract easily. Any belt not in good condition or not working properly should be replaced.

If a seat belt is worn during a crash, have your dealer replace the belt and inspect the anchors for damage.

For information on how to clean your seat belts, see page 167.

Main MenuTable of ContentsstSupplemental Restraint System

Your car is equipped with a Supplemental Restraint System (SRS) to help protect the head and chest of the driver and front seat passenger during a severe frontal collision. (The SRS is optional on the Canadian LX model.)

This system does not replace your seat belts. It supplements, or adds to, the protection offered by seat belts and other occupant protection features.

Not wearing a seat belt increases the chance of serious injury or death in a crash, even if you have airbags.

Be sure you and your passengers always wear seat belts and wear them properly.

INDICATOR

SRS

CONTROL UNIT/ SENSORS

PASSENGER'S AIRBAG

DRIVER'S AIRBAG The main components in your SRS are:

One airbag in the steering wheel for the driver and another in the dashboard for the front passenger.

Sensors that can detect a severe frontal collision.

CONTINUED

Driver and Passenger Safety

Main MenuTable of ContentsstSupplemental Restraint System

A sophisticated electronic system that continually monitors the control unit (including the sensors), airbag activators, and all related wiring when the ignition is ON (II).

What Happens In a Crash If you ever have a severe frontal collision, the sensors will detect rapid deceleration and signal the control unit to instantly inflate the airbags.

An indicator light on the instrument panel to alert you to a possible problem with the system.

Emergency backup power in case your car's electrical system is disconnected in a crash.

During a crash, your seat belts will help to restrain your lower body and torso. The airbags will provide a cushion to absorb crash energy and help keep the head and chest of the driver and front passenger from striking the interior of the car. (The airbags are optional on the Canadian LX model.)

After inflating, the airbags will immediately deflate. The entire process, from detection to deflation, takes a fraction of a second. This process occurs so quickly that you may not hear the loud noise created by the airbag inflators, or realize what has happened.

After the crash, you may see what looks like smoke. This is actually powder from the airbag's surface. People with respiratory problems may experience some temporary discomfort from the chemicals used by the airbag's activators.

Driver and Passenger Safety

Main MenuTable of ContentsstSupplemental Restraint System

Important Facts About Airbags Airbags inflate only when needed; in a severe frontal collision. A severe collision would be similar to a crash into a parked car at 25 mph (40
km/h). Airbags will not inflate in a moderate frontal collision, or during a rear impact, side impact, or rollover — even if the impact is severe.

Frontal collision range

Airbags inflate and deflate only once. They cannot protect you during any additional impacts that can occur during a crash sequence.

Injuries, including fatal injuries, can occur in a severe collision, even if seat belts are worn properly and the airbags inflate. No safety system can provide complete protection in a severe crash.

Just from viewing the vehicle damage after a crash, it is very difficult to accurately determine if the airbags should or should not have inflated. In some cases where the airbag did not inflate, extensive visible damage indicated that the car absorbed much of the crash energy, and the airbags were not needed. In other cases, a severe jolt, such as an impact to the undercarriage, may not cause extensive body damage but cause the airbags to inflate.

Driver and Passenger Safety

Main MenuTable of ContentsstSupplemental Restraint System

How the Driver's Airbag Works

To do its job, the airbag inflates with considerable force. So, while it can reduce serious injuries and even save your life, the airbag might cause some facial abrasions or other injuries. To reduce the possibility of injury, you should always sit back as far from the steering wheel as is practical while still maintaining full vehicle control.

If you ever have a severe frontal collision, your airbag will instantly inflate to help protect your head and chest.

Driver and Passenger Safety

After the bag completely inflates, it immediately starts deflating so it won't interfere with your visibility, ability to steer, or ability to operate other controls. The total time for inflation and deflation takes a fraction of a second. You may not even be aware that the airbag has been fully inflated.

Main MenuTable of ContentsstThe driver's airbag is stored in the center of the steering wheel. For your safety, do not attach any items to the steering wheel. They could interfere with the proper operation of the airbag. Or, if the airbag inflates, they could be propelled inside the car and hurt someone.

Supplemental Restraint System

How the Passenger's Airbag Works

seat as far back as practical and sit well back in the seat.

If your car has a passenger's airbag, we strongly recommend that you do not put an infant seat in the front passenger's seat. If the airbag inflates, it can hit the infant seat with great force. The infant seat can be dislodged or struck with enough force to cause very serious injury to the infant.

If a toddler seat is used in the front passenger's seat, the vehicle seat should be moved as far back as possible. If the passenger's bag inflates, it could seriously hurt a toddler who is not in the proper position or properly restrained.

CONTINUED

Driver and Passenger Safety

If you ever have a severe frontal collision, the passenger's airbag will inflate at the same time as the driver's airbag.

This airbag is quite large and inflates with considerable force. It can seriously hurt a front seat passenger who is not in the proper position and wearing the seat belt properly. Front seat passengers should move the

Main MenuTable of ContentsstSupplemental Restraint System

The passenger's airbag is stored near the top of the dashboard, under a lid marked SRS. Do not place any objects on top of this lid. If the airbag inflates, those objects can be propelled inside the car and possibly hurt someone.

Driver and Passenger Safety

How the SRS Indicator Light Works

SRS The purpose of the SRS light on your instrument panel is to alert you of a potential problem with your supple- mental restraint system.

System Service Your supplemental restraint system is virtually maintenance-free. There are no parts you can safely service. You must have the system serviced by an authorized Honda dealer:

Have the system checked if:

The light does not come on when you turn the ignition ON (II).

The light stays on after the engine starts.

The light comes on or flashes while you are driving.

If your airbags ever inflate, the airbags and control unit must be replaced. Do not try to remove or discard the airbags by yourself. This must be done by a Honda dealer.

If the SRS indicator light alerts you of a problem. Have the supplemental restraint system checked as soon as possible. Otherwise, your airbags might not inflate when you need them.

When the car is ten years old. Have the dealer inspect the system. The production date is on the driver's doorjamb for your convenience.

Main MenuTable of ContentsstSupplemental Restraint System

Scrapping an entire car that has uninflated airbags can be dangerous. Get assistance from a Honda dealer if your car must be scrapped.

If you sell your car, please be sure to tell the new owner that the car has a supplemental restraint system. Alert them to the information and precau- tions in this part of the owner's manual.

System Service Precautions Do not modify your steering wheel or any other part of the supplemental restraint system. Modifications could make the system ineffective.

Do not tamper with the system's components or wiring. This could cause the airbags to inflate inadver- tently, possibly injuring someone very seriously.

Tell anyone who works on your car that you have a supplemental restraint system. Failure to follow the procedures and precautions in the official Honda service manual could result in personal injury or damage to the system.

Driver and Passenger Safety

Main MenuTable of ContentsstAdditional Safety Information

The seat belts and airbags are obvi- ously important parts of your occu- pant protection system.

In addition, you should know that sitting upright, locking the doors, and stowing things properly can also increase your safety and possibly even save your life.

Seat-back Position The seat-backs should be in an upright position for you and your passengers to get the most protec- tion from the seat belts.

If you recline a seat-back, you reduce the protective capability of your seat belt. The farther a seat-back is reclined, the greater the risk that you will slide under the belt in a severe crash and be very seriously injured.

For information on how to adjust the seat-back, see page 54.

Door Locks It is not safe to leave your car doors unlocked. A passenger, especially a child, could open a door and acci- dentally fall out. Also, there is a greater chance of being thrown out of the car during a crash when the doors are not locked.

Driver and Passenger Safety

Main MenuTable of ContentsstAdditional Safety Information

Storing Cargo Safely Before you drive, make sure you first securely store or tie down any items that could be thrown around the car and hurt someone, or interfere with your ability to operate the controls.

Do not put any items on top of the rear shelf. They can block your view and they could be thrown about the car in a crash.

Be sure to keep compartment doors closed when the car is moving. If a passenger hits the door of an open glove box, for example, he could injure his knees.

For information on loading cargo, see page 98.

Driving with Pets Loose pets can be a hazard while you are driving. An unrestrained pet can interfere with your ability to drive the car. In a crash or sudden stop, loose pets or cages can be thrown around inside the car and hurt you or your passengers. It is also for their safety that pets should be properly restrained in your car.

The recommended way to restrain a medium-sized or larger dog is with a special traveling harness. This har- ness can be secured to the rear seat with a seat belt. Travel harnesses are available at pet stores.

A small dog, cat, or other small animal will be safest in a pet carrier with rigid sides. Choose a style that allows you to secure it to the car's seat by routing a seat belt through the carrier's handle.

For further information, contact your veterinarian or local animal protec- tion society.

Driver and Passenger Safety

Main MenuTable of ContentsstChild Safety

Children depend on adults to protect them. To help make sure we do, every state and Canadian province has laws requiring infants and young children to be properly restrained whenever they ride in a car.

Driver and Passenger Safety

An infant or child who is not properly restrained can be killed or seriously injured in a crash.

Be sure any child too small for seat belts is properly secured in a child restraint.

Where Should Children Sit? According to accident statistics, children of all sizes and ages are safer when they are properly restrained in the rear seat rather than the front seat.

We recommend that, whenever possible, you secure your child's infant or toddler seat in the center position of the rear seat with the lap belt.

If your car has a passenger's airbag, we strongly recommend that you do not put an infant seat in the front passenger's seat. If the airbag inflates, it can hit the infant seat with great force. The infant seat can be dislodged or struck with enough force to cause very serious injury to the infant.

Main MenuTable of ContentsstIf a toddler seat is used in the front seat of a car equipped with a passen- ger's airbag, the vehicle seat should be moved as far back as possible. If the passenger's bag inflates, it could seriously hurt a toddler who is not in the proper position or properly restrained.

We also recommend that any child who is too large to use an infant or toddler seat ride in one of the out- side positions of the rear seat. The child should then wear the lap/ shoulder belt properly for protection.

Important Safety Reminders Never hold a baby or child on your lap when riding in a car. If you are wearing your seat belt, the violent forces created during a crash will tear the child from your arms. The child could be seriously hurt or killed.

If you are holding a child and not wearing a seat belt in a crash, you could crush the child against the car's interior.

Never put your seat belt over yourself and a child. During a crash, the belt could press deep into the child, causing serious internal injuries.

Two children should never use the same seat belt. If they do, they could be very seriously injured in a crash.

Child Safety

If you are driving with small children in the car, you should use the childproof door locks to prevent them from opening the rear doors (see page 52).

For their safety, do not leave children alone in your car without adult supervision.

Driver and Passenger Safety

Main MenuTable of ContentsstChild Safety

General Guidelines for Restraining Children Under 18
kg (40 Ibs) Use an approved child seat. The seat must meet Federal Motor Vehicle Safety Standard 213 (FMVSS-213) or Canadian Motor Vehicle Safety Standards. Look for the manufac- turer's statement of compliance on the box and seat.

Use a seat of the right size. Make sure the seat fits your child. Check the seat manufacturer's instructions and labels for height and weight limits.

Secure the child seat to the car. All approved child seats are designed to be secured to the car seat by the lap belt or the lap belt portion of a lap/ shoulder belt. A child whose seal is not properly secured to the car can be endangered in a crash.

Driver and Passenger Safety

Restraining an Infant Who Weighs Less Than 9 kg (20 Ibs)

To properly route a seat belt through a child seat, follow the seat maker's instructions. If you use a lap/ shoulder belt, be sure you install a locking clip on the belt (see page 24).

Secure the child in the child seat. Make sure the infant or child is firmly secured to the child seat. Use the straps provided, and carefully follow the manufacturer's instructions.

An infant up to about 9 kg (20 Ibs) must be restrained in an infant seat or a convertible seat designed for a baby. Because infants must ride in a reclining position, be sure the infant seat always faces the REAR of the car as shown.

Main MenuTable of ContentsstWe recommend that, whenever possible, you put the infant seat in the center position of the rear seat and secure it to the car with the lap belt.

If you decide to put an infant seat in any other seating position, you must use a locking clip on the car's lap/ shoulder belt (see page 24).

If your car has a passenger's airbag, we strongly recommend that you do not put an infant seat in the front passenger's seat. If the airbag inflates, it can hit the infant seat with great force. The infant seat can be dislodged or struck with enough force to cause very serious injury to the infant.

Restraining a Child Who Weighs Between 9 and 18 kg (20 and 40
Ibs)

Toddler seats are designed for children who weigh between 9 and 18 kg (20 and 40 Ibs).

Child Safety

The preferred place to put a toddler seat is in the center position of the rear seat. Use the car's lap belt to secure the seat to the car.

If you decide to put a toddler seat in any other seating position, you must use a locking clip on the car's lap/ shoulder belt (see page 24).

If you are using a toddler seat in the front passenger's seat, move the passenger's seat as far back as possible before installing the child seat. If the passenger's bag inflates, it could seriously hurt a toddler who is not in the proper position or properly restrained.

Driver and Passenger Safety

Main MenuTable of ContentsstChild Safety

Restraining a Child Who Weighs Over 18 kg (40 Ibs)

We recommend that, whenever possible, a child who has outgrown a toddler seat ride in one of the outside positions of the rear seat and use a lap/shoulder belt.

Driver and Passenger Safety

Put the seat belt on your child and check its fit. The shoulder belt should fit over the collarbone and across the chest. The lap belt should sit low on your child's hips, not across the stomach.

Using a Seat Belt Locking Clip Always use a seat belt locking clip when you secure a child seat to your car with a lap/shoulder belt. This helps prevent the seat from shifting position or overturning.

A locking clip is usually included with the child seat. If you need a clip, contact the seat's manufacturer or a store that sells child restraints.

If the shoulder belt crosses the neck, have your child move toward the center of the rear seat until the belt fits properly. If the belt still crosses the child's neck, you should use a booster seat.

Several styles of booster seats are available. We recommend a design that allows the child to use the car's lap/shoulder belt.

Whichever style you select, follow the booster seat manufacturer's instructions.

Main MenuTable of ContentsstTo install a locking clip, do the following:

1. Place the child restraint in the desired position. Route the lap/ shoulder belt through the restraint according to the seat manufac- turer's instructions.

2. Insert the latch plate into the

buckle. Pull on the shoulder part of the belt to make sure there is no slack in the lap portion.

3. Tightly grasp the belt near the

latch plate. Pinch both parts of the belt together so they won't slip through the latch plate. Unbuckle the seat belt.

Child Safety

Using Child Restraints with Tethers

90 mm (3.5 in)

4. Install the locking clip as shown.

Position the clip as close as possible to the latch plate.

5. Insert the latch plate into the

buckle. Push and pull on the child seat to verify that it is held firmly in place. If it is not, repeat these steps until the restraint is secure.

290 mm (11.4 in)

Your Honda has three attachment points for tether-style child seats.

U.S. Models Use the dimensions in the above illustration to locate the attachment point you want to use. Cut a 12.7 mm (1/2 inch) diameter hole in the rear shelf.

CONTINUED

Driver and Passenger Safety

Main MenuTable of ContentsstChild Safety

Canadian Models Select the attachment point you want to use and remove the plug with a small flat-tipped screwdriver or fingernail file.

Then install the tether hardware that came with the child seat. Tighten the bolt to: 22 N·m(2.2 kg-m , 16 Ib-ft)

If you are not sure how to install the bracket, have it installed by your Honda dealer.

If you need an anchor plate and mounting hardware, you can obtain them by writing to:

American Honda Motor Co., Inc. Consumer Affairs 1919 Torrance Blvd. Torrance, CA 90501-2746

Driver and Passenger Safety

Canadian Cars

TOOTHED WASHER

Storing a Child Seat When you are not using an infant seat or other child restraint, either remove it or make sure it is properly secured so it cannot be thrown around the car during a crash.

The anchor plate and mounting hardware for a top tether are supplied with the car. When installing, make sure the toothed washer is on the bottom of the bolt.

The supplied anchor plate is designed only for mounting a child restraint. Do not use it for any other purpose.

Main MenuTable of ContentsstAlcohol and Drugs

Driving a car requires your full at- tention and alertness. Traffic condi- tions change rapidly. You must be able to react just as rapidly. Alcohol or drugs directly affect your alert- ness and ability to react. Even pre- scription and non-prescription medi- cines can have this effect.

There are laws that deal with drunken driving. These laws define how much alcohol it takes in your system to be legally "drunk." How- ever, your judgment and reaction time get worse with every drink — even the first one.

The safest thing you can do is never drink and drive. This can be done if you plan ahead. If you know you are going to be drinking, make plans to ride with a friend who will not be drinking.

If you have no choice but to drive, stop drinking and give yourself lots of time to sober up. Time is the only thing that can make you sober. Things like coffee or a cold shower don't speed up the process.

What if you find that you've been drinking and cannot get a ride from a friend? Find alternative transpor- tation. Call a taxi. Take a bus. Many communities have transportation services devoted to shuttling people who have been drinking.

If you see friends trying to get behind the wheel after drinking, stop them. Drive them yourself or arrange other transportation. If you think you are interfering, remember that your interference will keep them from sharing the road with you.

Driver and Passenger Safety

Main MenuTable of ContentsstCarbon Monoxide Hazard

Your car's exhaust contains carbon monoxide gas. You should have no problem with carbon monoxide entering the car in normal driving if you maintain your car properly. Have the exhaust system inspected for leaks whenever:

The car is raised for an oil change. You notice a change in the sound of the exhaust. The car was in an accident that may have damaged the underside.

Carbon monoxide gas is toxic. Breathing it can cause unconsciousness and can even kill you.

Avoid any enclosed areas or activities that expose you to carbon monoxide.

High levels of carbon monoxide can collect rapidly in enclosed areas, such as a garage. Do not run the engine with the garage door closed. Even with the door open, run the engine only long enough to move the car out of the garage.

Driver and Passenger Safety

With the trunk lid open, air flow can pull exhaust gas into your car's interior and create a hazardous condition. If you must drive with the trunk lid open, open all the windows and set the heating and cooling system as follows.

If you must sit in your parked car, even in an unconfined area, with the engine running, adjust the heating and cooling system as follows:

1. Push the 2. Select the 3. Turn the fan on high speed. 4. Set the temperature control to a

button. mode.

comfortable setting.

Main MenuTable of ContentsstThese labels are in the locations shown. They warn you of potential hazards that could cause serious injury. Read these labels carefully and don't remove them.

If a label comes off or becomes hard to read, contact your Honda dealer for a replacement.

BATTERY

Safety Labels

RADIATOR CAP

Driver and Passenger Safety

Main MenuTable of ContentsstThis section gives information about the controls and displays that contribute to the daily operation of your Honda. All the essential controls are within easy reach.

Control Locations............................ 32
Indicator Lights................................ 33
Gauges.............................................. 38
Speedometer................................ 38
Tachometer.................................. 38
Odometer...................................... 38
Trip Meter.................................... 38
Fuel Gauge................................... 39
Temperature Gauge.................... 39

Controls Near the Steering

Wheel........................................40
Headlights.................................... 41
Daytime Running Lights............. 41
Instrument Panel Brightness..... 42
Turn Signals................................. 42
Windshield Wipers...................... 43
Windshield Washers................... 43
Hazard Warning........................... 44
Rear Window Defogger.............. 44
Steering Wheel Adjustment....... 45
Steering Wheel Controls ................ 46
Cruise Control.............................. 46
Horn.............................................. 49
Keys and Locks................................ 49
Keys.............................................. 49
Ignition Switch............................. 50

Instruments and Controls

Door Locks................................... 51
Power Door Locks....................... 51
Childproof Door Locks............... 52
Trunk............................................ 52
Seat Adjustments............................. 54
Front Seat Adjustments.............. 54
Folding Rear Seat............................ 55
Power Windows............................... 56
Moonroof.......................................... 58
Sunshade....................................... 58
Mirrors.............................................. 59
Manual Door Mirrors.................. 59
Adjusting the Power Mirrors..... 59
Parking Brake.................................. 60
Glove Box......................................... 61
Digital Clock..................................... 62
Console Compartment.................... 63
Beverage Holder.............................. 63
Coin Box........................................... 64
Vanity Mirror................................... 64
Cigarette Lighter............................. 64
Ashtrays............................................ 65
Interior Light.................................... 66

Instruments and Controls

Main MenustControl Locations

DOOR LOCK SWITCH (P.51)

POWER WINDOW SWITCH (P.56)

FUEL FILL DOOR RELEASE (P.92)

MIRROR CONTROLS (P.59)

DIGITAL CLOCK (P.62)

HEATING/ COOLING CONTROL (P.68)

AUDIO SYSTEM (P.75)

TRUNK RELEASE HANDLE (P.52)

HOOD RELEASE HANDLE (P.93)

Instruments and Controls

Main MenuTable of ContentsstIndicator Lights

PARKING BRAKE AND BRAKE SYSTEM INDICATOR*

ANTI-LOCK BRAKE SYSTEM INDICATOR

CRUISE CONTROL INDICATOR

HIGH BEAM INDICATOR

CHARGING SYSTEM INDICATOR

LOW OIL PRESSURE INDICATOR

The instrument panel has many indicators to give you important information about your car.

Lamp Check Many of the indicator lights come on when you turn the ignition switch ON (II), allowing you to see that they are working. The instrument panel should look like the illustration. If an indicator does not light during this test, it cannot alert you if that system develops a problem. Have the dealer check your car for burned-out bulbs or other problems.

* The U.S. instrument panel is shown. Differences for the Canadian model are noted in the text.

MALFUNCTION INDICATOR LAMP/ CHECK ENGINE LIGHT*

TRUNK-OPEN INDICATOR

SUPPLEMENTAL RESTRAINT SYSTEM INDICATOR

SEAT BELT REMINDER LIGHT

CONTINUED

Instruments and Controls

Main MenuTable of ContentsstIndicator Lights

CHARGING SYSTEM INDICATOR

LOW OIL PRESSURE INDICATOR

SEAT BELT REMINDER LIGHT

HIGH BEAM INDICATOR

PARKING BRAKE AND BRAKE SYSTEM INDICATOR*

Seat Belt Reminder Light

This indicator lights when you turn the ignition ON (II). It is a reminder to you and your passengers to protect yourselves by fastening the seat belts. A beeper also sounds if you have not fastened your seat belt.

If you do not fasten your seat belt, the beeper will stop after a few seconds but the light stays on until you do. Both the light and the beeper stay off if you fasten your seat belt before turning on the ignition.

* The U.S. instrument panel is shown. Differences for the Canadian model are noted in the text.

MALFUNCTION INDICATOR LAMP/ CHECK ENGINE LIGHT* TRUNK-OPEN INDICATOR

Instruments and Controls

SUPPLEMENTAL RESTRAINT SYSTEM INDICATOR

Main MenuTable of ContentsstCharging System Indicator

This light indicates the battery is not being charged. It should come on when the ignition is ON (II), and go out after the engine starts. If this light comes on while driving, the battery is not being charged. Turn to page 184 for information about what to do.

Low Oil Pressure Indicator

This indicator lights when the oil pressure in the engine drops low enough to cause damage. It should light when the ignition is ON (II) and go out after the engine starts. If this light comes on when the engine is running, there is a possibility of serious engine damage. Safely pull to the side of the road and shut off the engine as soon as you can. Turn to page 183 for instructions and precautions on checking the engine.

US

Canada

BRAKE

Parking Brake and Brake System Indicator This light has two functions:

1. It lights as a reminder that you

have set the parking brake. Driving with the parking brake set can damage the brakes and tires, and cause the Anti-lock brake system to turn off (see page 110).

2. It can indicate the brake fluid level

is low if it remains lit after you release the parking brake or comes on while driving. This is normally due to worn brake pads. Have your dealer check the braking system for worn pads or fluid leaks.

Indicator Lights

Supplemental Restraint SRS System Indicator Only on cars equipped with SRS The SRS light normally comes on for a few seconds when you turn the ignition ON (II). If it doesn't, or it stays on after the engine starts, something is wrong with the Supplemental Restraint System. It may also flash on and off to indicate a problem.

If you see any of these indications, the airbag may not work when needed in an accident. Take the car to your dealer promptly for diagnosis and service.

Instruments and Controls

Main MenuTable of ContentsstTrunk-open Indicator

This light comes on if the trunk lid is not closed tightly.

US

Canada

Malfunction Indicator Lamp

Check Engine Light

This light comes on for a few seconds when you turn the ignition switch ON (II). If it comes on at any other time, it indicates one of the engine's emission control systems may have a problem. Turn to page 185 for information about what to do.

Indicator Lights

Anti-lock Brake System (ABS) Indicator

ABS Only on cars equipped with ABS (see page 110) This light normally comes on when you turn the ignition ON (II) and goes off after the engine starts. If it comes on at any other time, there is a problem in the ABS. If this happens, stop the car in a safe place and turn off the engine. Reset the system by restarting the engine. Watch the ABS light. If it does not go off, or comes back on again while driving, take the car to your dealer to have it checked. With the light on, your car still has normal braking ability but no anti-lock.

Instruments and Controls

Main MenuTable of ContentsstTurn Signal and Hazard Warning Indicators

The left or right turn signal light blinks when you signal a lane change or turn. If the light does not blink or blinks rapidly, it usually means one of the turn signal bulbs is burned out (see page 157). Replace the bulb as soon as possible, since other drivers cannot see that you are signalling.

When you turn on the Hazard Warning switch, both turn signal lights blink. All turn signals on the outside of the car should flash.

High Beam Indicator

This light comes on with the high beam headlights. See page 41 for information on the headlight controls.

On Canadian models, this indicator comes on with reduced brightness when the Daytime Running Lights (DRL) are on (see page 41).

Cruise Control Indicator

CRUISE CONTROL Only on cars equipped with Cruise Control System This lights when you set the cruise control. See page 46 for information on operating the cruise control.

Indicator Lights

Shift Lever Position Indicator (Automatic Transmission only)

This indicator shows which shift position the shift lever is in.

Instruments and Controls

Main MenuTable of ContentsstGauges

TACHOMETER

SPEEDOMETER

FUEL GAUGE

TEMPERATURE GAUGE

ODOMETER

TRIP METER

TRIP METER RESET BUTTON

Tachometer On LX and EX models in U.S., and EX model in Canada The tachometer shows the engine speed in revolutions per minute (rpm). To protect the engine from damage, never drive with the tachometer needle in the red zone.

Speedometer U.S. Models This shows your speed in miles per hour (mph). The smaller inner numbers are the speed in kilometers per hour (km/h).

Canadian Models This shows your speed in kilometers per hour (km/h). The smaller inner numbers are the speed in miles per hour (mph).

Instruments and Controls

Odometer The odometer shows the total dis- tance your car has been driven. It measures miles in U.S. models and kilometers in Canadian models. It is illegal under federal law (in the U.S.) and provincial regulations (in Canada) to disconnect, reset, or alter the odometer with the intent to change the number of miles or kilometers indicated.

Trip Meter This meter shows the number of miles (U.S.) or kilometers (Canada) driven since you last reset it. To reset it, push the trip meter reset button.

Main MenuTable of ContentsstTEMPERATURE GAUGE

SPEEDOMETER

FUEL GAUGE

ODOMETER

TRIP METER

TRIP METER RESET BUTTON

Fuel Gauge This shows how much fuel you have. It is most accurate when the car is on level ground. It may show slightly more or less than the actual amount when you are driving on curvy or hilly roads.

The gauge stays at the same fuel level reading after you turn off the ignition. When you add fuel, the gauge slowly changes to the new reading after you turn the ignition back ON (II).

Gauges

Temperature Gauge This shows the temperature of the engine's coolant. During normal operation, the pointer should rise from the bottom white mark to about the middle of the gauge. In severe driving conditions, such as very hot weather or a long period of uphill driving, the pointer may rise to the upper white mark. If it reaches the red " H" (Hot) mark, pull safely to the side of the road. Turn to page 181 for instructions and precautions on checking the engine's cooling system.

Instruments and Controls

Main MenuTable of ContentsstControls Near the Steering Wheel

INSTRUMENT PANEL BRIGHTNESS

CRUISE CONTROL

HAZARD WARNING LIGHT

REAR WINDOW DEFOGGER

MOONROOF

The two levers on the steering column contain controls for driving features you use most often. The left lever controls the turn signals, headlights, and high beams. The right lever controls the windshield wipers.

The rear window defogger switch is on the dashboard to the right of the steering column.

The controls under the left air vent are for the moonroof, mirrors, cruise control and instrument panel brightness.

The lever on the underside of the steering column allows you to tilt the steering wheel.

MIRROR CONTROLS

Instruments and Controls

HEADLIGHTS/ TURN SIGNALS

TILT ADJUSTMENT

WINDSHIELD WIPERS/WASHERS

Main MenuTable of ContentsstControls Near the Steering Wheel

Headlights

The rotating switch on the left lever controls the lights. Turning this switch to the first position " " turns on the parking lights, tail lights, instrument panel lights, side-marker lights, and rear license plate lights. Turning the switch to the second position "

" turns on the headlights.

To change between low beams and high beams, pull back on the turn signal lever until you hear a click, then let go. The blue high beam indicator will light (see page 37).

To flash the high beams, pull back and hold the turn signal lever. Release the lever and the high beams will go off.

The high beams will stay on for as long as you hold the lever, no matter what position the headlight switch is in.

Daytime Running Lights (Canadian Models) With the headlight switch off, the high beam headlights come on with reduced brightness when you turn the ignition switch to ON (II) and release the parking brake. They remain on until you turn the ignition off, even if you set the parking brake.

The headlights revert to normal operation when you turn them on with the switch.

Instruments and Controls

Main MenuTable of ContentsstControls Near the Steering Wheel

Instrument Panel Brightness

Turn Signals

To signal a lane change, push lightly on the turn signal lever in the proper direction and hold it. The lever will return to the center position as soon as you release it.

The dial on the dashboard to the left of the instrument panel controls the brightness of the instrument panel lights. Turn the dial to adjust the brightness.

TURN SIGNAL LEVER

Signal a turn or lane change with this lever. Push down on the lever to signal a left turn, and up to signal a right turn. If you push it up or down all the way, the turn signal continues to blink even when you release the lever. It shuts off automatically as you complete the turn.

Instruments and Controls

Main MenuTable of ContentsstWindshield Wipers

Windshield Washers

Controls Near the Steering Wheel

The right lever controls the wind- shield wipers and washers. The rotary switch at the end of the lever has three positions:

INT — intermittent LO — low speed HI— high speed

In intermittent, the wipers operate every few seconds. In low speed and high speed, the wipers run continu- ously.

To operate the wipers in mist mode, push the control lever down. The wipers run at high speed until you release the lever. This gives you a quick way to clear the windshield.

To clean the windshield, pull back on the wiper control lever. The washers spray until you release the lever.

On Canadian models The wipers run at low speed while you're pulling the lever, then complete one more sweep of the windshield after you release it.

Instruments and Controls

Main MenuTable of ContentsstControls Near the Steering Wheel

Hazard Warning

Rear Window Defogger

Make sure the rear window is clear and you have good visibility before starting to drive.

The defogger wires on the inside of the rear window can be accidentally damaged. When cleaning the glass, always wipe side to side.

Push the red button under the clock to turn on the hazard warning lights (four-way flashers). This causes all four outside turn signals and both indicators in the instrument panel to flash. Use the hazard warning lights if you need to park in a dangerous area near heavy traffic, or if your car is disabled.

The rear window defogger will clear fog, frost, and thin ice from the window. Push the defogger button to turn it on and off. The light in the button lights to show the defogger is on. If you do not turn it off, the defogger will shut itself off after about 25 minutes. It also shuts off when you turn off the ignition. You have to turn it on again when you restart the car.

Instruments and Controls

Main MenuTable of ContentsstSteering Wheel Adjustment You can adjust the steering wheel height to suit your preference. Do this before you begin driving.

Adjusting the steering wheel position while driving may cause you to lose control of the car and be seriously injured in a crash.

Adjust the steering wheel only when the car is stopped.

Controls Near the Steering Wheel

3. Move the steering wheel up or

down to the desired position. Position the wheel so you can see all the instrument panel gauges and warning lights. Push the lever up to lock the steering wheel in that position.

4. Make sure you have securely

locked the steering wheel in place by trying to move it up and down.

1. Adjust the seat so you are a

comfortable distance from the pedals.

2. The lever to tilt the steering wheel

is under the steering column to the left. Push this lever all the way down.

Instruments and Controls

Main MenuTable of ContentsstSteering Wheel Controls

Cruise Control Available only on LX and EX models in the U.S., and EX model in Canada Cruise control allows you to maintain a set speed above 25 mph (40 km/h) without keeping your foot on the accelerator pedal. It is for cruising on straight, open highways. It is not recommended for conditions such as city driving, winding roads, slippery roads, heavy rain, or bad weather. You should have full control of the car under those conditions.

Improper use of the cruise control can lead to a crash.

Use the cruise control only when traveling on open highways in good weather.

Instruments and Controls

NOTICE

Using the Cruise Control

The cruise control, as it operates, moves the accelerator pedal. You can damage your car's accelerator mechanism by resting your foot under the pedal and blocking the movement.

1. Push in the Cruise Control Master

Switch to the left of the steering column. The indicator in the switch will light.

2. Accelerate to the desired cruising

speed above 25 mph (40 km/h).

Main MenuTable of ContentsstChanging the Set Speed You can increase the set cruising speed in either of two ways:

Press and hold the RESUME/ accel button. The car will acceler- ate slowly. When you reach the desired cruising speed, release the button.

Push on the accelerator pedal. Ac- celerate to the desired cruising speed and press the SET/decel button.

Steering Wheel Controls

You can decrease the set cruising speed in either of two ways:

Press and hold the SET/decel button. The car will decelerate. Release the button when you reach the desired speed.

Tap the brake or clutch pedal lightly with your foot. The CRUISE CONTROL light on the instrument panel will go out. When the car slows to the desired speed, press the SET/decel button. The car will then maintain the desired speed.

CONTINUED

Instruments and Controls

RESUME/ accel

SET/decel

3. Press and hold the SET/decel

button on the steering wheel until the CRUISE CONTROL light on the instrument panel comes on. This shows the system is now activated.

The set speed may vary slightly, particularly on hills.

Main MenuTable of ContentsstSteering Wheel Controls

Even with the cruise control turned on, you can still use the accelerator pedal to speed up for passing. After completing the pass, take your foot off the accelerator pedal. The car will return to the set cruising speed.

Resting your foot on the brake or clutch pedal will cause the cruise control to cancel.

Instruments and Controls

Cancelling the Cruise Control Any of these actions cause the cruise control to cancel.

Tap the brake or clutch pedal.

Press the SET/decel and RE- SUME/accel buttons at the same time.

Press the Cruise Control Master Switch.

When you tap the brake or clutch pedal, or press the SET and RE- SUME buttons at the same time, the CRUISE CONTROL light on the instrument panel will go out and the car will begin to slow down. You can use the accelerator pedal in the normal way.

If you use the brake or clutch pedal to cancel cruise control, the system retains the previously-set cruising speed. To return to that speed, ac-

celerate to above 25 mph (40 km/h) and press the RESUME/accel button until the CRUISE CONTROL light comes on. The car will accelerate to the same cruising speed as before.

If you cancel cruise control by pressing the SET and RESUME buttons at the same time, the previously-set cruising speed is erased. To use the cruise control, accelerate to the desired cruising speed and press the SET/decel button.

Pressing the Cruise Control Master Switch turns the system completely off and erases the previous cruising speed from memory. To use the system again, refer to Using the Cruise Control.

Main MenuTable of ContentsstSteering Wheel Controls, Keys and Locks

Horn

Keys

HORN BUTTONS

KEY NUMBER PLATE

VALET KEY

MASTER KEY

On cars equipped with SRS, press either of the buttons on the steering wheel spokes to sound the horn. On other cars, press the pad in the center of the steering wheel.

Your car comes with two kinds of keys: a master key and a valet key. The master key fits all locks on your car:

Ignition Doors Trunk Trunk release handle Rear seat trunk access

The valet key only works the ignition and the door locks. You can keep the trunk, trunk release handle and rear seat trunk access locked when you leave your car and valet key at a parking facility. (See Trunk, page 52.)

You should have received a key number plate with your set of keys. You will need this key number if you ever have to replace a lost key. Store this plate in a safe place. When replacing keys, use only Honda-approved key blanks.

Instruments and Controls

Main MenuTable of ContentsstKeys and Locks

Ignition Switch

The ignition switch is on the right side of the steering column. It has four positions: LOCK (0), ACCES- SORY (I), ON(II), and START (III).

Instruments and Controls

LOCK (0) — You can insert or remove the key only in this position. When you turn the key from LOCK to ACCESSORY, you may have to turn the steering wheel to release the anti-theft lock. To switch from ACCESSORY to LOCK, you must push the key in slightly as you turn it. If your car has an automatic trans- mission, it must also be in Park. The anti-theft lock will lock the steering column when you remove the key.

Removing the key from the ignition switch while driving locks the steering. This can cause you to lose control.

Remove the key from the ignition switch only when parked.

ACCESSORY (I) — In this position, you can operate the audio system and cigarette lighter.

ON (II) — This is the normal key position when driving. All features and accessories on the car are usable. Several of the lights on the instru- ment panel come on as a test when you turn the ignition switch from ACCESSORY to ON (see page 33).

START (III) — Use this position only to start the engine. The switch returns to ON when you let go of the key.

You will hear a reminder beeper if you open the driver's door with the key in the LOCK or ACCESSORY position. Remove the key to turn it off.

Main MenuTable of ContentsstDoor Locks

The front doors can be locked and unlocked from the outside with the key.

Power Door Locks

Keys and Locks

Each door has a lock tab on the top. Push the tab down to lock the door and pull it up to unlock.

To lock any passenger's door when getting out of the car, push the lock tab down and close the door. To lock the driver's door, pull the outside door handle and push the lock tab down. Release the handle then close the door.

MASTER DOOR LOCK SWITCH Available only on LX and EX models in the U.S., and EX model in Canada This allows control of all door locks
