1991 Honda Civic Hatchback Sedan Owners Manual

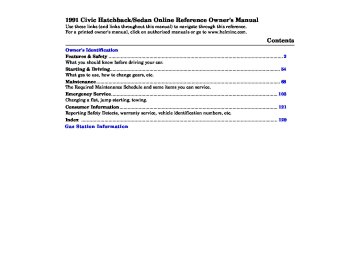

1991 Civic Hatchback/Sedan Online Reference Owner's Manual Use these links (and links throughout this manual) to navigate through this reference. For a printed owner's manual, click on authorized manuals or go to www.helminc.com.

Contents

Owner's Identification Features & Safety ................................................................................................................................ 2 What you should know before driving your car. Starting & Driving............................................................................................................................. 54
What gas to use, how to change gears, etc. Maintenance ....................................................................................................................................... 68
The Required Maintenance Schedule and some items you can service. Emergency Service .......................................................................................................................... 103
Changing a flat, jump starting, towing. Consumer Information .................................................................................................................... 121
Reporting Safety Detects, warranty service, vehicle identification numbers, etc. Index ................................................................................................................................................ 129 Gas Station Information

This Owner's Manual should be considered a permanent part of the vehicle, and must remain with the vehicle at time of resale.

OWNER'S I.D.

STATE

ZIP CODE

(Date sold to original retail purchaser)

DEALER NO.

STATE

ZIP CODE

OWNER

ADDRESS

CITY

V.I.N.

DELIVERY DATE

DEALER NAME

ADDRESS

CITY

OWNER'S SIGNATURE

DEALER'S SIGNATURE

The information and specifications included in this publication were in effect at the time of approval for printing. Honda Motor Co., Ltd. reserves the right however, to discontinue or change specifications or design at any time without notice and without incurring any obligation whatever.

Main MenustIntroduction

This manual contains operation and maintenance of your car.

important

information about

the safe

We urge you to read it carefully, become familiar with the controls it describes, and follow its recommendations, to help make your driving trouble-free and enjoyable.

Statements or labels on the product preceded by the following words are of special significance:

indicates severe personal injury or death will result if instructions are not followed.

indicates a strong possibility of severe personal injury or death if instructions are not followed.

means hazards or unsafe practices which could cause minor personal injury or product or property damage.

NOTE:

gives helpful information.

Break-in Period During the first 600 miles (1,000 km) of driving, avoid full throttle starts and cruising for extended periods at a constant speed.

NOTE:

This break-in procedure also applies to exchanged or overhauled engines. During and after the break-in period, drive the car at moderate speeds until the engine is fully warmed up.

During the first 200 miles (300 km), try to avoid severe braking. Brake misuse during this period will reduce future braking efficiency.

Remember, your Honda Automobile dealer knows your car best, and should be consulted for service assistance and advice.

Main MenustKeys and Locks

Keys (Hatchback) Your car is supplied with two identical keys that fit the ignition and all locks. You should keep one of them in a safe place, away from the car, as a spare.

(Sedan) Your car is supplied with a master key that fits the ignition and all locks, and a valet key that fits the ignition and doors but not the trunk or trunk remote release. The valet key is provided for times when you must leave the key with a parking attendant or repair person, but still want to keep valuables safely locked-up.

Write down the numbers stamped on your keys and keep the information in your wallet or purse in case you ever need to have duplicates made. The keys are double edged, so you can insert them in the locks with either edge up.

Door Locks (Hatchback) You can lock the doors by pushing the tabs forward.

(Sedan) You can lock the doors by pushing the tabs down.

The doors must be unlocked before you can open them. The passenger doors can be locked when open, and will stay locked when you close them; the driver's door cannot be locked when open unless you hold the door handle open. The front doors can be locked and unlocked from the outside with the key.

Hatchback

Sedan

Unlock Lock

Unlock lock

Lock

Unlock

(cont'd)

Main MenustKeys and Locks (cont'd)

Power Door Locks (LX/EX Sedan) All doors can be simultaneously locked and unlocked by operating the master door lock switch.

MASTER DOOR LOCK SWITCH

In addition, the passenger doors will lock automatically when the lock tab on the driver's door is pushed down, or when the driver's door is locked from the outside with the key.

LOCK

LOCK

Main MenustHatch/Trunk Lid Lock (Hatchback) To open the hatch from outside, put the ignition key in the lock and turn clockwise. The hatch can be opened by pulling up the lever at the left side of the driver's seat. (Sedan) The trunk can be opened by pulling up the lever at the left side of the driver's seat. To open the trunk lid from the outside, put the master key in the lock and turn clockwise. The trunk lid opener lever is lockable with the master key.

MASTER KEY

Pull up

Open

Keep the hatch/trunk lid closed while driving, to keep poisonous carbon monoxide exhaust fumes out of the interior; prolonged exposure can cause unconsciousness that may lead to death.

Child Proof Door Locks (Sedan) The child proof door locks are designed to prevent accidental open- ing of the rear doors. To activate the locks, push down the lock tabs located on each door, then close the doors. When the doors are locked in this way, they can only be opened from the outside.

Unlock

Lock

LOCK TAB

Main MenustSeats

Front Seat Adjust the seat position by pulling up on the adjustment lever under the front edge of the seat cushion, and sliding the seat to the desired position. Then release the lever and make sure the seat is locked in position by moving it back and forth.

Pull up

ADJUSTMENT LEVER

The angle of the seat-back can be changed by pulling up on the lever at the outside edge of the seat and leaning forward or back. Release the lever and let the seat lock into place when it reaches the desired angle. Seat belts are most effective when the driver and passenger are sitting up straight and well back in each seat.

Pull up

RELEASE LEVER

Do not adjust the driver's seat while the car is moving; the seat could move suddenly, causing loss of vehicle control. To reduce the risk of siding under the seat belts in a collision, the seat-backs should be reclined no more than is necessary for comfort.

Main MenustTo Get In/Out of Rear Seat (Hatchback) The right front seat has a release lever within easy reach of rear passengers: push it forward to release the seat- back for access to or from the rear seat. The driver's seat will also tilt forward by husing the seat angle lever.

Head Restraints The head restraints are designed to help reduce injuries due to whiplash. They are located at the top of each seat-back. The front head restraints have several height positions. They can be adjusted by pulling up to the recommended position. To lower them, slide the button next to the restraint's height bar, while pushing the restraint down. (Sedan only) The rear head restraints have also several height positions. Adjust so the top of the restraint is approximately level with the tops of your ears. If a head restraint must be removed (for cleaning, fabric repair, etc.) pull the restraint up to its highest position, then slide the button while pulling the restraint out. To reinstall, reverse the above procedure.

Slide

Do not drive the car with head restraints removed. Do not try to adjust head restraints while driving.

(cont'd)

Main MenustSeats (cont'd)

Rear Seat (Hatchback) If you need more luggage space, the rear seat-back can be folded down. Pull the release on the top of the seat-back down.

the seat-back and

fold

RELEASE

Trunk Access from Rear Seat (Sedan) The rear seat-back can be released by turning the lock on the rear shelf with the master key and pulling down the top of the seat-back. This allows you access to the trunk and makes it possible to carry long objects inside the car. The rear seat-back can also be released from inside the trunk by pulling the release.

Passengers or pets must not sit on the folded portion of the rear seat. Make sure any luggage or cargo within the trunk, or extending through the rear seat trunk access is secured. Make sure the seat-back latches engage securely when the seat-back is returned to its normal position.

MASTER KEY

Open

RELEASE

Pull

When closing the rear seat trunk access, push the seat-back firmly into place, then pull on the top of the seat-back to make sure it is secure.

CAUTION: Make sure both rear shoulder belts are positioned in front of the rear seat-backs whenever the seat-backs are in their upright position.

Main MenustLuggage Cover (DX/Si Hatchback) You can reach the luggage compartment from either the outside or inside of the vehicle. To open the front part of the cover, pull the cover up. The rear part of the cover can be also opened merely by lifting up on it. If you need more luggage height with the seat-back upright, fold the rear section of the cover forward or slide the latches on both sides to the rear and lift the cover out.

LATCH

Weight limits shown on the label located in the glove box must be observed. The total weight of passengers and cargo must not exceed the total weight limit on the label.

(Except STD Hatchback)

Do not store any items on the shelf behind the rear seat; they may become dangerous projectiles in a collision.

(Hatchback only)

Make sure the seat-back latches engage securely when the seat-back is returned to its normal position. When transporting luggage or other cargo, do not pile it higher than the front seats. This precaution will help prevent such items from becoming dangerous projectiles in an accident. Cargo weight should be distributed as far forward as possible for better vehicle handling.

(Sedan only)

Store any luggage or cargo in the trunk. If you are carrying more items than will fit in the trunk, use the floor space between the front and rear seats.

Main MenustSeat Belts

Your Honda is provided with seat belts to minimize the chance of injury to yourself and your passengers in a sudden stop or accident. For precautions on using seat belts for children, babies and pregnant women, see pages 21 — 25. Seat belts are most effective when the driver and passengers are sitting up straight and well back in the seat.

In the event of a collision, occupants not wearing seat belts could be seriously or fatally injured. Make sure you and all your passengers ALWAYS put on the seat belts before driving away.

CAUTION: Be careful the seat helts are not damaged by catching or entangling in the door or seat mechanism.

NOTE: The front seat belt restraint system is different on the car you use. See pages 11 through 14 for the automatic ("passive") shoulder belt system on the Sedan. See pages 15 through 18 for the automatic ("passive") lap/shoulder belt system on the Hatchback.

Main Menust[Sedan] Wearing the Front Seat Belts The front seats have automatic ("passive") restraint systems consisting of shoulder belts and knee bolsters. For your safety, the manual lap belts must be worn together with the automatic shoulder belts. The shoulder belts must remain permanently latched. The automatic and manual belts have emergency locking retractors designed to lock only during a sudden stop or impact. Otherwise, they allow some freedom of movement in the seat.

Operation 1.Enter the car and close the door completely. Move the seat a comfortable distance the steering wheel, sit straight up and well back in the seat.

from

Never drive the car with the doors ajar. The front doors must be closed completely for the front seat belts to function properly.

2. Turn the ignition ON. The shoulder belt buckle will move to its rear locked position. The length of the shoulder belt will adjust automatically to your body and seating position. Make sure the shoulder belt goes over your shoulder and across your body to evenly distribute the belt's restraining force. If the belt is too near your neck and throat, move toward the center of the seat.

Normal movement of the shoulder belt buckle may cause injury. Be sure all parts of your body, especially fingers and hands, are clear of the shoulder buckle while it is moving.

(cont'd)

Main MenustSeat Belts (cont'd)

CAUTION: If the sunvisor is positioned near the door area, movement of the seat belt buckle can damage the sunvisor. Before opening or closing a front door, turning the ignition on or removing the key from the ignition, make sure the sunvisor is returned to its clip above the windshield.

NOTE:

If the door is not closed completely, the shoulder belt buckle will not move and the door warning light will come on (see page 14 ). If the door is opened with the ignition on, the buckle will release itself from its locked position and move forward. If the shoulder belt buckle stops halfway or does not move at all, see page 113 for shoulder belt buckle operation.

3. Take hold of the lap belt's tongue plate and pull it from its

retractor. Be sure the belt is not twisted or caught on anything.

NOTE: If pulled too fast, the belt will lock. If this happens, allow the belt to retract then pull it out more slowly.

4. Push the tongue plate into the buckle until it clicks locked. Position the belt across your lap, low on your hipbone and below your abdomen. This way, if the car is involved in an accident you would be less likely to slide under the seat belts.

Pull the belt across your lap

Keep below hip bone

TONGUE PLATE

Avoid placing the lap belt across your abdomen. In the event of a collision, the pressure of the belt on the abdomen may increase the extent of injury.

Main MenustNever use one belt for more than one person, child or adult. Comfort clips sold on the open market are not recommended since they could impair the function and safety of the belts. Make sure the strap of the shoulder belt and the lap belt are not crossed. Do not wear the shoulder portion of the belt under your arm or out of position. Such use could increase the chance and amount of injury in an accident.

Releasing the Seat Belts 1.To release the manual lap belt, push the "PRESS" button in the

buckle, the belt should retract automatically when released.

2. The driver's shoulder belt buckle will release and travel to its off

position when the key is removed from the ignition.

3. The shoulder belt buckle will also release and travel to its off

position when the door is opened.

Emergency Belt Release The shoulder belt should always re- main buckled. In case of an emergen- cy, however, the shoulder belt can be released from the shoulder belt buckle by pushing the button.

Push

Relatch the shoulder belt before operating the car, making sure the belt is not twisted.

Driving with a twisted seat belt can increase your chance and extent of injury during a collision. Be sure the shoulder belt is not twisted before driving the car.

(cont'd)

Main MenustSeat Belts (cont'd)

the

light and

Fasten Seat Belt Warning Light and Warning Beeper Lap Belt Warning Indicator: Both the warning beeper will go on for about six seconds if the ignition switch is turned on when the driver's lap belt is not fastened. The beeper will not go on if the driver's lap belt is fastened, but the warning light will come on for about six seconds each time, to remind the driver to have passengers put their belts on.

Automatic Shoulder Belt Warning Indicator: The warning light will come on if either of the automatic shoulder belts is unlatched with the ignition ON. The beeper will sound for approximately six seconds while the warning light is ON. Related the belt: the light should go off when the belt is latched. The warning light will also come on while the shoulder belt buckle moves from its front off position to its rear locked position.

Automatic Shoulder Belt Malfunction Indicator: The warning light will flash and the beeper will sound rapidly if either shoulder belt buckle stops before completing its full cycle (see page 113 for normal operation).

NOTE: If the shoulder belt's tensioner mechanism locks and prevents the buckle from moving fully forward when you want to get out, recycle the system by closing the door and reopening it. The buckle should move fully forward; if it does not, recline the seat-back and use Emergency Belt Release (see page 13 ). When the system does not function by either method, have the system checked by an authorized Honda dealer.

If the light and beeper do not function at all or if they come on even with the belts latched and doors fully closed, it indicates a malfunction in the seat belt system. In the event of a collision, severe personal injury could result. The system should be checked immediately by an authorized Honda dealer.

Main Menust[Hatchback] Wearing the Front Seat Berts The automatic ("passive") lap/shoulder belt systems with emer- gency locking retractors are designed to lock only during a sudden stop or impact. Otherwise, they allow you some freedom of move- ment in the seat. The lap/shoulder belt must remain permanently latched.

NOTE: The motion sensing lock mechanisms for the front belts are located in each door. Therefore, if a door is opened too quickly, the belt may lock and the door cannot be opened further. If this happens, close the door and open it again more slowly.

Enter the car and close the door completely. If a door is not completely closed, the warning lights in the ceiling and in the instrument panel will come on and the beeper will sound when the ignition switch is turned on (see page 17). The driver's seat should be moved to a comfortable distance from the steering wheel. Sit straight up and well back in the seat. The seat belt should fit snugly against your body. The shoulder portion of the belt should go over your shoulder and across your body to evenly distribute the belt's restraining force. Check that the lap portion of the belt is positioned low on your hipbone and below your abdomen. This way, if the car is involved in an accident, you will be less likely to slide under the seat belts. If the belt is too near your neck and throat, move toward the center of the seat.

Never drive the car with the doors ajar. The front doors must be closed completely for the front seat belts to function properly.

(cont'd)

Main MenustSeat Belts (cont'd)

Too high

Keep below hip bone

Avoid placing the lap belt across your abdomen. In the event of a collision, the pressure of the belt on the abdomen may increase the extent of injury. Do not wear the shoulder portion of the belt under your arm or out of position. Such use could increase the chance and amount of injury in an accident. Never use one belt for more than one person, child or adult. Comfort clips sold on the open market are not recommended since they could impair the function and safety of the belts.

Emergency Belt Release The front belts should remain permanently latched. However, an emergency release button is provided as shown.

EMERGENCY RELEASE BUTTON

TONGUE PLATE

BUCKLE

Main MenustFront Seat Belt Warning Light and Warning Beeper There are four warning lights in the car. Two of them are in the instrument panel and the other two lights are in the ceiling behind the rearview mirror. Each warning light will go on for about two seconds, when the ignition switch is turned on.

PASSENGER'S BELT UNLATCHED

DRIVER'S BELT UNLATCHED

EITHER DOOR OPEN

DRIVER'S BELT UNLATCHED

WARNING LIGHT

WARNING LIGHT

Si Hatchback only

Warning Light Indicators

Either Door Open

The warning light in the instrument panel will come on when the ignition is switched on. The beeper will also sound for approximately six seconds. Confirm which door is open and close the door completely, the lights will go out. If either door is opened while the car is being driven, the beeper and all four warning lights will come on and stay on. If this happens, pull off the highway, stop the car immediately and close whichever door is open. The warning lights and beeper should go off.

(cont'd)

Main MenustSeat Belts (cont'd)

Driver's Belt Unlatched

The warning lights in the ceiling and in the instrument panel will come on and stay on if the driver's belt is not latched. The beeper will sound for approximately six seconds when the ignition is turned on. Relatch the belt; the light should go off.

Front Passenger's Belt Unlatched

The warning light in the ceiling will come on and stay on if the front passenger's seat belt is not securely latched, the beeper sound for approximately six seconds. Relatch the belt; the light should go off.

If the lights and beeper do not function at all or if they come on even with the belts latched and doors fully closed, it indicates a malfunction in the seat belt system. In the event of a collission, severe personal injury could result. The system should be checked immediately by an authorized Honda dealer.

Main MenustBuckling the Rear Seat Belts In the rear seat, there are two one-piece combination lap/shoulder belts and a center lap belt. The seat-backs and seat belts provide best restraint when the occupant is sitting well back and straight up in the seat. The right and left rear seat belts are one-piece combination lap/ shoulder belts with an emergency locking retractor designed to lock only during a sudden stop or impact. Otherwise, they allow you some freedom of movement in the seat.

NOTE: The emergency locking system of the rear seat belts will also be activated if you pull the belt too fast. If this happens, release the belt slightly then pull it out more slowly.

1.Take hold of the tongue plate and pull the belt across your lap. Be

sure the belt is not twisted or caught on anything.

Pull the belt across your lap

Too high

Take up slack

TONGUE PLATE

Keep below hip bone

2. Push the tongue plate into the buckle until it clicks locked.

The seat belt should fit snugly against your body. The shoulder portion of the belt should go over your shoulder and across your body to evenly distribute the belt's restraining force. Check that the lap portion of the belt is positioned low on your hipbone and below your abdomen. This way, if the car is involved in an accident, you will be less likely to slide under the seat belts. If the belt is too near your neck and throat, move toward the center of the seat.

Avoid placing the lap belt across your abdomen. In the event of a collision, the pressure of the belt on the abdomen may increase the extent of injury.

(cont'd)

Main MenustSeat Belts (cont'd)

3. To release the seat belt, push the " PRESS" button in the buckle; the belt should retract automatically when released. If the belt does not fully retract, pull it out and check for kinks or twists.

CAUTION: Make sure both rear shoulder belts are positioned in front of the rear seat-backs whenever the seat-backs are in their upright position.

Rear Center Seat Belt Adjust the center lap belt length to fit snugly but comfortably when buckled. A slack belt will greatly reduce the protection afforded to the wearer. Hold the tongue plate perpendicular to the belt as shown. * To shorten, pull the end of the belt away from the tongue plate. * To lengthen, pull the tongue plate. Push the tongue plate into the buckle until it clicks locked. Position the belt across your lap, not your abdomen, as low on your hips as possible.

Avoid placing the lap belt across your abdomen. In the event of a collision, the pressure of the belt on the abdomen may increase the extent of injury.

BUCKLE

To shorten

To lengthen

TONGUE PLATE

Main MenustChild Restraint Children riding in the car should be restrained to minimize the risk of injury in an accident, sudden stop or sudden maneuver. According to accident statistics provided to the National Highway Traffic Safety Administration (NHTSA), children are safer when properly restrained in the rear seating positions than in the front seat. For smaller children, we strongly recommend the use of a commercially available child restraint system that meets the Federal Motor Vehicle Safety Standard (FMVSS) because it offers the most protection against injury. All states now have laws which require that small children must be seated in a child passenger seat restraint system. Check local laws. Before buying a particular child restraint system, make sure it fits your car seat and seat belts, and fits your child. Follow the child seat manufacturer's instructions when installing the seat.

Children who have outgrown the child restraint system should use one of the seat belts.

Make sure the belt is snug against the child's body with the shoulder portion going over the shoulder and across the body to evenly distribute the belt's restraining force. Check that the lap portion of the belt is positioned low on the child's hipbone and below the abdomen. This way if the car is involved in an accident, the child would be less likely to slide under the seat belts. If the belt is too close to the child's neck or throat, you may want to consider putting the child in an automobile booster seat that meets the Federal Motor Vehicle Safety Standard (FMVSS).

Children should never ride unrestrained in an automobile. Never use an infant carrier or child safety seat that "hooks" over a seat-back; it may not provide adequate security in an accident. Never allow a child to be held in a person's arms while they are in a moving vehicle. Holding a child in a moving vehicle does not provide the child with any means of protection during an accident, even if the person holding the child is wearing a seat belt.

(cont'd)

Main MenustSeat Belts (cont'd)

[Hatchback] Installation of Child Seat All child restraint systems are designed to be secured by lap belts or the lap belt portion of a lap-shoulder belt. Children could be endangered in a crash, if their child restraints are not properly secured. Follow the child seat manufacturer's instructions when installing the seat.

is equipped with attachment points Your Honda automobile specifically for a rear seat mounted child restraint system which uses a top tether. The tether attachment points are located on the rear panel beside the taillight bulb inspection cover.

The automatic lap/shoulder restraint system at the front passenger seat cannot be used to secure a child restraint system. Instead, an optional lap belt must be installed specifically for securing a child restraint system. Two anchor points have been provided behind the front passenger seat for installation. The optional lap belt is available from your Honda dealer.

Main MenustTo Install A Child Seat 1. Remove the anchor point plugs with a coin or a screwdriver and install the optional lap belt with the fasteners that came with the belt.

2. Once the optional lap belt

is installed, follow the instructions that came with the child restraint system for proper attachment.

ANCHOR POINTS

PLUGS

Do not use the automatic lap/shoulder belt to secure the child seat. It will not give enough protection to the child seat and the child on it. The optional lap belt is for a child seat only. Do not use it for any other purpose. When the child restraint system is not in use, remove it from the car or secure it with the seat belt to keep it from becoming a projectile in the event of an accident.

NOTE:

See your Honda dealer for installation of the optional lap belt or the child restraint system. When not in use, make sure the optional lap belt does not get caught in the passenger's door or seat mechanism.

(cont'd)

Main MenustSeat Belts (cont'd)

[Sedan] Installation of Child Seat All child restraint systems are designed to be secured by lap belts or the lap belt portion of a lap-shoulder belt. The automatic shoulder belt system at the front passenger seat should not be used to secure the child restraint system. If a child seat must be installed on the front seat, place the shoulder portion of the belt behind the child seat and secure the child seat with the lap belt only. Children could be endangered in a crash, if their child restraints are not properly secured. Follow the child seat manufacturer's instructions when installing the seat.

Your Honda automobile is equipped with attachment points specifically for a rear seat mounted child restraint system which uses a top tether. The tether attachment points are located on the rear tray, just behind the rear seat-back.

When the child restraint system is not in use, remove it from the car or secure it with the seat belt to keep it from becoming a projectile in the event of an accident.

NOTE: See your Honda dealer for installation of the child restraint system.

Main MenustPregnant Women A pregnant woman should use the shoulder and lap belts to help lessen the chance of injury and/or the amount of injury in an accident.

It is desirable that a pregnant woman ask her doctor at each medical check-up if she can drive, and also ask about the most appropriate way of wearing the lap/shoulder belt. Lap belts should be worn as low and snugly as possible over the hips.

Inspection All parts of the seat belts, including the belt fabric, should be regularly inspected for fraying, loosening, wear and other damage. Keep the belts in good condition at all times to reduce the chance of being injured in an accident, and to minimize any injuries that do occur. Make sure the buckles, retractors, tongue plates, guides and anchors all work properly.

Don't let anything get inside the buckle or the retractor; it could cause latch or retractor failure.

Cleaning The belts should always be kept clean and dry; wet or damp belts can cause rewinding problems. To clean the belts, pull them all the way out of their retractors and use warm water and a mild soap; then let them air-dry fully extended, in the shade, with the car windows open.

Never bleach, dye or clean the belts with chemical solvents; it will weaken the fabric. Do not remove the seat belts from the car to wash them.

Replacement Replace the seat belt if: 1. The belting is cut, punctured, burned, etc. 2.The buckle or retractor does not work properly. 3. It was being worn at the time of a collision (also check for

deformation damage at all seat belt anchor points).

4. Its condition is questionable.

Main MenustInstrument Panel

CRUISE CONTROL MASTER SWITCH (LX/EX Sedan)

REAR WINDOW DEFOGGER SWITCH

HAZARD WARNING LIGHT SWITCH

WIPER/ WASHER SWITCH

DIGITAL CLOCK (Si Hatchback and LX/EX Sedan)

HOOD RELEASE HANDLE

FUSE BOX

ASHTRAY

POWER MIRROR ADJUSTMENT SWITCH (LX/EX Sedan)

LIGHT SWITCH/ TURN SIGNAL/ HI/LO BEAM SWITCH

HORN BUTTON

IGNITION SWITCH

PANEL BRIGHTNESS CONTROL DIAL

GLOVE BOX

HEATING/ COOLING CONTROL PANEL

CIGARETTE LIGHTER (Except for STD Hatchback)

Main MenustSi Hatchback and LX/EX Sedan

TACHOMETER

SHIFT LEVER POSITION INDICATOR (Automatic Trans. only)

ODOMETER

FUEL GAUGE

SPEEDOMETER

COOLANT TEMPERATURE GAUGE

TRIP METER

TRIP METER RESET BUTTON

STD/DX Hatchback and DX Sedan

SHIFT LEVER POSITION INDICATOR (Automatic Trans. only)

SPEEDOMETER

ODOMETER

COOLANT TEMPERATURE GAUGE

FUEL GAUGE

TRIP METER

TRIP METER RESET BUTTON

Main MenustGauges

Speedometer The speed is indicated in miles per hour (outside scale) and kilometers per hour (inside).

Odometer The numbers on the odometer indicate miles. The odometer registers total distance traveled, and serves as your guide for determining when periodic maintenance is due. Federal law makes it illegal to alter the odometer of any motor vehicle with the intent to change the number of miles indicated.

Trip Meter The numbers on the trip meter indicate miles. The trip meter can be returned to zero by pushing in the reset button. Use it for checking fuel consumption or distance traveled per trip.

Tachometer (Si Hatchback and LX/EX Sedan) The tachometer indicates engine speed in revolutions per minute. The beginning of the RED ZONE indicates the maximum allowable engine R.P.M. Do not run the engine with the tachometer indicator needle in the RED ZONE.

(11.9 US gal ,9.9 Imp gal)

Fuel Gauge FUEL TANK CAPACITY: 45 As a convenience, the gauge continues to show the same fuel level as when the ignition was last on. After refueling, the gauge will slowly change to the new fuel level when the ignition is switched on. When the needle first indicates E (empty), you have a usable reserve left in the tank of about:

(1.1 US gal, 0.9 Imp gal)

Coolant Temperature Gauge CAUTION: The needle should stay within the white range. If the needle reaches the red line at " H" (Hot), pull safely off the road, stop the engine and check the coolant level in the reserve tank on the driver's side of the radiator under the hood.

Do not remove the radiator cap when the engine is hot. The coolant is under pressure and may blow out and scald you.

Main MenustWarning and Indicator Lights

Si Hatchback and LX/EX Sedan

STD/DX Hatchback and DX Sedan

Shift Lever Position Indicator (Automatic Transmission only) A lighted indicator between the fuel and coolant temperature gauges shows which gear you have selected.

Turn Signal/Hazard Warning Indicator Lights

When the turn signal lever is pushed for left or right turns, the appropriate green indicator arrow on the instrument panel will blink along with the signal. Pushing the hazard warning switch will make all turn signals and both arrows blink (see page 37 ).

Headlight High Beam Indicator Light

This blue indicator light will go on whenever the high beams are switched on (see page 36 ).

(cont'd)

Main MenustWarning and Indicator Lights (cont'd)

DX Sedan

STD/DX Hatchback

Oil Pressure Warning Light

The oil pressure warning light will come on, and remain on, if there is insufficient oil pressure or when the ignition switch is turned on with the engine not running. If the light should come on while driving, get the car off the road as soon as you can, turn the engine off and check the engine oil level (see page 75 ). Even if the oil level is correct, the engine should be checked by a Honda dealer before the car is driven again.

NOTE: The oil pressure warning light will only light as a result of low oil pressure. It is not directly an oil level indicator.

CAUTION: Running the engine while the oil pressure warning light is on constantly may cause immediate and severe engine damage.

Charging System Warning Light

The charging system warning light comes on when there is a problem with the electrical charging system or when the ignition switch is turn- ed on with the engine not running. If the light comes on while driving, get off the road, stop the car and turn off the alternator belt for proper tension. To check the belt tension, push with about 98 N (22 Ib) of force on the middle of the belt as shown. The belt should deflect about: 9.0 — 11.0 mm (0.35 — 0.43 in)

ignition. Then check

the

If the engine has been running, some engine components may be hot enough to burn you.

NOTE: If necessary, have the charging system checked by an authorized Honda dealer.

Main MenustLX/EX Sedan

Si Hatchback

Check Engine Warning Light

This light comes on for a couple of seconds each time the ignition is turned on. It will also come on, and remain on, if there is a malfunction in the emission control system. If the light comes on while driving, avoid driving at high speed, and have the system checked by a Honda dealer as soon as possible.

BRAKE

Parking Brake/Brake Failure Warning Light

Check the brake warning light every time you start the car. With the parking brake set, the warning light should go on when the ignition switch is turned to II or III. With the parking brake released, the light should go on when the ignition switch is turned to III. If the light goes on at any other time, it means the brake fluid level in the master cylinder reservoir is too low; add fluid and have your dealer check for leaks and brake pad wear immediately. (See page 84 )

(Hatchback) /

Seat Belt Reminder Light

The seat belt reminder light comes on when the ignition switch is turned on (see pages 14 and 17 ).

Hatch/Trunk-open Indicator Light

This light will go on when you turn on the ignition switch if the hatch/trunk is not fully closed. CRUISE CONTROL

Cruise Control Indicator Light (LX/EX Sedan)

When the cruise control system is on, this indicator light is on (see page 39 ).

DOOR

Door Warning Light (Sedan)

If a door is open when the ignition is switched on, this light will go on and stay on until the door is closed.

Main MenustTilt Steering

Tilt Steering (DX/Si Hatchback and Sedan) The steering wheel position can be adjusted to suit the driver preference.

1. Push the lever located on the left side of the steering column all the way down and hold it while ad- justing the steering wheel to the desired position.

2. Hold the steering wheel in the desired position and pull the lever all the way up to lock it in place.

Push down

Pull up

Do not adjust the steering wheel position while driving. After adjusting the steering wheel position, make sure it is securely locked in place by "rocking" it up and down slightly.

Main MenustWindshield Wipers/Washer/Defogger

Windshield Wipers (DX/Si Hatchback and Sedan) Switch the wipers to INT for inter- mittent operation; LO for low speed operation; and HI for high speed operation. (INT: Except STD Hatchback)

In fog or very light rain, push the lever down to the MIST position for temporary high speed operation of the wipers. The wipers will return to the rest position and the motor will shut off as soon as you release the lever.

Windshield Washer Pull the wiper switch lever toward you to turn on the washer. Check the washer fluid regularly, especially during bad weather or whenever the washer has been in frequent use.

Push down

PULL

WASHER FLUID RESERVOIR

WINDSHIELD WASHER RESERVOIR CAPACITY: 2.5

(2.6 US q t, 2.2 Imp qt)

Use a good quality commercial washer fluid for all-weather cleaning.

(cont'd)

Main MenustWindshield Wipers/Washer/Defogger (cont'd)

CAUTION:

Do not use radiator antifreeze in the windshield washer; it will damage the paint. Do not use a vinegar/water combination in the windshield washer; it will damage the pump. Prolonged operation of the washer without fluid may damage the pump.

In freezing weather, warm the windshield with the defrosters before using the washer. This will help prevent icing which could seriously impair visibility.

Rear Window Wiper/Washer (DX/Si Hatchback) Switch to "ON" to activate the rear wiper. Turn and hold the switch one more step clockwise to " to activate the washer and wiper; or turn and hold the switch one step counterclockwise to activate the washer only. The rear washer uses the same fluid reser- voir as the front washer.

"OFF"

from

WIPER

WASHER

Rear Window Defogger Push the switch to turn the de- fogger on or off. The indicator will light when the defogger is on. The switch will turn off automat- ically 25 minutes after it is turned on.

CAUTION: When cleaning the inside of the rear window, be careful not to damage the printed heater wires on the rear window. Wipe the window horizontally along the wires, not up and down.

INDICATOR

Push

Main MenustMirrors

Rearview Mirrors Keep the inside and outside mirrors clean and adjusted for best visibility. Be sure to adjust mirror angles before you start driving. The inside mirror has day and night positions. The night position re- duces glare from the headlights of vehicles behind you. Flip the small tab on the bottom of the mirror forward or backward to select day or night position. The outside mirror can be adjusted by moving the knob on the inside of the driver's door.

DAY/NIGHT ADJUSTMENT TAB

ADJUSTMENT KNOB

On the LX and EX Sedan: With the ignition switch in the "I I" position, move the main switch to L (for driver's side) or R (for passenger's side), then use the adjustment switch to adjust the outside mirror to the correct angle. After the mirrors have been adjusted, return the main switch to the center (off) position.

MAIN SWITCH

NOTE: Be sure to adjust mirror angles before you start driving.

ADJUSTMENT SWITCH

Main MenustLights

RIGHT TURN

FIRST STOP

Turn Signals Push the turn signal lever down to signal a left turn, and up for a right turn. The indicator and appropriate signal lights will blink. The lever will return automatically to its original position when the steering wheel is returned to straight ahead. For lane changing, you can signal by pushing the lever part way up or down (to the first stop) and holding it there; the lever will return to its original position when you release it. If either turn signal indicator lights up but does not blink, blinks faster than usual or does not light up at all, check for a burned out bulb or fuse.

FIRST STOP

LEFT TURN

Headlights Turn the light switch to the first position ( ) for taillights, side marker lights, position lights, license plate lights, and instrument panel lights. Turn to the second position

) to add the headlights.

FIRST POSITION

Turn

SECOND POSITION

High Beam/Low Beam Switch The headlights may be switched between low beam and high beam by pulling lever towards you. The blue high beam indicator light will be on when the high beam is on.

turn signal

the

Headlight Flasher To flash the headlights, pull lightly on the turn signal lever and release.

Pull and release

Main MenustHazard Warning System This system should be used only when your car is stopped under emergency or hazardous conditions. To activate, push the hazard warn- ing switch ( ). The front and rear turn signals will blink simultaneously and both indicator lights will flash. Push the switch ( the system off.

) again to turn

Push

Panel Brightness Control When the light switch is in either of the two "ON" positions, the intensi- ty of the instrument lights can be adjusted by turning the panel bright- ness control dial.

Interior Light The interior light has a three posi- tion switch. The light is off all the time in the OFF position. In the mid- dle position, it goes on only when a door is opened. In the ON position, it is on all the time.

ON

OFF

DOOR ACTIVATED

(cont'd)

Main MenustLights (cont'd)

Luggage Area Light (Except for STD Hatchback) (Hatchback) The luggage area light has a two-position switch. In the first position it is OFF all the time, in the second position it goes ON only when the hatch or trunk lid is opened.

(Sedan) The trunk compartment light goes on when the trunk lid is opened.

Hatchback

ON

OFF

Main MenustCruise Control

(LX/EX Sedan)

Cruise Control The Cruise Control system allows you to set and automatically maintain any speed above 25 mph (40 km/h) without keeping your foot on the accelerator. As its name implies, it is meant for cruising on straight, uncongested highways or freeways. It is not recommended to be used in traffic, on winding roads or in bad weather conditions where the driver should have total control.

Push

To Set the Cruise Control: Push the CRUISE CONTROL master switch on the dash; the indicator light will come on. Accelerate to the desired speed, then push and release the SET switch on the steering wheel. The Cruise Control light on the instru- ment panel will come on. The speed you were going when you released the SET switch is the speed the Cruise Control will hold. You can then "fine tune" the set speed by briefly holding and releasing the SET switch to decrease it a few mph or pushing the RESUME switch to slightly increase it.

the

To Cancel the Cruise Control: Simply push the CRUISE CONTROL master switch and indicator light will go off (this also erases the memory of the set speed). If you must temporarily disengage the system (but you wish to retain the memory of the set speed): tap the brake pedal, or the clutch pedal (manual transmission) or move the automatic transmission shift lever to N (Neutral). If you are still going above 25 mph (40km/h), you can return to the set speed by simply pushing the RESUME switch. If the car has decelerated below approximately 25 mph (40 km/h),you can return to the set speed by using the accelerator conventionally until your speed is above 25 mph (40km/h) and then pushing the RESUME switch.

Push

(cont'd)

Main MenustCruise Control (cont'd)

To Change the Set Speed: To a faster speed — For gradual acceleration with your foot off the accelerator, push and hold the RESUME switch until you reach the desired speed; release the switch and the system's memory will be re-programmed to the new speed.

For faster acceleration, push the accelerator until you reach the desired speed, then push and release the SET switch to re-program the system.

To a slower speed — push and hold the SET switch and the car will coast; when you reach the desired slower speed, release the switch and the system will be re-programmed.

For temporary acceleration above the set speed, such as for passing, use the accelerator pedal conventionally. When you want to return to the set speed, take your foot off the accelerator and coast without applying the brakes.

The Cruise Control automates the function of the accelerator pedal to maintain your car at a constant speed. This can be a convenience on long trips, but it can also be a danger if there are many other cars on the road or if the road is unfamiliar. Pay strict attention to the responsibility of driving whenever using the Cruise Control.

CAUTION: Because the Cruise Control directly activates the accelerator pedal, don't rest your foot under the pedal when the Cruise Control is on; it may pull the pedal down onto your foot.

NOTE:

With Cruise Control on, your speed will still vary slightly, particularly when going up or down hills. Do not drive with your foot on the brake or clutch pedal (manual transmission), as this will cause the Cruise Control to disengage.

Main MenustTo open, pull back on the handle under the left side of the dash.

Hood

Pull to release

The hood latch is spring-loaded, so the hood will pop up slightly. Release the safety catch under the front center of the hood by pushing the rubber-tipped handle up. Lift the hood and prop it open with the support rod. To close, take the support rod down, and return it to its clip , then lower the hood until it is approximately one foot from the closed position, then let it drop. Be sure the hood is securely latched before driving away.

Push up

SUPPORT ROD

Main MenustClock, Glove Box and Parking Brake

Digital Clock (Si Hatchback and LX/EX Sedan) The time is displayed continuously when the ignition is on. At all other times, push in on the lid to display the time. To adjust the time: 1. Lower the lid. 2. Push the minute button (MIN.) and hold it until the numbers advance to the desired minutes.

3. Push the hour button (HOUR) and hold it until the numbers advance to the desired hour.

4. The RESET button allows you to synchronize your clock to the closest hour. If the time on the clock is before the half hour, pressing the RESET button will return the time to the previous hour. If the time is beyond the half hour, the RESET button will change the time to the next hour.

LID

NOTE: Be careful not to push the HOUR, MIN. or RESET buttons acciden- tally. Pushing any of them will change the clock's time setting.

Glove Box Open by pushing the knob as shown. Close with a firm push.

Push

Do not drive the car with the glove box door open; it could cause injury in an accident.

Parking Brake To apply the parking brake, pull up on the lever. To release it, pull up slightly, push the button, and lower the lever; when fully released, the BRAKE warning light will go out.

Pull up

Main MenustPower Windows (LX/EX Sedan)

DRIVER'S SWITCH

MAIN SWITCH

The power windows can be oper- ated only when the ignition switch is in the "II" position. The operation of the windows is controlled by the main switch lo- cated in the master control panel on the driver's door. When the main switch is off, only the driver's door window can be opened and closed. When the main switch is on, all door windows can be opened and closed by the driver, using the appropriate switch in the master control panel, and the passenger windows can be opened and closed by the passen- gers, using the switch located on each passenger door. When opening or closing a window, push and hold either the " u p" or "down" side of the switch until the window reaches the desired posi- tion, then release.

Close

Open

NOTE: The driver's window can be opened fully, without the driver having to hold the switch down, simply by pushing the switch past the first "stop."

Be sure, before closing any window, that all hands, arms and other obstructions are clear of the window frame and glass; severe personal Injury could result. Always keep the main switch in the off position when children are in the car; injury may result from unintentional window operation.

Main MenustCigarette Lighter and Ashtrays

Cigarette Lighter (Except STD Hatchback) Push in to heat up. It will automati- cally release when the element is hot. DO NOT hold it in while it is heating up, it may overheat and damage the lighter and the heating element.

Push

Front Ashtray Open the ashtray by pulling its bot- tom edge toward you. To remove it, pull it out further while pushing down on the spring loaded plate inside. To install, reverse the removal pro- cedure.

PLATE

Rear Ashtray The rear ashtray is located at the rear of the center console. It is opened by pulling out the top edge. To remove it, open the ashtray and release its bottom edge by pulling up, then out. To install, reverse the removal procedure.

CAUTION: Do not use the ashtrays as trash containers; use them only for extinguished cigarettes. Putting lit cigarettes or matches in an ashtray with other combustible materials may cause a fire.

Main MenustHeating and Cooling

The vents, heater and air conditioner are combined in one system; adjusting four basic controls to different settings can provide a full range of interior temperatures for safe and comfortable driving. Air conditioner: optional

Ventilation The flow-through ventilation system can provide fresh air to the interior when the car is moving or stopped, even with the windows closed.

NOTE: For proper air flow, the flow-through vents must not be covered. Keep the air inlet at the base of the windshield free of leaves or other debris.

AIR INLET

AIR OUTLET

You can adjust the controls to direct cool or warm outside air throughout the car for defogging windows, heating, or cooling by turning on the fan.

(cont'd)

Main MenustHeating and Cooling (cont'd)

Dash Vents The corner vents can be used for flow-through ventilation, or for heating and air conditioning. When the car is moving, the driver's corner vent can also route fresh air directly from the outside by sliding the corner vent lever below it to the right and shutting it off from the heater and air conditioner system. The louvers in the corner and center vents can be tilted up or down and right or left, to change the direction of air flow.

SIDE DEFROSTER OUTLET

CENTER VENTS

CORNER VENT

WINDSHIELD DEFROSTER OUTLETS

CORNER VENT

CORNER VENT LEVER

REAR FLOOR OUTLETS (Sedan only)

FRONT FLOOR OUTLETS

Main MenustWhat the Controls Do:

TEMPERATURE CONTROL DIAL

RECIRCULATION LEVER

FAN SWITCH

FUNCTION LEVER

AIR CONDITIONER SWITCH and INDICATOR LIGHT (optional)

Fan Switch Switch the fan to low ( 1 ), medium ( 2 ), medium high ( 3 ) or high speed ( 4 ), to circulate warm, cool, or outside air, depending on where the temperature control dial and function levers are set.

Function Lever Slide the lever right or left to direct outside air or recirculated (inside) air to and from the heater, air conditioner and vents.

Temperature Control Dial Turn the dial clockwise to make air warmer with the function lever in any position.

Air Conditioner Switch (optional) With the fan on, push the A/C switch to operate the air conditioner; the indicator light will come on. Push the switch again to turn the air conditioner off.

(cont'd)

Main MenustHeating and Cooling (cont'd)

TEMPERATURE CONTROL DIAL

RECIRCULATION LEVER

FAN SWITCH

FUNCTION LEVER

AIR CONDITIONER SWITCH (optional)

Recirculation Lever Sliding the lever from the position shuts off outside air and recirculates the air inside the car. If the heater or air conditioner is on, and you want to warm up or cool down the interior more quickly, or keep smoke or dust out of the car without losing the heat or cool function, simply slide the lever to the

position to the

position.

NOTE: The windows may become fogged if the system is in the po- sition for an extended period of time with the air conditioner off. As soon as the interior is warmed, slide the lever to the posi- tion.

How to Use the Controls To Ventilate Turn the temperature control dial counterclockwise, slide the recirculation lever to the position and the function lever to the position. Switch the fan on and outside air will flow through the corner and center vents. To change air distribution, slide the function lever to the position, and outside air will also flow from the floor level outlet at the heater.

Main MenustTo Cool (with optional air conditioner) To cool the car down quickly, slide the recirculation lever to the position, start the engine, turn the temperature control dial counterclockwise all the way, switch the fan to high ( 4 ), push the A/C button in, and open the window briefly. Then close the windows and corner vents, slide the function lever to the po- sition so inside air will recirculate to the air conditioner for maximum cooling.

position and the recirculation lever to the

When the interior has cooled sufficiently, switch the fan to the desired speed, then slide the recirculation lever to to direct fresh (outside) air to the air conditioner. When using the air conditioner in heavy traffic, or while driving up long hills, watch the coolant temperature gauge: if the needle moves near the " H" end of the scale, turn the air conditioner off by pushing the A/C button; leave it off until the needle goes back into the middle of the scale.

(cont'd)

Main MenustHeating and Cooling (cont'd)

To Heat Switch the fan on, turn the temperature control dial clockwise, slide the function lever to the position and the recirculation lever to the position, and warmed (outside) air will begin flowing from the floor outlets.

To warm up the interior quickly, slide the recirculation lever to the

position so inside air will recirculate to the heater.

po- The windows may become fogged if the system is in the sition for an extended period of time. As soon as the interior is warmed, slide the lever to the

position.

To Dehumidify (with optional air conditioner) Because an air conditioner dehumidifies as it works, you can use it in cool or cold weather to help defog the windows. Just switch the fan on, push the A/C button, select the desired function and adjust the temperature control dial to a comfortable setting.

NOTE: This setting is desirable for most operating conditions in ambient temperatures above approximately 32°F (0°C).

Main MenustTo Defrost To defrost or defog the windshield and door windows, turn the temoerature control dial clockwise, slide the function lever to the

(defrost) position, and switch the fan on.

If there is actual frost on the windows, first select the tion. If the windows are fogged, select the will then flow from the windshield and side defroster vents.

position. Warmed air

posi-

To Turn Everything OFF Slide all levers to the left, turn the temperature control dial counterclockwise all the way, and push the A/C switch off.

NOTE: This setting should only be used in cold weather for the first few minutes of driving to prevent cold air from blowing into the cabin. Under normal operating conditions, the fan should always be kept ON to prevent the accumulation of stale air in the system.

Main MenustSunroof (Si Hatchback)

Sunroof To open the sunroof, push and hold the the sunroof, push and hold the when the roof gets to the position you want. Do not hold the switch on after the sunroof has fully opened or closed, or you may damage the sunroof motor.

switch. To close switch. Release the switch

POP-UP WIND DEFLECTOR

Close

Open

Do not allow any part of your body to extend through the sunroof while the vehicle is in motion. In the event of a collision or sudden application of the brakes, severe personal injury could result. To avoid the possibility of injury while closing the sunroof, never allow any part of your body to extend through the opening.

CAUTION: Operating the sunroof in severe cold or when it is covered with snow or ice may cause damage to the sunroof.

Sunshade As well as the sunroof, there is a sliding sunshade which you can adjust to let in light with the roof closed, or to block out light entirely. The sunshade automatically opens as you open the sunroof.

SLIDING GLASS

SUNSHADE

Main MenustIf the Sunroof Won't Close The sunroof can be closed manually, if the control switch will not close it.

SOCKET

1. Remove the round plug near the

rear center of the headliner.

2. Insert the sunroof wrench (from.

the tool kit) into the socket.

Remove plug

SUNROOF WRENCH

3. Turn the wrench counterclockwise until the roof closes and seats

into its locked position (about ten turns).

4. Replace the plug.

Maintenance Periodically pour a little water down the drain holes to make sure they are not plugged. If they are free, water should drop on the ground behind each front wheel.

DRAIN HOLES

CAUTION: Do not put weight on the sunroof or force it open or closed, you may damage the mechanism.

Main MenustGasoline

For proper operation of your car's emission controls, your engine is designed to use unleaded fuel only.

CAUTION: Using leaded or even low-lead gasoline could damage some of your emission controls, and also void their coverage under the emission controls warranty.

Use gasoline from pumps labeled unleaded, with a pump octane number of 86 or higher. The pump octane number is an average of the Research (R) octane and Motor (M) octane numbers. Use of a lower octane gasoline can cause persistent, heavy "spark knock" (a metallic rapping noise), which can lead to engine damage if severe.

CAUTION: If you notice steady spark knock while holding a steady speed on a level road, try changing brands of gasoline. If the spark knock persists, consult your Honda dealer. Failure to do so is considered misuse, and misuse is not covered under the New Car Warranty.

Occasionally you may notice light spark knock while accelerating or driving up hills. This is no cause for concern, it simply means your engine is running at its most economical.

Gasoline Containing Alcohol If you decide to use a gasoline containing alcohol ("gasohol"), be sure its octane rating is at least as high as that recommended for unleaded gasoline. There are that containing ethanol, and that containing methanol. Do not use gasohol that contains more than 10% ethanol. Do not use gasoline containing methanol (methyl or wood alcohol) that does not also contain cosolvents and corrosion inhibitors for methanol. Never use gasoline containing more it has cosolvents and corrosion inhibitors.

than 5% methanol, even

types of "gasohol":

two

if

NOTE.

Fuel system damage or vehicle performance problems resulting from the use of such fuels is not covered under the new car warranties. Honda cannot endorse the use of fuels containing methanol since evidence of their suitability is as yet incomplete. Before purchasing fuel from an unfamiliar station, try to confirm whether the fuel contains alcohol, of what kind, and how much. If you notice any undesirable operating symptoms after using a gasoline that contains alcohol; or one that you think contains alcohol, switch to an unleaded gasoline, as recommended above.

Main MenustOperation In Foreign Countries In order to comply with U.S. Federal Emissions Regulations, you must use unleaded fuels of the recommended octane rating. These fuels may not be available in other countries. If you intend taking your car outside the U.S. or Canada, write to American Honda Consumer Affairs (stating the year and model of your car) at the address below for information regarding modifications you may need to have done.

American Honda Motor Co., Inc. Consumer Affairs 1919 Torrance Blvd. Torrance, CA 90501-2722

Fuel Filler Door and Cap

Gasoline is extremely flammable and is explosive under certain conditions. Perform this operation in a wel-ventilated area with the engine stopped. Do not smoke or allow open flames or sparks in the area or where gasoline is stored.

The fuel filler door is opened by pulling up on the lever at the left side of the driver's seat. The door will lock automatically when closed; push it until it clicks.

CAUTION: You may hear a hiss when you open the filler cap. This sound is residual pressure escaping from the fuel tank. Open the cap slowly and remove the cap after the hissing stops. Fuel spray may cause injury. Do not overfill the tank; fill only until the gas pump clicks off automatically and never top off.

Pull up

Open

Close

(cont'd)

Main MenustGasoline (cont'd)

Fuel vapor is extremely hazardous under certain conditions. Always stop the engine before refueling, and never refuel near sparks or open flames.

CAUTION: When reinstalling the fuel cap, be sure both tabs on the cap are engaged in the slots of the filler neck and turn the cap until it stops. If you replace the cap, use only a genuine Honda replacement part or its equivalent. Failure to use the proper part could cause serious fuel system problems.

How to Improve Your Gas Mileage:

Drive at a smooth, steady pace to avoid unnecessary decele- rations and stops — accelerating back to speed uses more fuel. Plan trips to avoid rush hour traffic if possible. Make sure the parking brake is completely released. Consolidate trips whenever possible. Keep vehicle weight to a minimum by removing unnecessary items from the luggage area. Whenever possible, use fresh air from the dash vents to keep cool when driving; open windows, or use of the optional air conditioning both affect fuel economy. Keep the tires adjusted to the recommended pressure. Tire Pressure (measured cold): STD Hatchback

DX Hatchback

Si Hatchback

DX Sedan

LX Sedan

EX Sedan

front rear front rear front rear front rear front rear front rear

240 kPa (35 psi) 220 kPa (32 psi) 220 kPa (32 psi) 220 kPa (32 psi) 195 kPa (28 psi) 195 kPa (28 psi) 220 kPa (32 psi) 220 kPa (32 psi) 180 kPa (26 psi) 180 kPa (26 psi) 180 kPa (26 psi) 180 kPa (26 psi)

Condition of Your Car You can only get maximum fuel economy if your car is in top running condition. Have all required maintenance done at the proper intervals. Check tire pressures and tire wear frequently. If tire wear is uneven, have the alignment checked by your Honda dealer. Proper alignment saves gasoline and prolongs tire life.

Main MenustIgnition Switch

The combined ignition switch/anti-theft lock is located on the right side of the steering column and has four positions:

0-LOCK position: The key can be removed or inserted in this position. To remove the key, push it in at position I, then turn it to 0 and pull it out. When the key is removed, the steering column will lock.

NOTE: On cars equipped with automatic transmissions, the transmission must be in Park before pushing and turning the key to the 0-LOCK position.

Never turn the ignition switch to the lock position or remove the key while the car is in motion; the steering wheel can lock causing a loss of directional control, and an accident could result.

I-ACCESSORY position: In this position, the accessory circuit is on, but the ignition circuit is off. If the key is difficult to turn from the 0 to the I position, turn the steering wheel slightly to relieve pressure on the lock.

II-ON position: This is the normal running position.

III-START position: The starter will engage when the key is

turned to this position.

To remind you to remove the ignition key when leaving your car, a beeper will sound if the key is still in the ignition when you open the driver's door. The beeper system is deactivated when you turn the ignition to 0 (Lock) and fully remove the key.

Main MenustStarting the Engine

Before Starting

Manual Transmission: 1. Apply the parking brake. 2. Push the clutch pedal all the way in (see NOTE below). 3. Shift the transmission to neutral.

NOTE: On cars equipped with manual transmissions, the engine will not crank unless the clutch pedal is fully depressed.

Automatic Transmission: 1. Make sure the shift lever is in Park (P). 2. Apply the parking brake and the foot brake.

NOTE:

When starting in cold weather, keep all unnecessary electrical circuits off (lights, defogger, etc.) for the best battery output. Do not crank the engine for more than 15 seconds at a time. Wait 10 seconds before going to the next step.

Starting the Engine 1. With your foot off the accelerator start the engine by turning the

key to the III position.

2. If the engine won't start within 15 seconds or starts but fails to continue to run, push the accelerator pedal halfway, and hold it there while cranking the engine. Once the engine starts, release the accelerator gradually as the engine speeds up.

3. If it doesn't start within 15 seconds, push the accelerator pedal down to the floor and hold it there while cranking in order to clear flooding. Try step 2 again.

Cold Weather at High Altitude Starting 1. When starting in cold weather at high altitude (above 8,000 feet), push the accelerator pedal about halfway and hold it there while cranking the accelerator gradually as the engine speeds up.

the engine starts, release

the engine. Once

2. If it doesn't start within 15 seconds, push the accelerator pedal down to the floor and hold it there while cranking in order to clear flooding. Try step 1 again.

NOTE: If the outside temperature is below freezing, or if your car has not been driven for several days, warm up the engine for a few minutes before driving.

Main MenustSafety Items

Before driving away, check that: The doors are closed properly. The mirrors are properly adjusted, and the windows clean. The driver and passengers are wearing properly adjusted seat belts. The head restraints are properly adjusted. The warning and indicator lights are operating properly. The brake pedal feels normal. All luggage and cargo is secured. Nothing is interfering with the driver's feet or blocking vision to the rear.

While driving remember to:

Always drive defensively; expect the unexpected. Reduce your speed during night hours and bad weather. Follow at a safe distance; don't tailgate. Get off the highway when you are tired; stop and take a rest.

When stopping for repairs:

Park the car well off the road. Turn on the hazard warning flasher. Use flares or other warning devices to warn other motorists.

After parking your car:

Apply the parking brake and shift to first gear if equipped with manual transmission, or PARK on automatic transmission equip- ped cars. Make sure the sunroof and windows are closed and the doors are locked. If parked on a hill: 1. Turn the front wheels away from the curb if facing uphill. 2. Turn the front wheels toward the curb if facing downhill. Never leave children unattended in a parked car. Take your keys.

Main MenustEngine Exhaust Gas Warning

A properly maintained car is your best protection against exhaust gas entering the passenger compartment. The exhaust system should be thoroughly inspected by a compe- tent mechanic whenever:

The car is raised for oil change. You notice a change in the sound of the exhaust. The exhaust system or the rear or underside of the car is damaged.

Avoid breathing exhaust gases. They contain carbon monoxide, which is a colorless, odorless gas that can cause loss of con- sciousness and eventual death. If you suspect that exhaust gas is entering the passenger compartment, have the cause deter- mined and corrected as soon as possible. If you must drive under these conditions, drive only with all windows fully open. Do not drive with the hatch/trunk lid open. An open hatch/trunk may draw exhaust gases into the passenger compartment. If you must drive with the hatch/trunk open, drive only with all the windows wide open. Do not run the engine in confined areas, such as garages, any longer than necessary to move the car in or out. If you must sit in a parked car with the engine running for more than a short time, adjust the heating/ventilation system as follows: 1.Set the function lever to the 2.Set the temperature control dial for best comfort. 3.Set the recirculation lever to the position. 4.Turn the fan to the highest speed.

position.

NOTE: To insure proper operation of the car's ventilation system, keep the front air inlet clear of snow, mud, leaves or other obstructions.

Main MenustShifting the 4 or 5 Speed

The fully synchronized manual trans- mission is very easy to shift up or down. When you slow down for traffic, steep hills, or corners, shift to a lower gear before the engine starts to labor. When descending steep grades, select a lower gear to help maintain a safe speed and to prevent the brakes from overheat- ing. When shifting, depress the clutch pedal fully, shift gears and then release the clutch gradually. Do not speed-shift; allow time for the gears to synchronize. To prevent grinding the gears when shifting into reverse, hold the clutch pedal depressed briefly before shifting, or shift the lever into one of the forward gears before selecting reverse. On 5 speed transmissions, a safety lockout prevents accidental shifting straight from 5th to Reverse.

Avoid rapid acceleration or sudden deceleration when either or both driving wheels are on a slippery surface. Decreased traction could cause loss of directional control.

free

Clutch Pedal Adjustment Clutch pedal to compensate for lining wear. There should be approximately 25 mm (1 in) of pedal free travel. If not, or if the clutch seems to slip or you have difficulty shifting, have your dealer check the clutch adjustment.

travel must be adjusted periodically

CAUTION:

Do not drive with your foot on the clutch pedal as this will cause premature wear of clutch components. Do not shift into reverse while the car is moving. Driving with the clutch pedal free travel improperly adjusted can cause premature wear of the clutch components.

(cont'd)

Main MenustShifting the 4 or 5 Speed (cont'd)

Recommended Shift Speeds For best fuel economy, and effective emission control, shift at the speeds shown:

STD Hatchback

DX Hatchback and Sedan

Si Hatchback

Main MenustMaximum Allowable Speeds The speeds shown below are the maximum at which the car can be driven or downshifted in each gear without over-revving the engine.

Main MenustShifting the Automatic

The automatic transmission shift lever has a locking mechanism to prevent accidental shifting into Reverse (R), Park (P) or 2nd (2). Also, an Automatic Shift Lock prevents you from shifting out of Park unless the brake pedal is already depressed and the ignition switch is in the II position. Push the button on the shift handle to shift into 2nd, Reverse or Park; depress the brake pedal and then push the button on the shift handle to shift out of Park.

: Depress the brake pedal first and push the button, then shift.

: Push the button, then shift. : Shift as desired.

Depress button

If you cannot shift out of Park with the brake pedal depressed and the ignition switch in the II position: 1.Turn the ignition switch off and

remove the key.

2. Insert the key in the Shift Lock Release located to the right of the shift lever.

3. Press and hold the key down, then press the button on the shift handle and move the shift lever to Neutral.

KEY

Insert
