2006 Ford Fusion Owners Manual

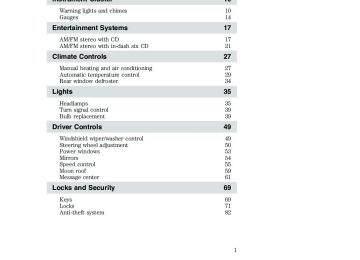

Table of Contents

10

10
14
17

17
21
27

27
29
34
35

35
39
39
49

49
50
53
54
55
59
61
69

69
71
82

Introduction

Instrument Cluster

Warning lights and chimes Gauges

Entertainment Systems

AM/FM stereo with CD AM/FM stereo with in-dash six CD

Climate Controls

Manual heating and air conditioning Automatic temperature control Rear window defroster

Lights

Headlamps Turn signal control Bulb replacement Driver Controls

Windshield wiper/washer control Steering wheel adjustment Power windows Mirrors Speed control Moon roof Message center

Locks and Security

Keys Locks Anti-theft system

2006 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

88

88
94
108
123
135

135
150
154
155
156

156
160
161
163
170

170
172
172
173
179
184
185
190
191

197
198

Table of Contents

Seating and Safety Restraints

Seating Safety restraints Airbags Child restraints

Tires, Wheels and Loading

Tire Information Vehicle loading Trailer towing Recreational towing

Driving

Starting Brakes Traction control Transmission operation

Roadside Emergencies

Getting roadside assistance Hazard flasher switch Fuel pump shut-off switch Fuses and relays Changing tires Lug Nut Torque Jump starting Wrecker towing

Customer Assistance

Reporting safety defects (U.S. only)

Cleaning

2006 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Maintenance and Specifications

Engine compartment Engine oil Battery Engine Coolant Fuel information Air filter(s) Part numbers Refill capacities Lubricant specifications Engine data Accessories

Index

Table of Contents

206

208
211
216
218
224
240
242
243
245
246
251

254

All rights reserved. Reproduction by any means, electronic or mechanical including photocopying, recording or by any information storage and retrieval system or translation in whole or part is not permitted without written authorization from Ford Motor Company. Ford may change the contents without notice and without incurring obligation.

Copyright © 2006 Ford Motor Company

2006 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Introduction

CALIFORNIA Proposition 65 Warning

WARNING: Engine exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to

the State of California to cause cancer and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

CONGRATULATIONS Congratulations on acquiring your new Ford. Please take the time to get well acquainted with your vehicle by reading this handbook. The more you know and understand about your vehicle, the greater the safety and pleasure you will derive from driving it. For more information on Ford Motor Company and its products visit the following website: • In the United States: www.ford.com • In Canada: www.ford.ca • In Australia: www.ford.com.au • In Mexico: www.ford.com.mx Additional owner information is given in separate publications. This Owner’s Guide describes every option and model variant available and therefore some of the items covered may not apply to your particular vehicle. Furthermore, due to printing cycles it may describe options before they are generally available. Remember to pass on this Owner’s Guide when reselling the vehicle. It is an integral part of the vehicle.

Fuel pump shut-off switch: In the event of an accident the safety switch will automatically cut off the fuel supply to the

engine. The switch can also be activated through sudden vibration (e.g. collision when parking). To reset the switch, refer to the Fuel pump shut-off switch in the Roadside Emergencies chapter.

SAFETY AND ENVIRONMENT PROTECTION

Warning symbols in this guide

How can you reduce the risk of personal injury to yourself or others? In this guide, answers to such questions are contained in comments highlighted by the warning triangle symbol. These comments should be read and observed.

2006 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Introduction

Warning symbols on your vehicle

When you see this symbol, it is imperative that you consult the relevant section of this guide before touching or attempting adjustment of any kind.

Protecting the environment We must all play our part in protecting the environment. Correct vehicle usage and the authorized disposal of waste, cleaning and lubrication materials are significant steps towards this aim. Information in this respect is highlighted in this guide with the tree symbol.

BREAKING-IN YOUR VEHICLE Your vehicle does not need an extensive break-in. Try not to drive continuously at the same speed for the first 1,000 miles (1,600 km) of new vehicle operation. Vary your speed frequently in order to give the moving parts a chance to break in. Do not add friction modifier compounds or special break-in oils during the first few thousand miles (kilometers) of operation, since these additives may prevent piston ring seating. See Engine oil in the Maintenance and Specifications chapter for more information on oil usage.

SPECIAL NOTICES

New Vehicle Limited Warranty For a detailed description of what is covered and what is not covered by your vehicle’s New Vehicle Limited Warranty, refer to the Warranty Guide that is provided to you along with your Owner’s Guide.

Special instructions For your added safety, your vehicle is fitted with sophisticated electronic controls.

Please read the section Supplemental restraint system (SRS) in the Seating and Safety Restraints chapter. Failure to follow the specific warnings and instructions could result in personal injury.

2006 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Introduction

Front seat mounted rear-facing child or infant seats should NEVER be placed in front of an active passenger airbag.

Service Data Recording Service data recorders in your vehicle are capable of collecting and storing diagnostic information about your vehicle. This potentially includes information about the performance or status of various systems and modules in the vehicle, such as engine, throttle, steering or brake systems. In order to properly diagnose and service your vehicle, Ford Motor Company, Ford of Canada, and service and repair facilities may access vehicle diagnostic information through a direct connection to your vehicle when diagnosing or servicing your vehicle. Event Data Recording Other modules in your vehicle — event data recorders — are capable of collecting and storing data during a crash or near crash event. The recorded information may assist in the investigation of such an event. The modules may record information about both the vehicle and the occupants, potentially including information such as: • how various systems in your vehicle were operating; • whether or not the driver and passenger seatbelts were buckled; • how far (if at all) the driver was depressing the accelerator and/or the • how fast the vehicle was traveling; and • where the driver was positioning the steering wheel. To access this information, special equipment must be directly connected to the recording modules. Ford Motor Company and Ford of Canada do not access event data recorder information without obtaining consent, unless pursuant to court order or where required by law enforcement, other government authorities or other third parties acting with lawful authority. Other parties may seek to access the information independently of Ford Motor Company and Ford of Canada.

brake pedal;

2006 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Introduction

Cell phone use The use of Mobile Communications Equipment has become increasingly important in the conduct of business and personal affairs. However, drivers must not compromise their own or others’ safety when using such equipment. Mobile Communications can enhance personal safety and security when appropriately used, particularly in emergency situations. Safety must be paramount when using mobile communications equipment to avoid negating these benefits. Mobile Communication Equipment includes, but is not limited to cellular phones, pagers, portable email devices, in-vehicle communications systems, telematics devices and portable two-way radios.

A driver’s first responsibility is the safe operation of the vehicle. The most important thing you can do to prevent a crash is to

avoid distractions and pay attention to the road. Wait until it is safe to operate Mobile Communications Equipment.

Middle East/North Africa vehicle specific information For your particular global region, your vehicle may be equipped with features and options that are different from the ones that are described in this Owner’s Guide; therefore, a supplement has been supplied that complements this book. By referring to the pages in the provided supplement, you can properly identify those features, recommendations and specifications that are unique to your vehicle. Refer to this Owner’s Guide for all other required information and warnings.

2006 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Introduction

These are some of the symbols you may see on your vehicle.

Vehicle Symbol Glossary

Safety Alert

See Owner’s Guide

Fasten Safety Belt

Airbag - Front

Airbag - Side

Child Seat

Child Seat Installation Warning

Child Seat Tether Anchor

Anti-Lock Brake System

Child Seat Lower Anchor

Brake System

Brake Fluid - Non-Petroleum Based

Powertrain Malfunction

Speed Control

Master Lighting Switch

Hazard Warning Flasher

Fog Lamps-Front

Fuse Compartment

Fuel Pump Reset

Windshield Wash/Wipe

Windshield Defrost/Demist

Rear Window Defrost/Demist

2006 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Introduction

Vehicle Symbol Glossary

Power Windows Front/Rear

Child Safety Door Lock/Unlock

Power Window Lockout

Interior Luggage Compartment Release Symbol

Panic Alarm

Engine Oil

Engine Coolant

Engine Coolant Temperature

Do Not Open When Hot

Battery

Avoid Smoking, Flames, or Sparks

Battery Acid

Explosive Gas

Fan Warning

Power Steering Fluid

Maintain Correct Fluid Level

MAX MIN

Emission System

Engine Air Filter

Passenger Compartment Air Filter

Jack

Check Fuel Cap

Low Tire Pressure Warning

2006 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

WARNING LIGHTS AND CHIMES

Standard instrument cluster

Optional instrument cluster Warning lights and gauges can alert you to a vehicle condition that may become serious enough to cause extensive repairs. A warning light may illuminate when a problem exists with one of your vehicle’s functions. Many lights will illuminate when you start your vehicle to make sure the bulbs work. If any light remains on after starting the vehicle, refer to the respective system warning light for additional information.

10

2006 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

Check engine: The Check Engine indicator light illuminates when the ignition is first turned to the ON position to check the bulb. Solid illumination after the engine is started indicates the On Board Diagnostics System (OBD-II) has detected a malfunction. Refer to On board diagnostics (OBD-II) in the Maintenance and Specifications chapter. If the light is blinking, engine misfire is occurring which could damage your catalytic converter. Drive in a moderate fashion (avoid heavy acceleration and deceleration) and have your vehicle serviced immediately by your authorized dealer.

Under engine misfire conditions, excessive exhaust temperatures could damage the catalytic converter, the fuel system, interior floor coverings or other vehicle components, possibly causing a fire.

Check fuel cap: Illuminates when the fuel cap may not be properly installed. Continued driving with this light on may cause the Check engine warning light to come on, refer to Fuel filler cap in the Maintenance and Specification chapter. Brake system warning light: To confirm the brake system warning light is functional, it will momentarily illuminate when the ignition is turned to the ON position when the engine is not running, or in a position between ON and START, or by applying the parking brake when the ignition is turned to the ON position. If the brake system warning light does not illuminate at this time, seek service immediately from your authorized dealer. Illumination after releasing the parking brake indicates low brake fluid level or a brake system malfunction and the brake system should be inspected immediately by your authorized dealer.

BRAKE

Driving a vehicle with the brake system warning light on is dangerous. A significant decrease in braking performance may

occur. It will take you longer to stop the vehicle. Have the vehicle checked by your authorized dealer.

11

2006 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

ABS

Anti-lock brake system (if equipped): If the ABS light stays illuminated or continues to flash, a malfunction has been detected, have the system serviced immediately by your authorized dealer. Normal braking is still functional unless the brake warning light also is illuminated. Airbag readiness: If this light fails to illuminate when ignition is turned to ON, continues to flash or remains on, have the system serviced immediately by your authorized dealer. A chime will also sound when a malfunction in the supplemental restraint system has been detected. Safety belt: Reminds you to fasten your safety belt. A chime will also sound to remind you to fasten your safety belt.

Charging system: Illuminates when the battery is not charging properly.

Engine oil pressure: Illuminates when the oil pressure falls below the normal range, refer to Engine oil in the Maintenance and Specifications chapter. Traction Control娂: Illuminates when the Traction Control娂 is active. If the light remains on, have the system serviced immediately, refer to the Driving chapter for more information. Low fuel (if equipped): Illuminates when the fuel level in the fuel tank is at or near empty (refer to Fuel gauge in this chapter).

12

2006 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

Speed control: Illuminates when the speed control is engaged. Turns off when the speed control system is disengaged.

Door ajar (if equipped): Illuminates when the ignition is in the ON position and any door or decklid is open. Anti-theft system: Flashes when the SecuriLock娂 Passive Anti-theft System has been activated.

Throttle Control/Transmission: Illuminates when a powertrain fault has been detected. Contact your authorized dealer as soon as possible. Turn signal: Illuminates when the left or right turn signal or the hazard lights are turned on. If the indicators flash faster, check for a burned out bulb. High beams: Illuminates when the high beam headlamps are turned on.

Key-in-ignition warning chime: Sounds when the key is left in the ignition in the OFF/LOCK or ACCESSORY position and the driver’s door is opened. Headlamps on warning chime: Sounds when the headlamps or parking lamps are on, the ignition is off (the key is not in the ignition) and the driver’s door is opened. Parking brake ON: Sounds when the parking brake is left ON and driven. If the warning stays on after the park brake is off, contact your authorized dealer as soon as possible.

13

2006 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

GAUGES

Speedometer: Indicates the current vehicle speed.

Engine coolant temperature gauge: Indicates engine coolant temperature. At normal operating temperature, the needle will be in the normal range (between “H” and “C”). If it enters the red section, the engine is overheating. Stop the vehicle as soon as safely possible, switch off the engine and let the engine cool.

Never remove the coolant reservoir cap while the engine is running or hot.

14

2006 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

Fuel gauge: Indicates approximately how much fuel is left in the fuel tank (when the ignition is in the ON position). The fuel gauge may vary slightly when the vehicle is in motion or on a grade. The FUEL icon and arrow indicates which side of the vehicle the fuel filler door is located. Refer to Filling the tank in the Maintenance and Specifications chapter for more information. Tachometer: Indicates the engine speed in revolutions per minute. Driving with your tachometer pointer continuously at the top of the scale may damage the engine.

Odometer: Registers the total miles (kilometers) of the vehicle. • Without Message Center

• With Message Center Refer to Message Center in the Driver Controls chapter on how to switch the display from Metric to English.

15

2006 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

Trip odometer: Registers the miles (kilometers) of individual journeys. • Without Message Center Tap on the button to toggle the display between the trip and the odometer. Holding the TRIP/RESET button for two seconds or more will reset the trip odometer to zero. • With Message Center Press and release the message center INFO button until “TRIP” appears in the display (this represents the trip mode). Press the control again to select Trip A and Trip B features. Press and hold the RESET button for two seconds to reset.

16

2006 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

AUDIO SYSTEMS

AM/FM Single CD/MP3 sound system (if equipped)

Accessory delay: Your vehicle is equipped with accessory delay. With this feature, the window switches, radio and moon roof (if equipped) may be used for up to ten minutes after the ignition is turned off or until either front door is opened. Tuner: Press to 1. manually go up or down the radio frequency. Also use in menu mode to select various settings. 2. MUTE/Phone: Press to mute the playing media. Press again to return to the playing media. 3. MENU: Press to toggle through the following modes:

Setting the clock: If your vehicle is equipped with an in-dash clock, refer to Clock in the Driver Controls chapter for instructions on how to set the time.

17

2006 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

If your vehicle is not equipped with an in-dash clock, press MENU until to SET HOURS or SET MINUTES appears in the display. Press adjust the hours/minutes. Autoset: Allows you to set the strongest local radio stations without losing your original manually set preset stations for AM/FM1/FM2 . Press MENU to access. Use When the six strongest stations are filled, the station stored in preset 1
will begin playing. If there are less than six strong stations, the system will store the last one in the remaining presets.

to set.

Bass: Press

to adjust the bass setting.

Treble: Press

to adjust the treble setting.

Balance: Press speakers.

to adjust the audio between the left and right

to adjust. The recommended level is 1–3.

to adjust the audio between the front and rear

to toggle between Track and Folder modes when in Menu

Fade: Press speakers. Speed sensitive volume: Radio volume automatically changes slightly with vehicle speed to compensate for road and wind noise. Press MENU to access and use Level 0 (SPEED OFF) turns the feature off and level 7 is the maximum setting. Track/folder mode: Available only on MP3 discs in CD mode. Press mode. In Track mode, pressing the disc. In Folder mode, pressing within the selected folder. Compression: Brings soft and loud CD passages together for a more consistent listening level when in CD mode. Press MENU until compression status is displayed. Press 4. AUX: This control is not operational.

will scroll through all tracks on

will scroll only through tracks

to turn the feature on/off.

SEEK

SEEK

18

2006 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

5. SEEK next strong station or track.

: Press to access the

6. Play/Pause: Press to pause a CD that is playing. PAUSE will appear in the display. Press again to return to playback mode. 7. SHUFFLE: Press to play all tracks on the current CD/MP3 in random order. 8. FOLDER press to access next folder on MP3
discs, if available. 9. press to access the previous folder on MP3 discs, if available. 10. FF (Fast forward): Press to manually advance in a CD track.

FOLDER: In folder mode,

: In folder mode,

11. REW (Rewind): Press to manually reverse in a CD track.

12. Memory presets: To set a station: Select frequency band AM/FM1/FM2; tune to a station, press and hold a preset button until sound returns. You can save up to 18 stations, six in AM, six in FM1 and six in FM2. 13. TEXT/SCAN: Press and hold SCAN for a brief sampling of radio stations or CD tracks. Press again to stop. In CD/MP3 mode, press TEXT to display track title, artist name, disc title and file name (if available). 14. previous strong station or track.

SEEK: Press to access the

19

2006 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

15. AM/FM: Press to select AM/FM1/FM2 frequency band.

16. ON/OFF/Volume: Press to turn ON/OFF. Turn to increase/decrease volume. If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on. 17. CD: Press to enter CD mode. If a CD is already loaded into the system, CD play will begin where it ended last. If no CD is loaded, NO DISC will appear in the display. CD units are designed to play commercially pressed 4.75 in (12
cm) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Dirty, warped or damaged CDs, irregular shaped CDs, CDs with a scratch protection film attached, and CDs with homemade paper (adhesive) labels should not be inserted into the CD player. The label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels. Ballpoint pens may damage CDs. Please contact your authorized dealer for further information. 18. CD eject: Press to eject a CD. If there is no CD present, the display will read NO DISC.

19. CD slot: Insert a CD label side up.

20

2006 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

Premium/Audiophile AM/FM In-dash Six CD/MP3 sound system (if equipped)

Tune/Disc selector:

Accessory delay: Your vehicle is equipped with accessory delay. With this feature, the window controls, radio and moon roof (if equipped) may be used for up to ten minutes after the ignition is turned off or until either front door is opened. 1. Press and release to manually advance up/down the radio frequency or to access the next/previous disc. Press and hold for a fast advance through the radio frequencies or all loaded discs. Also use in menu mode to select various settings. 2. MUTE/Phone: Press to mute the playing media. Press again to return to the playing media. 3. MENU: Press to toggle through the following modes:

21

2006 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

SEEK

to find the desired

to turn RBDS ON or OFF.

or SCAN to search for FM radio

Setting the clock: If your vehicle is equipped with an in-dash clock, refer to Clock in the Driver Controls chapter for instructions on how to set the time. If your vehicle is not equipped with an in-dash clock, press MENU until to SET HOURS or SET MINUTES appears in the display. Press adjust. RBDS ON/OFF: Press Program Type: If RBDS is ON, press program type, then use stations broadcasting the desired program type. SHOW RBDS Info: If RBDS is ON, this allows you to display the name of the FM radio station or program type. Press to show program type, station name or none. RBDS (Radio Broadcast Data Signal): Allows you to search RBDS-equipped stations for the following music formats: Classical, Country, Jazz, Oldies, R&B, Religious, Rock, Soft, Top 40 and Information (Inform). RBDS is only available in FM mode. Autoset: Allows you to set the strongest local radio stations without losing your original manually set preset stations for AM/FM1/FM2 . Use When the six strongest stations are filled, the station stored in preset 1
will begin playing. If there are less than six strong stations, the system will store the last one in the remaining presets. Bass: Press to adjust the bass setting. Treble: Press Balance: Press speakers. Fade: Press speakers. Speed sensitive volume: Radio volume automatically changes slightly with vehicle speed to compensate for road and wind noise. Use to adjust. Recommended level is 1–3. Level 0 (SPEED OFF) turns the feature off and level 7 is the maximum setting. Occupancy mode: (Available on Audiophile radios only) Use select and optimize sound for ALL SEATS, DRIVERS SEAT or REAR SEATS.

to adjust the audio between the front and rear

to adjust the audio between the left and right

to adjust the treble setting.

to turn on/off.

to

22

2006 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

SEEK

to scroll through all tracks on the

to toggle between Track and Folder mode.

Track/Folder Mode: Available only on MP3 discs in CD mode. Press In Track Mode, press disc. In Folder mode, press selected folder. Compression: Brings soft and loud CD passages together for a more consistent listening level when in CD mode. Press MENU until compression status is displayed. Press 4. AUX: This control is not operational.

to scroll through tracks in the

SEEK

to turn the feature on/off.

5. Seek: Press to access the next strong station or track.

6. Play/Pause: Press to pause a CD that is playing. PAUSE will appear in the display. Press again to return to playback mode. 7. SHUFFLE: In CD/MP3 mode, press to play the tracks on the current disc in random order. 8. FOLDER press to access next folder on MP3
discs, if available. 9. press to access the previous folder on MP3 discs, if available. 10. FF (Fast forward): Press to manually advance in a CD track.

FOLDER: In folder mode,

: In folder mode,

11. REW (Rewind): Press to manually reverse in a CD track.

2006 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

23

Entertainment Systems

12. Memory presets: To set a station: Select frequency band AM/FM1/FM2; tune to a station, press and hold a preset button until sound returns. You can store up to 18 stations, six in AM, six in FM1 and six in FM2. 13. TEXT/SCAN: Press and hold SCAN for a brief sampling of radio stations or CD tracks. Press again to stop. In CD/MP3 mode, press TEXT to display track title, artist name, disc title and file name (if available). 14. previous strong station or track.

SEEK: Press to access the

15. AM/FM: Press to select AM/FM1/FM2 frequency band.

16. ON/OFF/Volume: Press to turn ON/OFF. Turn to increase/decrease volume. If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on. 17. CD: Press to enter CD mode. If a CD is already loaded into the system, CD play will begin where it ended last. If no CD is loaded, NO DISC will appear in the display. CD units are designed to play commercially pressed 4.75 in (12
cm) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Dirty, warped or damaged CDs, irregular shaped CDs, CDs with a scratch protection film attached, and CDs with homemade paper (adhesive) labels should not be inserted into the CD player. The label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels. Ballpoint pens may damage CDs. Please contact your authorized dealer for further information.

24

2006 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

18. LOAD: Press to load a CD. Press LOAD and a memory preset to load to a specific slot. Press and hold to autoload up to six CDs.

19. CD eject:Press to eject the current CD. To eject a specific CD, press Eject and the corresponding memory preset. Press and hold to autoeject all discs in the system. If there is no CD present, the display will read NO DISC. 20. CD slot: Insert a CD label side up.

GENERAL AUDIO INFORMATION Radio frequencies: AM and FM frequencies are established by the Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission (CRTC). Those frequencies are: AM: 530, 540–1700, 1710 kHz FM: 87.7, 87.9–107.7, 107.9 MHz Radio reception factors: There are three factors that can affect radio reception: • Distance/strength: The further you travel from a station, the weaker • Terrain: Hills, mountains, tall buildings, power lines, electric fences, traffic lights and thunderstorms can interfere with your reception. • Station overload: When you pass a broadcast tower, a stronger signal may overtake a weaker one and play while the weak station frequency is displayed.

the signal and the weaker the reception.

25

2006 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

CD/CD player care: Do: • Handle discs by their edges only. Never touch the playing surface. • Inspect discs before playing. Clean only with an approved CD cleaner

and wipe from the center out.

of time.

Don’t: • Expose discs to direct sunlight or heat sources for extended periods • Clean using a circular motion. CD units are designed to play commercially pressed 4.75 in (12
cm) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Dirty, warped or damaged CDs, irregular shaped CDs, CDs with a scratch protection film attached, and CDs with homemade paper (adhesive) labels should not be inserted into the CD player. The label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels. Ballpoint pens may damage CDs. Please contact your authorized dealer for further information. Audio system warranty and service: Refer to the Warranty Guide for audio system warranty information. If service is necessary, see your dealer or qualified technician.

26

2006 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Climate Controls

MANUAL HEATING AND AIR CONDITIONING SYSTEM (IF EQUIPPED) 1. Temperature selection: Controls the temperature of the airflow in the vehicle. 2. Air flow selections: Controls the direction of the airflow in the vehicle. See the following for a brief description on each control setting: MAX A/C: Distributes recirculated air through the instrument panel vents only to cool the vehicle. This re-cooling of the interior air is more economical and efficient. Recirculated air may also help reduce undesirable odors from entering the vehicle.

: Distributes air through the instrument panel vents. : Distributes air through the instrument panel vents and floor vents.

O (OFF): Outside air is shut out and the climate system is turned off.

: Distributes air through the floor vents. Note: You may notice a

small amount of air flowing from the demister and defroster vents.

: Distributes air through the windshield defroster vents, demisters

and floor vents.

: Distributes outside air through the windshield defroster and

select another mode.

demister vents. Can be used to clear thin ice or fog from the windshield. To exit 3. Rear defroster: Press to activate/deactivate rear window defroster. Refer to Rear window defroster in this section for more information. Recirculated air: Press to activate/deactivate air recirculation 4. in the vehicle cabin. Recirculated air may reduce the amount of time to cool down the interior of the vehicle and may also help reduce undesired odors from reaching the interior of the vehicle. Recirculation engages automatically with selection of MAX A/C or can be engaged manually in any other airflow selection except defrost. Recirculation may turn off automatically in all airflow selections except MAX A/C. 5. A/C: Press to activate/deactivate air conditioning. Use with recirculated air to improve cooling performance and efficiency. Engages automatically in MAX A/C, Cannot be disabled in MAX A/C mode.

(floor/defrost).

(defrost) and

27

2006 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Climate Controls

6. Fan speed adjustment: Controls the volume of air circulated in the vehicle.

Manual heating and air conditioning system operating tips • To reduce fog build up on the windshield during humid weather, place • To reduce humidity build up inside the vehicle: do not drive with the

the air flow selector in the

position.

airflow selector in the O (OFF) position or with recirculated air engaged and A/C off.

the windshield.

airflow to the back seats.

• Do not put objects under the front seats that will interfere with the • Remove any snow, ice or leaves from the air intake area at the base of • To improve the A/C cool down, drive with the windows slightly open • For maximum cooling performance (MAX A/C): In the MAX A/C mode: • Move the temperature control selector to the coldest setting. • Set the fan to the highest speed initially, then adjust to maintain

for 2–3 minutes after start up or until the vehicle has been “aired out.”

passenger comfort.

with A/C to provide

and

. Use

modes:

colder airflow.

passenger comfort.

In the • Move the temperature control selector to the coldest setting. • Select A/C and recirculated air • Set the fan to the highest speed initially, then adjust to maintain • To aid in side window defogging/demisting in cold weather: 1. Select 2. Select A/C. 3. Set the temperature control to full heat. 4. Set the fan speed to the highest setting. 5. Direct the outer instrument panel vents towards the side windows.

28

2006 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Climate Controls

Do not place objects on top of the instrument panel as these objects may become projectiles in a collision or sudden stop.

AUTOMATIC TEMPERATURE CONTROL (ATC) SYSTEM (IF EQUIPPED)

, A/C,

, and set the temperature to 60° F (16° C) and the

Temperature conversion: To switch between Fahrenheit and Celsius: If your vehicle is equipped with a full message center, refer to Setup menu in the Message center section of the Driver Controls chapter for more information. If your vehicle is equipped with a mini message center, see your authorized dealer for temperature conversion. MAX A/C setting: In order to achieve maximum cooling performance, press highest blower setting. 1. and demister vents. Can be used to clear thin ice or fog from the windshield. To exit 2. fan speed. To return to automatic fan operation, press AUTO. Rear defroster: Press to defrost the rear window. Refer to 3. R Rear window defroster in this section for more information. If your vehicle is equipped with both rear defroster and heated mirrors, the same button will activate both.

Defrost: Distributes outside air through the windshield defroster

Fan speed control: Press to manually increase or decrease the

select another mode.

29

2006 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Climate Controls

Recirculation control: Press to activate/deactivate air

4. recirculation in cabin. Recirculated air may reduce the amount of time to cool down the interior of the vehicle and may also help reduce undesired odors from reaching the interior of the vehicle. Recirculation can be (defrost). engaged manually in any other airflow selection except Recirculation may turn off automatically in all airflow selections except MAX A/C. 5. A/C control: Press to activate/deactivate air conditioning. Use with recirculated air to improve cooling performance and efficiency. Engages automatically in AUTO,

(floor/defrost).

(defrost) and

: Distributes air through the windshield defroster ducts, demister

6. outlets, and the front and rear seat floor ducts. The system will automatically provide outside air to reduce window fogging. 7.

: Distributes air through the floor and rear seat floor ducts.

: Distributes air through the instrument panel and center console

: Distributes air through the instrument panel and center console

8. registers (if equipped) and the front and rear seat floor ducts. 9. registers (if equipped). 10. Manual override controls: Allows you to manually select where airflow is directed. To return to full automatic control, press AUTO. 11. OFF: Outside air is shut out and the fan will not operate. 12. Temperature control: Controls the temperature in the cabin of the vehicle. Press to increase/decrease the temperature. 13. AUTO: To engage automatic temperature control, press AUTO and select the desired temperature using the temperature control. The system will automatically determine fan speed, airflow location, A/C on or off, and outside or recirculated air, to heat or cool the vehicle to reach the desired temperature. 14. EXT: Press to display outside temperature. Press again to display cabin temperature settings.

30

2006 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Automatic Temperature Control (ATC) system with heated seats (if equipped)

Climate Controls

, A/C,

, and set the temperature to 60° F (16° C) and the

Temperature conversion: To switch between Fahrenheit and Celsius: If your vehicle is equipped with a full message center, refer to Units (Fahrenheit/Celsius) in the Driver Controls chapter. If your vehicle is equipped with a mini message center, refer to Mini message center electronic compass temperature display in the Driver Controls Chapter. MAX A/C setting: In order to achieve maximum cooling performance, press highest blower setting. 1. and demister vents. Can be used to clear thin ice or fog from the windshield. To exit 2. fan speed. To return to automatic fan operation, press AUTO. Rear defroster: Press to defrost the rear window. Refer to 3. R Rear window defroster in this section for more information. If your vehicle is equipped with both rear defroster and heated mirrors, the same button will activate both.

Fan speed control: Press to manually increase or decrease the

Defrost: Distributes outside air through the windshield defroster

select another mode.

31

2006 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Climate Controls

Passenger heated seat control: Press to heat the passenger

: Distributes air through the windshield defroster ducts, demister

: Distributes air through the instrument panel and center console

: Distributes air through the floor and rear seat floor ducts. : Distributes air through the instrument panel and center console

4. seat. Press once to activate high heat (two indicator lights). Press again to activate low heat (one indicator light). Press again to deactivate the passenger heated seat. Note: The passenger heated seat will turn off automatically after 15 minutes of use. 5. outlets, and the front and rear seat floor ducts. The system will automatically provide outside air to reduce window fogging. 6. 7. registers (if equipped) and the front and rear seat floor ducts. 8. registers (if equipped). Driver heated seat control: Press to heat the driver seat. Press 9. once to activate high heat (two indicator lights). Press again to activate low heat (one indicator light). Press again to deactivate the driver heated seat. Note: The driver heated seat will turn off automatically after 15 minutes of use. 10. Manual override controls: Allows you to manually select where airflow is directed. To return to full automatic control, press AUTO. Recirculation control: Press to activate/deactivate air 11. recirculation in cabin. Recirculated air may reduce the amount of time to cool down the interior of the vehicle and may also help reduce undesired odors from reaching the interior of the vehicle. Recirculation can be engaged manually in any other airflow selection except (defrost). Recirculation may turn off automatically in all airflow selections except MAX A/C. 12. A/C control: Press to activate/deactivate air conditioning. Use with recirculated air to improve cooling performance and efficiency. Engages automatically in AUTO, 13. OFF: Outside air is shut out and the fan will not operate. 14. Temperature control: Press to increase/decrease the temperature in the vehicle cabin. 15. AUTO: To engage automatic temperature control, press AUTO and select the desired temperature using the temperature control. The system will automatically determine fan speed, airflow location, A/C on or off, and outside or recirculated air, to heat or cool the vehicle to reach the desired temperature.

(floor/defrost).

(defrost) and

32

2006 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

16. EXT: Press to display outside temperature. Press again to display cabin temperature settings.

Climate Controls

position.

the windshield.

engaged and A/C off.

airflow to the back seats.

the air flow selector in the

system OFF, or with recirculated air

Automatic Temperature Control (ATC) system operating tips • To reduce fog build up on the windshield during humid weather, place • To reduce humidity build up inside the vehicle, do not drive with the • Do not put objects under the front seats that will interfere with the • Remove any snow, ice or leaves from the air intake area at the base of • To improve the A/C cool down, drive with the windows slightly open for 2-3 minutes after start up or until the vehicle has been “aired out.” • For maximum cooling performance (MAX A/C): Automatic operation: • Press AUTO for full automatic operation. • Do not override A/C or • Set the temperature to 60° F (16° C). Override operation: • Select air distribution. • Select A/C and • Set the temperature to 60° F (16° C). • Set highest fan speed initially, then adjust to maintain comfort. In MAX A/C setting: • Move the temperature control to full cold. • Set highest fan speed initially, then adjust to maintain comfort. In • Move temperature control to full cold. • Select A/C and • Set highest fan speed initially, then adjust to maintain comfort.

(recirculated air). Use recirculated air with A/C

with A/C to provide colder airflow.

to provide colder airflow.

(panel/floor) modes:

(recirculated air). Use

(recirculated air).

(recirculated air)

(panel) or

33

2006 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

.

Climate Controls • To aid in side window defogging/demisting in cold weather: 1. Select 2. Select A/C. 3. Adjust the temperature control to maintain comfort. 4. Set the fan speed to the highest setting. 5. Direct the outer instrument panel vents towards the side windows. To increase airflow to the outer instrument panel vents, close the vents located in the middle of the instrument panel.

Do not place objects on top of the instrument panel as these objects may become projectiles in a collision or sudden stop.

REAR WINDOW DEFROSTER R The rear defroster control is located on the climate control panel and works to clear the rear window of fog and thin ice. The ignition must be in the 3 (RUN) position to operate the rear window defroster. The rear defroster turns off automatically after 10 minutes or when the ignition is turned to the 1 (LOCK) position. To manually turn off the defroster before 10 minutes have passed, push the control again. Do not use razor blades or other sharp objects to clean the inside of the rear window or to remove decals from the inside of the rear window. This may cause damage to the heated grid lines and will not be covered by your warranty.

34

2006 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Lights

HEADLAMP CONTROL Turns the lamps off. Turns on the parking lamps, instrument panel lamps, license plate lamps and tail lamps.

Turns the headlamps on.

Autolamp control The autolamp system provides light sensitive automatic on-off control of the exterior lights normally controlled by the headlamp control. • To turn autolamps on, rotate the • To turn autolamps off, rotate the

control counterclockwise to

control clockwise to

The autolamp system also keeps the lights on for a predetermined amount of time after the ignition switch is turned to LOCK. You can change the amount of time the lamps stay on by using the programming procedure that follows: Autolamps - Programmable exit delay Programmable exit delay allows the length of the autolamp exit delay to be changed. To program the auto lamp exit time delay: 1. Start with the ignition in the LOCK position and the headlamp control in the autolamp position. 2. Turn the headlamp switch to 3. Turn the ignition switch to RUN and then back to LOCK. 4. Turn the headlamp switch to the autolamp position. The headlamps will turn on.

35

2006 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Lights

5. Wait the desired amount of time for the exit delay you want (up to . The headlamps three minutes), then turn the headlamp switch to will turn off.

Foglamp control (if equipped) With the ignition on, the foglamps can be turned on when the headlamp control is pulled toward you and is in any of the following positions: • Parking lamps • Low beams • Autolamps (when active) The foglamps will not operate when the high beams are active.

Daytime running lamps (DRL) (if equipped) Turns the headlamps on with a reduced output. To activate: • the ignition must be in the ON position, • the headlamp control is in the OFF, autolamps or parking lamp • the transmission must be out of the Park position.

position and

Always remember to turn on your headlamps at dusk or during inclement weather. The Daytime Running Lamp (DRL) system

does not activate the tail lamps and generally may not provide adequate lighting during these conditions. Failure to activate your headlamps under these conditions may result in a collision.

36

2006 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Lights

OFF

High beams Push the lever toward the instrument panel to activate. Pull the lever towards you to deactivate.

Flash to pass Pull toward you slightly to activate and release to deactivate.

PANEL DIMMER CONTROL Use to adjust the brightness of the instrument panel and all applicable switches in the vehicle during headlamp and parklamp operation. Move the control to the full upright position, past detent, to turn on the interior lamps.

AIMING THE HEADLAMPS The headlamps on your vehicle are properly aimed at the assembly plant. If your vehicle has been in an accident the alignment of your headlamps should be checked by your authorized dealer.

37

2006 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Lights

ground

Vertical aim adjustment 1. Park the vehicle directly in front of a wall or screen on a level surface, approximately 25 feet (7.6 meters) away. • (1) 8 feet (2.4 meters) • (2) Center height of lamp to • (3) 25 feet (7.6 meters) • (4) Horizontal reference line 2. Measure the height of the headlamp bulb center from the ground and mark an 8 foot (2.5
meter) horizontal reference line on the vertical wall or screen at this height (a piece of masking tape works well). 3. Turn on the low beam headlamps to illuminate the wall or screen and open the hood. To see a clearer light pattern for adjusting, you may want to block the light from one headlamp while adjusting the other. 4. On the wall or screen you will observe an area of high intensity light. The top of the high intensity area should touch the horizontal reference line, if not, the beam will need to be adjusted using the next step.

5. Locate the vertical adjuster on each headlamp. Using a Phillips #2
screwdriver, turn the adjuster either clockwise (to adjust down) or counterclockwise (to adjust up). The horizontal edge of the brighter light should touch the horizontal reference line. 6. Close the hood and turn off the lamps. HORIZONTAL AIM IS NOT REQUIRED FOR THIS VEHICLE AND IS NON-ADJUSTABLE.

38

2006 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Lights

TURN SIGNAL CONTROL • Push down to activate the left • Push up to activate the right turn

turn signal.

signal.

INTERIOR LAMPS

Dome lamps and map lamps The map lamps are located on the overhead console. Press the controls to turn on the lamps.

Your vehicle may also have reading lamps within the rear dome lamp(s). Press the switches on either side of the dome lamp to turn on the lamps.

BULB REPLACEMENT

Headlamp Condensation The headlamps are vented to equalize pressure. When moist air enters the headlamp(s) through the vents, there is a possibility that condensation can occur. This condensation is normal and will clear within 45 minutes of headlamp operation.

Replacing exterior bulbs Check the operation of all the bulbs frequently.

39

2006 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Lights

Using the right bulbs Replacement bulbs are specified in the chart below. Headlamp bulbs must be marked with an authorized “D.O.T.” for North America and an “E” for Europe to ensure lamp performance, light brightness and pattern and safe visibility. The correct bulbs will not damage the lamp assembly or void the lamp assembly warranty and will provide quality bulb burn time.

Function

Number of bulbs

Trade number

3457NAK (amber)

194 (amber)

4157 K

H11LL

H7

168

Headlamp high beam Headlamp low beam Front sidemarker lamp Front park/turn signal lamp Rear sidemarker lamp Stop/tail/turn lamp Backup lamp License plate lamp High-mount brake lamp Foglamp (if equipped) Map lamp Dome/reading lamp Visor vanity lamp - Slide on Rail system (SOR) (if equipped) Puddle lamp (if equipped) Glove box lamp Luggage compartment lamp All replacement bulbs are clear in color except where noted. To replace all instrument panel lights - see your authorized dealer.

921
168
921
H11

578

578

37

W5W 194

12V6W

Replacing headlamp bulbs Highbeam bulb (lower) replacement 1. Make sure headlamp switch is in the OFF position, then open the hood.

40

2006 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Lights

2. Reach over the front bolster. 3. Disengage top of flexible washer bottle filler neck from snap strap attachment and position it to gain access path to the high beam bulb (Passenger Side Only with ABS).

Note: After completing Step 3. if the bulb is not accessible, see your authorized dealer for bulb replacement. 4. Remove the protective rubber cap from the headlamp housing by grabbing it and pulling rearward. 5. Remove the bulb socket by rotating it counterclockwise, then pulling it straight out of the lamp assembly.

6. Carefully pull bulb straight out of socket and push in the new one.

Handle a halogen headlamp bulb carefully and keep out of children’s reach. Grasp the bulb only by its plastic base and do not touch the glass. The oil from your hand could cause the bulb to break the next time the headlamps are operated.

7. For ease of bulb socket installation into the lamp assembly, hold the bulb socket at 15 degrees clockwise from a vertical position. Using the 2
lead wires oriented exactly up to represent the vertical reference position. 8. From the 15 degree position rotate the bulb socket clockwise to a locked position.

41

2006 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Lights

9. Tuck the 2 lead wires into the lamp housing to assure that they are not pinched when installing the protective rubber cap. 10. Install the protective rubber cap to the housing circular ring by pushing and pressing it forward. 11. Re-apply pressure around the complete circular ring on the housing to make sure the protective rubber cap is completely seated. 12. Reconnect the washer bottle neck by reversing Step 3 (Passenger side only with ABS). 13. Turn the headlamps on and make sure they work properly. If the headlamp was correctly aligned before you changed the bulb, you should not need to align it again. Lowbeam bulb (upper) replacement 1. Make sure headlamp switch is in OFF position, then open the hood. 2. Remove the vertical shield from the bolster by disengaging the S-shaped clip and rotate it up in a clockwise direction. (Driver’s side only)

3. Remove the AirTube from the air filter assembly. (Driver’s side only).

42

2006 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Lights

4. Remove screw from oval splash shield access panel from the exterior wheel well area. Lift up and rearward to release a hidden finger attachment at the lower portion of the panel (Passenger side only with ABS). 5. From the exterior wheel well area reach arm through splash shield opening to access bulb socket (Passenger side only with ABS). 6. Remove the protective rubber cap from the housing by grabbing it and pulling rearward. 7. Remove the bulb socket by rotating it counterclockwise, then pulling it straight out of the lamp assembly. 8. Let go of the bulb socket and leave it dangling near the lamp housing (Passenger side only with ABS). 9. Reach over the front bolster in the engine area, with a tool if necessary, bring the bulb socket upwards into an unobstructed area to replace the bulb (Passenger side only with ABS). 10. Disconnect the electrical connector from the bulb socket and discard the old bulb socket. 11. Connect the new bulb socket to the electrical connector.

43

2006 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Lights

Handle a halogen headlamp bulb carefully and keep out of children’s reach. Grasp the bulb only by its plastic base and do not touch the glass. The oil from your hand could cause the bulb to break the next time the headlamps are operated.

12. After the new bulb is installed, carefully let the bulb socket dangle downward near the lamp housing (Passenger side only with ABS). 13. From the exterior wheel well area reach arm through splash shield opening to install bulb socket with new bulb (Passenger side only with ABS). 14. Install the new bulb socket into the lamp assembly by aligning the indexing fingers, then rotate clockwise to locked position. 15. Install the protective rubber cap to the housing circular ring by pushing and pressing it forward. 16. Re-apply pressure around the complete circular ring on the housing to make sure the protective rubber cap is completely seated. 17. Reinstall splash shield access panel with screw (Passenger side only with ABS). 18. Reinstall the AirTube to the air filter assembly. (Driver’s side only). 19. Reinstall the vertical shield to the bolster. (Driver’s side only). 20. Turn the headlamps on and make sure they work properly. If the headlamp was correctly aligned before you changed the bulb, you should not need to align it again. Replacing front parking lamp/turn signal bulbs 1. Make sure headlamp switch is in the OFF position, then open the hood. 2. Reach over the front bolster.

44

2006 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Lights

3. Remove screw from oval splash shield access panel from the exterior wheel well area. Lift up and rearward to release a hidden finger attachment at the lower portion of the panel (Passenger side only with ABS). 4. From the exterior wheel well area reach arm through splash shield opening to access bulb socket (Passenger side only with ABS). 5. Remove the bulb socket by rotating it counterclockwise, then pulling it out of the lamp assembly. 6. Let go of the bulb socket and let the bulb socket dangle downward near the lamp housing (Passenger side only with ABS). 7. Reach over the front bolster in the engine area, with a tool if necessary, bring the bulb socket upwards into an unobstructed area to replace the bulb (Passenger side only with ABS). 8. Carefully pull bulb straight out of socket and push in the new one. 9. After the new bulb is installed, carefully let the bulb socket dangle downward near the lamp housing (Passenger side only with ABS). 10. From the exterior wheel well area reach arm through splash shield opening to install bulb socket with new bulb (Passenger side only with ABS). 11. Install new bulb socket into the lamp assembly by aligning the indexing fingers, then rotate clockwise to locked position. 12. Reinstall splash shield access panel with screw (Passenger side only with ABS).

45

2006 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Lights

Replacing front side marker bulbs 1. Make sure the headlamp control is in the OFF position. 2. Pry the lamp away from the vehicle at the rear of lamp at the wheel opening. (Rotate lamp from the wheel opening away from the vehicle), as the lamp separates from the vehicle, slide the lamp towards the wheel opening to disengage lamp 3. Rotate the lamp clockwise while holding the electrical connector in place with your other hand. After rotating the lamp 90 degrees clockwise, pull and disengage the wire harness and bulb from the lamp. 4. With the bulb exposed, carefully remove the bulb from the socket by grasping the bulb and pulling it away from the wire harness. Replace with a new bulb, and reverse the removal steps to complete the process. Replacing tail/brake/turn signal/backup lamp bulbs The tail/brake/turn signal and backup lamp bulbs are located in the tail lamp assembly. Follow the same steps to replace either bulb. 1. Make sure the headlamp switch is in the OFF position and open the trunk. 2. Lift out trunk floor carpeting panel to access a Luggage Scuff Plate (Hard Molding) shingles and a Trunk Side Panel (dark grey, soft wheelhouse side trim panel) at the lamp area. 3. Carefully pull/push the Trunk Side Panel (dark grey, soft wheelhouse side trim panel) outboard to expose the lamp assembly. The most effective point to grasp the Trunk Side Panel when pulling it out from the Luggage Scuff Plate is at it’s bottom edge where that edge meets the exposed sheet metal of the trunk floor. Note: Do not allow the Trunk Side Panel to remain bent and untucked from the Luggage Scuff Plate (hard molding) for a long period of time. Doing so may result in permanent deformation.

46

2006 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Lights

4. Remove the bulb socket by turning it counterclockwise and pulling it straight out. 5. Pull the bulb from the socket and push in the new bulb. 6. Install the bulb socket into the lamp assembly by rotating it clockwise. 7. Carefully push the Trunk Side Panel (dark grey, soft wheelhouse side trim panel) back to the shingle position to the Luggage Scuff Plate (hard molding). 8. Install trunk floor carpeting panel. Replacing high-mount brake lamp bulb 1. Make sure the ignition control is in the LOCK (OFF) position. 2. Open the trunk and reach underneath package tray to locate lamp assembly. 3. Remove the bulb socket by rotating it counterclockwise, then pulling it out of the lamp assembly. 4. Pull the bulb straight from the socket and push in the new bulb. 5. Install the bulb socket into the lamp assembly by rotating it clockwise. Replacing license plate lamp bulbs 1. Make sure the headlamp switch is in the OFF position. 2. Remove the two screws from the license plate lamp assembly. 3. Remove bulb socket by turning counterclockwise. 4. Carefully pull the bulb out from the socket. Install new bulb(s) in reverse order.

47

2006 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Lights

Replacing foglamp bulbs (if equipped) 1. Make sure the foglamp switch is in the OFF position. 2. From underneath the vehicle, partially remove the tire splash shield by removing four drive screws. After removing to allow free access to the front fog lamp bulb and electrical wire harness, the splash shield flap should be able to be repositioned. 3. Rotate the harness/bulb assembly counterclockwise, to remove from the fog lamp. 4. Carefully disconnect the bulb from the harness assembly via the two snap clips.

Install the new bulb in reverse order.

48

2006 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Driver Controls

MULTI-FUNCTION LEVER Windshield wiper: Rotate the end of the control away from you to increase the speed of the wipers; rotate towards you to decrease the speed of the wipers.

Speed dependent wipers: When the wiper control is set on the intermittent settings, the speed of the wipers will automatically adjust with the vehicle speed. The faster your vehicle is travelling the faster the wipers will go. Windshield washer: Push the end of the stalk: • briefly: causes a single swipe of the wipers without washer fluid. • a quick push and hold: the wipers

will swipe three times with washer fluid.

• a long push and hold: the wipers and washer fluid will be activated for up to ten seconds.

Windshield wiper/washer features (if equipped with Autolamp feature) The exterior lamps will turn on with the ignition on, headlamp control in the Autolamp position and the windshield wipers are turned on (for a fixed period of time).

49

2006 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Driver Controls

TILT/TELESCOPE STEERING WHEEL To adjust the steering wheel: 1. Pull the lever down to unlock the steering column. 2. While the lever is in the down position, move the steering wheel up or down and in or out until you find the desired position. 3. While holding the steering wheel in place, pull the lever up to its original position to lock the steering column.

Never adjust the steering wheel when the vehicle is moving.

ILLUMINATED VISOR MIRROR (IF EQUIPPED) Lift the mirror cover to turn on the visor mirror lamp.

Slide on rod feature (if equipped) Rotate the visor towards the side window and extend it rearward for additional sunlight coverage. Note: To stow the visor back into the headliner, visor must be retracted before moving it back towards the windshield.

50

2006 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Driver Controls

OVERHEAD CONSOLE The appearance of your vehicle’s overhead console will vary according to your option package.

Storage compartment Press the latch to open the storage compartment. The storage compartment may be used to secure sunglasses or a similar object.

CLOCK (IF EQUIPPED) Press the right (+) control to move the time display forwards. Press the left (-) control to move the time display backwards.

CENTER CONSOLE Your vehicle may be equipped with a variety of console features. These include: 1. Cup holders 2. Secondary storage bin (on hinges inside utility compartment) 3. Utility compartment with power point and coin holder inside

2006 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

51

Driver Controls

Use only soft cups in the cupholder. Hard objects can injure you in a collision.

INSTRUMENT PANEL STORAGE COMPARTMENT The storage compartment may be used to secure sunglasses or similar sized objects. Press the control to open the storage compartment.

AUXILIARY POWER POINT (12VDC) Power outlets are designed for accessory plugs only. Do not insert any other object in the power outlet as this will damage the outlet and blow the fuse. Do not hang any type of accessory or accessory bracket from the plug. Improper use of the power outlet can cause damage not covered by your warranty. The auxiliary power points are located on the instrument panel and in the center console utility compartment. Do not use the power point for operating the cigarette lighter element (if equipped). To prevent the fuse from being blown, do not use the power point(s) over the vehicle capacity of 12 VDC/180W. To prevent the battery from being discharged, do not use the power point longer than necessary when the engine is not running. Always keep the power point caps closed when not being used. Cigar/Cigarette lighter (if equipped) Do not plug optional electrical accessories into the cigarette lighter socket. Do not hold the lighter in with your hand while it is heating, this will damage the lighter element and socket. The lighter will be released from its heating position when it is ready to be used.

52

2006 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Driver Controls
