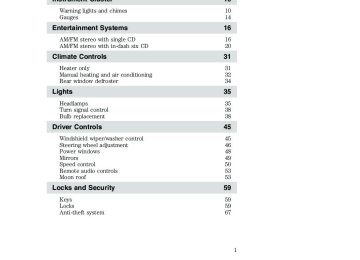

Table of Contents
10
10
14
16
16
20
31
31
32
34
35
35
38
38
45
45
46
48
49
50
53
53
59
59
59
67
Introduction
Instrument Cluster
Warning lights and chimes Gauges
Entertainment Systems
AM/FM stereo with single CD AM/FM stereo with in-dash six CD
Climate Controls
Heater only Manual heating and air conditioning Rear window defroster
Lights
Headlamps Turn signal control Bulb replacement Driver Controls
Windshield wiper/washer control Steering wheel adjustment Power windows Mirrors Speed control Remote audio controls Moon roof
Locks and Security
Keys Locks Anti-theft system
2007 Focus (foc) Owners Guide (post-2002-fmt) USA (fus)
71
71
76
90
101
114
114
116
129
134
137
138
138
141
143
145
151
151
152
153
153
160
165
166
171
172
178
179
180
Table of Contents
Seating and Safety Restraints
Seating Safety restraints Airbags Child restraints
Tires, Wheels and Loading
Tire information Tire inflation Vehicle loading Trailer towing Recreational towing
Driving
Starting Brakes Traction Control™ Transmission operation
Roadside Emergencies
Getting roadside assistance Hazard flasher switch Fuel pump shut-off switch Fuses and relays Changing tires Lug nut torque Jump starting Wrecker towing
Customer Assistance
Reporting safety defects (U.S. only) Reporting safety defects (Canada only)
Cleaning
2007 Focus (foc) Owners Guide (post-2002-fmt) USA (fus)
Table of Contents
Maintenance and Specifications
Engine compartment Engine oil Battery Engine coolant Fuel information Air filter(s) Part numbers Maintenance product specifications and capacities Engine data Accessories
Index
187
189
191
193
195
201
215
216
217
219
222
224
All rights reserved. Reproduction by any means, electronic or mechanical including photocopying, recording or by any information storage and retrieval system or translation in whole or part is not permitted without written authorization from Ford Motor Company. Ford may change the contents without notice and without incurring obligation.
Copyright © 2006 Ford Motor Company
2007 Focus (foc) Owners Guide (post-2002-fmt) USA (fus)
Introduction
CALIFORNIA Proposition 65 Warning
WARNING: Engine exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to the State
of California to cause cancer and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
PERCHLORATE MATERIAL Certain components of this vehicle such as air bag modules, seat belt pretensioners, and button cell batteries may contain Perchlorate Material – Special handling may apply for service or vehicle end of life disposal. See www.dtsc.ca.gov/hazardouswaste/perchlorate. CONGRATULATIONS Congratulations on acquiring your new Ford. Please take the time to get well acquainted with your vehicle by reading this handbook. The more you know and understand about your vehicle, the greater the safety and pleasure you will derive from driving it. For more information on Ford Motor Company and its products visit the following website: • In the United States: www.ford.com • In Canada: www.ford.ca • In Australia: www.ford.com.au • In Mexico: www.ford.com.mx Additional owner information is given in separate publications. This Owner’s Guide describes every option and model variant available and therefore some of the items covered may not apply to your particular vehicle. Furthermore, due to printing cycles it may describe options before they are generally available. Remember to pass on this Owner’s Guide when reselling the vehicle. It is an integral part of the vehicle.
Fuel pump shut-off switch: In the event of an accident the safety switch will automatically cut off the fuel supply to the
engine. The switch can also be activated through sudden vibration (e.g. collision when parking). To reset the switch, refer to the Fuel pump shut-off switch in the Roadside Emergencies chapter.
2007 Focus (foc) Owners Guide (post-2002-fmt) USA (fus)
Introduction
SAFETY AND ENVIRONMENT PROTECTION
Warning symbols in this guide
How can you reduce the risk of personal injury to yourself or others? In this guide, answers to such questions are contained in comments highlighted by the warning triangle symbol. These comments should be read and observed.
Warning symbols on your vehicle
When you see this symbol, it is imperative that you consult the relevant section of this guide before touching or attempting adjustment of any kind.
Protecting the environment We must all play our part in protecting the environment. Correct vehicle usage and the authorized disposal of waste, cleaning and lubrication materials are significant steps towards this aim. Information in this respect is highlighted in this guide with the tree symbol.
BREAKING-IN YOUR VEHICLE Your vehicle does not need an extensive break-in. Try not to drive continuously at the same speed for the first 1,000 miles (1,600 km) of new vehicle operation. Vary your speed frequently in order to give the moving parts a chance to break in. Do not add friction modifier compounds or special break-in oils during the first few thousand miles (kilometers) of operation, since these additives may prevent piston ring seating. See Engine oil in the Maintenance and Specifications chapter for more information on oil usage.
SPECIAL NOTICES
New Vehicle Limited Warranty For a detailed description of what is covered and what is not covered by your vehicle’s New Vehicle Limited Warranty, refer to the Warranty Guide that is provided to you along with your Owner’s Guide.
2007 Focus (foc) Owners Guide (post-2002-fmt) USA (fus)
Introduction
Special instructions For your added safety, your vehicle is fitted with sophisticated electronic controls.
Please read the section Airbag supplemental restraint system (SRS) in the Seating and Safety Restraints chapter. Failure to
follow the specific warnings and instructions could result in personal injury.
Front seat mounted rear-facing child or infant seats should NEVER be placed in front of an active passenger airbag.
Service Data Recording Service data recorders in your vehicle are capable of collecting and storing diagnostic information about your vehicle. This potentially includes information about the performance or status of various systems and modules in the vehicle, such as engine, throttle, steering or brake systems. In order to properly diagnose and service your vehicle, Ford Motor Company, Ford of Canada, and service and repair facilities may access vehicle diagnostic information through a direct connection to your vehicle when diagnosing or servicing your vehicle. Event Data Recording Other modules in your vehicle — event data recorders — are capable of collecting and storing data during a crash or near crash event. The recorded information may assist in the investigation of such an event. The modules may record information about both the vehicle and the occupants, potentially including information such as: • how various systems in your vehicle were operating; • whether or not the driver and passenger seatbelts were buckled; • how far (if at all) the driver was depressing the accelerator and/or the • how fast the vehicle was traveling; and • where the driver was positioning the steering wheel.
brake pedal;
2007 Focus (foc) Owners Guide (post-2002-fmt) USA (fus)
Introduction
To access this information, special equipment must be directly connected to the recording modules. Ford Motor Company and Ford of Canada do not access event data recorder information without obtaining consent, unless pursuant to court order or where required by law enforcement, other government authorities or other third parties acting with lawful authority. Other parties may seek to access the information independently of Ford Motor Company and Ford of Canada.
Cell phone use The use of Mobile Communications Equipment has become increasingly important in the conduct of business and personal affairs. However, drivers must not compromise their own or others’ safety when using such equipment. Mobile Communications can enhance personal safety and security when appropriately used, particularly in emergency situations. Safety must be paramount when using mobile communications equipment to avoid negating these benefits. Mobile Communication Equipment includes, but is not limited to cellular phones, pagers, portable email devices, in-vehicle communications systems, telematics devices and portable two-way radios.
Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device that may take their focus off the road. The drivers primary responsibility is the safe operation of their vehicle. Only use cell phones and other devices not essential to the driving task when it is safe to do so.
Middle East/North Africa vehicle specific information For your particular global region, your vehicle may be equipped with features and options that are different from the ones that are described in this Owner’s Guide; therefore, a supplement has been supplied that complements this book. By referring to the pages in the provided supplement, you can properly identify those features, recommendations and specifications that are unique to your vehicle. Refer to this Owner’s Guide for all other required information and warnings.
2007 Focus (foc) Owners Guide (post-2002-fmt) USA (fus)
Introduction
These are some of the symbols you may see on your vehicle.
Vehicle Symbol Glossary
Safety Alert
See Owner’s Guide
Fasten Safety Belt
Airbag - Front
Airbag - Side
Child Seat
Child Seat Installation Warning
Child Seat Tether Anchor
Anti-Lock Brake System
Child Seat Lower Anchor
Brake System
Brake Fluid - Non-Petroleum Based
Powertrain Malfunction
Speed Control
Master Lighting Switch
Hazard Warning Flasher
Fog Lamps-Front
Fuse Compartment
Fuel Pump Reset
Windshield Wash/Wipe
Windshield Defrost/Demist
Rear Window Defrost/Demist
2007 Focus (foc) Owners Guide (post-2002-fmt) USA (fus)
Introduction
Vehicle Symbol Glossary
Power Windows Front/Rear
Child Safety Door Lock/Unlock
Power Window Lockout
Interior Luggage Compartment Release Symbol
Panic Alarm
Engine Oil
Engine Coolant
Engine Coolant Temperature
Do Not Open When Hot
Battery
Avoid Smoking, Flames, or Sparks
Battery Acid
Explosive Gas
Fan Warning
Power Steering Fluid
Maintain Correct Fluid Level
MAX MIN
Emission System
Engine Air Filter
Passenger Compartment Air Filter
Jack
Check Fuel Cap
Low Tire Pressure Warning
2007 Focus (foc) Owners Guide (post-2002-fmt) USA (fus)
Instrument Cluster
WARNING LIGHTS AND CHIMES Standard instrument cluster
Optional instrument cluster
Warning lights and gauges can alert you to a vehicle condition that may become serious enough to cause expensive repairs. A warning light may illuminate when a problem exists with one of your vehicle’s functions. Many lights will illuminate when you start your vehicle to make sure the bulb works. If any light remains on after starting the vehicle, refer to the respective system warning light for additional information. Check engine: The Check Engine indicator light illuminates when the ignition is first turned to the ON position to check the bulb and to indicate whether the vehicle is ready for Inspection/Maintenance (I/M) testing. Normally, the ⬙Check Engine⬙ light will stay on until the engine is cranked, then turn itself off if no malfunctions are present. However, if after 15 seconds the ⬙Check Engine⬙ light blinks eight times, it means
10
2007 Focus (foc) Owners Guide (post-2002-fmt) USA (fus)
Instrument Cluster
that the vehicle is not ready for I/M testing. See the Readiness for Inspection/Maintenance (I/M) testing in the Maintenance and Specifications chapter. Solid illumination after the engine is started indicates the On Board Diagnostics System (OBD-II) has detected a malfunction. Refer to OBD-II in the Maintenance and Specifications chapter. If the light is blinking, engine misfire is occurring which could damage your catalytic converter. Drive in a moderate fashion (avoid heavy acceleration and deceleration) and have your vehicle serviced immediately by your authorized dealer.
Under engine misfire conditions, excessive exhaust temperatures could damage the catalytic converter, the fuel system, interior floor coverings or other vehicle components, possibly causing a fire.
CHECK FUEL CAP
Check fuel cap: Illuminates when the fuel cap may not be properly installed. Continued driving with this light on may cause the Check engine warning light to come on, refer to Fuel filler cap in the Maintenance and Specification chapter. Brake system warning light: To confirm the brake system warning light is functional, it will momentarily illuminate when the ignition is turned to the ON position when the engine is not running, or in a position between ON and START, or by applying the parking brake when the ignition is turned to the ON position. If the brake system warning light does not illuminate at this time, seek service immediately from your authorized dealer. Illumination after releasing the parking brake indicates low brake fluid level and the brake system should be inspected immediately by your authorized dealer.
BRAKE
Driving a vehicle with the brake system warning light on is dangerous. A significant decrease in braking performance may
occur. It will take you longer to stop the vehicle. Have the vehicle checked by your authorized dealer. Driving extended distances with the parking brake engaged can cause brake failure and the risk of personal injury.
11
2007 Focus (foc) Owners Guide (post-2002-fmt) USA (fus)
Instrument Cluster
ABS
Anti-lock brake system: If the ABS light stays illuminated or continues to flash, a malfunction has been detected, have the system serviced immediately by your authorized dealer. Normal braking is still functional unless the brake warning light also is illuminated. Airbag readiness: If this light fails to illuminate when ignition is turned to ON, continues to flash or remains on, have the system serviced immediately by your authorized dealer. A chime will also sound when a malfunction in the supplemental restraint system has been detected. Safety belt: Reminds you to fasten your safety belt. A Belt-Minder威 chime will also sound to remind you to fasten your safety belt. Refer to the Seating and safety restraints chapter to activate/deactivate the Belt-Minder威 chime feature. Charging system: Illuminates when the battery is not charging properly.
Engine oil pressure: Illuminates when the oil pressure falls below the normal range, refer to Engine oil in the Maintenance and Specifications chapter. Anti-theft system: Flashes when the SecuriLock娂 Passive Anti-theft System has been activated.
Overdrive off (if equipped): Illuminates when the overdrive function of the transaxle has been turned off, refer to the Driving chapter. If the light flashes steadily or does not illuminate, have the transmission serviced soon, or damage may occur.
O/D OFF
12
2007 Focus (foc) Owners Guide (post-2002-fmt) USA (fus)
Instrument Cluster
Upshift (if equipped): To maximize fuel economy, this light illuminates when the manual transmission should be shifted to the next highest gear. Refer to the Driving chapter for more information. Traction Control娂 system (if equipped): Illuminates when the Traction Control娂 is turned OFF and will flash when active. If the light remains on, have the system serviced immediately, refer to the Driving chapter for more information. Low fuel: Illuminates when the fuel level in the fuel tank is at or near empty (refer to Fuel gauge in this chapter).
Speed control (if equipped): Illuminates when the speed control is activated. Turns off when the speed control system is deactivated, refer to the Driver Controls chapter for more information. Door ajar: Illuminates when the ignition is in the ON position and any door is open.
Turn signal: Illuminates when the left or right turn signal or the hazard lights are turned on. If the indicators stay on or flash faster, check for a burned out bulb. High beams: Illuminates when the high beam headlamps are turned on.
Key-in-ignition warning chime: Sounds when the key is left in the ignition in the OFF/LOCK or ACCESSORY position and the driver’s door is opened.
13
2007 Focus (foc) Owners Guide (post-2002-fmt) USA (fus)
Instrument Cluster
Headlamps on warning chime: Sounds when the headlamps or parking lamps are on, the ignition is off (the key is not in the ignition) and the driver’s door is opened. Gearshift warning chime (automatic transaxle only): Sounds when the gearshift lever is not in P (Park) and the driver’s door is opened.
GAUGES
Speedometer: Indicates the current vehicle speed.
Engine coolant temperature gauge: Indicates engine coolant temperature. At normal operating temperature, the needle will be in the normal range. If it enters the red section, the engine is overheating. Stop the vehicle as soon as safely possible, switch off the engine and let the engine cool. If it enters the red section and the Check Engine indicator light illuminates, refer to How fail safe cooling works in the Maintenance and Specifications chapter.
Never remove the coolant reservoir cap while the engine is running or hot.
14
2007 Focus (foc) Owners Guide (post-2002-fmt) USA (fus)
Odometer: Registers the total miles (kilometers) of the vehicle.
Instrument Cluster
Trip odometer: Registers the miles (kilometers) of individual journeys. To reset, depress the reset control.
Tachometer (if equipped): Indicates the engine speed in revolutions per minute. Driving with your tachometer pointer continuously at the top of the scale may damage the engine.
Fuel gauge: Indicates approximately how much fuel is left in the fuel tank (when the ignition is in the ON position). The fuel gauge may vary slightly when the vehicle is in motion or on a grade. Refer to Filling the tank in the Maintenance and Specifications chapter for more information.
2007 Focus (foc) Owners Guide (post-2002-fmt) USA (fus)
15
Entertainment Systems
AUDIO SYSTEMS
AM/FM stereo with single CD — Premium (if equipped)
AM/FM stereo with single CD/MP3 — Premium (if equipped)
16
2007 Focus (foc) Owners Guide (post-2002-fmt) USA (fus)
Entertainment Systems
Tune selector: Press to
1. manually increase/decrease the radio frequency.
) or
SEEK
2. Phone/mute: Press to mute the
playing media. Press again to return
to the playing media.
3. Menu: Press MENU to access the
main menu functions. Use the Tune
selector (
for adjustments.
Track/Folder mode: (Available with the CD/MP3 Premium system
only). This mode is active with MP3 discs in CD mode. In Track Mode,
CD functions use all tracks on the disc. In Folder Mode, CD functions
use the tracks only within the current folder.
Compression: Available only in CD mode. Compression brings soft and
loud CD passages together for a more consistent listening level.
Repeat: (Available in menu mode only with the AM/FM single CD/MP3
Premium system). Available only in CD mode. Select to repeat the
current CD track.
Autoset: Sets the strongest radio stations on the radio frequency band
without losing the original manually set preset stations for the current
radio frequency band. With AUTOSET ON, the six strongest stations are
filled in the presets. The tuner will be set to the station stored in preset
1. If there are less than six strong stations, the system will store the last
one in all of the remaining presets. Turning AUTOSET OFF returns the
presets to the original preset stations.
Bass/Treble: Press the Tune Selector ( increase/decrease the Bass or Treble levels.
) or
SEEK
to
Balance: Press the Tune Selector ( ) or the audio between the left and right speakers.
SEEK
to adjust
Fade: Press the Tune Selector ( ) or audio between the front and rear speakers. Speed sensitive volume: Radio volume automatically adjusts according to vehicle speed to compensate for road and wind noise. Press the Tune
to adjust the
SEEK
17
2007 Focus (foc) Owners Guide (post-2002-fmt) USA (fus)
Entertainment Systems
) or
SEEK
to turn off or select rates 1 through
selector ( 7. Rate 7 compensates the most volume at higher speeds. Setting the clock: Upon initial battery connect, this function is displayed first among MENU functions. Once the clock is set, this will be shown as the last MENU function. Press MENU until SELECT HOUR or ) to adjust SELECT MINS is displayed. Press the Tune selector ( the hours/minutes. 4. Aux: Press to access the Auxiliary mode. If no auxiliary sources are available, NO AUX RADIO will be displayed. 5. Seek up: Press for the next strong station or CD track. Press and hold for continuous seek action. 6. Text: In CD mode, press to display the track name, artist name and disc name (if available). 7. Shuffle: Press to play tracks in random order on the selected CD. The first press shows shuffle state. Repeated presses toggle shuffle on/off. 8. FOLDER: Press to access the next MP3 folder.
Comp (Compression): In CD mode, brings soft and loud CD passages together for a more consistent listening level. 9. FOLDER: Press to access the previous MP3 folder.
Repeat: Available only in CD mode. Press to repeat the current CD track. 10. Fast forward: Press and hold to manually advance the CD.
18
2007 Focus (foc) Owners Guide (post-2002-fmt) USA (fus)
Entertainment Systems
11. Rewind: Press and hold to manually reverse the CD.
12. Memory presets: To set a station: Select frequency band AM/FM1/FM2; tune to a desired station, press and hold the preset button until the display shows that the preset is set. 13. Scan: Press for a brief sampling of all strong radio stations or CD tracks. Press again to stop scan function. 14. Seek: Press to access the previous strong station or track.
15. AM/FM: Press to toggle between AM/FM1/FM2 frequency bands or to stop CD play. 16. ON/OFF/Volume: Press to turn ON/OFF; turn to increase/decrease the volume levels. If the volume is set above a certain level and the ignition is turned off, for at least a minute, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on. 17. CD: Press to enter CD mode. If a CD is already loaded into the system, CD play will begin where it last ended. 18. CD eject: Press to eject a CD. If CD is not present, the display will read NO CD.
19. CD slot: Insert a CD label side up.
19
2007 Focus (foc) Owners Guide (post-2002-fmt) USA (fus)
Entertainment Systems
AM/FM Stereo with In–dash 6CD —Premium /Audiophile (if equipped)
Tune Selector: Press to
1. manually increase/decrease the radio frequency when in tuner mode or to choose a different disc when in CD mode with multiple discs in the changer. 2. Phone/mute: Press to mute the playing media. Press again to return to the playing media. 3. Menu: Press MENU to access the main menu functions. Use the Tune Selector ( for adjustments. RDS (Radio Data System) Available only on Audiophile radios. The system is equipped with a decoder that receives special signals transmitted on the FM frequency. The station’s name and information will show in the display. The system performs a search of RDS-equipped stations for a certain music format category: Classic, Country, Info, Jazz/RB, Religious, Rock, Soft, and Top 40. RDS must be activated to access the FIND and SHOW functions.
SEEK
) or
20
2007 Focus (foc) Owners Guide (post-2002-fmt) USA (fus)
Entertainment Systems
to
) or
To activate RDS, press and hold MENU until RDS ON or RDS OFF appears in the display. Press MENU again to continue to FIND and SHOW functions. Press the Tune Selector ( SEEK toggle RDS on/off and to scroll through the FIND and SHOW functions. Track/Folder mode:Available only on MP3 discs in CD mode. In Track Mode, CD functions use all tracks on the disc. In Folder Mode, CD functions use the tracks only within the current folder. Compression: Available only in CD mode. Compression brings soft and loud CD passages together for a more consistent listening level. Autoset: Sets the strongest radio stations on the radio frequency band without losing the original manually set preset stations for the current radio frequency band. With AUTOSET ON, the six strongest stations are filled in the presets. The tuner will be set to the station stored in preset 1. If there are less than six strong stations, the system will store the last one in all of the remaining presets. Turning AUTOSET OFF returns the presets to the original preset stations.
Bass/Treble: Press the Tune Selector ( increase/decrease the Bass or Treble levels.
) or
SEEK
to
Balance: Press the Tune Selector ( ) or the audio between the left and right speakers.
SEEK
to adjust
) or
SEEK
SEEK
to adjust the
Fade: Press the Tune Selector ( ) or audio between the front and rear speakers. Speed sensitive volume: Radio volume automatically adjusts according to vehicle speed to compensate for road and wind noise. Press the Tune to turn off or select rates 1 through selector ( 7. Rate 7 compensates the most volume at higher speeds. Setting the clock: Upon initial battery connect, this function is displayed first among MENU functions. Once the clock is set, this will be shown as the last MENU function. Press MENU until SELECT HOUR or ) to adjust SELECT MINS is displayed. Press the Tune selector ( the hours/minutes. 4. Aux: Press to access the Auxiliary mode. If no auxiliary sources are available, NO AUX AUDIO will be displayed.
21
2007 Focus (foc) Owners Guide (post-2002-fmt) USA (fus)
Entertainment Systems
5. Seek up: Press for next strong station or CD track. Press and hold for continuous seek functionality. 6. Text: Press in CD mode to display track title, artist and album title. This feature will only function if the CDs are manufactured with the CD text feature. 7. Shuffle: Press to play tracks in random order on the selected CD. The first press shows shuffle state. Repeated presses toggle shuffle on/off. 8. FOLDER: Press to access the next folder on MP3 discs, if other folders are available. 9. FOLDER: Press to access the previous MP3 folder on MP3 discs, if other folders are available. 10. Fast forward: Press and hold to manually advance CD.
11. Rewind: Press and hold to manually reverse CD.
12. Memory presets: To set a station: Select frequency band AM/FM1/FM2; tune to a desired station, press and hold the preset button until the display shows the preset is set. 13. Scan: Press for a brief sampling of the next strong radio stations or CD tracks. Press again to stop scan function. 14. Seek down: Press for previous strong station or CD track. Press and hold for continuous seek functionality. 15. AM/FM: Press to toggle between AM/FM1/FM2 frequency bands.
22
2007 Focus (foc) Owners Guide (post-2002-fmt) USA (fus)
Entertainment Systems
16. ON/OFF/Volume: Press to turn ON/OFF; turn to increase/decrease the volume levels. If the volume is set above a certain level and the ignition is turned off, for at least a minute, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on. 17. CD: Press to enter CD mode. If a CD is already loaded into the changer, CD play will begin where it last ended. 18. LOAD: Press to load a CD. When display reads, SELECT SLOT, select a preset 1–6. Press and hold LOAD to autoload up to six CDs.
19. CD eject: Press to eject a CD. When display reads SELECT SLOT, select a preset 1–6. Press and hold to auto eject all CDs present in the changer. If CD is not present, the radio will display NO CD. 20. CD slot: Insert a CD label side up.
23
2007 Focus (foc) Owners Guide (post-2002-fmt) USA (fus)
Entertainment Systems
Premium/Audiophile AM/FM in-dash six CD/MP3 sound system (if equipped)
) the
) or down (
(Tune/Disc selector): 1. In radio mode, press to manually go up ( radio frequency. Press and hold for a fast advance through radio frequencies. In menu mode, use to select various settings. In CD/MP3 mode, press to select the desired disc. 2. MUTE/ playing media. Press again to return to the playing media. 3. MENU: Press repeatedly to access to the following settings:
: Press to mute the
Setting the clock: Press until SELECT HOURS or SELECT MINUTES is displayed. Press
to adjust the hours/minutes.
24
2007 Focus (foc) Owners Guide (post-2002-fmt) USA (fus)
Entertainment Systems
AUTOSET: Press MENU until the display reads AUTOSET. Autoset allows you to set the strongest local radio stations without losing your original manually set preset stations for AM/FM1/FM2. Use
SEEK, SEEK
to turn on/off.
When the six strongest stations are filled, the station stored in preset 1
will begin playing. If there are less than six strong stations, the system
will store the last one in the remaining presets.
RBDS: Available only in FM mode on Audiophile systems. This feature
allows you to search RBDS-equipped stations for a certain category of
music format: CLASSIC, COUNTRY, INFORM, JAZZ/RB, ROCK, etc.
To activate, press MENU repeatedly until RBDS (ON/OFF) appears in
the display. Use
to toggle RBDS ON/OFF. When
RBDS is OFF, you will not be able to search for RBDS equipped stations
or view the station name or type.
To search for specific RBDS music categories: When the desired
category appears in the display, press
then press and release
begin the search.
To view the station name or type: When the desired category appears
in the display, press TEXT/SCAN to toggle between displaying the station
type (COUNTRY, ROCK, etc.) or the station name (WYCD, WXYZ, etc.).
to find the desired type, or press and hold SCAN to
SEEK, SEEK
SEEK
BASS: Press MENU to reach the bass setting. Use SEEK TREB (Treble): Press MENU to reach the treble setting. Use
SEEK, SEEK
to adjust.
to adjust.
SEEK,
BAL (Balance): Press MENU to reach the balance setting. Use (L) and right (R) speakers.
SEEK, SEEK
to adjust the audio between the left
to adjust the audio between the back (B) and front (F)
FADE: Press MENU to reach the fade setting. Use SEEK speakers. ALL SEATS (Occupancy mode) (Available on Audiophile radios only): to Press MENU repeatedly to access. Press optimize sound for ALL SEATS, DRIVERS SEAT or REAR SEATS.
SEEK,
SEEK
25
2007 Focus (foc) Owners Guide (post-2002-fmt) USA (fus)
Entertainment Systems
SPEEDVOL (Speed sensitive volume, if equipped): Press MENU to reach the SPEEDVOL setting. Radio volume automatically gets louder with increasing vehicle speed to compensate for road and wind noise. Use
SEEK, SEEK
to adjust.
The default setting is off; increasing your vehicle speed will not change
the volume level.
Adjust 1–7: Increasing this setting from 1 (lowest setting) to 7 (highest
setting) allows the radio volume to automatically change slightly with
vehicle speed to compensate for road and wind noise.
Recommended level is1–3; SPEED OFF turns the feature off and level 7
is the maximum setting.
Track/Folder Mode: Available only on MP3 discs in CD mode. In Track
will scroll through all tracks on the disc.
SEEK
Mode, pressing
SEEK
will scroll only through tracks
In Folder mode, pressing
within the selected folder.
Press
available).
COMPRESS (Compression): Available only in CD/MP3 mode. Press
MENU until COMPRESS ON/OFF appears in the display. Use
to toggle ON/OFF. When COMPRESS is ON, the
to access the previous/next folder (if
FOLDER, FOLDER
SEEK, SEEK
system will bring soft and loud CD passages together for a more consistent listening level. 4. AUX: This control is not operational.
5. Seek: In radio mode, press
to access the previous/next
strong station. In CD mode, press access the previous/next CD track.
to
In TEXT MODE, press previous/additional display text.
SEEK, SEEK
to view the
26
2007 Focus (foc) Owners Guide (post-2002-fmt) USA (fus)
Entertainment Systems
6. play or pause a playing CD.
(Play/Pause): Press to
7. SHUFFLE: In CD/MP3 mode,
press SHUFFLE to engage shuffle
mode. SHUFFLE ON will appear in
the display. If you wish to engage shuffle mode right away, press SEEK to
begin random play. Otherwise, random play will begin when the current
track is finished playing. CD SHUF will appear in the display. To disengage,
press SHUFFLE again. SHUFFLE OFF will appear in the display.
Note: In track mode, all tracks on the current disc will shuffle in
random order. In MP3 folder mode, the system will randomly play all
tracks within the current folder.
8. FOLDER
: In folder mode,
to access next
press FOLDER
folder on MP3 discs, if available.
FOLDER: In folder mode,
9.
FOLDER to access the
press
previous folder on MP3 discs, if
available.
10. FF (Fast forward): Press FF
to manually advance in a CD/MP3
track.
11. REW (Rewind): Press REW to
manually reverse in a CD/MP3 track.
12. Memory presets: To set a station, select the desired frequency band, AM, FM1 or FM2. Tune to the desired station. Press and hold a preset button until sound returns and PRESET # SAVED appears in the display. You can save up to 18 stations, six in AM, six in FM1 and FM2. 13. TEXT/SCAN: In radio and CD/MP3 mode, press and hold to hear a brief sampling of radio stations or CD tracks. In CD/MP3 mode, press and release to display track title, artist name, and disc title and file name (if available).
27
2007 Focus (foc) Owners Guide (post-2002-fmt) USA (fus)
Entertainment Systems
14. AM/FM: Press to select AM/FM1/FM2 frequency band.
15. ON/OFF/Volume: Press to turn
ON/OFF. Turn to increase/decrease
volume.
Note: If the volume is set above a
certain level and the ignition is
turned off, the volume will come back on at a “nominal” listening level
when the ignition switch is turned back on.
16. CD: Press to enter CD/MP3
mode. If a CD/MP3 is already loaded
into the system, CD/MP3 play will
begin where it ended last.
17. LOAD: To load a disc into the
system, press LOAD. Select a slot
number using memory presets 1–6.
When the display reads LOAD CD#,
load the desired disc, label side up.
If you do not choose a slot within 5 seconds, the system will choose for
you. Once loaded, the first track will begin to play.
To auto load up to 6 discs, press and hold LOAD until the display
reads AUTOLOAD#. Load the desired disc, label side up. The system will
prompt you to load discs for the remaining available slots. Insert the
discs, one at a time, label side up, when prompted. Once loaded, the disc
in preset #1 will begin to play.
Note: An MP3 disc with folders will show F001 (folder #) T001 (track #)
in the display. An MP3 disc without folders will show T001 (track#) in
the display.
18.
from the system, press
the correct slot number using
memory presets 1–6. When ready, the system will eject the disc and the
display will read REMOVE CD. If the disc is not removed in 15 seconds,
the system will reload the disc.
To auto eject up to 6 CDs, press and hold
ejecting all loaded discs. If the discs are not removed, the system will
reload the discs.
(CD eject): To eject a disc . Select
until the system begins
28
2007 Focus (foc) Owners Guide (post-2002-fmt) USA (fus)
Entertainment Systems
19. CD slot: Insert a CD/MP3 label side up.
GENERAL AUDIO INFORMATION Radio frequencies: AM and FM frequencies are established by the Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission (CRTC). Those frequencies are: AM: 530, 540–1700, 1710 kHz FM: 87.7, 87.9–107.7, 107.9 MHz Radio reception factors: There are three factors that can affect radio reception: • Distance/strength: The further you travel from an FM station, the • Terrain: Hills, mountains, tall buildings, power lines, electric fences, traffic lights and thunderstorms can interfere with your reception. • Station overload: When you pass a broadcast tower, a stronger signal may overtake a weaker one and play while the weak station frequency is displayed.
weaker the signal and the weaker the reception.
CD/CD player care Do: • Handle discs by their edges only. Never touch the playing surface. • Inspect discs before playing. Clean only with an approved CD cleaner
and wipe from the center out.
Don’t: • Expose discs to direct sunlight or heat sources for extended periods • Clean using a circular motion.
of time.
29
2007 Focus (foc) Owners Guide (post-2002-fmt) USA (fus)
Entertainment Systems
CD units are designed to play commercially pressed 4.75 in (12 cm) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Dirty, warped or damaged CDs, irregular shaped CDs, CDs with a scratch protection film attached, and CDs with homemade paper (adhesive) labels should not be inserted into the CD player. The label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels. Ballpoint pens may damage CDs. Please contact your authorized dealer for further information. Audio system warranty and service Refer to the Warranty Guide for audio system warranty information. If service is necessary, see your dealer or qualified technician.
30
2007 Focus (foc) Owners Guide (post-2002-fmt) USA (fus)
Climate Controls
HEATER ONLY SYSTEM (IF EQUIPPED) 1. Air flow selections: Controls the direction of the airflow in the cabin. See the following for a brief description on each control.
: Distributes air through the
instrument panel vents.
: Distributes air through the
instrument panel vents and the floor vents.
: Distributes air through the floor vents. : Distributes air through the windshield defroster vents and floor
vents.
: Distributes air through the windshield defroster vents.
2. Fan speed adjustment: Controls the volume of air circulated in the cabin. 3. Recirculated air: Press to toggle between outside air and recirculated air. May help reduce undesirable odors from entering the vehicle. Recirculated air will not function in between 4. Temperature selection: Controls the temperature of the airflow in the cabin.
or any position in
and
the air flow selector in the
Operating tips • To reduce fog build up on the windshield during humid weather, place • To reduce humidity build up inside the vehicle during cold or warm weather, do not drive with the air flow selector set to the O (OFF) position.
• Do not put objects under the front seats that will interfere with the air • Remove any snow, ice or leaves from the air intake area at the base of
flow to the rear seats.
position.
the windshield.
31
2007 Focus (foc) Owners Guide (post-2002-fmt) USA (fus)
Climate Controls
To aid in side window defogging/demisting in cold weather: 1. Select 2. Adjust the temperature control to maintain comfort. 3. Set the fan speed to the highest setting. 4. Direct the outer instrument panel vents toward the side windows. To increase airflow to the outer instrument panel vents, close the vents located in the middle of the instrument panel.
Do not place objects on top of the instrument panel as these objects may become projectiles in a collision or sudden stop.
MANUAL HEATING AND AIR CONDITIONING SYSTEM (IF EQUIPPED) 1. Air flow selections: Controls the direction of the airflow in the cabin. See the following for a brief description on each control.
: Distributes air through the
instrument panel vents.
: Distributes air through the
instrument panel vents and the floor vents.
: Distributes air through the floor vents. : Distributes air through the windshield defroster and demister vents
and floor vents.
: Distributes air through the windshield defroster and demister
vents. This mode can be used to clear the windshield of thin ice and fog. 2. Fan speed adjustment: Controls the volume of air circulated in the cabin. Note: When the fan is turned to the O (OFF) position, the A/C is also turned off. 3. Rear defroster (if equipped): Refer to Rear window defroster in this chapter.
32
2007 Focus (foc) Owners Guide (post-2002-fmt) USA (fus)
Climate Controls
Recirculated air: Press to activate/deactivate air recirculation
4. in the vehicle cabin. Recirculated air may reduce the amount of time required to cool down the interior of the vehicle and may also help reduce undesired odors from reaching the interior of the vehicle. Recirculated air will not function in between 5. A/C: Provides cabin cooling. 6. Temperature selection: Controls the temperature of the airflow in the cabin. Max A/C: For maximum cabin cooling performance, select A/C (5) and
or any position in
(4).
and
the air flow selector in the
position and turn the fan on.
fan turned off or with recirculated air engaged.
Operating tips • To reduce fog build up on the windshield during humid weather, place • To reduce humidity build up inside the vehicle, do not drive with the • Do not put objects under the front seats that will interfere with the • Remove any snow, ice or leaves from the air intake area at the base of • To improve A/C cool down, drive with the windows slightly open for 2–3 minutes after starting the vehicle or until the vehicle has been “aired out.”
airflow to the back seats.
the windshield.
To allow side window defogging and demisting while warming up the vehicle cabin: 1. Select 2. Select A/C. 3. Set the temperature control to maintain comfort. 4. Set the highest fan speed. 5. Direct the outer instrument panel vents towards the side windows. To increase airflow to the outer instrument panel vents, close the vents located in the middle of the instrument panel.
Do not place objects on top of the instrument panel as these objects may become projectiles in a collision or sudden stop.
33
2007 Focus (foc) Owners Guide (post-2002-fmt) USA (fus)
Climate Controls
REAR WINDOW DEFROSTER The rear defroster control is located on the instrument panel. Press the rear defroster control to clear the rear window of thin ice and fog. • A small LED will illuminate when
the rear defroster is activated.
The ignition must be in the ON position to operate the rear window defroster. The defroster turns off automatically after 14 minutes or when the ignition is turned to the OFF position. To manually turn off the defroster before 14 minutes have passed, push the control again. Do not use razor blades or other sharp objects to clean the inside of the rear window or to remove decals from the inside of the rear window. This may cause damage to the heated grid lines and will not be covered by your warranty.
34
2007 Focus (foc) Owners Guide (post-2002-fmt) USA (fus)
Lights
HEADLAMP CONTROL Turns the lamps off.
Turns on the parking
lamps, instrument panel lamps, license plate lamps and tail lamps.
Turns the headlamps on.
Ambient lighting (if equipped)
Illuminates 4 footwells and 3
cupholders with a choice of 7 colors.
The ambient lighting control switch
is located on the center console by
the gearshift lever. To activate, press
and release the control switch to
cycle through the 7 color choices
plus the off state.
The lights come on whenever the headlamps/parklamps are turned on via
the headlamp switch. Note: The ambient lights will stay on as long as
the headlamp switch is ON (same as parklamps), even after the car is
turned off/keys removed.
Foglamp control (if equipped) The headlamp control also operates the foglamps. The foglamps can be turned on when the headlamp control is in the position and the high beams are not turned on. Pull headlamp control towards you to turn foglamps on. The foglamp will illuminate. indicator light
or the
2007 Focus (foc) Owners Guide (post-2002-fmt) USA (fus)
35
Lights
High beams Pull the lever towards you to activate. Pull the lever towards you again to deactivate.
Flash to pass Pull toward you slightly to activate and release to deactivate.
Daytime running lamps (DRL) (if equipped) Turns the headlamps on with a reduced output. To activate: • the ignition must be in the ON position and • the headlamp control is in the OFF or parking lamp position.
Always remember to turn on your headlamps at dusk or during inclement weather. The Daytime Running Lamp (DRL) system
does not activate the tail lamps and generally may not provide adequate lighting during these conditions. Failure to activate your headlamps under these conditions may result in a collision.
PANEL DIMMER CONTROL Use to adjust the brightness of the instrument panel during headlight and parklamp operation. • Rotate the thumbwheel from left
to right to brighten the instrument panel.
• Rotate the thumbwheel from right to left to dim the instrument panel. AIMING THE HEADLAMPS The headlamps on your vehicle are properly aimed at the assembly plant. If your vehicle has been in an accident the alignment of your headlamps should be checked by your authorized dealer.
36
2007 Focus (foc) Owners Guide (post-2002-fmt) USA (fus)
Lights
ground
Vertical aim adjustment
1. Park the vehicle directly in front of a wall or screen on a level surface,
approximately 25 feet (7.6 meters) away.
• (1) 8 feet (2.4 meters)
• (2) Center height of lamp to
• (3) 25 feet (7.6 meters)
• (4) Horizontal reference line
2. Measure the height from the
center of your headlamp to the
ground and mark an 8 foot (2.4
meter) horizontal reference line on
the vertical wall or screen at this
height (a piece of masking tape works well).
3. Turn on the low beam headlamps to illuminate the wall or screen and
open the hood.
4. On the wall or screen you will
observe an area of high intensity
light. The top of the high intensity
area should touch the horizontal
reference line. If not, the beam will
need to be adjusted.
5. Locate the vertical adjuster on each headlamp, then use a 7 mm Allen wrench or a Phillips screwdriver to adjust the headlamp up or down. 6. HORIZONTAL AIM IS NOT REQUIRED FOR THIS VEHICLE AND IS NON-ADJUSTABLE. 7. Close the hood and turn off the lamps.
2007 Focus (foc) Owners Guide (post-2002-fmt) USA (fus)
37
Lights
TURN SIGNAL CONTROL • Push down to activate the left • Push up to activate the right turn
turn signal.
signal.
INTERIOR LAMPS
Dome lamps The dome lamp is equipped with a control switch that will illuminate when: • the doors are closed and the switch is in the on position. • the switch is in the door activated
position and any door is open.
When the dome lamp switch is in the off position, it will not illuminate when you open the doors.
Reading lamps (if equipped) The reading lamps are operated by separate on/off controls. Theater dimming: The dome lamp dims about 20 seconds after the doors are closed.
BULB REPLACEMENT
Headlamp Condensation The headlamps are vented to equalize pressure. When moist air enters the headlamp(s) through the vents, there is a possibility that condensation can occur. This condensation is normal and will clear within 45 minutes of headlamp operation.
38
2007 Focus (foc) Owners Guide (post-2002-fmt) USA (fus)
Lights
Using the right bulbs Replacement bulbs are specified in the chart below. Headlamp bulbs must be marked with an authorized “D.O.T.” for North America to ensure lamp performance, light brightness and pattern and safe visibility. The correct bulbs will not damage the lamp assembly or void the lamp assembly warranty and will provide quality bulb burn time.
Function
Headlamps Park and turn lamp (front) Side marker lamp (front)
Foglamps (if equipped)
Trade number
HB5
3157AK or 3157A
GE194 or 168 (street appearance package)
H11 or H1 (street
appearance package)
3157K
3157K or 4157K
3057K or 4057K
3156K or 3156
Stop/turn and tail lamps (wagon) Stop/turn and tail lamps (sedan) Stop/turn and tail lamps (3-door/5-door) Backup lamp (sedan/wagon) Backup lamp (3-door/5-door) License plate lamp High-mount brakelamp Dome lamp (front/rear) Map lamp Luggage compartment To replace all instrument panel lights - see your authorized dealer
12V10W 12V6W 12V10W
921
C-5W
W5W
Replacing the interior bulbs Check the operation of all bulbs frequently.
Replacing exterior bulbs Check the operation of all the bulbs frequently.
39
2007 Focus (foc) Owners Guide (post-2002-fmt) USA (fus)
Lights
Replacing headlamp bulbs 1. Make sure the headlamp control is in the OFF position and open the hood. 2. Pull off the bulb cap.
3. Disconnect electrical connector from the bulb. 4. Twist off the bulb retainer ring by turning it counterclockwise. 5. Pull the bulb straight out. Install in reverse order.
Handle a halogen headlamp bulb carefully and keep out of children’s reach. Grasp the bulb by only its plastic base and do not touch the glass. The oil from your hand could cause the bulb to break the next time the headlamps are operated.
Note: If the bulb is accidentally touched, it should be cleaned with rubbing alcohol before being used. Replacing front parking lamp/turn signal bulbs 1. Make sure the headlamp control is in the OFF position and open the hood. 2. Remove the bulb socket from the lamp assembly by turning counterclockwise. 3. Pull the bulb straight out of the socket. Install in reverse order.
40
2007 Focus (foc) Owners Guide (post-2002-fmt) USA (fus)
Lights
Replacing tail/brake/backup lights and turn signal bulbs (3dr & 5dr) 1. Make sure the headlamp control is in the OFF position and then open the hatchback. 2. From inside the luggage compartment remove a wing nut (if equipped) from the lamp assembly. 3. Using a Phillips screwdriver remove the screw. The lamp is still retained by a spring loaded clip. Remove by gently pulling out the light housing. 4. Turn the bulb socket counterclockwise as far as possible and pull it out. 5. Pull the bulb straight out of the socket. Install in reverse order. Replacing tail/brake/backup lights and turn signal bulbs (sedan) 1. Make sure the headlamp control is in the OFF position and then open the trunk. 2. From inside the luggage compartment remove the three wing nuts from the lamp assembly. 3. Gently pull the lamp assembly away from the vehicle. 4. Turn the bulb socket counterclockwise and pull it out. 5. Pull the bulb straight out of the socket. Install in reverse order.
41
2007 Focus (foc) Owners Guide (post-2002-fmt) USA (fus)
Lights
Replacing tail/brake/backup lights and turn signal bulbs (wagon) 1. Make sure the headlamp control is in the OFF position and then open the hatchback. 2. Using a screwdriver, remove two screws and gently pull the lamp assembly away from the vehicle. 3. Remove the socket from the lamp assembly 4. Pull the bulb straight out of the socket. Install in reverse order. Replacing foglamp bulbs (if equipped) 1. Make sure the headlamp switch is in the OFF position. 2. Remove the front splash shield from the bumper. 3. Reach under the front fender, and remove the bulb socket from the foglamp by turning counterclockwise. 4. Disconnect the electrical connector. Install the new bulb in reverse order. Replacing side marker bulbs 1. Make sure the headlamp control is in the OFF position. 2. Remove the front splash shield from the bumper. 3. Reach under the side of the bumper, grasp the bulb socket and turn it counterclockwise to remove it. 4. Pull the bulb straight out. Install in reverse order.
42
2007 Focus (foc) Owners Guide (post-2002-fmt) USA (fus)
Lights
43
Replacing high-mount brake lamp bulbs Sedan 1. Make sure the headlamp control is in the OFF position and open the luggage compartment. 2. Pull the bulb holder from the lamp assembly. 3. Pull the bulb straight out. Install in reverse order.
3dr & 5dr and wagon 1. Make sure the headlamp control is in the OFF position. 2. Remove the screws using a Torx T20 screwdriver and then remove the plastic cover. 3. Unclip the bulb holder from the reflector. 4. Pull the bulb straight out. Install in reverse order. Replacing license plate lamp bulbs 1. Make sure the headlamp control is in the OFF position. 2. Insert a flathead screwdriver in the recess and pry out the complete light assembly. 3. Pull the bulb straight out. Install in reverse order.
2007 Focus (foc) Owners Guide (post-2002-fmt) USA (fus)
Lights
Replacing the luggage compartment lamp 1. Make sure the headlamp control is in the OFF position. 2. Carefully pry out the light assembly from the holder with a flathead screwdriver. 3. Pull the bulb straight out. Install in reverse order. Replacing interior lamps 1. Make sure the headlamp switch is in the OFF position. 2. Switch off the interior lamps. 3. Pry out the light assembly with a flat screwdriver at the side opposite the switch. Install in reverse order.
Replacing reading bulbs 1. Open the reading lamp assembly. 2. Pull the bulb straight out and replace it. 3. After the bulb has been replaced, close the lamp assembly. Install in reverse order.
44
2007 Focus (foc) Owners Guide (post-2002-fmt) USA (fus)
Driver Controls
MULTI-FUNCTION LEVER Windshield wiper: Move the lever down for a single wipe. For intermittent operation, move control up one position and adjust the rotary control to the desired speed. For normal operation, move control up two positions. For high speed operation, move control up three positions. Mist function: To mist, push and release the windshield washer control quickly. The wipers will cycle two or three times to clear the windshield. Windshield washer: To activate the windshield washer, push the windshield washer control. Release control to stop washer fluid spray. The wipers will provide three wipes after the wash is turned off. Note: Do not operate the washer when the washer reservoir is empty. This may cause the washer pump to overheat. Check the washer fluid level frequently. Do not operate the wipers when the windshield is dry. This may scratch the glass, damage the wiper blades and cause the wiper motor to burn out. Before operating the wiper on a dry windshield, always use the windshield washer. In freezing weather, be sure the wiper blades are not frozen to the windshield before operating the wipers.
(if equipped)
Rear window wiper/washer Wiper Pull the lever towards you for intermittent wiping. Washer Pull the lever further to operate the washer.
45
2007 Focus (foc) Owners Guide (post-2002-fmt) USA (fus)
Driver Controls
TILT AND TELESCOPE STEERING COLUMN (IF EQUIPPED) Pull the locking lever down to adjust and telescope the steering column position. Return the lever to its original position to secure the wheel. The telescope function is adjusted by moving the wheel toward the driver to telescope out and toward the instrument panel to telescope in. Always place both hands opposite each other to adjust.
Never adjust the steering wheel when the vehicle is moving.
OVERHEAD CONSOLE (IF EQUIPPED) The appearance of your vehicle’s overhead console will vary according to your option package.
Storage compartment Press the latch to open the storage compartment.
46
2007 Focus (foc) Owners Guide (post-2002-fmt) USA (fus)
Driver Controls
Installing a garage door opener (if equipped) The storage compartment can be converted to accommodate a variety of aftermarket garage door openers: • Place the VELCRO威 hook onto
the side of the aftermarket transmitter opposite of the button.
• Place the transmitter into storage
compartment, button down.
• Place the provided height
adaptors onto the back of the door as needed. • Close the door. • Press the depression in the door
to activate the transmitter.
AUXILIARY POWER POINT (12VDC)
Power outlet is designed for accessory plugs only. Do not insert
any other object in the power outlet as this will damage the
outlet and blow the fuse. Do not hang any type of accessory or
accessory bracket from the plug. Improper use of the power
outlet can cause damage not covered by your warranty.
The auxiliary power point is located
on the instrument panel.
Do not use the power point for
operating the cigarette lighter
element (if equipped).
To prevent the fuse from being
blown, do not use the power point
over the vehicle capacity of 12
VDC/180W.
47
2007 Focus (foc) Owners Guide (post-2002-fmt) USA (fus)
Driver Controls
To prevent the battery from being discharged, do not use the power point longer than necessary when the engine is not running. Always keep the power point caps closed when not being used. Cigar lighter (if equipped) Do not plug optional electrical accessories into the cigarette lighter socket. Do not hold the lighter in with your hand while it is heating, this will damage the lighter element and socket. The lighter will be released from its heating position when it is ready to be used. Improper use of the lighter can cause damage not covered by your warranty.
POWER WINDOWS (IF EQUIPPED)
Do not leave children unattended in the vehicle and do not let children play with the power windows. They may seriously injure
themselves.
When closing the power windows, you should verify they are free of obstructions and ensure that children and/or pets are not in
the proximity of the window openings.
Press and hold the bottom part of the rocker switch to open the window. Press and hold the top part of the rocker switch to close the window. One touch down: Allows the driver’s window to open fully without holding the control down. Press the driver window control completely down then release. Press again to stop.
48
2007 Focus (foc) Owners Guide (post-2002-fmt) USA (fus)
Driver Controls
49
Window lock The window lock feature allows only the driver and front passenger to operate the power windows. To lock out all the rear window controls slide the control to the left. Slide the control to the right to restore the window controls.
EXTERIOR MIRRORS
Power side view mirrors (if equipped) To adjust your mirrors: 1. Rotate the control clockwise to adjust the right mirror and rotate the control counterclockwise to adjust the left mirror. 2. Move the control in the direction you wish to tilt the mirror. 3. Return to the center position to lock mirrors in place.
Heated mirrors (if equipped) Both mirrors are heated automatically to remove ice, mist and fog when the rear window defrost is activated. Do not remove ice from the mirrors with a scraper or attempt to readjust the mirror glass if it is frozen in place. These actions could cause damage to the glass and mirrors.
2007 Focus (foc) Owners Guide (post-2002-fmt) USA (fus)
Driver Controls
SPEED CONTROL (IF EQUIPPED) With speed control set, you can maintain a set speed without keeping your foot on the accelerator pedal.
Do not use the speed control in heavy traffic or on roads that are winding, slippery or unpaved.
Setting speed control The controls for using your speed control are located on the steering wheel for your convenience. 1. Press the ON control and release it. 2. Accelerate to the desired speed.
3. Press the SET ACCEL control and release it. 4. Take your foot off the accelerator pedal. 5. The indicator light on the instrument cluster will turn on.
steep hill.
Note: • Vehicle speed may vary momentarily when driving up and down a • If the vehicle speed increases above the set speed on a downhill, you • If the vehicle speed decreases more than 10 mph (16 km/h) below
may want to apply the brakes to reduce the speed.
your set speed on an uphill, your speed control will disengage.
50
2007 Focus (foc) Owners Guide (post-2002-fmt) USA (fus)
Driver Controls
Disengaging speed control To disengage the speed control: • Depress the brake pedal or • Depress the clutch pedal (if equipped). Disengaging the speed control will not erase previous set speed. Resuming a set speed Press the RES (resume) control and release it. This will automatically return the vehicle to the previously set speed.
Increasing speed while using speed control There are two ways to set a higher speed: • Press and hold the SET ACCEL control until you get to the desired speed, then release the control. You can also use the SET ACCEL control to operate the Tap-Up function. Press and release this control to increase the vehicle set speed in small amounts by 1 mph (1.6 km/h).
• Use the accelerator pedal to get to the desired speed. When the
vehicle reaches that speed, press and release the SET ACCEL control.
51
2007 Focus (foc) Owners Guide (post-2002-fmt) USA (fus)
