2010 Chevrolet Cobalt Owners Manual

Download PDF Manual

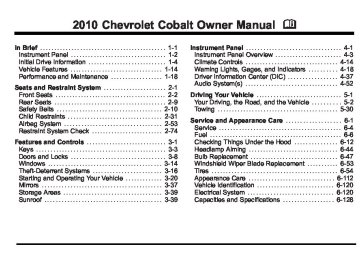

2010 Chevrolet Cobalt Owner Manual M In Brief . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1 Instrument Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2 Initial Drive Information . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4 Vehicle Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-14 Performance and Maintenance . . . . . . . . . . . . . . . . . . 1-18 Seats and Restraint System . . . . . . . . . . . . . . . . . . . . . . 2-1 Front Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2 Rear Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9 Safety Belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10 Child Restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-31 Airbag System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-53 Restraint System Check . . . . . . . . . . . . . . . . . . . . . . . . . 2-74 Features and Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1 Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3 Doors and Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8 Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-14 Theft-Deterrent Systems . . . . . . . . . . . . . . . . . . . . . . . . 3-16 Starting and Operating Your Vehicle . . . . . . . . . . . . . 3-20 Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-37 Storage Areas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-39 Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-39 Instrument Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1 Instrument Panel Overview . . . . . . . . . . . . . . . . . . . . . . . 4-3 Climate Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-14 Warning Lights, Gages, and Indicators . . . . . . . . . . 4-18 Driver Information Center (DIC) . . . . . . . . . . . . . . . . . 4-37 Audio System(s) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-52 Driving Your Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1 Your Driving, the Road, and the Vehicle . . . . . . . . . . 5-2 Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-30 Service and Appearance Care . . . . . . . . . . . . . . . . . . . 6-1 Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-4 Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-6 Checking Things Under the Hood . . . . . . . . . . . . . . . 6-12 Headlamp Aiming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-44 Bulb Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-47 Windshield Wiper Blade Replacement . . . . . . . . . . . 6-53 Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-54 Appearance Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-112 Vehicle Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-120 Electrical System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-120 Capacities and Specifications . . . . . . . . . . . . . . . . . . 6-128 2010 Chevrolet Cobalt Owner Manual M Maintenance Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1 Maintenance Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2 Customer Assistance Information . . . . . . . . . . . . . . . 8-1 Customer Assistance and Information . . . . . . . . . . . . 8-2 Reporting Safety Defects . . . . . . . . . . . . . . . . . . . . . . . . 8-15 Vehicle Data Recording and Privacy . . . . . . . . . . . . . 8-17 i-1 Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GENERAL MOTORS, GM, the GM Emblem, CHEVROLET, the CHEVROLET Emblem, and the name COBALT are registered trademarks of General Motors Corporation. This manual describes features that may or may not be on your specific vehicle either because they are options that you did not purchase or due to changes subsequent to the printing of this owner manual. Please refer to the purchase documentation relating to your specific vehicle to confirm each of the features found on your vehicle. For vehicles first sold in Canada, substitute the name “General Motors of Canada Limited” for Chevrolet Motor Division wherever it appears in this manual. Keep this manual in the vehicle for quick reference. Canadian Owners Propriétaires Canadiens A French language copy of this manual can be obtained from your dealer/retailer or from: On peut obtenir un exemplaire de ce guide en français auprès du concessionnaire ou à l'adresse suivante: Helm, Incorporated P.O. Box 07130 Detroit, MI 48207 1-800-551-4123 Numéro de poste 6438 de langue française www.helminc.com Index To quickly locate information about the vehicle, use the index in the back of the manual. It is an alphabetical list of what is in the manual and the page number where it can be found. Litho in the U.S.A. Part No. 25895310 A First Printing ©2009 General Motors Corporation. All rights Reserved. iii Safety Warnings and Symbols Warning messages found on vehicle labels and in this manual describe hazards and what to do to avoid or reduce them. Danger indicates a hazard with a high level of risk which will result in serious injury or death. Warning or Caution indicates a hazard that could result in injury or death. { WARNING: These mean there is something that could hurt you or other people. Notice: This means there is something that could result in property or vehicle damage. This would not be covered by the vehicle's warranty. A circle with a slash through it is a safety symbol which means “Do Not,” “Do not do this,” or “Do not let this happen.” Vehicle Symbols The vehicle has components and labels that use symbols instead of text. Symbols are shown along with the text describing the operation or information relating to a specific component, control, message, gage, or indicator. M : This symbol is shown when you need to see your owner manual for additional instructions or information. * : This symbol is shown when you need to see a service manual for additional instructions or information. iv Vehicle Symbol Chart Here are some additional symbols that may be found on the vehicle and what they mean. For more information on the symbol, refer to the index. 9 : Airbag Readiness Light # : Air Conditioning ! : Antilock Brake System (ABS) g : Audio Steering Wheel Controls or OnStar® $ : Brake System Warning Light " : Charging System I : Cruise Control B : Engine Coolant Temperature O : Exterior Lamps # : Fog Lamps . : Fuel Gage + : Fuses i : Headlamp High/Low-Beam Changer j : LATCH System Child Restraints * : Malfunction Indicator Lamp : : Oil Pressure } : Power / : Remote Vehicle Start > : Safety Belt Reminders 7 : Tire Pressure Monitor F : Traction Control M : Windshield Washer Fluid 2 NOTES vi Section 1 In Brief Instrument Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2 Initial Drive Information . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4 Remote Keyless Entry (RKE) System . . . . . . . . . . . 1-4 Remote Vehicle Start . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4 Door Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5 Trunk Release . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6 Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6 Seat Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6 Head Restraint Adjustment . . . . . . . . . . . . . . . . . . . . . . 1-9 Safety Belt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9 Sensing System for Passenger Airbag . . . . . . . . . 1-10 Mirror Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10 Steering Wheel Adjustment . . . . . . . . . . . . . . . . . . . . 1-11 Interior Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12 Exterior Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12 Windshield Wiper/Washer . . . . . . . . . . . . . . . . . . . . . . 1-13 Climate Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-14 Vehicle Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-14 Radio(s) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-14 Satellite Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-16 Portable Audio Devices (Auxiliary Input or USB Port) . . . . . . . . . . . . . . . . . 1-16 Steering Wheel Controls . . . . . . . . . . . . . . . . . . . . . . . 1-17 Bluetooth® . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-17 Cruise Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-18 Power Outlets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-18 Performance and Maintenance . . . . . . . . . . . . . . . . . . 1-18 Traction Control System (TCS) . . . . . . . . . . . . . . . . 1-18 Electronic Stability Control (ESC) . . . . . . . . . . . . . . 1-19 Tire Pressure Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . 1-19 Tire Sealant and Compressor Kit . . . . . . . . . . . . . . 1-20 Engine Oil Life System . . . . . . . . . . . . . . . . . . . . . . . . 1-20 Driving for Better Fuel Economy . . . . . . . . . . . . . . . 1-21 Roadside Assistance Program . . . . . . . . . . . . . . . . . 1-21 OnStar® . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-22 1-1 Instrument Panel 1-2 A. Outlet Adjustment on page 4‑16. B. Turn Signal/Multifunction Lever on page 4‑4. C. Cruise Control on page 4‑6 (If Equipped) . Driver Information Center (DIC) on page 4‑37. Instrument Panel Cluster on page 4‑19. D. E. Audio Steering Wheel Controls on page 4‑84 (If Equipped) . F. Hazard Warning Flashers on page 4‑3. G. Windshield Wipers on page 4‑5 and Windshield Washer on page 4‑6. H. Audio System(s) on page 4‑52. I. Fog Lamps on page 4‑10 (If Equipped) . J. Trunk Release. See Trunk on page 3‑12. Instrument Panel Brightness on page 4‑11. K. L. Horn on page 4‑3. M. Traction Control System (TCS) on page 5‑9 (If Equipped) . Electronic Stability Control (ESC) on page 5‑6 (If Equipped). N. Cigarette Lighter (If Equipped). See Ashtray(s) and Cigarette Lighter on page 4‑13. O. Shift Lever (Manual Shown). See Manual Transmission Operation on page 3‑28 and Automatic Transmission Operation on page 3‑26. P. Climate Control System on page 4‑14. Q. Heated Seats on page 2‑4 (If Equipped) . R. Glove Box on page 3‑39. 1-3 Initial Drive Information This section provides a brief overview about some of the important features that may or may not be on your specific vehicle. For more detailed information, refer to each of the features which can be found later in this owner manual. Remote Keyless Entry (RKE) System The RKE transmitter is used to remotely lock and unlock the doors from up to 60 m (195 feet) away from the vehicle. Press K to unlock the driver door. Press again within five seconds to unlock all remaining doors. Press Q to lock all doors. Lock and unlock feedback can be personalized. Press and hold V for approximately one second to open the trunk. Press L and release to locate the vehicle. Press L and hold for three seconds to sound the panic alarm. Press L again to cancel the panic alarm. See Keys on page 3‑3 and Remote Keyless Entry (RKE) System Operation on page 3‑4. Remote Vehicle Start With this feature the engine can be started from outside of the vehicle. Starting the Vehicle 1. Aim the RKE transmitter at the vehicle. 2. Press Q . 3. Immediately after completing Step 2, press and hold / until the turn signal lamps flash. 1-4 When the vehicle starts, the parking lamps will turn on and remain on as long as the engine is running. The doors will be locked and the climate control system may come on. The engine will continue to run for 10 minutes. Repeat the steps for a 10-minute time extension. Remote start can be extended only once. Canceling a Remote Start To cancel a remote start: . Aim the RKE transmitter at the vehicle and press and hold /. Turn on the hazard warning flashers. Turn the ignition switch to ON/RUN and then LOCK/OFF. See Remote Vehicle Start on page 3‑6. Door Locks To lock the driver door from outside the vehicle, turn the key clockwise. Turn it counterclockwise to unlock. The Remote Keyless Entry (RKE) transmitter can also be used to lock or unlock the doors. From the inside, use the manual lock knobs on each door or use the power door locks. Power Door Locks This vehicle may have power door locks. The controls are located on the driver and front passenger door armrests. K : Press to unlock the doors. Q : Press to lock the doors. For more information see: . Door Locks on page 3‑8. . Power Door Locks on page 3‑9. . Remote Keyless Entry (RKE) System Operation on page 3‑4 . 1-5 Trunk Release In addition to the trunk release button on the Remote Keyless Entry (RKE) transmitter, the trunk can be opened from inside the vehicle by pressing the remote trunk release button. This button is located inside the driver storage compartment, on the left side of the instrument panel . See Trunk on page 3‑12. Windows Power Windows Seat Adjustment Manual Seats 1. Lift the bar to unlock the seat. 2. Slide the seat to the desired position and release the bar. For vehicles with power windows, the switches on the driver door armrest control each window. The switch on each passenger door controls only that doors window. Try to move the seat to be sure it is locked in place. See Manual Seats on page 2‑2. Press the front of the switch to open the window and pull the switch up to close it. See Power Windows on page 3‑15. 1-6 Seat Height Adjuster Reclining Seatbacks To raise or lower the driver seat, move the lever upward or downward repeatedly until the seat is at the desired height. See Seat Height Adjuster on page 2‑3. To recline the seatback, do the following: 1. Lift the recline lever. 2. Move the seatback to the desired position, then release the lever to lock the seatback in place. 3. Push and pull on the seatback to make sure it is locked. See Reclining Seatbacks on page 2‑4. 1-7 Manual Lumbar Heated Seats If equipped, the lumbar knob is located on the front of the driver seat lower cushion. Turn it clockwise or counterclockwise to increase or decrease the lumbar support. This vehicle may have heated front seats. The switches are located on the instrument panel above the climate control system. Driver's Switch shown Press the side of the switch with the double indicator lights to turn the seat to the highest setting. Press the side of the switch with the single indicator light to turn the seat to the lowest setting. Return the switch to the center to turn off the heated seat. See Heated Seats on page 2‑4. See Manual Lumbar on page 2‑3. 1-8 Head Restraint Adjustment Do not drive until the head restraints for all occupants are installed and adjusted properly. See Head Restraints on page 2‑7. Safety Belt Refer to the following sections for important information on how to use safety belts properly. . Safety Belts: They Are for Everyone on page 2‑10. . How to Wear Safety Belts Properly on page 2‑15. Lap-Shoulder Belt on page 2‑24. Lower Anchors and Tethers for Children (LATCH) on page 2‑41 . 1-9 Sensing System for Passenger Airbag The passenger sensing system, if equipped, will turn off the right front passenger frontal airbag under certain conditions. The driver airbags and roof-rail airbags are not affected by this. If the vehicle has a passenger sensing system, the passenger airbag status indicator will be visible on the instrument panel when the vehicle is started. Mirror Adjustment Exterior Mirrors Controls for the outside power mirrors are located on the driver door armrest. United States Canada See Passenger Sensing System (Without Turbo Engine) on page 2‑62 or Passenger Sensing System (With Turbo Engine) on page 2‑67 for important information. 1. Use the selector switch located below the four-way control pad to choose either the left or right outside mirror. 2. Press one of the four arrows located on the control pad to move the mirror to the desired direction. 3. Adjust each outside mirror so that a little of the vehicle and the area behind it can be seen. Keep the selector switch in the center position when not adjusting either outside mirror. 1-10 Steering Wheel Adjustment Manually fold the mirrors inward to prevent damage when going through an automatic car wash. To fold, pull the mirror toward the vehicle. Push the mirror outward, to return it to the original position. Interior Mirror Hold the inside rearview mirror in the center to move it for a clearer view of behind the vehicle. Adjust the mirror to reduce the glare of headlamps from behind. Push the tab forward for daytime use and pull it for nighttime use. See Manual Rearview Mirror on page 3‑37 . The tilt wheel lever is located on the left side of the steering column. To adjust the steering wheel: 1. Pull the lever down. 2. Move the steering wheel up or down into a comfortable position. 3. Pull the lever up to lock the steering wheel in place. See Tilt Wheel on page 4‑3. 1-11 Interior Lighting Dome Lamp The vehicle may have a dome lamp. Move the lever near the dome lamp to the following positions: 9 : Turns the lamp off, even when a door is opened. 1 : Turns the lamp on whenever a door is opened. + : Turns the dome lamp on. Mirror Reading Lamp The vehicle may have reading lamps on the rearview mirror. Press the button near each lamp to turn the reading lamps on and off. For more information on interior lighting, see: . Entry/Exit Lighting on page 4‑11. Instrument Panel Brightness on page 4‑11. 1-12 Exterior Lighting The lever is on the left side of the steering column. 2 : Turns on the headlamps, parking lamps, and taillamps. ; : Turns on the parking lamps and taillamps only. AUTO : Automatically turns on the Daytime Running Lamps (DRL) during daytime, and the headlamps, parking lamps, and taillamps at night. P : When operating in AUTO, a momentary turn of the switch to Off/On will turn the Automatic Headlamp System off or back on. For vehicles first sold in Canada, the automatic transmission must be in P (Park) or the manual transmission must have the park brake set, before the Automatic Headlamp System can be turned off. For more information, see: . Headlamps on page 4‑9. Fog Lamps on page 4‑10. . Daytime Running Lamps (DRL) on page 4‑10. . Headlamps on Reminder on page 4‑10. . Wiper Activated Headlamps on page 4‑10. Windshield Wiper/Washer The windshield wiper lever is located on the right side of the steering column. 9 : Turns the wipers off. & : Turn this band for intermittent or speed sensitive operation. As vehicle speed increases or decreases, the wiper interval also increases or decreases. x : Delays wiping cycle. Turn the band up for more frequent wipes. 6 : Slow wipes. 1 : Fast wipes. 8 : Use for a single wiping cycle. Windshield Washer : Press the button at the end of the lever until the washers begin. See Windshield Wipers on page 4‑5 and Windshield Washer on page 4‑6. 1-13 Climate Controls The vehicle's heating, cooling, and ventilation can be controlled with this system. Vehicle Features Radio(s) Vehicles with Air Conditioning shown, without Air Conditioning similar A. Air Delivery Mode Control B. Fan Control C. Temperature Control D. Air Conditioning E. Rear Window Defogger F. Recirculation See Climate Control System on page 4‑14. Radio with CD (MP3) and USB Port shown O : Press to turn the system on and off. Turn to increase or decrease the volume. BAND : Press to choose between FM, AM, or XM™, if equipped. 1-14 f : Select radio stations. © ¨ : Seek or scan stations. 4 : Press 4 to display additional text information related to the current FM-RDS or XM station; or CD, MP3, WMA song. Song title information will be displayed on the top line of the display while the artist information will be displayed on the bottom line, it the information is available during XM, CD, MP3, or WMA playback. When information is not available, “No Info” displays. For more information about these and other radio features, see Radio(s) on page 4‑54. Storing a Favorite Station Depending on which radio the vehicle has, radio stations are stored as either favorites or presets. For radios with a FAV button, a maximum of 36 stations can be stored as favorites using the six softkeys located below the radio station frequency tabs and by using the radio FAV button. Press FAV to go through up to six pages of favorites, each having six favorite stations available per page. Each page of favorites can contain any combination of AM, FM, or XM stations. For radios without a FAV button, up to 18 stations (six FM1, six FM2, and six AM), can be programmed on the six numbered buttons. For more information, see Radio(s) on page 4‑54. Setting the Clock To set the time and date for the Radio with CD (MP3) and USB port or the Radio with CD (MP3) player: 1. Turn the ignition key to ACC/ACCESSORY or ON/RUN. 2. Press O to turn the radio on. 3. Press H and the HR, MIN, MM, DD, YYYY (hour, minute, month, day, and year) displays. 4. Press the softkey located below any one of the tabs that you want to change. Increase or decrease the time or date by turning f clockwise or counterclockwise. 5. For detailed instructions on setting the clock for your specific audio system, see Setting the Clock on page 4‑53 . 1-15 Satellite Radio XM is a satellite radio service that is based in the 48 contiguous United States and 10 Canadian provinces. XM satellite radio has a wide variety of programming and commercial-free music, coast-to-coast, and in digital-quality sound. A fee is required to receive the XM service. For more information, refer to: . www.xmradio.com or call 1-800-929-2100 (U.S.) . www.xmradio.ca or call 1-877-438-9677 (Canada) See “XM Satellite Radio Service” under Radio(s) on page 4‑54 . Portable Audio Devices (Auxiliary Input or USB Port) This vehicle may have an auxiliary input jack and a USB port, located on the audio faceplate. External devices such as iPods®, laptop computers, MP3 players, CD changers, USB storage devices, etc. can be connected to the auxiliary input jack using a 3.5 mm (1/8 in) cable or the USB port depending on the audio system. Press the CD/AUX button to play audio from the portable player. See “Using the Auxiliary Input Jack” and “Using the USB Port” under Radio(s) on page 4‑54. 1-16 Steering Wheel Controls If equipped, some audio controls can be adjusted using the controls on the right side of the steering wheel. Bluetooth® For vehicles with an in-vehicle Bluetooth system, it allows users with a Bluetooth enabled cell phone to make and receive hands-free calls using the vehicle’s audio system and controls. The Bluetooth enabled cell phone must be paired with the in-vehicle Bluetooth system before it can be used in the vehicle. Not all phones will support all functions. For more information visit www.gm.com/bluetooth. For more information, see Bluetooth® on page 4‑74. Increases or decreases volume. e + / e − : w / x : Press to change radio stations, select tracks on a CD, or to select tracks and navigate folders on an iPod® or USB device. b g : Press to silence the vehicle speakers only. Press again to turn the sound on. Press and hold longer than two seconds to interact with the OnStar® or Bluetooth systems. c : Press to reject an incoming call, or to end a call. For more information, see Audio Steering Wheel Controls on page 4‑84. 1-17 Cruise Control The cruise control buttons are located on the left side of the steering wheel. J : On/Off. RES+ : Press to resume or accelerate speed. SET− : Press to set or decrease speed. For more information, see Cruise Control on page 4‑6. Power Outlets Accessory power outlets can be used to connect electrical equipment, such as a cellular phone. The accessory power outlet is located in the center console, rearward of the shift lever. To use the accessory power outlet, remove the cover. See Accessory Power Outlet(s) on page 4‑12 and Ashtray(s) and Cigarette Lighter on page 4‑13 (If Equipped). Performance and Maintenance Traction Control System (TCS) The traction control system limits wheel spin. The system turns on automatically every time the vehicle is started. To turn off traction control, press and release d on the instrument panel. F illuminates and the appropriate DIC message displays. See DIC Warnings and Messages on page 4‑40. . Press and release the button again to turn on traction control. For more information, see Traction Control System (TCS) on page 5‑9. 1-18 Electronic Stability Control (ESC) The Electronic Stability Control system assists with directional control of the vehicle in difficult driving conditions. The system turns on automatically every time the vehicle is started. To turn off both traction control and Electronic Stability Control, press and hold d until F illuminates and the appropriate DIC message displays. See DIC Warnings and Messages on page 4‑40 . . Press and release the button again to turn on both systems. For more information, see Electronic Stability Control (ESC) on page 5‑6. Tire Pressure Monitor This vehicle may have a Tire Pressure Monitor System (TPMS). The Tire Pressure Monitor alerts you when a significant reduction in pressure occurs in one or more of the vehicle’s tires by illuminating the low tire pressure warning light on the instrument cluster. The warning light will remain on until the tire pressure is corrected. The proper tire pressures for your vehicle are listed on the Tire and Loading Information label located on the driver side center pillar (B pillar). See Loading the Vehicle on page 5‑25 . 1-19 You may notice during cooler conditions that the low tire pressure warning light will appear when the vehicle is first started and then turn off as you drive. This may be an early indicator that your tire pressures are getting low and the tires need to be inflated to the proper pressure. Note: The Tire Pressure Monitor can alert you about low tire pressure, but it does not replace normal monthly tire maintenance. It is the driver’s responsibility to maintain correct tire pressures. See Tire Pressure Monitor System on page 6‑65 and Tire Pressure Monitor Operation on page 6‑67. Tire Sealant and Compressor Kit This vehicle may come with a jack and spare tire or a tire sealant and compressor kit. The kit can be used to seal small punctures in the tread area of the tire. See Tire Sealant and Compressor Kit on page 6‑81 for complete operating information. Engine Oil Life System The engine oil life system calculates engine oil life based on vehicle use and displays a DIC message when it is necessary to change the engine oil and filter. The oil life system should be reset to 100% only following an oil change. Resetting the Oil Life System 1. Turn the ignition to ON/RUN, with the engine off. 2. Press the DIC information and reset buttons at the same time to enter the personalization menu. 3. Press the information button until the DIC display shows OIL-LIFE RESET. 4. Press and hold the reset button until the DIC display shows ACKNOWLEDGED. 5. Turn the key to LOCK/OFF. See Engine Oil Life System on page 6‑21. 1-20 Driving for Better Fuel Economy Driving habits can affect fuel mileage. Here are some driving tips to get the best fuel economy possible. . Avoid fast starts and accelerate smoothly. . Brake gradually and avoid abrupt stops. . Avoid idling the engine for long periods of time. . When road and weather conditions are appropriate, use cruise control, if equipped. . Always follow posted speed limits or drive more slowly when conditions require. . Keep vehicle tires properly inflated. . Combine several trips into a single trip. . Replace the vehicle's tires with the same TPC Spec number molded into the tire's sidewall near the size. Follow recommended scheduled maintenance. Roadside Assistance Program U.S.: 1-800-CHEV-USA (1-800-243-8872) TTY Users: 1-888-889-2438 Canada: 1-800-268-6800 As the owner of a new Chevrolet, you are automatically enrolled in the Roadside Assistance program. This program provides technically trained advisors who are available 24 hours a day, 365 days a year, minor repair information or towing arrangements. Roadside Assistance and OnStar If you have a current OnStar subscription, press the OnStar button and the current GPS location will be sent to an OnStar Advisor who will assess your problem, contact Roadside Assistance, and relay exact location to get you the help you need. Online Owner Center The Online Owner Center is a complimentary service that includes online service reminders, vehicle maintenance tips, online owner manual, special privileges and more. Sign up today at: www.gmownercenter.com/chevrolet (U.S.) or www.gm.ca (Canada). 1-21 OnStar® OnStar® uses several innovative technologies and live advisors to provide a wide range of safety, security, navigation, diagnostics, and calling services. Automatic Crash Response In a crash, built in sensors can automatically alert an OnStar advisor who is immediately connected to the vehicle to see if you need help. How OnStar Service Works Q : This blue button connects you to a specially trained OnStar advisor to verify your account information and to answer questions. ] : Push this red emergency button to get priority help from specially trained OnStar emergency advisors. X : Push this button for hands-free, voice-activated calling and to give voice commands for turn-by-turn navigation. Crisis Assist, Stolen Vehicle Assistance, Vehicle Diagnostics, Remote Door Unlock, Roadside Assistance, Turn-by-Turn Navigation and Hands-Free Calling are available on most vehicles. Not all OnStar services are available on all vehicles. For more information see the OnStar Owner's Guide or visit www.onstar.com (U.S.) or www.onstar.ca (Canada), contact OnStar at 1-888-4-ONSTAR (1-888-466-7827) or TTY 1-877-248-2080, or press Q to speak with an OnStar advisor 24 hours a day, 7 days a week. For a full description of OnStar services and system limitations, see the OnStar Owner's Guide in the glove box. OnStar service is subject to the OnStar terms and conditions included in the OnStar Subscriber Information. 1-22 OnStar service cannot work unless the vehicle is in a place where OnStar has an agreement with a wireless service provider for service in that area. OnStar service also cannot work unless the vehicle is in a place where the wireless service provider OnStar has hired for that area has coverage, network capacity and reception when the service is needed, and technology that is compatible with the OnStar service. Not all services are available everywhere, particularly in remote or enclosed areas, or at all times. The OnStar system can record and transmit vehicle information. This information is automatically sent to an OnStar call center when Q is pressed, ] is pressed, or if the airbags or ACR system deploy. This information usually includes the vehicle's GPS location and, in the event of a crash, additional information regarding the crash that the vehicle was involved in (e.g. the direction from which the vehicle was hit). When the virtual advisor feature of OnStar hands-free calling is used, the vehicle also sends OnStar the vehicle's GPS location so they can provide services where it is located. Location information about the vehicle is only available if the GPS satellite signals are unobstructed and available. The vehicle must have a working electrical system, including adequate battery power, for the OnStar equipment to operate. There are other problems OnStar cannot control that may prevent OnStar from providing OnStar service at any particular time or place. Some examples are damage to important parts of the vehicle in a crash, hills, tall buildings, tunnels, weather or wireless phone network congestion. OnStar Steering Wheel Controls This vehicle may have a Talk/Mute button that can be used to interact with OnStar hands-free calling. See Audio Steering Wheel Controls on page 4‑84 for more information. On some vehicles, the mute button can be used to dial numbers into voice mail systems, or to dial phone extensions. See the OnStar Owner's Guide for more information. Your Responsibility Increase the volume of the radio if the OnStar advisor cannot be heard. If the light next to the OnStar buttons is red, the system may not be functioning properly. Press Q and request a vehicle diagnostic. If the light appears clear (no light is appearing), your OnStar subscription has expired and all services have been deactivated. Press Q to confirm that the OnStar equipment is active. 1-23 2 NOTES 1-24 Section 2 Seats and Restraint System Front Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2 Manual Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2 Seat Height Adjuster . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3 Manual Lumbar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3 Heated Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4 Reclining Seatbacks . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4 Head Restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7 Easy Entry Seat (Coupe) . . . . . . . . . . . . . . . . . . . . . . . . 2-8 Rear Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9 Split Folding Rear Seat . . . . . . . . . . . . . . . . . . . . . . . . . 2-9 Safety Belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10 Safety Belts: They Are for Everyone . . . . . . . . . . . 2-10 How to Wear Safety Belts Properly . . . . . . . . . . . . 2-15 Lap-Shoulder Belt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-24 Safety Belt Use During Pregnancy . . . . . . . . . . . . . 2-30 Safety Belt Extender . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-30 Child Restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-31 Older Children . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-31 Infants and Young Children . . . . . . . . . . . . . . . . . . . . 2-34 Child Restraint Systems . . . . . . . . . . . . . . . . . . . . . . . 2-37 Where to Put the Restraint . . . . . . . . . . . . . . . . . . . . . 2-39 Lower Anchors and Tethers for Children (LATCH) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-41 Securing a Child Restraint in a Rear Seat Position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-47 Securing a Child Restraint in the Right Front Seat Position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-50 Airbag System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-53 Where Are the Airbags? . . . . . . . . . . . . . . . . . . . . . . . 2-56 When Should an Airbag Inflate? . . . . . . . . . . . . . . . 2-58 What Makes an Airbag Inflate? . . . . . . . . . . . . . . . . 2-59 How Does an Airbag Restrain? . . . . . . . . . . . . . . . . 2-59 What Will You See After an Airbag Inflates? . . . 2-60 Passenger Sensing System (Without Turbo Engine) . . . . . . . . . . . . . . . . . . . . . . 2-62 Passenger Sensing System (With Turbo Engine) . . . . . . . . . . . . . . . . . . . . . . . . . 2-67 Servicing Your Airbag-Equipped Vehicle . . . . . . . 2-72 Adding Equipment to Your Airbag-Equipped Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-73 Restraint System Check . . . . . . . . . . . . . . . . . . . . . . . . . 2-74 Checking the Restraint Systems . . . . . . . . . . . . . . . 2-74 Replacing Restraint System Parts After a Crash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-75 2-1 Front Seats Manual Seats { WARNING: You can lose control of the vehicle if you try to adjust a manual driver's seat while the vehicle is moving. The sudden movement could startle and confuse you, or make you push a pedal when you do not want to. Adjust the driver's seat only when the vehicle is not moving. If the vehicle has a manual seat, it can be moved forward or rearward. 1. Lift the bar to unlock the seat. 2. Slide the seat to the desired position and release the bar. Try to move the seat with your body to be sure the seat is locked in place. 2-2 Seat Height Adjuster Manual Lumbar On vehicles with this feature, the knob is located on the front of the driver seat lower cushion on the inboard side. Turn the knob clockwise or counterclockwise to increase or decrease the lumbar support. The driver's seat height adjuster is located on the outboard side of the seat. To raise the seat, move the lever upward repeatedly until the seat is at the desired height. To lower the seat, move the lever downward repeatedly until the seat is at the desired height. 2-3 Heated Seats Your vehicle may have heated front seats. The switches are located on the instrument panel above the climate control system. Reclining Seatbacks { WARNING: Press the side of the switch with the double indicator lights to turn on the heated seat at the highest setting. You can lose control of the vehicle if you try to adjust a manual driver's seat while the vehicle is moving. The sudden movement could startle and confuse you, or make you push a pedal when you do not want to. Adjust the driver's seat only when the vehicle is not moving. Driver's Switch Shown, Passenger's Switch Similar Both indicator lights will be lit to indicate that the setting is on high. Press the side of the switch with the single indicator light to go to the low setting. The indicator light will be lit to indicate that the setting is on low. Return the switch to the center to turn off the heated seat. If your vehicle has been turned off, the last heated seat setting will be retained when the vehicle is started again. 2-4 { WARNING: If either seatback is not locked, it could move forward in a sudden stop or crash. That could cause injury to the person sitting there. Always push and pull on the seatbacks to be sure they are locked. Your seats have manual reclining seatbacks. The lever used to operate them is located on the outboard side of the seats. To recline the seatback, do the following: 1. Lift the recline lever. 2. Move the seatback to the desired position, then release the lever to lock the seatback in place. 3. Push and pull on the seatback to make sure it is locked. To return the seatback to an upright position, do the following: 1. Lift the lever fully without applying pressure to the seatback and the seatback will return to the upright position. 2. Push and pull on the seatback to make sure it is locked. 2-5 { WARNING: Sitting in a reclined position when the vehicle is in motion can be dangerous. Even when buckled up, the safety belts cannot do their job when reclined like this. The shoulder belt cannot do its job because it will not be against your body. Instead, it will be in front of you. In a crash, you could go into it, receiving neck or other injuries. The lap belt cannot do its job either. In a crash, the belt could go up over your abdomen. The belt forces would be there, not at your pelvic bones. This could cause serious internal injuries. For proper protection when the vehicle is in motion, have the seatback upright. Then sit well back in the seat and wear the safety belt properly. Do not have a seatback reclined if your vehicle is moving. 2-6 Head Restraints Pull the head restraint up to raise it. To lower the head restraint, press the button, located on the top of the seatback, and push the restraint down. Adjust the head restraint so that the top of the restraint is at the same height as the top of the occupant's head. This position reduces the chance of a neck injury in a crash. 2-7 Easy Entry Seat (Coupe) To use the easy entry seat, do the following: { WARNING: If the easy entry right front seat is not locked, it can move. In a sudden stop or crash, the person sitting there could be injured. After you have used it, be sure to push rearward on an easy entry seat to be sure it is locked. { WARNING: If either seatback is not locked, it could move forward in a sudden stop or crash. That could cause injury to the person sitting there. Always push and pull on the seatbacks to be sure they are locked. The front passenger seat can be used to easily get in and out of the rear seat. 2-8 1. Push down the easy entry seat handle located on the rear of the seatback on the outboard side to release the seatback. 2. Tilt the seatback forward completely while pushing To lower the rear seatback, follow these steps: the seat forward. 3. Move the seat rearward until it locks into place after someone gets into the rear seat area. 4. Move the seatback to its original position and make sure the seatback is locked. Rear Seats Split Folding Rear Seat You can fold either side of the rear seatback down for more cargo space. 1. Open the trunk and pull one or both of the small handles located in the center of the trunk. Notice: Folding a rear seat with the safety belts still fastened may cause damage to the seat or the safety belts. Always unbuckle the safety belts and return them to their normal stowed position before folding a rear seat. 2. Push the seatback open through the trunk, or pull it down from inside the vehicle. 2-9 Safety Belts Safety Belts: They Are for Everyone This section of the manual describes how to use safety belts properly. It also describes some things not to do with safety belts. { WARNING: Do not let anyone ride where a safety belt cannot be worn properly. In a crash, if you or your passenger(s) are not wearing safety belts, the injuries can be much worse. You can hit things inside the vehicle harder or be ejected from the vehicle. You and your passenger(s) can be seriously injured or killed. In the same crash, you might not be, if you are buckled up. Always fasten your safety belt, and check that your passenger(s) are restrained properly too. To raise the rear seatback, lift it up and push rearward until you hear a click. Push and pull on the seatback to be sure it is locked into place. { WARNING: If the seatback is not locked, it could move forward in a sudden stop or crash. That could cause injury to the person sitting there. Always pull forward on the top of the seatback at the area of the latch to be sure it is locked. { WARNING: A safety belt that is improperly routed, not properly attached, or twisted will not provide the protection needed in a crash. The person wearing the belt could be seriously injured. After raising the rear seatback, always check to be sure that the safety belts are properly routed and attached, and are not twisted. 2-10 { WARNING: It is extremely dangerous to ride in a cargo area, inside or outside of a vehicle. In a collision, people riding in these areas are more likely to be seriously injured or killed. Do not allow people to ride in any area of your vehicle that is not equipped with seats and safety belts. Be sure everyone in your vehicle is in a seat and using a safety belt properly. This vehicle has indicators as a reminder to buckle the safety belts. See Safety Belt Reminders on page 4‑20 for additional information. In most states and in all Canadian provinces, the law requires wearing safety belts. Here is why: You never know if you will be in a crash. If you do have a crash, you do not know if it will be a serious one. A few crashes are mild, and some crashes can be so serious that even buckled up, a person would not survive. But most crashes are in between. In many of them, people who buckle up can survive and sometimes walk away. Without safety belts, they could have been badly hurt or killed. After more than 40 years of safety belts in vehicles, the facts are clear. In most crashes buckling up does matter ... a lot! 2-11 Why Safety Belts Work When you ride in or on anything, you go as fast as it goes. Put someone on it. Take the simplest vehicle. Suppose it is just a seat on wheels. 2-12 Get it up to speed. Then stop the vehicle. The rider does not stop. The person keeps going until stopped by something. In a real vehicle, it could be the windshield... 2-13 or the instrument panel... or the safety belts! With safety belts, you slow down as the vehicle does. You get more time to stop. You stop over more distance, and your strongest bones take the forces. That is why safety belts make such good sense. 2-14 Questions and Answers About Safety Belts Q: Will I be trapped in the vehicle after a crash if I am wearing a safety belt? A: You could be — whether you are wearing a safety belt or not. But your chance of being conscious during and after an accident, so you can unbuckle and get out, is much greater if you are belted. And you can unbuckle a safety belt, even if you are upside down. Q: If my vehicle has airbags, why should I have to wear safety belts? A: Airbags are supplemental systems only; so they work with safety belts — not instead of them. Whether or not an airbag is provided, all occupants still have to buckle up to get the most protection. That is true not only in frontal collisions, but especially in side and other collisions. Q: If I am a good driver, and I never drive far from home, why should I wear safety belts? A: You may be an excellent driver, but if you are in a crash — even one that is not your fault — you and your passenger(s) can be hurt. Being a good driver does not protect you from things beyond your control, such as bad drivers. Most accidents occur within 25 miles (40 km) of home. And the greatest number of serious injuries and deaths occur at speeds of less than 40 mph (65 km/h). Safety belts are for everyone. How to Wear Safety Belts Properly This section is only for people of adult size. Be aware that there are special things to know about safety belts and children. And there are different rules for smaller children and infants. If a child will be riding in the vehicle, see Older Children on page 2‑31 or Infants and Young Children on page 2‑34 . Follow those rules for everyone's protection. It is very important for all occupants to buckle up. Statistics show that unbelted people are hurt more often in crashes than those who are wearing safety belts. 2-15 Occupants who are not buckled up can be thrown out of the vehicle in a crash. And they can strike others in the vehicle who are wearing safety belts. First, before you or your passenger(s) wear a safety belt, there is important information you should know. crash, this applies force to the strong pelvic bones and you would be less likely to slide under the lap belt. If you slid under it, the belt would apply force on your abdomen. This could cause serious or even fatal injuries. The shoulder belt should go over the shoulder and across the chest. These parts of the body are best able to take belt restraining forces. The shoulder belt locks if there is a sudden stop or crash. Sit up straight and always keep your feet on the floor in front of you. The lap part of the belt should be worn low and snug on the hips, just touching the thighs. In a 2-16 Q: What is wrong with this? { WARNING: You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury. The shoulder belt should fit snugly against your body. A: The shoulder belt is too loose. It will not give as much protection this way. 2-17 Q: What is wrong with this? { WARNING: You can be seriously hurt if your lap belt is too loose. In a crash, you could slide under the lap belt and apply force on your abdomen. This could cause serious or even fatal injuries. The lap belt should be worn low and snug on the hips, just touching the thighs. A: The lap belt is too loose. It will not give nearly as much protection this way. 2-18 Q: What is wrong with this? { WARNING: You can be seriously injured if your belt is buckled in the wrong place like this. In a crash, the belt would go up over your abdomen. The belt forces would be there, not on the pelvic bones. This could cause serious internal injuries. Always buckle your belt into the buckle nearest you. A: The belt is buckled in the wrong buckle. 2-19 Q: What is wrong with this? { WARNING: You can be seriously injured if your belt goes over an armrest like this. The belt would be much too high. In a crash, you can slide under the belt. The belt force would then be applied on the abdomen, not on the pelvic bones, and that could cause serious or fatal injuries. Be sure the belt goes under the armrests. A: The belt is over an armrest. 2-20 Q: What is wrong with this? { WARNING: You can be seriously injured if you wear the shoulder belt under your arm. In a crash, your body would move too far forward, which would increase the chance of head and neck injury. Also, the belt would apply too much force to the ribs, which are not as strong as shoulder bones. You could also severely injure internal organs like your liver or spleen. The shoulder belt should go over the shoulder and across the chest. A: The shoulder belt is worn under the arm. It should be worn over the shoulder at all times. 2-21 Q: What is wrong with this? { WARNING: You can be seriously injured by not wearing the lap-shoulder belt properly. In a crash, you would not be restrained by the shoulder belt. Your body could move too far forward increasing the chance of head and neck injury. You might also slide under the lap belt. The belt force would then be applied right on the abdomen. That could cause serious or fatal injuries. The shoulder belt should go over the shoulder and across the chest. A: The belt is behind the body. 2-22 Q: What is wrong with this? { WARNING: You can be seriously injured by a twisted belt. In a crash, you would not have the full width of the belt to spread impact forces. If a belt is twisted, make it straight so it can work properly, or ask your dealer/retailer to fix it. A: The belt is twisted across the body. 2-23 Lap-Shoulder Belt All seating positions in the vehicle have a lap-shoulder belt. The following instructions explain how to wear a lap-shoulder belt properly. 2. Adjust the seat, if the seat is adjustable, so you can sit up straight. To see how, see “Seats” in the Index. 3. Pick up the latch plate and pull the belt across you. Do not let it get twisted. The lap-shoulder belt may lock if you pull the belt across you very quickly. If this happens, let the belt go back slightly to unlock it. Then pull the belt across you more slowly. Engaging the child restraint locking feature may affect the passenger sensing system, if equipped. See Passenger Sensing System (Without Turbo Engine) on page 2‑62 or Passenger Sensing System (With Turbo Engine) on page 2‑67 for more information. 1. If the seat has a safety belt guide, and the safety belt is not routed through the guide, slide the edge of the belt webbing through the opening on the guide. Be sure the belt is not twisted. 2-24 4. Push the latch plate into the buckle until it clicks. 6. To make the lap part tight, pull up on the Pull up on the latch plate to make sure it is secure. If the belt is not long enough, see Safety Belt Extender on page 2‑30 . Position the release button on the buckle so that the safety belt could be quickly if necessary. If equipped with a shoulder belt height adjuster, move it to the height that is right for you. See “Shoulder Belt Height Adjustment” later in this section for instructions on use and important safety information. 5. shoulder belt. It may be necessary to pull stitching on the safety belt through the latch plate to fully tighten the lap belt on smaller occupants. 2-25 Shoulder Belt Height Adjuster (Sedan Only) The vehicle has a shoulder belt height adjuster for the driver and right front passenger position. Adjust the height so that the shoulder portion of the belt is centered on the shoulder. The belt should be away from the face and neck, but not falling off the shoulder. Improper shoulder belt height adjustment could reduce the effectiveness of the safety belt in a crash. Press the release button (A) and move the height adjuster to the desired position. The adjuster can be moved up by pushing up on the shoulder belt guide. After the height adjuster is set to the desired position, try to move it down without pressing the release button to make sure it has locked into position. To unlatch the belt, push the button on the buckle. The belt should return to its stowed position. Before a door is closed, be sure the safety belt is out of the way. If a door is slammed against a safety belt, damage can occur to both the belt and the vehicle. 2-26 Safety Belt Pretensioners This vehicle has safety belt pretensioners for front outboard occupants. Although the safety belt pretensioners cannot be seen, they are part of the safety belt assembly. They can help tighten the safety belts during the early stages of a moderate to severe frontal or near frontal crash if the threshold conditions for pretensioner activation are met. And, if the vehicle has side impact airbags, safety belt pretensioners can help tighten the safety belts in a side crash. Pretensioners work only once. If the pretensioners activate in a crash, they will need to be replaced, and probably other new parts for the vehicle's safety belt system. See Replacing Restraint System Parts After a Crash on page 2‑75. Rear Safety Belt Comfort Guides This vehicle may have rear shoulder belt comfort guides. If not, they are available through your dealer/ retailer. The guides may provide added safety belt comfort for older children who have outgrown booster seats and for some adults. When installed and properly adjusted, the comfort guide positions the belt away from the neck and head. Here is how to install a comfort guide to the safety belt: 1. Pull the elastic cord out from between the edge of the seatback and the interior body to remove the guide from its storage clip. 2-27 2. Place the guide over the belt and insert the two edges of the belt into the slots of the guide. 3. Be sure that the belt is not twisted and it lies flat. The elastic cord must be under the belt and the guide on top. 2-28 { WARNING: A safety belt that is not properly worn may not provide the protection needed in a crash. The person wearing the belt could be seriously injured. The shoulder belt should go over the shoulder and across the chest. These parts of the body are best able to take belt restraining forces. 4. Buckle, position, and release the safety belt as described previously in this section. Make sure that the shoulder belt crosses the shoulder. To remove and store the comfort guide, squeeze the belt edges together so the safety belt can be removed from the guide. Pull the guide upward to expose its storage clip, and then slide the guide onto the clip. Turn the guide and clip inward and slide them in between the seatback and the interior body, leaving only the loop of the elastic cord exposed. 2-29 Safety Belt Use During Pregnancy Safety belts work for everyone, including pregnant women. Like all occupants, they are more likely to be seriously injured if they do not wear safety belts. Safety Belt Extender If the vehicle's safety belt will fasten around you, you should use it. But if a safety belt is not long enough, your dealer/ retailer will order you an extender. When you go in to order it, take the heaviest coat you will wear, so the extender will be long enough for you. To help avoid personal injury, do not let someone else use it, and use it only for the seat it is made to fit. The extender has been designed for adults. Never use it for securing child seats. To wear it, attach it to the regular safety belt. For more information, see the instruction sheet that comes with the extender. A pregnant woman should wear a lap-shoulder belt, and the lap portion should be worn as low as possible, below the rounding, throughout the pregnancy. The best way to protect the fetus is to protect the mother. When a safety belt is worn properly, it is more likely that the fetus will not be hurt in a crash. For pregnant women, as for anyone, the key to making safety belts effective is wearing them properly. 2-30 Child Restraints Older Children Older children who have outgrown booster seats should wear the vehicle's safety belts. The manufacturer's instructions that come with the booster seat state the weight and height limitations for that booster. Use a booster seat with a lap-shoulder belt until the child passes the below fit test: . Sit all the way back on the seat. Do the knees bend at the seat edge? If yes, continue. If no, return to the booster seat. . Buckle the lap-shoulder belt. Does the shoulder belt rest on the shoulder? If yes, continue. If no, try using the rear safety belt comfort guide. See “Rear Safety Belt Comfort Guides” under Lap-Shoulder Belt on page 2‑24 for more information. If the shoulder belt still does not rest on the shoulder, then return to the booster seat. . Does the lap belt fit low and snug on the hips, touching the thighs? If yes, continue. If no, return to the booster seat. . Can proper safety belt fit be maintained for the length of the trip? If yes, continue. If no, return to the booster seat. If you have the choice, a child should sit in a position with a lap-shoulder belt and get the additional restraint a shoulder belt can provide. 2-31 { WARNING: Never do this. Never allow two children to wear the same safety belt. The safety belt can not properly spread the impact forces. In a crash, the two children can be crushed together and seriously injured. A safety belt must be used by only one person at a time. Q: What is the proper way to wear safety belts? A: An older child should wear a lap-shoulder belt and get the additional restraint a shoulder belt can provide. The shoulder belt should not cross the face or neck. The lap belt should fit snugly below the hips, just touching the top of the thighs. This applies belt force to the child's pelvic bones in a crash. It should never be worn over the abdomen, which could cause severe or even fatal internal injuries in a crash. Also see “Rear Safety Belt Comfort Guides” under Lap-Shoulder Belt on page 2‑24. According to accident statistics, children and infants are safer when properly restrained in a child restraint system or infant restraint system secured in a rear seating position. In a crash, children who are not buckled up can strike other people who are buckled up, or can be thrown out of the vehicle. Older children need to use safety belts properly. 2-32 { WARNING: Never do this. Never allow a child to wear the safety belt with the shoulder belt behind their back. A child can be seriously injured by not wearing the lap-shoulder belt properly. In a crash, the child would not be restrained by the shoulder belt. The child could move too far forward increasing the chance of head and neck injury. The child might also slide under the lap belt. The belt force would then be applied right on the abdomen. That could cause serious or fatal injuries. The shoulder belt should go over the shoulder and across the chest. 2-33 Children who are not restrained properly can strike other people, or can be thrown out of the vehicle. { WARNING: Never do this. Never hold an infant or a child while riding in a vehicle. Due to crash forces, an infant or a child will become so heavy it is not possible to hold it during a crash. For example, in a crash at only 40 km/h (25 mph), a 5.5 kg (12 lb) infant will suddenly become a 110 kg (240 lb) force on a person's arms. An infant should be secured in an appropriate restraint. Infants and Young Children Everyone in a vehicle needs protection! This includes infants and all other children. Neither the distance traveled nor the age and size of the traveler changes the need, for everyone, to use safety restraints. In fact, the law in every state in the United States and in every Canadian province says children up to some age must be restrained while in a vehicle. { WARNING: Children can be seriously injured or strangled if a shoulder belt is wrapped around their neck and the safety belt continues to tighten. Never leave children unattended in a vehicle and never allow children to play with the safety belts. Airbags plus lap-shoulder belts offer protection for adults and older children, but not for young children and infants. Neither the vehicle's safety belt system nor its airbag system is designed for them. Every time infants and young children ride in vehicles, they should have the protection provided by appropriate child restraints. 2-34 WARNING: (Continued) in a rear seat. It is also better to secure a forward-facing child restraint in a rear seat. If you must secure a forward-facing child restraint in the right front seat, always move the front passenger seat as far back as it will go. { WARNING: Never do this. Children who are up against, or very close to, any airbag when it inflates can be seriously injured or killed. Never put a rear-facing child restraint in the right front seat. Secure a rear-facing child restraint (Continued) 2-35 Q: What are the different types of add-on child restraints? A: Add-on child restraints, which are purchased by the vehicle's owner, are available in four basic types. Selection of a particular restraint should take into consideration not only the child's weight, height, and age but also whether or not the restraint will be compatible with the motor vehicle in which it will be used. For most basic types of child restraints, there are many different models available. When purchasing a child restraint, be sure it is designed to be used in a motor vehicle. If it is, the restraint will have a label saying that it meets federal motor vehicle safety standards. The restraint manufacturer's instructions that come with the restraint state the weight and height limitations for a particular child restraint. In addition, there are many kinds of restraints available for children with special needs. { WARNING: To reduce the risk of neck and head injury during a crash, infants need complete support. This is because an infant's neck is not fully developed and its head weighs so much compared with the rest of its body. In a crash, an infant in a rear-facing child restraint settles into the restraint, so the crash forces can be distributed across the strongest part of an infant's body, the back and shoulders. Infants should always be secured in rear-facing child restraints. 2-36 { WARNING: A young child's hip bones are still so small that the vehicle's regular safety belt may not remain low on the hip bones, as it should. Instead, it may settle up around the child's abdomen. In a crash, the belt would apply force on a body area that is unprotected by any bony structure. This alone could cause serious or fatal injuries. To reduce the risk of serious or fatal injuries during a crash, young children should always be secured in appropriate child restraints. Child Restraint Systems A rear-facing infant seat (A) provides restraint with the seating surface against the back of the infant. The harness system holds the infant in place and, in a crash, acts to keep the infant positioned in the restraint. A forward-facing child seat (B) provides restraint for the child's body with the harness. 2-37 Securing an Add-On Child Restraint in the Vehicle { WARNING: A child can be seriously injured or killed in a crash if the child restraint is not properly secured in the vehicle. Secure the child restraint properly in the vehicle using the vehicle's safety belt or LATCH system, following the instructions that came with that child restraint and the instructions in this manual. To help reduce the chance of injury, the child restraint must be secured in the vehicle. Child restraint systems must be secured in vehicle seats by lap belts or the lap belt portion of a lap-shoulder belt, or by the LATCH system. See Lower Anchors and Tethers for Children (LATCH) on page 2‑41 for more information. A child can be endangered in a crash if the child restraint is not properly secured in the vehicle. A booster seat (C-D) is a child restraint designed to improve the fit of the vehicle's safety belt system. A booster seat can also help a child to see out the window. 2-38 Where to Put the Restraint According to accident statistics, children and infants are safer when properly restrained in a child restraint system or infant restraint system secured in a rear seating position. We recommend that children and child restraints be secured in a rear seat, including: an infant or a child riding in a rear-facing child restraint; a child riding in a forward-facing child seat; an older child riding in a booster seat; and children, who are large enough, using safety belts. When securing an add-on child restraint, refer to the instructions that come with the restraint which may be on the restraint itself or in a booklet, or both, and to this manual. The child restraint instructions are important, so if they are not available, obtain a replacement copy from the manufacturer. Keep in mind that an unsecured child restraint can move around in a collision or sudden stop and injure people in the vehicle. Be sure to properly secure any child restraint in the vehicle — even when no child is in it. Securing the Child Within the Child Restraint { WARNING: A child can be seriously injured or killed in a crash if the child is not properly secured in the child restraint. Secure the child properly following the instructions that came with that child restraint. 2-39 A label on the sun visor says, “Never put a rear-facing child restraint in the front.” This is because the risk to the rear-facing child is so great, if the airbag deploys. WARNING: (Continued) { WARNING: A child in a rear-facing child restraint can be seriously injured or killed if the right front passenger airbag inflates. This is because the back of the rear-facing child restraint would be very close to the inflating airbag. A child in a forward-facing child restraint can be seriously injured or killed if the right front passenger airbag inflates and the passenger seat is in a forward position. The vehicle may have a passenger sensing system which is designed to turn off the right front passenger frontal airbag under certain conditions. (Continued) Even if the passenger sensing system, if equipped, has turned off the right front passenger frontal airbag, no system is fail-safe. No one can guarantee that an airbag will not deploy under some unusual circumstance, even though it is turned off. Secure rear-facing child restraints in a rear seat, even if the airbag is off. If you secure a forward-facing child restraint in the right front seat, always move the front passenger seat as far back as it will go. It is better to secure the child restraint in a rear seat. See Passenger Sensing System (Without Turbo Engine) on page 2‑62 or Passenger Sensing System (With Turbo Engine) on page 2‑67 for additional information. When securing a child restraint in a rear seating position, study the instructions that came with the child restraint to make sure it is compatible with this vehicle. Wherever a child restraint is installed, be sure to secure the child restraint properly. 2-40 Keep in mind that an unsecured child restraint can move around in a collision or sudden stop and injure people in the vehicle. Be sure to properly secure any child restraint in the vehicle — even when no child is in it. Lower Anchors and Tethers for Children (LATCH) The LATCH system holds a child restraint during driving or in a crash. This system is designed to make installation of a child restraint easier. The LATCH system uses anchors in the vehicle and attachments on the child restraint that are made for use with the LATCH system. Make sure that a LATCH-compatible child restraint is properly installed using the anchors, or use the vehicle's safety belts to secure the restraint, following the instructions that came with that restraint, and also the instructions in this manual. When installing a child restraint with a top tether, you must also use either the lower anchors or the safety belts to properly secure the child restraint. A child restraint must never be installed using only the top tether and anchor. In order to use the LATCH system in your vehicle, you need a child restraint that has LATCH attachments. The child restraint manufacturer will provide you with instructions on how to use the child restraint and its attachments. The following explains how to attach a child restraint with these attachments in your vehicle. Not all vehicle seating positions or child restraints have lower anchors and attachments or top tether anchors and attachments. Lower Anchors Lower anchors (A) are metal bars built into the vehicle. There are two lower anchors for each LATCH seating position that will accommodate a child restraint with lower attachments (B). 2-41 Top Tether Anchor A top tether (A, C) anchors the top of the child restraint to the vehicle. A top tether anchor is built into the vehicle. The top tether attachment (B) on the child restraint connects to the top tether anchor in the vehicle in order to reduce the forward movement and rotation of the child restraint during driving or in a crash. Your child restraint may have a single tether (A) or a dual tether (C). Either will have a single attachment (B) to secure the top tether to the anchor. 2-42 Some child restraints that have a top tether are designed for use with or without the top tether being attached. Others require the top tether always to be attached. In Canada, the law requires that forward-facing child restraints have a top tether, and that the tether be attached. Be sure to read and follow the instructions for your child restraint. Lower Anchor and Top Tether Anchor Locations i (Top Tether Anchor): Seating positions with top tether anchors. j (Lower Anchor): Seating positions with two lower anchors. Rear Seat Each rear seating position has two exposed metal lower anchors in the crease between the seatback and the seat cushion. To assist you in locating the top tether anchors, the top tether anchor symbol is located on the cover. The top tether anchors are located under the covers on the rear seatback filler panel. Open the cover to access the anchor. Be sure to use an anchor located on the same side of the vehicle as the seating position where the child restraint will be placed. Do not secure a child restraint in a position without a top tether anchor if a national or local law requires that the top tether be attached, or if the instructions that come with the child restraint say that the top tether must be attached. According to accident statistics, children and infants are safer when properly restrained in a child restraint system or infant restraint system secured in a rear seating position. See Where to Put the Restraint on page 2‑39 for additional information. 2-43 Securing a Child Restraint Designed for the LATCH System { WARNING: { WARNING: If a LATCH-type child restraint is not attached to anchors, the child restraint will not be able to protect the child correctly. In a crash, the child could be seriously injured or killed. Install a LATCH-type child restraint properly using the anchors, or use the vehicle's safety belts to secure the restraint, following the instructions that came with the child restraint and the instructions in this manual. Do not attach more than one child restraint to a single anchor. Attaching more than one child restraint to a single anchor could cause the anchor or attachment to come loose or even break during a crash. A child or others could be injured. To reduce the risk of serious or fatal injuries during a crash, attach only one child restraint per anchor. { WARNING: Children can be seriously injured or strangled if a shoulder belt is wrapped around their neck and the safety belt continues to tighten. Buckle any unused safety belts behind the child restraint so children cannot reach them. Pull the shoulder belt all the way out of the retractor to set the lock, if your vehicle has one, after the child restraint has been installed. 2-44 Notice: Do not let the LATCH attachments rub against the vehicle’s safety belts. This may damage these parts. If necessary, move buckled safety belts to avoid rubbing the LATCH attachments. Do not fold the empty rear seat with a safety belt buckled. This could damage the safety belt or the seat. Unbuckle and return the safety belt to its stowed position, before folding the seat. 1. Attach and tighten the lower attachments to the lower anchors. If the child restraint does not have lower attachments or the desired seating position does not have lower anchors, secure the child restraint with the top tether and the safety belts. Refer to your child restraint manufacturer instructions and the instructions in this manual. 1. 1. Find the lower anchors for the desired seating position. 1. 2. Put the child restraint on the seat. 1. 3. Attach and tighten the lower attachments on the child restraint to the lower anchors. 2. If the child restraint manufacturer recommends that the top tether be attached, attach and tighten the top tether to the top tether anchor, if equipped. Refer to the child restraint instructions and the following steps: 2. 1. Find the top tether anchor. 2. 2. Open the top tether anchor cover to expose 2. 3. the anchor. If you have an adjustable headrest or head restraint, raise the headrest or head restraint. 2. 4. Route, attach, and tighten the top tether according to your child restraint instructions and the following instructions: If the position you are using does not have a headrest or head restraint and you are using a single tether, route the tether over the seatback. 2-45 If the position you are using has a fixed or adjustable headrest or head restraint and you are using a dual tether, route the tether around the headrest or head restraint. 3. Push and pull the child restraint in different directions to be sure it is secure. If the position you are using does not have a headrest or head restraint and you are using a dual tether, route the tether over the seatback. If the position you are using has an adjustable headrest or head restraint and you are using a single tether, raise the headrest or head restraint and route the tether under the headrest or head restraint and in between the headrest or head restraint posts. 2-46 Securing a Child Restraint in a Rear Seat Position When securing a child restraint in a rear seating position, study the instructions that came with your child restraint to make sure it is compatible with this vehicle. If your child restraint has the LATCH system, see Lower Anchors and Tethers for Children (LATCH) on page 2‑41 for how to install your child restraint using LATCH. If you secure a child restraint using a safety belt and it uses a top tether, see Lower Anchors and Tethers for Children (LATCH) on page 2‑41 for top tether anchor locations. Do not secure a child restraint in a position without a top tether anchor if a national or local law requires that the top tether be anchored, or if the instructions that come with the child restraint say that the top strap must be anchored. In Canada, the law requires that forward-facing child restraints have a top tether, and that the tether be attached. If your child restraint does not have the LATCH system, you will be using the safety belt to secure the child restraint in this position. Be sure to follow the instructions that came with the child restraint. Secure the child in the child restraint when and as the instructions say. If you need to install more than one child restraint in the rear seat, be sure to read Where to Put the Restraint on page 2‑39 . 1. Put the child restraint on the seat. 2. Pick up the latch plate, and run the lap and shoulder portions of the vehicle's safety belt through or around the restraint. The child restraint instructions will show you how. 2-47 3. Push the latch plate into the buckle until it clicks. 4. Pull the rest of the shoulder belt all the way out of Make sure the release button is positioned so you would be able to unbuckle the safety belt quickly if necessary. the retractor to set the lock. 2-48 5. To tighten the belt, push down on the child restraint, pull the shoulder portion of the belt to tighten the lap portion of the belt, and feed the shoulder belt back into the retractor. If you are using a forward-facing child restraint, you may find it helpful to use your knee to push down on the child restraint as you tighten the belt. 6. If your child restraint has a top tether, follow the child restraint manufacturer's instructions regarding the use of the top tether. See Lower Anchors and Tethers for Children (LATCH) on page 2‑41 for more information. 7. Push and pull the child restraint in different directions to be sure it is secure. To remove the child restraint, unbuckle the vehicle’s safety belt and let it go back all the way. If the top tether is attached to a top tether anchor, disconnect it. If your seat has a safety belt guide, return the safety belt into the guide on the seatback by sliding the webbing through the opening on the guide. 2-49 Securing a Child Restraint in the Right Front Seat Position The vehicle has airbags. A rear seat is a safer place to secure a forward-facing child restraint. See Where to Put the Restraint . In addition, the vehicle may have a passenger sensing system which is designed to turn off the right front passenger frontal airbag under certain conditions. See Passenger Sensing System and Passenger Airbag Status Indicator for more information on this, including important safety information. A label on your sun visor says, “Never put a rear-facing child seat in the front.” This is because the risk to the rear-facing child is so great, if the airbag deploys. { WARNING: A child in a rear-facing child restraint can be seriously injured or killed if the right front passenger airbag inflates. This is because the back of the rear-facing child restraint would be very close to the inflating airbag. A child in a forward-facing child restraint can be seriously (Continued) 2-50
