 2004 - 2014 Toyota Hilux Fuse Box Locations - Fuse Box Diagrams and Locations

Post Topic
McLeod
  • McLeod
  • Senior User
  • Member No.: 1
  • Joined: 17-December 14
  • Posts: 3,541
  • From: Brisbane, Qld, AU
Post #1 post 15th July 2019 - 08:44 PM
Looking for where the fuse box is in a Toyota Hilux for model years 2004,2005,2006,2007,2008,2009,2010,2011,2012,2013,2014?

The most difficult to find is the area behind the glove box / passenger compartment, who would have thought that whole drawer comes out and there's a load of fuses behind it?

The action to access it involves opening, and then pushing in the sides and lifting it out, it's a little awkward, but once you work it out you'll be greeted with the fuses for the power door locks, power window, differential lock/abs/trc/vsc, seat heaters (if you have them), and rear window defogger / multiport fuel injection system.

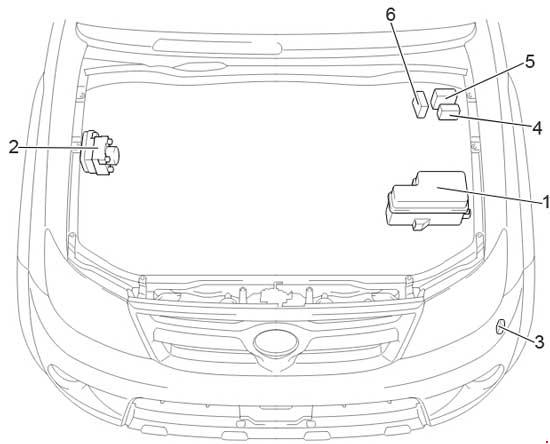

The other fuse box locations are fairly obvious, there's the one under the bonnet in the engine bay, and the other is directly under the steering wheel on the drivers side.

Toyota hilux owners manual.


--------------------
