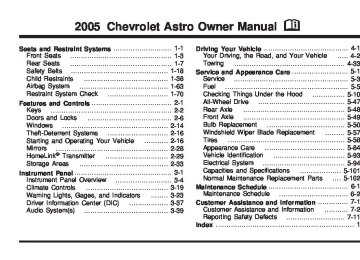

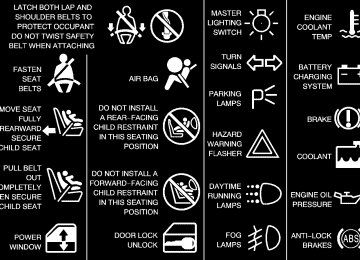

2005 Chevrolet Astro Owners Manual

Download PDF Manual
again within three seconds and the horn will chirp. 2-4 (cid:127) L (Panic Alarm): Press this button for the horn to sound and the headlamps and taillamps to ﬂash for up to 30 seconds. This can be turned off by pressing the panic button again, waiting for 30 seconds, or starting the vehicle. Matching Transmitter(s) to Your Vehicle Each remote keyless entry transmitter is coded to prevent another transmitter from unlocking your vehicle. If a transmitter is lost or stolen, a replacement can be purchased through your dealer. Remember to bring any remaining transmitters with you when you go to your dealer. When the dealer matches the replacement transmitter to your vehicle, any remaining transmitters must also be matched. Once your dealer has coded the new transmitter, the lost transmitter will not unlock your vehicle. Each vehicle can have a maximum of four transmitters matched to it. Battery Replacement Under normal use, the battery in your remote keyless entry transmitter should last about two years. You can tell the battery is weak if the transmitter won’t work at the normal range in any location. If you have to get close to your vehicle before the transmitter works, it’s probably time to change the battery. Notice: When replacing the battery, use care not to touch any of the circuitry. Static from your body transferred to these surfaces may damage the transmitter. To replace the battery, do the following: 1. Insert a thin object like a dime to separate the bottom of the transmitter from the top. 2. Remove the battery and replace it with a new one, making sure the positive (+) side of the battery is facing down. Use one Panasonic® three-volt, type CR2032, or equivalent battery. 3. Snap the top and bottom together. 2-5 Doors and Locks {CAUTION: There are several ways to lock and unlock your vehicle. To unlock your door from the outside, use your key or remote keyless entry transmitter, if equipped. For more information, see Remote Keyless Entry System Operation on page 2-4. To lock or unlock the front doors and sliding side door from the inside, slide the manual lock levers. When the red mark on the lock lever is visible, the door is unlocked. Unlocked doors can be dangerous. (cid:127) Passengers — especially children — can easily open the doors and fall out of a moving vehicle. When a door is locked, the handle will not open it. You increase the chance of being thrown out of the vehicle in a crash if the doors are not locked. So, wear safety belts properly and lock the doors whenever you drive. (cid:127) Young children who get into unlocked vehicles may be unable to get out. A child can be overcome by extreme heat and can suffer permanent injuries or even death from heat stroke. Always lock your vehicle whenever you leave it. (cid:127) Outsiders can easily enter through an unlocked door when you slow down or stop your vehicle. Locking your doors can help prevent this from happening. 2-6 Power Door Locks If your vehicle has power door locks, press the power door lock switch located on the door panel to lock or unlock all the doors at once. The power door lock switch will lock or unlock the rear hatch and Dutch doors. See “Hatch Release” in Rear Doors on page 2-11. When a door is locked, the inside door handle will not open the door. This will help stop a door from being accidentally opened. If the sliding door is open and you press the power door lock switch, the sliding door will not lock immediately. After you close the door, the system comes on and locks the sliding door in about ﬁve seconds. When the key is in the ignition and the power door lock switch is pressed with a door open, all doors are locked while the driver’s side door remains unlocked. Programmable Automatic Door Locks Your vehicle is equipped with an auto lock/unlock feature which enables you to program your power door locks. Your vehicle left the factory programmed to have all the doors lock automatically when the shift lever is moved out of PARK (P). All of the doors will unlock when the shift lever is moved back into PARK (P). The following instructions detail how to program your door locks. To enter the program mode you need to do the following: 1. Begin with the ignition in OFF. Then, pull back on the turn signal/multifunction lever all the way toward you and hold it while you perform the next step. 2. Turn your key to RUN and OFF twice. Then, with the key in OFF, release the turn signal/multifunction lever. Once you do this, you will hear the lock switch lock and unlock. 2-7 You are now ready to program the automatic door locks. Select one of the following four programming options and follow the instructions. You will have thirty seconds to begin programming. If you exceed the thirty second limit, the locks will automatically lock and unlock to indicate that you have left the program mode. If this occurs, repeat the procedure beginning with Step 1. You can exit the program mode any time by turning the ignition to RUN. The locks will automatically lock and unlock to indicate that you are leaving the program mode. If the lock/unlock switches are not pressed while in the programming mode, the auto lock/unlock setting will not be modiﬁed. The following is a list of the available programming options: (cid:127) All doors lock/Only the driver’s door unlocks: Press the lock side of the power lock switch on the door panel once and then the unlock side once. (cid:127) All doors lock/All doors unlock: Press the lock side of the power lock switch on the door panel once, and then the unlock side twice. (cid:127) All doors lock/None of the doors unlock: Press the lock side of the power lock switch on the door panel once, and then the unlock side three times. 2-8 (cid:127) No doors lock/None of the doors unlock: Press the lock side of the power lock switch on the door panel twice. This turns off the automatic lock feature. For more information, see your dealer. Sliding Side Door To open the sliding side door, pull the handle toward the back and slide the door to the rear until it rests in the open position. To close the sliding side door, pull the handle toward the front and slide the door forward. This feature prevents passengers from opening the sliding side door from the inside. To use this feature, do the following: 1. Move the lever all the way up. 2. Close the door. To open the sliding side door while the security lock is engaged, unlock the door and open it from the outside. If you don’t cancel the security lock feature, adults or older children who ride in the rear won’t be able to open the sliding door from the inside. You should let adults and older children know how the security door lock works, and how to cancel the lock. Sliding Door Security Lock Your vehicle may have this feature. A sliding door security lock helps to prevent young children or other passengers from opening the sliding door using the inside door handle. The security door lock is located near the front of the sliding door. There are two labels on your vehicle to remind you that you have this feature. One can be seen from the outside on your sliding door. It is located near the bottom of the door glass, toward the front of the door. The other label is located on the front of the sliding door, near the security door lock. 2-9 Canceling the Sliding Door Security Lock To cancel the security lock, do the following: 1. Unlock the door and open it from the outside. 2. Move the lever all the way down. {CAUTION: If your vehicle is facing downward on a steep grade (15 percent or more), the door may not stay open and could slam shut, possibly injuring someone. To make sure the door does not slam shut be sure to hold it open until everyone is clear of the door, and only then allow it to slowly close. 2-10 Rear Doors If your vehicle has Dutch doors, you must open the hatch ﬁrst. See “Hatch Release” later in this section. To open the driver’s side rear door, pull on the latch release handle located on the inside of the door. Rear doors can only be opened from the outside. Open the passenger’s side rear door ﬁrst. Grasp the handle and pull the door open. Cargo Door Shown To close the rear doors, close the driver’s side door ﬁrst. Check to make sure both doors are completely closed The rear doors have a check assembly to keep the doors from opening beyond 90 degrees. 2-11 To fully open the rear doors, push in on the clip and lift the check assembly up off the mounting bracket. Do this on each door. Replace the check assemblies on the mounting brackets before closing the doors. {CAUTION: It can be dangerous to drive with the rear glass open because carbon monoxide (CO) gas can come into your vehicle. You cannot see or smell CO. It can cause unconsciousness and even death. If you must drive with the rear glass open or if electrical wiring or other cable connections must pass through the seal between the body and the rear glass: (cid:127) Make sure all other windows are shut. (cid:127) Turn the fan on your heating or cooling system to its highest speed and select the control setting that will force outside air into your vehicle. See Climate Control System on page 3-19. If you have air outlets on or under the instrument panel, open them all the way. See Engine Exhaust on page 2-26. 2-12 (cid:127) The interior light will not turn on if the rear doors are open. Hatch Release You can use your key to unlock the hatch and all of the other doors from the outside. Insert the key into the hatch release button and turn it counterclockwise. All of the doors will unlock. You may also use the remote keyless entry transmitter. See Remote Keyless Entry System Operation on page 2-4. The hatch can be opened or closed without a key if the door lock system is unlocked. To open the hatch, unlock it, then press the button and lift the handle located in the center of the door. To lock the power lock system from the outside, insert the key in the hatch release button and turn it clockwise. All doors will lock. 2-13 Windows {CAUTION: Leaving children, helpless adults, or pets in a vehicle with the windows closed is dangerous. They can be overcome by the extreme heat and suffer permanent injuries or even death from heat stroke. Never leave a child, a helpless adult, or a pet alone in a vehicle, especially with the windows closed in warm or hot weather. 2-14 Manual Windows To operate your manual windows, turn the hand crank on each door to raise or lower your side door windows. Power Windows If you have power windows, the controls are located on each of the front doors. The driver’s door also has a switch for the front passenger window. Your power windows will not work unless the ignition is in RUN or ACCESSORY, or unless retained accessory power is active. See Retained Accessory Power (RAP) on page 2-18. Express-Down Window The driver’s window switch also has an express-down feature that allows you to lower the window without holding the switch. Press the down arrow on the driver’s window switch marked AUTO brieﬂy to activate the express-down feature. The express-down feature can be interrupted at any time by pressing the up arrow end of the switch. Lightly tap the switch to open the window slightly. Sun Visors To block out glare, you can swing down the visors. You can also swing them from side to side. Your visors may have an extension that can be pulled out for additional glare protection. Visor Vanity Mirror Lift the mirror cover on each visor to turn the lamps on. 2-15 Theft-Deterrent Systems Vehicle theft is big business, especially in some cities. Although your vehicle has a number of theft-deterrent features, we know that nothing we put on it can make it impossible to steal. Passlock® Your vehicle is equipped with the Passlock® theft-deterrent system. Passlock® is a passive theft-deterrent system. Passlock® enables fuel if the ignition lock cylinder is turned with a valid key. If a correct key is not used or the ignition lock cylinder is tampered with, fuel is disabled. During normal operation, the SECURITY light will go off approximately ﬁve seconds after the key is turned to RUN. See Security Light on page 3-34. If the engine stalls and the SECURITY light ﬂashes, wait until the light stops ﬂashing before trying to restart the engine. Remember to release the key from START as soon as the engine starts. If the engine is running and the SECURITY light comes on, you will be able to restart the engine if you turn the engine off. However, your Passlock® system is not working properly and must be serviced by your dealer. Your vehicle is not protected by Passlock® at this time. 2-16 You may also want to check the fuse. See Fuses and Circuit Breakers on page 5-95. See your dealer for service. Starting and Operating Your Vehicle New Vehicle Break-In Notice: Your vehicle does not need an elaborate break-in. But it will perform better in the long run if you follow these guidelines: (cid:127) Keep your speed at 55 mph (88 km/h) or less for the ﬁrst 500 miles (805 km). (cid:127) Do not drive at any one speed — fast or slow — for the ﬁrst 500 miles (805 km). Do not make full-throttle starts. (cid:127) Avoid making hard stops for the ﬁrst 200 miles (322 km) or so. During this time your new brake linings are not yet broken in. Hard stops with new linings can mean premature wear and earlier replacement. Follow this breaking-in guideline every time you get new brake linings. (cid:127) Do not tow a trailer during break-in. See Towing a Trailer on page 4-34 for more information. Ignition Positions With the key in the ignition, you can turn it to ﬁve different positions. A (ACCESSORY): This position lets you use things like the radio, power windows and windshield wipers when the engine is off. To get into ACCESSORY, push in the key and turn it toward you. Notice: Lengthy operation of features such as the radio in the accessory ignition position may drain the battery and prevent your vehicle from starting. Do not operate your vehicle in the accessory ignition position for a long period of time. B (LOCK): This position locks your ignition and transmission. It is a theft-deterrent feature. You will only be able to remove your key when the ignition is turned to LOCK. Notice: Using a tool to force the key from the ignition switch could cause damage or break the key. Use the correct key and turn the key only with your hand. Make sure the key is all the way in. If it is, turn the steering wheel left and right while you turn the key hard. If none of this works, then your vehicle needs service. C (OFF): This position lets you turn off the engine. Use OFF if you must have your vehicle in motion while the engine is off (for example, if your vehicle is being towed). D (RUN): This is the position for driving. E (START): This position starts your engine. 2-17 Retained Accessory Power (RAP) Your vehicle is equipped with a Retained Accessory Power (RAP) feature which will allow certain features on your vehicle to continue to work up to 20 minutes after the ignition key is turned to OFF. Your radio, power windows and overhead console will work when the ignition key is in RUN or ACCESSORY. Once the key is turned from RUN to OFF, these features will continue to work for up to 20 minutes or until a door is opened. Starting Your Engine Move your shift lever to PARK (P) or NEUTRAL (N). Your engine will not start in any other position — that is a safety feature. To restart when you are already moving, use NEUTRAL (N) only. Notice: Do not try to shift to PARK (P) if your vehicle is moving. If you do, you could damage the transmission. Shift to PARK (P) only when your vehicle is stopped. 1. With your foot off the accelerator pedal, turn the ignition key to START. When the engine starts, let go of the key. The idle speed will go down as your engine gets warm. 2-18 Notice: Holding your key in START for longer than 15 seconds at a time will cause your battery to be drained much sooner. And the excessive heat can damage your starter motor. Wait about 15 seconds between each try to help avoid draining your battery or damaging your starter. 2. If it does not start within 10 seconds, push the accelerator pedal all the way to the ﬂoor, while you hold the ignition key in START. When the engine starts, let go of the key and let up on the accelerator pedal. Wait about 15 seconds between each try. When starting your engine in very cold weather (below 0°F or −18°C), do this: 1. With your foot off the accelerator pedal, turn the ignition key to START and hold it there up to 15 seconds. When the engine starts, let go of the key. 2. If your engine still will not start, or starts but then stops, it could be ﬂooded with too much gasoline. Try pushing your accelerator pedal all the way to the ﬂoor and holding it there as you hold the key in START for about three seconds. When the engine starts, let go of the key and accelerator. If the vehicle starts brieﬂy but then stops again, do the same thing, but this time keep the pedal down for ﬁve or six seconds. This clears the extra gasoline from the engine. Notice: Your engine is designed to work with the electronics in your vehicle. If you add electrical parts or accessories, you could change the way the engine operates. Before adding electrical equipment, check with your dealer. If you do not, your engine might not perform properly. Fuel Regulator Your vehicle has a fuel regulator that shuts the fuel off when the engine reaches 5,600 rpm. Engine Coolant Heater If your vehicle has this feature, in very cold weather, 0°F (−18°C) or colder, the engine coolant heater can help. You will get easier starting and better fuel economy during engine warm-up. Usually, the coolant heater should be plugged in a minimum of four hours prior to starting your vehicle. At temperatures above 32°F (0°C), use of the coolant heater is not required. Your vehicle may also have an internal thermostat in the plug end of the cord. This will prevent operation of the engine coolant heater when the temperature is at or above 0°F (−18°C) as noted on the cord. To Use the Engine Coolant Heater 1. Turn off the engine. 2. Open the hood and unwrap the electrical cord. The engine coolant heater cord is located on the driver’s side of the engine compartment, near the power steering ﬂuid reservoir. 3. Plug it into a normal, grounded 110-volt AC outlet. {CAUTION: Plugging the cord into an ungrounded outlet could cause an electrical shock. Also, the wrong kind of extension cord could overheat and cause a ﬁre. You could be seriously injured. Plug the cord into a properly grounded three-prong 110-volt AC outlet. If the cord will not reach, use a heavy-duty three-prong extension cord rated for at least 15 amps. 4. Before starting the engine, be sure to unplug and store the cord as it was before to keep it away from moving engine parts. If you do not, it could be damaged. 2-19 How long should you keep the coolant heater plugged in? The answer depends on the outside temperature, the kind of oil you have, and some other things. Instead of trying to list everything here, we ask that you contact your dealer in the area where you will be parking your vehicle. The dealer can give you the best advice for that particular area. Automatic Transmission Operation There are several different positions for your shift lever. PARK (P): This position locks your rear wheels. It is the best position to use when you start your engine because your vehicle cannot move easily. 2-20 {CAUTION: It is dangerous to get out of your vehicle if the shift lever is not fully in PARK (P) with the parking brake ﬁrmly set. Your vehicle can roll. Do not leave your vehicle when the engine is running unless you have to. If you have left the engine running, the vehicle can move suddenly. You or others could be injured. To be sure your vehicle will not move, even when you are on fairly level ground, always set your parking brake and move the shift lever to PARK (P). See Shifting Into Park (P) on page 2-24. If you are pulling a trailer, see Towing a Trailer on page 4-34. Ensure the shift lever is fully in PARK (P) before starting the engine. Your vehicle has an automatic transmission shift lock control system. You have to fully apply your regular brakes before you can shift from PARK (P) when the ignition key is in RUN. If you cannot shift out of PARK (P), ease pressure on the shift lever – push the shift lever all the way into PARK (P) as you maintain brake application. Then move the shift lever into the gear you wish. See Shifting Out of Park (P) on page 2-25. REVERSE (R): Use this gear to back up. Notice: Shifting to REVERSE (R) while your vehicle is moving forward could damage the transmission. The repairs would not be covered by your warranty. Shift to REVERSE (R) only after your vehicle is stopped. To rock your vehicle back and forth to get out of snow, ice or sand without damaging your transmission, see If You Are Stuck: In Sand, Mud, Ice or Snow on page 4-27. NEUTRAL (N): In this position, your engine does not connect with the wheels. To restart when you are already moving, use NEUTRAL (N) only. Also, use NEUTRAL (N) when your vehicle is being towed. {CAUTION: Shifting into a drive gear while your engine is running at high speed is dangerous. Unless your foot is ﬁrmly on the brake pedal, your vehicle could move very rapidly. You could lose control and hit people or objects. Do not shift into a drive gear while your engine is running at high speed. Notice: Shifting out of PARK (P) or NEUTRAL (N) with the engine running at high speed may damage the transmission. The repairs would not be covered by your warranty. Be sure the engine is not running at high speed when shifting your vehicle. DRIVE (D): This position is for normal driving. If you need more power for passing, and you are: (cid:127) Going less than about 35 mph (55 km/h), push your accelerator pedal about halfway down. (cid:127) Going about 35 mph (55 km/h) or more, push the accelerator pedal all the way down. You will shift down to the next gear and have more power. DRIVE (D) should be used for normal towing. THIRD (3): This position is also used for normal driving, however it offers more power and lower fuel economy than DRIVE (D). You should use THIRD (3) when carrying a heavy load or driving on steep hills. SECOND (2): This position gives you more power but lower fuel economy. You can use SECOND (2) on hills. It can help control your speed as you go down steep mountain roads, but then you would also want to use your brakes off and on. 2-21 Tow/Haul Mode If you manually select SECOND (2), the transmission will drive in second gear. You may use this feature for reducing torque to the rear wheels when you are trying to start your vehicle from a stop on slippery road surfaces. FIRST (1): This position gives you even more power (but lower fuel economy) than SECOND (2). You can use it on very steep hills, or in deep snow or mud. If the shift selector lever is put in FIRST (1), the transmission will not shift into ﬁrst gear until the vehicle is going slow enough. Notice: Spinning the tires or holding the vehicle in one place on a hill using only the accelerator pedal may damage the transmission. If you are stuck, do not spin the tires. When stopping on a hill, use the brakes to hold the vehicle in place. Your vehicle is equipped with a tow/haul button. The button is located on the end of the column shift lever. You can use this feature to assist when towing or hauling a heavy load. To select the tow/haul mode, press in the button. The TOW/HAUL light on the instrument panel cluster will come on. To go back to normal operation, press the button again. The indicator light on the instrument panel cluster will go out. See Tow/Haul Mode Light on page 3-35 for more information. 2-22 All-Wheel Drive If your vehicle has all-wheel drive, your engine’s driving power is sent to all four wheels for extra traction when needed. This is like four-wheel drive, but there is no separate lever or switch to engage or disengage the front axle. It is fully automatic, and adjusts itself as needed for road conditions. You may experience a brief vehicle vibration upon acceleration when driving in slippery conditions. This is normal and is an indication that the all-wheel drive system is functioning properly. Parking Brake To set the parking brake, hold the regular brake pedal down with your right foot. Push down the parking brake pedal with your left foot. If the ignition is on, the brake system warning light will come on. To release the parking brake, hold the regular brake pedal down. Pull the brake release lever located on the lower left side of the steering column. Notice: Driving with the parking brake on can overheat the brake system and cause premature wear or damage to brake system parts. Verify that the parking brake is fully released and the brake warning light is off before driving. If you are towing a trailer and are parking on a hill, see Towing a Trailer on page 4-34. That section shows what to do ﬁrst to keep the trailer from moving. 2-23 Shifting Into Park (P) {CAUTION: It can be dangerous to get out of your vehicle if the shift lever is not fully in PARK (P) with the parking brake ﬁrmly set. Your vehicle can roll. If you have left the engine running, the vehicle can move suddenly. You or others could be injured. To be sure your vehicle will not move, even when you are on fairly level ground, use the steps that follow. If you are pulling a trailer, see Towing a Trailer on page 4-34. 1. Hold the brake pedal down with your right foot and set the parking brake with your left foot. 2. Move the shift lever into PARK (P) by pulling the shift lever toward you and moving it up as far as it will go. 3. Turn the ignition key to LOCK. 4. Remove the key and take it with you. If you can leave your vehicle with the ignition key in your hand, your vehicle is in PARK (P). 2-24 Leaving Your Vehicle With the Engine Running {CAUTION: It can be dangerous to leave your vehicle with the engine running. Your vehicle could move suddenly if the shift lever is not fully in PARK (P) with the parking brake ﬁrmly set. And, if you leave the vehicle with the engine running, it could overheat and even catch ﬁre. You or others could be injured. Do not leave your vehicle with the engine running. If you have to leave your vehicle with the engine running, be sure your vehicle is in PARK (P) and the parking brake is ﬁrmly set before you leave it. After you move the shift lever into PARK (P), hold the regular brake pedal down. Then, see if you can move the shift lever away from PARK (P) without ﬁrst pulling it toward you. If you can, it means that the shift lever was not fully locked into PARK (P). Torque Lock If you are parking on a hill and you do not shift your vehicle into PARK (P) properly, the weight of the vehicle may put too much force on the parking pawl in the transmission. You may ﬁnd it difficult to pull the shift lever out of PARK (P). This is called torque lock. To prevent torque lock, set the parking brake and then shift into PARK (P) properly before you leave the driver’s seat. To ﬁnd out how, see Shifting Into Park (P) on page 2-24. When you are ready to drive, move the shift lever out of PARK (P) before you release the parking brake. If torque lock does occur, you may need to have another vehicle push yours a little uphill to take some of the pressure from the parking pawl in the transmission, so you can pull the shift lever out of PARK (P). Shifting Out of Park (P) Your vehicle has an automatic transmission shift lock control system. You have to fully apply your regular brakes before you can shift from PARK (P) when the ignition is in RUN. See Automatic Transmission Operation on page 2-20. If you cannot shift out of PARK (P), ease pressure on the shift lever and push the shift lever all the way up into PARK (P) as you maintain brake application. Then, move the shift lever into the gear you want. If you ever hold the brake pedal down but still cannot shift out of PARK (P), try this: 1. Turn the key to OFF. 2. Apply and hold the brake until the end of Step 4. 3. Shift to NEUTRAL (N). 4. Start the vehicle and then shift to the drive gear you want. 5. Have the system ﬁxed as soon as you can. 2-25 Parking Over Things That Burn Engine Exhaust {CAUTION: Engine exhaust can kill. It contains the gas carbon monoxide (CO), which you cannot see or smell. It can cause unconsciousness and death. You might have exhaust coming in if: (cid:127) Your exhaust system sounds strange or different. (cid:127) Your vehicle gets rusty underneath. (cid:127) Your vehicle was damaged in a collision. (cid:127) Your vehicle was damaged when driving over high points on the road or over road debris. (cid:127) Repairs were not done correctly. (cid:127) Your vehicle or exhaust system had been modiﬁed improperly. If you ever suspect exhaust is coming into your vehicle: (cid:127) Drive it only with all the windows down to blow out any CO; and (cid:127) Have your vehicle ﬁxed immediately. {CAUTION: Things that can burn could touch hot exhaust parts under your vehicle and ignite. Do not park over papers, leaves, dry grass or other things that can burn. 2-26 Running Your Engine While You Are Parked It is better not to park with the engine running. But if you ever have to, here are some things to know. {CAUTION: Idling the engine with the climate control system off could allow dangerous exhaust into your vehicle. See the earlier caution under Engine Exhaust on page 2-26. Also, idling in a closed-in place can let deadly carbon monoxide (CO) into your vehicle even if the climate control fan is at the highest setting. One place this can happen is a garage. Exhaust — with CO — can come in easily. NEVER park in a garage with the engine running. Another closed-in place can be a blizzard. See Winter Driving on page 4-23. {CAUTION: It can be dangerous to get out of your vehicle if the shift lever is not fully in PARK (P) with the parking brake ﬁrmly set. Your vehicle can roll. Do not leave your vehicle when the engine is running unless you have to. If you have left the engine running, the vehicle can move suddenly. You or others could be injured. To be sure your vehicle will not move, even when you are on fairly level ground, always set your parking brake and move the shift lever to PARK (P). Follow the proper steps to be sure your vehicle will not move. See Shifting Into Park (P) on page 2-24. If you are pulling a trailer, see Towing a Trailer on page 4-34. 2-27 Mirrors Outside Power Mirrors Manual Rearview Mirror You can adjust the mirror for day or night driving. Press the tab forward (away from you) for day driving. Pull the tab back (toward you) for night driving. Outside Manual Mirror Adjust your outside rearview mirrors so you can see a little of the side of your vehicle and the area beside and behind your vehicle, from a comfortable driving position. You can fold the mirrors inward before entering a car wash. Pull the mirrors toward the vehicle. Push the mirrors back out when ﬁnished. After pushing the mirror out, the adjustment will be maintained. 2-28 Your vehicle may have this feature. To adjust the outside rearview mirror, move the selector switch in the middle of the control to L for the driver’s side mirror or to R for the passenger’s side mirror. Then use the arrows located on the four-way control pad to move the mirror in the desired direction. To make sure you do not accidentally move a mirror, return the selector switch to the middle position (off) after adjusting the mirrors. Outside Convex Mirror Your passenger’s side mirror is convex. A convex mirror’s surface is curved so you can see more from the driver’s seat. {CAUTION: A convex mirror can make things (like other vehicles) look farther away than they really are. If you cut too sharply into the right lane, you could hit a vehicle on your right. Check your inside mirror or glance over your shoulder before changing lanes. HomeLink® Transmitter HomeLink,® a combined universal transmitter and receiver, provides a way to replace up to three hand-held transmitters used to activate devices such as gate operators, garage door openers, entry door locks, security systems and home lighting. Additional HomeLink,® information can be found on the internet at www.homelink.com or by calling 1-800-355-3515. If your vehicle is equipped with the HomeLink® Transmitter, it complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 2-29 This device complies with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Changes and modiﬁcations to this system by other than an authorized service facility could void authorization to use this equipment. Programming the HomeLink® Transmitter Do not use the HomeLink® Transmitter with any garage door opener that does not have the “stop and reverse” feature. This includes any garage door opener model manufactured before April 1, 1982. If you have a newer garage door opener with rolling codes, please be sure to follow steps 6 through 8 to complete the programming of your HomeLink® Transmitter. Read the instructions completely before attempting to program the HomeLink® Transmitter. Because of the steps involved, it may be helpful to have another person available to assist you in programming the transmitter. Keep the original transmitter for use in other vehicles as well as for future HomeLink® programming. It is also recommended that upon the sale of the vehicle, the programmed HomeLink® buttons should be erased for security purposes. Refer to “Erasing HomeLink® Buttons” or, for assistance, contact HomeLink® on the internet at: www.homelink.com or by calling 1-800-355-3515. Be sure that people and objects are clear of the garage door or gate operator you are programming. When programming a garage door, it is advised to park outside of the garage. It is recommended that a new battery be installed in your hand-held transmitter for quicker and more accurate transmission of the radio frequency. Programming HomeLink® Your vehicle’s engine should be turned off while programming the transmitter. Follow these steps to program up to three channels: 1. Press and hold down the two outside buttons, releasing only when the indicator light begins to ﬂash, after 20 seconds. Do not hold down the buttons for longer than 30 seconds and do not repeat this step to program a second and/or third transmitter to the remaining two HomeLink® buttons. 2-30 2. Position the end of your hand-held transmitter about 1 to 3 inches (3 to 8 cm) away from the HomeLink® buttons while keeping the indicator light in view. 3. Simultaneously press and hold both the desired button on HomeLink® and the hand-held transmitter button. Do not release the buttons until Step 4 has been completed. Some entry gates and garage door openers may require you to substitute Step 3 with the procedure noted in “Gate Operator and Canadian Programming” later in this section. 4. The indicator light will ﬂash slowly at ﬁrst and then rapidly after HomeLink® successfully receives the frequency signal from the hand-held transmitter. Release both buttons. 5. Press and hold the newly-trained HomeLink® button and observe the indicator light. If the indicator light stays on constantly, programming is complete and your device should activate when the HomeLink® button is pressed and released. To program the remaining two HomeLink® buttons, begin with Step 2 under “Programming HomeLink®.” Do not repeat Step 1 as this will erase all of the programmed channels. If the indicator light blinks rapidly for two seconds and then turns to a constant light, continue with Steps 6 through 8 following to complete the programming of a rolling-code equipped device (most commonly, a garage door opener). 6. Locate in the garage, the garage door opener receiver (motor-head unit). Locate the “Learn” or “Smart” button. This can usually be found where the hanging antenna wire is attached to the motor-head unit. 7. Firmly press and release the “Learn” or “Smart” button. The name and color of the button may vary by manufacturer. You will have 30 seconds to start Step 8. 8. Return to the vehicle. Firmly press and hold the programmed HomeLink® button for two seconds, then release. Repeat the press/hold/release sequence a second time, and depending on the brand of the garage door opener (or other rolling code device), repeat this sequence a third time to complete the programming. HomeLink® should now activate your rolling-code equipped device. To program the remaining two HomeLink® buttons, begin with Step 2 of “Programming HomeLink®.” You do not want to repeat step 1, as this will erase all previous programming. 2-31 Gate Operator and Canadian Programming Canadian radio-frequency laws require transmitter signals to “time out” or quit after several seconds of transmission. This may not be long enough for HomeLink® to pick up the signal during programming. Similarly, some U.S. gate operators are manufactured to “time out” in the same manner. If you live in Canada, or you are having difficulty programming a gate operator by using the “Programming HomeLink®” procedures (regardless of where you live), replace Step 3 under “Programming HomeLink®” with the following: Continue to press and hold the HomeLink® button while you press and release every two seconds (cycle) your hand-held transmitter until the frequency signal has been successfully accepted by HomeLink®. The indicator light will ﬂash slowly at ﬁrst and then rapidly. Proceed with Step 4 under “Programming HomeLink®” to complete. Using HomeLink® Press and hold the appropriate HomeLink® button for at least half of a second. The indicator light will come on while the signal is being transmitted. Erasing HomeLink® Buttons To erase programming from the three buttons do the following: 1. Press and hold down the two outside buttons until the indicator light begins to ﬂash, after 20 seconds. Do not hold the two outside buttons for longer than 30 seconds. 2. Release both buttons. HomeLink® is now in the train (learning) mode and can be programmed at any time beginning with Step 2 under “Programming HomeLink®” shown earlier in this section. Individual buttons cannot be erased, but they can be reprogrammed. See “Reprogramming a Single HomeLink® Button” following this section. 2-32 Storage Areas Reprogramming a Single HomeLink® Button To program a device to HomeLink® using a HomeLink® button previously trained, follow these steps: 1. Press and hold the desired HomeLink® button. Do not release the button. 2. The indicator light will begin to ﬂash after 20 seconds. While still holding the HomeLink® button, proceed with Step 2 under “Programming HomeLink®” shown earlier in this section. Resetting Defaults To reset HomeLink® to default settings do the following: 1. Hold down the two outside buttons for about 20 seconds until the indicator light begins to ﬂash. 2. Continue to hold both buttons until the HomeLink® indicator light turns off. 3. Release both buttons. For questions or comments, contact HomeLink® at 1-800-355-3515, or on the internet at www.homelink.com. Your front storage compartment/glove box is at the center of the engine cover. To open the compartment, press the two tabs together and pull. 2-33 If you have rear storage compartments, pull up on the lid to open the cover. There is also a map/storage pocket on the passenger’s side of the engine cover console. 2-34 Overhead Console Reading Lamps Your vehicle may have this feature. Press the button near each lamp to turn the reading lamps on and off. Your vehicle may have this feature. The overhead console includes reading lamps, a compartment for a garage door opener, a trip computer, a temperature and compass display, and a storage compartment for sunglasses. The reading lamps, trip computer, temperature and compass display will work when the ignition is in RUN, ACCESSORY or when Retained Accessory Power (RAP) is active. See “Retained Accessory Power” under Retained Accessory Power (RAP) on page 2-18. The lamps can also be swiveled to point in the direction you want. 2-35 Installing a Garage Door Opener If you have a garage door opener, the front overhead compartment can be used to conveniently store the opener. 1. To install the garage door opener, ﬁrst open the compartment door by pressing the latch forward. 2. Peel the protective backing from the hook and loop patch. 4. Center the garage door opener activation button over the console door button and press the opener ﬁrmly into place. The pegs inside the compartment door are used to make sure the button on the compartment door will contact the control button on the garage door opener. 5. Add one peg at a time until the garage door opener operates with the compartment door closed when you press the button. Adjust the position of the garage door opener and add or remove pegs as needed, until the opener operates properly. 3. Press it ﬁrmly to the back of your garage door opener, as close to the center of the opener as possible. 2-36 Sunglasses Storage Compartment 6. Now, with the compartment door closed, press the button again to make sure the garage door opener operates properly. With the garage door opener positioned properly and the right number of pegs in place, you can press the button to operate the opener. Your vehicle may be equipped with a HomeLink® Transmitter. For more information, see Programming the HomeLink® Transmitter on page 2-30. The overhead console has a sunglasses storage compartment. 2-37 Luggage Carrier If you have a luggage carrier, you can load things on top of your vehicle. The luggage carrier has side rails and crossrails attached to the roof to secure cargo. Be sure the cargo is properly loaded. Follow these guidelines: (cid:127) Carrying small, heavy loads on the roof is not recommended. Tie the load to the side rails. Use the crossrails only to keep the load from sliding. If you need to carry long items, tie the load to the side rails. Also tie the load to the bumpers. Do not tie the load so tightly that the crossrails or side rails are damaged. (cid:127) After moving the crossrails, be sure to tighten all the slider screws. For the purpose of wind noise reduction, locate the front and rear crossrails in line with the two center supports. Notice: Loading cargo on the luggage carrier that weighs more than 200 lbs (91 kg) or hangs over the rear or sides of the vehicle may damage your vehicle. Load cargo so that it rests on the slats as far forward as possible and against the side rails, making sure to fasten it securely. Don’t exceed the maximum vehicle capacity when loading your vehicle. For more information on vehicle capacity and loading, see Loading Your Vehicle on page 4-28. To prevent damage or loss of cargo as you’re driving, check now and then to make sure the luggage carrier and cargo are still securely fastened. Convenience Net You may have a convenience net in the rear of your vehicle to help keep small loads, like grocery bags, in place during sharp turns or quick stops and starts. The net is not designed for larger, heavier items. You can unhook the net so that it will lie ﬂat when you’re not using it. 2-38 (cid:127) (cid:127) (cid:127) Section 3 Instrument Panel Instrument Panel Overview ...............................3-4 Hazard Warning Flashers ................................3-6 Other Warning Devices ...................................3-6 Horn .............................................................3-6 Tilt Wheel .....................................................3-6 Turn Signal/Multifunction Lever .........................3-7 Turn and Lane-Change Signals ........................3-7 Headlamp High/Low-Beam Changer ..................3-8 Flash-to-Pass .................................................3-8 Windshield Wipers ..........................................3-9 Windshield Washer .......................................3-10 Cruise Control ..............................................3-11 Exterior Lamps .............................................3-14 Headlamps on Reminder ................................3-14 Daytime Running Lamps (DRL) .......................3-15 Automatic Headlamp System ..........................3-16 Instrument Panel Brightness ...........................3-16 Dome Lamps ...............................................3-16 Entry Lighting ...............................................3-17 Exit Lighting .................................................3-17 Battery Run-Down Protection ..........................3-17 Accessory Power Outlets ...............................3-17 Ashtrays and Cigarette Lighter ........................3-18 Climate Controls ............................................3-19 Climate Control System .................................3-19 Outlet Adjustment .........................................3-21 Rear Heating System ....................................3-21 Rear Air Conditioning System .........................3-22 Warning Lights, Gages, and Indicators ............3-23 Instrument Panel Cluster ................................3-24 Speedometer and Odometer ...........................3-25 Trip Odometer ..............................................3-25 Safety Belt Reminder Light .............................3-25 Airbag Readiness Light ..................................3-26 Charging System Light ..................................3-27 Voltmeter Gage ............................................3-27 Brake System Warning Light ..........................3-28 Anti-Lock Brake System Warning Light .............3-29 Engine Coolant Temperature Gage ..................3-29 Malfunction Indicator Lamp .............................3-30 Oil Pressure Gage ........................................3-33 Security Light ...............................................3-34 Highbeam On Light .......................................3-34 Service All-Wheel Drive Light .........................3-34 Tow/Haul Mode Light ....................................3-35 Check Gages Warning Light ...........................3-35 Fuel Gage ...................................................3-36 Low Fuel Warning Light .................................3-36 3-1 Section 3 Instrument Panel Driver Information Center (DIC) .......................3-37 Audio System(s) .............................................3-39 Setting the Time for Radios with the Set Button ................................................3-40 Setting the Time for Radios with HR and MN Buttons ..................................3-40 AM-FM Radio ...............................................3-40 Radio with CD ..............................................3-42 Rear Seat Audio (RSA) .................................3-46 Theft-Deterrent Feature ..................................3-48 Radio Reception ...........................................3-50 Care of Your CDs .........................................3-50 Care of Your CD Player ................................3-50 Fixed Mast Antenna ......................................3-50 3-2 ✍ NOTES 3-3 Instrument Panel Overview 3-4 The main components of your instrument panel are the following: A. Exterior Lamps. See Exterior Lamps on page 3-14. B. Instrument Panel Brightness Control. See Instrument Panel Brightness on page 3-16. C. Turn Signal/Multifunction Lever. See Turn Signal/Multifunction Lever on page 3-7. D. Hazard Warning Flasher Button. See Hazard Warning Flashers on page 3-6. E. Shift Lever. See Automatic Transmission Operation on page 2-20. F. Ignition Switch. See Ignition Positions on page 2-17. G. Rear Defogger Button. See Climate Control System on page 3-19. H. Climate Control System. See Climate Control System on page 3-19. I. Rear Air Conditioning Control. See Rear Air Conditioning System on page 3-22. J. Rear Heater Control. See Rear Heating System on page 3-21. K. Rear Window Washer/Wiper Switch. See Turn Signal/Multifunction Lever on page 3-7. L. Ashtray. See Ashtrays and Cigarette Lighter on page 3-18. M. Dome Override Button. See Dome Lamps on page 3-16. N. Hood Release. See Hood Release on page 5-11. O. Cigarette Lighter. See Ashtrays and Cigarette Lighter on page 3-18. P. Audio System(s). See Audio System(s) on page 3-39. Q. Front Storage Compartment. See Storage Areas on page 2-33. R. Accessory Power Outlets. See Accessory Power Outlets on page 3-17. 3-5 Hazard Warning Flashers Your hazard warning ﬂashers let you warn others. They also let police know you have a problem. Your front and rear turn signal lamps will ﬂash on and off. The hazard warning ﬂasher button is located on top of the steering column. Horn Press the horn symbol in the middle of the steering wheel to sound the horn. Tilt Wheel A tilt steering wheel allows you to adjust the steering wheel before you drive. You can also raise it to the highest level to give your legs more room when you exit and enter the vehicle. Your hazard warning ﬂashers work no matter what position your key is in, and even if the key is not in the ignition. Press the button to make the front and rear turn signal lamps ﬂash on and off. Press the button again to turn the ﬂashers off. When the hazard warning ﬂashers are on, your turn signals will not work. Other Warning Devices If you carry reﬂective triangles, you can set them up at the side of the road about 300 feet (100 m) behind your vehicle. 3-6 The lever that allows you to tilt the steering wheel is located on the left side of the steering column. To tilt the wheel, hold the steering wheel and pull the lever. Move the steering wheel to a comfortable level, then release the lever to lock the wheel in place. Turn Signal/Multifunction Lever The lever on the driver’s side of the steering column includes the following: (cid:127) G Turn and Lane Change Signals. See Turn Signal/Multifunction Lever on page 3-7. (cid:127) 3 Headlamp High/Low-Beam Changer. Headlamp High/Low-Beam Changer on page 3-8. Flash-to-Pass. See Flash-to-Pass on page 3-8. (cid:127) N Windshield Wipers. See Windshield Wipers on page 3-9. (cid:127) L Windshield Washer. See Windshield Washer on page 3-10. (cid:127) Cruise Control (Option). See Cruise Control on page 3-11. For information on the exterior lamps, see Exterior Lamps on page 3-14. Turn and Lane-Change Signals The turn signal has two upward (for right) and two downward (for left) positions. These positions allow you to signal a turn or a lane change. To signal a turn, move the lever all the way up or down. When the turn is ﬁnished, the lever will return automatically. 3-7 (cid:127) An arrow on the instrument panel cluster will ﬂash in the direction of the turn or lane change. To signal a lane change, just raise or lower the lever until the arrow starts to ﬂash. Hold it there until you complete your lane change. The lever will return by itself when you release it. As you signal a turn or a lane change, if the arrows ﬂash faster, a signal bulb may be burned out and other drivers will not see your turn signal. If a bulb is burned out, replace it to help avoid an accident. If the arrows don’t go on at all when you signal a turn, check for burned-out bulbs and a blown fuse. See Fuses and Circuit Breakers on page 5-95. If you have a trailer towing option with added wiring for the trailer lamps, a different turn signal ﬂasher is used. With this ﬂasher installed, the signal indicator will ﬂash even if a turn signal bulb is burned out. Check the front and rear turn signal lamps regularly to make sure they are working. 3-8 Turn Signal On Chime If your turn signal is left on for more than 3/4 of a mile (1.2 km), a chime will sound at each ﬂash of the turn signal. To turn off the chime, move the turn signal lever to the center position. Headlamp High/Low-Beam Changer To change the headlamps from low beam to high or high to low, pull the multifunction lever all the way toward you. Then release it. When the high beams are on, this indicator light located on the instrument panel cluster also will be on. Flash-to-Pass This feature lets you use your high-beam headlamps to signal a driver in front of you that you want to pass. It works even if your headlamps are in automatic. To use it, pull the turn signal lever toward you, but not so far that you hear a click. If your headlamps are in automatic or on low beam, your high-beam headlamps will turn on. They will stay on as long as you hold the lever toward you and the high-beam indicator located on the cluster comes on. Release the lever to return to normal operation. Windshield Wipers To operate the windshield wipers, turn the band, located on the multifunction lever, upward or downward. OFF: Turn the band to turn off the windshield wipers. LOW (Low Speed): Turn the band to LOW for steady wiping at low speed. HIGH (High Speed): Turn the band to HIGH for steady wiping at high speed. DELAY: Turn the band to one of the ﬁve delay settings located between OFF and LOW, to choose the delayed wiping cycle. The closer the band is turned to OFF, the shorter the delay will be. For fewer wipes, choose a setting closer to LOW. Use this setting for light rain and snow. Be sure to clear ice and snow from the wiper blades before using them. If they’re frozen to the windshield, carefully loosen or thaw them. If your blades do become worn or damaged, get new blades or blade inserts. MIST: Turn the band to MIST for a single wiping cycle. Hold it there until the windshield wipers start, then let it go. The wipers will stop after one wipe. If you want more wipes, hold the band on mist longer. 3-9 Windshield Washer Rear Window Washer/Wiper L(Washer Fluid): There is a paddle marked with the windshield washer symbol at the top of the multifunction lever. To spray washer ﬂuid on the windshield, push the paddle. The wipers will clear the window and then either stop or return to your preset speed. {CAUTION: In freezing weather, do not use your washer until the windshield is warmed. Otherwise the washer ﬂuid can form ice on the windshield, blocking your vision. The wipers will clear the window and then either stop or return to your preset speed. Your vehicle may have this feature. The rear window washer/wiper is controlled by using the switch located on the instrument panel, next to the audio system. To turn the wiper on, slide the switch all the way up to ON. 3-10 For delay wiping, slide the switch up to the center position next to the word DELAY on the rear wiper control. The wiper will cycle every nine seconds. To wash the window, push in on the switch. Window washer ﬂuid will continue to spray until the switch is released. The wiper will continue with three more wipes and then return to the setting that was chosen before the lever was pushed. Move the switch to OFF to turn off the rear window washer. The rear window washer uses the same ﬂuid bottle as the front windshield washer. If the ﬂuid level is low in the washer bottle, you may not be able to wash your rear window. If you can wash your windshield, but not your rear window, check the ﬂuid level. Cruise Control Your vehicle may have this feature. With cruise control, you can maintain a speed of about 25 mph (40 km/h) or more without keeping your foot on the accelerator. This can really help on long trips. Cruise control does not work at speeds below about 25 mph (40 km/h). When you apply your brakes, the cruise control shuts off. {CAUTION: Cruise control can be dangerous where you cannot drive safely at a steady speed. So, do not use your cruise control on winding roads or in heavy traffic. Cruise control can be dangerous on slippery roads. On such roads, fast changes in tire traction can cause needless wheel spinning, and you could lose control. Do not use cruise control on slippery roads. 3-11 Setting Cruise Control {CAUTION: Resuming a Set Speed Suppose you set your cruise control at a desired speed and then you apply the brake. This, of course, shuts off the cruise control. But you don’t need to reset it. If you leave your cruise control on when you are not using cruise, you might hit a button and go into cruise when you do not want to. You could be startled and even lose control. Keep the cruise control switch off until you want to use cruise control. 1. Move the cruise control switch to ON. 2. Get up to the speed you want. 3. Press in the SET button at the end of the lever and release it. Once you’re going about 25 mph (40 km/h) or more, you can move the cruise control switch from ON to R/A (Resume/Acclerate) brieﬂy. You’ll go right back up to your chosen speed and stay there. If you hold the switch at R/A, the vehicle will keep going faster until you release the switch or apply the brake. So unless you want to go faster, don’t hold the switch at R/A. 4. Take your foot off the accelerator pedal. 3-12 Increasing Speed While Using Cruise Control There are two ways to go to a higher speed: (cid:127) Use the accelerator pedal to get to the higher speed. Press the button at the end of the lever, then release the button and the accelerator pedal. You’ll now cruise at the higher speed. (cid:127) Move the cruise switch from ON to R/A. Hold it there until you get up to the speed you want, and then release the switch. To increase your speed in very small amounts, move the switch to R/A brieﬂy. Each time you do this, your vehicle will go about 1 mph (1.6 km/h) faster. Reducing Speed While Using Cruise Control There are two ways to reduce your speed while using cruise control: (cid:127) Press the button at the end of the lever until you reach the lower speed you want, then release it. To slow down in very small amounts, press the button brieﬂy. Each time you do this, you’ll go about 1 mph (1.6 km/h) slower. Passing Another Vehicle While Using Cruise Control Use the accelerator pedal to increase your speed. When you take your foot off the pedal, your vehicle will slow down to the cruise control speed you set earlier. Using Cruise Control on Hills How well your cruise control will work on hills depends upon your speed, load and the steepness of the hills. When going up steep hills, you may want to step on the accelerator pedal to maintain your speed. When going downhill, you may have to brake or shift to a lower gear to keep your speed down. Of course, applying the brake takes you out of cruise control. Many drivers ﬁnd this to be too much trouble and don’t use cruise control on steep hills. Ending Cruise Control There are two ways to turn off the cruise control: (cid:127) Step lightly on the brake pedal. (cid:127) Move the cruise switch to OFF. Erasing Speed Memory When you turn off the cruise control or the ignition, your cruise control set speed memory is erased. 3-13 (cid:127) Exterior Lamps The exterior lamp control is located on the driver’s side of the instrument panel. The exterior lamp control has three positions: 9 (Off): Turning the control to this position turns off all lamps except the Daytime Running Lamps (DRL). 3-14 ;(Parking Lamps): Turning the control to this position turns on the parking lamps, together with the following: (cid:127) Sidemarker Lamps Taillamps License Plate Lamps Instrument Panel Lights (cid:127) Ashtray Lamp O(Headlamps): Turning the control to this position turns on the headlamps, together with the previously listed lamps and lights. Headlamps on Reminder A reminder tone will sound when your headlamps or parking lamps are manually turned on and your ignition is in OFF, LOCK or ACCESSORY. To disable the tone, turn the instrument panel brightness thumbwheel all the way down. In the automatic mode, the headlamps turn off once the ignition key is in OFF. (cid:127) (cid:127) (cid:127) Daytime Running Lamps (DRL) Daytime Running Lamps (DRL) can make it easier for others to see the front of your vehicle during the day. DRL can be helpful in many different driving conditions, but they can be especially helpful in the short periods after dawn and before sunset. Fully functional daytime running lamps are required on all vehicles ﬁrst sold in Canada. The DRL system will make your headlamps come on at a reduced brightness when the following conditions are met: The ignition is on, the exterior lamp control is off, the automatic transmission is not in PARK (P), the light sensor determines it is daytime, and the parking brake is released. When the DRL are on, only your DRL lamps will be on. The taillamps, sidemarker and other lamps won’t be on. Your instrument panel won’t be lit up either. When it begins to get dark, the automatic headlamp system will switch from DRL to the headlamps or the last chosen headlamp setting that was used. To idle your vehicle with the DRL off, put the transmission in PARK (P). The DRL will stay off until you shift out of PARK (P). The following does not apply to vehicles ﬁrst sold in Canada. When necessary, you may turn off the automatic headlamp system and the Daytime Running Lamps (DRL) feature by following the steps below: 1. Turn the ignition to RUN. 2. Press the DOME OVERRIDE button four times within six seconds. After the fourth press of the button, a chime will sound informing you that the system is off. To return to the automatic mode, push the DOME OVERRIDE button four times within six seconds (the chime will sound), or turn the ignition to off and then to RUN again. As with any vehicle, you should turn on the regular headlamp system when you need it. 3-15 (cid:127) (cid:127) (cid:127) (cid:127) (cid:127) Automatic Headlamp System When it is dark enough outside, your automatic headlamp system will turn on your headlamps at the normal brightness along with other lamps such as the taillamps, sidemarker, parking lamps and the instrument panel lights. The radio lights will also dim. Your vehicle is equipped with a light sensor on the top of the instrument panel in the defroster grille. Be sure it is not covered, or the system will be on whenever the ignition is on. The system may also turn on your headlamps when driving through a parking garage, heavy overcast weather or a tunnel. This is normal. There is a delay in the transition between the daytime and nighttime operation of the Daytime Running Lamps (DRL) and the automatic headlamp systems so that driving under bridges or bright overhead street lights does not affect the system. The DRL and automatic headlamp system will only be affected when the light sensor sees a change in lighting lasting longer than the delay. To idle your vehicle with the automatic headlamp system off, set the parking brake while the ignition is off. Then start your vehicle. The automatic headlamp system will stay off until you release the parking brake. 3-16 You may be able to turn off your automatic headlamp system. See Daytime Running Lamps (DRL) on page 3-15 for more information. As with any vehicle, you should turn on the regular headlamps when you need them. Instrument Panel Brightness The thumbwheel for this feature is located to the right of the exterior lamps control. Turn the thumbwheel up to brighten the lights or down to dim them. Moving the thumbwheel up to the ﬁrst position will activate the interior dome lamps. Dome Lamps The dome lamps will come on when you open a door. The dome lamps will not come on if only the rear door is opened. Press the DOME OVERRIDE button in to cancel automatic operation of the dome lamps. The button is located near the exterior lamp control. Press the button again to return it to the out position for normal operation. You can also turn the dome lamps on by turning the thumbwheel, located next to the exterior lamp control, all the way up. In this position, the dome lamps will remain on whether a door is opened or closed. You can use the DOME OVERRIDE button to set the dome lamps to come on automatically when a door is opened, or to remain off. To turn the lamps off, press the button into the in position, the dome lamps will remain off when a door is open. To return the lamps to automatic operation, press the button again and return it to the out position. With the button in this position, the dome lamps will come on when you open a door. Entry Lighting Your vehicle is equipped with an illuminated entry feature. When a door is opened, the dome lamps will come on if the DOME OVERRIDE button is in the out position. The dome lamps will not come on when the Dutch, or rear doors are opened. When all the doors are closed, the lamps will stay on for a short period of time and will then go out. If the DOME OVERRIDE button is pressed in, the lamps will not come on. Exit Lighting With exit lighting, the interior lamps will come on when you remove the key from the ignition. The interior lamps will not come on if the DOME OVERRIDE button is pressed in. Battery Run-Down Protection This feature shuts off the dome, courtesy, vanity, reading and glove box lights if they are left on for more than 20 minutes when the ignition is off. This will keep your battery from running down. If the battery run-down protection shuts off the interior lamps, it may be necessary to do one of the following to return to normal operation: (cid:127) Shut off all lamps and close all doors, or turn the ignition key to RUN. Accessory Power Outlets You can plug accessory electrical equipment into an accessory power outlet. Just pull on the outlet cover to remove it and follow the proper installation instructions that are included with any electrical equipment that you install. 3-17 (cid:127) The accessory power outlet is located on the passenger’s side of the front storage compartment. These circuits are protected by a fuse and have maximum current levels. Certain power accessory plugs may not be compatible to the power accessory outlet and could result in blown vehicle or adapter fuses. If you experience a problem, see your dealer for additional information on the power accessory plugs. Notice: Leaving electrical equipment on for extended periods will drain the battery. Always turn off electrical equipment when not in use and do not plug in equipment that exceeds the maximum amperage rating. Notice: damage not covered by your warranty. Do not hang any type of accessory or accessory bracket from the plug because the power outlets are designed for accessory power plugs only. Improper use of the power outlet can cause Ashtrays and Cigarette Lighter The cigarette lighter is on the left of the engine cover console. To use the lighter, press it in all the way and let go. When it’s done heating, it will pop back out by itself. 3-18 Notice: Holding a cigarette lighter in while it is heating will not allow the lighter to back away from the heating element when it is hot. Damage from overheating may occur to the lighter or heating element, or a fuse could be blown. Do not hold a cigarette lighter in while it is heating. Do not use anything other than the cigarette lighter in the heating element. Notice: Leaving electrical equipment on for extended periods will drain the battery. Always turn off electrical equipment when not in use and do not plug in equipment that exceeds the maximum amperage rating. The front ashtray is located above the passenger’s side front cupholder. To remove the front ashtray, open it and gently pull it slightly past its stop. To remove the ashtray on the sliding door, open it, then press down on the inside tab and pull it out. You may have another ashtray on the driver’s sidewall. Press the right side to turn the ashtray around for use. To remove the ashtray, open it and gently pull it off the hinge. Notice: in the ashtray, hot cigarettes or other smoking materials could ignite them and possibly damage your vehicle. Never put ﬂammable items in the ashtray. If you put papers or other ﬂammable items Climate Controls Climate Control System With this system you can control the heating, cooling and ventilation for your vehicle. Turn the right knob clockwise or counterclockwise to direct the airﬂow inside of your vehicle. To change the current mode, select one of the following: ) (Bi-Level): This mode directs approximately half of the air to the instrument panel outlets and directs most of the remaining air to the ﬂoor outlets. Some air may be directed toward the windshield. H (Vent): This mode directs air to the instrument panel outlets. 6 (Floor): This mode directs most of the air to the ﬂoor outlets with some air directed to the outboard outlets (for the side windows) and some air directed to the windshield. A/C (Air Conditioning): This setting brings in outside air, cools and dehumidiﬁes it. MAX A/C (Maximum Air Conditioning): This setting cools the air the fastest, by recirculating the inside air. The right knob can also be used to select the defrost mode. Information on defogging and defrosting can be found later in this section. 9 (Fan): Turn the left knob clockwise or counterclockwise to increase or decrease the fan speed. Temperature Control: Turn the center knob clockwise or counterclockwise to increase or decrease the temperature inside your vehicle. 3-19 Defogging and Defrosting Turn the right knob to select the defog or defrost mode. -(Floor/Defog): With this setting, the outside air comes out of both the ﬂoor and defroster outlets. Adjust the temperature knob for warmer or cooler air. The air conditioning compressor may operate in this setting to dehumidfy the air. 1(Defrost): This setting operates the defroster. Most of the air comes out near the windshield, with some going to the ﬂoor outlets and front side windows. The air conditioning compressor may operate in this setting to dehumidify the air. The bi-level setting is useful for cold weather with a large number of passengers or very humid conditions to help keep the windshield clear. Use defrost to remove fog or ice from the windshield quickly in extremely cold conditions. The temperature knob should be in the red area and the fan control toward high. Rear Window Defogger The rear window defogger uses a warming grid to remove fog or frost from the rear window. The rear window defogger will only work when the ignition is in RUN. Press this button to turn the rear window defogger on or off. Be sure to clear as much snow from the window as possible. The rear window defogger will turn off several minutes after the button is pressed. If turned on again, the defogger will run for several more minutes before turning off. The defogger can also be turned off by pressing the button again or by turning off the engine. 3-20 Rear Heating System Your vehicle may have a rear heating system that allows you to adjust the amount of air ﬂowing into the rear of the vehicle, from the front seating area. This feature works with the main climate control system in your vehicle. Notice: Using a razor blade or sharp object to clear the inside rear window may damage the rear window defogger. Repairs would not be covered by your warranty. Do not clear the inside of the rear window with sharp objects. Outlet Adjustment Move the thumbwheel in the center of the outlets up or down to change the direction of airﬂow. Operation Tips (cid:127) Clear away any ice, snow or leaves from the air inlets at the base of the windshield that may block the ﬂow of air into your vehicle. (cid:127) Use of non-GM approved hood deﬂectors may adversely affect the performance of the system. (cid:127) Keep the path under the front seats clear of objects to help circulate the air inside of your vehicle more effectively. The thumbwheel for this system is located to the right of the audio system. Turn the thumbwheel up or down to increase or decrease the amount of heated air sent to the rear seating area. 3-21 Rear Air Conditioning System Your vehicle may have a rear air conditioning system that allows you to adjust the fan speed in the rear seating area, from the front seating area. This feature works with the main climate control system in your vehicle. Turn the thumbwheel up or down to increase or decrease the amount of cooled air sent to the rear seating area. To direct the airﬂow to the rear seating area, use the right knob located on the main climate control panel. Generally the upper outlets are used for air conditioning and the ﬂoor outlets are used for heating. 9 (Fan): Move the thumbwheel up or down to HIGH, MED (Medium) or LOW to increase or decrease the fan speed in the rear seating area. Move the thumbwheel to OFF to turn off the fan. The thumbwheel for this system is located to the right of the controls for the climate control system. 3-22 To increase or decrease the temperature for the entire vehicle, use the center knob located on the main climate control panel. The air conditioning system on the main climate control panel must be turned on to direct cooled air to the rear of the vehicle. If it is not on, then the temperature in the rear of the vehicle will remain at cabin temperature. Be sure to keep the area under the front seats clear of any objects so that the air inside of your vehicle can circulate effectively. For information on how to use the main climate control system, see Climate Control System on page 3-19. For information on ventilation, see Outlet Adjustment on page 3-21. Warning Lights, Gages, and Indicators This part describes the warning lights and gages that may be on your vehicle. The pictures will help you locate them. Warning lights and gages can signal that something is wrong before it becomes serious enough to cause an expensive repair or replacement. Paying attention to your warning lights and gages could also save you or others from injury. Warning lights come on when there may be or is a problem with one of your vehicle’s functions. As you will see in the details on the next few pages, some warning lights come on brieﬂy when you start the engine just to let you know they’re working. If you are familiar with this section, you should not be alarmed when this happens. Gages can indicate when there may be or is a problem with one of your vehicle’s functions. Often gages and warning lights work together to let you know when there’s a problem with your vehicle. When one of the warning lights comes on and stays on when you are driving, or when one of the gages shows there may be a problem, check the section that tells you what to do about it. Please follow this manual’s advice. Waiting to do repairs can be costly – and even dangerous. So please get to know your warning lights and gages. They’re a big help. 3-23 Instrument Panel Cluster Your instrument panel cluster is designed to let you know at a glance how your vehicle is running. You’ll know how fast you’re going, about how much fuel you’ve used, and many other things you’ll need to know to drive safely and economically. United States version shown, Canada similar 3-24 Safety Belt Reminder Light When the key is turned to RUN or START, a tone will come on to remind people to fasten their safety belts, unless the driver’s safety belt is already buckled. The safety belt light will also come on and stay on for several seconds, then it will ﬂash for several more. If the driver’s belt is already buckled, neither the tone nor the light will come on. Speedometer and Odometer Your speedometer lets you see your speed in both miles per hour (mph) and kilometers per hour (km/h). Your odometer shows how far your vehicle has been driven, in either miles (used in the United States) or kilometers (used in Canada). Your vehicle has a tamper resistant odometer. The digital odometer will read 999,999 if someone tries to turn it back. You may wonder what happens if your vehicle needs a new odometer installed. If the new one can be set to the mileage total of the old odometer, then it must be. But if it can’t, then it’s set at zero and a label must be put on the driver’s door to show the old mileage reading when the new odometer was installed. Trip Odometer The trip odometer can tell you how far your vehicle has been driven since you last set the trip odometer to zero. The trip odometer will appear in place of your regular odometer when you press the TRIP button. To reset the trip odometer, press and hold the TRIP button. To change back to the regular odometer, press the TRIP button again. 3-25 {CAUTION: If the airbag readiness light stays on after you start your vehicle, it means the airbag system may not be working properly. The airbags in your vehicle may not inﬂate in a crash, or they could even inﬂate without a crash. To help avoid injury to yourself or others, have your vehicle serviced right away if the airbag readiness light stays on after you start your vehicle. The airbag readiness light should ﬂash for a few seconds when you turn the ignition key to RUN. If the light doesn’t come on then, have it ﬁxed so it will be ready to warn you if there is a problem. Airbag Readiness Light There is an airbag readiness light on the instrument panel, which shows AIR BAG or the airbag symbol. The system checks the airbag’s electrical system for malfunctions. The light tells you if there is an electrical problem. The system check includes the airbag sensor, the airbag modules, the wiring and the crash sensing and diagnostic module. For more information on the airbag system, see Airbag System on page 1-63. United States Canada This light will come on when you start your vehicle, and it will ﬂash for a few seconds. Then the light should go out. This means the system is ready. If the airbag readiness light stays on after you start the vehicle or comes on when you are driving, your airbag system may not work properly. Have your vehicle serviced right away. 3-26 Charging System Light Voltmeter Gage This light should come on brieﬂy when you turn on the ignition, before starting the engine, as a check to show you it is working. When your engine is not running, but the ignition is on (in the RUN position), the gage shows your battery’s state of charge in DC volts. After the engine starts, the light should go out. If it stays on or comes on while you are driving, you may have a problem with your charging system. It could indicate a problem with the generator drive belt, or some other charging system problem. Have it checked right away. Driving while this light is on could drain your battery. If you must drive a short distance with this light on, it helps to turn off all your accessories, such as the radio and air conditioner. When the engine is running, the gage shows the condition of the charging system. Readings between the low and high warning zones indicate the normal operating range. Readings in the low warning zone may occur when a large number of electrical accessories are operating in the vehicle and the engine is left at an idle for an extended period. This condition is normal since the charging system is not able to provide full power at engine idle. As engine speeds are increased, this condition should correct itself as higher engine speeds allow the charging system to create maximum power. 3-27 You can only drive for a short time with the readings in either warning zone. If you must drive, turn off all unnecessary accessories. Readings in either warning zone indicate a possible problem in the electrical system. Have the vehicle serviced as soon as possible. Brake System Warning Light When the ignition is on, the brake system warning light will come on when you set your parking brake. The light will stay on if your parking brake doesn’t release fully. If it stays on after your parking brake is fully released, it means you have a brake problem. Your vehicle’s hydraulic brake system is divided into two parts. If one part isn’t working, the other part can still work and stop you. For good braking, though, you need both parts working well. If the warning light comes on, there could be a brake problem. Have your brake system inspected right away. This light should come on brieﬂy when you turn the ignition key to RUN. If it doesn’t come on then, have it ﬁxed so it will be ready to warn you if there’s a problem. If the light comes on while you are driving, pull off the road and stop carefully. You may notice that the pedal is harder to push. Or, the pedal may go closer to the ﬂoor. It may take longer to stop. If the light is still on, have the vehicle towed for service. See Towing Your Vehicle on page 4-33. {CAUTION: Your brake system may not be working properly if the brake system warning light is on. Driving with the brake system warning light on can lead to an accident. If the light is still on after you have pulled off the road and stopped carefully, have the vehicle towed for service. 3-28 Anti-Lock Brake System Warning Light With the anti-lock brake system, this light will come on when you start your engine and may stay on for several seconds. That’s normal. Engine Coolant Temperature Gage This gage shows the engine coolant temperature. If the gage pointer moves to the red area, your engine is too hot! If the light stays on, or comes on when you’re driving, your vehicle needs service. If the regular brake system warning light isn’t on, you still have brakes, but you don’t have anti-lock brakes. If the regular brake system warning light is also on, you don’t have anti-lock brakes and there’s a problem with your regular brakes. See “Brake System Warning Light” earlier in this section. The anti-lock brake system warning light should come on brieﬂy when you turn the ignition key to RUN. If the light doesn’t come on then, have it ﬁxed so it will be ready to warn you if there is a problem. It means that your engine coolant has overheated. If you have been operating your vehicle under normal driving conditions, you should pull off the road, stop your vehicle and turn off the engine as soon as possible. See Engine Overheating on page 5-28. 3-29 If you keep driving your vehicle with this Malfunctions often will be indicated by the system before any problem is apparent. This may prevent more serious damage to your vehicle. This system is also designed to assist your service technician in correctly diagnosing any malfunction. Notice:
