Download PDF Manual

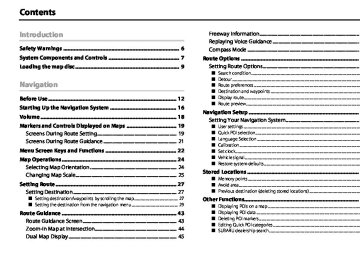

Contents


Introduction


Safety Warnings ............................................................................. 6
System Components and Controls ............................................... 7
Loading the map disc..................................................................... 9


Navigation


Before Use..................................................................................... 12
Starting Up the Navigation System ............................................ 16
Volume .......................................................................................... 18
Markers and Controls Displayed on Maps ................................. 19
Screens During Route Setting.................................................................. 19
Screens During Route Guidance ............................................................. 21
Menu Screen Keys and Functions ............................................... 22
Map Operations............................................................................ 24
Selecting Map Orientation ........................................................................ 24
Changing Map Scale.................................................................................... 25
Setting Route................................................................................ 27
Setting Destination ...................................................................................... 27
■ Setting destination/waypoints by scrolling the map.................................................... 27
■ Setting the destination from the navigation menu ....................................................... 29
Route Guidance ............................................................................ 43
Route Guidance Screen .............................................................................. 43
Zoom-in Map at Intersection.................................................................... 44
Dual Map Display.......................................................................................... 45


Freeway Information................................................................................... 46
Replaying Voice Guidance ........................................................................ 47
Compass Mode ............................................................................................. 48
Route Options .............................................................................. 49
Setting Route Options................................................................................ 49
■ Search condition................................................................................................................................... 50
■ Detour.......................................................................................................................................................... 51
■ Route preferences................................................................................................................................ 52
■ Destination and waypoints ............................................................................................................ 52
■ Display route............................................................................................................................................ 56
■ Route preview......................................................................................................................................... 57
Navigation Setup ......................................................................... 60
Setting Your Navigation System............................................................. 60
■ User settings ............................................................................................................................................ 61
■ Quick POI selection.............................................................................................................................. 63
■ Language Selection ............................................................................................................................ 64
■ Calibration................................................................................................................................................. 64
■ Set clock...................................................................................................................................................... 66
■ Vehicle signal........................................................................................................................................... 67
■ Restore system defaults.................................................................................................................... 67
Stored Locations .......................................................................... 69
■ Memory points....................................................................................................................................... 70
■ Avoid area.................................................................................................................................................. 75
■ Previous destination (deleting stored locations).............................................................. 77
Other Functions............................................................................ 79
■ Displaying POIs on a map ............................................................................................................... 79
■ Displaying POI data ............................................................................................................................. 81
■ Deleting POI markers.......................................................................................................................... 82
■ Editing Quick POI categories......................................................................................................... 82
■ SUBARU dealership search.............................................................................................................. 84


Version and Initialization ............................................................ 87
Version.............................................................................................................. 87
Initialization of the navigation settings................................................ 88
General Information .................................................................... 90
When a Problem Occurs............................................................................. 93


Audio and Visual


Before using the Audio and Visual.............................................. 96
Precautions when using the system...................................................... 96
Discs that can be used ................................................................................ 99
Player.............................................................................................................. 101
Character information displayed ......................................................... 102
Basic operation of the Audio and Visual .................................. 103
Name of each part..................................................................................... 103
Turning on the power.............................................................................. 106
Selecting the source ................................................................................. 107
■ Pressing the button for selection............................................................................................ 107
■ Making a selection by touching .............................................................................................. 109
Setting and adjusting the sound ......................................................... 110
■ Adjusting the sound volume..................................................................................................... 110
■ Turning off the sound .................................................................................................................... 110
Handling the disc....................................................................................... 111
■ Setting the disc................................................................................................................................... 111
■ Taking out the disc........................................................................................................................... 112
Listening to the radio................................................................. 113
Listening to the radio............................................................................... 113
■ FM radio screen displayed........................................................................................................... 113
■ AM radio screen displayed.......................................................................................................... 114


Selecting a station...................................................................................... 116
■ Selecting a station that is preset.............................................................................................. 116
■ Setting the frequency..................................................................................................................... 116
■ Searching a station automatically........................................................................................... 117
■ Searching a FM station from a category of interest..................................................... 117
Presetting a station.................................................................................... 119
■ Presetting a station that is now being tuned in to....................................................... 119
■ Presetting a station that can receive radio waves automatically ........................ 119
Listening to the CD .................................................................... 120
Listening to a tune in the CD ................................................................. 120
CD screen displayed.................................................................................. 121
Selecting a tune .......................................................................................... 123
■ Selecting the preceding tune.................................................................................................... 123
■ Selecting the succeeding tune................................................................................................. 123
■ Selecting a tune from the list..................................................................................................... 124
■ Searching a tune while listening.............................................................................................. 125
■ Fast-rewinding or fast-forwarding a tune .......................................................................... 125
Listening to a tune repeatedly .............................................................. 126
Listening to tunes in random order..................................................... 127
Listening to MP3/WMA disc ...................................................... 128
MP3/WMA..................................................................................................... 128
Listening to tunes (file) in the MP3/WMA disc................................. 131
MP3/WMA disc screen displayed ......................................................... 132
Selecting a tune .......................................................................................... 134
■ Selecting a folder that you want to hear ............................................................................ 134
■ Selecting a tune (file) you want to hear .............................................................................. 135
■ Fast-rewinding or fast-forwarding a tune .......................................................................... 137
■ Listening to a tune repeatedly .................................................................................................. 138
■ Listening the tunes in random order.................................................................................... 139


Looking at the DVD .................................................................... 140
What must be known............................................................................... 141
■ Operations while in the playback of the disc.................................................................. 141
■ DVD video and DVD audio.......................................................................................................... 141
Playing back the DVD............................................................................... 142
DVD control screen displayed............................................................... 143
Selecting the title and the chapter...................................................... 145
■ Selecting the chapter ..................................................................................................................... 145
■ Searching a title with the title number specified.......................................................... 145
Controlling the playback of the DVD ................................................. 147
Operating the menu screen................................................................... 149
■ Selecting the menu ......................................................................................................................... 149
■ Changing over the position of the menu operation key......................................... 150
Changing the language and the angle.............................................. 151
■ Changing the superimposed language.............................................................................. 151
■ Changing the voice language .................................................................................................. 152
■ Changing over the angle ............................................................................................................. 153
Setting the screen ..................................................................................... 154
■ Adjusting the image quality....................................................................................................... 154
■ Setting the SCREEN MODE.......................................................................................................... 155
Looking at the VIDEO ............................................................................... 156
Satellite radio operation (if equipped)..................................... 157
Setting the audio........................................................................ 158
Setting the equalizer ................................................................................ 158
■ Setting the equalizer with ease................................................................................................ 158
■ Setting the equalizer in detail ................................................................................................... 159
■ Invoking the equalizer setting that has been preset.................................................. 160
Setting the balance of the audio volume ......................................... 162
Setting the surround ................................................................................ 164
Setting the speaker................................................................................... 166


Initializing the DVD.................................................................................... 168
■ Setting the screen ............................................................................................................................. 169
■ Setting the dynamic range.......................................................................................................... 170
■ Setting the language....................................................................................................................... 171
■ Setting the password of the parental level ....................................................................... 172
■ Setting the parental level ............................................................................................................. 173


Handsfree


Before using the Handsfree ...................................................... 176
What can be made with the handsfree.............................................. 176
■ What cannot be done with the handsfree ........................................................................ 176
Precautions to be taken when using the Bluetooth


equipment............................................................................................... 177
Name of each part...................................................................................... 178
Phone voice.................................................................................................. 179
Various types of displays ......................................................................... 180
■ Reception level display .................................................................................................................. 180
■ Battery indicator ................................................................................................................................. 180
■ Bluetooth connection status display..................................................................................... 181
■ Roaming display................................................................................................................................. 181
When parting with your car.................................................................... 182
Making preparations of the handsfree .................................... 183
Registering the Bluetooth Phone......................................................... 183
Connecting the Bluetooth Phone ........................................................ 185
Speaking over the handsfree.................................................... 187
Making a phone call .................................................................................. 187
■ Entering a phone number to make a phone call .......................................................... 187
■ Making a phone call from the outgoing or incoming call history...................... 188
■ Making a phone call from the phone book ...................................................................... 190


Editing the Speed Dial setting............................................................... 218
■ Adding the phone number to the Speed Dial memory ........................................... 218
■ Deleting the phone number from the Speed Dial memory .................................. 220
Changing the Pass-Key used when certificating the Bluetooth


Phone ........................................................................................................ 222


Vehicle Information


Before Use................................................................................... 226
Precautions when using the system ................................................... 226
Displaying Vehicle Information Screen.................................... 229
Displaying Vehicle Information and Programming Vehicle


System Functions................................................................... 230
■ Displaying fuel consumption information and programming for the


automatic alarm display................................................................................................................ 230
■ Displaying, retaining, and erasing driving record data .............................................. 232
■ Displaying three meters ................................................................................................................ 237
■ Maintenance schedule................................................................................................................... 238
■ Programming vehicle system functions ............................................................................. 239
■ The calculator functions................................................................................................................ 242
■ The calendar functions................................................................................................................... 244
Adjusting Brightness/Contrast ................................................. 245
■ Adjusting brightness/contrast................................................................................................... 245


■ Making a phone call from the Speed Dial ......................................................................... 192
■ Making a phone call to the phone number of the Memory Point..................... 193
■ Making a phone call from the Bluetooth Phone........................................................... 194
Taking a phone call and declining a incoming call ....................... 195
■ Taking a phone call.......................................................................................................................... 195
■ Putting an incoming phone call on hold........................................................................... 195
■ Hanging up an incoming call before answering it


(Denial of an incoming call)........................................................................................................ 196
Speaking over the phone ....................................................................... 197
■ Adjusting the tonal volume........................................................................................................ 197
■ Muting the voice on this side.................................................................................................... 197
■ Transmitting the phone call....................................................................................................... 198
■ Hanging up the phone.................................................................................................................. 198
Using the outgoing or incoming call history ........................... 199
Checking the outgoing or incoming call history ........................... 199
Deleting all the outgoing and incoming call history.................... 200
Using the phone book................................................................ 201
Registering the phone book data........................................................ 201
■ Transmitting the phone book of the Bluetooth Phone............................................ 201
■ Registering a new data with the phone book................................................................ 203
■ Registering data with the phone book from the outgoing or incoming


call history.............................................................................................................................................. 206
Editing or deleting a phone book data.............................................. 208
■ Editing a phone book data ......................................................................................................... 208
■ Selecting a phone book data to delete it .......................................................................... 210
■ Deleting all the phone book data........................................................................................... 212
Other Bluetooth settings ........................................................... 214


Deleting the registered Bluetooth Phone from the in-vehicle


equipment .............................................................................................. 214


Changing the Device Name of the in-vehicle equipment


displayed in the Bluetooth Phone.................................................. 216


Introduction


Safety Warnings


You will find a number of WARNINGs, CAUTIONs and NOTEs in this supplement. These safety warnings alert you to potential hazards that could result in injury to you or others. Please read these safety warnings as well as all other portions of this supplement carefully in order to gain a better understanding of how to safely use the systems it describes.


WARNING


A WARNING indicates a situation in which serious injury or death could result if the warning is ignored.


CAUTION


A CAUTION indicates a situation in which injury or damage to your vehicle including the systems described in this supple- ment, or both, could result if the caution is ignored.


NOTE A NOTE gives information or suggestions how to make better use of the systems described in this supplement.


Introduction


System Components and Controls


(1)


(2) (3)


(4)


(5) (6)


(7)


(8) (9)


(10)


(11) (12)


This button is used to display the destination entry screen of the navigation system.


This button is used to display the menu screen of the naviga- tion system.


(1)


(2)


(3)


This button is used to switch to the navigation system’s cur- rent map screen from any other screen.


(4) POWER/VOL


This button is used to operate the audio system.


(5)


(6)


(7)


(8)


(9)


This button is used to operate the audio system.


This button is used to operate the audio system.


This button is used to operate the audio system.


This button allows you to display SCREEN in which adjust- ments can be made to the screen.


This button is used to display the vehicle information screen.


Introduction 7


System Components and Controls


(10) MODE/TUNE


This button is used to operate the audio system.


This button is used to operate the audio system.


(11)


(12)


This button is used to take out a disc and/or adjust the tilt of the monitor.


Introduction


Loading the map disc


When changing the map disc with a disc appropriate to the present location, or when updating the map disc while in the version upgrade of a map disc, it is necessary to change it with another map disc by following the procedure as described below.


NOTE • When changing a map disc with another one, be sure to stop your vehicle in a


safe place.


4 Insert a map disc that contains the area showing the cur-


rent position. The monitor automatically gets back to the normal condition to start the playback of the disc.


• For details of the map discs, see "Map Discs" on (See Page 41). 1 Press the 2 Select


button.


(MAP).


The monitor section is tilted and, when a disc has been set, it is ejected.


3 When the map disc is ejected, take it out.


CAUTION


• You must insert the map disc into the second slot from the top. • When inserting a map disc, do not insert 2 or more map


discs in piles. This may cause a malfunction to the machine, resulting in the take-off of the discs unavailable.


Introduction 9


Loading the map disc


10


Introduction


Navigation


Before Use


WARNING


READ THIS MANUAL FIRST


Read this supplement carefully before using your navigation system. We are not liable for accidents or other problems resulting from failure to follow the instructions in this sup- plement.


OBEY LOCAL ROAD SIGNS AND REGULATIONS


Always obey local road signs and regulations while following instructions given by the navigation system. Some of the data on the DVD-ROM disc may be outdated due to changes in local road signs and regulations. Furthermore, the data on the DVD-ROM disc does not take into account variable fac- tors such as the weather, road congestion at different times of the day, temporary road closures due to road construc- tion, and special events. Local road signs and regulations always take precedence over directions given by the system. Failure to obey them could place you in physical danger or in violation of the law.


DRIVE SAFELY • Before following an instruction (for example, in the case of


changing direction) given by the system, check that the action would be safe to take in the current traffic conditions. Continue to pay attention to safety while following any instruction.


• Do not be distracted by the navigation screen.


Failure to keep your attention on the road could lead to an acci- dent. When you need to look at the screen while driving, do so for the shortest time possible and avoid staring at the screen.


12 Navigation


• You must stop the vehicle in a safe place before operating


the navigation system. For safety's sake, some of the naviga- tion system's controls and functions cannot be used unless the vehicle is stationary.


• When you need to look at the navigation screen, do so for the shortest time possible. Looking away from the road for too long could lead to an accident.


• Use this system only in locations where it is legal to do so.


Some states/provinces may have laws prohibiting video screens within sight of the driver.


• If you stare at the display with too much enthusiasm or oper-


ate the switches of the system while in driving, the naviga- tion system could cause your attention to be distracted from the current traffic conditions. Please be sure to input in the system as much information as possible before taking your departure. And also please be sure to bring your car to a stop in a safe place if you need to input information.


• The buttons for the touch screen that cannot be used are


displayed in light color (tone down). Operating the navigation system while in driving could cause your attention to be distracted from the current traffic condi- tions. And in consequence, this could result in a severe or fatal accident. Follow the descriptions of all operations and the instructions for safety given in this manual without fail.


VOLUME LEVEL • Keep the system's volume level low enough for you to be


able to hear outside sounds while driving. To do otherwise may prevent you from reacting appropriately to traffic con- ditions and could result in an accident.


CAUTION


CAUTION


Before Use


FOREIGN OBJECTS


Do not allow foreign objects to enter the disc insertion slot, including your fingers. Foreign objects inside the system's main unit could cause an electric shock or a fire. If the main unit emits smoke or an unusual smell, stop using the system immediately and you contact the nearest SUBARU dealer.


NEVER DISASSEMBLE OR MODIFY THE SYSTEM


Any attempt to disassemble or modify any part of the system could lead to an electric shock or a fire, or some other type of accident.


Do not continue using the navigation system if it malfunctions If the system shows any sign of malfunctioning (for example, the navigation system gives no picture), stop using it imme- diately and contact the nearest SUBARU dealer. Continuing to use the system could lead to a fire, an electric shock, or some other type of accident.


If the navigation system gets contaminated, emits smoke or an odd smell, stop using it


If a foreign object gets inside the system, liquid is spilled onto the system, or the system emits smoke or an unusual smell, stop using it immediately and contact the nearest SUBARU dealer. Continuing to use the system could lead to a fire, an electric shock, or some other type of accident.


NOTE • In the interest of safety, the use of some functions may be unavailable while in driving. The button for a touch screen that cannot be used will be displayed in tint color (toned down).


• Liquid-crystal displays may be difficult to read when wearing polarized


glasses.


Navigation 13


Before Use


■ Points to note before use Starting the engine before using the system


The navigation system can be used with the ignition key in either the ON position or the ACC position. To preserve the battery, however, it should be used with the engine running whenever possible. Using the system for a long time with the engine off can cause the battery to run down.


Delay before display of current position


The system will not immediately display a correct indication of your vehicle's current position after being switched on for the first time or after the battery has been disconnected for a long time. It will display a correct current position indication as soon as it receives Global Posi- tioning System (GPS) signals.


Program reloading after battery disconnection


The navigation program will be erased from the system's memory if the battery is disconnected. If this happens, load the provided DVD- ROM disc in the system's main unit and turn the ignition switch to the ON or ACC position. The system will automatically reload the pro- gram and start operating normally again.


Incorrect operation on rough roads


The system may operate incorrectly or be unable to read the data on the DVD-ROM disc when subjected to severe vibration caused by driving on rough roads.


Handling the GPS antenna


Do not paint the antenna. Doing so could impair or prevent signal reception.


14 Navigation


Disabled switches


Some switches are disabled during operation of the system. These switches are displayed in fainter colors and no messages are dis- played for them.


Risk of damage to the main unit


Be mindful of the occupant compartment temperature. Using the system when the occupant compartment temperature is extremely high or low can damage it or cause it to malfunction. Also, note that the system's main unit can be damaged by strong vibration and by any metallic object or water that gets inside.


Condensation


Condensation can form on the lens inside the main unit when there is a rapid change in occupant compartment temperature (for exam- ple, when the heater is switched on in cold weather). Such condensa- tion can cause the system to operate abnormally. If you wait an hour or so for the condensation to disappear, the system should start working normally again. If normal operation is still not restored after several hours, we recommend that you contact the nearest SUBARU dealer.


Replacing the DVD-ROM disc


If you need to replace the DVD-ROM disc, make sure the replacement disc is compatible with your system's main unit. Inserting an incom- patible disc could damage the unit.


■ Handling precautions for DVD-ROM discs • Handle DVD-ROM discs carefully. Any DVD-ROM disc with excessive


warping or scratches on its surface can cause reading errors.


• Store DVD-ROM discs away from direct sunlight, which can cause


warping and render them unusable.


• DVD-ROM discs rotate at high speeds inside the system's main unit. Never use a cracked or badly warped disc; doing so could damage the unit.


• To clean a DVD-ROM disc, lightly wipe it with a soft cloth in straight


lines from the center hole toward the outer edge.


• Never clean DVD-ROM discs with benzene, thinner, record spray,


antistatic spray, or chemical swabs.


• Do not touch the DVD-ROM disc's data surface (the surface without a printed label). A dirty data surface can cause reading errors. Always hold a DVD-ROM disc by the center hole and at one point on the outer edge, or by two points on the outer edge.


• Do not write anything on DVD-ROM discs or affix anything, such as


stickers, to them.


Before Use


Navigation 15


Starting Up the Navigation System


Use the following procedure to start up the navigation system and display the current map screen. 1 Start the engine.


The CAUTION screen will appear, followed by the opening screen.


2 Carefully read the instructions on the CAUTION screen


(cited below), then select


CAUTION


Make selections only when vehicle is stopped. Watching screen while driving can lead to a serious accident. Some map data may be incorrect. Use judgment and obey traffic rules. See Owner's Manual for complete operating instructions.


The current map screen will appear.


16 Navigation


NOTE • To make a selection, touch the desired key displayed on the screen. • The CAUTION screen remains on the display unless you select • When you use the navigation system for the first time, Eastern Standard Time


(EST) will be displayed. Adjust the system's clock to the right time using the clock setting screen ("SET CLOCK") as described on Page 66.


Starting Up the Navigation System


Navigation 17


Volume


Use this function if you want to change the voice guidance volume setting from the default setting. 1 Press the


button.


2 Select


or


to adjust the sound volume.


• Each time Each time


is selected, the sound volume turns down. is selected, the sound volume turns up.



If you want to turn off the sound of the navigation sys- tem, select


to display "OFF".


• To make sure the volume level, select


18 Navigation


Markers and Controls Displayed on Maps


Screens During Route Setting Touch a point on the map. A crosshair (scroll mark) will appear on the screen. Then touch a desired point on the map. The map will scroll with the selected point at the center.



(1) (2) (3)


(7) (4) (5) (6)


(10)


button to


Press return to the current map screen.


Scroll the map


(1) Time


Indicates the current time.


(2) Map orientation control


Used to select either a "north up" display or "heading up" dis- play of the map. (See Page 24.)


(3) GPS marker


Shows the status of the signal from GPS satellites. When this marker appears, your navigation system is receiving GPS sig- nals and using them to calculate the position of your vehicle.


(4) Screen configuration control


Allows you to select a preferred display type for route guid- ance. (See Page 43.)


(5) Map scale


Used to display the map scale.


(6) Zoom-out/zoom-in control


or


is used to zoom out or zoom in the map.


Select


or


to select the map scale.


(7) Vehicle marker


Indicates the current position and direction of your vehicle.



(11)


(8)


(9)


Navigation 19


Markers and Controls Displayed on Maps


(8)


"Store memory point" key Stores markers on the map. This key appears just for a few seconds after a map screen is selected.


(9) Point of interest (POI) key


Allows you to display the POI selection screen (See Page 79). On the screen, you can program POIs to appear on a map as markers. This key appears just for a few seconds after a map screen is selected.


(10) Distance from current position


Indicates the distance from the current position to the posi- tion marked by


(11) Destination/waypoint key


Used to program a destination or waypoint at the position marked by


on a scroll screen.


20 Navigation


Screens During Route Guidance


(2)


(3)


(1)


(6)


(5)


(4)


(5 seconds)


Select the screen


(7)


(8)


Markers and Controls Displayed on Maps


(1) Distance and time to destination


Indicates the time (either approximate time required or time of arrival) and the distance to the destination or a waypoint.


(2) Route


A thick blue line indicates the route you should follow.


(3) Turn guidance arrow


Indicates the direction of your turn at the next intersection/ intersection as well as the distance to the intersection/inter- section.


(4)


"Repeat voice" key If this key is selected, the last voice guidance will be repeated.


(5) Current road name


Shows the name of the road you are currently driving on.


(6)


"Display whole route" key If this key is selected, a map containing the entire route will be displayed. (See Page 56.)


(7) Detour


If this key is selected, the system will calculate an alternative route that detours from the current location.


(8)


"Change route" key Selecting this key displays the route option menu. Selecting a new route option causes the system to calculate the selected route.


Navigation 21


Menu Screen Keys and Functions



button to Press display the menu screen.


Select the current map screen.


to return to



22 Navigation


The table below shows the keys displayed on the MENU screen, the functions accessible by selecting these keys, and the pages of this manual that describe the instructions you should follow when using these functions.


Menu screen key Stored Locations


Navigation Set Up


Route Options


Reference page Function page 70
Memory Points page 75
Avoid Area page 77
Previous Dest. page 61
User Settings page 63
Quick POI Selection page 64
Language Selection page 64
Calibration page 66
Set Clocks page 67
Vehicle Signal Restore System Defaults page 67
page 50
Search Condition page 51
Detour page 52
Route Pref. Dest. & Way Pt. page 52
page 56
Display Route Route Preview page 57


Menu screen key Phone


Version


Function Bluetooth Phone Redial List Received Calls Phone Book Memory Points Bluetooth Settings Version


Reference page page 187
page 199
page 199
page 201
page 193
page 183
page 87


VOL


Volume


page 18


Menu Screen Keys and Functions


Navigation 23


Map Operations


Selecting Map Orientation


You can select either "heading up" or "north up" display on the current map screen by using the following procedure. 1 Select


or


<"North up" display>


If you select map so that north is always directly upwards on the screen.


("north up" display), the system rotates the


<"Heading up" display> If you select map so that the direction in which you are heading is always directly upwards on the screen (the red arrow points to the north).


("heading up" display), the system rotates the


24 Navigation


Changing Map Scale


You can increase or decrease the scale of the map using the following procedure: 1 Select


to change the map scale.


or


Map Operations


2 Selecting


below.


or


changes the scale as shown


Navigation 25


Map Operations


NOTE • Selecting • You can keep selecting • Selecting either of the following on the scale bar displayed by


allows you to change the map scale.


or


or


allows you to change the map scale.


selecting


or


allows you to change to the specified map scale.


Scale to be changed


Current scale



Imperial display Metric display


1/32 mi (mile) 50 m


1/4 mi (mile) 500 m


2 mi (mile) 4 km


16 mi (mile) 32 km


128 mi (mile) 256 km


• The scale can be displayed in Imperial or metric units. To change the units, See


Page 61.


26 Navigation


Setting Route


Setting Destination Setting destination/waypoints by scrolling the map


Even if you do not know the exact address of your destination or a way- point on your route to the destination, you can set it by scrolling the map as follows: 1 Touch the screen and scroll the map until the crosshair


reaches the destination or a waypoint.


2 Select the


(destination or waypoint) key.


The key will separate into the destination key and the waypoint key.


3 Select


for setting the destination


The system will calculate the route and display the entire route to the destination on the map. Select address of the waypoint on your route (See Page 69). You can set up to 5 waypoints per trip.


for a waypoint. The system will program the


Navigation 27


Setting Route 4 Select


(start).


Route guidance will begin along the displayed route.


NOTE • If the system cannot find your desired route, select


(change


route). This will allow you to access the ROUTE OPTIONS screen, from which you can prompt the system to calculate a new route. (See Page 49.)


• Selecting


(start) for more than 5 seconds will start the demon-


stration mode operation.


■ Selecting route Upon setting the destination, the system prepares to calculate three types of routes to the destination (Quick, Alt., and Short). You can select from any of the three options as follows: 1 Select


(3 routes).


The system will be ready for calculation of any route you select from the three options, namely, Quick (the fastest route), Alt. (alternative route), and Short (the shortest route).


28 Navigation


2 Select


(information).


The screen will display details (required time, total distance, roads used, etc.) regarding each option.


Setting the destination from the navigation menu


Setting Route


You can set your destination using a variety of methods if you start set- ting from the DESTINATION ENTRY screen. Before you can use any of these methods, perform the following steps: 1 Press the 2 Select the method you want to use.


button.


3 Select


(Quick),


(Alt.),


or as you desire, and then select firm your selection.


(Short) (Start) to con-


Navigation 29


• Depending on the method used or the status of the map displayed, the located point may differ from where the facility you want to visit actually exists.


Setting Route


(Address)*


(Point of Interests)*


(Select from Map)


(Emergency)


(Memory Point)


See Page 31.


See Page 34.


See Page 35.


See Page 37.


See Page 33.


(Previous Destination)


See Page 35.


(Intersection)*


(Freeway Ent/Exit)


(Phone number)


(Coordinates)


(Home)


See Page 39.


See Page 36.


See Page 40.


See Page 38.


See Page 33.


(Category1) - (Category5)


You can switch between screens by selecting or


(previous page).


(next page)


NOTE • If the set destination area is different from the one displayed under "Search


Area" in the right part of the screen, you must select the key and specify the desired area again.


(change)


• For the methods marked with an asterisk ( * ), you can use the "Change Search Area" function to narrow the area where a destination or waypoint is located by selecting the


(change) key (See Page 41).


30 Navigation


■ "Address" method 1 Press the 2 Enter a house number using the keypad on the house


button and select


(address).


number input screen and select


: Use this key to delete the last character entered. Select it


repeatedly if you want to delete all the characters entered.


Setting Route


You can switch between keypad screens showing different characters (alphabet). by selecting


(symbols) or


(others),


4 Select


(list).


3 Enter the street name.


If you enter enough letters to identify a street name and advance to Step 4, a list showing several street names will be displayed. Select the desired street name from the list.


5 Select the desired street from the list.


If the same street name exists in more than one city, a list of these cities will be shown.


Navigation 31


Setting Route 6 Select the correct city from the list.


8 Select


(start).


(input name): Use this key to input the city name from the


Route guidance begins along the displayed route.


keypad.


7 Select


(destination) to set the address entered


in the above steps as your final destination The system will calculate the route and display the entire route on the map.


(waypoint) to set the address entered in the


Select above steps as a waypoint on your route. You can program up to five waypoints per trip.


32 Navigation


NOTE • If the system cannot find your desired route, select


(change


route). This will allow you to access the ROUTE OPTIONS screen, from which you can prompt the system to calculate a new route. (See Page 49.)


• If your DVD-ROM disc does not contain the relevant house number data, an error message will be displayed and a street map will appear, allowing you to set the destination using the map.


• If your destination is not on a road, set a destination point on a main road


nearest to your true destination.


• Selecting the on a city basis.


(city) will display a screen that searches the destination


: Search the destination from all cities. : Search the destination from the nearby five cities within 20 miles from the current position. : Search the destination by inputting the city name.


You can also search the destination from the five cities that you searched in the past.


■ "Memory Point" method If you have saved some locations in the system's memory, you can make use of an appropriate one to set the destination. 1 Press the


button and select


(memory


point).


2 Select the address of the desired location (memory


point).


: Use this key to display the next suggestion.


: Use this key to display up to five of the next suggestions.


Setting Route


3 Select


NOTE • Select the


displayed.


(destination) or


(waypoint).


(Attribute),


(icon),


(name), or


(date) key to change the sequence in which memory points are


• You cannot use the "Memory Point" method unless there are memory points


stored. To store memory points, See Page 70.


■ "Home" method or method using stored destinations If you have stored your home address in the system's memory, you can use it for your destination or a waypoint. Similarly, if other locations are stored in the memory, they can be conveniently used for quick setting of destination and waypoints. 1 First, choose either of the two procedures below to fol-


low the "home" method. Press the 2 Select


button.


(home) or one of the locations pro-


grammed to keys through


(Category 5).


(Category 1)


: Use this key to display up to five previous suggestions.


: Use this key to display the previous suggestion.


Navigation 33


Setting Route


The map including your home location or the selected location will be displayed.


2 Enter the name of the desired point of interest and


select


3 Select


(destination) or


(waypoint).


3 Select the desired point of interest from the list.


(home) and keys


NOTE Icon (Category 5) are displayed only when you have stored your home location and other loca- tions in the memory. For instructions on how to store your home location and other locations.


(Category 1) through


■ "Point of Interest" method You can use a selection from the "Point of Interest" listing as your desti- nation or a waypoint. 1 First, choose either of the two procedures below to fol-


low the "point of interest" method. Press the


button and select


(point of interest).


34 Navigation


: Use this key to display up to five previous suggestions.


: Use this key to display the previous suggestion.


: Use this key to display the next suggestion.


: Use this key to display up to five of the next suggestions.


4 Select


(destination) or


(waypoint).


NOTE • If two or more points of interest share the same name, they will both be listed


on the screen. Choose an appropriate one from the list.


• If there are two or more points of interest with the same name,


select


(category) or


(Town) to shorten the list.


• Displayed information about a specific facility might not include recent


changes. It is recommended that you check the location or business days/ hours of a desired point of interest before departure.


■ "Previous Destination" method This method allows you to choose one of the most recently used 100 destinations or waypoints as your new destination or waypoint. 1 Press the


button, select


, and then


select


(previous destination).


2 Select a desired location from the Previous Destination


list.


Setting Route


: Use this key to display the next suggestion.


: Use this key to display up to five of the next suggestions.


3 Select


NOTE • You can select


(destination) or


(waypoint).


(name) or


(date) to change the


sequence in which previous destinations are displayed.


• Selecting


previous guide.


displays the start point of the


■ "Select from Map" method You can specify a location on the map that was last displayed and use it for setting the destination or a waypoint. 1 Press the


button and select


(select from


map).


2 Scroll the map until the crosshair


destination or waypoint.


is at the desired


:Use this key to display up to five previous suggestions.


: Use this key to display the previous suggestion.


Navigation 35


Setting Route 3 Select


(destination) or


(waypoint).


: Use this key to display up to five previous suggestions.


■ "Freeway Entrance/Exit" method You can use the name of a Freeway entrance or exit selected from the "Freeway Ent./Exit" list for setting your destination or a waypoint. 1 Press the


, and then select


button, select


(Freeway Ent./Exit).


2 Enter the name of the desired freeway and select


: Use this key to display the previous suggestion.


: Use this key to display the next suggestion.


: Use this key to display up to five of the next suggestions.


4 Select


(entrance) or


(exit).


3 Select the name of the freeway from the list.


5 Select the name of the street from which you will enter the freeway or to which you will go after leaving the free- way.


36 Navigation


: You must select this key before you can enter the street name.


: Use this key to search through the list by distance.


: Use this key to search through the list by name (alphabeti- cal search)


6 Select


(destination) or


(waypoint).


■ "Emergency" method This function allows the nearest police station or hospital to be set as the destination. 1 Press the 2 Select either


button and select


(emergency).


(Police sta-


tion) or The nearest police stations or hospitals will be displayed accord- ingly.


(Hospital).


3 Select the desired institution from the list.


Setting Route


: Use this key to display up to five previous suggestions.


: Use this key to display the previous suggestion.


: Use this key to display the next suggestion.


: Use this key to display up to five of the next suggestions.


: Sorts the list by distance.


: Sorts the list in alphabetical order by name.


4 Select


(destination) or


(waypoint).


NOTE Displayed information about each facility might be changed. It is recommended that you check the location or business days/hours before departure.


Navigation 37


3 Enter the longitude of the location.


: Use this key to switch over to the north latitude.


: Use this key to switch over to the south latitude.


: Use this key to switch over to the west longitude.


: Use this key to switch over to the east longitude.


: Use this key to delete the character last entered. Select it repeatedly if you want to delete all the characters entered.


4 Select


(OK).


Setting Route


■ "Coordinates" method You can set destinations or waypoints using their latitudes and longi- tudes as follows: 1 Press the


, and then select


button, select


(coordinates).


2 Enter the latitude of the desired location.


Use the numeric keys together with the [°] (degrees), ['] (minutes), and ["] (seconds) keys.


38 Navigation


5 Select


(destination) or


(waypoint).


3 Select the street from the "Intersection" list.


Setting Route


■ "Intersection" method You can use a intersection defined by two street names as a location for setting your destination or a waypoint. 1 Press the


button, select


, and then


select


(Intersection).


2 Enter the name of the first street and then select


: Use this key to display up to five previous suggestions.


: Use this key to display the previous suggestion.


: Use this key to display the next suggestion.


: Use this key to display up to five of the next suggestions. 4 Specify the second street using the same procedure as


the first street. Select


(List).


Navigation 39


Setting Route 5 When there are two or more candidates, a list of intersec- tions will be displayed. Select an intersection of your des- tination.


■ "Phone number" method This function allows buildings and the like to be located using their phone numbers. 1 Press the


, and then select


button, select


(phone number).


2 Enter the phone number starting with the area code.


6 Select


(destination) or


(waypoint).


NOTE No intersection is defined if • the two streets do not cross each other, • the two streets are a freeway and a highway, • either street is for right or left turns only, • both are one-way streets, • either street is for U-turns, • the two streets cross on the inside lane, • either street is an on/off ramp, • either street is a frontage street, and/or


3 Select


40 Navigation


4 Select your destination.


The DESTINATION ENTRY menu screen will appear.


Setting Route


5 Select


(destination) or


(waypoint).


NOTE If a number of candidates exist as a result of, for example, different area codes, these will be displayed in a list. Your desired destination can then be selected from the list.


■ Using "Change Search Area" function This function designates a general geographical area where the desti- nation or waypoint you want to set is located. This function can be used in the methods marked with an asterisk (*) on Page 30. 1 Press the 2 Select the desired area.


button and select


(change).


NOTE • The SEARCH AREA screen shown above is a sample image. It may be slightly


different from the actual screen image.


• Three map discs are contained in this system. When performing a search for a


different area in your destination search, it is necessary to change the map disc with another map disc. If an area you want to find is not displayed on the screen shown above, take out the map disc and change it with a map disc containing the relevant area. For details of the map disc, refer to the description below.


■ Map Discs The three map discs contain different areas, respectively. (West, Mid and East) Select the map disc containing the destination area you wish and insert the disc in the navigation system. Make sure to reselect your destination when you change the map disc. Refer to the section Set Route in the Instruction Manual for instructions on reselecting the destination.


Navigation 41


Setting Route


■ Area (West)


■ Area (East)


Arizona, California, Colorado, Idaho, Kansas, Montana, Nebraska, Nevada, New Mexico, North Dakota, Oklahoma, Oregon, South Dakota, Texas, Utah, Washington, Wyoming, Canada


■ Area (Mid)


Alabama, Arkansas, Illinois, Indiana, Iowa, Kansas, Kentucky, Louisiana, Michigan, Minnesota, Mississippi, Missouri, Nebraska, North Dakota, Ohio, Oklahoma, South Dakota, Tennessee, Texas, Wisconsin, Canada


42 Navigation


Alabama, Connecticut, Delaware, Florida, Georgia, Kentucky, Maine, Massachusetts, Maryland, New Hampshire, New Jersey, New York, North Carolina, Ohio, Pennsylvania, Rhode Island, South Carolina, Tennessee, Vermont, Virginia, Washington D.C., West Virginia, Canada


NOTE • Road information for all of the above locations is included on the map discs.


This means that the following operations can be performed regardless of which map disc is loaded in the system; - Scrolling Map to Select Destination (Select from Map) - Selecting Destination from the previously registered points as a memory point (Home, Memory Point, Previous Destination) within the same area.


- Selecting Destination by Latitude and Longitude (Coordinates), Phone num-


ber, Emergency, and Quick POI.


• After replacing the map disc, stored data including the POI icon on the map and stored Avoid Street settings will be deleted, and Quick POI selections will return to default.


• In the Current Location display, the arrival time and the distance to the desti-


nation are displayed for Next Way Point.


Route Guidance


Route Guidance Screen


During route guidance, the system can indicate on a second screen the directions in which you must make turns at the next and following intersection in either of two ways: "turn arrow" or "turn list". Specify your preferred method of indica- tion as follows:



1 Select 2 Select


(screen configuration).


for turn arrow indication or


for turn list


indication. If you need not make any further selection, select vant keys will disappear.


. The rele-


Turn direction is indicated by an arrow.


Turn directions are indicated in a list.


Navigation 43


Route Guidance


Zoom-in Map at Intersection


Before you arrive at an intersection, the system will automati- cally show a zoom-in map of the intersection on a second screen to make the guidance clearer.


As you approach an intersection during route guidance, a zoom-in map of the intersection automatically appears on a second screen. After you drive past the intersection, the zoom-in map disappears.


NOTE Use the following procedure to recall the most recently displayed zoom-in map of an intersection or a freeway fork. 1. Select 2. Select


(screen configuration). (re-display of intersection/range guidance).


If you need not make any further selection, select will disappear.


. The relevant keys


As you approach a fork on a freeway during route guidance, a zoom-in map of the freeway automatically appears on a second screen, making the route guidance clearer.


44 Navigation


Dual Map Display


You can configure the screen for a dual map display.


2 Select


(dual map).


Route Guidance




1 Select


(screen configuration).


If you wish to return to the single map display, select gle map).


(sin-


If you need not make any further selection, select vant keys will disappear.


. The rele-


NOTE If you wish to modify the display selections that have been made for a second screen, touch the top of the screen. After completing the modification, select • See Page 25 for details on scale changes. • See Page 79 for details on setting with


Navigation 45


Select with the icons of hotels and banks.


to display the map in the neighborhood together


This map allows you to set your destination and waypoints. It also allows you to register them with the Memory Point with the cur- sor placed on the icon.


Route Guidance


Freeway Information


A list of buildings and facilities along a freeway can be dis- played on the screen. 1 Select 2 Select


(screen configuration).


(freeway information).


If you need not make any further selection, select The relevant keys will disappear.


The information of a freeway is displayed.


46 Navigation


Replaying Voice Guidance


If you want to listen to the last voice guidance again during route guidance, use the following procedure: 1 Select


You can hear the voice guidance again.


Route Guidance


Navigation 47


Route Guidance


Compass Mode


Longitude and latitude of present location can be displayed on the screen. 1 Select


(screen configuration).


3 Longitude and latitude of present location are displayed


at upper right of the screen.


2 Select


(compass).


48 Navigation


Route Options


Setting Route Options


Using the functions available from the Route Options screen, you can change the route options, stop the route guidance or check the route. Use the following procedures: 1 Press the


button.


2 Select


(route options).


The Route Options screen will appear. Select any of the following displayed functions as necessary:


(search condition):


This function allows you to specify the way in which the system calculates the route to the destination. (See Page 50.)


(detour):


This function allows you to prompt the system to calculates an alternative route from your current position within a specified dis- tance. (See Page 51.)


(route preferences):


This function allows you to prompt the system to alter the route search conditions and recalculate the route accordingly. (See Page 52.)


(destination and waypoint):


This function allows you to modify the destination and waypoints, and prompt the system to recalculate the route accordingly. (See Page 52.)


(display route):


This function allows you to confirm the entire route and, if neces- sary, prompt the system to recalculate the route according to your specification. (See Page 56.)


(route preview):


This function allows you to simulate a drive along the system-cal- culated route before departure. (See Page 57.)


(calculate):


Selecting this key prompts the system to recalculate the route.


Navigation 49


Route Options


(cancel guidance):


Selecting this key prompts the system to stop route guidance. Note that this erases the destination and waypoints. To prompt the system to start guidance again, select


(calculate).


NOTE A recalculated route will sometimes be the same route as the one displayed before recalculation.


50 Navigation


Search condition


You can specify the way in which the system calculates your route. 1 Press the


button, then select


(route (search condition).


options), and then select


2 Select


(Quick),


(Alt.),


or (Short) to specify the way of calculating the route to reach the next waypoint or the destination from the current point.


: The system will calculate a route with the shortest


driving time required.


: The system will calculate an alternative route.


(You can select waypoint. Only second and subsequent waypoints.)


or


or


for the first can be specified for the


: The system will calculate a route with the shortest


driving distance.


3 Select 4 Select


(calculate)


(start).


Detour


Route Options


You can specify a detour distance from your current position. The sys- tem will calculate an alternative route according to the distance specifi- cation, enabling you to take a detour. 1 Press the


button, then select


(route


options), and then select


(detour).


2 Select a detour distance using


or The system will then calculate an alternative route that detours from the current location within the specified distance.


(whole route).


When driving on the freeway, make a selection from among


, 15 mi, 25 mi and


3 Select


(start).


NOTE If you are driving off the route, it is not possible to calculate a detour route.


Navigation 51


Destination and waypoints


You can change the destination or waypoints for the route calculation by using this function.


■ Addition of waypoints Use the following procedure to add new waypoints to the current route for recalculation. 1 Press the


button, then select


(route


options), and then select points). 2 Select


(destination and way-


(add).


Route Options


Route preferences


Use this function to specify preferred route search conditions. The sys- tem will start recalculating the route according to your specified condi- tions. 1 Press the


button, then select


(route


options), and then select


(route preferences).


2 Specify conditions by selecting keys.


Each time you select a key, it will toggle between "usage" and "non-usage" of the corresponding roads or ferries.


3 Select


(calculate).


NOTE • The (calculate) key can be selected during route guidance. • The route calculation will not always be able to follow the specified condi-


tions.


52 Navigation


3 Set a waypoint using any method available from the


screen.


Route Options


NOTE • When a new destination is set using


(destination), it will replace the


current destination and the route calculation will be carried out again.


• Step 4 must be performed for the second and any subsequent waypoints. • Repeat Steps 1 to 4 for each waypoint to be set.


4 Specify the order in which all the set waypoints are to be


visited. Choose the location of the waypoint to be added, and then select


(add).


5 Select


(calculate).


■ Modifying destination or waypoint positions Use this procedure to modify the destination or waypoint positions. The screen will display the calculated route and the positions of the destina- tion or waypoints that you will be able to modify. 1 Press the


button, then select


(route


options), and then select points). 2 Select 3 Select


(list).


(change location).


(destination and way-


Navigation 53


Route Options 4 Select the key corresponding to the location that is to be


modified. The map for the area around your current location will be dis- played.


5 Scroll the map to bring the crosshair


to the location


and then select


3 Select the waypoint keys according to the order of your


visit. If you wish to cancel the visiting order number indication, select


(undo).


6 Select


(calculate).


4 When you complete the sequencing, the visiting order


will be updated automatically.


■ Modifying visiting order You can change the order for visiting your waypoints by using this pro- cedure. 1 Press the


button, then select


(route


options), and then select points) 2 Select


(list).


54 Navigation


(destination and way-


5 Select 6 Select


(calculate).


■ Deleting destination or waypoints Use this procedure when you wish to delete the previously set destina- tion or waypoint. 1 Press the


button, then select


(route


4 Confirmation message will be displayed. Select


Route Options


(yes). Select


(no) to cancel the deletion.


(destination and way-


options), and then select points). 2 Select 3 Select the key corresponding to the destination or way-


(delete).


point you wish to delete.


5 Select


(calculate).


Navigation 55


Display route


Use this function to display the entire route. You can also specify an area you wish to avoid and prompt the system to recalculate the route accordingly. 1 Press the


button, then select


(route


options), and then select


(display route).


2 Select


(turn list).


The entire route screen will appear and then it will change to the Turn List screen.


Route Options


■ Deleting destination and all waypoints You can delete the destination and all previously set waypoints in a sin- gle process. 1 Press the


button, then select


(route


(destination and way-


options), and then select points). 2 Select 3 Confirmation message will be displayed. Select
