2010 Jeep Commander Owners Manual

Download PDF Manual

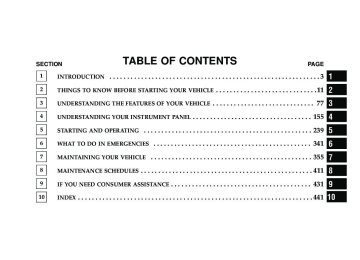

SECTION TABLE OF CONTENTS PAGE INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 UNDERSTANDING THE FEATURES OF YOUR VEHICLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77 UNDERSTANDING YOUR INSTRUMENT PANEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155 STARTING AND OPERATING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 239 WHAT TO DO IN EMERGENCIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 341 MAINTAINING YOUR VEHICLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 355 MAINTENANCE SCHEDULES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 411 IF YOU NEED CONSUMER ASSISTANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 431 10 INDEX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 441 10 INTRODUCTION CONTENTS 䡵 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 䡵 Rollover Warning . . . . . . . . . . . . . . . . . . . . . . . 5 䡵 How To Use This Manual . . . . . . . . . . . . . . . . . . 6 䡵 Warnings And Cautions . . . . . . . . . . . . . . . . . . . 8 䡵 Vehicle Identification Number . . . . . . . . . . . . . . 8 䡵 Vehicle Modifications/Alterations . . . . . . . . . . . . 9 4 INTRODUCTION INTRODUCTION Congratulations on selecting your new Chrysler Group LLC vehicle. Be assured that it represents precision workmanship, distinctive styling, and high quality - all essentials that are traditional to our vehicles. This is a specialized utility vehicle designed for both on-road and off-road use. It can go places and perform tasks for which conventional two-wheel drive enclosed vehicles were not intended. It handles and maneuvers differently from many passenger cars both on-road and off-road, so take time to become familiar with your vehicle. The two-wheel drive utility vehicle was designed for on-road use only. It is not intended for off-road driving or use in other severe conditions suited for a four-wheel drive vehicle. Before you start to drive this vehicle, read the Owner’s Manual. Be sure you are familiar with all vehicle controls, particularly those used for braking, steering, transmis- sion, and transfer case shifting. Learn how your vehicle handles on different road surfaces. Your driving skills will improve with experience. When driving off-road or working the vehicle, don’t overload the vehicle or expect the vehicle to overcome the natural laws of physics. Always observe federal, state, provincial and local laws wherever you drive. As with other vehicles of this type, failure to operate this vehicle correctly may result in loss of control or an accident. Refer to “On-Road/Off-Road Driving Tips” in Section 5 of this manual. This Owner’s Manual has been prepared with the assis- tance of service and engineering specialists to acquaint you with the operation and maintenance of your vehicle. It is supplemented by a Warranty Information Booklet, located on the DVD, and various customer-oriented documents. Please take the time to read these publica- tions carefully. Following the instructions and recom- mendations in this manual will help assure safe and enjoyable operation of your vehicle. NOTE: After you read the manual, it should be stored in the vehicle for convenient referencing and remain with the vehicle when sold, so that the new owner will be aware of all safety warnings. When it comes to service, remember that your authorized dealer knows your vehicle best, has factory-trained tech- nicians and genuine Mopar parts, and cares about your satisfaction. INTRODUCTION 5 ROLLOVER WARNING Utility vehicles have a significantly higher rollover rate than other types of vehicles. This vehicle has a higher ground clearance and a higher center of gravity than many passenger cars. It is capable of performing better in a wide variety of off-road applications. Driven in an unsafe manner, all vehicles can go out of control. Because of the higher center of gravity, if this vehicle is out of control it may roll over when some other vehicles may not. Do not attempt sharp turns, abrupt maneuvers, or other unsafe driving actions that can cause loss of vehicle control. Failure to operate this vehicle safely may result in an accident, rollover of the vehicle, and severe or fatal injury. Drive carefully. 6 INTRODUCTION Rollover Warning Label Failure to use driver and passenger seat belts provided is a major cause of severe or fatal injury. In fact, the U.S. government notes that the universal use of existing seat belts could cut the highway death toll by 10,000 or more each year and could reduce disabling injuries by two million annually. In a rollover crash, an unbelted person is significantly more likely to die than a person wearing a seat belt. Always buckle up. HOW TO USE THIS MANUAL Consult the Table of Contents to determine which section contains the information you desire. Since the specification of your vehicle depends on the items of equipment ordered, certain descriptions and illustrations may differ from your vehicle’s equipment The detailed index at the back of this Owner’s Manual contains a complete listing of all subjects. Consult the following table for a description of the symbols that may be used on your vehicle or throughout this Owner’s Manual: INTRODUCTION 7 8 INTRODUCTION WARNINGS AND CAUTIONS This Owner’s Manual contains WARNINGS against op- erating procedures that could result in an accident or bodily injury. It also contains CAUTIONS against proce- dures that could result in damage to your vehicle. If you do not read this entire manual, you may miss important information. Observe all Warnings and Cautions. VEHICLE IDENTIFICATION NUMBER The Vehicle Identification Number (VIN) is found on a label located on the left front corner of the instrument panel pad, visible from outside of the vehicle through the windshield. This number also appears on the Automobile Information Disclosure Label affixed to a window on your vehicle. Save this label for a convenient record of your vehicle identification number and optional equip- ment. NOTE: It is illegal to remove or alter the VIN label. VIN Location VEHICLE MODIFICATIONS/ALTERATIONS WARNING! Any modifications or alterations to this vehicle could seriously affect its roadworthiness and safety and may lead to an accident resulting in serious injury or death. INTRODUCTION 9 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE CONTENTS 䡵 A Word About Your Keys . . . . . . . . . . . . . . . . . 14 ▫ Wireless Ignition Node (WIN) . . . . . . . . . . . . 14 ▫ Integrated Ignition Key . . . . . . . . . . . . . . . . . 15 ▫ Ignition Key Removal . . . . . . . . . . . . . . . . . . 15 ▫ Key-In-Ignition Reminder . . . . . . . . . . . . . . . 17 䡵 Sentry Key威 . . . . . . . . . . . . . . . . . . . . . . . . . . 17 ▫ Replacement Keys . . . . . . . . . . . . . . . . . . . . . 18 ▫ Customer Key Programming . . . . . . . . . . . . . 18 ▫ General Information . . . . . . . . . . . . . . . . . . . 19 䡵 Vehicle Security Alarm . . . . . . . . . . . . . . . . . . . 19 ▫ Rearming The System . . . . . . . . . . . . . . . . . . 19 ▫ To Set The Alarm . . . . . . . . . . . . . . . . . . . . . 19 ▫ To Disarm The System . . . . . . . . . . . . . . . . . 20 䡵 Illuminated Entry . . . . . . . . . . . . . . . . . . . . . . 20 䡵 Remote Keyless Entry (RKE) . . . . . . . . . . . . . . 21 ▫ To Unlock The Doors . . . . . . . . . . . . . . . . . . 21 ▫ To Lock The Doors . . . . . . . . . . . . . . . . . . . . 23 ▫ To Release The Liftgate Flipper Glass . . . . . . . 23 12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE ▫ Remote Open Window Feature — If Equipped . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 ▫ Using The Panic Alarm . . . . . . . . . . . . . . . . . 24 ▫ Programming Additional Transmitters . . . . . . 24 ▫ Transmitter Battery Service . . . . . . . . . . . . . . 24 ▫ General Information . . . . . . . . . . . . . . . . . . . 25 䡵 Remote Starting System — If Equipped . . . . . . . 26 . . . . . . . . . . . . . . . 26 䡵 Door Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 ▫ Manual Door Locks . . . . . . . . . . . . . . . . . . . 28 ▫ Power Door Locks . . . . . . . . . . . . . . . . . . . . 29 ▫ Child Protection Door Lock . . . . . . . . . . . . . . 30 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 ▫ How To Use Remote Start 䡵 Windows 䡵 Liftgate ▫ Power Windows . . . . . . . . . . . . . . . . . . . . . . 30 ▫ Wind Buffeting . . . . . . . . . . . . . . . . . . . . . . . 33 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 ▫ Liftgate Flipper Glass . . . . . . . . . . . . . . . . . . 34 ▫ Power Liftgate — If Equipped . . . . . . . . . . . . 35 䡵 Occupant Restraints . . . . . . . . . . . . . . . . . . . . . 38 ▫ Lap/Shoulder Belts . . . . . . . . . . . . . . . . . . . . 40 ▫ Lap/Shoulder Belt Operating Instructions . . . . 41 ▫ Adjustable Upper Shoulder Belt Anchorage . . . 44 ▫ Automatic Locking Mode — If Equipped . . . . 45 ▫ Energy Management Feature . . . . . . . . . . . . . 46 ▫ Seat Belt Pretensioners . . . . . . . . . . . . . . . . . 46 ▫ Enhanced Seat Belt Use Reminder System (BeltAlert威) . . . . . . . . . . . . . . . . . . . . . . . . . 47 ▫ Seat Belts And Pregnant Women . . . . . . . . . . 48 ▫ Seat Belt Extender . . . . . . . . . . . . . . . . . . . . . 48 ▫ Supplemental Restraint Systems (SRS) . . . . . . 49 ▫ Advanced Front Airbag Features . . . . . . . . . . 50 ▫ Airbag Deployment Sensors And Controls . . . 55 ▫ Event Data Recorder (EDR) . . . . . . . . . . . . . . 61 ▫ Child Restraints . . . . . . . . . . . . . . . . . . . . . . 63 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13 䡵 Engine Break-In Recommendations . . . . . . . . . . 73 䡵 Safety Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . 73 ▫ Transporting Passengers . . . . . . . . . . . . . . . . 73 ▫ Exhaust Gas . . . . . . . . . . . . . . . . . . . . . . . . . 74 ▫ Safety Checks You Should Make Inside The Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75 ▫ Periodic Safety Checks You Should Make Outside The Vehicle . . . . . . . . . . . . . . . . . . . 76 14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE A WORD ABOUT YOUR KEYS Your vehicle uses a keyless ignition system. This system consists of a Remote Keyless Entry (RKE) transmitter with integrated ignition key and a Wireless Ignition Node (WIN) with integral ignition switch. You can insert the double-sided key into the ignition switch with either side up. Wireless Ignition Node (WIN) The Wireless Ignition Node (WIN) operates similar to an ignition switch. It has four operating positions, three of which are detented and one spring-loaded. The detented positions are LOCK, ACC, and ON. The START position is a spring-loaded momentary contact position. When released from the START position, the switch automati- cally returns to the detented ON position. Wireless Ignition Node (WIN) 1 — LOCK 2 — ACC (ACCESSORY) 3 — ON 4 — START Integrated Ignition Key The integrated ignition key operates the ignition switch. It also contains the Remote Keyless Entry (RKE) trans- mitter and an emergency key, which stores in the rear of the RKE transmitter. The emergency key allows for entry into the vehicle should the battery in the vehicle or the RKE transmitter go dead. The emergency key is also for locking the glove box. You can keep the emergency key with you when valet parking. NOTE: Entering a vehicle using the emergency key with the theft alarm armed, will results in the alarm sounding. Insert the Fob (even if the Fob battery is dead) into the WIN to disarm theft alarm. To remove the emergency key from the RKE transmitter, slide the mechanical latch at the top of the RKE transmit- ter sideways with your thumb and then pull the key out with your other hand. THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15 Remote Keyless Entry (RKE) Transmitter NOTE: You can insert the double-sided emergency key into the lock cylinders with either side up. Ignition Key Removal Place the shift lever in PARK. Turn the ignition key to the LOCK position, and remove the key. 16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE NOTE: • If you try to remove the key before you place the shift lever in PARK, it may become trapped temporarily in the ignition switch. If this occurs, rotate the key to the right slightly, then remove the key as described. If a malfunction occurs, the system will trap the key in the ignition switch to warn you that this safety feature is inoperable. The engine can be started and stopped, but the key cannot be removed until you obtain service. • For vehicles equipped with the Electronic Vehicle Information Center the power window switches, radio, power sunroof (if equipped), and power outlets will remain active for up to 10 minutes after the ignition switch is turned to the LOCK posi- tion. Opening either front door will cancel this feature. The time for this feature is programmable. For details, refer to “Key Off Power Delay,” under “Personal (EVIC), Settings (Customer-Programmable Features)” under “Electronic Vehicle Information Center (EVIC)” in Section 4 of this manual. WARNING! Never leave children alone in a vehicle. Leaving unattended children in a vehicle is dangerous for a number of reasons. A child or others could be seri- ously or fatally injured. Do not leave the key in the ignition. A child could operate power windows, other controls, or move the vehicle. CAUTION! An unlocked car is an invitation to thieves. Always remove key from the ignition and lock all doors when leaving the vehicle unattended. Key-In-Ignition Reminder If you open the driver’s door with the integrated ignition key in the ignition, a chime will sound to remind you to remove the key. The Key-In-Ignition reminder only sounds NOTE: when the integrated ignition key is placed in the LOCK or ACC position. SENTRY KEY姞 The Sentry Key威 Immobilizer system prevents unautho- rized vehicle operation by disabling the engine. The system does not need to be armed or activated. Operation is automatic, regardless of whether the vehicle is locked or unlocked. The system uses the factory-mated Remote Keyless Entry (RKE) transmitter with integrated key and Wireless Igni- tion Node (WIN) to prevent unauthorized vehicle opera- tion. Therefore, only RKE transmitters that are pro- grammed to the vehicle can be used to start and operate THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17 the vehicle. The system will shut the engine off in two seconds if an invalid RKE transmitter is used to start the engine. After turning the ignition switch to the ON position, the Vehicle Security Light will turn on for three seconds for a bulb check. If the light remains on after the bulb check, it indicates that there is a problem with the electronics. In addition, if the light begins to flash after the bulb check, it indicates that someone used an invalid RKE transmitter to start the engine. Either of these conditions will result in the engine being shut off after two seconds. If the Vehicle Security Light turns on during normal vehicle operation (vehicle running for longer than 10 sec- onds), it indicates that there is a fault in the electronics. Should this occur, have the vehicle serviced as soon as possible by an authorized dealer. 18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE NOTE: The Sentry Key威 Immobilizer system is not compatible with aftermarket remote starting systems. Use of these systems may result in vehicle starting problems and loss of security protection. All of the RKE transmitters provided with your new vehicle have been programmed to the vehicle electronics. Replacement Keys NOTE: Only RKE transmitters that are programmed to the vehicle electronics can be used to start and operate the vehicle. Once an RKE transmitter is programmed to a vehicle, it cannot be programmed to any other vehicle. CAUTION! Always remove the keys from the vehicle and lock all doors when leaving the vehicle unattended. At the time of purchase, the original owner is provided with a four-digit Personal Identification Number (PIN). Keep the PIN in a secure location. This number is required for authorized dealer replacement of RKE trans- mitters. Duplication of RKE transmitters may be per- formed at an authorized dealer, this procedure consists of programming a blank transmitter to the vehicle electron- ics. A blank transmitter is one that has never been programmed. NOTE: When having the Sentry Key威 Immobilizer system serviced, bring all vehicle RKE transmitters with you to the authorized dealer. Customer Key Programming Programming of RKE transmitters may be performed at an authorized dealer. General Information The Sentry Key威 system complies with FCC rules Part 15 and with RSS-210 of Industry Canada. Operation is subject to the following conditions: • This device may not cause harmful interference. • This device must accept any interference that may be received, including interference that may cause undes- ired operation. VEHICLE SECURITY ALARM This Vehicle Security Alarm monitors the vehicle doors, liftgate, liftgate flipper glass, and ignition for unautho- rized operation. When the alarm is activated, the Vehicle Security Alarm provides both audio and visual signals. The horn will sound, the headlights, park lamps and/or turn signals will flash repeatedly for three minutes. If disturbance is still present (driver’s door, passenger door, other doors, ignition) after three minutes, the headlights, THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19 park lamps and/or turn signals will flash for an addi- tional 15 minutes. NOTE: The Panic and Security alarms are quite differ- ent. Please take a moment to activate the Panic and the Security modes to hear the differences in the horn. In case one should go off in the future, you will need to know which mode has been activated in order to deactivate it. Rearming The System If something triggers the alarm, and no action is taken to disarm it, the Vehicle Security Alarm will turn off the horn after three minutes, turn off all of the visual signals after 15 minutes, and then the Vehicle Security Alarm will rearm itself. To Set the Alarm The alarm will set when you use the Remote Keyless Entry (RKE) transmitter to lock the doors and liftgate, or when you use the power door lock switch while the door is open. After all the doors are locked and closed, the 20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Vehicle Security Light (located in the instrument cluster) will flash rapidly for about 16 seconds to signal that the Vehicle Security Alarm is arming. During this 16 second arming period, opening any door or the liftgate will cancel the arming. If the Vehicle Security Alarm success- fully arms, the Vehicle Security Light will flash at a slower rate to indicate the alarm is set. To Disarm the System To disarm the Vehicle Security Alarm, you will need to press the UNLOCK button on the RKE transmitter or turn the ignition key to the ON position. If something has triggered the Vehicle Security Alarm in your absence, the horn will sound three times when you unlock the doors. Check the vehicle for tampering. The Vehicle Security Alarm is designed to protect your vehicle; however, you can create conditions where the Vehicle Security Alarm will arm unexpectedly. If you remain in the vehicle and lock the doors with the RKE transmitter, once the Vehicle Security Alarm is armed (after 16 seconds), when you pull the door handle to exit, the alarm will sound. If this occurs, press the UNLOCK button on the RKE transmitter to disarm the Vehicle Security Alarm. You may also accidentally disarm the Vehicle Security Alarm by unlocking the driver’s door with the key and then locking it. The door will be locked but the Vehicle Security Alarm will not arm. ILLUMINATED ENTRY The interior lights come on when you open any door or use the Remote Keyless Entry (RKE) transmitter to un- lock any door. They will remain on for approximately 30 seconds after all doors are closed then fade to off. The lights also will fade to off if you turn on the ignition after you close all the doors. REMOTE KEYLESS ENTRY (RKE) This system allows you to lock or unlock the doors and liftgate, or activate the panic alarm, from distances up to approximately 66 ft (20 m) using a hand-held Remote Keyless Entry (RKE) transmitter. The RKE transmitter does not need to be pointed at the vehicle to activate the system. Inserting the RKE transmitter into the ignition NOTE: switch disables all buttons on that RKE transmitter; however, the buttons on the remaining RKE transmitters will continue to work. Driving the vehicle over 5 mph disables all RKE transmitter buttons, for all RKE trans- mitters, until the ignition is turned back to OFF/LOCK. THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 21 Three-Button RKE Transmitter To Unlock the Doors Press and release the UNLOCK button on the RKE transmitter once to unlock the driver’s door or twice to unlock all doors. The turn signal lamps will flash to acknowledge the unlock signal. The illuminated entry system will also turn on. 22 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Remote Key Unlock, Driver Door/All Doors First Press This feature lets you program the system to unlock either the driver’s door or all doors, on the first press of the UNLOCK button on the RKE transmitter. To change the current setting, proceed as follows: • For vehicles equipped with the Electronic Vehicle Information Center (EVIC), refer to “Remote Key Unlock,” under (Customer- Programmable Features)” in the “Electronic Vehicle Information Center (EVIC),” in Section 4 of this manual. “Personal Settings Flash Lamps with Remote Key Lock This feature will cause the turn signal lamps to flash when the doors are locked or unlocked with the RKE transmitter. This feature can be turned on or off. To change the current setting, proceed as follows: • For vehicles equipped with the Electronic Vehicle Information Center (EVIC), refer to “Flash Lamps with Lock,” (Customer- Programmable Features)” in the ⬙Electronic Vehicle Information Center (EVIC),” in Section 4 of this manual. “Personal Settings under Turn Headlights On with Remote Key Unlock This feature activates the headlights for up to 90 seconds when the doors are unlocked with the RKE transmitter. The time for this feature is programmable on vehicles equipped with the Electronic Vehicle Information Center (EVIC). For details, refer to “Headlamp Off Delay,” under “Personal Settings (Customer-Programmable Features)” in the “Electronic Vehicle Information Center (EVIC),” in Section 4 of this manual. To Lock the Doors Press and release the LOCK button on the RKE transmit- ter to lock all doors. The turn signal lamps will flash and the horn will chirp to acknowledge the signal. Sound Horn with Remote Key Lock This feature will cause the horn to chirp when the doors are locked with the RKE transmitter. This feature can be turned on or off. To change the current setting, proceed as follows: • For vehicles equipped with the Electronic Vehicle Information Center (EVIC), refer to “Sound Horn with Lock,” (Customer- Programmable Features)” in the “Electronic Vehicle Information Center (EVIC),” in Section 4 of this manual. “Personal Settings under THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 23 To Release the Liftgate Flipper Glass Press the FLIPPER GLASS/LIFTGATE RELEASE button two times (the second press within five seconds of the first press) to open liftgate flipper glass. WARNING! Driving with the flipper glass open can allow poi- sonous exhaust gases into your vehicle. You and your passengers could be injured by these fumes. Keep the flipper glass closed when you are operating the vehicle. Remote Open Window Feature — If Equipped This feature allows you to remotely lower both front door windows at the same time. To use this feature, press and release the UNLOCK button on the RKE transmitter and then immediately press and hold the UNLOCK button until the windows lower to the level desired or until they lower completely. 24 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Using the Panic Alarm To turn the Panic Alarm feature on or off, press and hold the PANIC button on the RKE transmitter for at least one second and release. When the Panic Alarm is on, the headlights and park lamps will flash, the horn will pulse on and off, and the interior lights will turn on. The Panic Alarm will stay on for three minutes unless you turn it off by either pressing the PANIC button a second time, or drive the vehicle at a speed of 15 mph (24 km/h) or greater. NOTE: • The interior lights will turn off if you turn the ignition switch to the ACC or ON position while the Panic Alarm is activated. However, the exterior lamps and horn will remain on. Programming Additional Transmitters If you do not have a programmed RKE transmitter, contact your authorized dealer for details. Transmitter Battery Service The recommended replacement battery is one CR2032 battery. NOTE: • Perchlorate Material — special handling may apply. • Do not touch the battery terminals that are on the back See www.dtsc.ca.gov/hazardouswaste/perchlorate housing or the printed circuit board. 1. Battery access is through a door located on the rear of the fob. Insert a small, flat blade screwdriver into the slot and gently pry open the access door. THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 25 3. Reposition the access door panel over the battery opening and snap into place. General Information This device complies with part 15 of the FCC rules and RSS 210 of Industry Canada. Operation is subject to the following conditions: • This device may not cause harmful interference. • This device must accept any interference received, including interference that may cause undesired operation. NOTE: Changes or modifications not expressly ap- proved by the party responsible for compliance could void the user’s authority to operate the equipment. Battery Replacement 1— Battery Access Door 2. Remove and replace the battery. Avoid touching the new battery with your fingers. Skin oils may cause battery deterioration. If you touch a battery, clean it with rubbing alcohol. 26 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE If your RKE transmitter fails to operate from a normal distance, check for these two conditions: 1. A weak battery in the RKE transmitter. The expected life of the battery is a minimum of three years. 2. Closeness to a radio transmitter such as a radio station tower, airport transmitter, and some mobile or CB radios. REMOTE STARTING SYSTEM — IF EQUIPPED This system uses the Remote Keyless Entry (RKE) transmitter to start the engine conve- niently from outside the vehicle while still maintaining security. The system has a range of approximately 328 ft (100 m). NOTE: The vehicle must be equipped with an auto- matic transmission to be equipped with Remote Start. How to Use Remote Start All of the following conditions must be met before the engine will remote start: • Shift lever in PARK • Doors closed • Hood closed • Liftgate closed • Hazard switch off • Brake switch inactive (brake pedal not pressed) • Ignition key removed from ignition switch • Battery at an acceptable charge level • RKE PANIC button not pressed WARNING! • Do not start or run an engine in a closed garage or confined area. Exhaust gas contains Carbon Mon- oxide (CO) which is odorless and colorless. Car- bon monoxide is poisonous and can cause serious injury or death when inhaled. • Keep Remote Keyless Entry (RKE) transmitters away from children. Operation of the Remote Start System, windows, door locks or other controls could cause serious injury or death. To Enter Remote Start Mode Press and release the REMOTE START button on the RKE transmitter twice, within five sec- onds. The parking lights will flash and the horn will chirp twice (if programmed). Then, the engine will start and the vehicle will remain in the Remote Start mode for a 15 minute cycle. THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 27 Remote Start mode. then shut down 10 seconds later. NOTE: • If an engine fault is present the vehicle will start and • The park lamps will turn on and remain on during • For security, power window and power sunroof op- eration (if equipped) are disabled when the vehicle is in the Remote Start mode. • The engine can be started two consecutive times (two 15 minute cycles) with the RKE transmitter. However, the ignition switch must be cycled to the ON position before you can repeat the start sequence for a third cycle. To Exit Remote Start Mode Without Driving the Vehicle Press and release the REMOTE START button one time or allow the engine to run for the entire 15 minute cycle. 28 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE NOTE: To avoid unintentional shutdowns, the system will disable the one time press of the REMOTE START button for two seconds after receiving a valid Remote Start request. To Exit Remote Start Mode and Drive the Vehicle Before the end of 15 minute cycle, press and release the UNLOCK button on the RKE transmitter to unlock the doors and disarm the Vehicle Security Alarm (if equipped). Then, prior to the end of the 15 minute cycle, insert the key into the ignition switch and turn the switch to the ON position. • The ignition switch must be in the ON position in • For vehicles equipped with the Electronic Vehicle Information Center (EVIC), the message “Insert Key/ Turn To Run” will flash in the EVIC until you insert the key. Once inserted, the message “Turn To Run” will flash in the EVIC until you turn the key to run. order to drive the vehicle. DOOR LOCKS Manual Door Locks Use the manual door lock plunger to lock the doors from inside the vehicle. If the plunger is down when the door is closed, the door will lock. Therefore, make sure the key is not inside the vehicle before closing the door. WARNING! • For personal security and safety in the event of an accident, lock the vehicle doors when you drive, as well as when you park and leave the vehicle. • When leaving the vehicle, always remove the key from the ignition and lock your vehicle. Do not leave unattended children in the vehicle, or with access to an unlocked vehicle. Unsupervised use of vehicle equipment may cause severe personal in- juries and death. Power Door Locks The power door lock switch is located on each front door panel. Press the switch to lock or unlock the doors. Power Door Lock Switch If the plunger is down when the door is closed, the door will lock. Therefore, make sure the key is not inside the vehicle before closing the door. THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 29 If you press the door lock switch while the keys are in the ignition switch and the driver’s door is open, the doors will not lock. The rear doors cannot be opened from inside the vehicle until you pull up the lock plungers. Automatic Unlock On Exit Feature — If Equipped If Auto Unlock is enabled, this feature will unlock all the doors when the driver’s door is opened if the vehicle is stopped and in PARK or NEUTRAL. Refer to “Auto Unlock on Exit” under the “Electronic Vehicle Informa- tion Center (EVIC),” in section 4 of this manual, or see your authorized dealer. Automatic Door Locks If this feature is selected, your door locks will lock automatically when the vehicle speed is above 15 mph (24 km/h) and all doors are closed. It will reset whenever a door is opened. to “Auto Door Locks” under 30 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE This feature is selectable and can be turned on or off. Refer “Customer- Programmable Features” in the “Electronic Vehicle Infor- mation Center (EVIC),” in Section 4 of this manual, or see your authorized dealer. Child Protection Door Lock The rear doors of your vehicle are equipped with Child Protection Door Locks. If you push up on the lever on the open edge of the door it cannot be opened from the inside of the vehicle. Push the lever down to disengage the Child Protection Door Locks. WARNING! Avoid trapping anyone in the vehicle in a collision. Remember that the rear doors can only be opened from the outside when the Child Protection Door Locks are engaged. Child Protection Door Lock WINDOWS Power Windows The power window controls are located on the driver’s door trim panel. There is a single switch on the front passenger door/rear doors which operate the front passenger/rear passenger door windows. The window controls will operate only when the ignition switch is in the ON or ACC position. Power Window Switches The power window switches remain active for up to 10 minutes after the ignition switch has been turned OFF. Opening a vehicle front door will cancel this feature. THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 31 Auto-Down Both the driver and front passenger window switch have an Auto-Down feature. Press the window switch past the first detent, release, and the window will go down automatically. To cancel the Auto-Down movement, op- erate the switch in either the up or down direction and release the switch. To stop the window from going all the way down during the Auto-Down operation, pull up on the switch briefly. To open the window part way, press to the first detent and release it when you want the window to stop. The power window switches remain active for 10 min- utes after the ignition has been turned off. Opening either front door will cancel this feature. 32 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Auto Up Feature with Anti-Pinch Protection — Driver’s and Front Passenger Door Only Lift the window switch to the second detent, release, and the window will go up automatically. To stop the window from going all the way up during the Auto Up operation, push down on the switch briefly. To close the window part way, lift the window switch to the first detent and release when you want the window to stop. If the window runs into any obstacle during the NOTE: auto-closure, it will reverse direction and then go back down. Remove the obstacle and use the window switch again to close the window. Any impact due to rough road conditions may trigger the auto reverse function unex- pectedly during auto closure. If this happens, pull the switch lightly to the first detent and hold to close the window manually. WARNING! There is no anti-pinch protection when the window is almost closed. Be sure to clear all objects from the window before closing. Resetting the Auto Up Feature Should the Auto Up feature stop working, the window probably needs to be reset. To reset Auto Up, pull the window switch up and close the window completely, then pull and hold the switch for one second. Window Lockout Button The Window Lockout button on the driver’s door allows you to disable the window control on the other doors. To disable the window controls on the other doors, press the Window Lockout button. To enable the window controls, press the Window Lockout button again. THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 33 Wind Buffeting Wind buffeting can be described as the perception of pressure on the ears or a helicopter-type sound in the ears. Your vehicle may exhibit wind buffeting with the windows down, or the sunroof (if equipped) in certain open or partially open positions. This is a normal occur- rence and can be minimized. If the buffeting occurs with the sunroof open, adjust the sunroof opening to minimize the buffeting. LIFTGATE To open the liftgate, pull up (squeeze) on the handle and lift. Manually unlocking the vehicle doors with the plunger or a key in the lock cylinder will not unlock the liftgate. Window Lockout Button 34 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Liftgate Flipper Glass The liftgate flipper glass is also unlocked when the liftgate is unlocked. To open the flipper glass, push up on the window switch located on the liftgate. Liftgate Release WARNING! Driving with the liftgate open can allow poisonous exhaust gases into your vehicle. You and your pas- sengers could be injured by these fumes. Keep the liftgate closed when you are operating the vehicle. Liftgate Glass Release WARNING! To avoid injury, stand back when opening. Glass will automatically rise. Once the liftgate flipper glass has been opened, connec- tion to the rear window wiper is interrupted, preventing activation of the rear wiper blade while the flipper glass is open. WARNING! Driving with the flipper glass open can allow poi- sonous exhaust gases into your vehicle. You and your passengers could be injured by these fumes. Keep the flipper glass closed when you are operating the vehicle. THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 35 Power Liftgate — If Equipped The power liftgate may be opened manually or by pressing the LIFTGATE button on the Re- mote Keyless Entry (RKE) transmitter. Press the LIFTGATE button on the RKE transmitetr twice within five seconds, to open the power liftgate. Once the liftgate is open, pressing the button twice within five seconds a second time will close the liftgate. Also, the power liftgate may be closed by pressing the Liftgate switch located on the left rear trim, near the liftgate opening. Pressing once will close the liftgate only. This button cannot be used to open the liftgate. 36 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Rear Liftgate Switch When the LIFTGATE button on the RKE transmitter is pressed two times, the turn signals will flash twice to signal that the liftgate is opening or closing. NOTE: • In the event of a power malfunction to the liftgate, an emergency liftgate latch release can be used to open the liftgate. The emergency liftgate latch release can be accessed through a snap-in cover located on the lift- gate trim panel. WARNING! During power operation, personal injury or cargo damage may occur. Ensure the liftgate travel path is clear. Make sure the liftgate is closed and latched before driving away. NOTE: • If anything obstructs the power liftgate while it is closing or opening, the liftgate will automatically reverse to the closed or open position, provided it meets sufficient resistance. • There are also pinch sensors attached to the side of the liftgate. Light pressure anywhere along these strips will cause the liftgate to return to the open position. • The power liftgate must be in the full open position for rear liftgate close button or overhead console close button to operate. If the liftgate is not fully open, press the Liftgate button on the Fob with Integrated Key (FOBIK) to fully open the liftgate, and then press it again to close. • If the liftgate handle is pulled while the power liftgate is closing, the liftgate will reverse to the full open position. • If the liftgate handle is pulled while the power liftgate is opening, the liftgate motor will disengage to allow manual operation. • The power liftgate buttons will not operate if the vehicle is in gear or the vehicle speed is above 0 mph (0 km/h). THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 37 • The power liftgate will not operate in temperatures below ⫺22°F (⫺30°C) or temperatures above 150°F (65°C). Be sure to remove any buildup of snow or ice from the liftgate before pressing any of the power liftgate switches. • If the power liftgate encounters multiple obstructions within the same cycle, the system will automatically stop and the liftgate must be opened or closed manu- ally. • If your liftgate is power closing and you put the vehicle in gear, the liftgate will continue to power close. However, vehicle movement may result in a detection of an obstruction. 38 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE WARNING! • Driving with the liftgate open can allow poison- ous exhaust gases into your vehicle. You and your passengers could be injured by these fumes. Keep the liftgate closed when you are operating the vehicle. • If you are required to drive with the liftgate open, make sure that all windows are closed, and the climate control blower switch is set at high speed. DO NOT use the recirculation mode. Gas props support the liftgate in the open position. However, because the gas pressure drops with tempera- ture, it may be necessary to assist the props when opening the liftgate in cold weather. ger gers OCCUPANT RESTRAINTS Some of the most important safety features in your vehicle are the restraint systems: • Front and rear seat belts for the driver and all passen- • Advanced Front Airbags for driver and front passen- • Supplemental Rear Impact Active Head Restraints (AHR) located on top of the front seats (integrated into the head restraint) • Supplemental Side Airbag Inflatable Curtains (SABIC) for the driver and passengers seated next to a window — if equipped • Supplemental Side Seat Airbags — if equipped • An energy-absorbing steering column and steering wheel • Knee bolsters/blockers for front seat occupants • Front seat belts incorporate pretensioners to enhance occupant protection by managing occupant energy during an impact event If you will be carrying children too small for adult-sized seat belts, the seat belts or the Lower Anchors and Tether for CHildren (LATCH) feature also can be used to hold infant and child restraint systems. NOTE: The Advanced Front Airbags have a multistage inflator design. This allows the airbag to have different rates of inflation based on severity and type of collision. Please pay close attention to the information in this section. It tells you how to use your restraint system properly, to keep you and your passengers as safe as possible. THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 39 WARNING! In a collision, you and your passengers can suffer much greater injuries if you are not properly buckled up. You can strike the interior of your vehicle or other passengers, or you can be thrown out of the vehicle. Always be sure you and others in your vehicle are buckled up properly. Buckle up even though you are an excellent driver, even on short trips. Someone on the road may be a poor driver and cause a collision that includes you. This can happen far away from home or on your own street. 40 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Research has shown that seat belts save lives, and they can reduce the seriousness of injuries in a collision. Some of the worst injuries happen when people are thrown from the vehicle. Seat belts reduce the possibility of ejection and the risk of injury caused by striking the inside of the vehicle. Everyone in a motor vehicle should be belted at all times. Lap/Shoulder Belts All seating positions in your vehicle have combination lap/shoulder belts. The belt webbing retractor is de- signed to lock during very sudden stops or collisions. This feature allows the shoulder part of the belt to move freely with you under normal conditions. But in a colli- sion, the belt will lock and reduce the risk of you striking the inside of the vehicle or being thrown out. WARNING! • Wearing a seat belt incorrectly is dangerous. Seat belts are designed to go around the large bones of your body. These are the strongest parts of your body and can take the forces of a collision the best. Wearing your belt in the wrong place could make your injuries in a collision much worse. You might suffer internal injuries, or you could even slide out of part of the belt. Follow these instructions to wear your seat belt safely and to keep your pas- sengers safe, too. • Two people should never be belted into a single seat belt. People belted together can crash into one another in an accident, hurting one another badly. Never use a lap/shoulder belt or a lap belt for more than one person, no matter what their size. Lap/Shoulder Belt Operating Instructions 1. Enter the vehicle and close the door. Sit back and adjust the seat. 2. The seat belt latch plate is above the back of your seat. Grasp the latch plate and pull out the belt. Slide the latch plate up the webbing as far as necessary to make the belt go around your lap. THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 41 Latch Plate 42 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 3. When the belt is long enough to fit, insert the latch plate into the buckle until you hear a “click.” Latch Plate to Buckle WARNING! • A belt that is buckled into the wrong buckle will not protect you properly. The lap portion could ride too high on your body, possibly causing internal injuries. Always buckle your belt into the buckle nearest you. • A belt that is too loose will not protect you as well. In a sudden stop you could move too far forward, increasing the possibility of injury. Wear your seat belt snugly. (Continued) WARNING! (Continued) • A belt that is worn under your arm is very danger- ous. Your body could strike the inside surfaces of the vehicle in a collision, increasing head and neck injury. A belt worn under the arm can cause internal injuries. Ribs are not as strong as shoulder bones. Wear the belt over your shoulder so that your strongest bones will take the force in a collision. • A shoulder belt placed behind will not protect you from injury during a collision. You are more likely to hit your head in a collision if you do not wear your shoulder belt. The lap and shoulder belt are meant to be used together. 4. Position the lap belt across your thighs, below your abdomen. To remove slack in the lap portion, pull up a bit on the shoulder belt. To loosen the lap belt if it is too THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 43 tight, tilt the latch plate and pull on the lap belt. A snug belt reduces the risk of sliding under the belt in a collision. WARNING! • A lap belt worn too high can increase the risk of injury in a collision. The belt forces won’t be at the strong hip and pelvic bones, but across your ab- domen. Always wear the lap part of your seat belt as low as possible and keep it snug. • A twisted belt cannot do its job as well. In a collision, it could even cut into you. Be sure the belt is straight. If you cannot straighten a belt in your vehicle, take it to your authorized dealer and have it fixed. 5. Position the shoulder belt on your chest so that it is comfortable and not resting on your neck. The retractor will withdraw any slack in the belt. 44 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE WARNING! A frayed or torn belt could rip apart in a collision and leave you with no protection. Inspect the belt system periodically, checking for cuts, frays, or loose parts. Damaged parts must be replaced immediately. Do not disassemble or modify the system. Seat belt assemblies must be replaced after an accident if they have been damaged (i.e., bent retractor, torn web- bing, etc.). Adjustable Upper Shoulder Belt Anchorage In the front seating positions, the shoulder belt can be adjusted upward or downward to position the belt away from your neck. Press the RELEASE button to release the anchorage, and then move it up or down to the position that serves you best. Removing Slack from Belt 6. To release the belt, push the red button marked PRESS on the buckle. The belt will automatically retract to its stowed position. If necessary, slide the latch plate down the webbing to allow it to retract fully. 2 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 45 Automatic Locking Mode — If Equipped In this mode, the shoulder belt is automatically pre- locked. The belt will still retract to remove any slack in the shoulder belt. When to Use the Automatic Locking Mode The Automatic Locking Mode should be used anytime a child safety seat is installed in a second or third row seating position. Children 12 years old and younger should be properly restrained in a rear seat whenever possible. How to Use the Automatic Locking Mode 1. Buckle the combination lap and shoulder belt. 2. Grasp the shoulder portion and pull downward until the entire belt is extracted. 3. Allow the belt to retract. As the belt retracts, you will hear a clicking sound. This indicates the safety belt is now in the Automatic Locking Mode. Adjusting Upper Shoulder Belt As a guide, if you are shorter than average, you will prefer a lower position, and if you are taller than average, you will prefer a higher position. When you release the anchorage, try to move it up or down to make sure that it is locked in position. 46 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE How to Disengage the Automatic Locking Mode Disconnect the combination lap/shoulder belt and allow it to retract completely to disengage the Automatic Locking Mode and activate the Vehicle Sensitive (Emer- gency) Locking mode. Energy Management Feature This vehicle has a safety belt system with an Energy Management feature in the front seating positions to help further reduce the risk of injury in the event of a head-on collision. This safety belt system has a retractor assembly that is designed to release webbing in a controlled manner. This feature is designed to help reduce the belt force acting on the occupant’s chest. WARNING! • The belt and retractor assembly must be replaced if the seat belt assembly Automatic Locking Re- tractor (ALR) feature or any other seat belt func- tion is not working properly when checked ac- cording to the procedures in the Service Manual. • Failure to replace the belt and retractor assembly could increase the risk of injury in collisions. Seat Belt Pretensioners The driver and front passenger seat belts are equipped with a pretensioning device that is designed to remove any slack from the seat belt systems in the event of a collision. This device improves the performance of the seat belt by assuring that the belt is tight around the occupant early in a collision. Pretensioners work for all size occupants, including those in child restraints. NOTE: These devices are not a substitute for proper seat belt placement by the occupant. The seat belt must still be worn snugly and positioned properly. The pretensioners are triggered by the Occupant Re- straint Controller (ORC). Like the airbags, the pretension- ers are single use items. After a collision deploys the airbags and/or pretensioners, a deployed airbag and/or pretensioner must be replaced immediately. Enhanced Seat Belt Use Reminder System (BeltAlert姞) If the driver’s seat belt has not been buckled within 60 seconds of starting the vehicle and if the vehicle speed is greater than 5 mph (8 km/h), the BeltAlert威 will alert the driver to buckle the seat belt. The driver should also instruct all other occupants to buckle their seat belts. Once the warning is triggered, the BeltAlert威 will con- tinue to chime and flash the Seat Belt Reminder Light for 96 seconds or until the driver’s seat belt is buckled. The THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 47 BeltAlert威 will be reactivated if the driver’s seat belt is unbuckled for more than 10 seconds and the vehicle speed is greater than 5 mph (8 km/h). BeltAlert威 can be enabled or disabled by your authorized dealer or by following these steps: NOTE: The following steps must occur within the first 60 seconds of the ignition switch being turned to the ON or START position. Chrysler Group LLC does not recom- mend deactivating BeltAlert威. 1. Turn the ignition switch to the OFF position, and buckle the driver’s seat belt. 2. Turn the ignition key to the ACC/ON position (do not start the engine), and wait for the Seat Belt Reminder Light to turn off. 3. Within 60 seconds of starting the vehicle, unbuckle and then re-buckle the driver’s seat belt at least three times with 10 seconds, ending with the seat belt buckled. 48 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 4. Turn the ignition key to the OFF position. A single chime will sound to signify that you have successfully completed the programming. BeltAlert威 can be reactivated by repeating this procedure. NOTE: Although BeltAlert威 has been deactivated, the Seat Belt Reminder Light will continue to illuminate while the driver’s seat belt remains unfastened. Seat Belts and Pregnant Women We recommend that pregnant women use the seat belts throughout their pregnancy. Keeping the mother safe is the best way to keep the baby safe. Pregnant women should wear the lap part of the belt across the thighs and as snug across the hips as possible. Keep the belt low so that it does not come across the abdomen. That way the strong bones of the hips will take the force if there is a collision. Seat Belt Extender If a seat belt is too short, even when fully extended and when the adjustable upper shoulder belt anchorage (if equipped) is in its lowest position, your authorized dealer can provide you with a seat belt extender. This extender should be used only if the existing belt is not long enough. When it is not required, remove the ex- tender and store it. WARNING! Using a seat belt extender when not needed can increase the risk of injury in a collision. Only use when the lap belt is not long enough when it is worn low and snug, and in the recommended seating positions. Remove and store the extender when not needed. Supplemental Restraint Systems (SRS) This vehicle has airbags for both the driver and front passenger as a supplement to the seat belt restraint systems. The driver’s front airbag is mounted in the center of the steering wheel. The passenger’s front airbag is mounted in the instrument panel, above the glove compartment. The words SRS AIRBAG are embossed on the airbag covers. THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 49 1 — Driver Airbag 2 — Passenger Airbag 3 — Knee Bolster NOTE: These airbags are certified to the new Federal regulations for Advanced Airbags. 50 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE The Advanced Front Airbags have a multistage inflator design. This allows the airbag to have different rates of inflation based on the severity and type of collision. This vehicle may also be equipped with Supplemental Side Airbag Inflatable Curtains (SABIC) to protect the driver, front, and rear passengers sitting next to a win- dow. If the vehicle is equipped with SABIC airbags, they are located above the side windows and their covers are also labeled: SRS AIRBAG. Airbag System Components The airbag system consists of the following: • Occupant Restraint Controller (ORC) • Airbag Warning Light • Driver Front Airbag • Front Passenger Airbag • Front and Side Impact Sensors • Steering Wheel and Column • Instrument Panel • Knee Impact Bolster • Front Seat Belt Pretensioners — if equipped • Supplemental Side Airbag Inflatable Curtains (SABIC) — if equipped Advanced Front Airbag Features The Advanced Front Airbag system has multistage driver and front passenger airbags. This system provides output appropriate to the severity and type of collision as determined by the Occupant Restraint Controller (ORC), which may receive information from the impact sensors at the front of the car. The first stage inflator is triggered immediately during an impact that requires airbag deployment. The timing of the second stage determines whether the output force is THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 51 Supplemental Side Airbag Inflatable Curtain (SABIC) — If Equipped SABIC airbags offer side-impact and vehicle rollover protection to front and rear seat outboard occupants in addition to that provided by the body structure. Each airbag features inflated chambers placed adjacent to the head of each outboard occupant that reduce the potential for side-impact head injuries. The curtains deploy down- ward, covering both windows on the impact side. low, medium, or high. If a low output is sufficient to meet the need, the remaining gas in the inflator is expended. WARNING! • Do not put anything on or around the airbag covers or attempt to open them manually. You may damage the airbags and you could be injured because the airbags may no longer be functional. The protective covers for the airbag cushions are designed to open only when the airbags are inflat- ing. • Do not drill, cut or tamper with the knee bolster in • Do not mount any accessories to the knee bolster such as alarm lights, stereos, citizen band radios, etc. any way. 52 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Supplemental Side Airbag Inflatable Curtain (SABIC) Location NOTE: • Should a vehicle rollover occur, the pretensioners and/or SABIC airbags on both sides of the vehicle may deploy. • Airbag covers may not be obvious in the interior trim; but they will open during airbag deployment. The system includes sensors adjacent to both front and rear seat occupants that are calibrated to deploy the SABIC airbags during impacts that require airbag occu- pant protection. WARNING! • If your vehicle is equipped with left and right Side Airbag Inflatable Curtain (SABIC), do not stack luggage or other cargo up high enough to block the location of the SABIC. The area where the side curtain airbag is located should remain free from any obstructions. • Do not use accessory seat covers or place objects between you and the side airbags; the performance could be adversely affected and/or objects could be pushed into you, causing serious injury. Along with seat belts and pretensioners, Advanced Front Airbags work with the knee bolsters to provide improved protection for the driver and front passenger. Side airbags also work with seat belts to improve occupant protection. Knee Impact Bolsters The Knee Impact Bolsters help protect the knees of the driver and the front passenger, and position everyone for the best interaction with the Advanced Front airbag. Here are some simple steps you can take to minimize the risk of harm from a deploying airbag: Children 12 years old and younger should always ride buckled up in a rear seat. THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 53 WARNING! Infants in rear-facing child restraints should NEVER ride in the front seat of a vehicle with a passenger front airbag. An airbag deployment can cause severe injury or death to infants in that position. Children that are not big enough to wear the vehicle seat belt properly (see Section on Child Restraints) should be secured in the rear seat in child restraints or belt- positioning booster seats. Older children who do not use child restraints or belt-positioning booster seats should ride properly buckled up in the rear seat. Never allow children to slide the shoulder belt behind them or under their arm. If a child from 1 to 12 years old (not in a rear facing child seat) must ride in the front passenger seat, move the seat as far back as possible and use the proper child restraint. (Refer to information on Child Restraints in this section.) 54 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE You should read the instructions provided with your child restraint to make sure that you are using it properly. All occupants should ALWAYS wear their lap and shoul- der belts properly. The driver and front passenger seats should be moved back as far as practical to allow the Advanced Front Airbags room to inflate. Do not lean against the door. If your vehicle has side airbags, and deployment occurs, the side airbags will inflate forcefully into the space between you and the door. If the airbag system in this vehicle needs to be modified to accommodate a disabled person, contact the Customer Center. Phone numbers are provided under ⬙If You Need Assistance⬙ in Section 9 of this manual. WARNING! • Relying on the airbags alone could lead to more severe injuries in a collision. The airbags work with your seat belt to restrain you properly. In some collisions, the airbags won’t deploy at all. Always wear your seat belts even though you have airbags. • Being too close to the steering wheel or instrument panel during front airbag deployment could cause serious injury, including death. Airbags need room to inflate. Sit back, comfortably extending your arms to reach the steering wheel or instru- ment panel. • Side airbags also need room to inflate. Do not lean against the door. Sit upright in the center of the seat. Airbag Deployment Sensors and Controls Occupant Restraint Controller (ORC) The ORC is part of a Federally regulated safety system required for this vehicle. The ORC determines if deployment of the front and/or side airbags in a frontal or side collision is required. Based on the impact sensors signals, a central electronic ORC deploys the Advanced Front Airbags, SABIC air- bags — if equipped, and front seat belt pretensioners — if equipped, as required, depending on severity and type of impact. Advanced Front Airbags are designed to provide addi- tional protection by supplementing the seat belts in certain frontal collisions depending on the severity and type of collision. Advanced Front Airbags are not ex- pected to reduce the risk of injury in rear, side, or rollover collisions. THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 55 The Advanced Front Airbags will not deploy in all frontal collisions, including some that may produce substantial vehicle damage — for example, some pole collisions, truck underrides, and angle offset collisions. On the other hand, depending on the type and location of impact, Advanced Front Airbags may deploy in crashes with little vehicle front-end damage but that produce a severe initial deceleration. The side airbags will not deploy in all side collisions. Side airbag deployment will depend on the severity and type of collision. Because airbag sensors measure vehicle deceleration over time, vehicle speed and damage by themselves are not good indicators of whether or not an airbag should have deployed. Seat belts are necessary for your protection in all colli- sions, and also are needed to help keep you in position, away from an inflating airbag. 56 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE The ORC monitors the readiness of the electronic parts of the system whenever the ignition switch is in the START or ON position. If the key is in the LOCK position, in the ACC position, or not in the ignition, the airbags are not on and will not inflate. The ORC contains a backup power supply system that may deploy the airbags even if the battery loses power or it becomes disconnected prior to deployment. Also, the ORC turns on the Airbag Warning Light in the instrument panel for approxi- mately six to eight seconds for a self-check when the ignition is first turned on. After the self-check, the Airbag Warning Light will turn off. If the ORC detects a malfunction in any part of the system, it turns on the Airbag Warning Light, either momentarily or continuously. A single chime will sound if the light comes on again after initial startup. It also includes diagnostics that will illuminate the instru- ment cluster Airbag Warning Light if a malfunction is noted. The diagnostics also record the nature of the malfunction. WARNING! Ignoring the Airbag Warning Light in your instru- ment panel could mean you won’t have the airbags to protect you in a collision. If the light does not come on, stays on after you start the vehicle, or if it comes on as you drive, have the airbag system checked right away. Driver and Passenger Airbag Inflator Units The Driver and Passenger Airbag/Inflator Units are located in the center of the steering wheel and the right side of the instrument panel. When the ORC detects a collision requiring the airbags, it signals the inflator units. A large quantity of non-toxic gas is generated to inflate the Advanced Front Airbags. Different airbag inflation rates are possible, based on the collision type and sever- ity. The steering wheel hub trim cover and the upper right side of the instrument panel separate and fold out of the way as the bags inflate to their full size. The bags fully inflate in about 50 to 70 milliseconds. This is about half of the time it takes to blink your eyes. The bags then quickly deflate while helping to restrain the driver and front passenger. The driver front airbag gas is vented through the vent holes in the sides of the airbag. The passenger front airbag gas is vented through the vent holes in the sides of the airbag. In this way, the airbags do not interfere with your control of the vehicle. Supplemental Side Airbag Inflatable Curtain (SABIC) Inflator Units — If Equipped During collisions where the impact is confined to a particular area of the side of the vehicle, the ORC may THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 57 deploy the SABIC Airbags, depending on severity and type of collision. In these events, the ORC will deploy the SABIC only on the impact side of the vehicle. A quantity of non-toxic gas is generated to inflate the side curtain airbag. The inflating side curtain airbag pushes the outside edge of the headliner out of the way and covers the window. The airbag inflates in about 30 ms (about one-quarter of the time that it takes to blink your eyes) with enough force to injure you if you are not belted and seated properly, or if items are positioned in the area where the side curtain airbag inflates. This especially applies to children. The side curtain airbag is only about 3-1/2 in (9 cm) thick when it is inflated. Because airbag sensors estimate deceleration over time, vehicle speed and damage are not good indicators of whether or not an airbag should have deployed. NOTE: airbags may deploy on both sides of the vehicle. In a rollover the pretensioners and/or SABIC 58 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Front and Side Impact Sensors In front and side impacts, impact sensors aid the ORC in determining appropriate response to impact events. Ad- ditional sensors in the ORC determine the level of airbag deployment and provide verification. Enhanced Accident Response System In the event of an impact causing airbag deployment, if the communication network remains intact, and the power remains intact, depending on the nature of the event the ORC will determine whether to have the Enhanced Accident Response System to perform the following functions: • Cut off fuel to the engine. • Flash hazard lights as long as the battery has power or until the ignition key is turned off. • Turn on the interior lights, which remain on as long as the battery has power or until the ignition key is removed. • Unlock the doors automatically. If a Deployment Occurs The airbags are designed to deflate immediately after deployment. NOTE: Front and/or side airbags will not deploy in all collisions. This does not mean something is wrong with the airbag system. If you do have a collision which deploys the airbags, any or all of the following may occur: • The nylon airbag material may sometimes cause abra- sions and/or skin reddening to the driver and front passenger as the airbags deploy and unfold. The abrasions are similar to friction rope burns or those you might get sliding along a carpet or gymnasium floor. They are not caused by contact with chemicals. They are not permanent and normally heal quickly. However, if you haven’t healed significantly within a few days, or if you have any blistering, see your doctor immediately. • As the airbags deflate, you may see some smoke-like particles. The particles are a normal by-product of the process that generates the non-toxic gas used for airbag inflation. These airborne particles may irritate the skin, eyes, nose, or throat. If you have skin or eye irritation, rinse the area with cool water. For nose or THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 59 throat irritation, move to fresh air. If the irritation continues, see your doctor. If these particles settle on your clothing, follow the garment manufacturer’s in- structions for cleaning. Do not drive your vehicle after the airbags have de- ployed. If you are involved in another collision, the airbags will not be in place to protect you. WARNING! Deployed airbags and seat belt pretensioners cannot protect you in another collision. Have the airbags, seat belt pretensioners, and the front passenger seat belt retractor assembly replaced by an authorized dealer as soon as possible. Also, have the Occupant Restraint Controller (ORC) system serviced as well. 60 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Maintaining Your Airbag System WARNING! • Modifications to any part of the airbag system could cause it to fail when you need it. You could be injured if the airbag system is not there to protect you. Do not modify the components or wiring, including adding any kind of badges or stickers to the steering wheel hub trim cover or the upper right side of the instrument panel. Do not modify the front bumper, vehicle body structure, or add aftermarket side steps or running boards. • It is dangerous to try to repair any part of the airbag system yourself. Be sure to tell anyone who works on your vehicle that it has an airbag system. (Continued) WARNING! (Continued) • Do not attempt to modify any part of your ad- vanced airbag system. The airbag may inflate accidentally or may not function properly if modi- fications are made. Take your vehicle to an autho- rized dealer for any advanced airbag system ser- vice. If your seat, including your trim cover and cushion, needs to be serviced in any way (includ- ing removal or loosening/tightening of seat attach- ment bolts), take the vehicle to your authorized dealer. Only manufacturer approved seat accesso- ries may be used. If it is necessary to modify an advanced airbag system for persons with disabili- ties, contact your authorized dealer. Airbag Warning Light You will want to have the airbags ready to inflate for your protection in a collision. While the airbag system is designed to be mainte- nance free, if any of the following occurs, have an authorized dealer service the system immediately. • The Airbag Warning Light does not come on for approximately six to eight seconds when the ignition switch is first turned ON. • The light remains on after the approximate six to • The light comes on and remains on while driving. If the speedometer, tachometer, or any engine NOTE: related gauges are not working, the Occupant Restraint Controller (ORC) may also be disabled. The airbags may not be ready to inflate for your protection. Promptly check the fuse block for blown fuses. Refer to the label eight-second interval. THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 61 located on the inside of the fuse block cover for the proper airbag fuses. See your authorized dealer if the fuse is good. Event Data Recorder (EDR) In the event of an accident, your vehicle is designed to record up to five seconds of specific vehicle data param- eters (see list below) in an event data recorder prior to the moment of airbag deployment, or near deployment (if applicable), and up to a quarter second of either high- speed deceleration data or change in velocity during and/or after airbag deployment or near-deployment. EDR data is ONLY recorded if an airbag deploys, or nearly deploys, and is otherwise unavailable. NOTE: 1. A near-deployment event occurs when the airbag sensor detects severe vehicle deceleration usually indica- tive of a crash, but not severe enough to warrant airbag deployment. 62 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 2. Under certain circumstances, EDR data may not be recorded (e.g., loss of battery power). In conjunction with other data gathered during a com- plete accident investigation, the electronic data may be used by Chrysler Group LLC and others to learn more about the possible causes of crashes and associated injuries in order to assess and improve vehicle perfor- mance. In addition to crash investigations initiated by Chrysler Group LLC, such investigations may be re- quested by customers, insurance carriers, government officials, and professional crash researchers, such as those associated with universities, and with hospital and insur- ance organizations. In the event that an investigation is undertaken by Chrysler Group LLC (regardless of initiative), the com- pany or its designated representative will first obtain permission of the appropriate custodial entity for the vehicle (usually the vehicle owner or lessee) before accessing the electronic data stored, unless ordered to download data by a court with legal jurisdiction (i.e., pursuant to a warrant). A copy of the data will be provided to the custodial entity upon request. General data that does not identify particular vehicles or crashes may be released for incorporation in aggregate crash databases, such as those maintained by the U.S. govern- ment and various states. Data of a potentially sensitive nature, such as would identify a particular driver, ve- hicle, or crash, will be treated confidentially. Confidential data will not be disclosed by Chrysler Group LLC to any third party except when: 1. Used for research purposes, such as to match data with a particular crash record in an aggregate database, provided confidentiality of personal data is thereafter preserved. 2. Used in defense of litigation involving a Chrysler Group LLC product. 3. Requested by police under a legal warrant. 4. Otherwise required by law. Data parameters that are recorded: • Diagnostic trouble code(s) and warning light status for electronically-controlled safety systems, including the airbag system • Vehicle speed • Engine RPM • Brake switch status • Pedal position • And other parameters depending on vehicle configuration THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 63 Child Restraints Everyone in your vehicle needs to be buckled up all the time, including babies and children. Every state in the United States and all Canadian provinces require that small children ride in proper restraint systems. This is the law, and you can be prosecuted for ignoring it. Children 12 years and younger should ride properly buckled up in a rear seat, if available. According to crash statistics, children are safer when properly restrained in the rear seats rather than in the front. There are different sizes and types of restraints for children from newborn size to the child almost large enough for an adult safety belt. Always check the child seat Owner’s Manual to ensure you have the right seat for your child. Use the restraint that is correct for your child. 64 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE WARNING! In a collision, an unrestrained child, even a tiny baby, can become a projectile inside the vehicle. The force required to hold even an infant on your lap can become so great that you could not hold the child, no matter how strong you are. The child and others could be badly injured. Any child riding in your vehicle should be in a proper restraint for the child’s size. Infants and Child Restraints • Safety experts recommend that children ride rearward-facing in the vehicle until they are at least one year old and weigh at least 20 lbs (9 kg). Two types of child restraints can be used rearward-facing: infant carriers and convertible child seats. • The infant carrier is only used rearward-facing in the vehicle. It is recommended for children who weigh up to about 20 lbs (9 kg). Convertible child seats often have a higher weight limit in the rearward-facing direction than infant carriers do, so they can be used rearward-facing by children who weigh more than 20 lbs (9 kg) but are less than one year old. Both types of child restraints are held in the vehicle by the lap/shoulder belt or the LATCH child restraint an- chorage system (Refer to LATCH — Child Seat An- chorage System in this section.) WARNING! • Rearward-facing child seats must NEVER be used in the front seat of a vehicle with the front passen- ger airbag unless the airbag is turned off. An airbag deployment could cause severe injury or death to infants in this position. (Continued) WARNING! (Continued) • Improper installation can lead to failure of an infant or child restraint. It could come loose in a collision. The child could be badly injured or killed. Follow the manufacturer’s directions ex- actly when installing an infant or child restraint. • A rearward-facing infant restraint should only be used in a rear seat. A rearward-facing infant re- straint in the front seat may be struck by a deploy- ing passenger airbag which may cause severe or fatal injury to the infant. Here are some tips for getting the most out of your child restraint: • Before buying any restraint system, make sure that it has a label certifying that it meets all applicable Safety Standards. Chrysler Group LLC also recommends that you try a child restraint in the vehicle seats where you will use it before you buy it. THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 65 • The restraint must be appropriate for your child’s weight and height. Check the label on the restraint for weight and height limits. • Carefully follow the instructions that come with the restraint. If you install the restraint improperly, it may not work when you need it. • The front passenger seat belt is equipped with a cinching latch plate. The second and third row seating positions have automatic locking retractors. Both types of seat belts are designed to keep the lap portion tight around the child restraint so that it is not necessary to use a locking clip. If the seat belt has a cinching latch plate, pulling up on the shoulder portion of the lap/shoulder belt will tighten the belt (the cinching latch plate will keep the belt tight; however, any seat belt system will loosen with time, so check the belt occasionally and pull it tight if necessary). For the second and third row seat belts with the automatic 66 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE locking retractor, pull the belt from the retractor until there is enough to allow you to pass through the child restraint and slide the latch plate into the buckle. Then, pull the belt until it is fully extracted from the retrac- tor. Allow the belt to return to the retractor, pulling on the excess webbing to tighten the lap portion around the child restraint. For additional information, refer to ⬙Automatic Locking Mode⬙ earlier in this section. • In your vehicle’s 2nd row outboard seating positions, you may have trouble tightening the lap/shoulder belt on the child restraint because the buckle or latch plate is too close to the belt path opening on the restraint. Disconnect the latch plate from the buckle and twist the short buckle-end belt several times to shorten it. Insert the latch plate into the buckle with the release button facing out. • If the belt still cannot be tightened, or if pulling and pushing on the restraint loosens the belt, disconnect the latch plate from the buckle, turn the buckle around, and insert the latch plate into the buckle again. If you still cannot make the child restraint secure, try a different seating position. • Buckle the child into the restraint exactly as the • When your child restraint is not in use, secure it in the vehicle with the seat belt or remove it from the vehicle. Do not leave it loose in the vehicle. In a sudden stop or collision, it could strike the occupants or seatbacks and cause serious personal injury. manufacturer’s instructions tell you. For additional information, NOTE: to www.seatcheck.org or call 1–866–SEATCHECK. Cana- dian residents, should refer to Transport Canada’s web- site for additional information. http://www.tc.gc.ca/ roadsafety/safedrivers/childsafety/index.htm refer Older Children and Child Restraints Children who weigh more than 20 lbs (9 kg) and who are older than one year can ride forward-facing in the vehicle. Forward-facing child seats and convertible child seats used in the forward-facing direction are for children who weigh 20 to 40 lbs (9 to 18 kg), and who are older than one year. These child seats are also held in the vehicle by the lap/shoulder belt or the LATCH child restraint anchorage system (Refer to LATCH — Child Seat Anchorage System in this section.) The belt-positioning booster seat is for children weighing more than 40 lbs (18 kg), but who are still too small to fit the vehicle’s seat belts properly. If the child cannot sit with knees bent over the vehicle’s seat cushion while the child’s back is against the seatback, they should use a belt-positioning booster seat. The child and belt- positioning booster seat are held in the vehicle by the lap/shoulder belt. THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 67 Children Too Large for Booster Seats Children who are large enough to wear the shoulder belt comfortably, and whose legs are long enough to bend over the front of the seat when their back is against the seatback, should use the lap/shoulder belt in a rear seat. • Make sure that the child is upright in the seat. • The lap portion should be low on the hips and as snug • Check belt fit periodically. A child’s squirming or • If the shoulder belt contacts the face or neck, move the child closer to the center of the vehicle. Never allow a child to put the shoulder belt under an arm or behind their back. slouching can move the belt out of position. as possible. 68 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE LATCH — Child Seat Anchorage System (Lower Anchors and Tether for CHildren) Your vehicle’s second row seat is equipped with the child restraint anchorage system called LATCH. The LATCH system provides for the installation of the child restraint without using the vehicle’s seat belts, instead securing the child restraint using lower anchorages and upper tether straps from the child restraint to the vehicle structure. LATCH-compatible child restraint systems are now avail- able. However, because the lower anchorages are to be introduced over a period of years, child restraint systems having attachments for those anchorages will continue to also have features for installation using the vehicle’s seat belts. Child restraints having tether straps and hooks for connection to the top tether anchorages, have been available for some time. For some older child restraints, many child restraint manufacturers offer add-on tether strap kits or retro-fit kits. You are urged to take advantage of all the available attachments provided with your child restraint in any vehicle. NOTE: When using the LATCH attaching system to install a child restraint, please ensure that all seat belts not being used for occupant restraints are stowed and out of reach of children. Remind all children in the vehicle that the seat belts are not toys and should not be played with, and never leave your child unattended in the vehicle. The second row outboard and center seating positions have lower anchorages that are capable of accommodat- ing LATCH-compatible child seats having flexible, webbing-mounted lower attachments or fixed lower at- tachments. Regardless of the type of lower attachment, NEVER install LATCH-compatible child seats such that two seats share a common lower anchorage. If your child seats are not LATCH-compatible, you can only install the child seats using the vehicle’s seat belts. For typical installation instructions, refer to “Installing the LATCH-Compatible Child Restraint System”. Installing the LATCH-Compatible Child Restraint System We urge you to carefully follow the directions of the manufacturer when installing your child restraint. Not all child restraint systems will be installed as described here. Again, carefully follow the installation instructions that were provided with the child restraint system. The rear seat lower anchorages are round bars, located at the rear of the seat cushion where it meets the seatback, and are just visible when you lean into the rear seat to install the child restraint. You will easily feel them if you run your finger along the intersection of the seatback and seat cushion surfaces. THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 69 Latch Anchorages 70 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Tether Strap Mounting Many, but not all restraint systems will be equipped with separate straps on each side, with each having a hook or connector for attachment to the lower anchorage and a means of adjusting the tension in the strap. Forward- facing toddler restraints and some rear-facing infant restraints will also be equipped with a tether strap, a hook for attachment to the tether strap anchorage and a means of adjusting the tension of the strap. You will first loosen the adjusters on the lower straps and on the tether strap so that you can more easily attach the hooks or connectors to the vehicle anchorages. Next attach the lower hooks or connectors over the top of the anchorage bars, pushing aside the seat cover material. Then, locate the tether anchorage directly behind the seat where you are placing the child restraint and attach the tether strap to the anchorage, being careful to route the tether strap to provide the most direct path between the anchor and the child restraint. Finally, tighten all three straps as you push the child restraint rearward and downward into the seat, removing slack in the straps according to the child restraint manufacturer’s instruc- tions. WARNING! Improper installation of a child restraint to the LATCH anchorages can lead to failure of an infant or child restraint. The child could be badly injured or killed. Follow the manufacturer’s directions exactly when installing an infant or child restraint. Installing Child Restraints Using the Vehicle Seat Belts The passenger seat belts are equipped with either cinch- ing latch plates or automatic locking retractors, which are designed to keep the lap portion tight around the child restraint so that it is not necessary to use a locking clip. If the seat belt has a cinching latch plate, pulling up on the shoulder portion of the lap/shoulder belt will tighten the belt. The cinching latch plate will keep the belt tight; however, any seat belt system will loosen with time, so check the belt occasionally and pull it tight if necessary. THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 71 If the seat belt has an automatic locking retractor, pull the belt from the retractor until there is enough to allow you to pass through the child restraint and slide the latch plate into the buckle. Then, pull the belt until it is all extracted from the retractor. Allow the belt to return to the retractor, pulling on the excess webbing to tighten the lap portion around the child restraint. Refer to “Auto- matic Locking Mode” earlier in this section. In the rear seat, you may have trouble tightening the lap/shoulder belt on the child restraint because the buckle or latch plate is too close to the belt path opening on the restraint. Disconnect the latch plate from the buckle and twist the short buckle-end belt several times to shorten it. Insert the latch plate into the buckle with the release button facing out. If the belt still can’t be tightened, or if pulling and pushing on the restraint loosens the belt, you may need to do something more. Disconnect the latch plate from 72 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE the buckle, turn the buckle around, and insert the latch plate into the buckle again. If you still can’t make the child restraint secure, try a different seating position. To attach a child restraint tether strap: Tether Strap Mounting Route the tether strap over the seatback and attach the hook to the tether anchor located on the back of the seat. For the outboard seating positions, route the tether over the head rests, and attach the hook to the tether anchor located on the back of the seat. WARNING! An incorrectly anchored tether strap could lead to increased head motion and possible injury to the child. Use only the anchor positions directly behind the child seat to secure a child restraint top tether strap. Transporting Pets Airbags deploying in the front seat could harm your pet. An unrestrained pet will be thrown about and possibly injured, or injure a passenger during panic braking or in a collision. Pets should be restrained in the rear seat in pet harnesses or pet carriers that are secured by seat belts. ENGINE BREAK-IN RECOMMENDATIONS A long break-in period is not required for the engine in your vehicle. Drive moderately during the first 300 miles (500 km). After the initial 60 miles (100 km), speeds up to 50 or 55 mph (80 or 90 km/h) are desirable. While cruising, brief full-throttle acceleration within the limits of local traffic laws, contributes to a good break-in. Wide-open throttle acceleration in low gear can be detri- mental and should be avoided. The engine oil installed in the engine at the factory is a high-quality energy conserving type lubricant. Oil changes should be consistent with anticipated climate conditions under which vehicle operations will occur. The recommended viscosity and quality grades are shown in “Engine Oil”, under “Maintenance Procedures” in section 7 of this manual. NON-DETERGENT OR STRAIGHT MINERAL OILS MUST NEVER BE USED. THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 73 A new engine may consume some oil during its first few thousand miles (kilometers) of operation. This should be considered a normal part of the break-in and not inter- preted as an indication of difficulty. SAFETY TIPS Transporting Passengers NEVER TRANSPORT PASSENGERS IN THE CARGO AREA. WARNING! • It is extremely dangerous to ride in a cargo area, inside or outside of a vehicle. In a collision, people riding in these areas are more likely to be seri- ously injured or killed. (Continued) 74 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE WARNING! (Continued) • Do not allow people to ride in any area of your vehicle that is not equipped with seats and seat belts. • Be sure everyone in your vehicle is in a seat and using a seat belt properly. Exhaust Gas WARNING! Exhaust gases can injure or kill. They contain carbon monoxide (CO), which is colorless and odorless. Breathing it can make you unconscious and can eventually poison you. To avoid breathing (CO) follow these safety tips: Do not run the engine in a closed garage or in confined areas any longer than needed to move your vehicle in or out of the area. If it is necessary to sit in a parked vehicle with the engine running, adjust your heating or cooling controls to force outside air into the vehicle. Set the blower at high speed. If you are required to drive with the trunk/liftgate open, make sure that all windows are closed and the climate control BLOWER switch is set at high speed. DO NOT use the recirculation mode. The best protection against carbon monoxide entry into the vehicle body is a properly maintained engine exhaust system. Whenever a change is noticed in the sound of the exhaust system, when exhaust fumes can be detected inside the vehicle, or when the underside or rear of the vehicle is damaged, have a competent mechanic inspect the com- plete exhaust system and adjacent body areas for broken, damaged, deteriorated, or mispositioned parts. Open seams or loose connections could permit exhaust fumes to seep into the passenger compartment. In addition, inspect the exhaust system each time the vehicle is raised for lubrication or oil change. Replace as required. Safety Checks You Should Make Inside the Vehicle Seat Belts Inspect the belt system periodically, checking for cuts, frays, and loose parts. Damaged parts must be replaced immediately. Do not disassemble or modify the system. THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 75 Front seat belt assemblies must be replaced after a collision. Rear seat belt assemblies must be replaced after a collision if they have been damaged (i.e., bent retractor,
