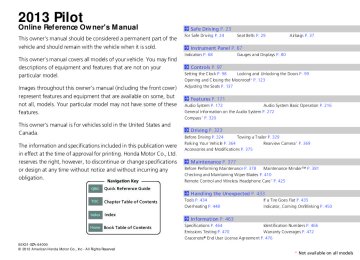

2013 Honda Pilot Owners Manual

Contents

This owner’s manual should be considered a permanent part of the vehicle and should remain with the vehicle when it is sold.

This owner’s manual covers all models of your vehicle. You may find descriptions of equipment and features that are not on your particular model.

Images throughout this owner’s manual (including the front cover) represent features and equipment that are available on some, but not all, models. Your particular model may not have some of these features.

This owner’s manual is for vehicles sold in the United States and Canada.

The information and specifications included in this publication were in effect at the time of approval for printing. Honda Motor Co., Ltd. reserves the right, however, to discontinue or change specifications or design at any time without notice and without incurring any obligation.

Navigation Key

QRG Quick Reference Guide

TOC

Chapter Table of Contents

Index

Index

Home Book Table of Contents

2 Safe Driving P. 23
For Safe Driving P. 24

Seat Belts P. 29

Airbags P. 37

2 Instrument Panel P. 67
Indicators P. 68

Gauges and Displays P. 80

2 Controls P. 97
Setting the Clock P. 98
Opening and Closing the Moonroof * P. 123
Adjusting the Seats P. 137

Locking and Unlocking the Doors P. 99

2 Features P. 171
Audio System P. 172
General Information on the Audio System P. 272
Compass * P. 320

Audio System Basic Operation P. 216

2 Driving P. 323
Before Driving P. 324
Parking Your Vehicle P. 364
Accessories and Modifications P. 375

Towing a Trailer P. 329

Rearview Camera* P. 369

2 Maintenance P. 377
Before Performing Maintenance P. 378 Maintenance Minder™ P. 381
Checking and Maintaining Wiper Blades P. 410
Remote Control and Wireless Headphone Care * P. 425

2 Handling the Unexpected P. 433
Tools P. 434
Overheating P. 448

If a Tire Goes Flat P. 435
Indicator, Coming On/Blinking P. 450

2 Information P. 463
Specifications P. 464
Emissions Testing P. 470
Gracenote® End User License Agreement P. 476

Identification Numbers P. 466
Warranty Coverages P. 472

* Not available on all models

2013 Pilot Online Reference Owner's Manual00X31-SZA-64000 © 2012 American Honda Motor Co., Inc - All Rights ReservedChild Safety P. 52

Exhaust Gas Hazard P. 65

Safety Labels P. 66

Opening and Closing the Tailgate P. 110 Security System P. 118
Operating the Switches Around the Steering Wheel P. 124
Interior Lights/Interior Convenience Items P. 150

Opening and Closing the Windows P. 120
Adjusting the Mirrors P. 135
Climate Control System P. 165

Rear Entertainment System * P. 251
HomeLink® Universal Transceiver * P. 276

Audio Error Messages P. 266

Bluetooth® HandsFreeLink® P. 278

Off-Highway Driving Guidelines P. 340 When Driving P. 342
Multi-View Rear Camera * P. 370

Refueling P. 371

Braking P. 360
Fuel Economy P. 374

Contents

2013 Pilot

Quick Reference Guide P. 2

Safe Driving P. 23

Instrument Panel P. 67

Controls P. 97

Features P. 171

Driving P. 323

Maintenance P. 377

Maintenance Under the Hood P. 389
Checking and Maintaining Tires P. 414
Climate Control System Maintenance P. 427

Replacing Light Bulbs P. 402
Battery P. 423

Remote Transmitter Care P. 424
Cleaning P. 428

Handling the Unexpected P. 433

Engine Does Not Start P. 444
Fuses P. 454

Jump Starting P. 445

Shift Lever Does Not Move P. 447

Emergency Towing P. 459

When You Cannot Open the Tailgate P. 461

Devices that Emit Radio Waves P. 467
Authorized Manuals P. 474

Reporting Safety Defects P. 469
Customer Service Information P. 475

* Not available on all models

Information P. 463

Index P. 478

Quick Reference Guide Visual Index

QRG

Index

Home

❙ System Indicators (P68) ❙ Gauges (P 80) ❙ Information Display * (P81) ❙ Multi-Information Display * (P85) ❙ Hazard Warning Button

❙ Audio System (P172) ❙ Navigation System * () See Navigation System Manual

❙ Climate Control System (P165)

❙ Rear Window Defogger (P131) ❙ Heated Mirror Button * (P131)

❙ Ignition Switch (P124)

❙ Steering Wheel Adjustments (P134)

❙

(Vehicle Stability Assist (VSA®)

System OFF) Button (P352)

* Not available on all models

❙ Headlights/Turn Signals (P125) ❙ Fog Lights * (P127)

(Select/Reset) Knob (P81)

❙ ❙ Brightness Control (P130)

❙ Cruise Control Buttons (P348)

❙ Wipers/Washers (P128)

❙ Horn (Press an area around

.)

(Information) Button * (P85)

❙ SEL/RESET Button * (P81) ❙ ❙ Navigation System Voice Control Buttons * () See Navigation System Manual ❙ Bluetooth® HandsFreeLink® System Voice Control Buttons (P301)

* Not available on all models

❙ Remote Audio Control Buttons (P184) (P217)

QRG

Index

Home

Visual Index

QRG

Index

Home

❙ Power Window Switches (P120) ❙ Power Door Lock Master Switch (P103) ❙ Door Mirror Controls (P136) ❙ Parking Brake Release Handle (P360)

❙ Hood Release Handle (P390) ❙ Fuel Fill Door Release Handle (P372)

❙ Rearview Mirror (P135) ❙ Driver's Front Airbag (P40) ❙ Passenger's Front Airbag (P40) ❙ Shift Lever Automatic Transmission (P345)

❙ Glove Box (P 152) ❙ Accessory Power Socket (P156) ❙ Seat Heater Switches * (P162) ❙ Parking Brake (P360) ❙ Interior Fuse Box (P456)

* Not available on all models

❙ Sun Visors ❙ Vanity Mirrors ❙ Moonroof Switch * (P123) ❙ Map Lights (P151) ❙ Sunglasses Holder (P161) ❙ HomeLinkr Button (P276)

❙ Side Curtain Airbags (P47) ❙ Seat Belts (P29) ❙ Grab Handle ❙ Coat Hook (P159)

❙ Seat Belt (Installing a Child Seat) (P60) ❙ Seat Belt to Secure a Child Seat (P61) ❙ Accessory Power Socket (P156) ❙ USB Adapter Cable (P173) ❙ Auxiliary Input Jack (P173)

❙ Accessory Power Socket (P157) ❙ Third Row Seat (P57)

❙ Second Row Seat (P146) ❙ Front Seat (P137) ❙ Side Airbags (P44)

* Not available on all models

QRG

Index

Home

Visual Index

QRG

Index

Home

❙ Maintenance Under the Hood (P389) ❙ Windshield Wipers (P128) ❙ Power Door Mirrors (P136)

(P410)

(P402)

❙ Door Lock/Unlock Control (P101) ❙ Headlights (P125) ❙ Front Turn Signal/Parking Lights (P125) ❙ Side Marker Lights (P125) ❙ Tires (P414) ❙ Fog Lights * (P127)

(P403)

(P405)

(P435)

(P405)

❙ How to Refuel (P372) ❙ High-Mount Brake Light (P409) ❙ Rear Wiper (P129) ❙ Opening/Closing the Tailgate (P110) ❙ Tailgate Release Button (P111) ❙ Rearview Camera * (P369)

(P410)

❙ Brake/Taillights (P406) ❙ Back-Up Lights (P406) ❙ Rear Turn Signal Lights (P406) ❙ Rear Side Marker Lights (P406)

* Not available on all models

Safe Driving (P 23)

QRG

Airbags (P37) ● Your vehicle is fitted with airbags to help protect you and

your passengers during a moderate-to-severe collision.

Child Safety (P52) ● All children 12 and younger should be seated in the rear seat. ● Smaller children should be properly restrained in a forward-facing child seat. ● Infants must be properly restrained in a rear-facing child seat.

Exhaust Gas Hazard (P65) ● Your vehicle emits dangerous exhaust gases that contain carbon

monoxide. Do not run the engine in confined spaces where carbon monoxide gas can accumulate.

Seat Belts (P29) ● Fasten your seat belt and sit upright well

back in the seat.

● Check that your passengers are wearing

their seat belts correctly.

Before Driving Checklist (P28) ● Before driving, check that the front seats, head restraints, steering wheel, and mirrors have been properly adjusted.

Fasten your lap belt as low as possible.

Index

Home

Instrument Panel (P 67) Gauges (P80)/Information Display * (P81)/ Multi-Information Display * (P85)/System Indicators (P68)

QRG

System Indicators

Malfunction Indicator Lamp Low Oil Pressure Indicator Charging System Indicator

Daytime Running Lights Indicator *

Vehicle Stability Assist (VSA®) System Indicator

VSA® OFF Indicator

Power Tailgate Indicator *

U.S.

Canada

Fuel Economy Indicator

VTM-4r system Indicator *

Immobilizer System Indicator

Parking Brake and Brake System Indicator

Index

U.S.

Home

Canada

Information Display */ Multi-Information Display *

Speedometer

Tachometer

Fuel Gauge

Low Fuel Indicator Shift Lever Position Indicator

System Indicators

TPMS Indicator * Low Tire Pressure Indicator */Low Tire Pressure/TPMS Indicator * Maintenance Minder Indicator * Washer Level Indicator *

Lights Reminders

Lights On Indicator

High Beam Indicator

Fog Light Indicator *

System Indicators

Turn Signal and Hazard Warning Indicators Security System Alarm Indicator *

Seat Belt Reminder Indicator Supplemental Restraint System Indicator

Side Airbag Off Indicator

CRUISE MAIN Indicator

CRUISE CONTROL Indicator

Starter System Indicator *

Door Open Indicator

A/T Temperature Indicator * System Message Indicator * Anti-lock Brake System (ABS) Indicator

U.S.

Canada

U.S.

Canada

* Not available on all models

Models without navigation system

clock adjustment mode screen.

Controls (P97) Clock (P 98) a Press the CLOCK button to access the b Press c Rotate d Press e To enter the selection, press

adjust (12/24 hour mode, hour, minutes).

steps 2 to 4 to adjust other items.

to make the adjustment.

and

to select the item you want to

to enter your selection. Repeat

select EXIT, then press

Models with navigation system The navigation system receives signals from GPS satellites, updating the clock automatically.

Turn Signals (P125) Turn Signal Control Lever

Right

Lights (P125)

Light Control Switches

High Beam

Low Beam

Flashing

Left

QRG

Index

Home

Steering Wheel (P134) ● To adjust, pull the adjustment lever

towards you, adjust to the desired position, then lock the lever back in place.

Tailgate (P110)

● With all the doors unlocked, press the tailgate release button and lift open the tailgate.

Models with the power tailgate ● Press the power tailgate button on the

driver’s door or the remote transmitter to open and close the power tailgate.

Glass Hatch (P116) ● To open the glass hatch, press the glass

hatch release button on the tailgate.

Models without the power tailgate ● Press the glass hatch release button on

the driver’s door or the remote transmitter to open the glass hatch.

Wipers and Washers (P128)

QRG

Wiper/Washer Control Lever

Adjustment Ring

: Long Delay : Short Delay

Pull toward you to spray washer fluid.

MIST OFF INT: Low speed with intermittent LO: Low speed wipe HI: High speed wipe

Index

Home

10

Power Door Mirrors (P136) ● With the ignition switch in ON (w, move

the selector switch to L or R.

● Push the appropriate edge of the

adjustment switch to adjust the mirror.

● Place the selector switch in the L or R

position to use the reverse tilt door mirror feature.

Selector Switch

Power Windows (P120) ● With the ignition switch in ON (w, open

and close the power windows.

● If the power window lock button is in

the off position, each passenger's window can be opened and closed with its own switch.

● If the power window lock button is in the

on position (indicator is on), each passenger's window switch is disabled.

Power Window Lock Button

Indicator

Adjustment Switch

Window Switch

QRG

Index

Home

11

Climate Control System (P165) ● Press the AUTO button to activate the climate control system. ● Press the ● Press the Models with navigation system The climate control system is voice operable. See the navigation system manual for complete details.

button to turn the system on or off.

button to defrost the windshield.

(On/Off) Button

AUTO Button

(Recirculation) Button

SYNC (Synchronized) Button

Rear Climate Control ● Press the AUTO button to activate the

rear climate control system.

● Press the OFF button repeatedly to turn

the system off.

Rear Passenger Compartment Temperature Control Bar

Fan Control Bar

QRG

Driver’s Side Temperature Control Dial

A/C (Air Conditioning) Button

MODE Control Button

Air flows from floor and windshield defroster vents. Air flows from floor vents.

Air flows from floor and dashboard vents. Air flows from dashboard vents.

Index

Home

12

Passenger’s Side Temperature Control Dial

(Rear Window

Defogger/Heated Mirror *) Button

(Windshield

Defroster) Button Fan Control Bar

AUTO Button

OFF Button

Airflows from the rear floor vents

Airflow is divided between the rear floor vents and rear ceiling vents.

Airflows from the rear ceiling vents

Features (P171) Audio System (P172)

Button * FM/AM Button *

(Volume/

VOL/ Power) Knob

SKIP Bar

SCAN Button

Interface Dial * AUDIO Button *

● Audio Remote Controls (P184)

MODE Button

QRG

VOL Button

CH Button

● VOL (Volume) Button

Press and release to adjust the volume up/ down.

● MODE Button

Press and release to change the audio mode: FM1/FM2/AM/XM1 */XM2 */CD/ CD-L */HDD */AUX.

● CH (Channel) Button

Radio:Press and release to change the

preset station. Press and hold to select the next or previous strong station.

CD/CD Library */HDD */USB device:

Press and release to skip to the beginning of the next song or return to the beginning of the current song. Press and hold to change a folder.

* Not available on all models

CD Button USB/AUX Button (CD Eject) Button

Preset Buttons (1-6)

CD Slot

HDD Button

PHONE Button

Index

Home

13

Driving (P323) Automatic Transmission (P346) ● Shift to (P and depress the brake pedal when starting the engine.

● Shifting

Park Turn off or start the engine. Transmission is locked. Reverse

Release Button

Shift Lever

(d Button

Neutral Transmission is not locked. Drive Normal driving. Second Used to increase engine braking (the transmission is locked in 2nd gear) First Used to further increase engine braking (the transmission is locked in 1st gear)

Drive (D3) Press the (d button while the shift lever is in (D. Used when: • Going up or down hills • Towing a trailer in hilly terrain

Depress the brake pedal and press the release button to move out of (P.

Press the release button to move the shift lever.

Move the shift lever without pressing the release button.

QRG

Index

Home

14

VSA® OFF Button (P353) ● The vehicle stability assist (VSA®) system

helps stabilize the vehicle during cornering, and helps maintain traction while accelerating on loose or slippery road surfaces.

● VSA® comes on automatically every time

you start the engine.

● To turn VSA® on or off, press and hold

the button until you hear a beep. Cruise Control (P348) ● Cruise control allows you to maintain a set speed without keeping your foot on the accelerator pedal.

● To use cruise control, press the CRUISE button, then press DECEL/SET button once you have achieved the desired speed (above 25 mph or 40 km/h).

Tire Pressure Monitoring System (TPMS) (P355) ● TPMS monitors tire pressure. ● TPMS is turned on automatically every

time you start the engine.

Refueling (P371) Fuel recommendation: Unleaded gasoline with a pump octane number 87 or

higher required

Fuel tank capacity: 21 US gal (79.5 L)

a Pull the fuel fill door

release handle.

QRG

b Turn the fuel fill cap

slowly to remove the cap.

c Place the cap in the

holder on the fuel fill door.

d After refueling, screw

the cap back on until it clicks at least once.

Index

Home

15

Maintenance (P377) Under the Hood (P389) ● Check engine oil, engine coolant, and windshield washer

fluid. Add when necessary.

● Check brake fluid. ● Check the battery condition monthly.

a Pull the hood release handle under the corner of

the dashboard.

QRG

Index

Home

16

b Locate the hood latch lever, pull the lever up, and lift up

the hood.

c When finished, close the hood and make sure it is firmly

locked in place.

Wiper Blades (P410) ● Replace blades if they leave streaks across the windshield.

Lights (P402) ● Inspect all lights regularly.

Tires (P414) ● Inspect tires and wheels regularly. ● Check tire pressures regularly. ● Install snow tires for winter driving.

Handling the Unexpected (P433) Flat Tire (P435) ● Park in a safe location and replace the

Engine Won't Start (P444) ● If the battery is dead, jump start using a

flat tire with the compact spare tire in the cargo area.

booster battery.

Overheating (P448) ● Park in a safe location. If you do not see steam under the hood, open the hood, and let the engine cool down.

QRG

Indicators Come On (P450) ● Identify the indicator and consult the

owner's manual.

Blown Fuse (P454) ● Check for a blown fuse if an electrical

device does not operate.

Emergency Towing (P459) ● Call a professional towing service if you

need to tow your vehicle.

Index

Home

17

What to Do If

QRG

The ignition switch does not turn from (0 to (q. Why?

● The steering wheel may be locked. ● Try to turn the steering wheel left and right

while turning the ignition key.

The ignition switch does not turn from (q to (0 and I cannot remove the key. Why?

The shift lever should be moved to (P.

Why does the brake pedal pulsate slightly when applying the brakes?

This can occur when the ABS activates, and does not indicate a problem. Apply firm, steady pressure on the brake pedal. Never pump the brake pedal.

The rear door cannot be opened from inside the vehicle. Why?

Check if the childproof lock is in the lock position. If so, open the rear door with the outside door handle. To cancel this function, push the lever to the unlock position.

Index

Home

18

Why do the doors lock after I unlocked the doors using a remote transmitter?

If you do not open the doors within 30 seconds, the doors are relocked automatically for security.

QRG

Why does the beeper sound when I open the driver's door?

The beeper sounds when: ● The key is left in the ignition switch. ● The exterior lights are left on.

Why does the beeper sound when I start driving?

The beeper sounds when: ● Driver and/or front passenger are not wearing their seat belts. ● The parking brake lever is not fully released.

Why do I hear a screeching sound when I apply the brake pedal?

The brake pads may need to be replaced. Have your vehicle inspected by a dealer.

Index

Home

19

California Proposition 65 Warning WARNING: This product contains or emits chemicals known to the state of California to cause cancer and birth defects or other reproductive harm.

Event Data Recorders This vehicle is equipped with an event data recorder (EDR). The main purpose of an EDR is to record, in certain crash or near crash-like situations, such as an air bag deployment or hitting a road obstacle, data that will assist in understanding how a vehicle’s systems performed. The EDR is designed to record data related to vehicle dynamics and safety systems for a short period of time, typically 30 seconds or less. The EDR in this vehicle is designed to record such data as: • How various systems in your vehicle were operating; • Whether or not the driver and passenger safety belts were

buckled/fastened;

• How far (if at all) the driver was depressing the accelerator

and/or brake pedal; and,

• How fast the vehicle was traveling. These data can help provide a better understanding of the circumstances in which crashes and injuries occur. NOTE: EDR data are recorded by your vehicle only if a non-trivial crash situation occurs; no data are recorded by the EDR under normal driving conditions and no personal data (e.g., name, gender, age, and crash location) are recorded. However, other parties, such as law enforcement, could combine the EDR data with the type of personally identifying data routinely acquired during a crash investigation.

To read data recorded by an EDR, special equipment is required, and access to the vehicle or the EDR is needed. In addition to the vehicle manufacturer, other parties, such as law enforcement, that have the special equipment, can read the information if they have access to the vehicle or the EDR.

The data belongs to the vehicle owner and may not be accessed by anyone else except as legally required or with the permission of the vehicle owner.

Service Diagnostic Recorders This vehicle is equipped with service-related devices that record information about powertrain performance. The data can be used to verify emissions law requirements and/or help technicians diagnose and solve service problems. It may also be combined with data from other sources for research purposes, but it remains confidential.

California Perchlorate Contamination Prevention Act The airbags, seat belt tensioners, and CR type batteries in this vehicle may contain perchlorate materials - special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate/

As you read this manual, you will find information that is preceded by a symbol. This information is intended to help you avoid damage to your vehicle, other property, or the environment.

NOTICE

QRG

Index

Home

20

A Few Words About Safety

Your safety, and the safety of others, is very important. And operating this vehicle safely is an important responsibility.

To help you make informed decisions about safety, we have provided operating procedures and other information on labels and in this manual. This information alerts you to potential hazards that could hurt you or others.

Of course, it is not practical or possible to warn you about all the hazards associated with operating or maintaining your vehicle. You must use your own good judgement.

You will find this important safety information in a variety of forms, including:

● Safety Labels - on the vehicle. ● Safety Messages - preceded by a safety alert symbol 3 and one of three signal words: DANGER, WARNING, or CAUTION. These signal words mean:

3DANGER

You WILL be KILLED or SERIOUSLY HURT if you don't follow instructions.

3WARNING You CAN be KILLED or SERIOUSLY HURT if

you don't follow instructions.

3CAUTION

You CAN be HURT if you don't follow instructions.

● Safety Headings - such as Important Safety Precautions. ● Safety Section - such as Safe Driving. ● Instructions - how to use this vehicle correctly and safely.

This entire book is filled with important safety information - please read it carefully.

QRG

Index

Home

21

QRG

Index

Home

22

You can find many safety recommendations throughout this chapter, and throughout this manual.

Safe Driving

QRG

For Safe Driving

Important Safety Precautions ............. 24
Important Handling Information......... 26
Your Vehicle's Safety Features............ 27

Seat Belts

About Your Seat Belts........................ 29
Fastening a Seat Belt.......................... 32
Seat Belt Inspection............................ 36

Airbags

Airbag System Components............... 37
Types of Airbags ................................ 40
Front Airbags (SRS) ............................ 40

Side Airbags ...................................... 44
Side Curtain Airbags .......................... 47
Airbag System Indicators.................... 48
Airbag Care ....................................... 51

Child Safety

Protecting Child Passengers ............... 52
Safety of Infants and Small Children .......54
Safety of Larger Children ................... 63

Exhaust Gas Hazard

Carbon Monoxide Gas....................... 65

Safety Labels

Label Locations .................................. 66

Index

Home

23

1Important Safety Precautions

Some states, provinces and territories prohibit the use of cell phones other than hands-free devices by the driver while driving.

For Safe Driving

The following pages explain your vehicle's safety features and how to use them properly. The safety precautions below are ones that we consider to be among the most important.

Important Safety Precautions ■ Always wear your seat belt A seat belt is your best protection in all types of collisions. Airbags are designed to supplement seat belts, not replace them. So even though your vehicle is equipped with airbags, make sure you and your passengers always wear your seat belts, and wear them properly.

■ Restrain all children Children age 12 and under should ride properly restrained in a back seat, not the front seat. Infants and small children should be restrained in a child seat. Larger children should use a booster seat and a lap/shoulder seat belt until they can use the belt properly without a booster seat.

■ Be aware of airbag hazards While airbags can save lives, they can cause serious or fatal injuries to occupants who sit too close to them, or are not properly restrained. Infants, young children, and short adults are at the greatest risk. Be sure to follow all instructions and warnings in this manual.

■ Don't drink and drive Alcohol and driving don't mix. Even one drink can reduce your ability to respond to changing conditions, and your reaction time gets worse with every additional drink. So don't drink and drive, and don't let your friends drink and drive, either.

QRG

TOC

Index

Home

24

uuFor Safe DrivinguImportant Safety Precautions

■ Pay appropriate attention to the task of driving safely Engaging in cell phone conversation or other activities that keep you from paying close attention to the road, other vehicles, and pedestrians could lead to a crash. Remember, situations can change quickly, and only you can decide when it is safe to divert some attention away from driving.

■ Control your speed Excessive speed is a major factor in crash injuries and deaths. Generally, the higher the speed, the greater the risk, but serious injuries can also occur at lower speeds. Never drive faster than is safe for current conditions, regardless of the maximum speed posted.

■ Keep your vehicle in safe condition Having a tire blowout or a mechanical failure can be extremely hazardous. To reduce the possibility of such problems, check your tire pressures and condition frequently, and perform all regularly scheduled maintenance.

QRG

TOC

Index

Home

25

uuFor Safe DrivinguImportant Handling Information

QRG

TOC

Important Handling Information Your vehicle has higher ground clearance than a passenger vehicle designed for use only on pavement. Higher ground clearance has many advantages for off-highway driving. It allows you to travel over bumps, obstacles, and rough terrain. It also provides good visibility so you can anticipate problems earlier.

These advantages come at some cost. Because your vehicle is taller and rides higher off the ground, it has a higher center gravity making it more susceptible to tripping or roll over if you make abrupt turns. Utility vehicles have a significantly higher rollover rate than other types of vehicles. In a rollover crash, an unbelted person is significantly more likely to die than a person wearing a seat belt. As a reminder, make sure you and your passengers always wear seat belts.

1Important Handling Information

For information on how to reduce the risk of rollover, read:

2 Driving Guidelines for Your Utility Vehicle

P. 344

2 Off-Highway Driving Guidelines P. 340

Failure to operate your vehicle correctly might result in a crash or a rollover.

Index

Home

26

Your Vehicle's Safety Features

12

10

10

11

10

11
12

Safety Cage Crush Zones Seats and Seat-Backs Head Restraints Collapsible Steering Column Seat Belts Front Airbags Side Airbags Side Curtain Airbags Door Locks Seat Belt Tensioners Occupant Position Detection System (OPDS) Sensor

The following checklist will help you take an active role in protecting yourself and your passengers.

Continued

uuFor Safe DrivinguYour Vehicle's Safety Features

1Your Vehicle's Safety Features

Your vehicle is equipped with many features that work together to help protect you and your passengers during a crash.

Some features do not require any action on your part. These include a strong steel framework that forms a safety cage around the passenger compartment, front and rear crush zones, a collapsible steering column, and tensioners that tighten the front seat belts in a sufficient crash.

However, you and your passengers cannot take full advantage of these features unless you remain seated in the correct position and always wear your seat belts. In fact, some safety features can contribute to injuries if they are not used properly.

QRG

TOC

Index

Home

27

1Safety Checklist

If the door and/or the tailgate open indicator is on, a door and/or the tailgate is not completely closed. Close all doors and the tailgate tightly until the indicator goes off.
