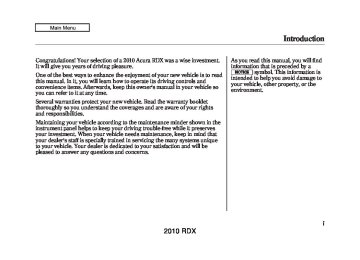

Congratulations! Your selection of a 2010 Acura RDX was a wise investment. It will give you years of driving pleasure. One of the best ways to enhance the enjoyment of your new vehicle is to read this manual. In it, you will learn how to operate its driving controls and convenience items. Afterwards, keep this owner's manual in your vehicle so you can refer to it at any time. Several warranties protect your new vehicle. Read the warranty booklet thoroughly so you understand the coverages and are aware of your rights and responsibilities. Maintaining your vehicle according to the maintenance minder shown in the instrument panel helps to keep your driving trouble-free while it preserves your investment. When your vehicle needs maintenance, keep in mind that your dealer's staff is specially trained in servicing the many systems unique to your vehicle. Your dealer is dedicated to your satisfaction and will be pleased to answer any questions and concerns.
Introduction
As you read this manual, you will find information that is preceded by a
symbol. This information is intended to help you avoid damage to your vehicle, other property, or the environment.
2010 RDX09/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
Introduction
California Proposition 65 Warning
WARNING: This product contains or emits chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Event Data Recorders This vehicle is equipped with one or more devices commonly referred to as event data recorders. These devices record front seat belt use, front passenger seat occupancy, airbag deployment data, and the failure of any airbag system component. This data belongs to the vehicle owner and may not be accessed by anyone else except as legally required or with the permission of the vehicle owner. Service Diagnostic Recorders This vehicle is equipped with service-related devices that record information about powertrain performance. The data can be used to verify emissions law requirements and/or help technicians diagnose and solve service problems. It may also be combined with data from other sources for research purposes, but it remains confidential.
ii
2010 RDX09/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
A Few Words About Safety
Your safety, and the safety of others, is very important. And operating this vehicle safely is an important responsibility. To help you make informed decisions about safety, we have provided operating procedures and other information on labels and in this manual. This information alerts you to potential hazards that could hurt you or others. Of course, it is not practical or possible to warn you about all the hazards associated with operating or maintaining your vehicle. You must use your own good judgement.
You will find this important safety information in a variety of forms, including: ● Safety Labels - on the vehicle. ● Safety Messages - preceded by a safety alert symbol
and one of
three signal words: DANGER, WARNING, orCAUTION . These signal words mean:
You WILL be KILLED or SERIOUSLY HURT if you don't follow instructions.
You CAN be KILLED or SERIOUSLY HURT if you don't follow instructions.
You CAN be HURT if you don't follow instructions.
● Safety Headings - such as Important Safety Reminders or Important
Safety Precautions.
● Safety Section - such as Driver and Passenger Safety. ● Instructions - how to use this vehicle correctly and safely. This entire book is filled with important safety information - please read it carefully.
iii
2010 RDX09/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
Important Handling Information
Your RDX has higher ground clearance than a passenger vehicle designed for use only on pavement. Higher ground clearance has many advantages for off-highway driving. It allows you to travel over bumps, obstacles, and rough terrain. It also provides good visibility so you can anticipate problems earlier. These advantages come at some cost. Because your vehicle is taller and rides higher off the ground, it has a high center of gravity. This means your vehicle can tip or roll over if you make abrupt turns. Utility vehicles have a significantly higher rollover rate than other types of vehicles. In a rollover crash, an unbelted person is significantly more likely to die than a person wearing a seat belt. As a reminder, make sure you and your passengers always wear seat belts. For information on how to reduce the risk of rollover, read ‘‘Driving Guidelines’’ on page 372 of this manual and the Off-HighwayDrivingGuidelinessection on page 405. Failure to operate your vehicle correctly might result in loss of control or an accident.
iv
2010 RDX09/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
Contents
Owner's Identification Form
Your Vehicle at a Glance (main controls).................................................................................................................... 3
Driver and Passenger Safety (seat belts, SRS, and child protection)........................................................................... 5
Instruments and Controls (indicators, gauges, multi-information display, dashboard, and steering column) ........... 61
Features (climate control, audio, steering wheel, security, cruise control, HomeLink®, and other convenience items)... 163
Before Driving (fuel, vehicle break-in, and cargo loading)....................................................................................... 351
Driving (engine and transmission operation) ........................................................................................................... 371
Maintenance (minders, fluid checking, minor services, and vehicle storage).......................................................... 409
Taking Care of the Unexpected (flat tire, jump starting, overheating, and fuses) ................................................... 453
Technical Information (vehicle specifications, tires, and emissions controls) ........................................................ 477
Warranty and Client Relations (U.S. and Canada only) (warranty and contact information)............................... 493
Index.............................................................................................................................................................................. I
Service Information Summary (fluid capacities and tire pressures)
00X31-STK-6310 © 2009 American Honda Motor Co., Inc. - All Rights Reserved2010 RDX Online Reference Owner's Manual2010 RDX09/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
Overview of Contents
Contents A convenient reference to the sections in this manual. Your Vehicle at a Glance A quick reference to the main controls in your vehicle. Driver and Passenger Safety Important information about the proper use and care of your vehicle's seat belts, an overview of the supplemental restraint system, and valuable information on how to protect children with child restraints. Instruments and Controls Explains the purpose of each instrument panel indicator and gauge, and how to use the controls on the dashboard and steering column. Features How to operate the climate control system, the audio system, and other convenience features.
Before Driving What gasoline to use, how to break- in your new vehicle, and how to load luggage and other cargo. Driving The proper way to start the engine, shift the transmission, and park; plus what you need to know if you're planning to tow a trailer. Maintenance The maintenance minder shows you when you need to take your vehicle to the dealer for maintenance service. There is also a list of things to check and instructions on how to check them. Taking Care of the Unexpected This section covers several problems motorists sometimes experience, and details how to handle them.
Technical Information ID numbers, dimensions, capacities, and technical information. Warranty and Client Relations (U.S. and Canada only) A summary of the warranties covering your new vehicle, and how to contact us for any reason. Refer to your warranty manual for detailed information. Index Service Information Summary A summary of the information you need when you pull up to the fuel pump.
2010 RDX09/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
Your Vehicle at a Glance
INSTRUMENT PANEL INDICATORS (P. 63) GAUGES (P. 73)
DRIVER'S FRONT AIRBAG (P. 10, 26)
DRIVING POSITION MEMORY SYSTEM (P. 148)
POWER DOOR LOCK MASTER SWITCH (P. 126) POWER WINDOW SWITCHES (P. 142) HOOD RELEASE HANDLE (P. 355)
AUDIO SYSTEMꭧ1
(P. 174)
REARVIEW MONITORꭧ1
(P. 348)
CEILING CONSOLEꭧ3
MIRROR CONTROL AUTO BUTTON (P. 146)
PASSENGER'S FRONT AIRBAG (P. 10, 26)
CLIMATE CONTROL SYSTEM (P. 164)
POWER DOOR LOCK MASTER SWITCH (P. 126)
POWER WINDOW SWITCH (P. 142)
FUEL FILL DOOR RELEASE HANDLE (P. 353) Vehicle with navigation system is shown.
PARKING BRAKE PEDAL (P. 150)
ACCESSORY POWER SOCKET (P. 157)
ꭧ1: ꭧ2: ꭧ3:
On models without navigation system. On models with navigation system. HomeLink® buttons (P. 303) Moonroof Switch (P. 144) Front Ceiling Light Switch (P. 151)
AUDIO SYSTEMꭧ2
(P. 216)
USB ADAPTER CABLE (P. 199, 207, 263, 274)
AUTOMATIC TRANSMISSION (P. 376)
CONTINUED
2010 RDX09/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
Your Vehicle at a Glance
HEADLIGHTS/TURN SIGNAL/FOG LIGHTS (P. 116/119)
REMOTE AUDIO CONTROL BUTTONS (P. 289)
PADDLE SHIFTERS (P. 380)
WINDSHIELD WIPERS/WASHERS/ REAR WINDOW WIPER/WASHER (P. 114/115)
VEHICLE STABILITY ASSIST (VSA) OFF SWITCH (P. 396)
MIRROR CONTROLS (P. 146)
VOICE CONTROL
BUTTONSꭧ3
BLUETOOTH HANDSFREELINK BUTTONS (P. 306)
STEERING WHEEL ADJUSTMENTS (P. 122)
UPPER DISPLAYꭧ3
(P. 173)
HAZARD WARNING BUTTON (P. 121)
NAVIGATION SYSTEMꭧ3/
CENTER DISPLAYꭧ2
(P. 172)
PASSENGER AIRBAG
OFF INDICATOR
(P. 33)
REAR WINDOW DEFOGGER/ HEATED MIRROR BUTTON (P. 121/147)
AUXILIARY INPUT JACK (P. 291)
ACCESSORY POWER SOCKET (P. 157)
HORNꭧ1
MULTI-INFORMATION BUTTONS (P. 74)
CRUISE CONTROL BUTTONS (P. 300)
SEAT HEATER SWITCHES (P. 141)
Vehicle with navigation system is shown. ꭧ1: To use the horn, press the center pad of the steering wheel. ꭧ2: On models without navigation system. ꭧ3: Only on vehicles equipped with navigation system. Refer to the navigation system manual.
2010 RDX09/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
Driver and Passenger Safety
This section gives you important information about how to protect yourself and your passengers. It shows you how to use seat belts properly. It explains how your airbags work, and it tells you how to properly restrain infants and children in your vehicle.
Important Safety Precautions............. 6
Your Vehicle's Safety Features .......... 8
Seat Belts..................................... 9
Airbags...................................... 10
Protecting Adults and Teens ........... 12
1. Close and Lock the Doors........ 12
2. Adjust the Front Seats ............. 13
3. Adjust the Seat-Backs.............. 14
4. Adjust the Head Restraints ...... 15
5. Fasten and Position the Seat
Belts .................................. 15
6. Maintain a Proper Sitting
Position.............................. 17
Advice for Pregnant Women........ 18
Additional Safety Precautions ...... 19
Additional Information About Your
Seat Belts ............................... 20
Seat Belt System Components..... 20
Lap/Shoulder Belt...................... 21
Automatic Seat Belt
Tensioners............................. 22
Seat Belt Maintenance ................ 23
Additional Information About Your
Airbags .................................. 24
Airbag System Components ........ 24
How Your Front Airbags Work.... 26
How Your Side Airbags Work...... 30
How Your Side Curtain Airbags
Work ..................................... 31
How the SRS Indicator Works ..... 32
How the Side Airbag Off
Indicator Works ..................... 32
How the Passenger Airbag Off
Indicator Works ..................... 33
Airbag Service............................ 34
Additional Safety Precautions ...... 35
Protecting Children - General
Guidelines.............................. 36
All Children Must Be
Restrained.............................. 36
All Children Should Sit in a Back
Seat ....................................... 37
The Passenger's Front Airbag
Can Pose Serious Risks........... 37
If You Must Drive with Several
Children ................................ 39
If a Child Requires Close
Attention................................ 39
Additional Safety Precautions ...... 40
Protecting Infants and Small
Children................................. 41
Protecting Infants ....................... 41
Protecting Small Children ........... 42
Selecting a Child Seat ..................... 44
Installing a Child Seat ..................... 45
Installing a Child Seat with
LATCH .................................. 46
Installing a Child Seat with a
Lap/Shoulder Belt.................. 50
Installing a Child Seat with a
Tether ................................... 51
Protecting Larger Children ............. 53
Checking Seat Belt Fit ................ 53
Using a Booster Seat................... 54
When Can a Larger Child Sit in
Front ..................................... 55
Additional Safety Precautions ...... 56
Carbon Monoxide Hazard............... 57
Safety Labels.................................. 58
2010 RDX09/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
Important Safety Precautions
You'll find many safety recommendations throughout this section, and throughout this manual. The recommendations on this page are the ones we consider to be the most important.
Always Wear Your Seat Belt A seat belt is your best protection in all types of collisions. Airbags are designed to supplement seat belts, not replace them. So even though your vehicle is equipped with airbags, make sure you and your passengers always wear your seat belts, and wear them properly (see page 15). Restrain All Children Children age 12 and under should ride properly restrained in a back seat, not the front seat. Infants and small children should be restrained in a child seat. Larger children should use a booster seat and a lap/ shoulder belt until they can use the belt properly without a booster seat (see pages 36 - 56).
Be Aware of Airbag Hazards While airbags can save lives, they can cause serious or fatal injuries to occupants who sit too close to them, or are not properly restrained. Infants, young children, and short adults are at the greatest risk. Be sure to follow all instructions and warnings in this manual. Don't Drink and Drive Alcohol and driving don't mix. Even one drink can reduce your ability to respond to changing conditions, and your reaction time gets worse with every additional drink. So don't drink and drive, and don't let your friends drink and drive, either.
2010 RDX09/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
Important Safety Precautions
Pay Appropriate Attention to the Task of Driving Safely Engaging in mobile phone conversation or other activities that keep you from paying close attention to the road, other vehicles and pedestrians could lead to a crash. Remember, situations can change quickly, and only you can decide when it is safe to divert attention away from driving.
Control Your Speed Excessive speed is a major factor in crash injuries and deaths. Generally, the higher the speed, the greater the risk, but serious injuries can also occur at lower speeds. Never drive faster than is safe for current conditions, regardless of the maximum speed posted.
Keep Your Vehicle in Safe Condition Having a tire blowout or a mechanical failure can be extremely hazardous. To reduce the possibility of such problems, check your tire pressures and condition frequently, and perform all regularly scheduled maintenance (see page 444).
2010 RDX09/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
Your Vehicle's Safety Features
(4)
(9)
(6)
(3)
(6)
(1)
(8)
(7)
(10)
(8)
(2)
(11) (1) Safety Cage (2) Crush Zones (3) Seats and Seat-Backs (4) Head Restraints (5) Collapsible Steering Column (6) Seat Belts (7) Front Airbags (8) Side Airbags (9) Side Curtain Airbags (10) Door Locks (11) Front Seat Belt Tensioners
(5)
(2)
Your vehicle is equipped with many features that work together to protect you and your passengers during a crash. Some features do not require any action on your part. These include a strong steel framework that forms a safety cage around the passenger compartment, front and rear crush zones, a collapsible steering column, and tensioners that tighten the front seat belts in a crash. However, you and your passengers can't take full advantage of these features unless you remain sitting in the correct position and alwayswear yourseatbelts.In fact, some safety features can contribute to injuries if they are not used properly. The following pages explain how you can take an active role in protecting yourself and your passengers.
2010 RDX09/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
Seat Belts Your vehicle is equipped with seat belts in all seating positions. Your seat belt system also includes an indicator on the instrument panel and a beeper to remind you and your passengers to fasten your seat belts. WhyWearSeatBelts Seat belts are the single most effective safety device for adults and larger children. (Infants and smaller children must be properly restrained in child seats.) Not wearing a seat belt properly increases the chance of serious injury or death in a crash, even though your vehicle has airbags. In addition, most states and all Canadian provinces require you to wear seat belts.
Not wearing a seat belt properly increases the chance of serious injury or death in a crash, even though your vehicle has airbags.
Be sure you and your passengers always wear seat belts and wear them properly.
When properly worn, seat belts: ● Keep you connected to the vehicle
so you can take advantage of the vehicle's built-in safety features. ● Help protect you in almost every
type of crash, including: ꭚ frontal impacts ꭚ side impacts ꭚ rear impacts ꭚ rollovers
Your Vehicle's Safety Features
● Help keep you from being thrown
against the inside of the vehicle and against other occupants.
● Keep you from being thrown out of
the vehicle.
● Help keep you in a good position should the airbags ever deploy. A good position reduces the risk of injury from an inflating airbag and allows you to get the best advantage from the airbag. Of course, seat belts cannot completely protect you in every crash. But in most cases, seat belts can reduce your risk of serious injury. WhatYouShouldDo: Always wear your seat belt, and make sure you wear it properly.
2010 RDX09/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
Your Vehicle's Safety Features
Airbags
Your vehicle has a supplemental
restraint system (SRS) with front
airbags to help protect the heads and
chests of the driver and a front seat
passenger during a moderate to
severe frontal collision (see page 26
for more information on how your
front airbags work).
Your vehicle also has side airbags to help protect the upper torso of the driver or a front seat passenger during a moderate to severe side impact (see page 30 for more information on how your side airbags work).
In addition, your vehicle has side curtain airbags to help protect the heads of the driver, front passenger, and passengers in the outer rear seating positions during a moderate to severe side impact or rollover (see page 31 for more information on how your side curtain airbags work).
10
2010 RDX09/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
Your Vehicle's Safety Features
Whatyoushoulddo:Always wear your seat belt properly, and sit upright and as far back from the steering wheel as possible while allowing full control of the vehicle. A front passenger should move their seat as far back from the dashboard as possible.
The rest of this section gives more detailed information about how you can maximize your safety. Remember, however, that no safety system can prevent all injuries or deaths that can occur in a severe crash, even when seat belts are properly worn and the airbags deploy.
The most important things you need to know about your airbags are: ● Airbagsdonotreplaceseatbelts. They are designed to supplement the seat belts.
● Airbagsoffernoprotectioninrear impacts,orminorfrontalorside collisions.
● Airbagscanposeserioushazards.
To do their job, airbags must inflate with tremendous force. So while airbags help save lives, they can cause minor injuries or more serious or even fatal injuries if occupants are not properly restrained or sitting properly.
11
2010 RDX09/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
Protecting Adults and Teens
Introduction The following pages provide instructions on how to properly protect the driver, adult passengers, and teenage children who are large enough and mature enough to drive or ride in the front. See pages 36 - 56 for important guidelines on how to properly protect infants, small children, and larger children who ride in your vehicle. 1. Close and Lock the Doors After everyone has entered the vehicle, be sure the doors and the tailgate are closed and locked.
12
Your vehicle has a door and tailgate open indicator on the multi- information display to indicate when a specific door or the tailgate is not tightly closed. You will see the appropriate indicator and the message for each condition.
When one or more doors are not tightly closed, the ‘‘DOOR OPEN’’ message will come on. When the tailgate is not tightly closed, the ‘‘TAILGATE OPEN’’ message will come on.
When both tailgate and one or more doors are not tightly closed, the ‘‘DOOR & TAILGATE OPEN’’ message will come on. You will also hear a beep when you turn the ignition switch to the ON (II) position, and each time you open any door or the tailgate with the key in the ON (II) position.
2010 RDX09/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
Locking the doors and the tailgate
reduces the chance of someone
being thrown out of the vehicle
during a crash, and it helps prevent
passengers from accidentally
opening a door or the tailgate and
falling out.
Locking the doors and the tailgate
also helps prevent an outsider from
unexpectedly opening a door or the
tailgate when you come to a stop.
See page 126 for how to lock the
doors and the tailgate.
This vehicle has auto door locking/
unlocking features. See pages 103
and 111 for how to set them.
2. Adjust the Front Seats
Adjust the driver's seat as far to the rear as possible while allowing you to maintain full control of the vehicle. Have a front passenger adjust their seat as far to the rear as possible.
Protecting Adults and Teens
If you sit too close to the steering wheel or dashboard, you can be seriously injured by an inflating front airbag, or by striking the steering wheel or dashboard. The National Highway Traffic Safety Administration and Transport Canada recommend that drivers allow at least 10 inches (25 cm) between the center of the steering wheel and the chest. In addition to adjusting the seat, you can adjust the steering wheel up and down, and in and out (see page 122). If you cannot get far enough away from the steering wheel and still reach the controls, we recommend that you investigate whether some type of adaptive equipment may help.
CONTINUED
13
2010 RDX09/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
3. Adjust the Seat-Backs
Protecting Adults and Teens
Sitting too close to a front airbag can result in serious injury or death if the front airbags inflate.
Always sit as far back from the front airbags as possible.
See page 134 for how to adjust the front seats.
Adjust the driver's seat-back to a comfortable, upright position, leaving ample space between your chest and the airbag cover in the center of the steering wheel. Passengers with adjustable seat- backs should also adjust their seat- back to a comfortable, upright position.
14
Reclining the seat-back too far can result in serious injury or death in a crash.
Adjust the seat-back to an upright position, and sit well back in the seat.
Reclining a seat-back so that the shoulder part of the belt no longer rests against the occupant's chest reduces the protective capability of the belt. It also increases the chance of sliding under the belt in a crash and being seriously injured. The farther a seat-back is reclined, the greater the risk of injury. See page 134 for how to adjust the seat-backs.
2010 RDX09/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
4. Adjust the Head Restraints
Improperly positioning head restraints reduces their effectiveness and you can be seriously injured in a crash.
Make sure head restraints are in place and positioned properly before driving.
Properly adjusted head restraints will help protect occupants from whiplash and other crash injuries. See page 135 for how to adjust the head restraints and how the driver's and front passenger's active head restraints work.
Adjust the driver's head restraint so the center of the back of your head rests against the center of the restraint. Have passengers adjust their head restraints properly as well. Taller persons should adjust their restraint as high as possible.
Protecting Adults and Teens
5. Fasten and Position the Seat
Belts
Insert the latch plate into the buckle, then tug on the belt to make sure the belt is securely latched. Check that the belt is not twisted, because a twisted belt can cause serious injuries in a crash.
CONTINUED
15
2010 RDX09/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
Protecting Adults and Teens
This spreads the forces of a crash over the strongest bones in your upper body.
Improperly positioning the seat belts can cause serious injury or death in a crash.
Make sure all seat belts are properly positioned before driving.
If the seat belt touches or crosses your neck, or if it crosses your arm instead of your shoulder, you need to adjust the seat belt anchor height.
RELEASE BUTTON
The front seats have adjustable seat belt anchors. To adjust the height of an anchor, press and hold the release button and slide the anchor up or down as needed (it has four positions).
Position the lap part of the belt as low as possible across your hips, then pull up on the shoulder part of the belt so the lap part fits snugly. This lets your strong pelvic bones take the force of a crash and reduces the chance of internal injuries. If necessary, pull up on the belt again to remove any slack, then check that the belt rests across the center of your chest and over your shoulder.
16
2010 RDX09/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
Neverplacetheshoulderportionofa lap/shoulderbeltunderyourarmor behindyourback.This could cause very serious injuries in a crash. If a seat belt does not seem to work properly, it may not protect the occupant in a crash. Nooneshouldsitinaseatwithan inoperativeseatbelt.Using a seat belt that is not working properly can result in serious injury or death. Have your dealer check the belt as soon as possible. See page 20 for additional information about your seat belts and how to take care of them.
6. Maintain a Proper Sitting
Position
After all occupants have adjusted their seats and head restraints, and put on their seat belts, it is very important that they continue to sit upright, well back in their seats, with their feet on the floor, until the vehicle is parked and the engine is off. Sitting improperly can increase the chance of injury during a crash. For example, if an occupant slouches, lies down, turns sideways, sits forward, leans forward or sideways, or puts one or both feet up, the chance of injury during a crash is greatly increased.
Protecting Adults and Teens
In addition, an occupant who is out of position in the front seat can be seriously or fatally injured in a crash by striking interior parts of the vehicle or being struck by an inflating front airbag.
Sitting improperly or out of position can result in serious injury or death in a crash.
Always sit upright, well back in the seat, with your feet on the floor.
17
2010 RDX09/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
When driving, remember to sit upright and adjust the seat as far back as possible while allowing full control of the vehicle. When riding as a front passenger, adjust the seat as far back as possible.
This will reduce the risk of injuries to both you and your unborn child that can be caused by a crash or an inflating front airbag. Each time you have a checkup, ask your doctor if it's okay for you to drive.
Protecting Adults and Teens
Advice for Pregnant Women
If you are pregnant, the best way to protect yourself and your unborn child when driving or riding in a vehicle is to always wear a seat belt, and keep the lap part of the belt as low as possible across the hips.
18
2010 RDX09/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
Additional Safety Precautions ● Neverletpassengersrideinthe cargoareaorontopofafolded- downbackseat.If they do, they could be very seriously injured in a crash.
● Passengersshouldnotstandupor
changeseatswhilethevehicleis moving.A passenger who is not wearing a seat belt during a crash or emergency stop can be thrown against the inside of the vehicle, against other occupants, or out of the vehicle.
● Twopeopleshouldneverusethe
sameseatbelt.If they do, they could be very seriously injured in a crash.
● Donotputanyaccessoriesonseat belts.Devices intended to improve occupant comfort or reposition the shoulder part of a seat belt can reduce the protective capability of the belt and increase the chance of serious injury in a crash.
● Donotplacehardorsharpobjects
betweenyourselfandafront airbag.Carrying hard or sharp objects on your lap, or driving with a pipe or other sharp object in your mouth, can result in injuries if your front airbag inflates.
● Keepyourhandsandarmsaway
fromtheairbagcovers.If your hands or arms are close to an airbag cover, they could be injured if the airbag inflates.
Protecting Adults and Teens
● Donotattachorplaceobjectson thefrontairbagcovers.Objects on the covers marked ‘‘SRS AIRBAG’’ could interfere with the proper operation of the airbags or be propelled inside the vehicle and hurt someone if the airbags inflate.
● Donotattachhardobjectsonor nearadoor.If a side airbag or a side curtain airbag inflates, a cup holder or other hard object attached on or near the door could be propelled inside the vehicle and hurt someone.
● Donotcoverorreplacefront
seat-backcoverswithout consultingyourdealer. Improperly replacing or covering front seat-back covers can prevent your side airbags from inflating during a side impact.
19
2010 RDX09/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
Additional Information About Your Seat Belts
Seat Belt System Components Your seat belt system includes lap/ shoulder belts in all seating positions. The front seat belts are also equipped with automatic seat belt tensioners. This system uses the same sensors as the front airbags to monitor whether the front seat belts are latched or unlatched, and how much weight is on the front passenger's seat (see pages 28 and 29).
The seat belt system includes an indicator on the
instrument panel and a beeper to remind you and your passengers to fasten your seat belts. This system monitors the front seat belts. If you turn the ignition switch to the ON (II) position before your seat belt is fastened, the beeper will sound and the indicator will flash. If your seat belt is not fastened before the beeper stops, the indicator will stop flashing but remain on. If a front passenger does not fasten their seat belt, the indicator will come on about 6 seconds after the ignition switch is turned to the ON (II) position.
If either the driver or a front passenger does not fasten their seat belt while driving, the beeper will sound and the indicator will flash again at regular intervals. In addition to the seat belt reminder indicator in the instrument panel, you will also see a ‘‘FASTEN SEAT BELT’’ or ‘‘FASTEN PASSENGER SEAT BELT’’ message. This remains displayed if you ignore it and do not fasten the seat belt while driving. When no one is sitting in the front passenger's seat, or a child or small adult is riding there, the indicator should not come on and the beeper should not sound.
20
2010 RDX09/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
Additional Information About Your Seat Belts
If the indicator comes on or the beeper sounds when the driver's seat belt is latched and there is no front seat passenger and no items on the front seat, something may be interfering with the monitoring system. Look for and remove: ● Any items under the front
passenger's seat.
● Any object(s) hanging on the seat
or in the seat-back pocket.
● Any object(s) touching the rear of
the seat-back.
If no obstructions are found, have your vehicle checked by a dealer.
Lap/Shoulder Belt The lap/shoulder belt goes over your shoulder, across your chest, and across your hips. To fasten the belt, insert the latch plate into the buckle, then tug on the belt to make sure the buckle is latched (see page 15 for how to properly position the belt). To unlock the belt, press the red PRESS button on the buckle. Guide the belt across your body so that it retracts completely. After exiting the vehicle, be sure the belt is out of the way and will not get closed in the door.
All seat belts have an emergency locking retractor. In normal driving, the retractor lets you move freely in your seat while it keeps some tension on the belt. During a collision or sudden stop, the retractor automatically locks the belt to help restrain your body. The seat belts in all positions except the driver's have a lockable retractor that must be activated to secure a child seat (see page 50).
CONTINUED
21
2010 RDX09/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
Additional Information About Your Seat Belts
Automatic Seat Belt Tensioners
If the shoulder part of the belt is pulled all the way out, the lockable retractor will activate. The belt will retract, but it will not allow the passenger to move freely. To deactivate the lockable retractor, unlatch the buckle and let the seat belt fully retract. To refasten the seat belt, pull it out only as far as needed.
For added protection, the front seat belts are equipped with automatic seat belt tensioners. When activated, the tensioners immediately tighten the belts to help hold the driver and a front passenger in position.
The tensioners are designed to activate in any collision severe enough to cause the front airbags to deploy, or if a sensor detects your vehicle is about to roll over (see page 31). If a side curtain airbag deploys during a side impact, the tensioner on that side of the vehicle will also deploy. The tensioners can also be activated during a collision in which the front airbags donotdeploy.In this case, the airbags would not be needed, but the extra tension in the seat belt could be helpful. When the tensioners are activated, the seat belts will remain tight until they are unbuckled.
22
2010 RDX09/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
Additional Information About Your Seat Belts
If a seat belt is worn during a crash, it must be replaced by your dealer. A belt that has been worn during a crash may not provide the same level of protection in a subsequent crash. The dealer should also inspect the anchors for damage and replace them if needed. If the automatic seat belt tensioners activate during a crash, they must be replaced.
Not checking or maintaining seat belts can result in serious injury or death if the seat belts do not work properly when needed.
Check your seat belts regularly and have any problem corrected as soon as possible.
Seat Belt Maintenance For safety, you should check the condition of your seat belts regularly. Pull each belt out fully, and look for frays, cuts, burns, and wear. Check that the latches work smoothly and the belts retract easily. If a belt does not retract easily, cleaning the belt may correct the problem (see page 438). Any belt that is not in good condition or working properly will not provide good protection and should be replaced as soon as possible. Acura provides a limited warranty on seat belts. See your AcuraWarranty Informationbooklet for details.
23
2010 RDX09/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
Additional Information About Your Airbags
Airbag System Components
(10)
(9)
(2)
(14)
(12)
(13)
(6) (5)
(9)
(3)
(1)
(1) Driver's Front Airbag (2) Passenger's Front Airbag (3) Control Unit (4) Front Seat Belt Tensioners (5) Side Airbags (6) Side Curtain Airbags (7) Driver's Seat Position Sensor (8) Front Passenger's Weight Sensors (9) Front Impact Sensors (10) Passenger Airbag Off Indicator (11) (11) Side Impact Sensors (First) (12) Occupant Position Detection System (OPDS) Sensors (13) Front Passenger's Weight Sensors/OPDS Sensors Control Unit (14) Supplemental Restraint System (SRS) Indicator (15) Rollover Sensor (16) Side Impact Sensors (Second) (17) Seat Belt Buckle Tensioners
(7)
(6)
24
(4)
(17)
(8)
(5)
(16)
(15)
(11)
(4)
(16)
2010 RDX09/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
Additional Information About Your Airbags
Your airbag system includes: ● Two SRS (supplemental restraint
system) front airbags. The driver's airbag is stored in the center of the steering wheel; the front passenger's airbag is stored in the dashboard. Both are marked ‘‘SRS AIRBAG’’ (see page 26).
● Two side airbags, one for the
driver and one for a front passenger. The airbags are stored in the outer edges of the seat- backs. Both are marked ‘‘SIDE AIRBAG’’ (see page 30).
● Two side curtain airbags, one for
each side of the vehicle. The airbags are stored in the ceiling, above the side windows. The front and rear pillars are marked ‘‘SIDE CURTAIN AIRBAG’’ (see page 31).
● Automatic front seat belt tensioners (see page 22).
● Sensors that can detect a moderate to severe front impact, side impact, or rollover.
● Sensors that can detect whether a
child is in the passenger's side airbag path and signal the control unit to turn the airbag off (see page 30).
● Sensors that can detect whether
the driver's seat belt and the front passenger's seat belt are latched or unlatched (see page 20).
● A driver's seat position sensor that
monitors the distance of the seat from the front airbag. If the seat is too far forward, the airbag will inflate with less force (see page 28).
● Weight sensors that monitor the weight on the front passenger's seat. If the weight is about 65 lbs (29 kg) or less (the weight of an infant or small child), the passenger's front airbag will be turned off (see page 28).
● A rollover sensor that can detect if
your vehicle is about to roll over and signal the control unit to deploy both side curtain airbags and front seat belt tensioners (see page 31).
● A sophisticated electronic system
that continually monitors and records information about the sensors, the control unit, the airbag activators, the seat belt tensioners, and driver and front passenger seat belt use when the ignition switch is in the ON (II) position.
CONTINUED
25
2010 RDX09/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
Additional Information About Your Airbags
How Your Front Airbags Work
If you ever have a moderate to severe frontal collision, sensors will detect the vehicle's rapid deceleration. If the rate of deceleration is high enough, the control unit will inflate the driver's and front passenger's airbags, at the time and with the force needed.
During a frontal crash, your seat belt restrains your lower body and torso, and the front airbag helps protect your head and chest. Although both airbags normally inflate within a split second of each other, it is possible for only one airbag to deploy. This can happen if the severity of a collision is at the margin, or threshold, that determines whether or not the airbags will deploy. In such cases, the seat belt will provide sufficient protection, and the supplemental protection offered by the airbag would be minimal. Only the driver's airbag will deploy if there is no passenger in the front seat, or if the advanced airbag system has turned the passenger's airbag off (see page 33).
● An indicator on the instrument
panel that alerts you to a possible problem with your airbags, sensors, or seat belt tensioners (see page 32).
● An indicator on the instrument
panel that alerts you that the passenger's side airbag has been turned off (see page 32).
● An indicator on the dashboard that
alerts you that the passenger's front airbag has been turned off (see page 33).
● Emergency backup power in case your vehicle's electrical system is disconnected in a crash.
26
2010 RDX09/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
Additional Information About Your Airbags
The total time for inflation and deflation is one-tenth of a second, so fast that most occupants are not aware that the airbags deployed until they see them lying in their laps. After a crash, you may see what looks like smoke. This is actually powder from the airbag's surface. Although the powder is not harmful, people with respiratory problems may experience some temporary discomfort. If this occurs, get out of the vehicle as soon as it is safe to do so.
Dual-StageAirbags Your front airbags are dual-stage airbags. This means they have two inflation stages that can be ignited sequentially or simultaneously, depending on crash severity. In a moreseverecrash, both stages will ignite simultaneously to provide the quickest and greatest protection. In a lessseverecrash, one stage will ignite first, then the second stage will ignite a split second later. This provides longer airbag inflation time with a little less force.
After inflating, the front airbags immediately deflate, so they won't interfere with the driver's visibility, or the ability to steer or operate other controls.
CONTINUED
27
2010 RDX09/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
Additional Information About Your Airbags
AdvancedAirbags Your front airbags are also advanced airbags. The main purpose of this feature is to help prevent airbag- caused injuries to children or small statured adults who ride in front. For both advanced airbags to work properly: ● Occupants must sit upright and
wear their seat belts properly. ● Do not spill any liquids on or
under the seats, cover the sensors, or put any cargo or metal objects under the front seats.
Failure to follow these instructions could damage the sensors or prevent them from working properly.
Dual-ThresholdAirbags Your front airbags are also dual- threshold airbags. Airbags with this feature have two deployment thresholds that depend on whether sensors detect the occupant is wearing a seat belt or not. If the occupant's belt is notlatched, the airbag will deploy at a slightly lower threshold, because the occupant would need extra protection. If the occupant's belt is latched,the airbag will inflate at a slightly higher threshold, when the airbag would be needed to supplement the protection provided by the seat belt.
28
DRIVER'S SEAT POSITION SENSOR
The driver's advanced front airbag system includes a seat position sensor under the seat. If the seat is too far forward, the airbag will inflate with less force, regardless of the severity of the impact. If there is a problem with the sensor, the SRS indicator will come on, and the airbag will inflate in the normal manner regardless of the driver's seating position.
2010 RDX09/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
Additional Information About Your Airbags
When the passenger airbag gets turned off by the weight sensors, a ‘‘passenger airbag off’’ indicator in the center of the dashboard comes on (see page 33). If the weight sensors detect there is no passenger in the front seat, the airbag is automatically turned off. However, the passenger airbag off indicator in this situation will not come on. To ensure that the passenger's advanced front airbag system will work properly, donotdoanything thatwouldincreaseordecreasethe weightonthefrontpassenger'sseat. This includes: ● A rear passenger pushing or
pulling on the back of the front passenger's seat.
● Moving the front seat forcibly back
against cargo on the seat or floor behind it.
● Hanging heavy items on the front passenger seat, or placing heavy items in the seat-back pocket.
● Moving the front seat or seat-back
forcibly back against the folded rear seat.
● Back seat passengers should not
wedge objects or intentionally force their feet under the front passenger seat. Also, make sure the floor mat behind the front passenger's seat is properly positioned on the floor (see page 438). If it is not, the mat may interfere with the proper operation of the front passenger's seat and its sensors.
29
PASSENGER'S SEAT WEIGHT SENSORS
The passenger's advanced front
airbag system has weight sensors
under the seat. Although Acura does
not encourage carrying an infant or
small child in front, if the sensors
detect the weight of an infant or
small child (up to about 65 lbs or 29
kg), the system will automatically
turn the passenger's front airbag off.
Be aware that objects placed on the
passenger's seat can also cause the
airbag to be turned off.
2010 RDX09/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
Additional Information About Your Airbags
How Your Side Airbags Work
Only one airbag will deploy during a side impact. If the impact is on the passenger's side, the passenger's side airbag will deploy even if there is no passenger. To get the best protection from the side airbags, front seat occupants should wear their seat belts and sit upright and well back in their seats.
If you ever have a moderate to severe side impact, sensors will detect rapid acceleration and signal the control unit to instantly inflate either the driver's or the passenger's side airbag.
30
SideAirbagCutoffSystem Your vehicle has a side airbag cutoff system designed primarily to protect a child riding in the front passenger's seat. Although Acura does not encourage children to ride in front, if the position sensors detect a child has leaned into the side airbag's deployment path, the airbag will shut off. The side airbag may also shut off if a short adult leans sideways, or a larger adult slouches and leans sideways into the airbag's deployment path. Objects placed on the front passenger seat can also cause the side airbag to be shut off.
2010 RDX09/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
Additional Information About Your Airbags
If the side airbag off indicator comes on (see page 32), have the passenger sit upright. Once the passenger is out of the airbag's deployment path, the system will turn the airbag back on, and the indicator will go out. There will be some delay between the moment the passenger moves into or out of the airbag deployment path and when the indicator comes on or goes off. A front seat passenger should not use a cushion or other object as a backrest. It may prevent the cutoff system from working properly.
How Your Side Curtain Airbags Work
SIDE CURTAIN AIRBAG
InaSideImpact In a moderate to severe side impact, sensors will detect rapid acceleration and signal the control unit to instantly inflate the side curtain airbag and activate the seat belt tensioner on the driver's or the passenger's side of the vehicle.
If the impact is on the passenger's side, the passenger's side curtain airbag will inflate even if there are no occupants on that side of the vehicle. InaRollover If the rollover sensor detects your vehicle is about to roll over, it signals the control unit, which immediately deploys both side curtain airbags and activates both front seat belt tensioners. The airbag on the passenger's side will deploy, and the seat belt tensioner will activate, even if there are no passengers on that side of the vehicle. To get the best protection from the side curtain airbags, occupants should wear their seat belts and sit upright and well back in their seats.
31
2010 RDX09/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
Additional Information About Your Airbags
How the SRS Indicator Works The SRS indicator alerts you to a potential problem
with your airbags or seat belt tensioners. When you turn the ignition switch to the ON (II) position, this indicator comes on for several seconds then goes off. This tells you the system is working properly. If the indicator comes on at any other time, or does not come on at all, you should have the system checked by your dealer. For example: ● If the SRS indicator does not come
on after you turn the ignition switch to the ON (II) position.
● If the indicator stays on after the
engine starts.
● If the indicator comes on or flashes
on and off while you drive.
32
You will also see a ‘‘CHECK AIRBAG SYSTEM’’ message on the multi- information display (see page 80). If you see any of these indications, the airbags and seat belt tensioners may not work properly when you need them.
Ignoring the SRS indicator can result in serious injury or death if the airbag systems or tensioners do not work properly.
Have your vehicle checked by a dealer as soon as possible if the SRS indicator alerts you to a possible problem.
How the Side Airbag Off Indicator Works U.S.
Canada
This indicator alerts you that the passenger's side airbag has been automatically shut off. It does not mean there is a problem with your side airbags. When you turn the ignition switch to the ON (II) position, the indicator should come on for several seconds and then go off (see page 66). If it doesn't come on, stays on, or comes on while driving without a passenger in the front seat, have the system checked. You will also see a ‘‘PASSENGER SIDE AIRBAG OFF’’ message on the multi-information display (see page 80).
2010 RDX09/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
Additional Information About Your Airbags
Be aware that objects placed on the front seat can cause the indicator to come on. If no weight is detected on the front seat, the airbag will be automatically shut off. However, the indicator will not come on. The passenger airbag off indicator may come on and off repeatedly if the total weight on the seat is near the airbag cutoff threshold. If an adult or teenage passenger is riding in front, move the seat as far to the rear as possible, and have the passenger sit upright and wear the seat belt properly.
If the indicator comes on with no front seat passenger and no objects on the seat, or with an adult riding there, something may be interfering with the weight sensors. Look for and remove: ● Any items under the front
passenger's seat.
● Any object(s) hanging on the seat
or in the seat-back pocket.
● Any object(s), such as a folded-
down back seat, that are touching the rear of the seat-back.
If no obstructions are found, have your vehicle checked by a dealer as soon as possible.
How the Passenger Airbag Off Indicator Works
PASSENGER AIRBAG OFF INDICATOR
U.S.
Canada
This indicator alerts you that the passenger's front airbag has been shut off because weight sensors detect about 65 lbs (29 kg) or less (the weight of an infant or small child) on the front passenger's seat. It does notmeanthere is a problem with the airbag.
33
2010 RDX09/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
Additional Information About Your Airbags
● TheSRSindicatoralertsyoutoa problem.Take your vehicle to an authorized dealer as soon as possible. If you ignore this indication, your airbags may not operate properly.
● Ifyourvehiclehasamoderateto
severeimpact.Even if your airbags do not inflate, your dealer should inspect the driver's seat position sensor, the front passenger's
